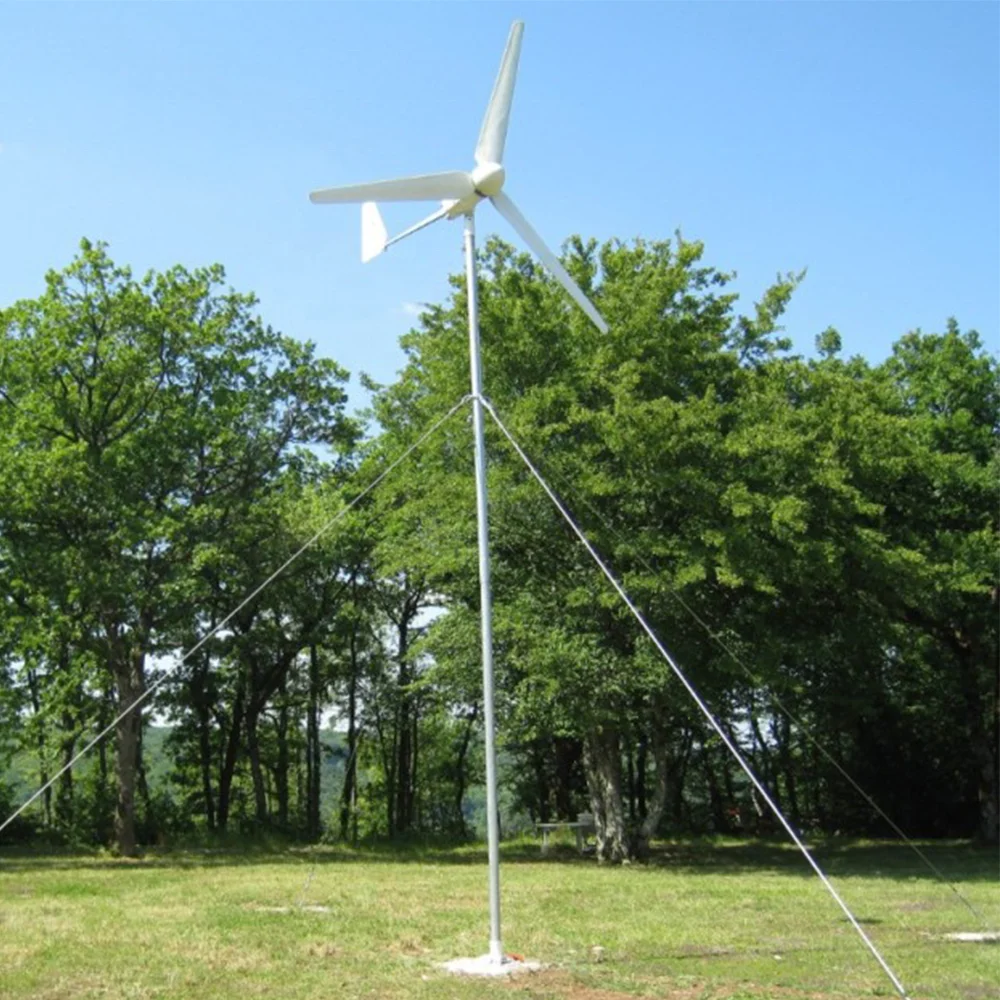

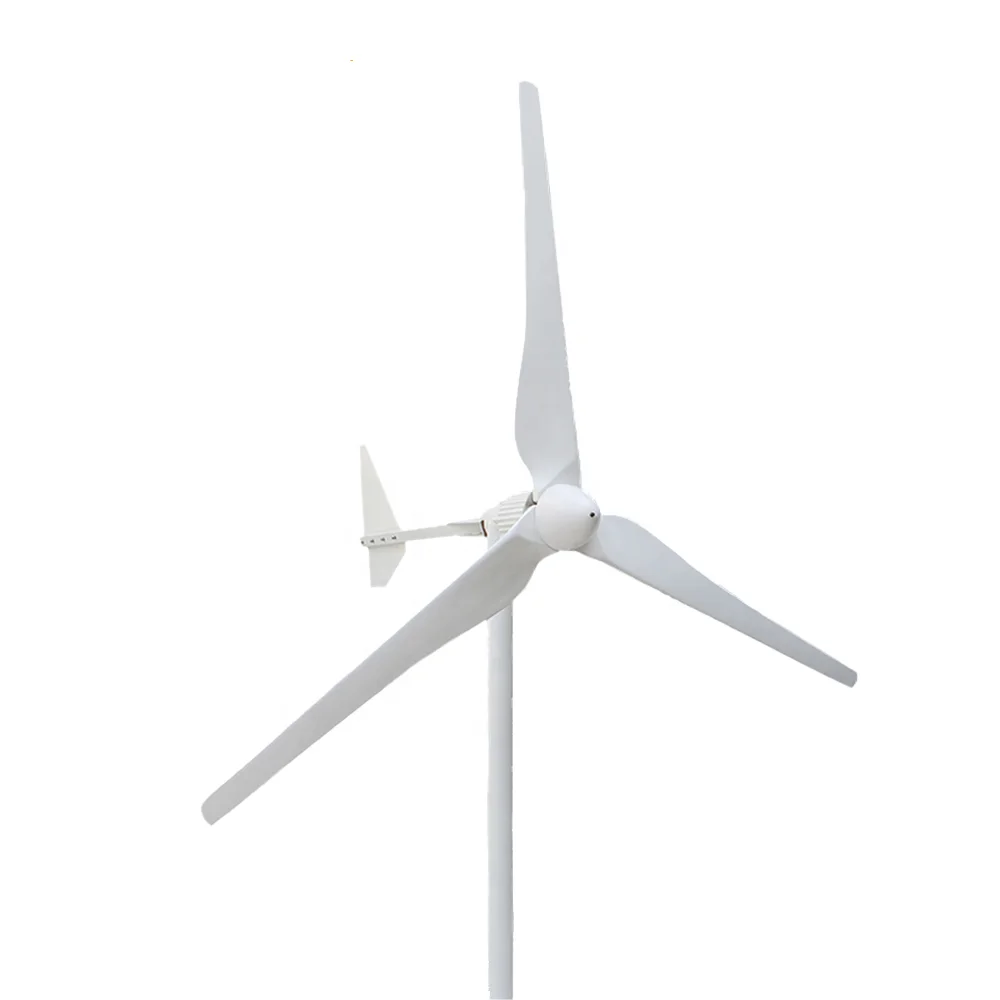

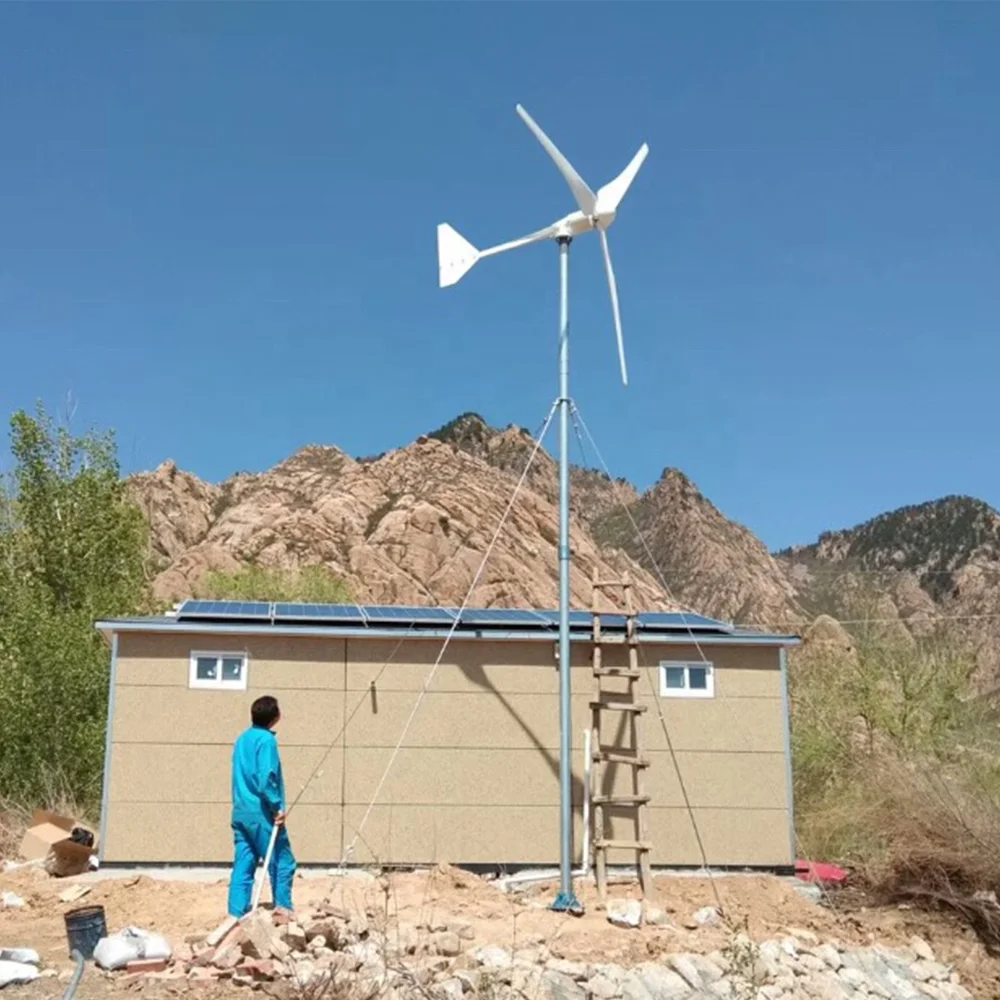

2KW 48/96V For Marine and Land Horizontal Wind Turbine 2kw System Wind Turbine Wind Turbine Generator
- Category: Alternative Energy Generators new >>>
- Supplier: Jiangsu Shenghuang New Energy Technology Co. Ltd.
Share on (1600343785293):
Product Overview
Description
Products Description
FEATURES:
1.Low start up speed ,high wind energy utilization
1.Low start up speed ,high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.

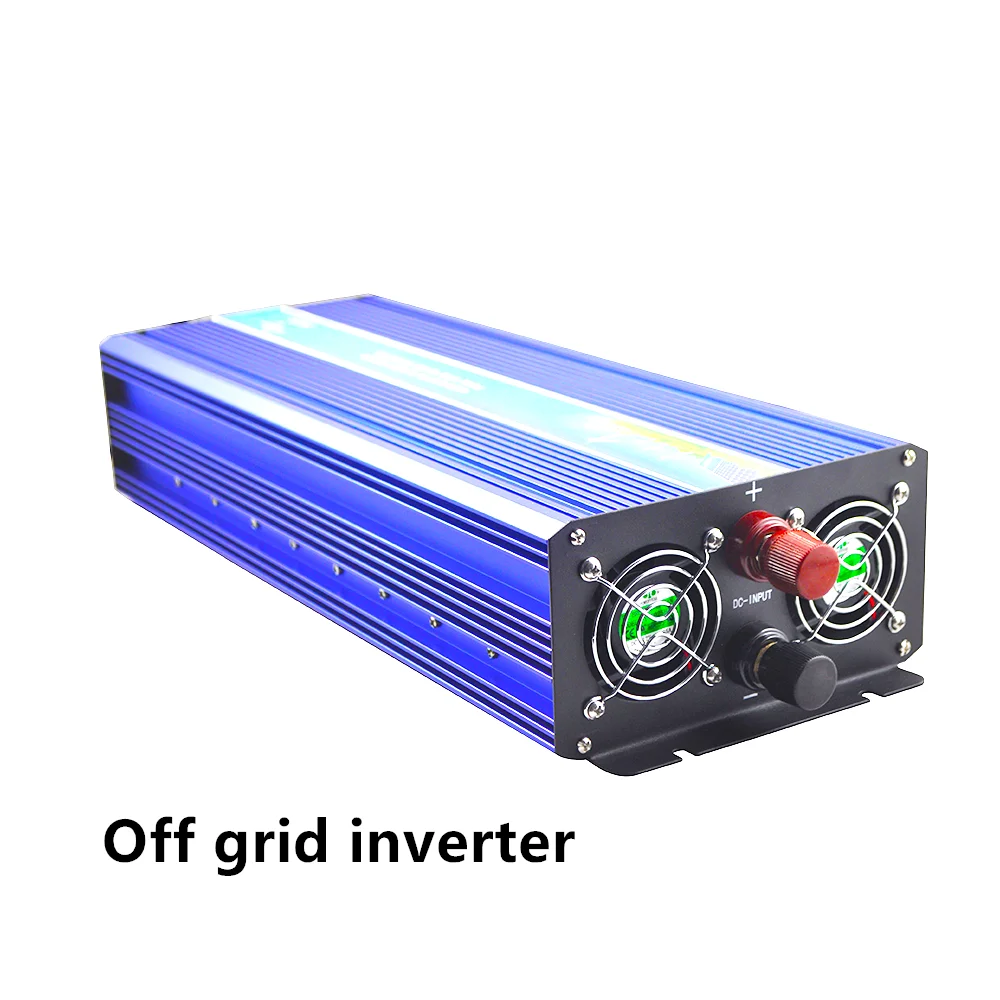

6.Controller,inverter can be matched(optional) accroding to customers' specific needs
Product Paramenters
Model | SL-1000 | SL-2000 | SL-3000 | SL-5000 | SL-10000 | ||||
Rated Power | 1000w | 2000w | 3000w | 5000w | 10000w | ||||
Maximum Power | 1200w | 2150w | 3500w | 6000w | 12000w | ||||
Rated Voltage | 24/48V | 48/96V | 48/96V | 48/96V | 96V | ||||
Start-up Wind Speed | 3.0m/s | 3.0m/s | 3.0m/s | 3.0m/s | 4.0m/s | ||||
Rated Wind Speed | 15m/s | 17m/s | 17m/s | 18m/s | 20m/s | ||||
Survival Wind Speed | 50m/s | 50m/s | 50m/s | 50m/s | 50m/s | ||||
Number Of Blades | 3 | 3 | 3 | 3 | 3 | ||||
Wind Wheel Diameter | 2.58m | 2.88m | 3.18m | 3.69m | 3.99m | ||||
Blades Material | Nylon Fiber | ||||||||
Type Of Generator | 3 Phase AC Permanent Magnet Generator | ||||||||
Magnet Steel Material | NdFeB | ||||||||
Control System | Electromagnet | ||||||||
Working Temperature | -40°C - 80°C | ||||||||
Design Life | 20 years | ||||||||

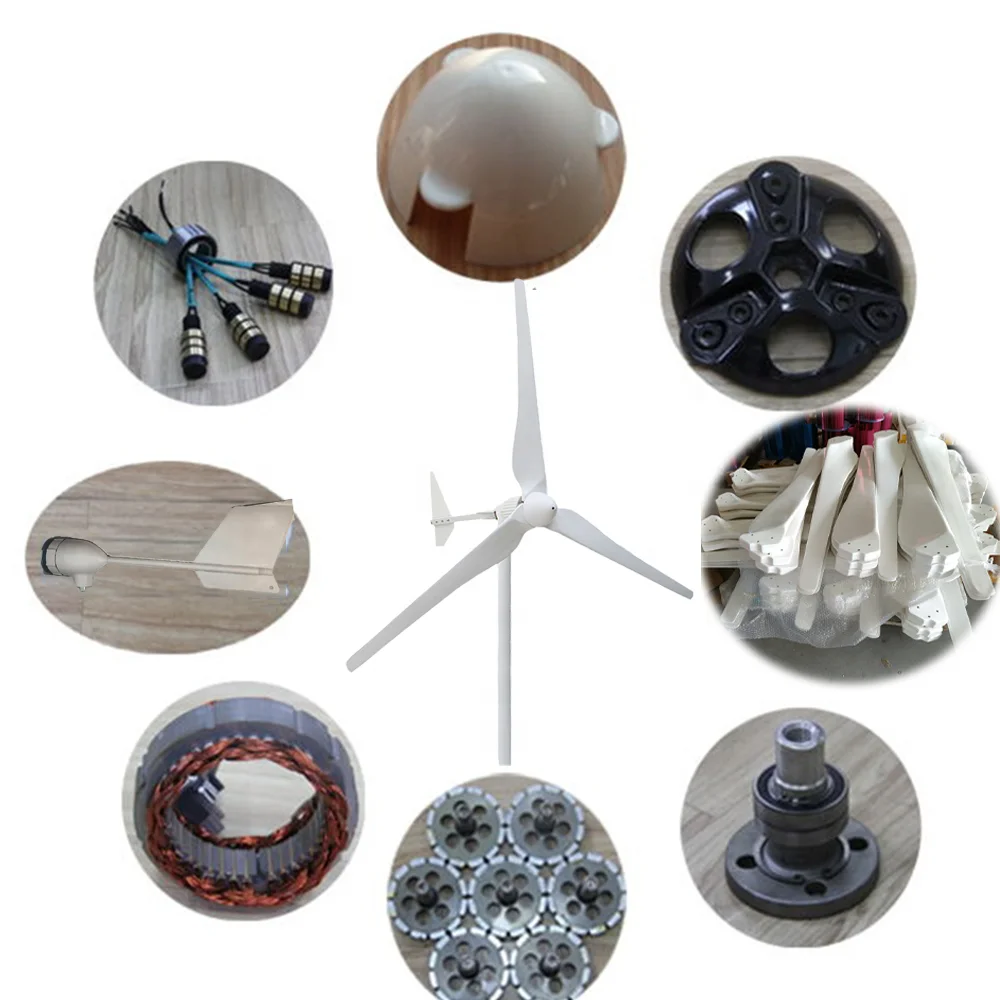

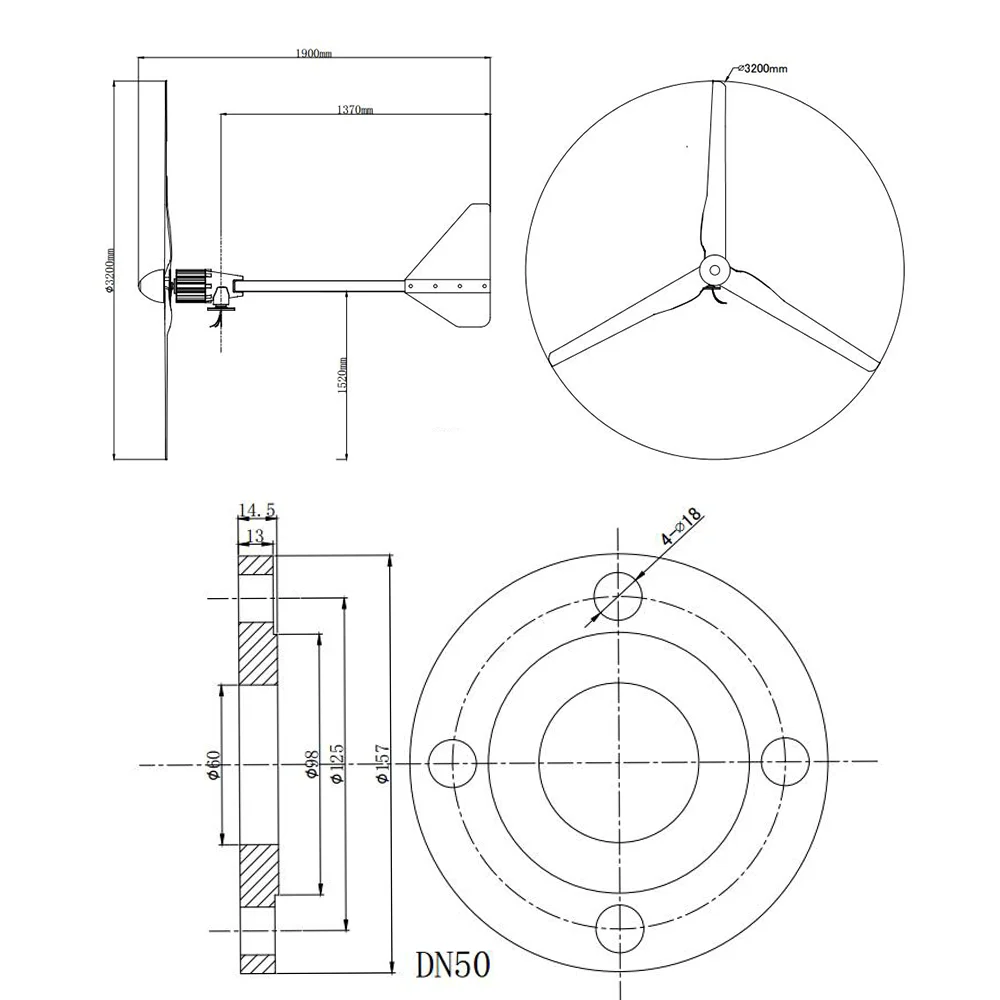

Details Images

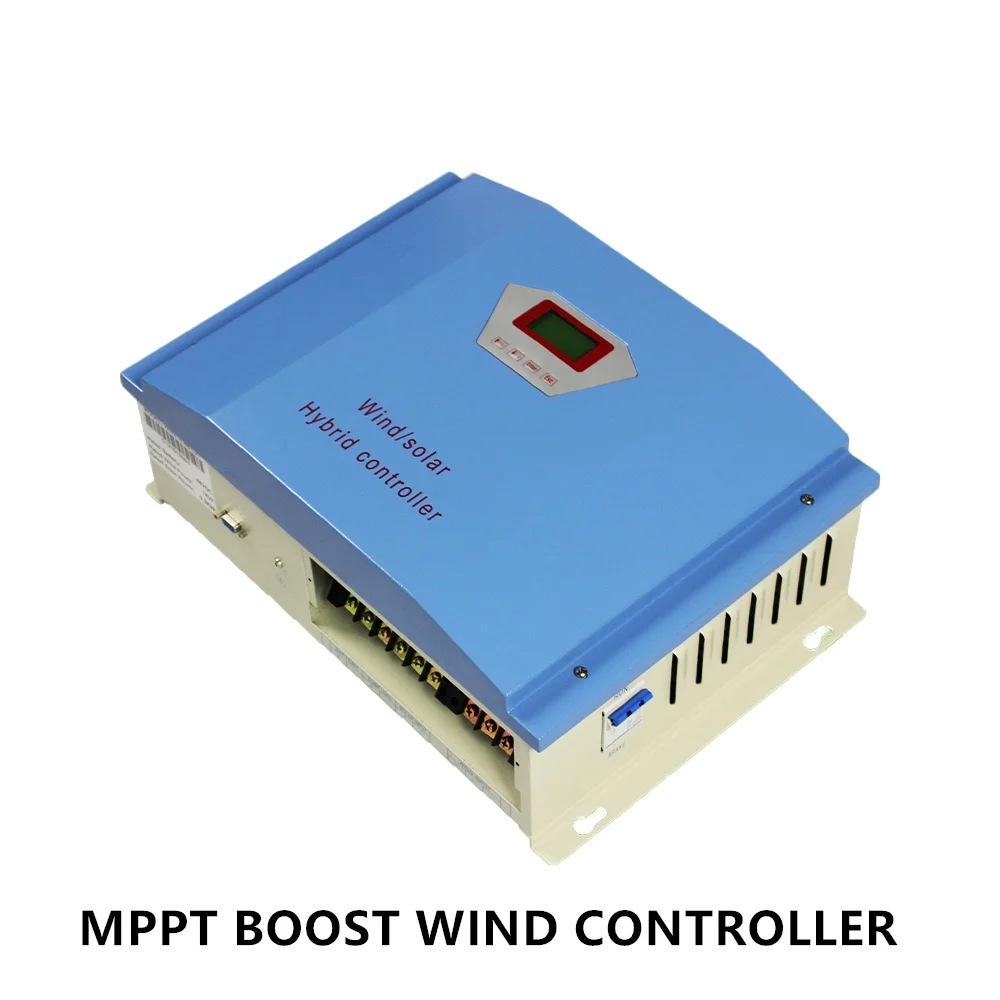

MPPT BOOST WIND CONTROLLER(optional).
MPPT BOOST WIND CONTROLLER(optional) This controller has basic control and protect functions, and provide low voltage charging function. the battery could be charged under low speed wind.
Off grid system diagram：
