High Quality Metal Bubble Tray For Rectifying Tower Internals
- Category: Chemical Machine Parts >>>
- Supplier: Jiangxi Eloong Environmental Technology Co. Ltd.
Share on (1600344136735):
Product Overview
Description
Product Overview

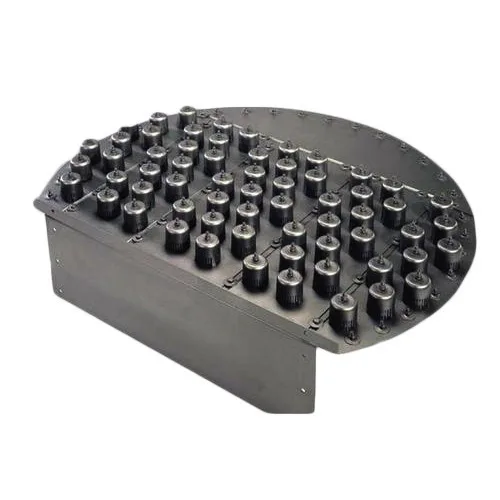

The structure of the bubble cap tray is mainly composed of a blister (gas-liquid contact element), a gas riser, an overflow weir,a
downcomer and a tray.
downcomer and a tray.
Application
(1) The gas and liquid phases are in full contact and the mass transfer area is large, so the tray efficiency is high.
(2) The operation flexibility is large, and the high efficiency can be maintained when the load variation range is large.
(3) It has high production capacity and is suitable for large-scale production.
(4) It is not easy to block, the medium adapts to a wide range, and the operation is stable and reliable
(2) The operation flexibility is large, and the high efficiency can be maintained when the load variation range is large.
(3) It has high production capacity and is suitable for large-scale production.
(4) It is not easy to block, the medium adapts to a wide range, and the operation is stable and reliable

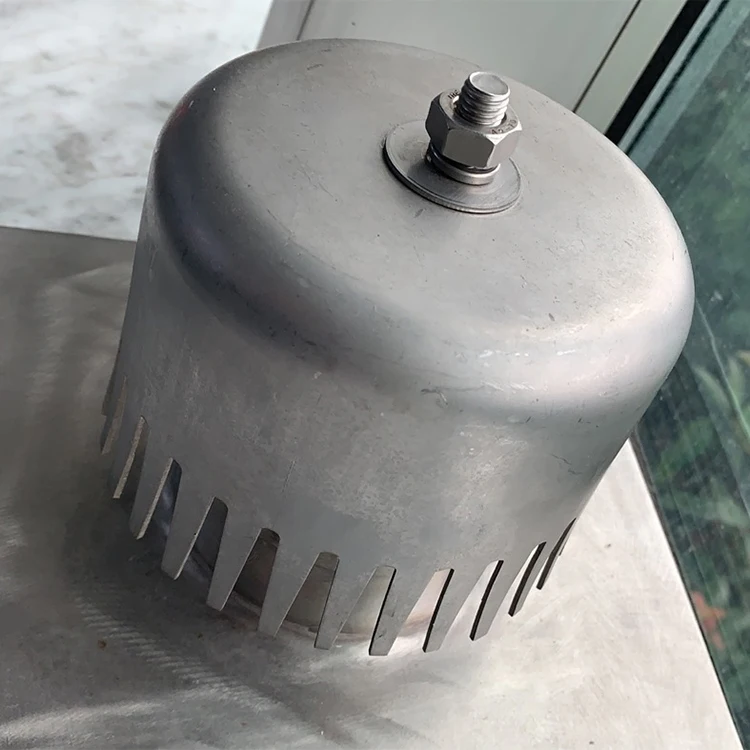

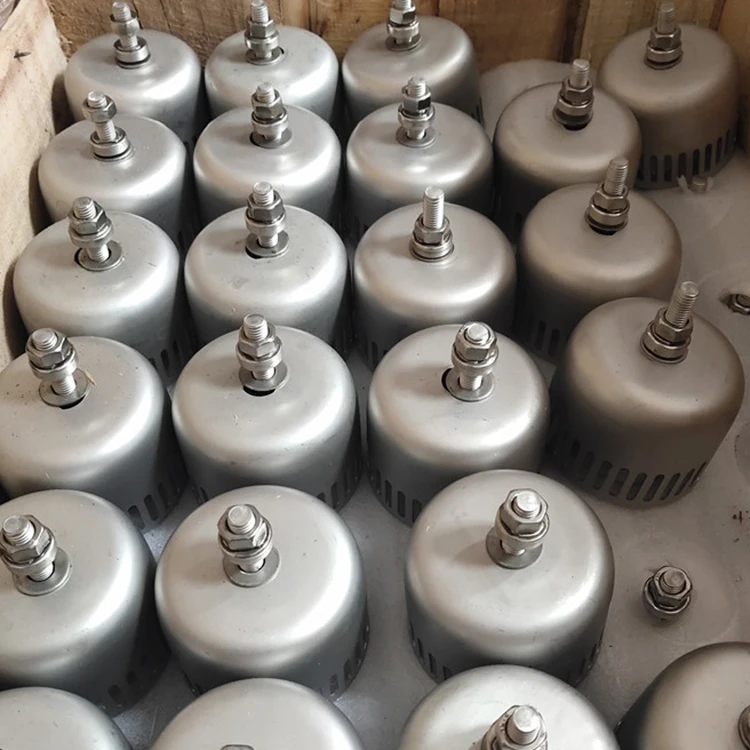

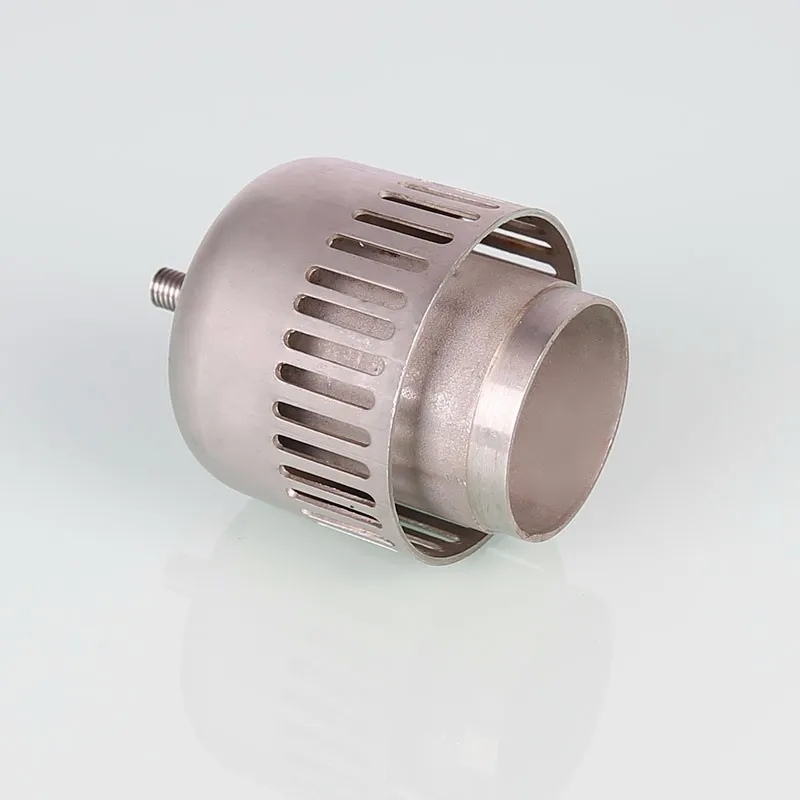

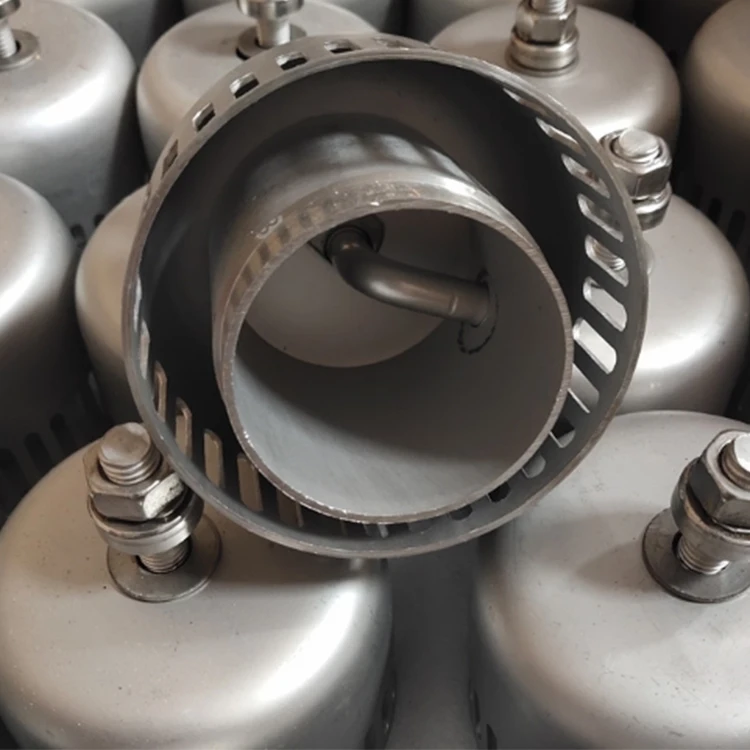

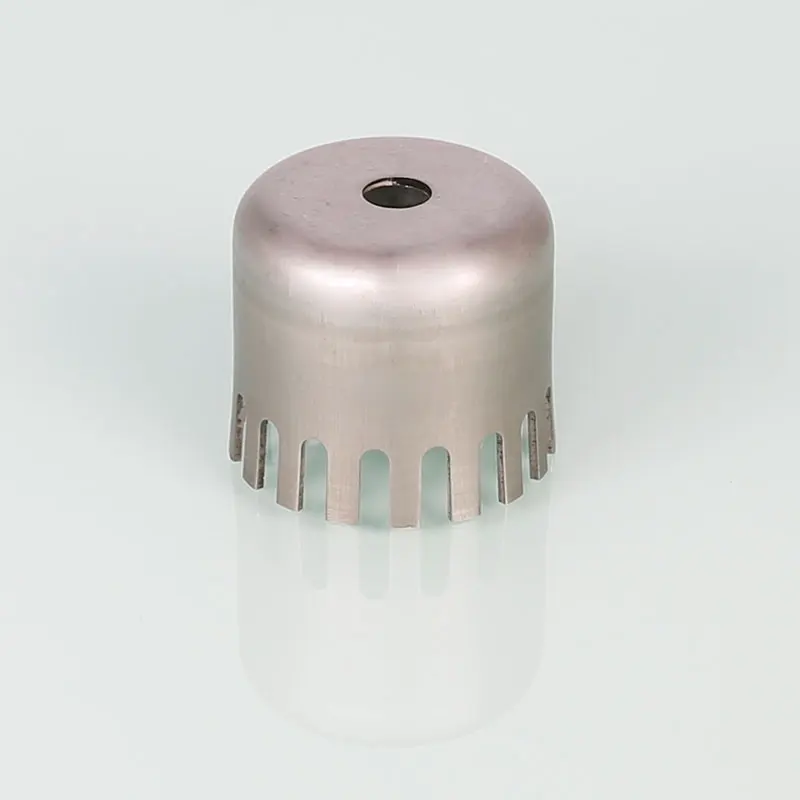

The bubble tray is provided with a plurality of round holes on the tray plate, and each hole is welded with a
short tube called a riser tube, and the tube is covered with a "hat" called a blister, and a plurality of strips are formed around
the blister. Hole,during operation, the liquid flows from the upper tray through the downcomer into the lower tray, then flow
laterally through the tray plate and flows into the next tray; the gas rises from the lower tray into the riser tube and passes
through the annular passage. The strip holes of the blister flow into the liquid layer between the blister.
short tube called a riser tube, and the tube is covered with a "hat" called a blister, and a plurality of strips are formed around
the blister. Hole,during operation, the liquid flows from the upper tray through the downcomer into the lower tray, then flow
laterally through the tray plate and flows into the next tray; the gas rises from the lower tray into the riser tube and passes
through the annular passage. The strip holes of the blister flow into the liquid layer between the blister.
Technical data | ||||||||
Size (Inch/mm) | Material | Number (per m3) | Surface area (m2/m3) | |||||
Customized | 6*6*0.3 | stainless steel, Monel, titanium, PP, PVC, PE, PTFE | 4000000 | 904 | ||||
Our workshop
Plastic Random Packing Workshop
Tower internals workshop
Precision mold workshop
Intelligent Stereoscopic warehouse
Metal Random packing Workshop
Metal structured Packing Workshop
Certifications
Customer Photos
Why Choose Us
Product packaging
SIMILAR PRODUCTS
FAQ
Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
