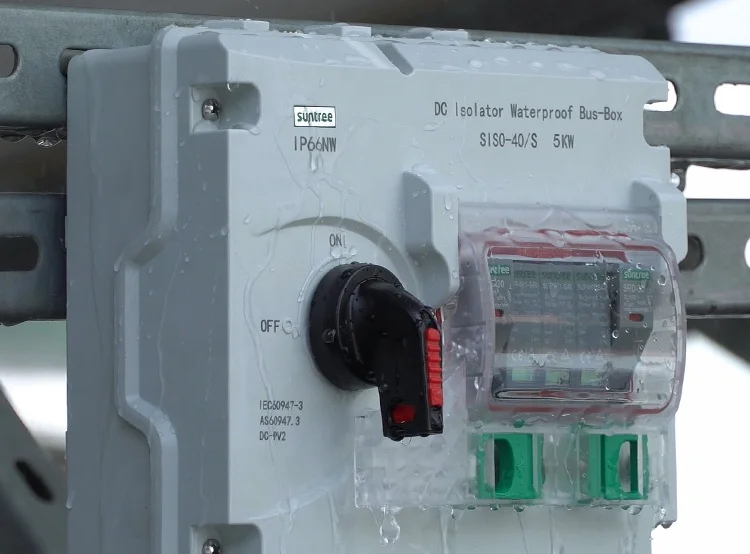

DC 1200V Plastic Electrical solar energy panel pv combiner box junction boxes with disconnect switch
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600344592467):
Product Overview
Description
SCOPE OF APPLICATION
When closed, the handle is just placed on the upper end of the transparent cover, which limits the flip of the transparent cover, and the padlock hole is designed on the handle to add a padlock, so as to ensure the personal safety of users ( Only break off the load first, and then split the switch "effectively cut off" the DC isolator,to open the transparent open cover and the components and switches in the transparent cover).Clear marks are provided at the opening and closing locations for easy operation;
When closed, the handle is just placed on the upper end of the transparent cover, which limits the flip of the transparent cover, and the padlock hole is designed on the handle to add a padlock, so as to ensure the personal safety of users ( Only break off the load first, and then split the switch "effectively cut off" the DC isolator,to open the transparent open cover and the components and switches in the transparent cover).Clear marks are provided at the opening and closing locations for easy operation;
▲Rated current:In=16A、In=25A、In=32A、In=40A ▲Overvoltage Category:III
▲IP Rating:IP66 ▲Rated short time tolerance current:icw=1.0kA(1s)
▲Waterproof box resistance strength grade:lK10 ▲Rated short circuit capacity;lcm=1.7kA
▲Rated voltage:Under Ue=DC1200V ▲Rated short circuit current:Icn=3kA
▲Rated insulation voltage:Ui=DC1500V ▲Mechanical life:10000 times
▲Rated working current:le=6A.....le=55A ▲Utilization Category:DC-PV1、DC-PV2(DC-21B)
▲Rated shock withstand voltage:Uimp=8kV
Products Description
DC Isolating Switch Waterproof Bus-box Model | SISO-40/F | SISO-40/M | SISO-40/S | SISO-40/FM | Customised | ||||
Waterproof Box Material | PC/Polvcarhonate | ||||||||
Waterproof Protection Grade | IP66 | ||||||||
Waterproof Box Resistance Strength Grade | IK10 | ||||||||
Pole/String | 5 | ||||||||
Size of Photovoltaic Cable connection | 4mm2=6mm2 | ||||||||
Match Power Generation System Capacity | 2 | ||||||||
installation | Vertcal installation | ||||||||
DC isolating Switch/DC Disconnector | |||||||||
Voltage | Ue=DC1200VUe=Dc1000V and bellow | ||||||||
Current | le=6A.....le=55A | ||||||||
Pole | 4P | ||||||||
String | 2 | 1 | 1 | 1 | 1-2 | ||||
DC Surge Arrestor | |||||||||
Voltage | Ue=DC1500V Ue=DC1200V Ue=DC1000V and bellow | ||||||||
Maximum instantaneous discharge current | In=20KA/40KA | ||||||||
Pole | 2P 3P | ||||||||
DC Circuit Breaker | |||||||||
Voltage | Ue=DC1200V Ue=DC1000V and bellow | ||||||||
Current | In=6A In=10A In=16A In=20A In=25A in=32A In=40A In=50AIn=63A | ||||||||
Pole | 1P 2P 3P 4P | ||||||||
Auxiliary Us | Us:DC12V DC24V DC48V AC230V/415V 1A-2A MX+OF | ||||||||
Dc Fuse | |||||||||
Voltage | Ue=DC1100V | ||||||||
Current | Voltage In=1A in=3A In=5A In=6A In=10A in=16A In=20A In=25A In=30A | ||||||||
Specification | 10*38mm | ||||||||

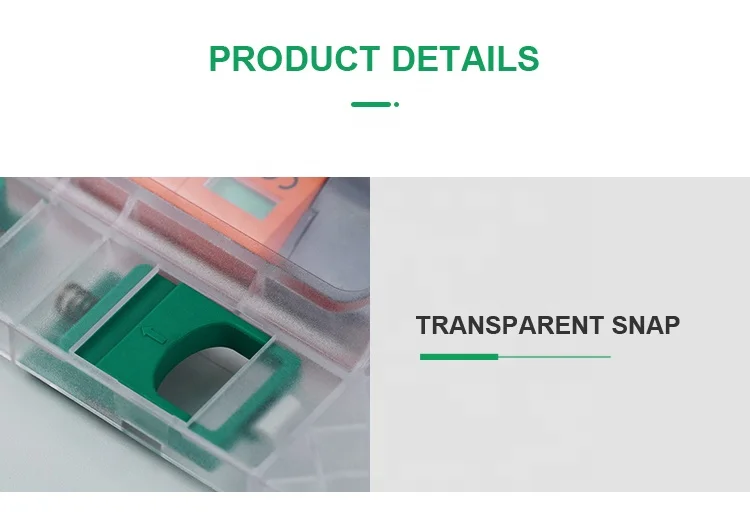

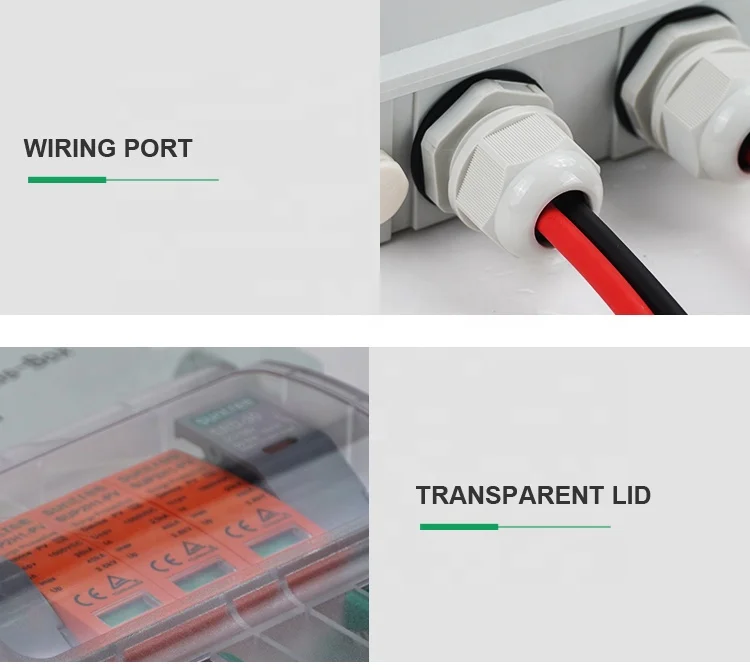

Product Details
Packing and Shipping
Company Information
FAQ
Q:Do you accept customized design ?
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:Do you have any certificate for this combiner box ?
A:Yes ,we got TUV CE approved for our box .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:Do you have any certificate for this combiner box ?
A:Yes ,we got TUV CE approved for our box .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
