Heavy Duty Hard Plastic Block Shredder Crusher Machine
- Category: Plastic Recycling Machinery >>>
- Supplier: Zhangjiagang Greenlandplast Machinery Co. Ltd.
Share on (1600345411981):
Product Overview
Description
Product Overview

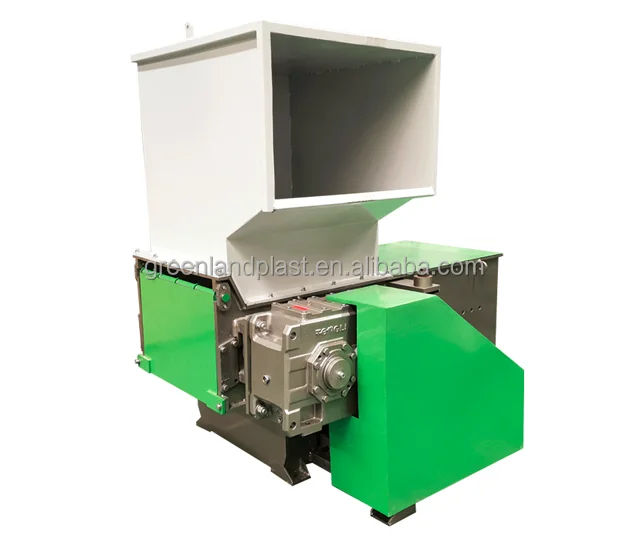

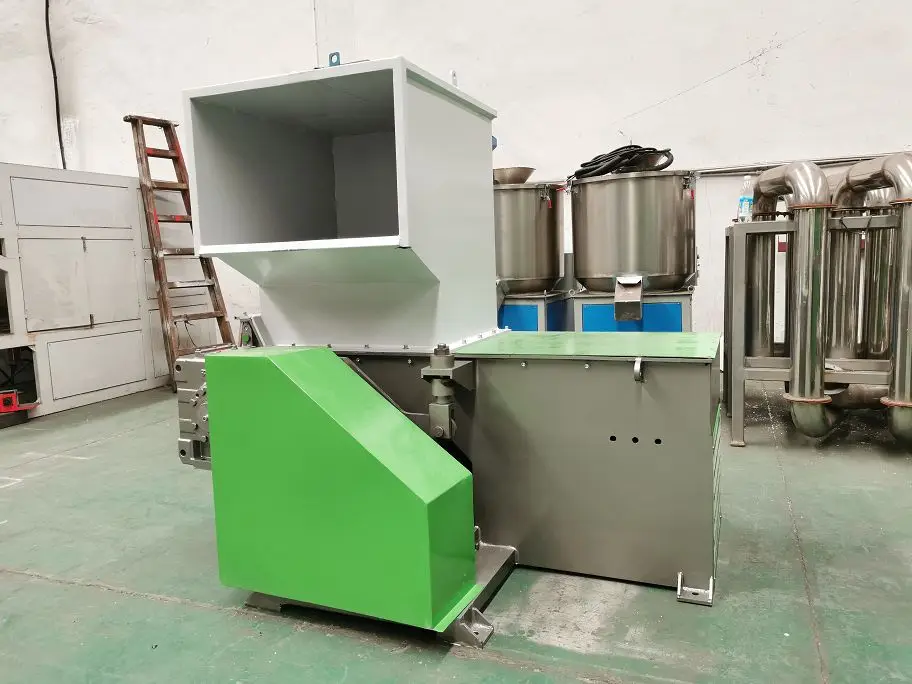

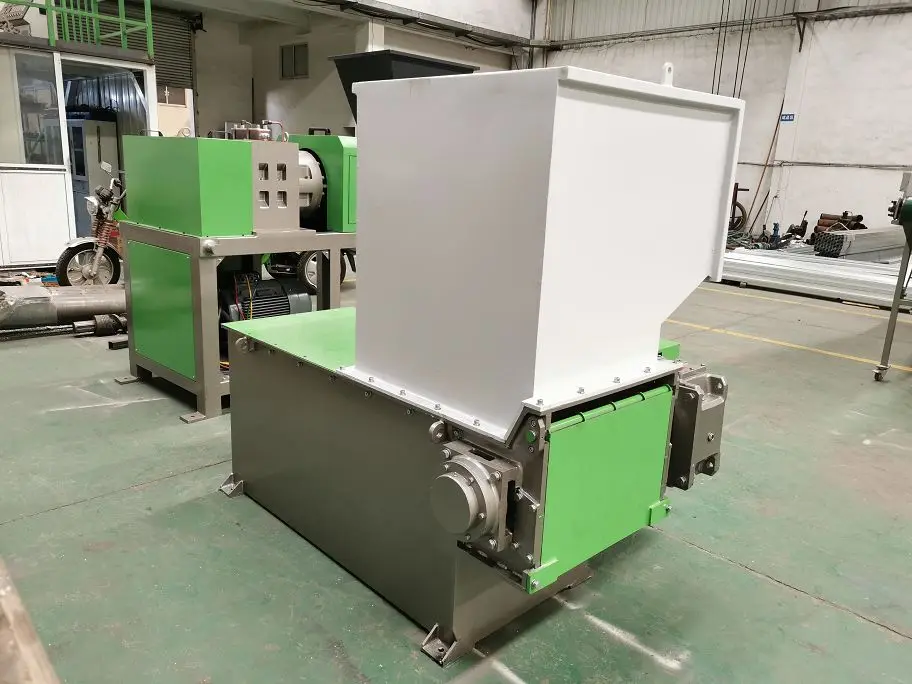

Greenlandplast Heavy Duty Hard Plastic Block Shredder Crusher Machine
This Heavy Duty Hard Plastic Block Shredder Crusher Machine is designed to process with tough ,hard and solid plastics lumps ,also such as large thick pipes, buckets, pallets,rubber, wood, etc. Working with medium speed , low noise, low power consumption. Rotary blades has 4 sides can be exchanged four times for use, which prolong using life. When push materials by hydraulic, can select speed and pressure freely according to different materials load. It is with low labor strength, safe& reliable operation.
FEATURES AT A GLANCE
Features Heavy Duty Hard Plastic Block Shredder Crusher Machine :
Compact Dimension Strong shredding shaft&blades
Safety &Simple Control
Easy Maintenance
Widely Used
High Capacity
Safety &Simple Control
Easy Maintenance
Widely Used
High Capacity

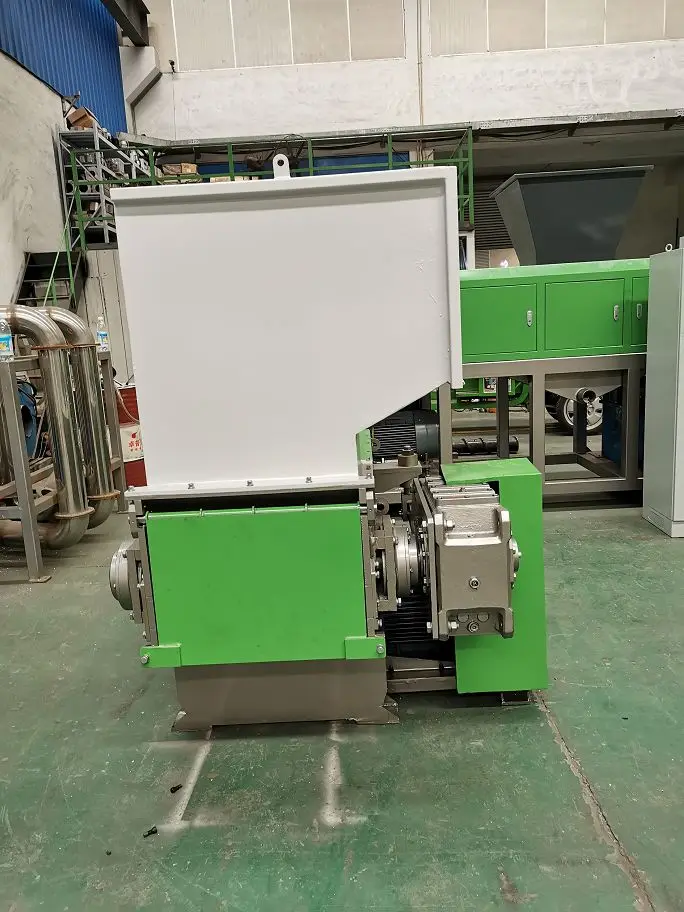

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | GLSS-600 | GLSS-800 | GLSS-1000 | GLSS-1200 | GLSS-1500 |
Main Motor Power(kw) | 22 | 37 | 45 | 55 | 75 |
Hydraulic Motor Power(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 |
Cylinder Stroke(mm) | 750 | 850 | 900 | 1000 | 1000 |
Rotor Diameter (mm) | Φ300 | Φ400 | Φ400 | Φ400 | Φ450 |
Main Shaft Speed(r/min) | 83.7 | 87.5 | 73.5 | 73.5 | 83.3 |
Screen Mesh(mm) | Φ50 | Φ50 | Φ55 | Φ55 | Φ55 |
Rotating Blades(PCS) | 26+4 | 42+4 | 54+4 | 66+4 | 84+4 |
Fixed Blades(PCS) | 4 | 4 | 2 | 2 | 3 |
Dimenesion(mm) | 2400*1400*1700 | 2800*1700*1800 | 2800*2000*1800 | 2800*2500*1800 | 2800*3000*2200 |
Weight(KG) | 1650 | 3000 | 4000 | 5000 | 6000 |
PRODUCT CONFIGURATION

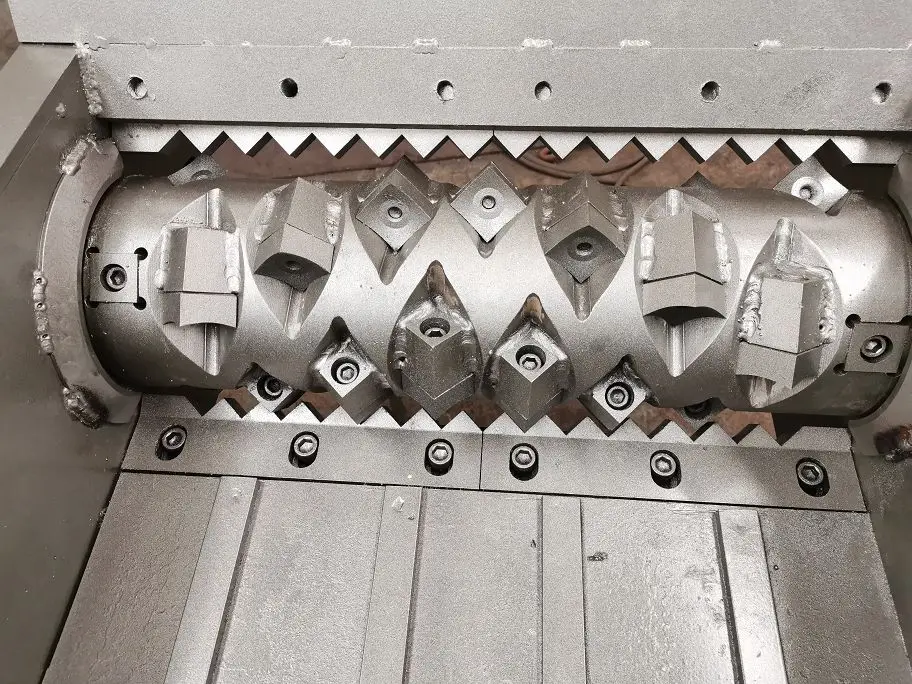

Main Shaft &baldes
The main shaft is high-strength solid shaft. The rotor blade adopts square design, which can be used on all four sides. After one side is worn, can be used on another side, prolong the blade service life. The blades are fix on the shaft in a V-shaped arrangement ,also may adopt different design according to the material condition and customized demand!

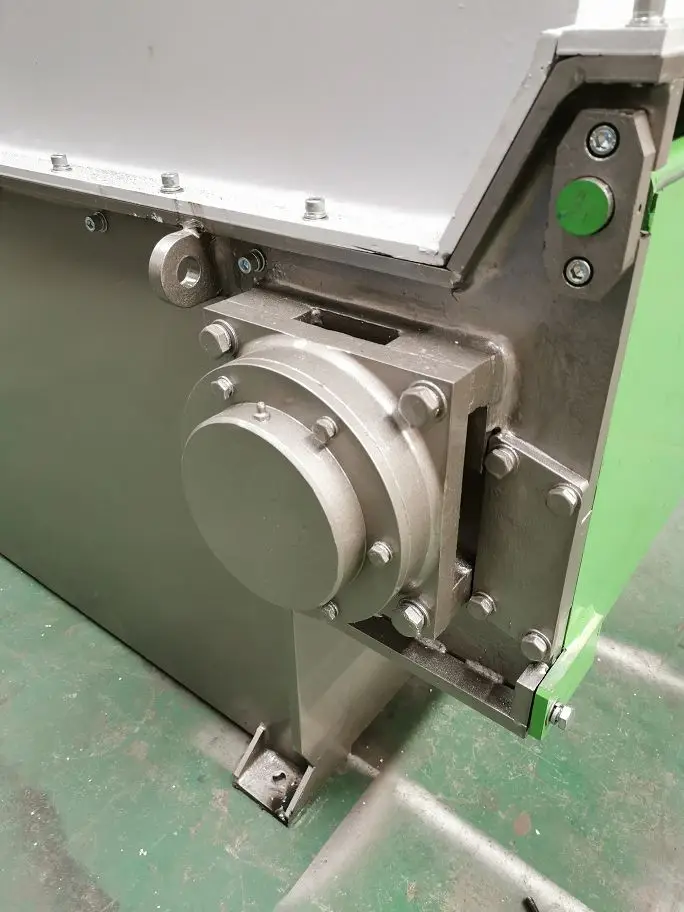

Outside bearing
The bearing block is installed outside the shredding chamber, effectively prevent particles of crushed material in the shredding chamber entering into bearing house, so that improve the bearing life. set up regular adding oil nozzle
Pushing system
Automatic hydraulic pushing system, repeatedly push the material to the rotating blade shaft.
Gearbox
Using hardened teeth gearbox, safe and stable.
Shock absorber
Absorb the vibration generated during the shredding process ,to make it shred smoothly.
Screen
Different screen sizes and designs ,to meet different customer needs
More Product
Company Profile
Product packaging
FAQ
1、Technical innovation ,Quality first
Pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional equipment insist on high-quality request, more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
2、Offer different customers customized solutions
Offer customized and integrated solutions according to different requirements of customers
3、One-stop turnkey project concept
Since the customer consider setting up project, we start design the most suitable production line process to meet the customer's demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey solution include complete pre-sale and after-sales service
4、 Installation ,training & Good after-sales service
We have dedicated after-sales personnel of providing installation and commissioning serivce ,and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
