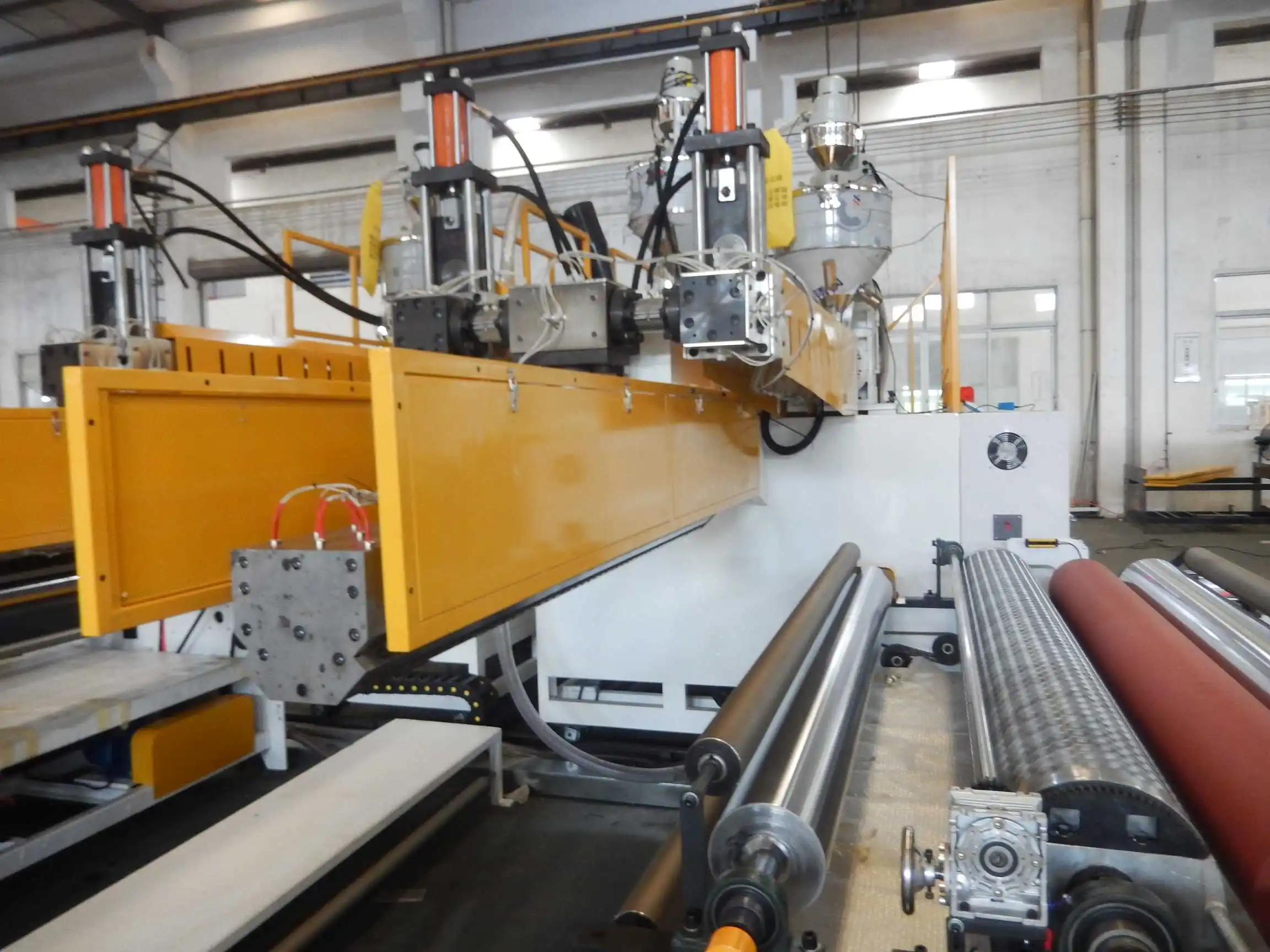

high quality compound air bubble film wrap sheet roll making machine three layer air bubble film machine
- Category: Plastic Extruders >>>
- Supplier: Guangdong Zhongrui Plastic Machinery Technology Co. Ltd.
Share on (1600348349028):
Product Overview
Description
Product Overview
3 Layers PE Air Bubble Film Machinery (Twin-Screw Design)
Produces two layers（Bubble Layer + PE Layer ) or three layers air bubble film(PE Layer + Bubble Layer + PE Layer )
Each layer can be separately controlled and with different material and different formula and color
FEATURES AT A GLANCE
3 Layers PE Air Bubble Film Machinery
(Twin-Screw Design)
(Twin-Screw Design)
Maximum Line Speed 40 meters/minute
Special machine Maximum Line Speed 50 meters/minute
two layers bubble film type
Product
flow chart
PRODUCT SPECIFICATIONS
Layer | 3 |
Raw materials | Low density polyethylene / linear low density polyethylene / recycled material |
Maximum width (mm) | 1630 |
Effective width after trimming (mm) | 1600 |
Speed (m/hr) | 800m/hr-2000m/hr |
Production Capacity (kg/hr) | 118kg/hr-185kg/hr |
Range of film thickness (g/m2) | 2 layers: 25g/sm-300g/sm 3 layers: 45g/sm-400g/sm |
Main screw diameter (mm) | Φ75mm |
Secondary screw diameter (mm) | Φ55mm |
Screw length-diameter ratio | 32 : 1 |
Temperature control region | 27 |
Power of main motor (kW) | 18.5KW+18.5KW |
Power of secondary motor (kW) | 11 |
Power of vacuum pump (kW) | 2.2 |
Maximum rolling diameter (mm) | Φ1000mm(Can be customized upon requested) |
Power Supply | 380V,50HZ,3 PHASES(Can be customized according to different countries) |
Total power (kW) | 163 |
Heating power (kW) | 108 |
Effective power (kW) | 49 |
Weight (kg) | 8000 |
PRODUCT CONFIGURATION

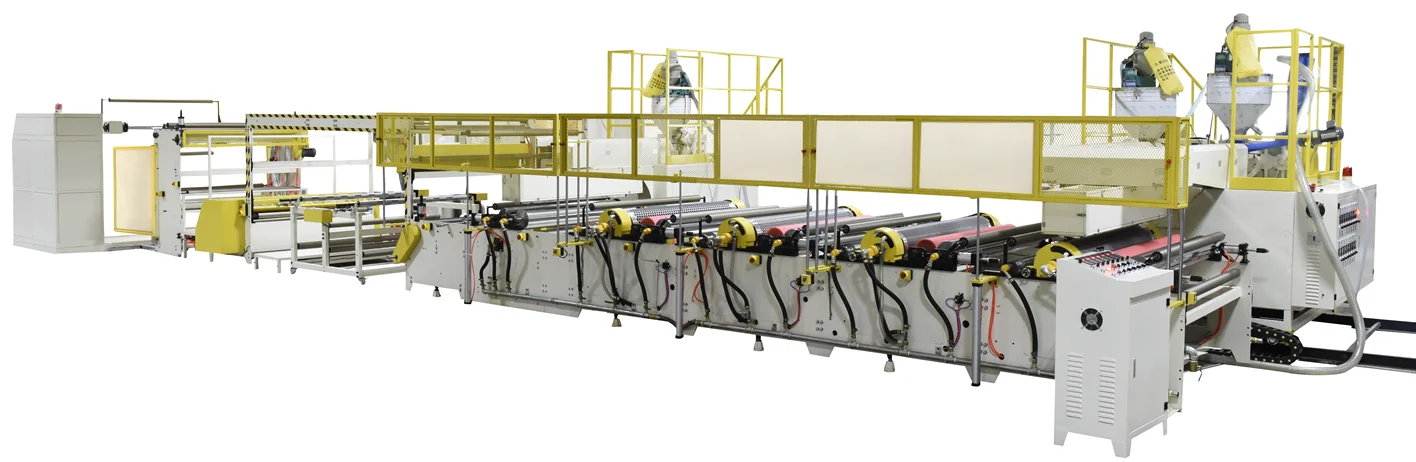

overview
Control panel

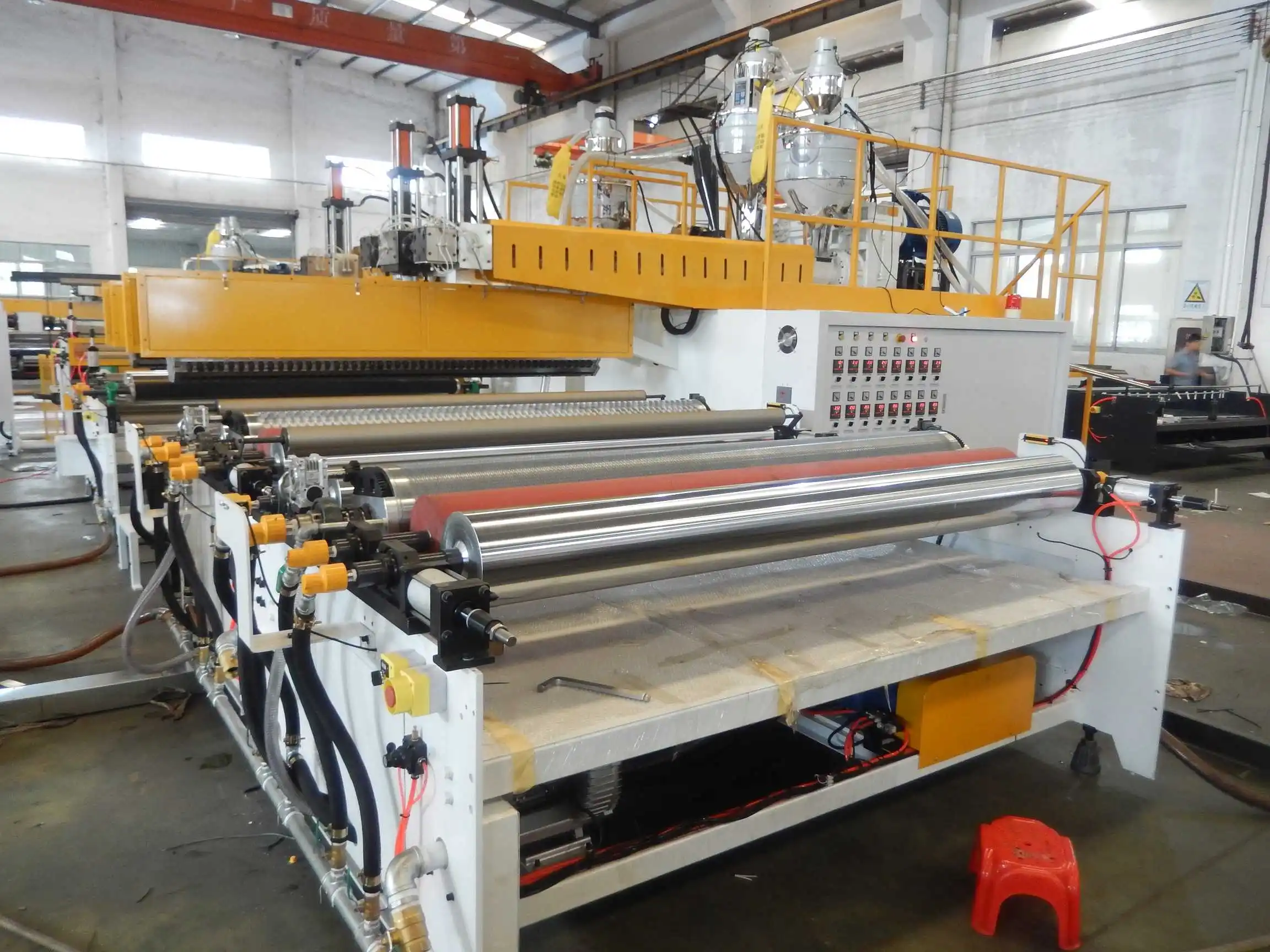

Forming part
SALES AND SERVICE NETWORK
Successful Project
Project in USA
Project in UK
Project in Australia
SIMILAR PRODUCTS
FAQ
Q1: Are you trading company or manufacturer
We are the best air bubble film making machine factory at Guangdong China for more than 10years experiences,
machines have been sold out all over the world, and have ship out more than 50 machines to USA
machines have been sold out all over the world, and have ship out more than 50 machines to USA
Q2：How do you guarantee machine quality
Quality is our first priority, all our workers are well trained and many of them are have more than 10years experience
in the bubble film facotry,and we strictly follow the production procedures, all machine will be having a throughout
test,then can ship out to the customer
Q3：Why choose your company as supplier
Ztech have more than 10years experiences in making high standard and high quality bubble wrap film machines
Sronger structure and high speed machine max speed 40merter per mintues and special machine max. speed
50meter per mintues, more output
Machines have been sold out all over the world, and have ship out more than 50 machines to US
· Many our customer bought our first machine, then second on,then third one.... we grew up with each other and
that's the best partnership
Q4: How about installation, training and after service
Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service
Lifelong technical support
1 year warranty
