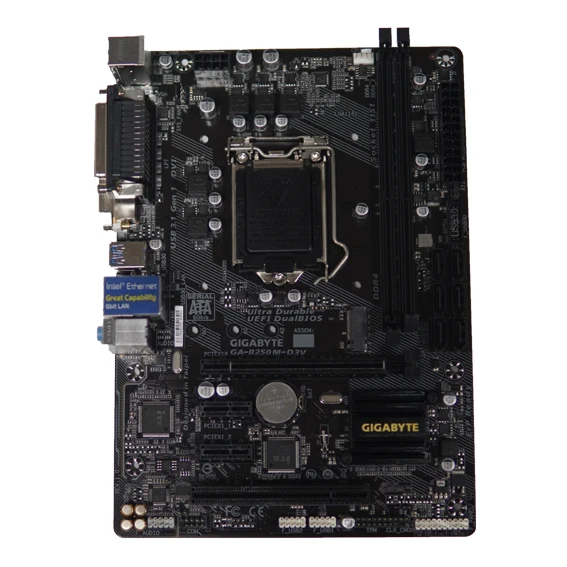

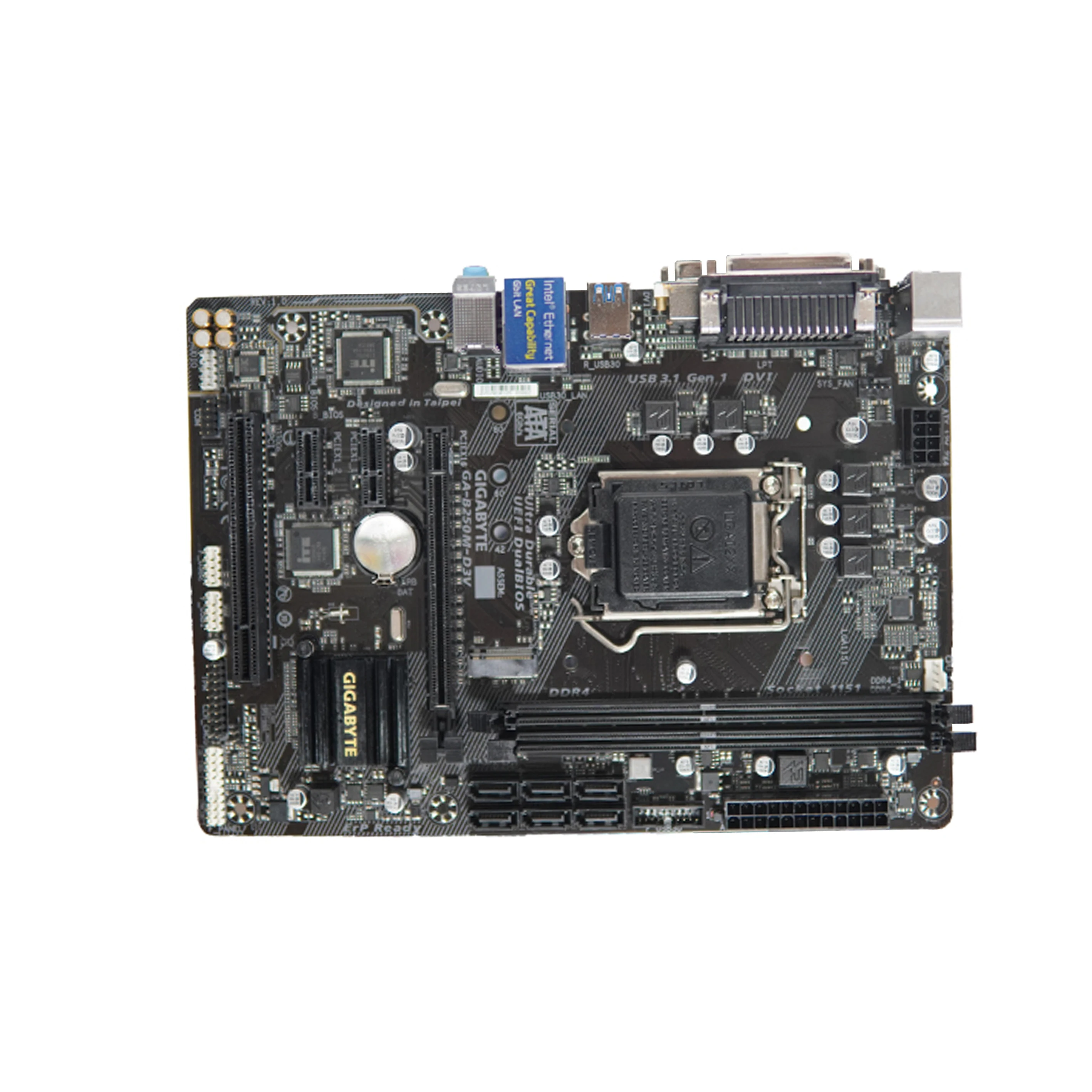

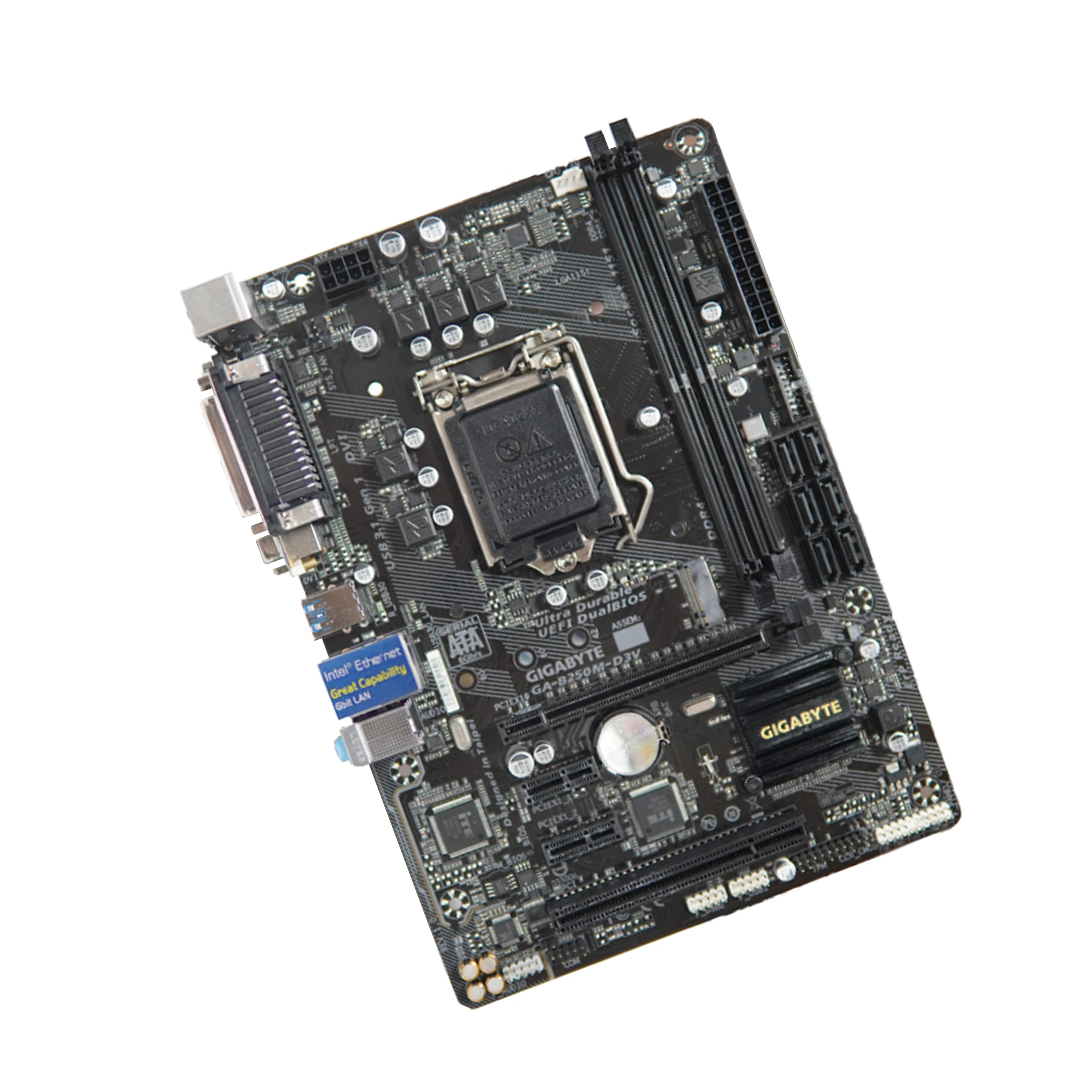

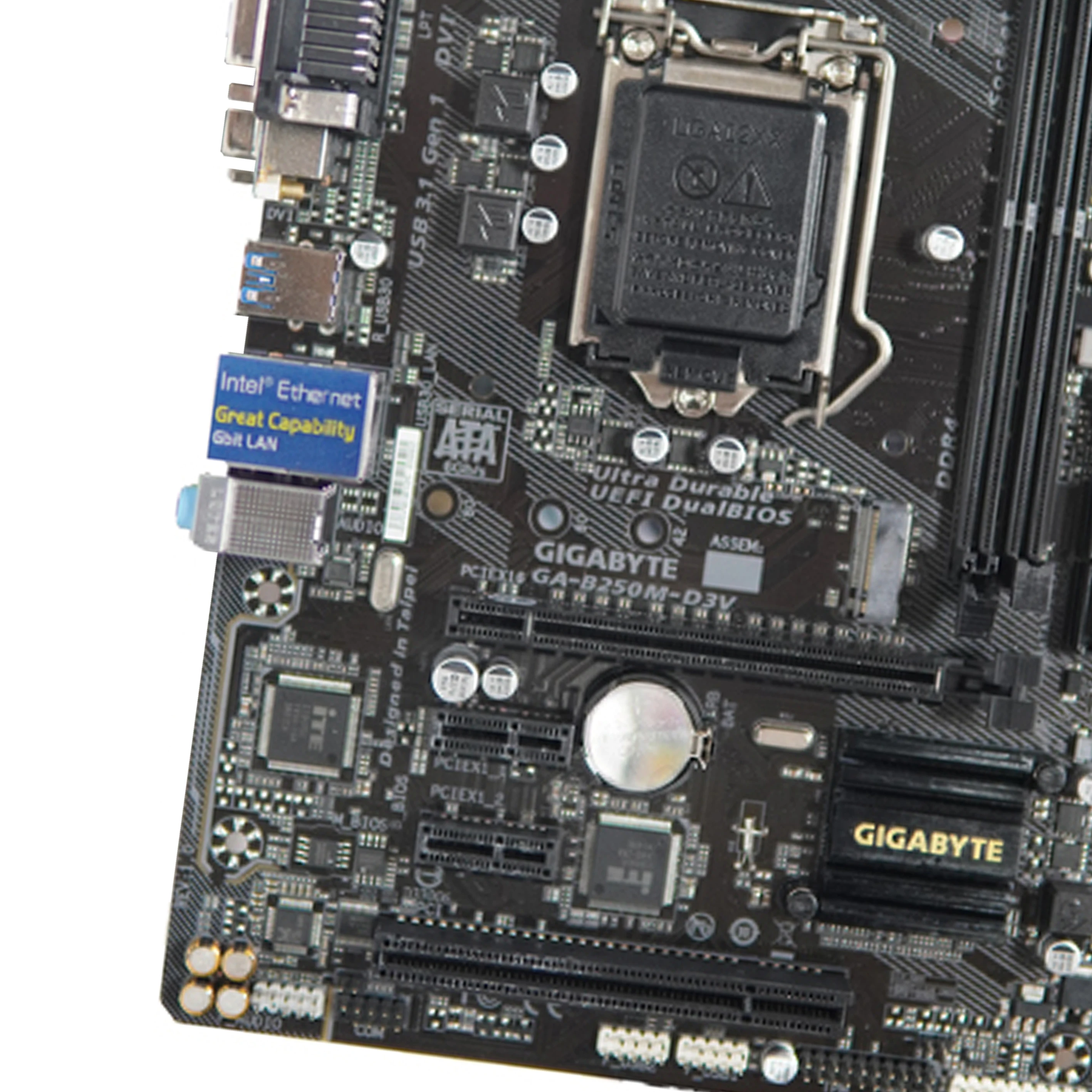

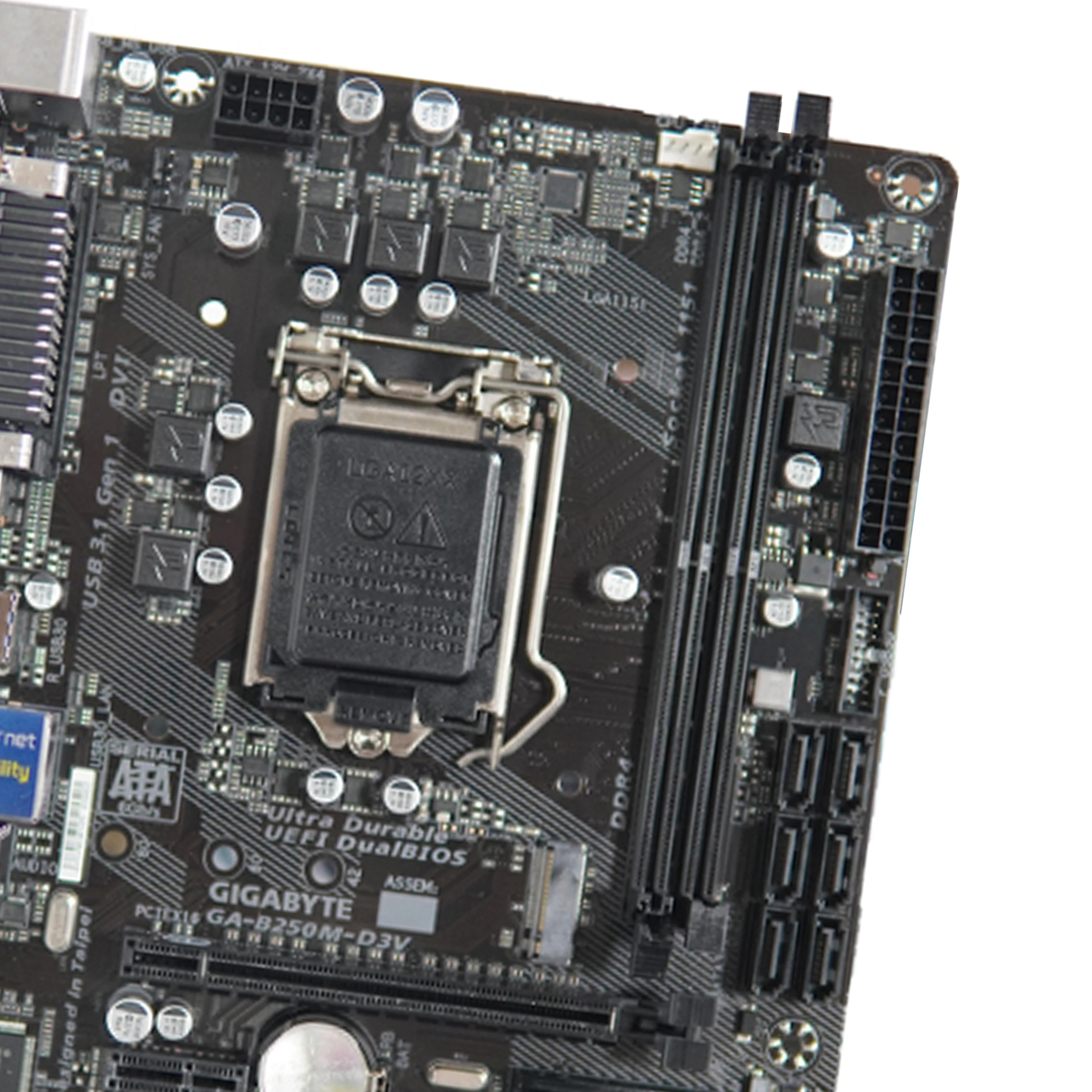

Motherboard GA B250M D3V with Intel B250 LAG 1151 32GB for computer
- Category: Motherboards >>>
- Supplier: Shenzhen Jinyouyuan Electronic Technology Co. Ltd.
Share on (1600350301148):
Product Overview
Description
Product Description
Product Name | GA-B250M-D3V |
Product performance description
Motherboard chip
integrated chip Sound card / network card
Main chipset Intel B250
Chipset description Intel B250 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek alc892 8-channel sound chip
Chip card On board Intel gigabit network card
Processor specifications
CPU type 7th / 6th generation Core i7 / i5 / I3 / Pentium / Celeron
CPU slot LGA 1151
CPU description Supports Intel 14nm processors
Memory specification
Memory type two × DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual channel DDR4 2400 (OC) / 2133mhz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot one × PCI-E x16 graphics card slot, 2 × PCI-E X1 slot
PCI slot one × PCI slot
Storage interface one × M. 2 interface, 6 × SATA III interface
I / O interface
USB interface six × Usb3.1 interface (2 built-in + 4 backplane), 6 × USB2.0 interface (4 built-in + 2 backplane
Video interface one × VGA interface, 1 × DVI interface
Power interface One 8-pin, one 24 pin power interface
Other interfaces one × RJ45 network interface, 3 × Audio interface, 1 × LPT interface, 1 × PS / 2 keyboard mouse universal interface
Plate type
Main board type Micro ATX board type
Overall dimension twenty-four point four × 17.4cm
integrated chip Sound card / network card
Main chipset Intel B250
Chipset description Intel B250 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek alc892 8-channel sound chip
Chip card On board Intel gigabit network card
Processor specifications
CPU type 7th / 6th generation Core i7 / i5 / I3 / Pentium / Celeron
CPU slot LGA 1151
CPU description Supports Intel 14nm processors
Memory specification
Memory type two × DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual channel DDR4 2400 (OC) / 2133mhz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot one × PCI-E x16 graphics card slot, 2 × PCI-E X1 slot
PCI slot one × PCI slot
Storage interface one × M. 2 interface, 6 × SATA III interface
I / O interface
USB interface six × Usb3.1 interface (2 built-in + 4 backplane), 6 × USB2.0 interface (4 built-in + 2 backplane
Video interface one × VGA interface, 1 × DVI interface
Power interface One 8-pin, one 24 pin power interface
Other interfaces one × RJ45 network interface, 3 × Audio interface, 1 × LPT interface, 1 × PS / 2 keyboard mouse universal interface
Plate type
Main board type Micro ATX board type
Overall dimension twenty-four point four × 17.4cm
Related Products
Packing&Shipping
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.Total weight: 1 piece motherboard about 0.4~0.5KG;
Carton size:
20*20*8cm carton for 1~2 pcs motherboard; 47*30.3*23.5cm carton for 10pcs motherboard; 50*49*20cm carton for 20~30pcs motherboard.
Express:DHL,Fedex,UPS,TNT,etc.
separated by stiff cardboards in carton boxes.Total weight: 1 piece motherboard about 0.4~0.5KG;
Carton size:
20*20*8cm carton for 1~2 pcs motherboard; 47*30.3*23.5cm carton for 10pcs motherboard; 50*49*20cm carton for 20~30pcs motherboard.
Express:DHL,Fedex,UPS,TNT,etc.
Company Introduction
Shenzhen Jinyueyuan Electronic Technology Co., Ltd. was established on December 5, 2019. The business scope includes maintenance of motherboards, electronic products, communication equipment, office equipment, home electronic products, and computer motherboards,with official ASUS authorization.We have 18 years of experience in this field.
