ZC ITX6412 6 COM Ports Fanless J6412 Mini Itx Motherboard Onboard J6412 CPU 4 RS232 2 RS485 J6412 Mini Itx Motherboard (1600726122617)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


ZC-ITX6412 Fanless Thin Mini Itx Motherboard Onboard Intel Elkhart Lake J6412 CPU,1*HDMI,1*VGA,1*LVDS,1 or 2*RJ45,2*USB 3.0,6*USB 2.0,4*RS232+2*RS485/232







ZC-ITX6412 6 COM Ports Fanless J6412 Mini Itx Motherboard Onboard J6412 CPU 4 RS232 2 RS485 J6412 Mini Itx Motherboard






Product Description


Main Features


1.) J6412 Mini Itx Motherboard Onboard Intel Elkhart Lake J6412


2.) Support 3 display VGA,HDMI, LVDS  J6412 Mini Itx Motherboard


2.) J6412 Mini Itx Motherboard With 1 or 2 Realtek RTL8111H Gigabit


5.) 6 COM Ports,4*RS232+2*RS232/485  J6412 Mini Itx Motherboard


6.) J6412 Mini Itx MotherboardJ 1*SATA+1*M.2 for SATA/NVEM SSD


7.) 1*mPEICE Slot for WIFI/BL  J6412 Mini Itx Motherboard























































































































































Processor



Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W



Memory



1*SO-DIMM DDR4 Slot,Max 16GB



Display



Intel UHD Graphics for 10th Gen Intel Processors



1*VGA+ 1*HDMI+1*LVDS,EDP Optional,Support 3 Display



Network



1 or 2 Realtek RTL8111H Gigabit LAN,support Wake-on-LAN/PXE



Storage



1*7pin SATA3.0,6Gbps



1*M.2 Key M Support NVME/SATA SSD



Audio



Onboard ALC897 7.1 6-channel high-fidelity audio controller



Support MIC/Line-out, power amplifier-2 ohm 5W dual channel



Expansion Slot






1*mPCIE Half/full Size,Support WIFI/4G



1*mPCIE Half Size(Customize)

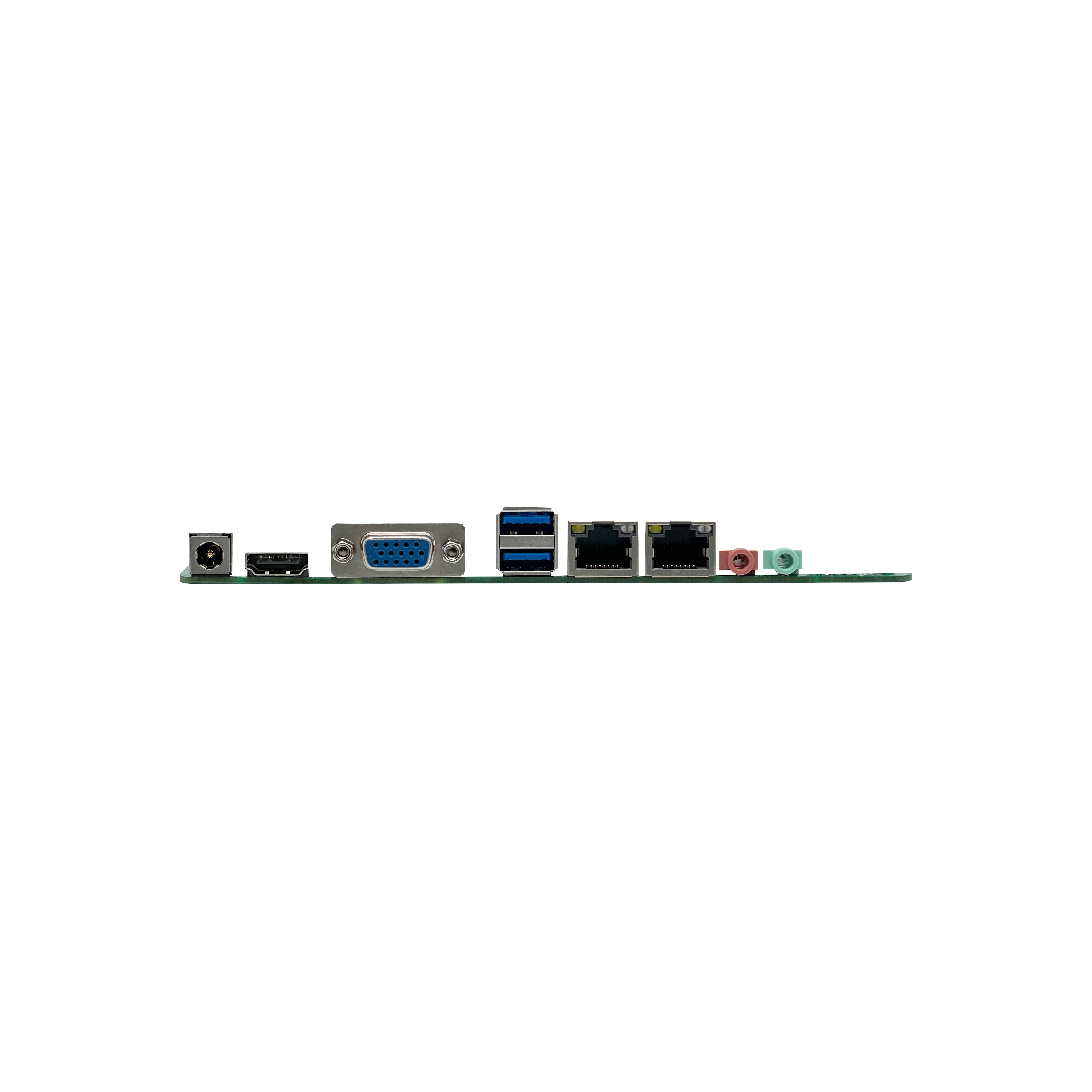

Rear I/O Port



1*12V DC Port



1*HDMI



1*VGA



1*RJ45 (LAN2 either-or 2*USB 2.0)



1*Line out (green), 1*MIC(red)



2*USB3.0



2*USB 2.0 (LAN2 either-or 2*USB 2.0)



Inside I/O Ports






1*JHDMI,2*8Pin (optional)



1*JVGA,1*12Pin (same signal as DB15)



1*LVDS,2*15pin,Dual channel 24bit (either-or eDP)



1*Screen backlight power supply,1*6pin



1*eDP,2*15pin (choose one from LVDS, optional)



4 ore 6*USB 2.0,2*5Pin


(1 LAN Version Support 4 USB 2.0,2 LAN Version support 6*USB 2.0)



1*Front audio,2*5pin



1*Amplifier,1*4pin



1*LPT



1*4pin ATX power



1*SATA Power



1* Front panel switch button and indicator,2*5Pin



6*COM (COM1-2 support RS485, COM1/2 9P is powered, optional support 4*485)



Fan



Fanless cooling design, reserved 1*4pin CPU fan,1*4pin system fan



GPIO



Support 4 input and output GPIO



BIOS



128Mb Flash ROM



Watchdog



Support hardware reset function (256 levels, 0~255 seconds)



Operating System



Windows 10/11/Linux



Power Type



DC 12V



Operating Temp



-20℃ to +60℃



Storage Temp



-20℃to +70℃



Working Humidity



5%-95% relative humidity, no condensation



Size



170mm x 170mm









Company Information





Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.





With a SMT factory space of 2, 0000 square meters, has over 500 employees (among whom more than 30 are R&D engineers), advanced development equipment and comprehensive test facilities. With professional services team we can provide customers with fast services to help customers quickly deploy product solutions. Providing a variety of products and solutions, we develop some new products to the market each year.





Along with our product line, we provide OEM/ODM service for our customers and provide finished products to meet the standards of RoHS, CE, and FCC. Our skilled OEM/ODM teams and our specialized QC teams ensure all products from our company are defect-free and delivered on time.





With marketing strategic target "Based in China,Reaching the World",we have a mass of long-term and stable customers over 70 countries across the world, including Brazil, Chile, Comobia, the USA, Germany, Saudi Arabia, India, Indonesia, Malaysia, the Philippines, Thailand, Egypt and many other countries and regions.Our rich experience in telecommunication and consumer electronics, together with efficient collaboration with our global partners, had given us an enviable advantage. We believe in we are able to carry on its mission of applying technology to create products that will enrich peoples lives and protect properties.





Warmly welcome your inquiry for both OEM and ODM cooperation. With the support from you, we will create a wonderful future.Welcome to China,Welcome to Shenzhen Zechuang Weiye Technology Co., Ltd.
















Certifications





.jpg











Packaging & Shipping



















FAQ





1.)Who are you?
We are Shen Zhen ZeChuang Weiye Technology Co.,Ltd
GREATZC is our own brand.
We are 15+ years specialise in designing,producing,supplying Thin/Starndard Mini Itx Motherboard,3.5'' Motherboard,Nano Itx Motherboard,Firewall Motherboards,Industrial PCs,Mini Computers,OPS PCs.





2.)Where can your products be used?
Our products mainly use for industrial production,banking,shops,supermarkets, transportation,medical and
other industries.They also application to ordering machines, cash registers,ATM,digital signage,
advertising machines, spot welders, electronic whiteboards, conference equipment,
teaching equipment, multimedia players and other equipments,and so on.





3.)What's your payment ways?
We accept T/T,L/C,Western Union,Paypal,Alibaba Trade Assurance,RMB Cash,etc.





4.)What's your shipping ways?
DHL/FedEx/TNT/UPS,etc;
Appointing shipping agent by buyer.





5.)Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Yes,we can do OEM/ODM.The charges for OEM service depends on the different level of customization.
Somes are free.
