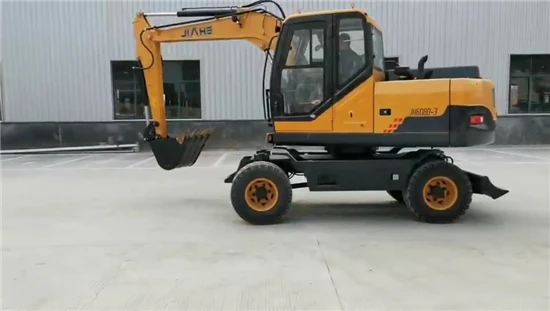

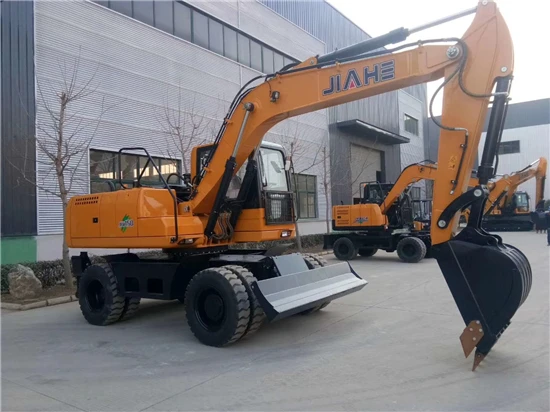

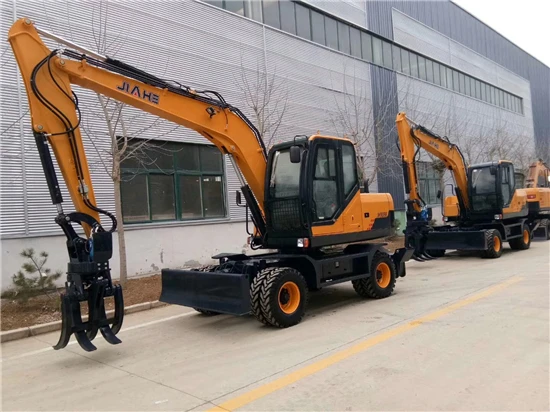

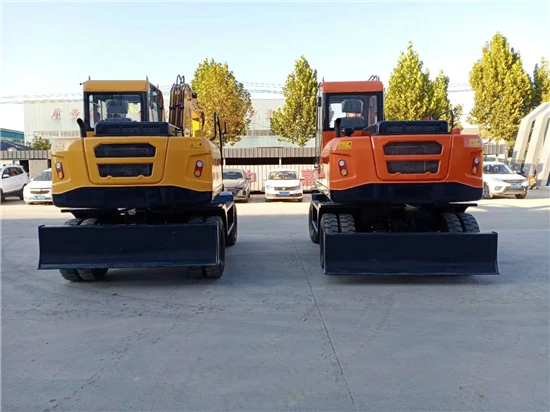

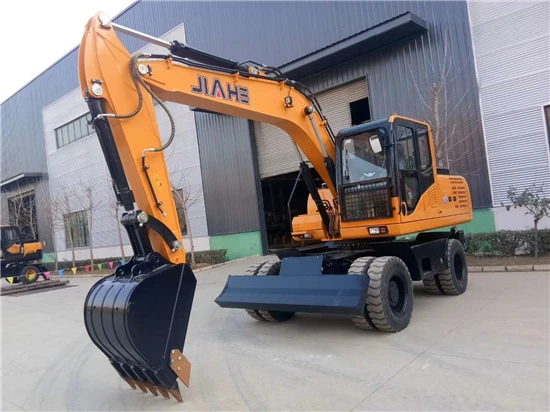

Jiahe Small Wheel Excavator With Wood Grabber JHW90 JHW70 Wheel Digger Digging Height 6900mm
- Category: >>>
- Supplier: Anhui Heavy And Light Industries International Co. Ltd.
Share on (1600350419587):
Product Overview
Description
Product Description
Performance Parameter | ||
Bucket Capacity(M³) | 0.21-0.28 | |
Swing Speed(Rmp) | 0-11 | |
Gradeability(°) | 25 | |
Bucket Max.Digging Force(KN) | 45 | |
Arm Max.Digging Force(KN) | 36 | |
Engine Model | YC4DK85-T302 | |
Power/Rotation Speed (KW/Rmp) | 62.5/2200 | |
Tyre Model | 8.25-16 | |
System Pressure(MPa) | 20 | |
Operation Weight(KGS) | 7000 | |
Working Range | ||
Max.Digging Height(Mm) | 6900 | |
Max. Dumping Height(Mm) | 5140 | |
Max.Digging Depth(Mm) | 4360 | |
Max.Vertical Digging Depth(Mm) | 4060 | |
Max.Digging Radius(Mm) | 6950 | |
Min.Swing Radius(Mm) | 2670 | |
Dozer Blade Max.Lifting Height(Mm) | 310 | |
Dozer Blade Max.Cutting Depth(Mm) | 130 | |
Dimensions | ||
Length*Width*Height(Mm) | 6522*2205*2850 | |
Cabin Height(Mm) | 2850 | |
Sproket To Idler(Mm) | 2400 | |
Axle Distance(Mm) | 1675 | |
Min.Ground Clearance(Mm) | 260 | |
Tail Swing Radius(Mm) | 1945 | |
Recommend Products
Company Profile
FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted | ||||||||
2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, | ||||||||
3: What about the delivery time? A: 7-20 days after receiving the deposit. | ||||||||
4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. | ||||||||
5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs | ||||||||
