High Quality Semi utility Flatbed Trailer 2 Axles Full Trailer For Sale

Name: High Quality Semi utility Flatbed Trailer 2 Axles Full Trailer For Sale
SKU: 1600356369366
Availability: InStock

Price:

Quantity:

SPECIFICATION

Specification
1. Dimension	9950 x 2580 x 1400 mm
2. Side wall	1000 mm
3. Wheel base	6300 mm
4. Tare weight	6000 kg
5. Payload	21 tons
Standard Configuration
1. Axle	13 ton Fuwa brand, 150x150, 2 units
2. Suspension	Air suspension
3. King pin	2", bolt on type
4. Landing gear	28 ton, two speeds
5. Tire	295/80R22.5, 8 units
6. Rim	8.25-22.5, 8 units
_{7. Braking system}	Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system	Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS	Wabco 4S/2M
_{10. Painting}	Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard	Plastic or steel
12. Others	1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension	Firestone, Goodyear or Chinese brand
2. Axle	BPW 12 ton

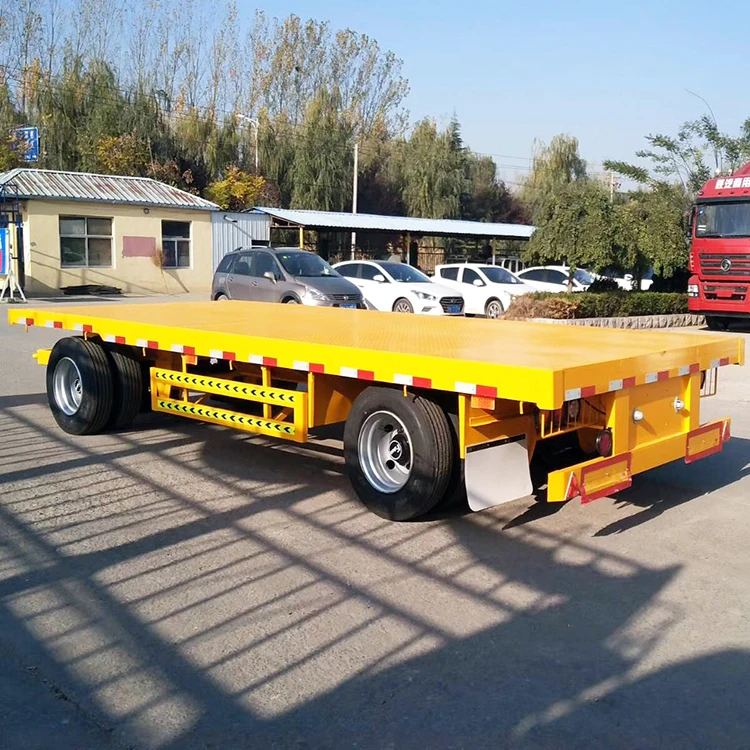

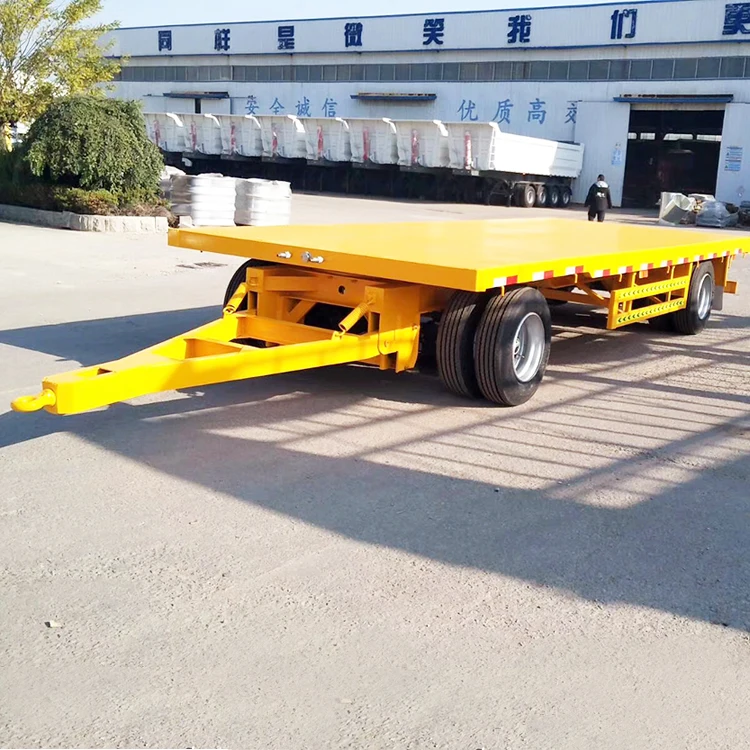

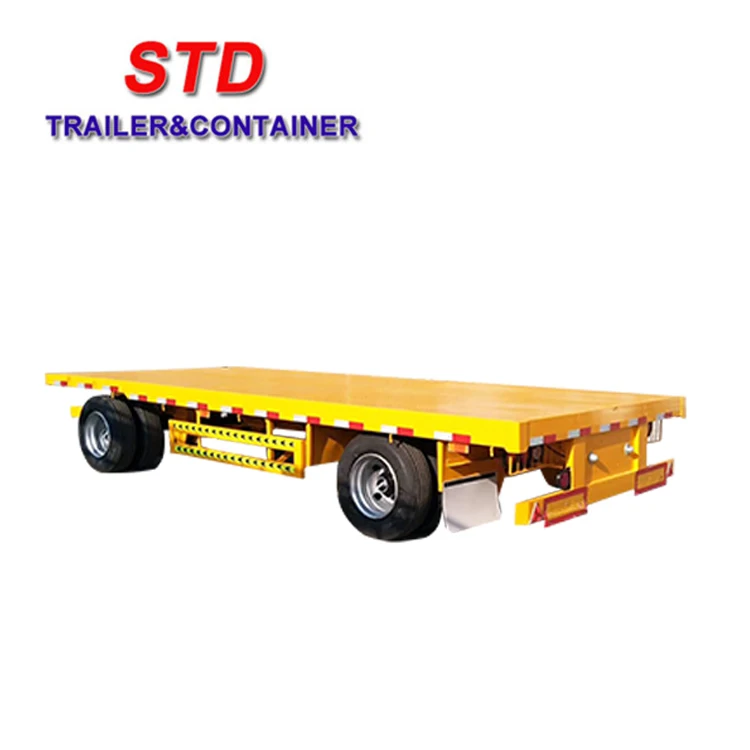

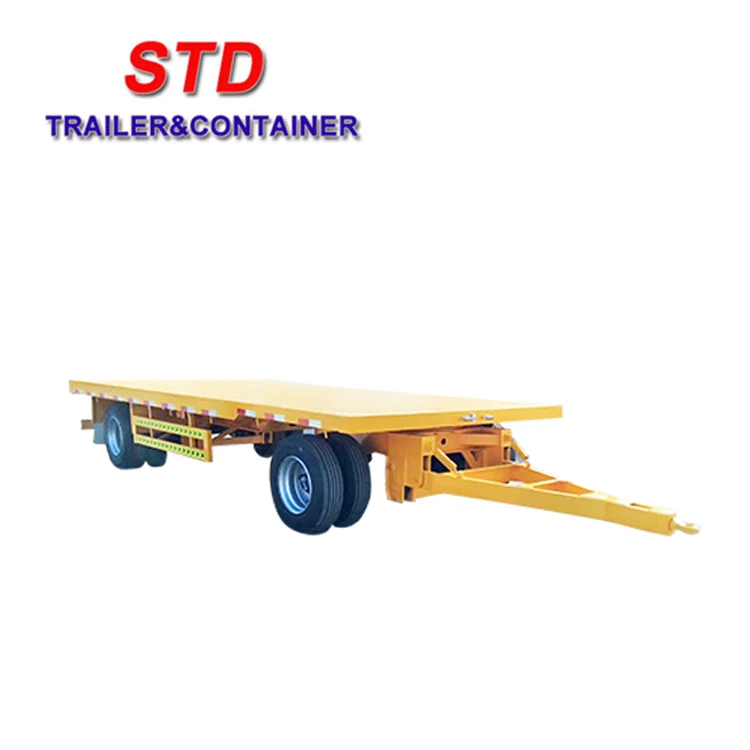

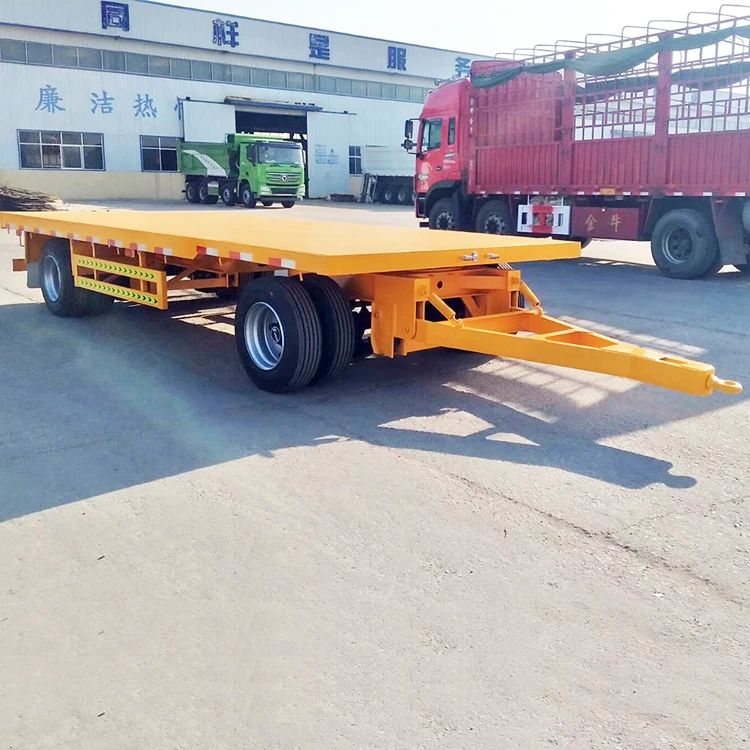

PRODUCT PICTURE
