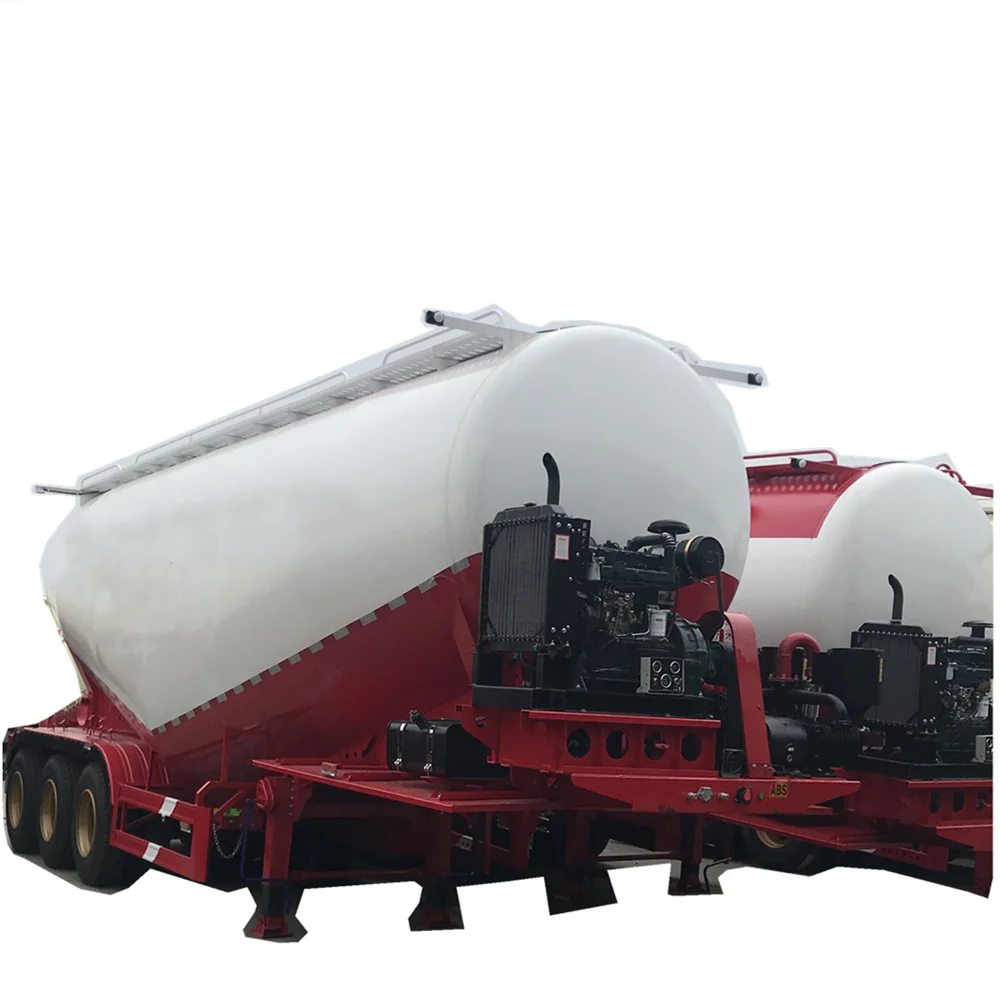

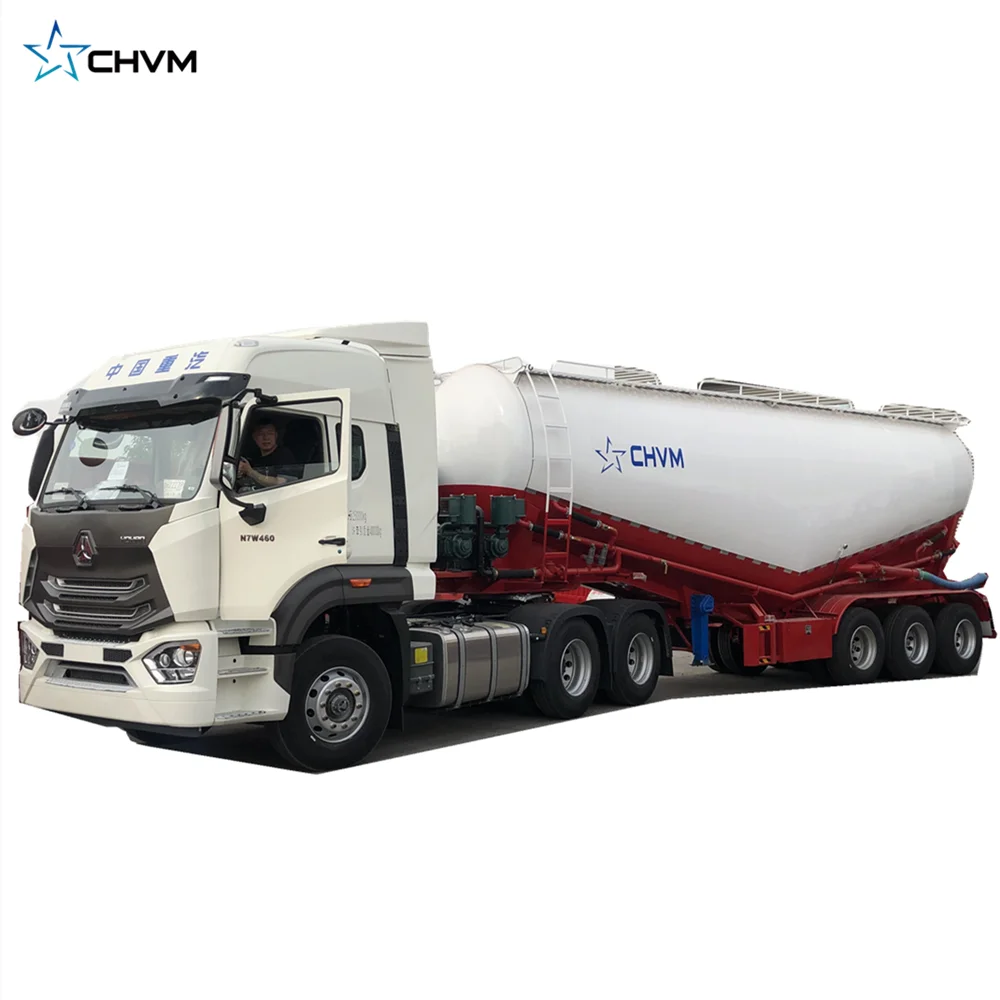

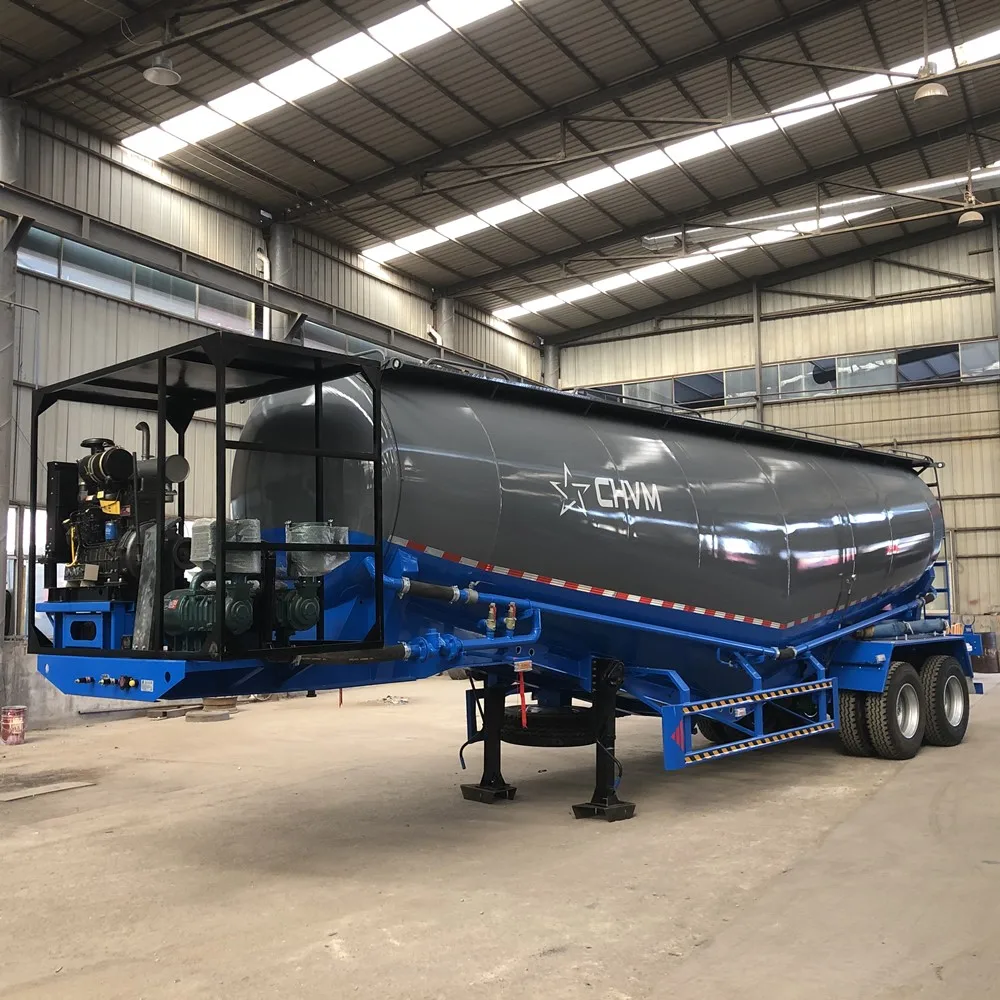

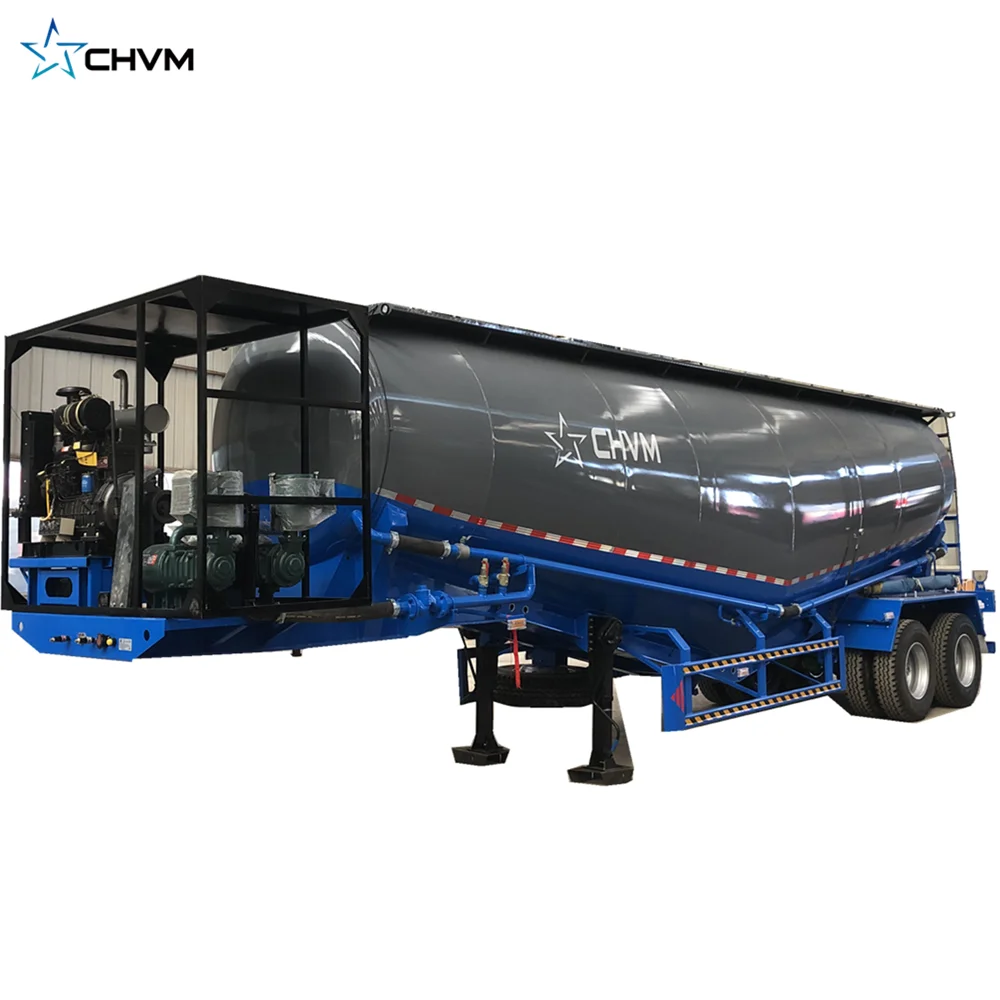

Flour Bulk Tanker Trailer Turkish Cement Silo Trailer Cement Tanker Tanker Trailer For Sale
Engine and Air Compressor
Landing Gear
Suspension and Tire
Specifications
Overall Dimension | 11000*2600*4000m |
Tank Capacity | 35CBM-60CBM (volume optional) |
Shape | V or W shape (optional) |
Curb Weight | 8.3T |
Tank Material | Q235/Q345 Carbon Steel, 4-5mm |
Tank End Plate | Q235/Q345 Carbon Steel, 5-6mm |
Technology | Submerged Arc Welding |
Manhole Cover | 500mm Manhole Cover, 3sets |
Discharging Valve | Diameter 4" or 5" inch |
Discharging Pipe | 4"rubber hose, 2pcs, 8m/each |
Suspension | Mechanical Suspension, Air Suspension, or Optional |
Axle | 3*16T |
Landing Gear | Standard 28T |
Main Beam | High-strength Steel, yield strength 700MPa, Upper&Bottom Plate thickness 10-16mm |
Leaf Spring | 10/10/10 spring, width 90mm, thickness 13mm |
Tire | 12.00R20 12R22.5 |
King Pin | 3.5" or 90mm |
Manhole Cover | Diameter 500mm |
Accessory | 1 Tool Box |
Spare Wheel Bracket | 2 pcs |
ABS | Optional |
Brake System | 6 stes brake chamber |
Electric System | 24V, One set-6 core Standard Cable |
Painting | Sand balsting, prime coating, surface painting,color opitional, wax polishing |

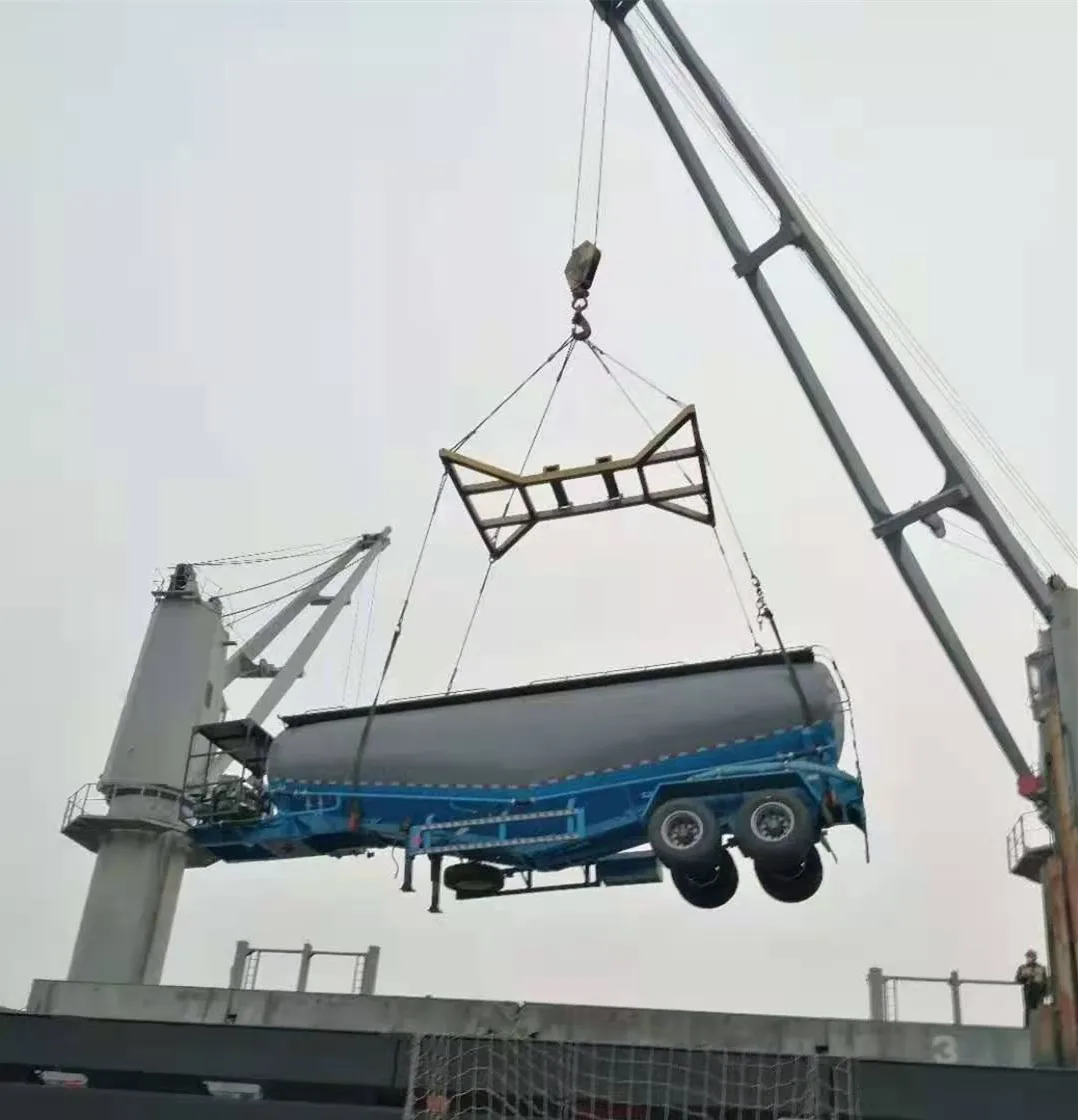

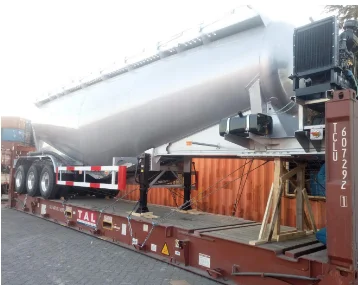

Shipment | Ro-ro Shipment or Framework |
Diesel Engine | Weichai Brand, Model:4102, 44KW |
Air Compressor | 37KW, 0.2MPA, 1000r/Min(12CBM/m) Bohai Brand,10CBM,12CBM double cylinder |

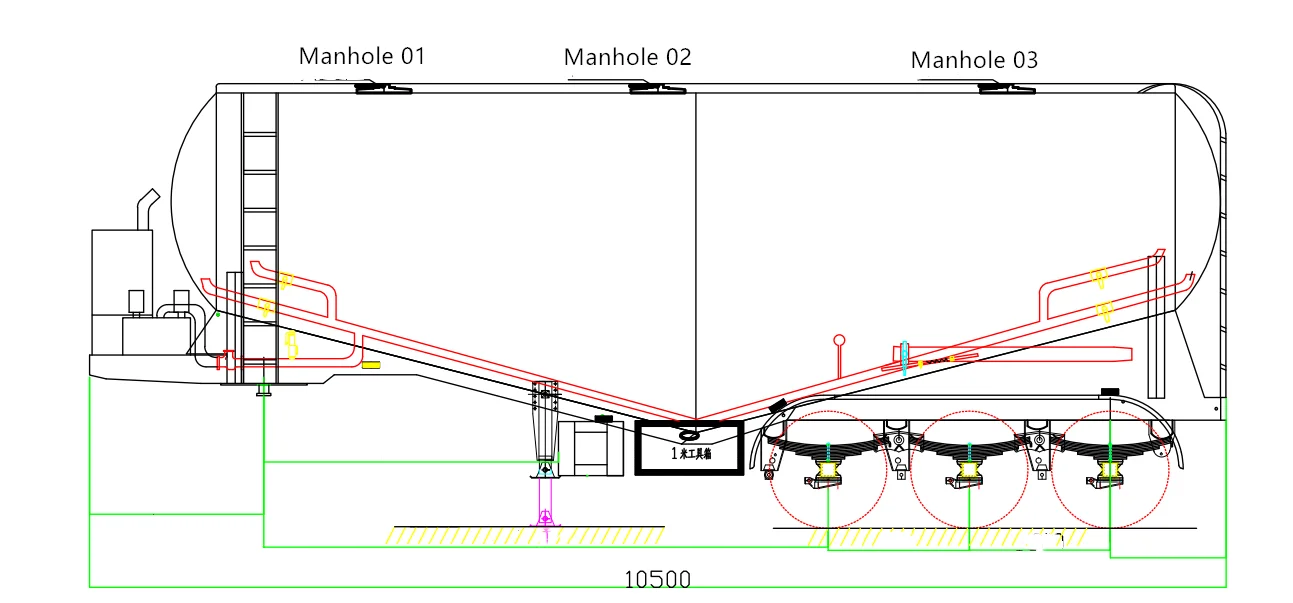

Drawing
Related Products
About Us

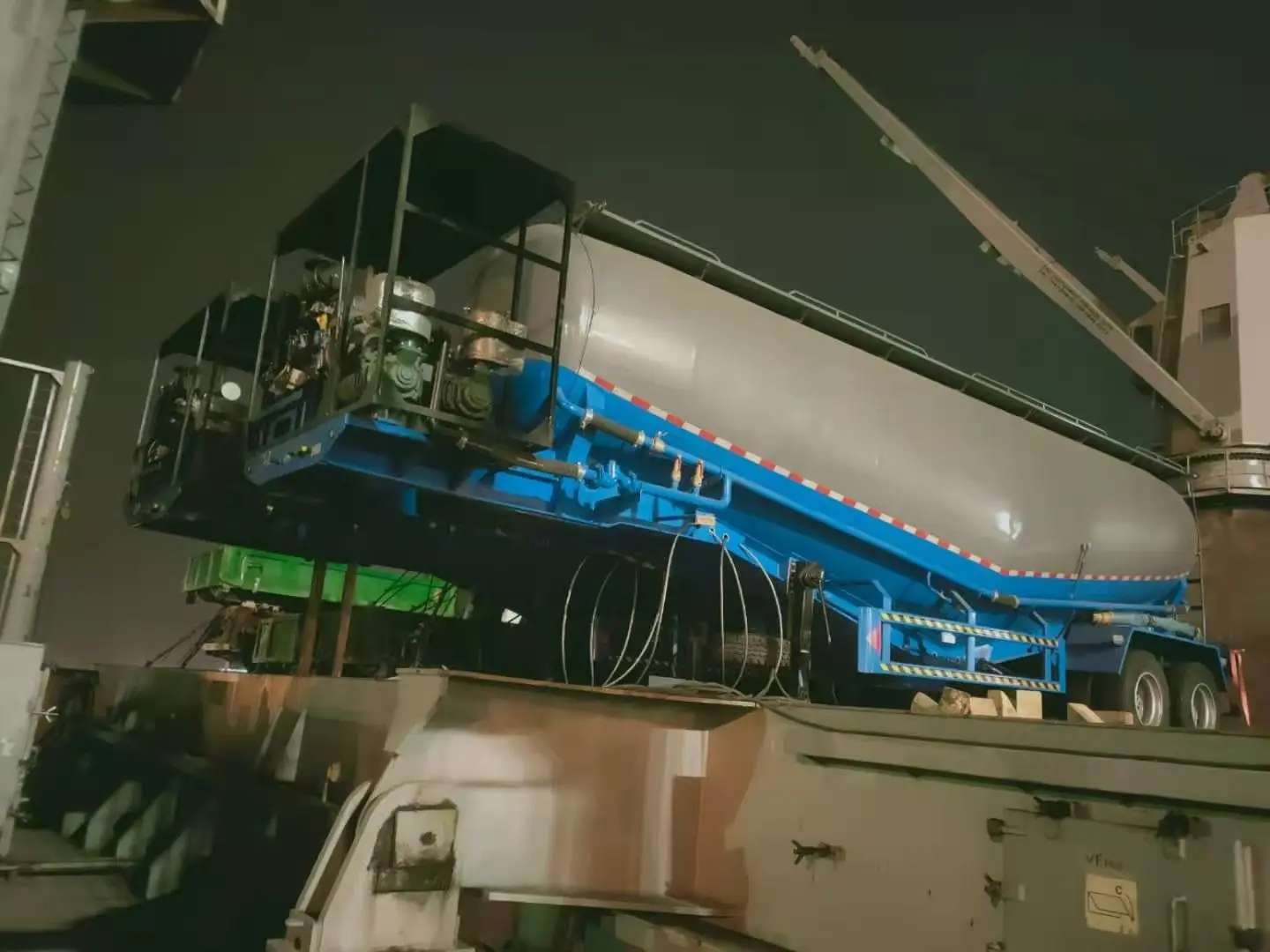

Packaging & Shipping
