3 Years Warranty Taiwan Chip Smd 3v 6v 9v 2835 Led 0.1w 0.2w 0.3w 0.5w 1w
- Category: SMD LED >>>
- Supplier: Shenzhen Trillion Auspicious Lighting Co. Ltd.
Share on (1600356976905):
Product Overview
Description
luminous diameter:2.8*3.5*0.8mm
the use of voltage:2.8-3.5V
use current:0.2W 60MA,0.5W 150MA,1W 350ma
packing:4000pcs/roll
Power:0.2W/0.5W/1W
color classification::warm white2700-3500k/natural white3800-4500k/white 5000-6500K,
luminous angle:surface luminous
product brightness: 0.2W 24-28LM/0.5W 60-75LM/1W 120-160LM
2835 High Efficiency(0.2W0.5W1W 3V)

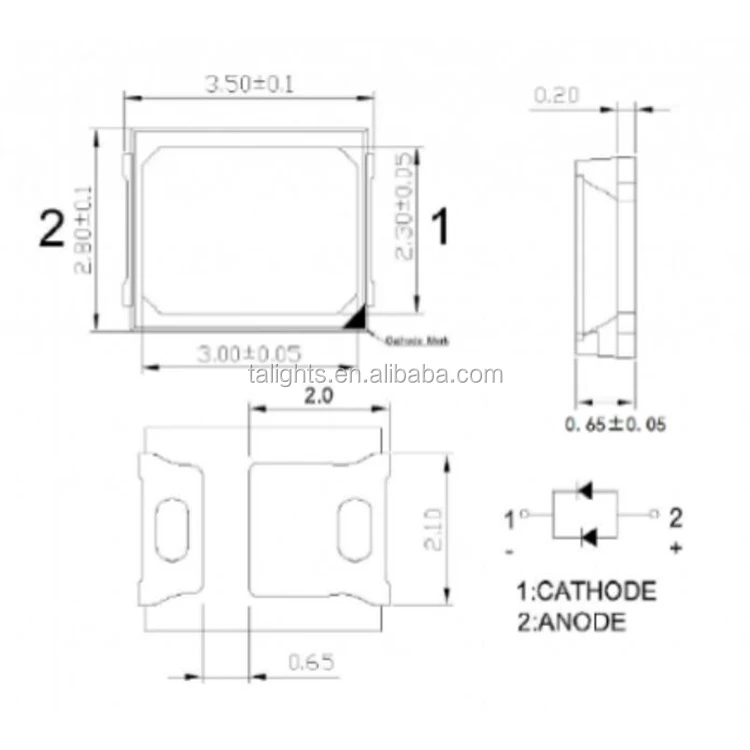

Dimension | 2.8x3.5x0.8mm | |
Power Consumption | 0.2w0.5w1w | |
Color Temperature | 2700-3500k/3800-4500k/5000K-6500K | |
Efficiency |
100-160lm/w |
|
Voltage | 2.8-3.5V |
|
CRI | 80/90/95 | |
Application | Troffer / Tube / Linear Fixture | |
The RZXLED 2835 series is an upgrade from standard 3528 packages. With a newly designed heat slug and compact design, this LED can be over driven while maintaining its compact size, high efficiency,and cost effectiveness. The superior product characteristics turn this white LED device into a real cost and energy saver and is a top solution for any general lighting application.
Applications
• Automotive Interior Lighting, Dashboard, Switch, Reading lamp, Audio and Car Infortainment, etc
• Backlight: LCD, switches, symbol, mobile phone and illuminated advertising.
• Optical indicator.
• General applications.
range of application:indoor lighting,commercial lighting,
Note:not waterproof,not more than load,cooling temperature is not
higher than sixty degrees
There are thousands of modules so we can't list all in our store.
Please contact us for check if you can't find in the store.
Thank you!
Note :
They may burn out if they receive enough power with no cooling , And if you use it for a long time,
please give them colling!!!
