Automatic Barrier Gate Factory Wholesale DC Motor Barrier with Light Boom Parking Barrier supplier
- Category: >>>
- Supplier: Shenzhen TDZ Technology Co. Ltd
Share on (1600358544385):
Product Overview
Description

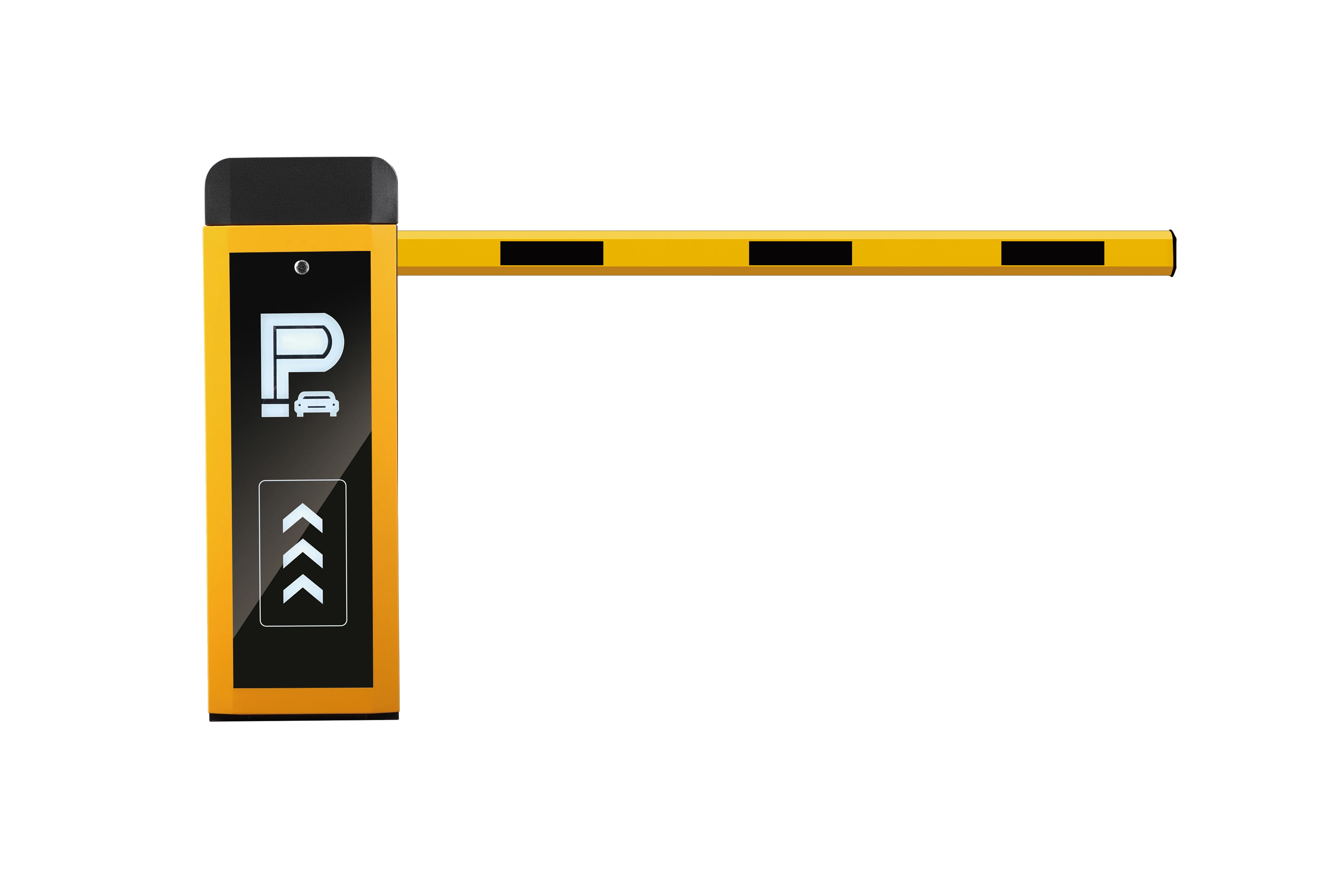

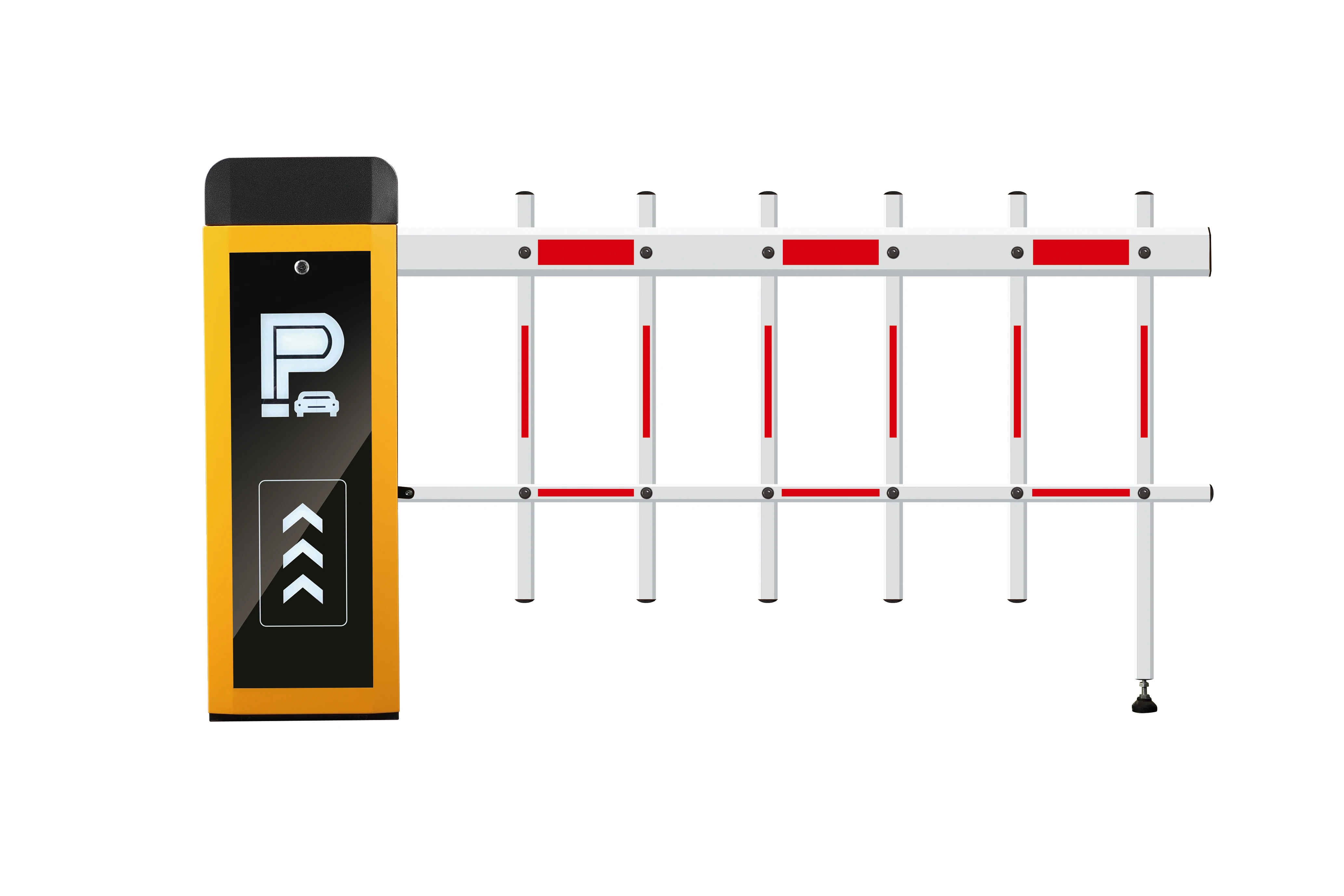

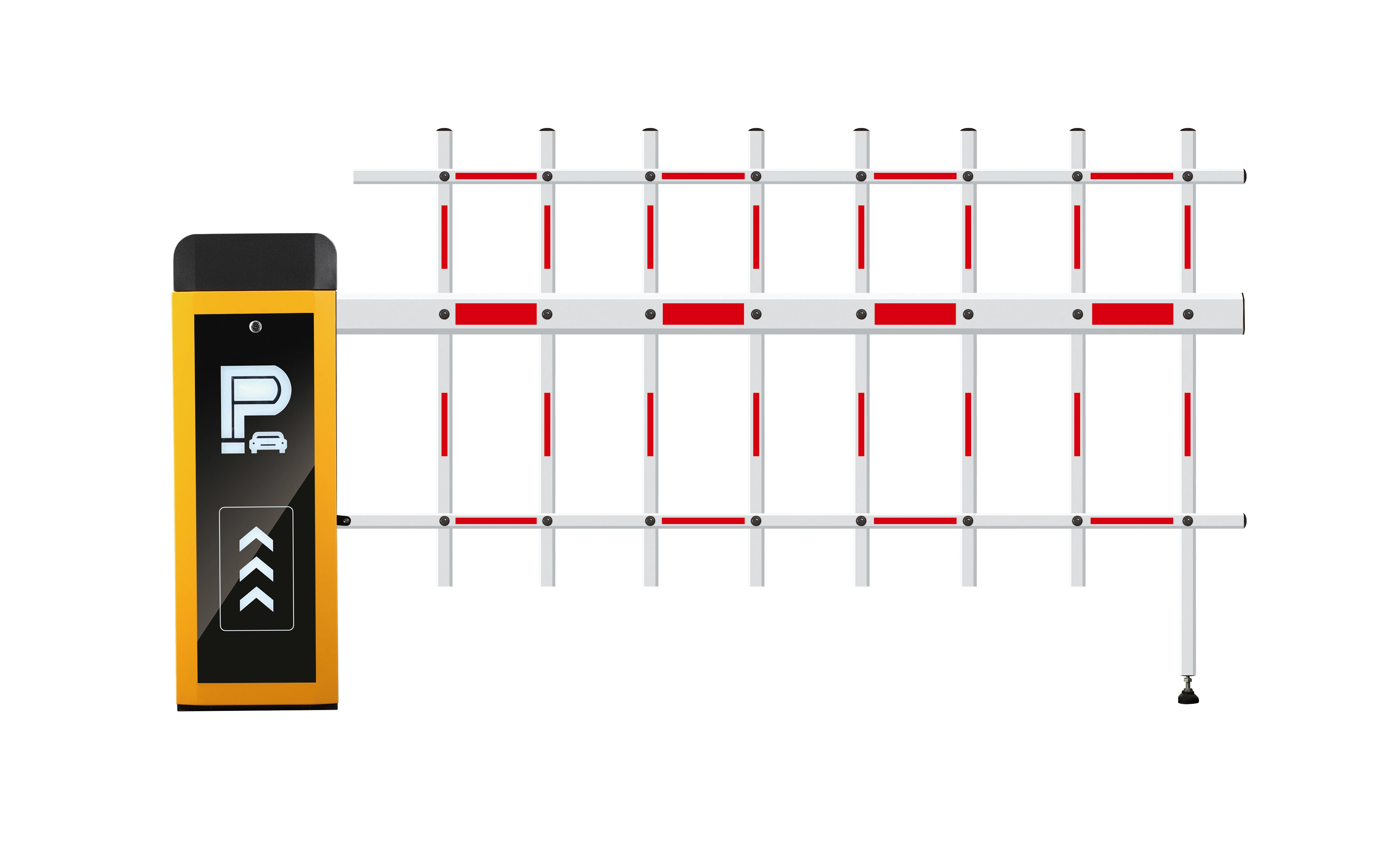

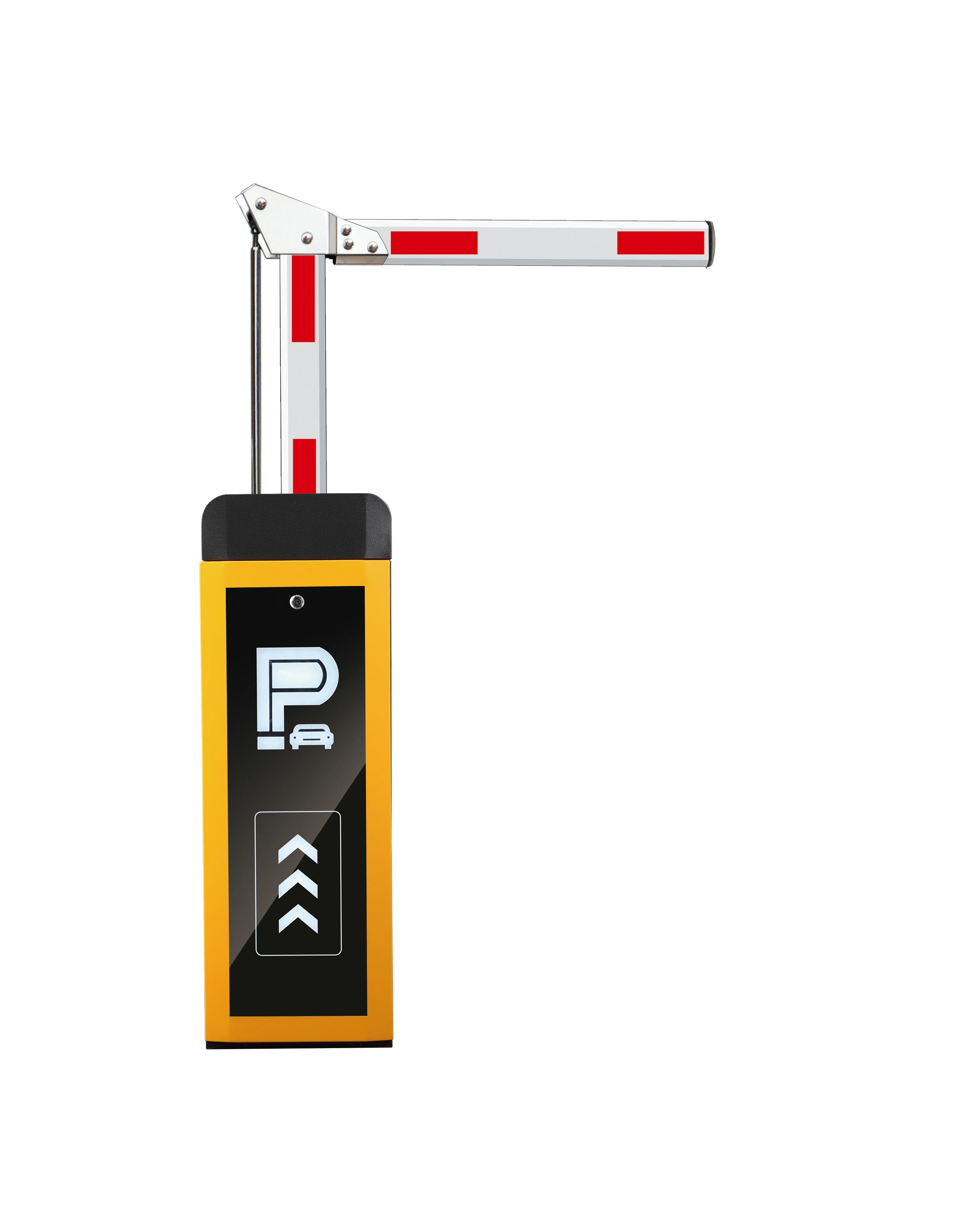

Automatic Barrier Gate Factory Wholesale DC Motor Barrier with Light Boom Parking Barrier
Product Description
1.Brief Introduction
TDZ-DZ-WS02 is our newly-produced DC variable frequency motor barrier gate, which utilizes the updated electronic
control technology and machinery processing technology, no limit switch design,to realize non-adjust of
mechanism. adjustable speed,automatic speed reduction,ext. In this way, make the barrier operate more steadily and
more reliably.
This product is highlighted in frequency applications and longer lifetime.
2.Function and Features
2.1. Innovative electronic clutch design: press the electronic clutch switch to unlock when power off, then the
boom can be raised up directly.
2.2. No limit switch design: the motor can detect the boom position automatically.
2.3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
2.4.Three springs available can extend the spring service life.
2.5.Auto-detect barrier close after poweron,open/close speed is adjustable.
2.6. With auto-reversing on obstruction function.
2.7.Infrared photocell interfaceis available.(need to install photocell device).
2.8. Loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down
automatically after vehicle passing.(need to install loop detector)
2.9.Built-in counting function, can store the times of opening signal, deduct the times when vehicle passing the
loop, boom falling down after vehicle passing through,well improve the traffic efficiency.
2.10.Built-in delay auto-closing function, coordinated with counting function, if the numbers of vehicle passed less
than the stored numbers, the boom will fall down automatically by countdown, but will be new countdown if there
is up or loop detector signal.
2.11. Integrated RS485 communication interface, to realize control of barrier open/close by computer and barrier status
query.
2.12. Integrated RJ45 network interface, to realize control of barrier of barrier open/close by computer network and
barrier status query.
2.13.With auto-aging test function.
2.14.NO/NCwire control signalinput are optional.
2.15.LCD function panelin English,convenient for human-machine communication.
3. Technical Data
1.Size: 350*285*1030mm 2.Material: Steel with powder coating. 3.Bar Length: 3 Meters. 4.Color: Yellow-white; Blue-white ; Black-White. 5.Weight: 45 KG. 6.Working temperature(motor):-30℃~+85℃ 7.WorkingPower:220V+10%,110V+-10% 8.Motor Power:320WMAX 9.Humidity:<90%RH 10.Distance ofremote control:L>30M 11. Runing Speed: 1-3 seconds. | |

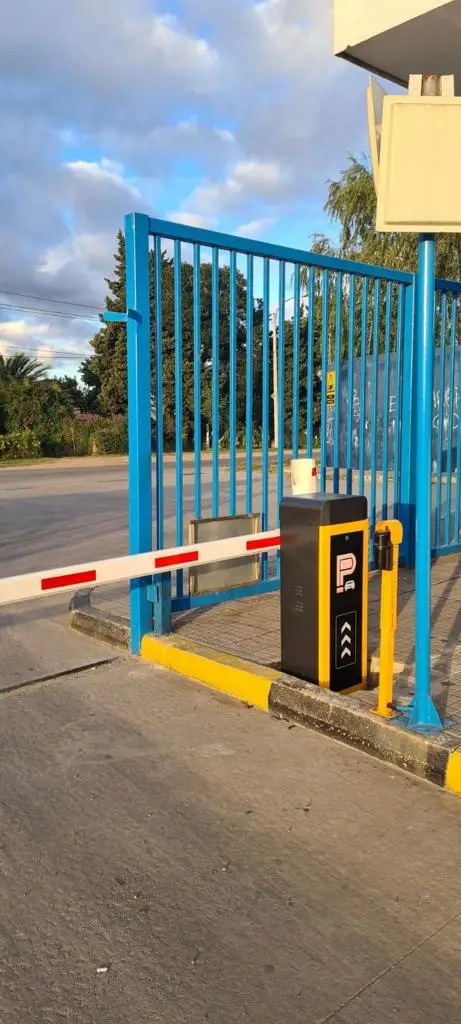

4.Car parking Solutions:

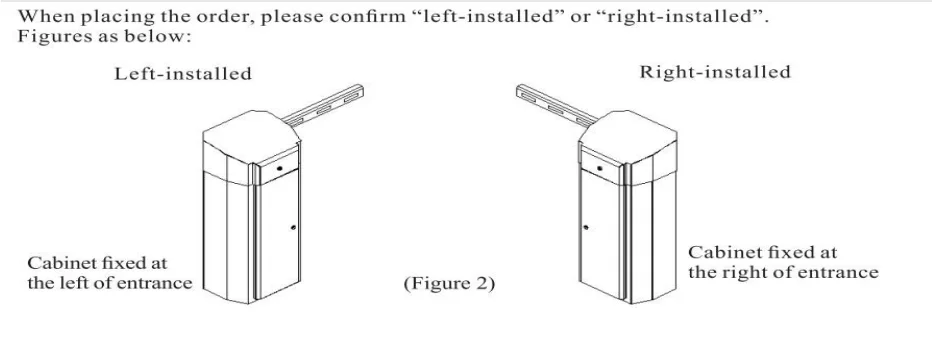

5.Direction Definication
FAQ
1.What is the speed of this barrier gate ?
0.4-0.6 Seconds adjustable
2.What is the MCBF ?
Over 10 millions cycles. vecause the we equip the Brushless servo motor.
3.What is the Length of Barrier Bar?
3-6 meters are available.
4.Do you support customization?
Yes, We have more than 12 years ODM experience
5.Do you offer a whole system for parking system
Yes, we can offer you complete parking system, contact our saleman and sort your requests, he will offer you professional proposal.
6.Payment term?
30% by T/T, 70% by T/T before delivery. Paypal, Western union and Money Grame are acceptable.
Company Information
Shenzhen Tongdazhi Technology Co., Ltd.
>Established in 2009.
>National high- tech enterprise integrating R&D, production, sales and service.
> One-stop service provider solutions for intelligent access control gate.
>Design&develop advanced access control systems.
>Independent import&export rights.
>Sold in more than 80 countries®ions.
Our Advantages:
1.Focus on solutions for entrance and exit control for 11 years.
2.Support pedestrian, access control, face recognition and software secondary development customization.
3.Provide non-standard turnstile design and customization.
4.Provide scenic spot ticketing system, smart campus, smart building solutions.
5.With high-tech enterprise certificate, ISO certificate, CE certificate,
There are 2 inventions of the main board of the turnstile and the main board of the access control;
36 patent certificates such as appearance, use of new tech, and software.
