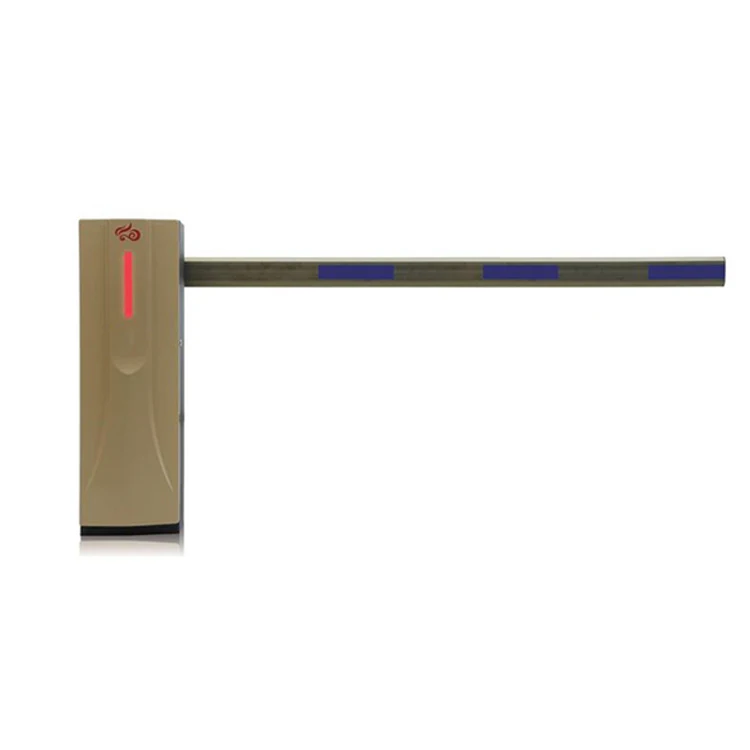

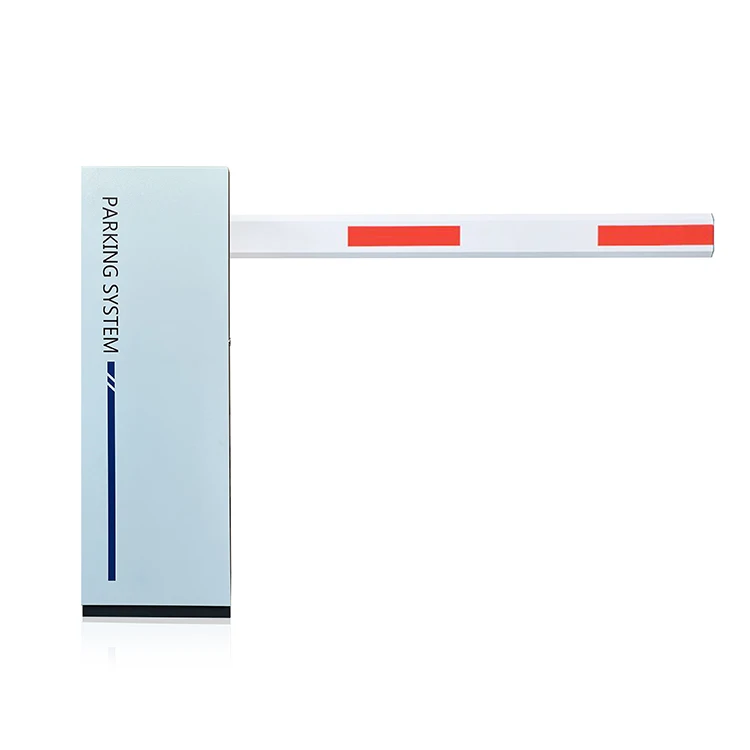

Road Traffic Barrier Speed Adjustable Parking Lot Gate Barrier 24V DC Brushless Motor Rfid Automatic Boom Barrier Gate
- Category: Traffic Barriers >>>
- Supplier: Chisung Intelligence Technology(shenzhen) Co. Limited
Share on (1600830950788):
Product Overview
Description
Products Description
Higher Stability, Longer Service Life and Easier Operation
Functions & Features
1. No spring design, eliminating the need for mechanical leveling,maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.
1. No spring design, eliminating the need for mechanical leveling,maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.
Model | CSDZE40 (speed 1.8~6S adjustable) | ||||||||
Running Speed | 1.8~6 S | 6 S | 6 S | 6 S | 6S | ||||

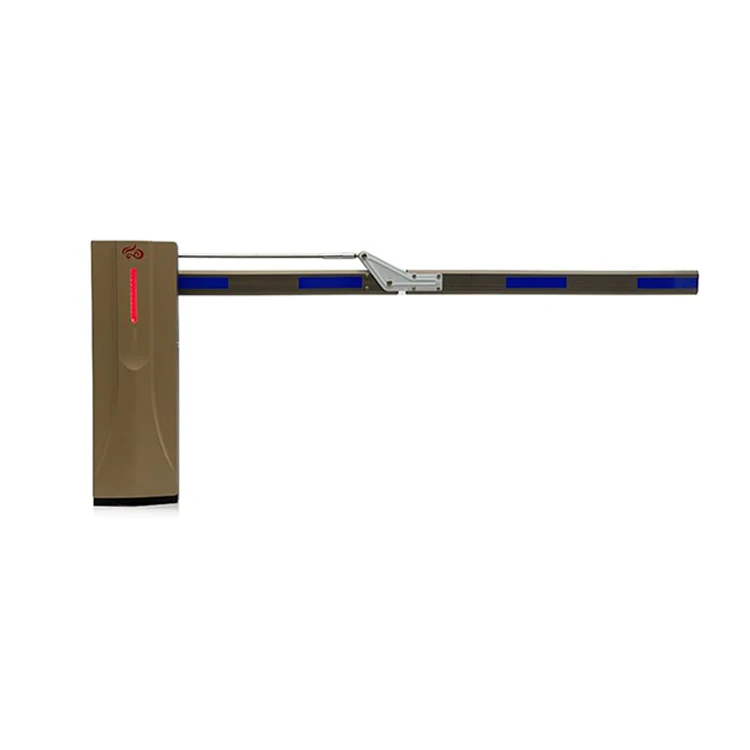

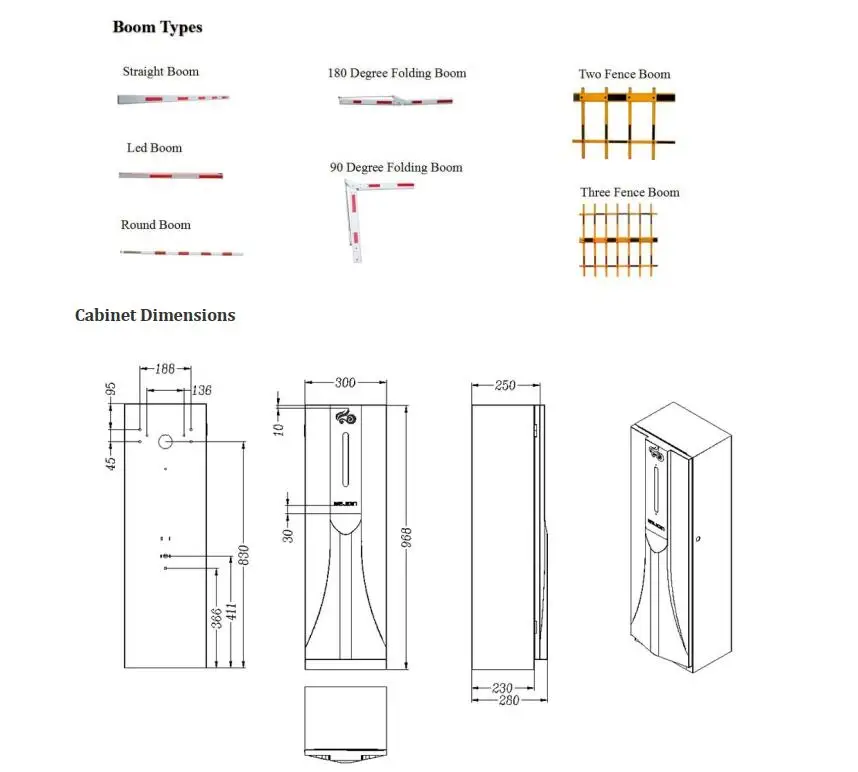

Boom type | Straight | 90゜Folding | 180゜Folding | 2 Fence | 3 Fence | ||||
Max Boom Length | 3M~6M | 5M | 4M | 4.5M | 3.5M | ||||
Cabinet Dimension (W*D*H) | 300*280*968MM | ||||||||
Power Supply Input Voltage | AC220V±10%, AC110V±10% | ||||||||
Motor Voltage | DC24V | ||||||||
Enclosure Rating | IP54 | ||||||||
Working Temperature | -35℃~ + 80℃ | ||||||||
MTBF | 6,000,000 times | ||||||||
Duty Cycle | 100% | ||||||||
Traffic Flow Application | 8000 times/ 24 hours | ||||||||
Max Motor Power | 240W | ||||||||
Max Motor Speed | 35r/min | ||||||||
Max Torque | 160N.m | ||||||||
The product is composed of five parts:
machine cap,
chassis,
rotating mechanism,
control unit and Boom Arm.
It can be quickly and easily modified for left or right installation, which is applied to the parking lot entrance and exit control system .

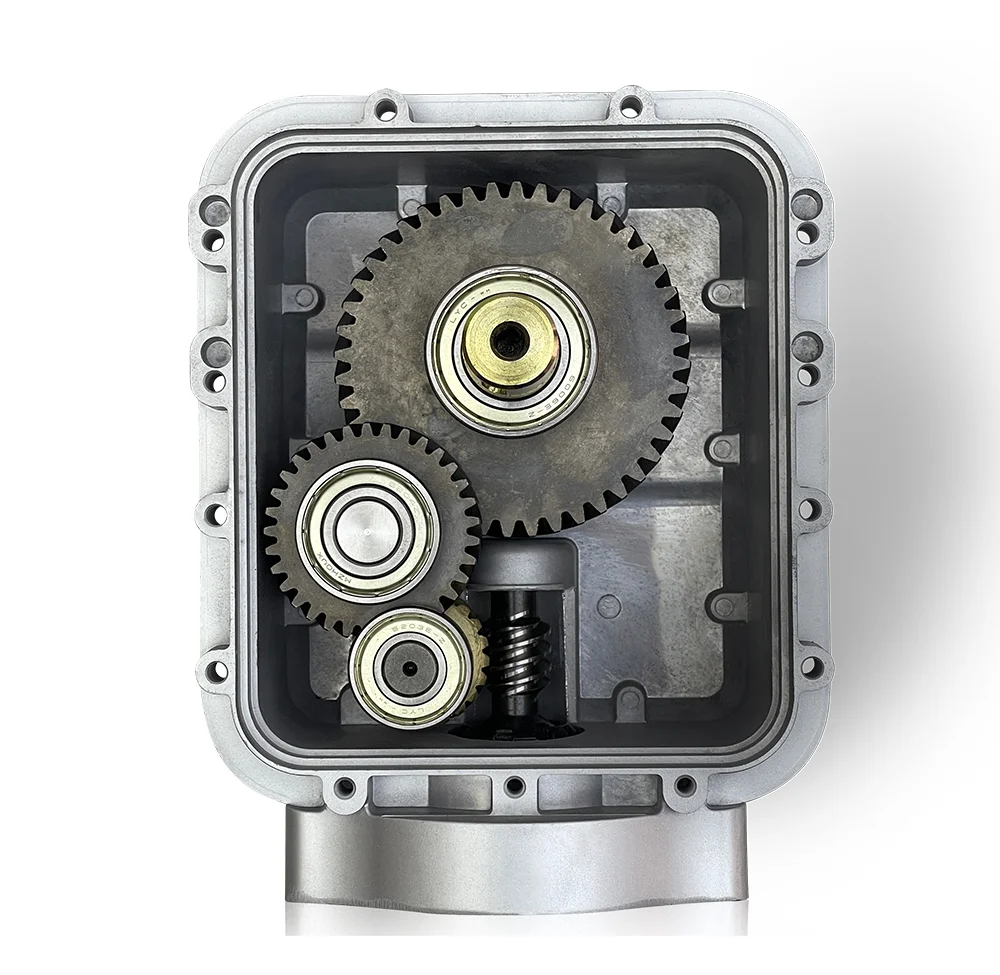

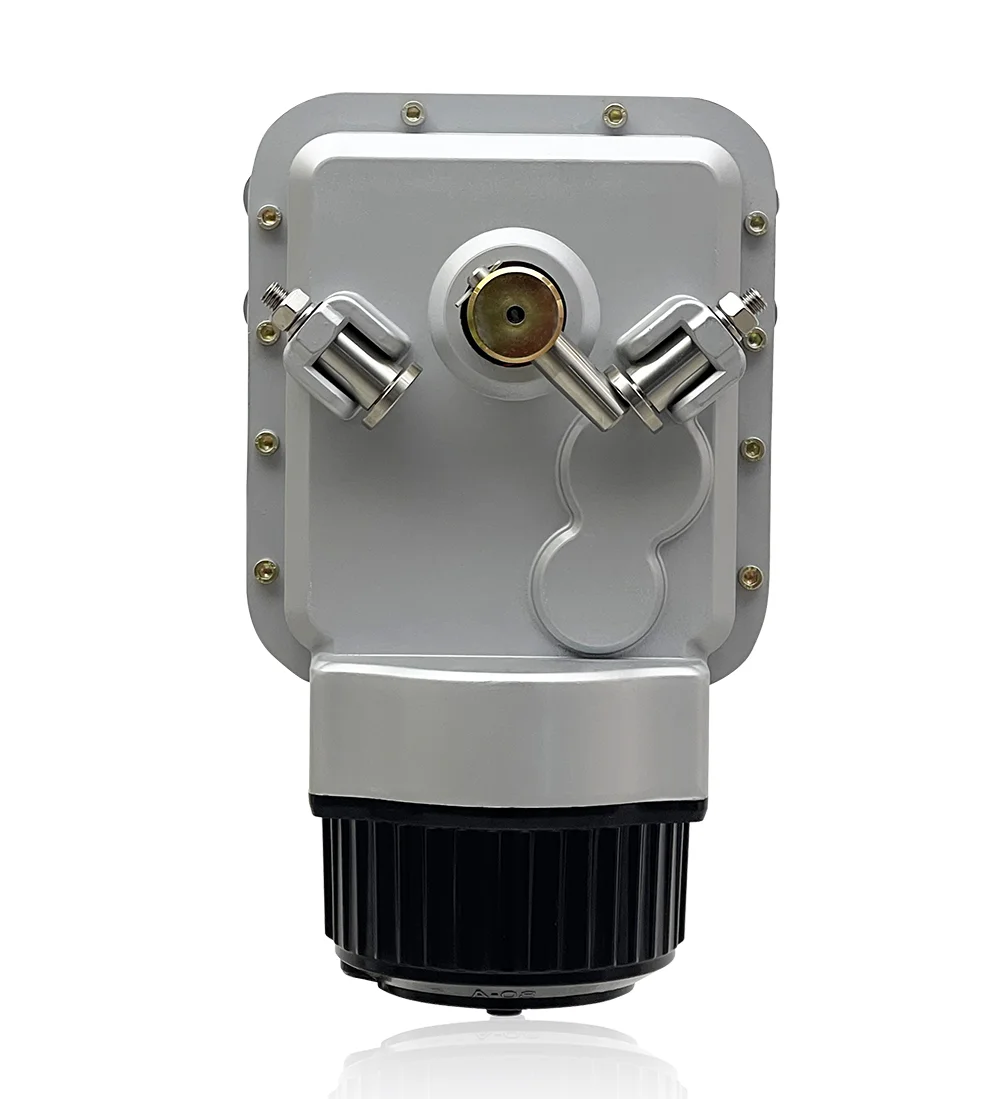

1. Worm Gearing
With stable worm and gear transmission structure, large torque, and wear resistance.
With stable worm and gear transmission structure, large torque, and wear resistance.
2. DC24V Motor
Self-developed DC24V brushless motor, precise control, more flexible running, less mechanical impact and longer service life.
Self-developed DC24V brushless motor, precise control, more flexible running, less mechanical impact and longer service life.

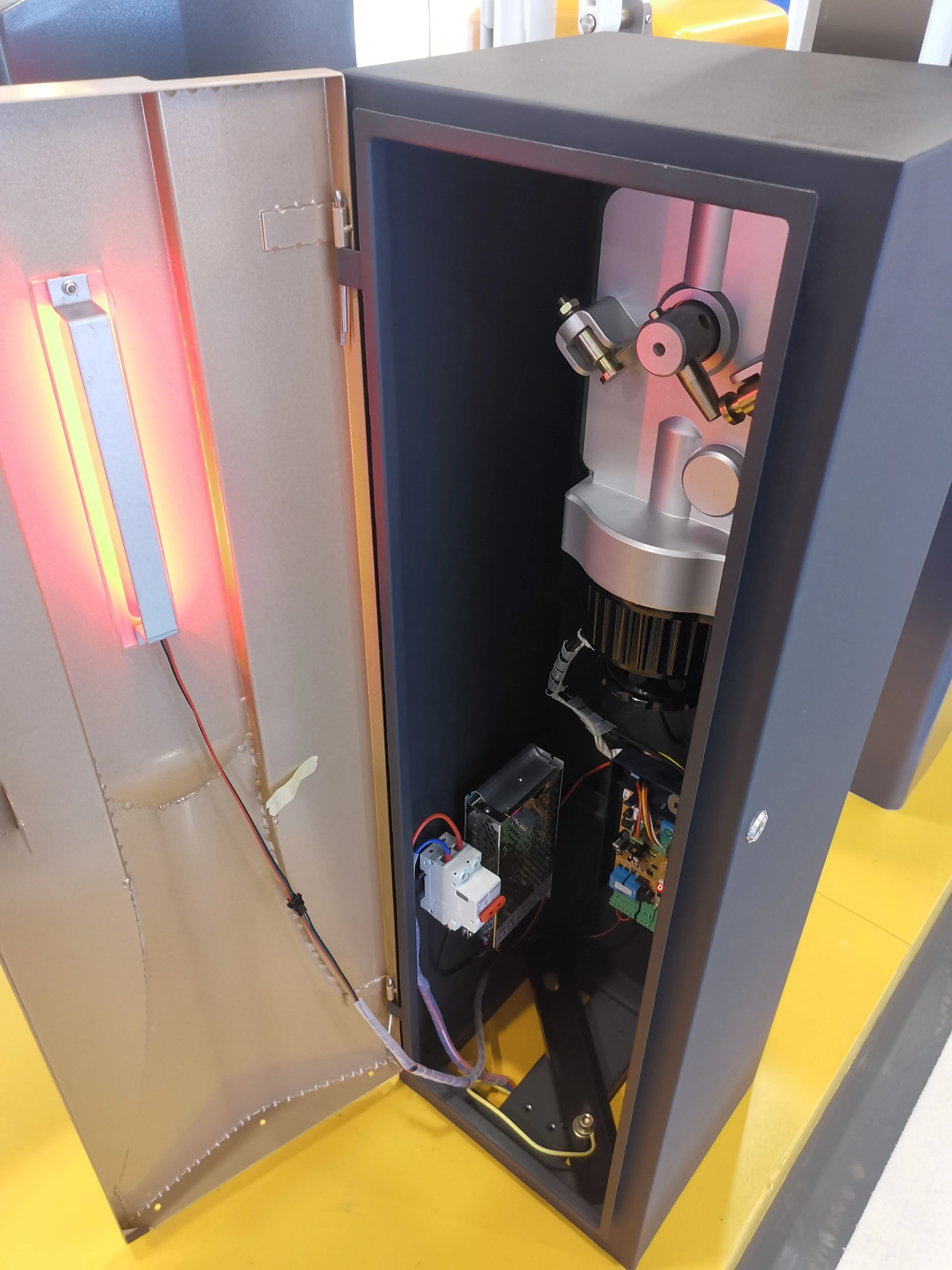

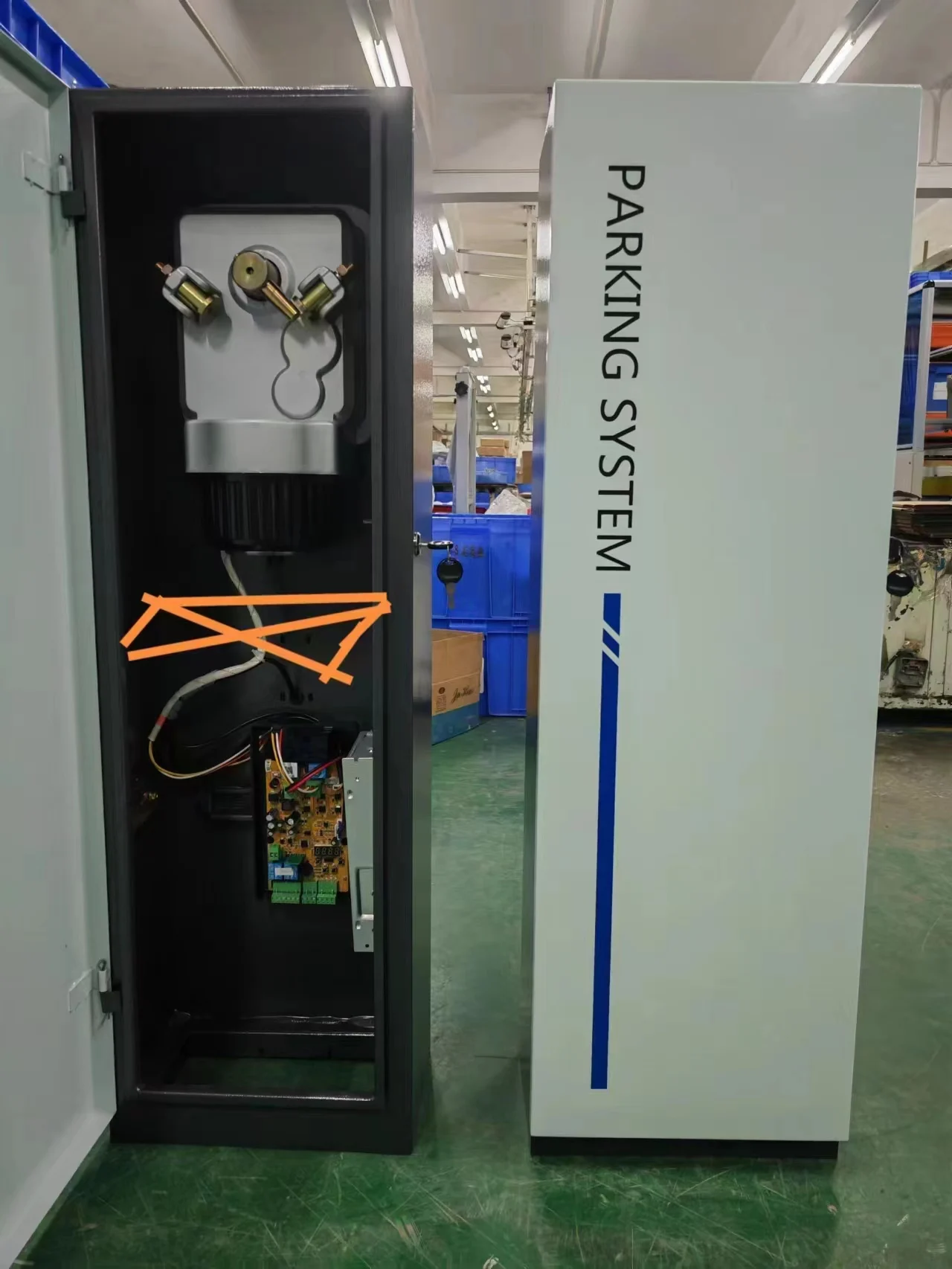

3. Inner Mechanism
Without Spring, no need for mechanical leveling, and maintenance-free;
Without Spring, no need for mechanical leveling, and maintenance-free;
4. Control board
Digital tube display, easy and quick parameter setting.
Digital tube display, easy and quick parameter setting.
Packing & Delivery
carton
Company Profile
Chisung(Chisung Intelligence Technology Co., Limited), is one of the enterprises integrating intelligent machinery and electronic technology in road safety machines.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Product Certification
FAQ
1.Are you a Trade company or manufacturer for barrier gate ?
--------We are a manufacturer , welcome to visit our factory , and welcome to OEM .
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last
page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring
3. How long the Remote-control distance ?
-------- In general, most of CHISUNG 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier
gate from 100 meters away. CHISUNG recommends using the remote control within 30 meters or 50 meters.
4.Can CHISUNG barrier gate be used outdoors, even in extreme weathers?
-------- Yes, the working temperature is -30℃~+85℃
5.Is it changeable for the installation direction of the barrier gates?
-------- The installation direction of CSDZ101, 102,201,301,501series barrier gates is fixed. But CSDZ601 and CSDZ701 are
adjustable.
--------We are a manufacturer , welcome to visit our factory , and welcome to OEM .
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last
page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring
3. How long the Remote-control distance ?
-------- In general, most of CHISUNG 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier
gate from 100 meters away. CHISUNG recommends using the remote control within 30 meters or 50 meters.
4.Can CHISUNG barrier gate be used outdoors, even in extreme weathers?
-------- Yes, the working temperature is -30℃~+85℃
5.Is it changeable for the installation direction of the barrier gates?
-------- The installation direction of CSDZ101, 102,201,301,501series barrier gates is fixed. But CSDZ601 and CSDZ701 are
adjustable.
