Cosmetic Cream, Body Lotion Oil Bottles Box Packing Machine JB WZ80 cartoning machine
- Category: Boxing Machines >>>
- Supplier: Shanghai Jiaoban Machinery Co. Ltd.
Share on (1600360104897):
Product Overview
Description
Hot sale! Cosmetic Cream, Body Lotion Oil Bottles Box Packing Machine JB-WZ80 cartoning machine // Contact: +8613916983251
Product Description
Performance feature:
1. Automatic horizontal cartoning machine is a high-tech product, which is a integration of light, electricity, gas and machine.
2. Working process: bottle transmission ( adjustable if more than one plate)
-- leaflet transmission (automatically finish 1-4 folding) -- carton automatic distraction and delivery--plate joint folded manual into carton - automatic batch number printing, paper tongues sealing on both ends, etc.
4. Machine use high quality stainless steel casing shape, working faces are closed by organic glass door and windows. It's innovatively designed,
strictly in accordance with requirements of pharmaceutical industry "GMP" standard.
5. Product height is not standard, auto rejecting when no instruction book.
6. Auto stopping machine when product does not enter carton completely.
7. Auto stopping machine when no carton, no continuous instruction book or no product.
8. Convenient to change products with different specification.
9. Main drive is equipped with overload protection device.
10. PLC automatic display failure, box packing speed and finished counting.
Techinical parameter:
Model | JB-WZ80 | |
Capacity | 30-100 cartons/min | |
Power supply | 3ph.380V, 50/60Hz | |
Main motor power | 2.5 KW | |
Gas consumption | 5-20L/min (Pressure 0.6Mpa) | |
Packing material | ||
Carton Specification | L(45-85)mm x W(28-53)mm x H(28-53)mm | |
Instruction book | ||
Unfolding size | L(80-250)mm x W(90-170)mm | |
Folding range | Customized | |
The number of folding | 1-4 | |
Net weight | About 1000kg | |
Overall Dimension | L2600 x W1100 x H1500mm | |
Sample picture
Machine pictures

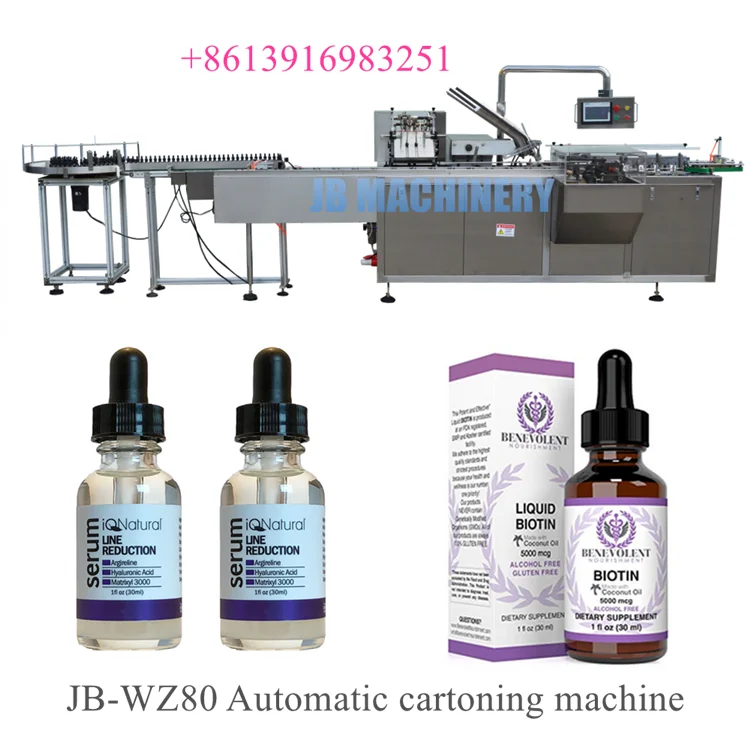

JB-WZ80 Automatic horizontal cartoning machine
Feed bottle/jar on chain conveyor:
Carton feeder:
Carton folding and sealing:
