ZH 1000BFT box machinery paper folding ang gluing

Product Overview

Description

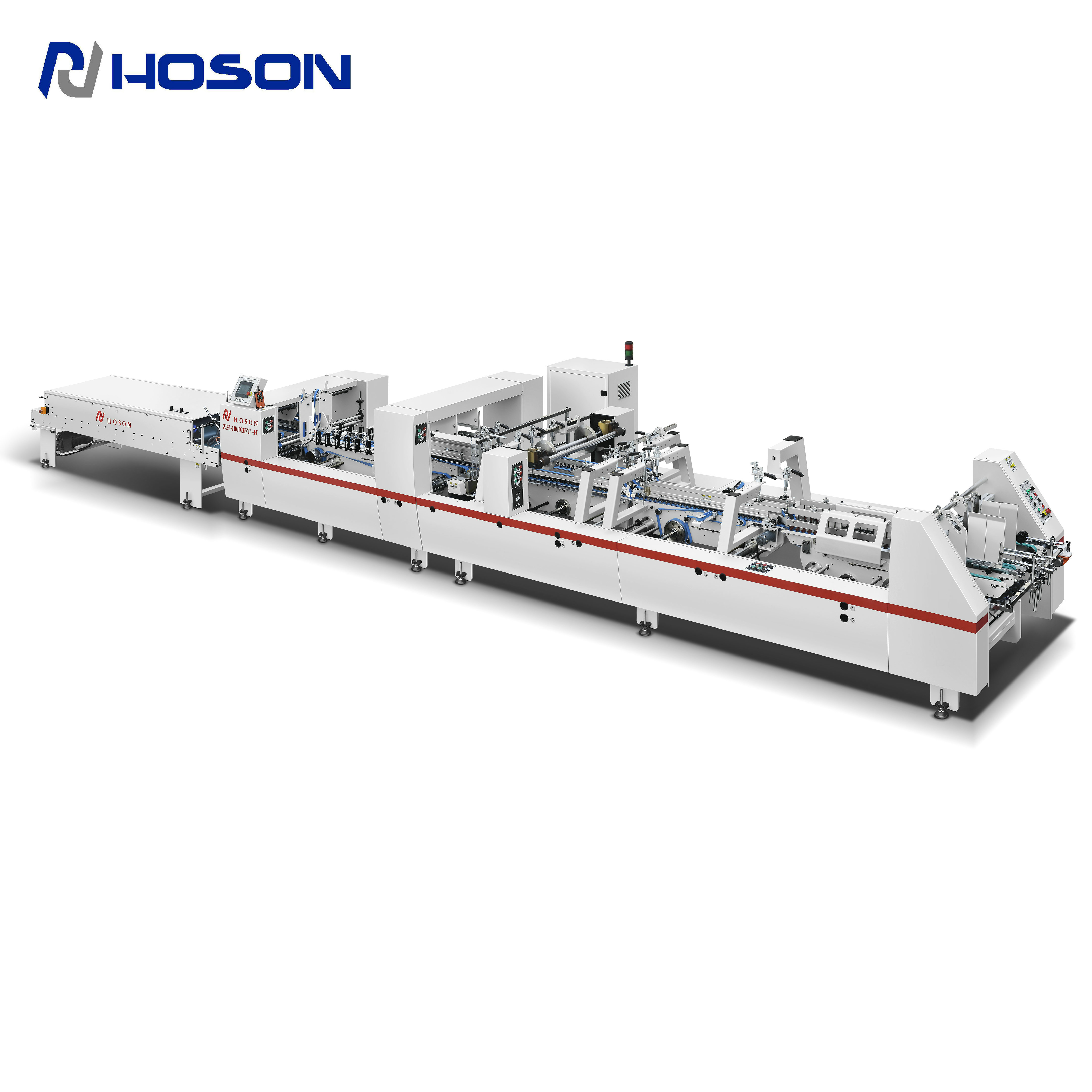

ZH-1000BFT Bottom-lock type Folder Gluer Machine



 Feature:

1. The machine is adopted with strengthened single-side driving system, for steady running and

    easy maintenance.

2. The mortor is adopted with inifitely variable speed drive and power saving.

3. The machine is able to 2-folding, 4-folding with bottom gluing.

4. It is adopted with touch screen, PLC controller, photo-electric counting, automatic sheet kicker.

5. It is adopted with Imported high quantity belt.



 Main Technical Parameters:

1	Line speed	0-200m/min , Continuous adjustment
2	Usage paper	260-500 g/ms, paperboard
3	Box forming	Bottom-lock, straight line box, double walls box
4	Fold method	1st & 3rd folds 90°, 2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	7.0kw
7	Dimension	9.7*1.4*1.6m
8	Weight	2700kg
9	Condition	New





Box Type	Picture	A  Max	A Min	B Max	B Min	C Max	C Min	D Max	D Min
Crash-lock  Bottom Box		650-210mm		600-220mm		120mm		30mm
Straight Line box		700-200mm		600-150mm
Double Walls  Box		580mm		600mm		100mm		500mm
