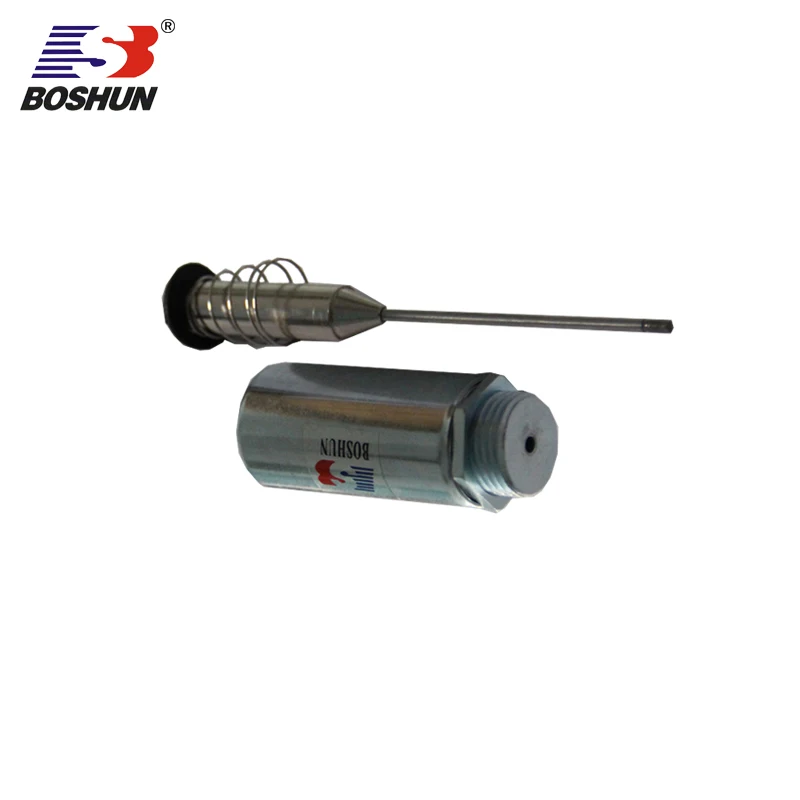

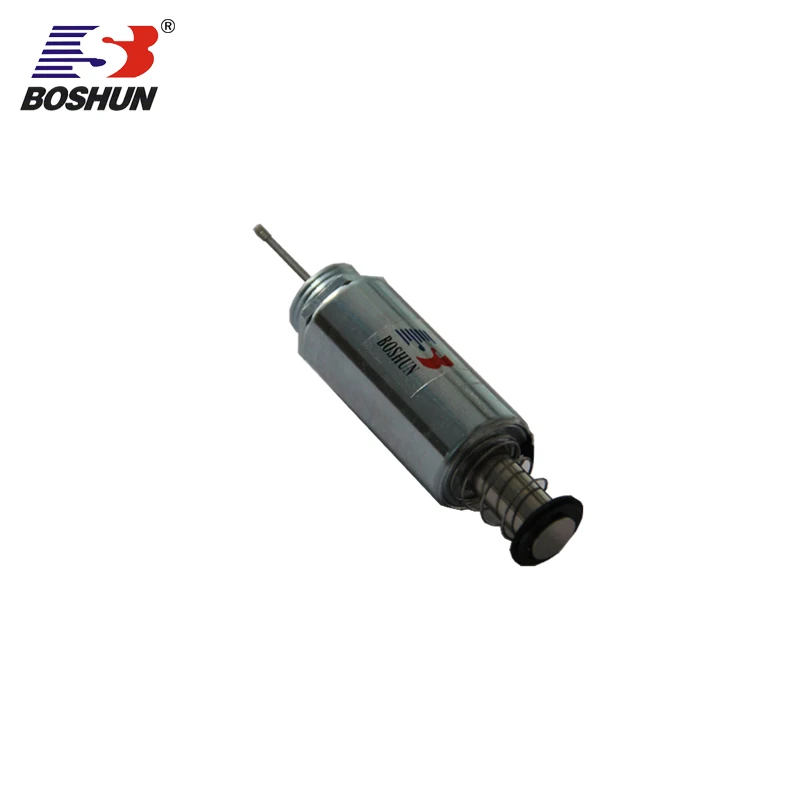

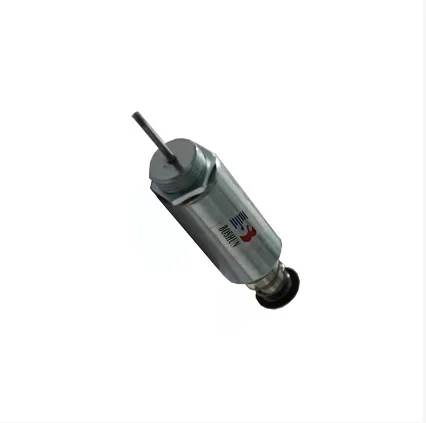

BS 2551TL 023 High quality electromagnetic tubular solenoid (1600360860933)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

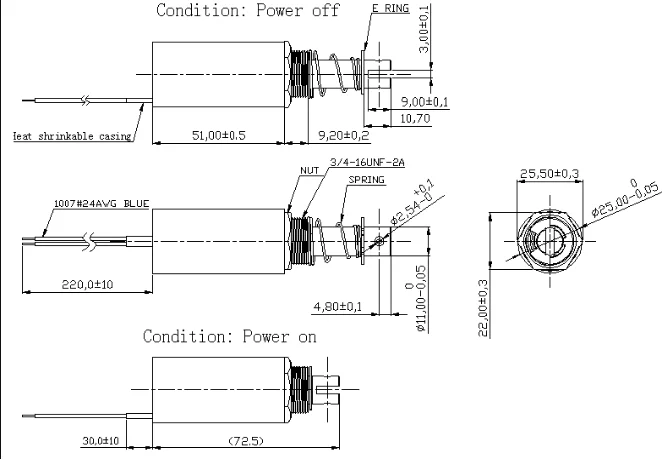

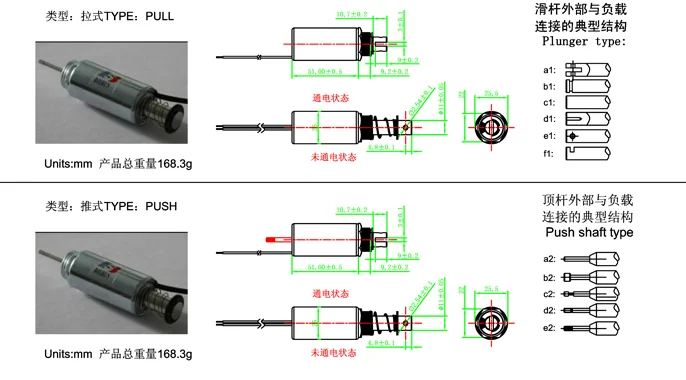

Parameres&Drawing

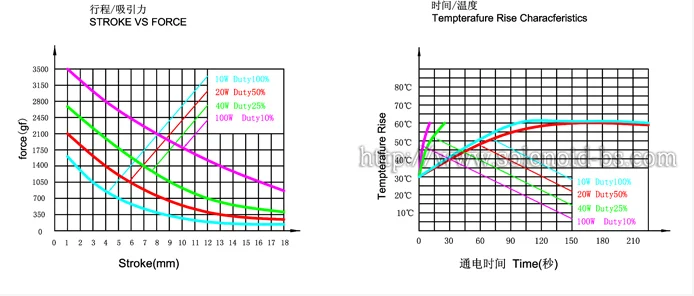

Product parameters
Product nameBS-2551TL
Standard test conditions.1 Ambient temperature: —40℃~+80℃,5%~95%RH
2.2 Relative humidity: —40℃~+80℃,5%~95%RH
2.3 Rated voltage: customization
2.4 Power consumption (wattage): customization
2.5 OPERATION CYCLE: intermittent type
Appearance (facies  no damage, crack, rust, surface stains
Electrical characteristics 4.1 Working voltage: customization
4.2 Potence: customization
4.3 Insulation resistance: DC500V,≥50MΩ
4.4 High voltage: AC700V 50/60Hz-1second
Life (biometry More than 200,000 times in normal use.











Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
