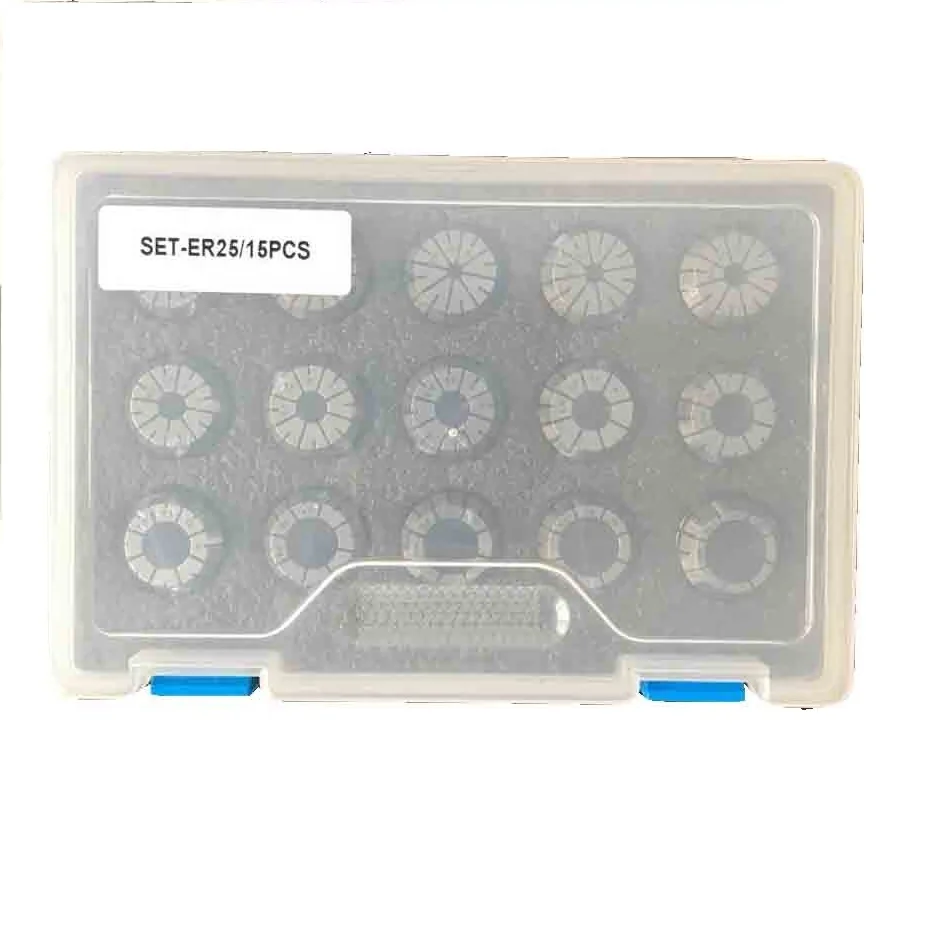

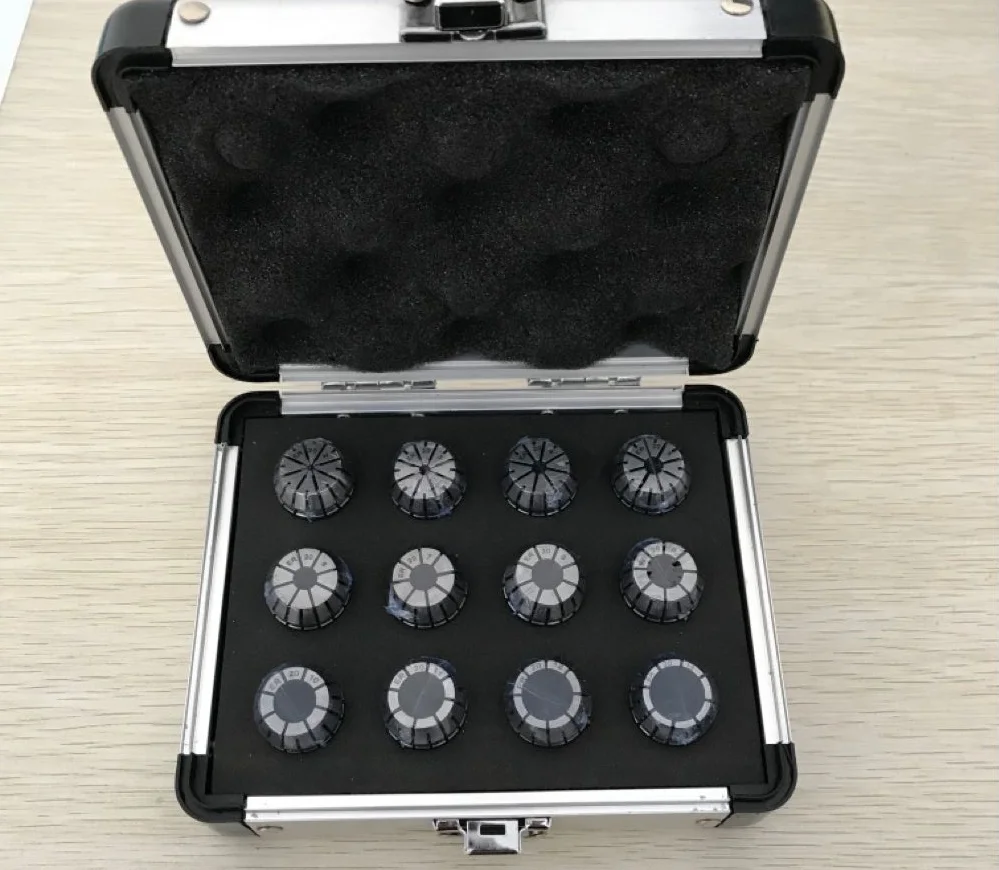

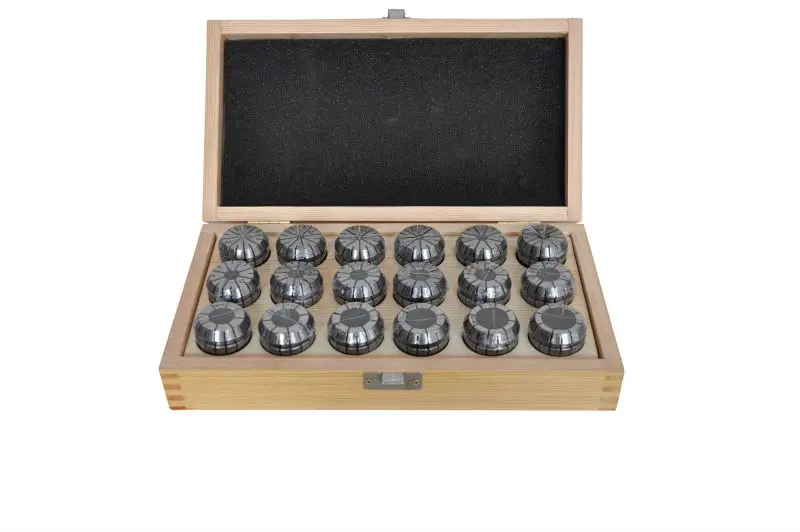

ER Collet kits packed in plastic or wooden box

Product Overview

Description

ER Collet Kits packed in plastic or wooden box:



1)Material:65mn

2)Hardness:HRC44-48

3)runout:0.015mm,0.008mm,0.005mm

4)ER collet kits packing detail as below:



order no.	collet hole size	pcs/Set
ER8-9pcs	1,1.5,2,2.5,3,3.5,4,4.5,5	9
ER11-7pcs	1,2,3,4,5,6,7	7
ER11-13pcs	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7	13
ER16-8pcs	3,4,5,6,7,8,9,10	8
ER16-10pcs	1,2,3,4,5,6,7,8,9,10	10
ER20-10pcs	4,5,6,7,8,9,10,11,12,13	10
ER20-12pcs	2,3,4,5,6,7,8,9,10,11,12,13	12
ER25-5pcs	6,8,10,12,16	5
ER25-7pcs	4,6,8,10,12,14,16	7
ER25-13pcs	4,5,6,7,8,9,10,11,12,13,14,15,16	13
ER25-15pcs	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16	15
ER32-6pcs	6,8,10,12,16,20	6
ER32-11pcs	4,5,6,8,10,12,13,15,16,18,20	11
ER32-18pcs	3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20	18
ER40-15pcs	4,5,6,8,10,12,13,15,16,18,20,21,22,25,26	15
ER40-24pcs	3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26	24
ER50-12pcs	12,14,16,18,20,22,24,26,28,30,32,34	12



We also can pack the collets in one kit/set according to the sizes and quantity you require.
