High Auto High Quality Low Labour Cost High Pressure Casting Machine for Intelligent Smart Toilet One Piece and Two Piece Water
- Category: Other Construction Material Making Machinery >>>
- Supplier: Tangshan Hexiang Intelligent Technology Co. Ltd.
Share on (1600362280720):
Product Overview
Description
Product Description

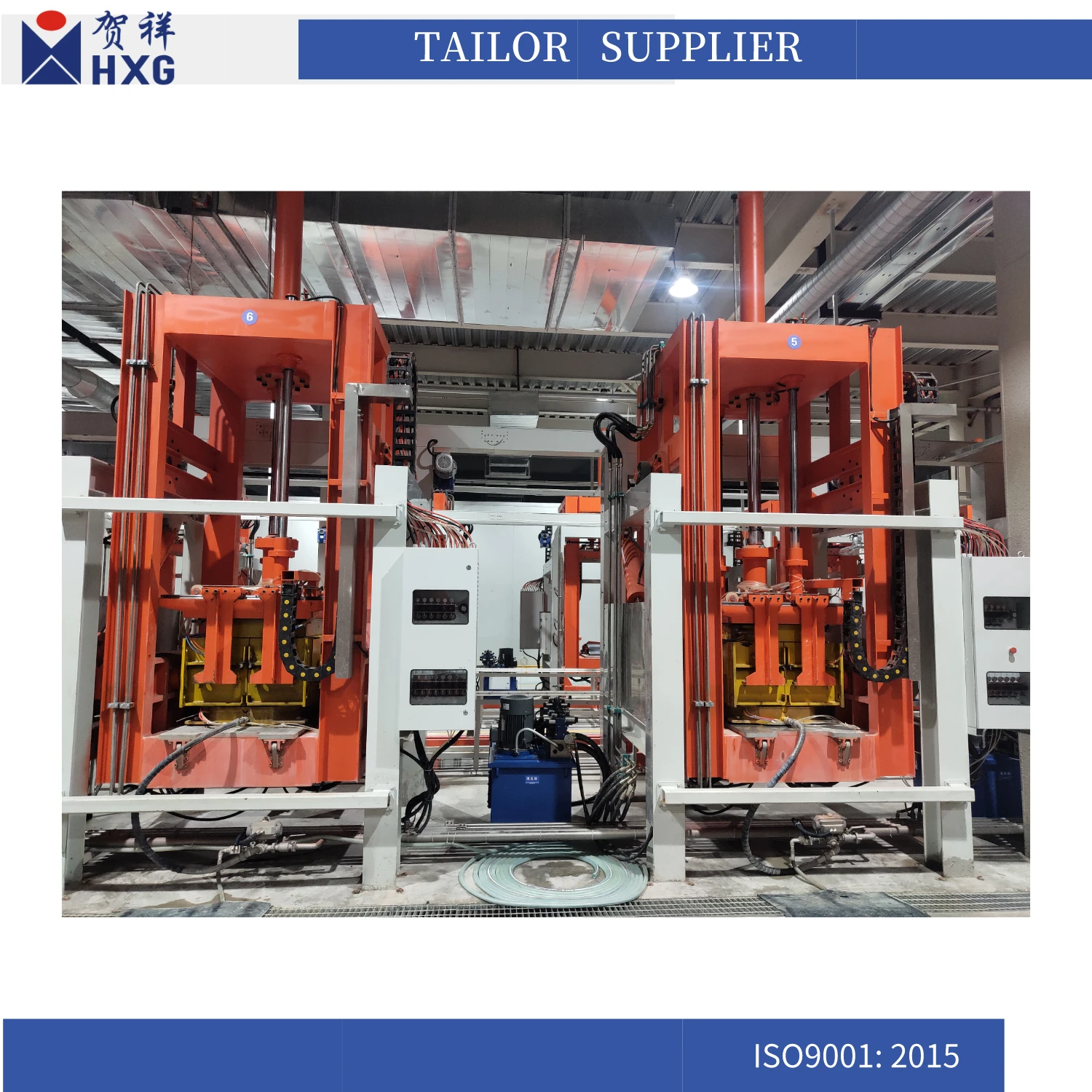

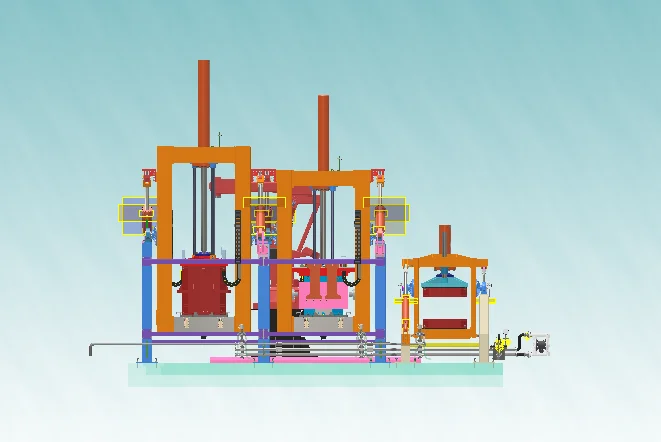

This pressure casting machine with casting module is used to produce smart toilet, e-bidet, intelligent toilet, skirt toilet, one piece toilet, and two piece water closet and so on. It is a modern high pressure casting equipment which integrates comprehensive technology of water, electricity, compressor air, hydraulic and vacuum.
As the first choice for modern sanitary ceramic factory and favorite of client, it is mainly applicable to cast and form green body of intelligent toilet.
Its' advantage is: high output, low labor cost, energy saving and environmental protection, also it solves the problem of youth labor shortage.
Detailed Pictures
Product Parameter
Items | Contents | |
1 | Demoulding method | Vertical lifting+ Transverse horizontal +vacuum suction+ compressed air |
2 | Mould close method | auxiliary by pneumatic +mould close by hydraulic |
3 | Pressure of mould close | 30~40T |
4 | Accurate of mould close | ±0.25mm |
5 | Turnover angle of turnover-frame | 0-34° |
6 | Pressure of low-pressure slip feeding | 0.25±0.05MPa |
7 | Pressure of hi-pressure slip feeding | 0.8~1.0MPa |
8 | Method to increase pressure for slip feeding | Pressure reinforcement by hydraulic |
9 | Pressure of compressed air | ≥0.6MPa |
10 | Air consumption(/module) | 0.3M³/h |
11 | water pressure | 0.3MPa |
12 | Water consumption (/module) | 0.2M³/h |
13 | Q’ty of mould | 1 for rim+1 for engine+1 for skirt/time/module |
14 | General casting period | < 30 min/cycle (adjustable) |
15 | Floor space | 60M×36M |
