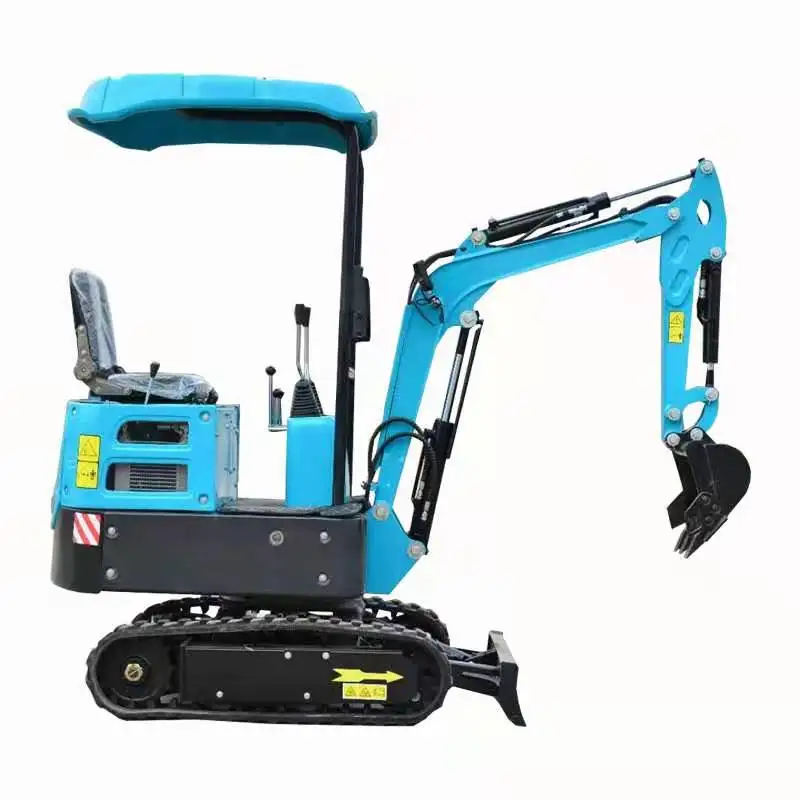

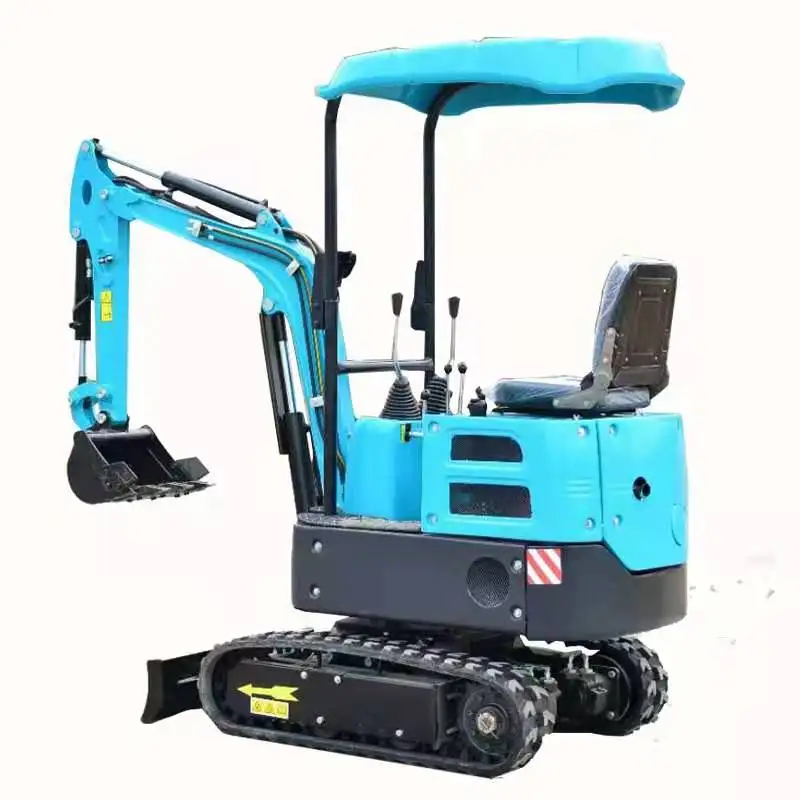

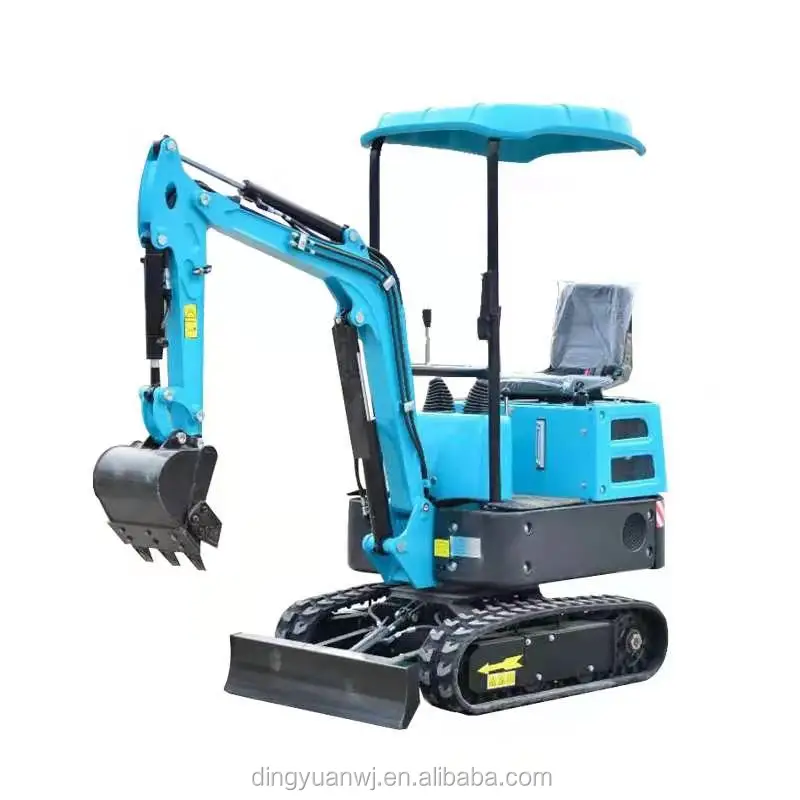

Shanding SD12D weight 1 ton Crawler Diesel smallest Mini Excavator meet EURO5

Product Overview

Description

Our Services

1. Shipment can be arranged from our port to your destination port.

2. User-friendly English manual for machine installation using and maintenance.

3. Supply 24-hours technical assistance by email, telephone or other communication online.

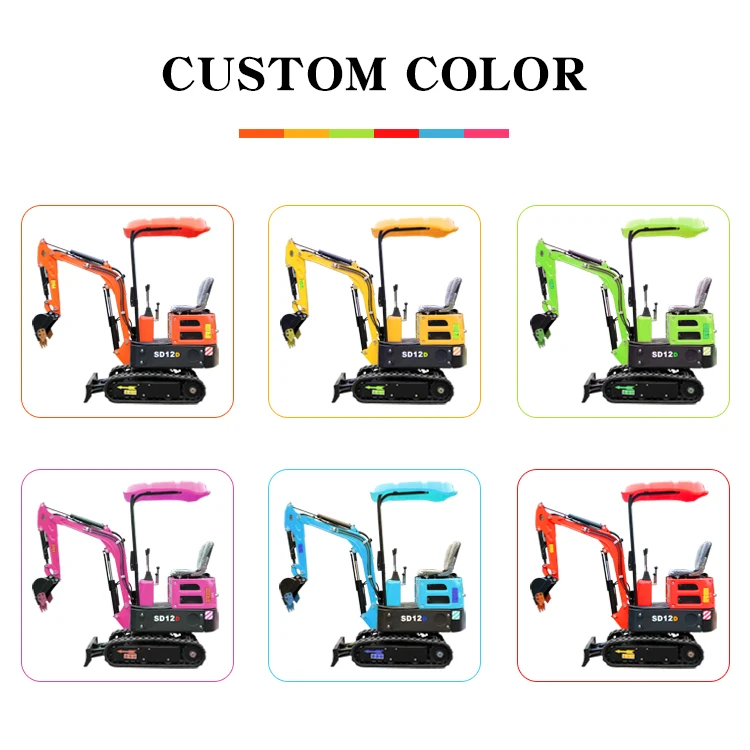

4. Customization is available.

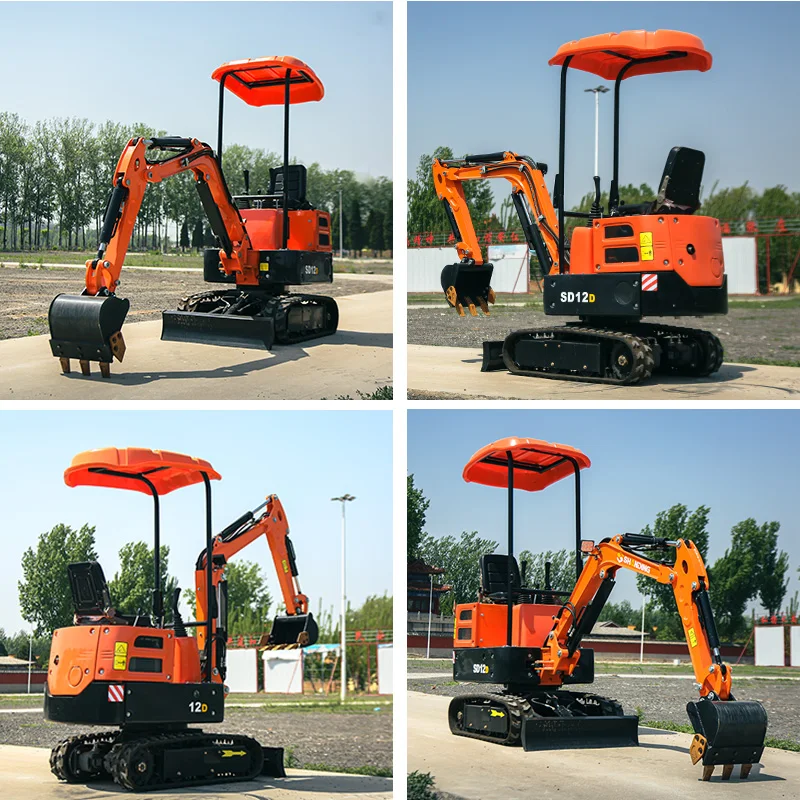

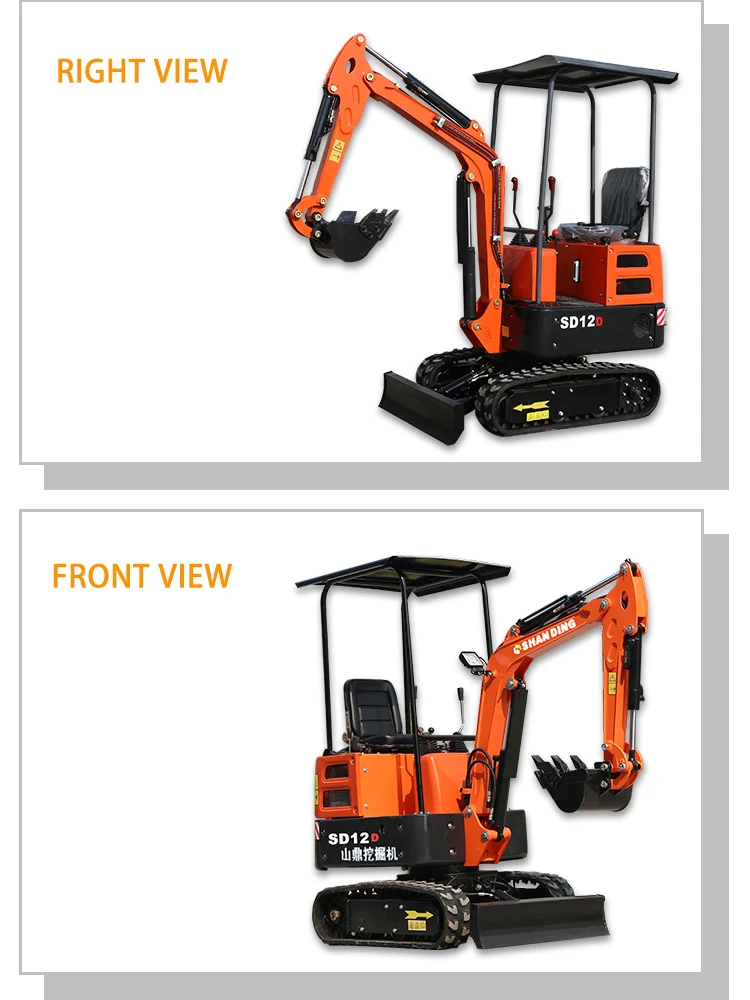

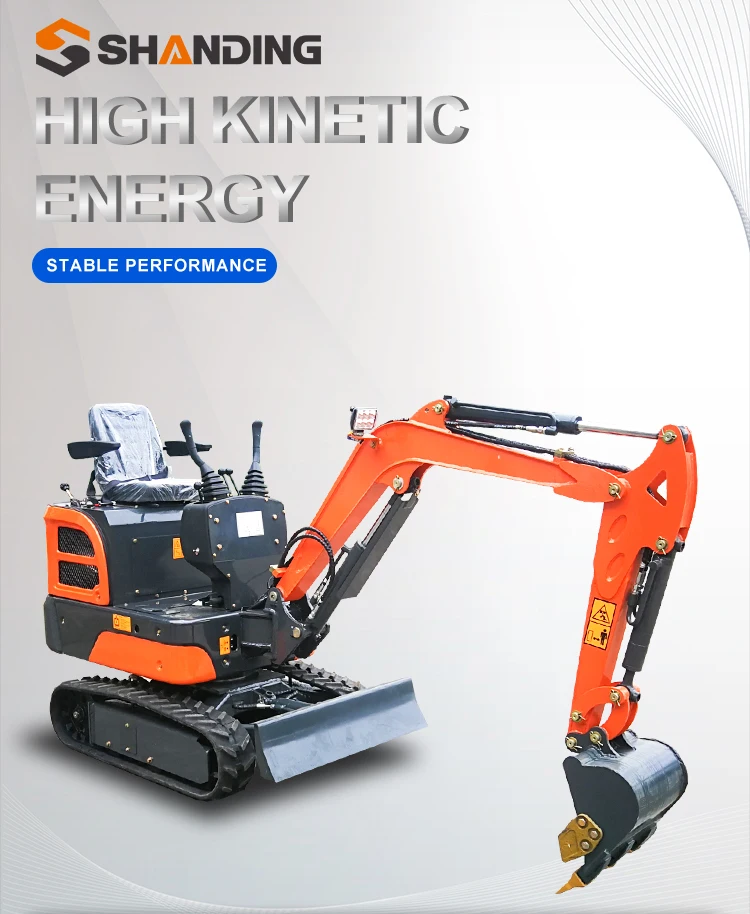

EXCAVATOR SD12D

The SD12D mini excavator is the earliest product developed by Shanding This small excavator is the one with the most stable performance and the strongest digging power among the 1-ton small excavators;

Suitable for small projects in your own garden nursery.

CHINA high quality 0.8 ton 1ton 1.7ton mini crawler excavator with cheap

Advantages:

Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating range.

Multipurpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of

Fruit-land Nurseries concrete pavementcrushing,sand-gravel material mixing, construction work in the narrow place etc...

It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow investment,high return.

Machine parameters
Model	SD12D
Operating Weight	1020Kg
Bucket Capacity	0.028m³
Rated Power	7.6-8.6 kw
Max.Hydraulic System Pressure	16mpa
Max. Grade ability	30°
Max Walking Speed	2.5Km/h
Max. Traction	7.2KN
Platform Rotary Speed	9r/min
Boom swing function	yes
Dimensions
Overall Length	2770mm
Overall Width	925mm
Overall Height	1550mm/2100(Chair/Roof)
Arm  Length	800mm
Boom  Length	1490mm
Track Length	1210mm
Track Width	180mm
Ground Clearance	240mm
Platform Width	925mm
Platform Ground Clearance	420mm
Bucket Width	400mm
Working range
Max. Digging Height	2650mm
Max Digging Depth	1650mm
Max. Digging Radius	2950mm
Max Dumping Height	1750mm
Min. Radius of Gyration	1150mm

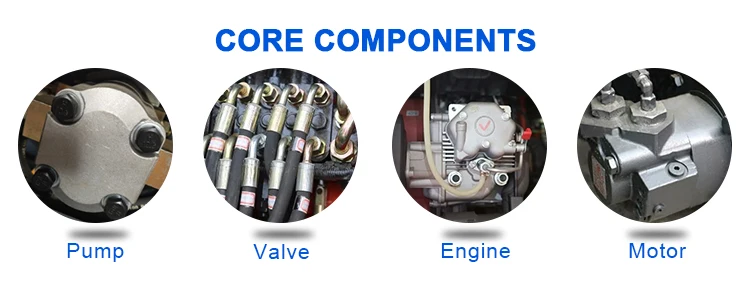

Machine configure
Engine  Model	KOOP 192F
Main valve	Beifang
Main Pump	Tianji
Rotation Motor	SANYO
Walking Motor	SANYO

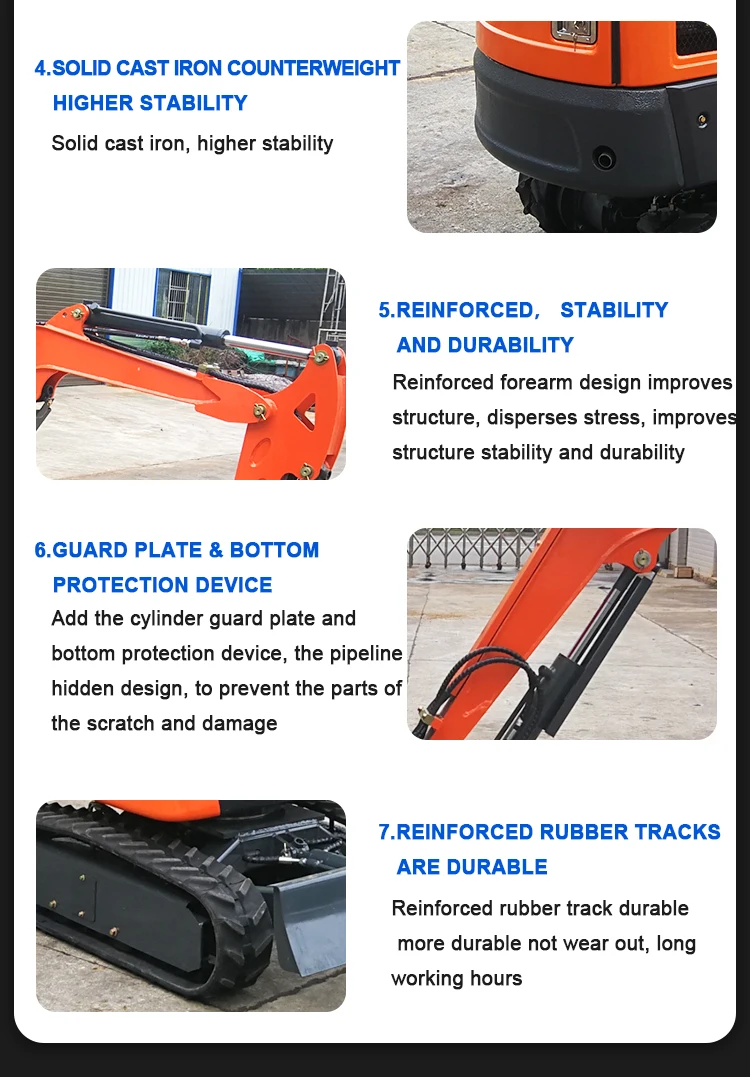

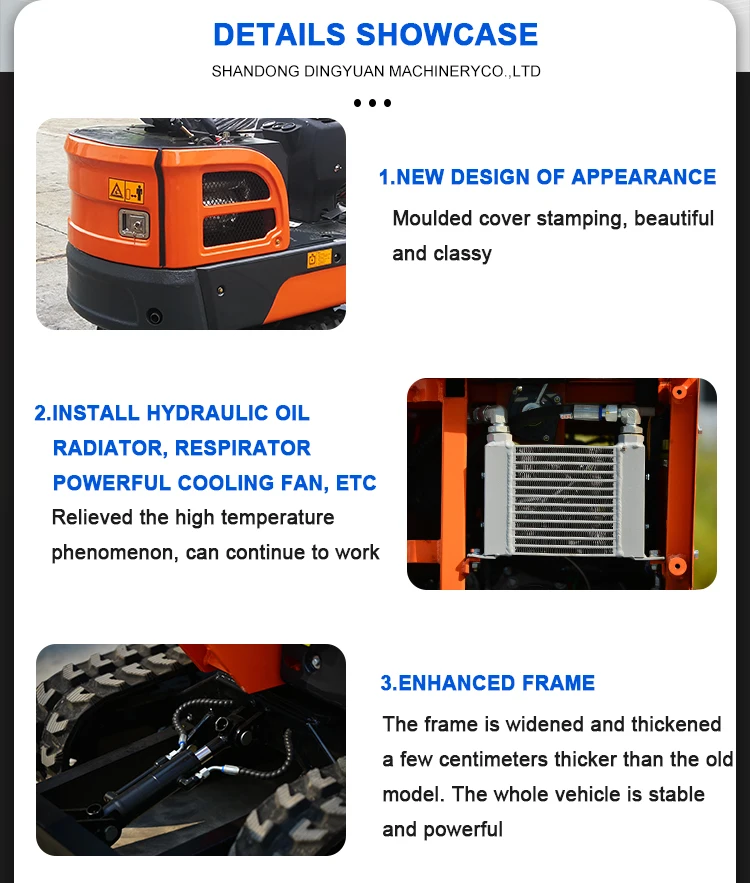

1.Reinforced arm design

 Improve structure, disperse stress, improve stability and durability of structure

2.Add cylinder guard plate and bottom protection device , pipeline hidden type design.

Prevent scratches and damage in all parts.

3.Add hydraulic oil radiator and respirator , powerful cooling fan , etc

Reli eve the high temperature phenomenon and works continuously

4.Enhanced car frame (chassis and platform )

Large shelf wider and thicker , several centimeters thicker than the old model , the whole vehicle is stable and powerful

FAQ

1.Factory

Q: Are you bagger machine manufacturer?

A: We are the excavator machine manufacturer.

2. Warranty

Q: How to identify the quality about mini excavator for sale?

A: Our mini crawler excavator have a 12 months warranty after sale

3. Packing

Q:What is the container size of cheap mini digger?

A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.

4. Lead time

Q: How many days it takes before you deliver the goods to us?

A: For these 1 ton china excavator, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel

and ship the goods to named port/airport.

5.Customer

Q: Where country customer you sale about chinese mini excavator for sale?

A: excavator in dubai , mini excavator for sale malaysia , excavator price in india , our customer also in Australia, USA,

Hongkong, Taiwan, and southeast asia.
