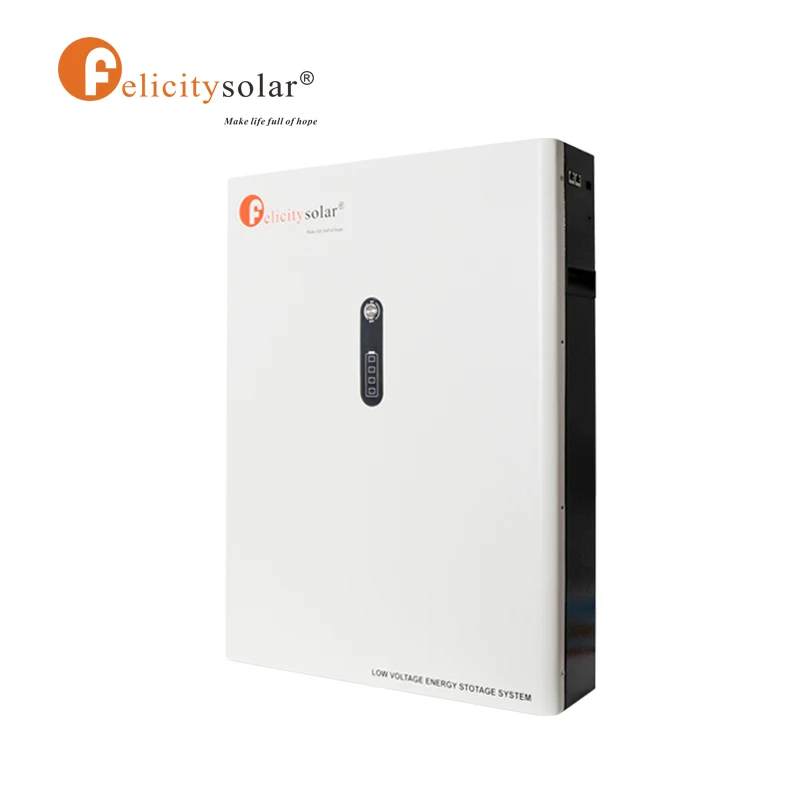

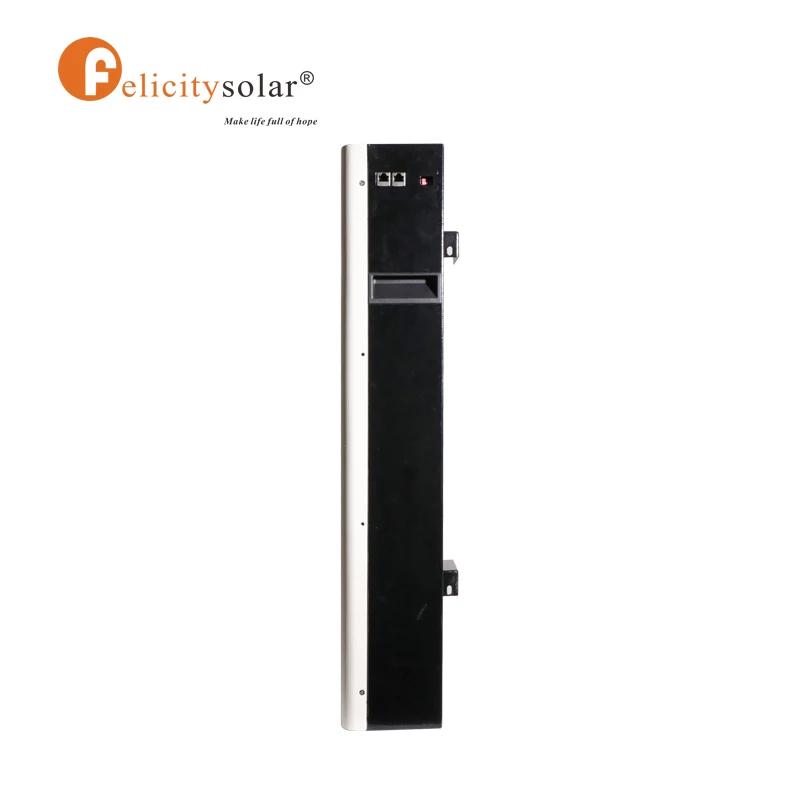

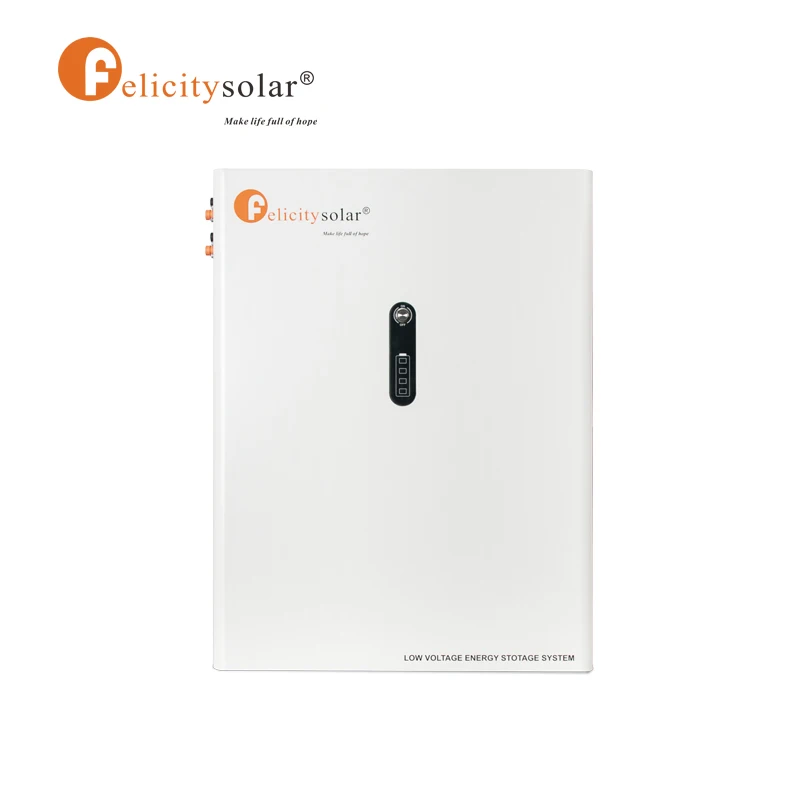

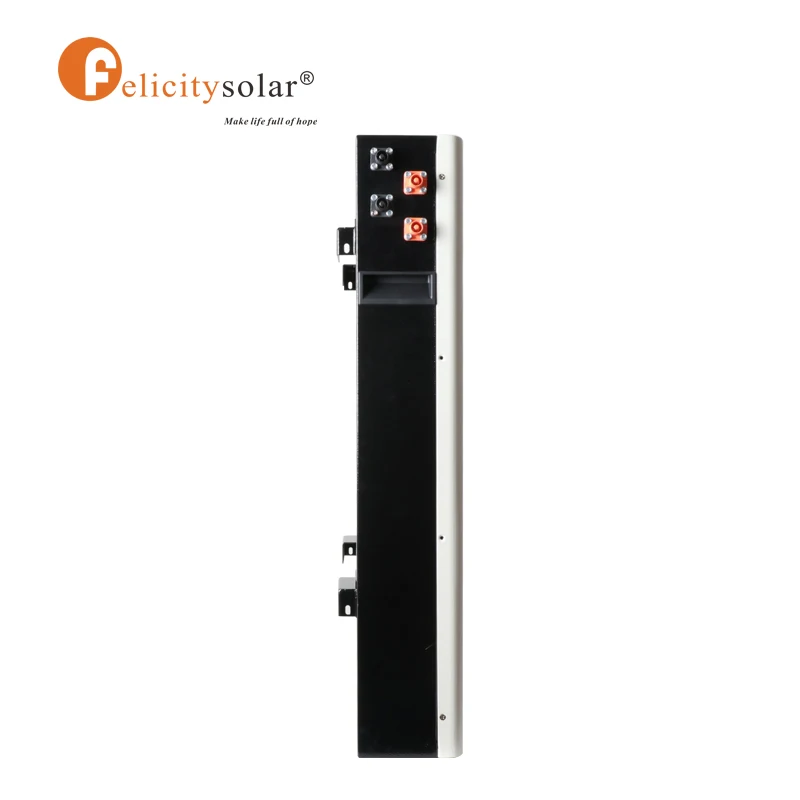

Grade A 51.2v 17000mah battery lithium ion Lifepo4 battery cell with BMS for Solar inverter
- Category: Lithium Ion Batteries >>>
- Supplier: Guangzhou Felicity Solar Technology Company Limited
Share on (1600364313609):
Product Overview
Description
Product Description
advantage
1. Iron Phosphate-lithium power battery
2. Long warranty period :5 Years
3. Higher energy density,smaller volume for household.

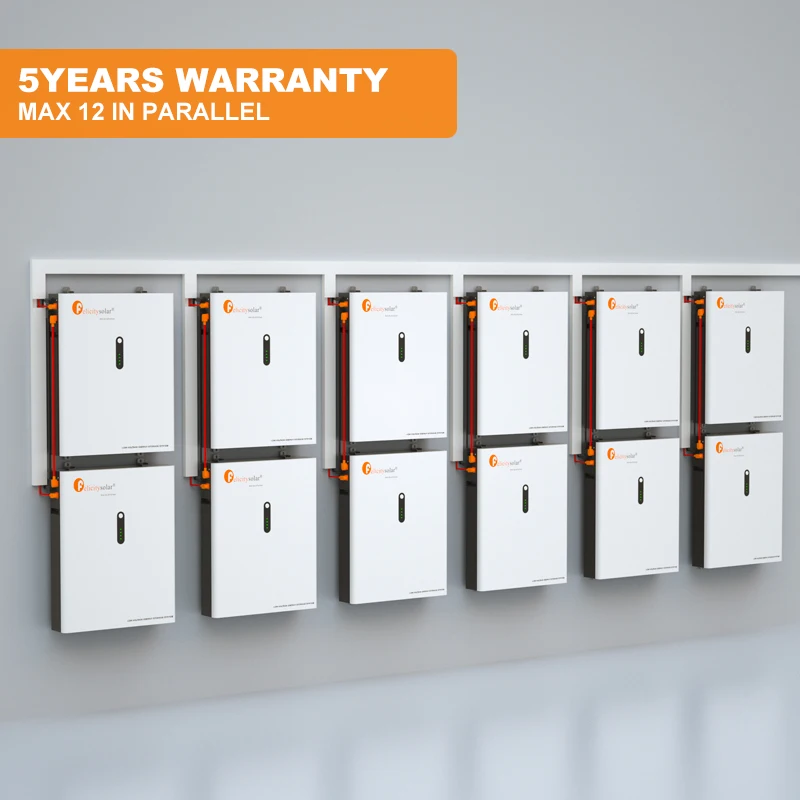

4. Support Connected in parallel mode for expansion.At most 12 pieces in parallel.

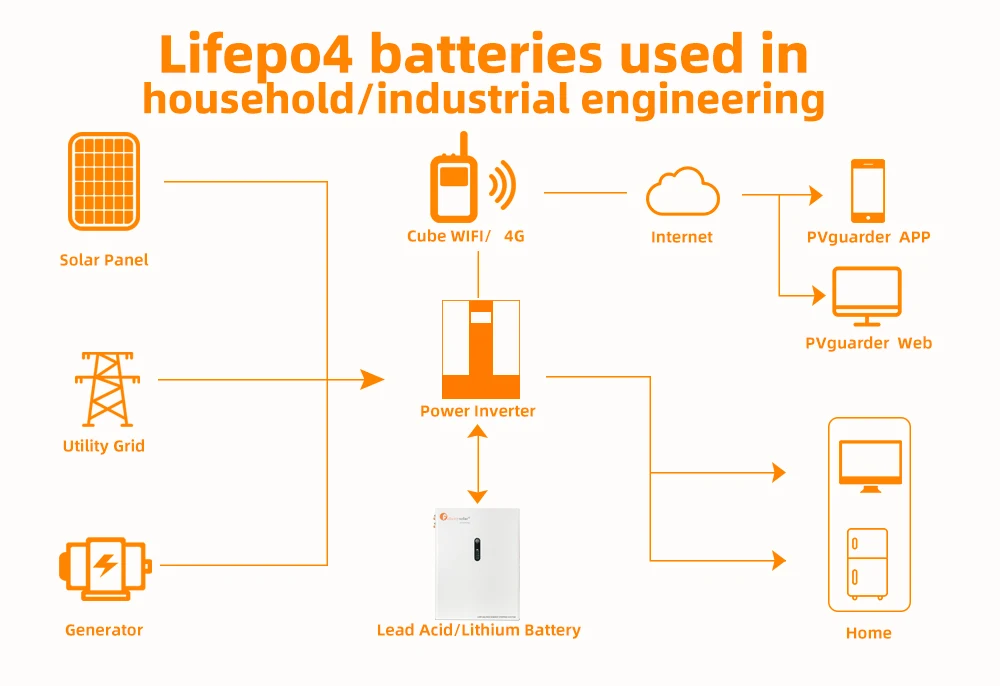

5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating
2. Long warranty period :5 Years
3. Higher energy density,smaller volume for household.
4. Support Connected in parallel mode for expansion.At most 12 pieces in parallel.
5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating
Model | LPBA48170-IL |
Normal energy | 8.7KWH |
Normal Voltage | 51.2V |
Internal resistance | less than 30mΩ @1KHzAC |
Normal charge voltage | 48V |
Allowed MAX charge&Discharge current | 100A@25℃@30S |
Recommended charge&Discharge current | ＜50A |
Cycle Life | ＞6000@25℃，80%DOD |
Communication | CAN&RS485 |
Moudles Connection | 1~12 in parallel |
working temperature range | charge:0℃~55℃ discharge:-20℃~60℃ |
self-discharge rate | ＜3%month;＜15%/year |
storage environment | 15℃~35℃;5~75%RH |
Net Weight(KG) | 70.5kg |
Gross Weight(KG) | 81.5kg |

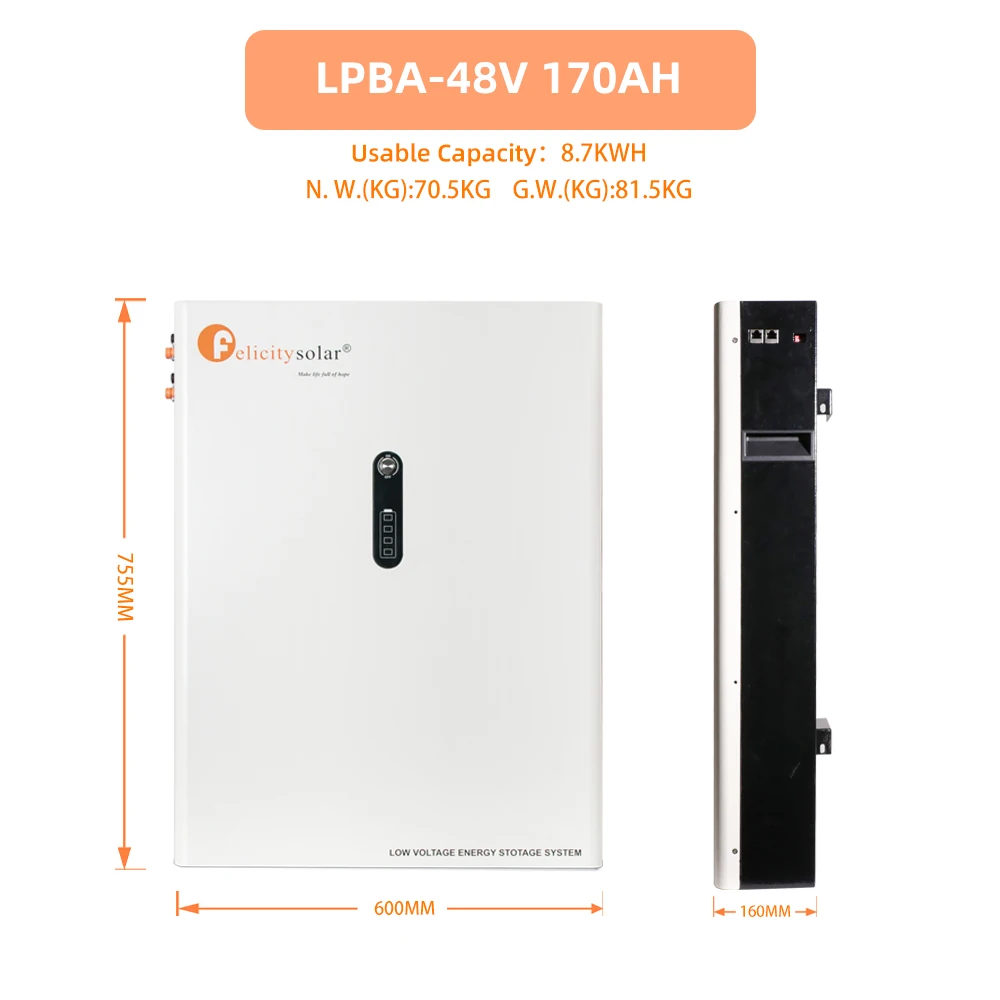

product dimension(mm) | 755*600*155mm |
package dimension(mm) | 855*700*330mm |
LPBA batteries allow a maximum of 12 in parallel,and do not allow series or parallel&series mixed use.

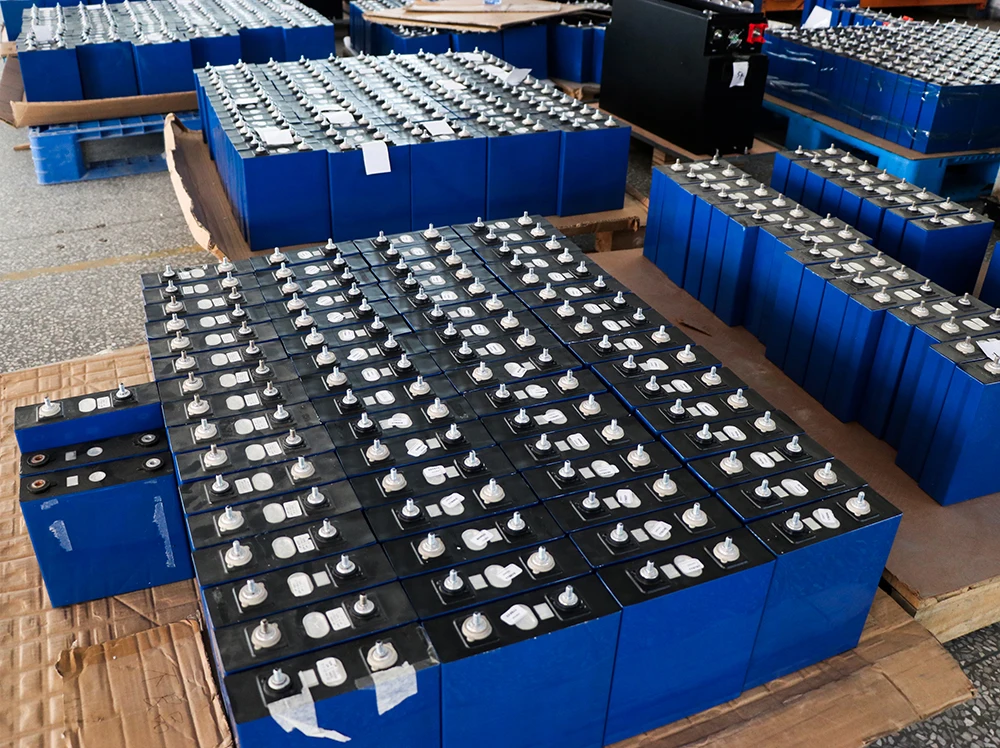

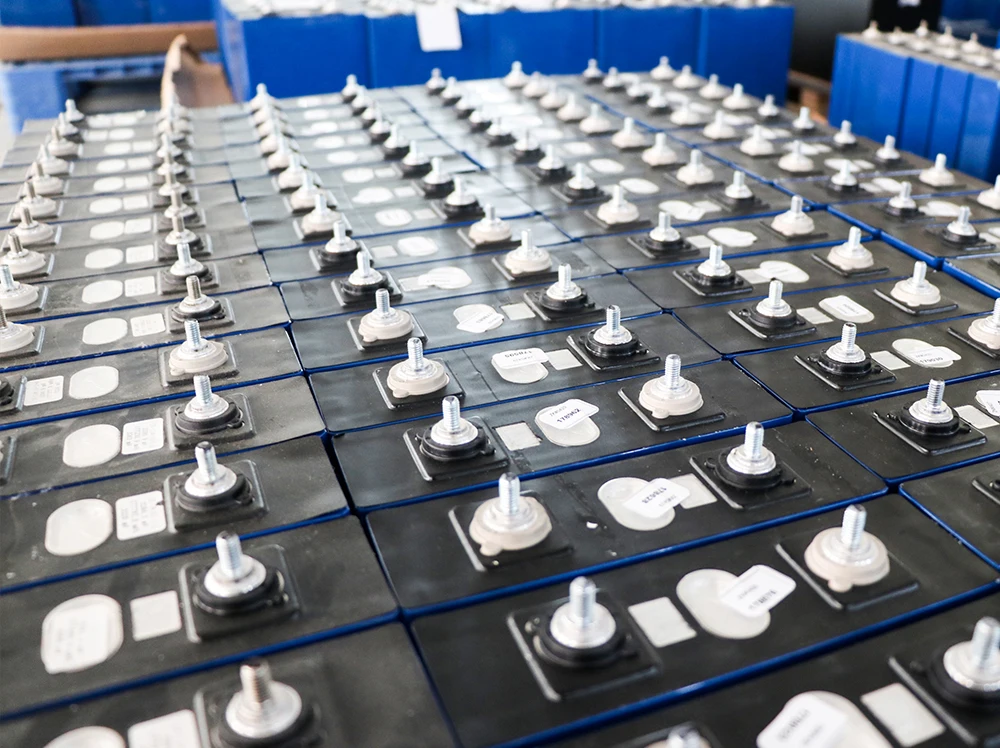

Pruoduction Line
Company Main Products
LPBF Series Lithium Ion Batteries
24/48V 3.75KWH~10KWH Battery
LPBG Series Lithium Ion Batteries
24/48V 5KWH~12.5KWH Battery
LPBF Series 12V Batteries
12V 150Ah/200Ah Lithium Ion Battery

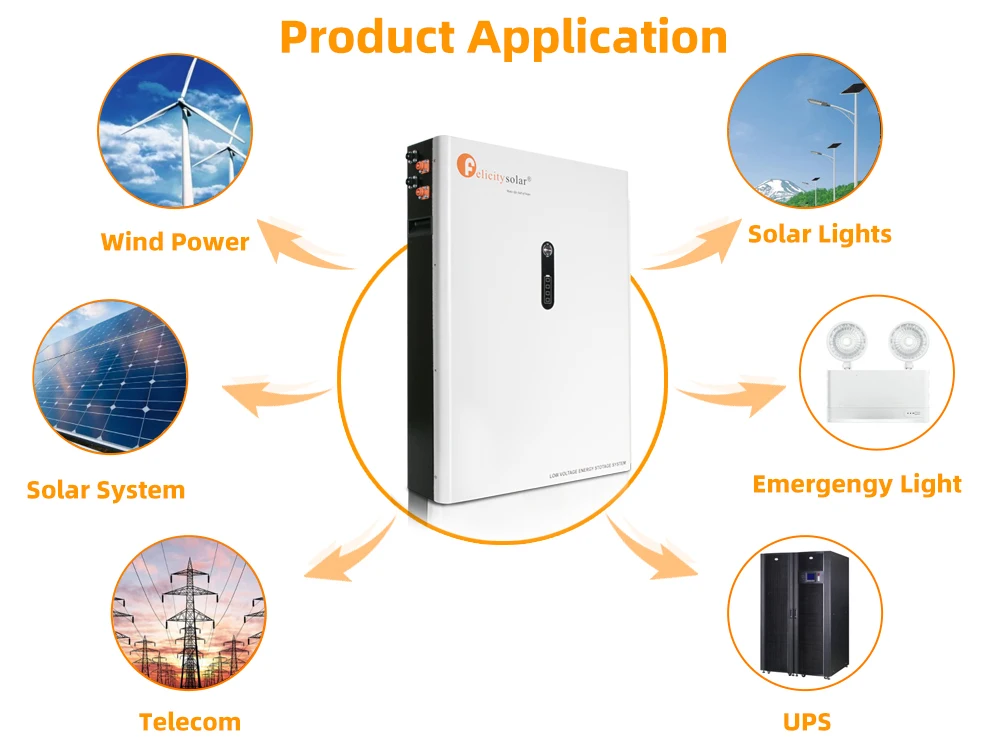

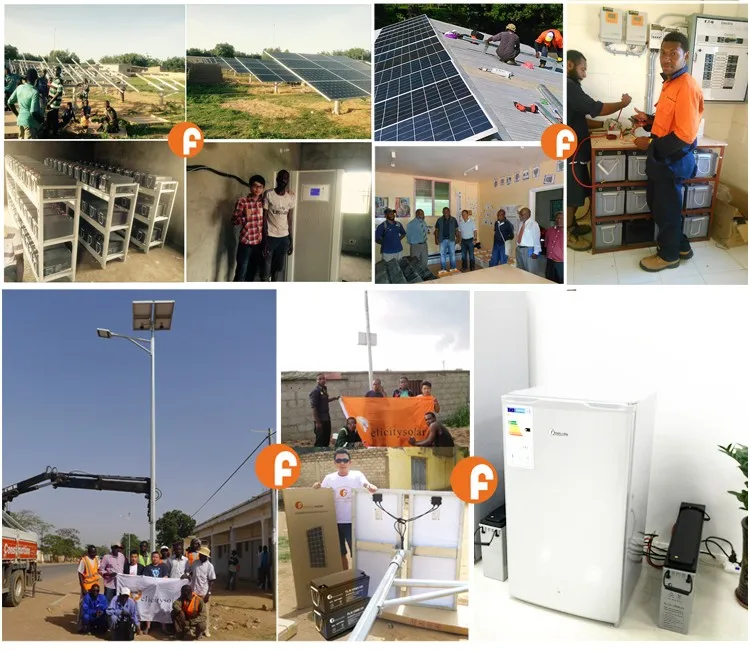

Product Applications

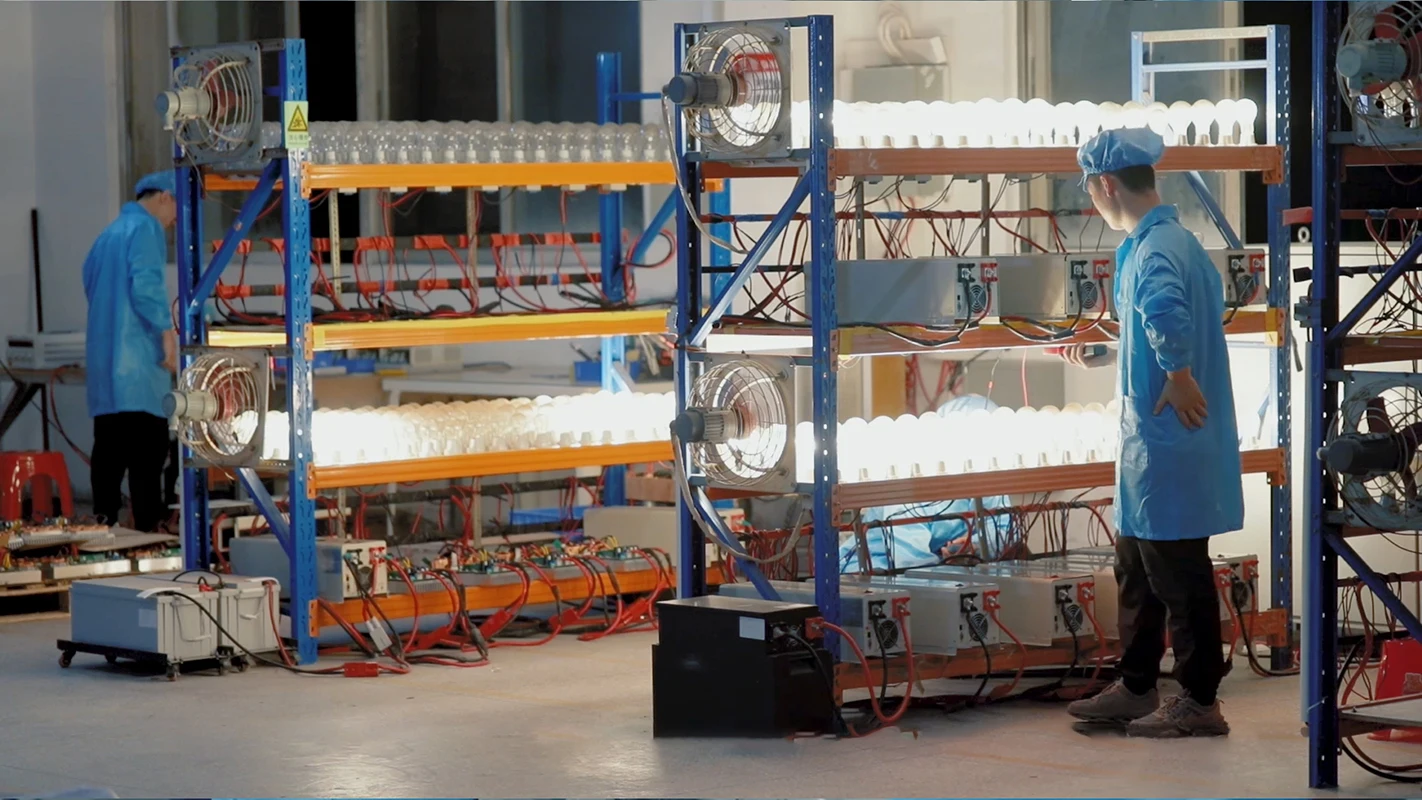

Pruoduction Line
Our Company
Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar
panel production lines, LED street light production lines and the testing systems for solar power and lighting.
panel production lines, LED street light production lines and the testing systems for solar power and lighting.
