Offset Printer Price/ One Color Offset Printing Machine Price For Sale/Digital Offset Printer Price
Whatsapp: +86 19137620927 Email:andy@ superelec.cn

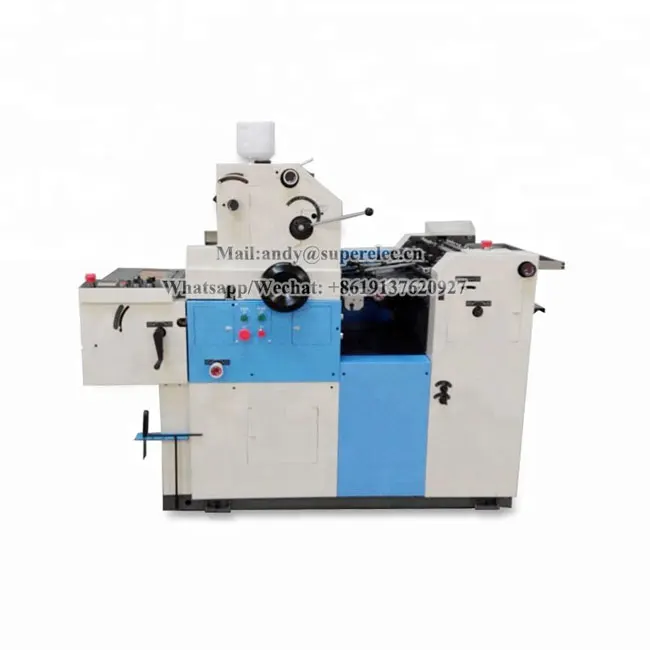

Mini Offset Printing Machine Price

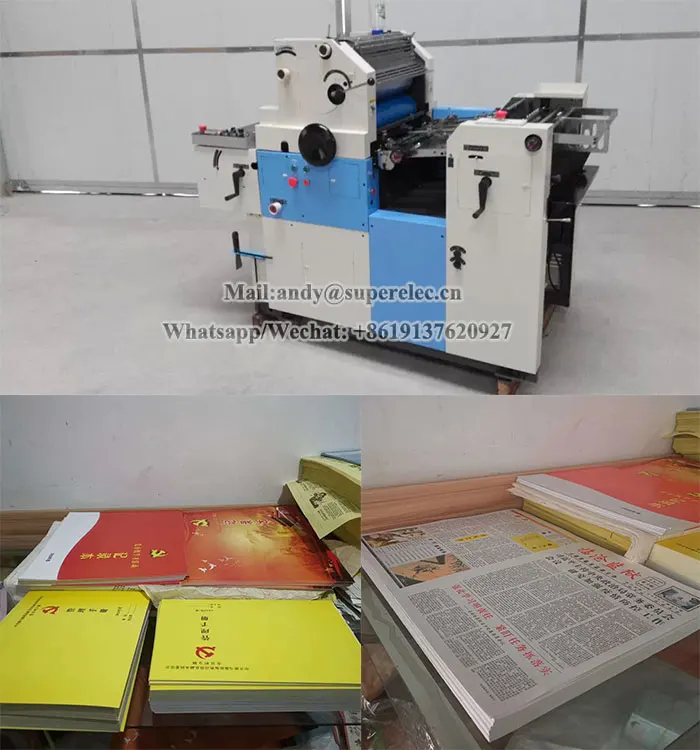

Our this machine is mainly for printing bills,tickets,books,newspaper,magazine,brochure
s,non-wowen bags, paper cups etc.
1.The latest control system
Using the most advanced control system of computer program and circuit board,that can improve production efficiency and also reduce the errors of printing. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
2.Accurate orientation
Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3.Dampening and inking separated
Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4.Pneumatic pressing:(Optional)
Adopt pneumatic pressing cylinder for each unit,making pressing automatically instead of traditional manual handles for water supply, ink supply and plate cylinder pressing.
5.Automatic pause
Machine can be paused automatically when paper order is out of control, then automatic alarm, which can avoid waste paper.
6.Centralized Lubricating oil supply:(Optional)
Use Auto system to control Lubricating oil for the important parts of machine which can improve the efficiency of machine.
7.Presented counter:(Optional)
This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically.
8.Big Cylinder for paper transfers:(Optional)
A new type for paper transfers between two units, it can achieve the tranfers one time than old type for 2 or 3 times.The advantage:transfers more stable, ink enough time to dry.
Product | Single color offset printing machine |
Printing Color | 1 color |
Model | HC-47 |
Max sheet size | 470*365mm |
Max printing area | 450*345mm |
Paper sheet weight | 28-300g/m² |
Plate size | 470*395*0.15mm |
Blanket size | 470*465*1.95mm |
Speed | 2000-8000 sheets/hour |
Form roller number | Three ink two water roller |
Power of air-pump motor | 0.75KW |
Overall power | 1.65KW |
Voltage | 220V/50HZ |
Machine weight | 700kg |
Overall dimensions | 1810*1010*1470mm |
