Product Overview
Description
Product Description

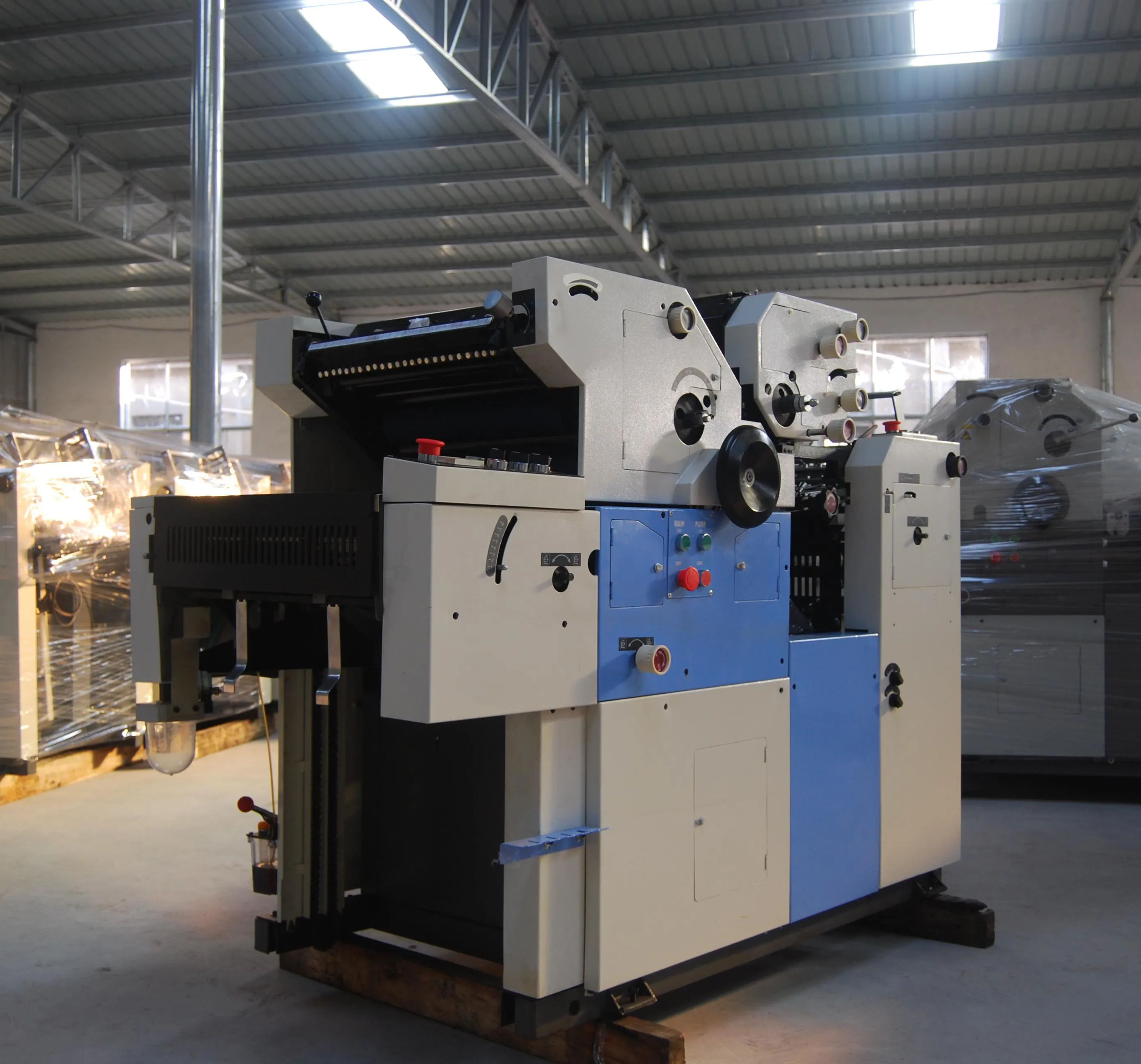

HT56IIS Two Color Offset Printing Machine(Satellite Model) is Most popular machine In India, It Can Printing Paper and Non Woven Bag.
Now our company is producing a series of small automatic offset presses, with the world advanced technology. Combining with Chinese national conditions, we design new printing equipment which is small, fast, accurate, point clear, adaptive and rapid,winning the trust and praises from users.
Now our company is producing a series of small automatic offset presses, with the world advanced technology. Combining with Chinese national conditions, we design new printing equipment which is small, fast, accurate, point clear, adaptive and rapid,winning the trust and praises from users.
Max.Sheet Size | 560*400mm |
Min.Sheet Size | 150*200mm |
Blanket Size | 560*480mm |
Max. Printing Area | 550*375mm |
Package Size | 1820*1120*1530mm |
Weight | 800KGS |
Power Supply | 220V/50HZ |
Ink Roller | 16pcs(3Ink Form Roller) |
Printing Speed | 2000-7000sheets/h |
1.Automatic oil supply system
Automatic oil supply device, to ensure that the machine during the operation of better protection of the machine, the machine parts and related joints for lubrication protection, to prevent parts wear, but also as the protection and maintenance of the machine during the operation period, save time, labor and labor.

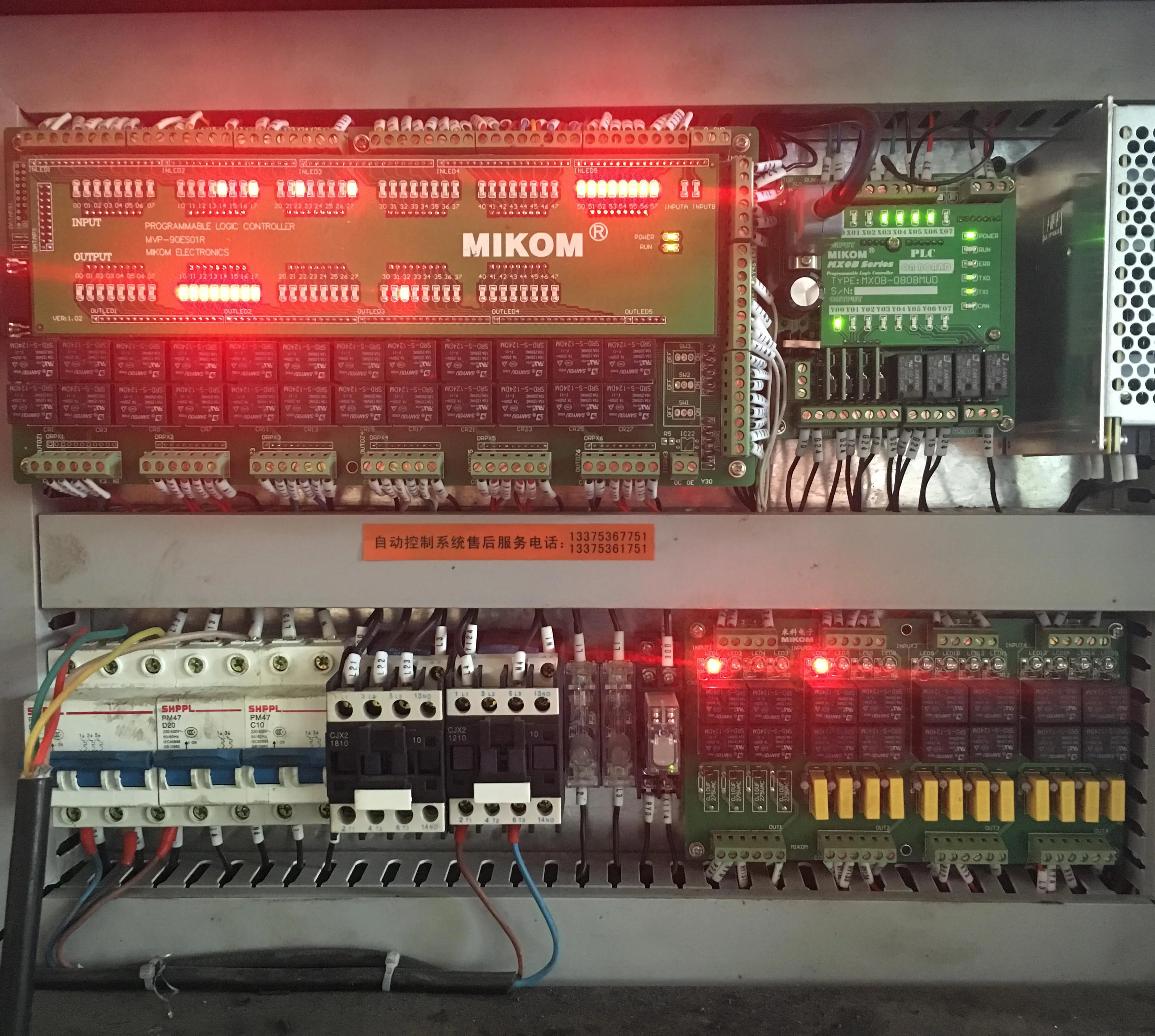

2. PLC Control System
PLC control system is mainly used in automatic control engineering, offset press with PLC system control the use and operation of the whole machine, more intelligent, a key to start with the operation, in the electronic equipment as a result of the use of printed circuit board, to avoid the error of manual wiring, automatic instrumentation, welding and testing.Thus, the quality and reliability of electronic complete machine products are guaranteed, and labor productivity isimproved,production cost is reduced, and maintenance is convenient.
3. TOUCH SCREEN
This PLC control touch screen easy to operate machine function, save time,fast and convenient,Increase production,Touch screen really realizes man-machine dialogue, more intuitive and quick to generate instructions for the machine, really practice one person to operate the whole machine.
4.Press wheel and feed tape
Press wheel and feed tape, the role is to ensure the paper smooth and correct paper direction, forward delivery.If the two rounds of improper use, will cause the paper skew, disorderly and even shut down.Therefore, the adjustment of the paper wheel mechanism is the operator must master the work.
5.Regulating table
Automatic pressure regulating valve device, fine tuning of the machine more accurate grasp with adjustment, more convenient, accurate.
6.Machine operation panel
Adjust scale shows that fast fine-tuning version of the location，Machine operation panel, can achieve automatic and semi-automatic at the same time, two-way operation panel to ensure the safe operation of the machine, when the touch screen problems do not delay the use of the machine, can temporarily switch to semi-automatic mode to use the machine, without affecting the work progress
7.Manual ink adjustment device
Manual ink adjustment device, the amount of ink supply to adjust, better control the ratio of ink, to ensure the effect of printing samples.
8.Cylinder
The cylinder, is the machine to achieve automation, making the cumbersome machine easy to operate, operate more quickly, easy to operate the machine, Printing quality better than manual.

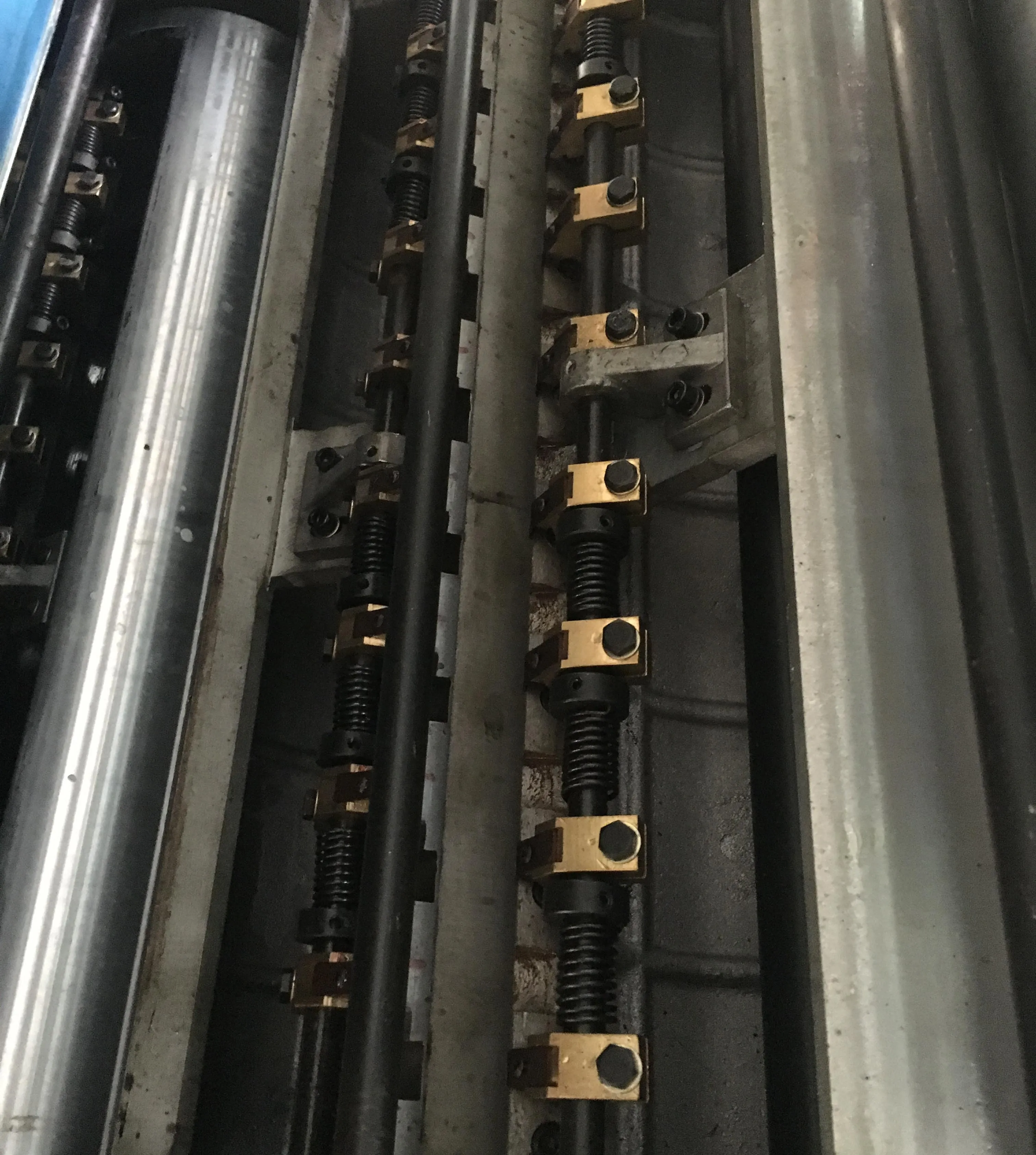

9.Paper teeth
Paper teeth, using strong and thick copper paper teeth, durable, long service life, not easy to damage

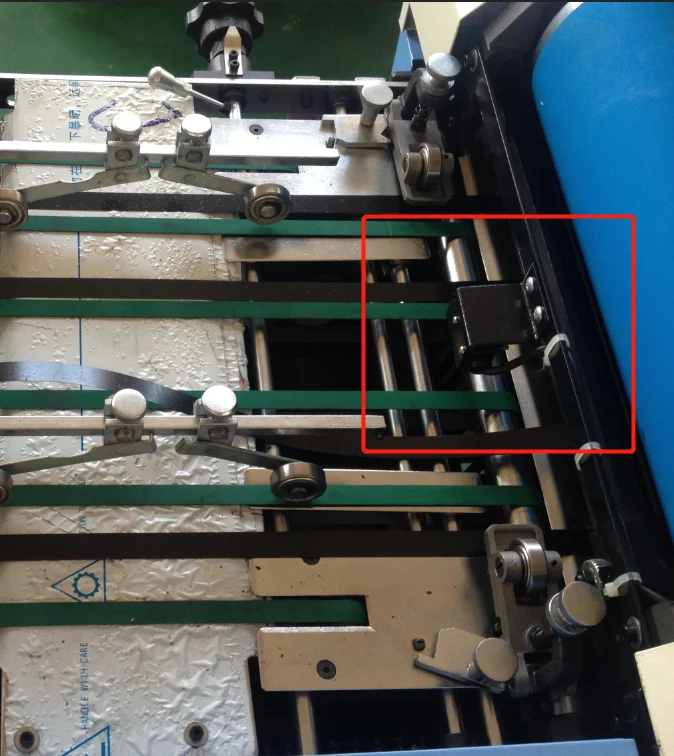

10.Electric eye
Electric eye, electric eye in the printing machine are used to track color positioning and check the role of feeding, the sensor can be set to check different colors to track positioning, the sensor is mainly to check the situation of carrying material, when the carrying material is finished, the sensor feedback signal to the control system, and then will make alarm signal or stop processing, very intelligent.
Detailed Images
Special Features
Fully automatic
2-in-1 machine suitable to print on non-woven bags or papers.
Three main hard chromium faced cylinders strongly guarantee their resistance and durability.
Straight/helical gears drive system .
Bearing type pull side lay with micro adjustment without stopping the machine.
Front loading system .
Multi sucker universal feeder.
Single lever operation for damping inking & impression.
Vertical micro adjustment on plate cylinder .
Anti-static charger to remove magnet from paper.
Reverse and forward inching.
Fully automatic
2-in-1 machine suitable to print on non-woven bags or papers.
Three main hard chromium faced cylinders strongly guarantee their resistance and durability.
Straight/helical gears drive system .
Bearing type pull side lay with micro adjustment without stopping the machine.
Front loading system .
Multi sucker universal feeder.
Single lever operation for damping inking & impression.
Vertical micro adjustment on plate cylinder .
Anti-static charger to remove magnet from paper.
Reverse and forward inching.
Size Information
Max.Sheet Size | 470*365mm | 560*400mm | 620*450mm | ||||||
Min.Sheet Size | 130*180mm | 150*200mm | 180*260mm | ||||||
Max.Printing Size | 450*345mm | 550*375mm | 600*450mm | ||||||
Printing Speed | 2000-7000sheets/h | ||||||||
Plate Size | 470*395mm | 560*420mm | 620*480mm | ||||||
Ink roller | 16pcs(3ink form roller 2 water form roller) | ||||||||
Paper Feed Mode | Suction Cross Feed | ||||||||
Register device | Wheel-type Side Pull Guide | ||||||||
Moistening Mode | Water | ||||||||
Power Supply | 220V/50HZ | ||||||||
Package Size | 1.80*1.01*1.47m | 1.82*1.12*1.53m | 2.05*1.15*1.62m | ||||||
