Оцинкованная/черная туннельная крыша, поддержка шахты, якорные болты, раздельные комплекты
- Category: Air Conditioners >>>
- Supplier: Anto Mining Equipment Co. ltd.
Share on (1600367395502):
Product Overview
Description
Product Description

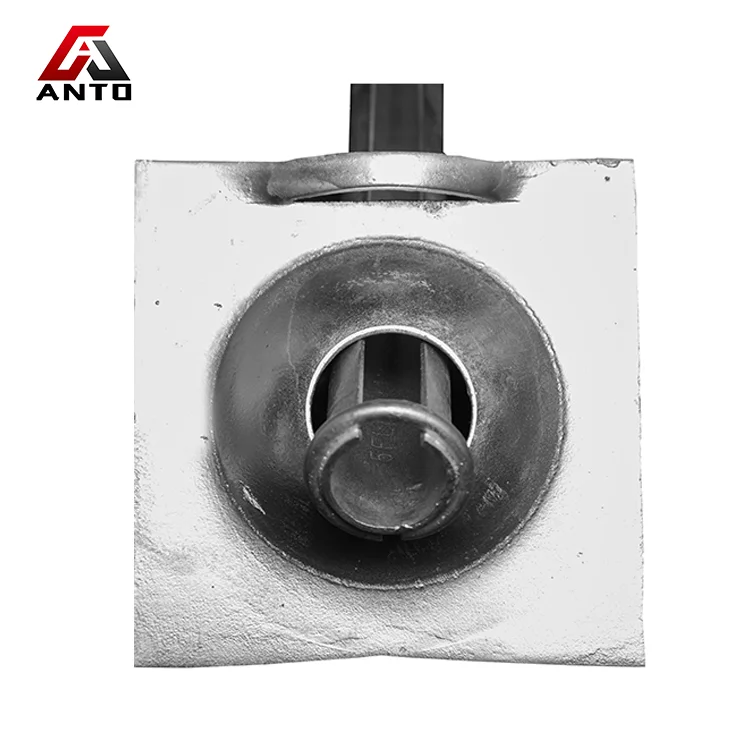

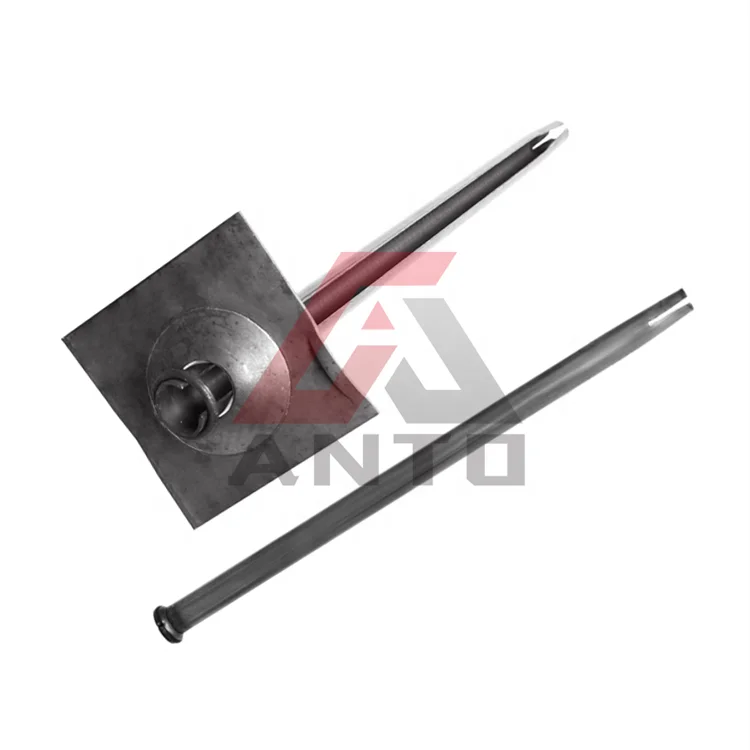

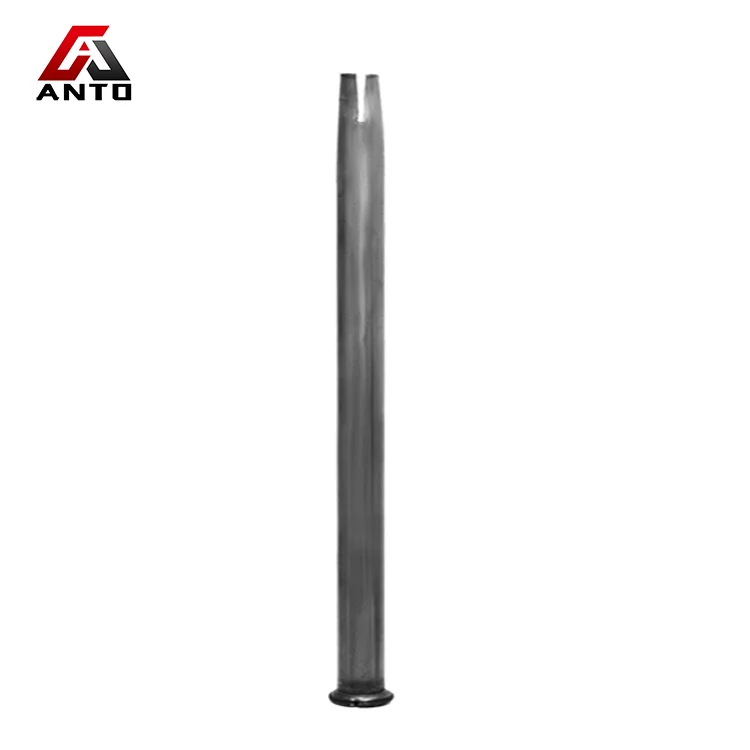

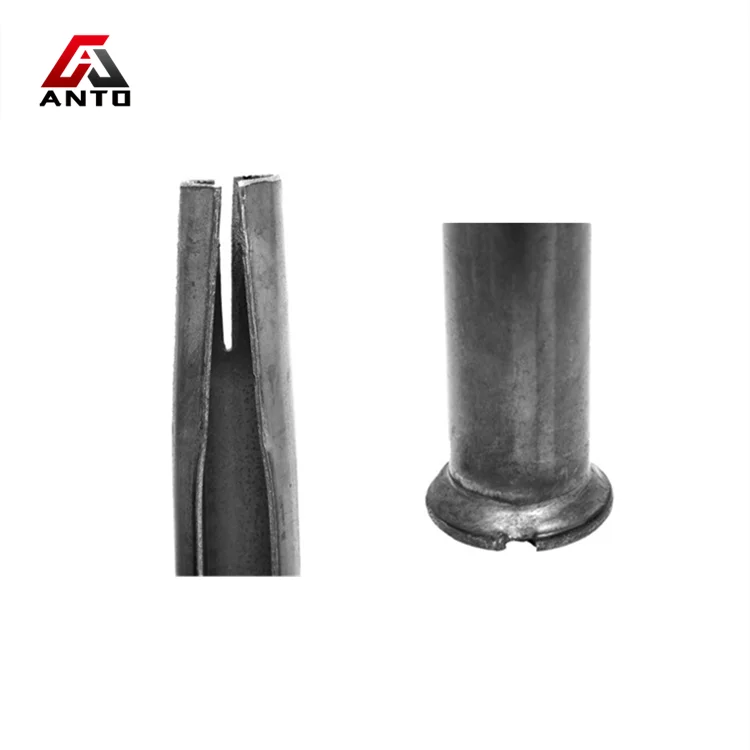

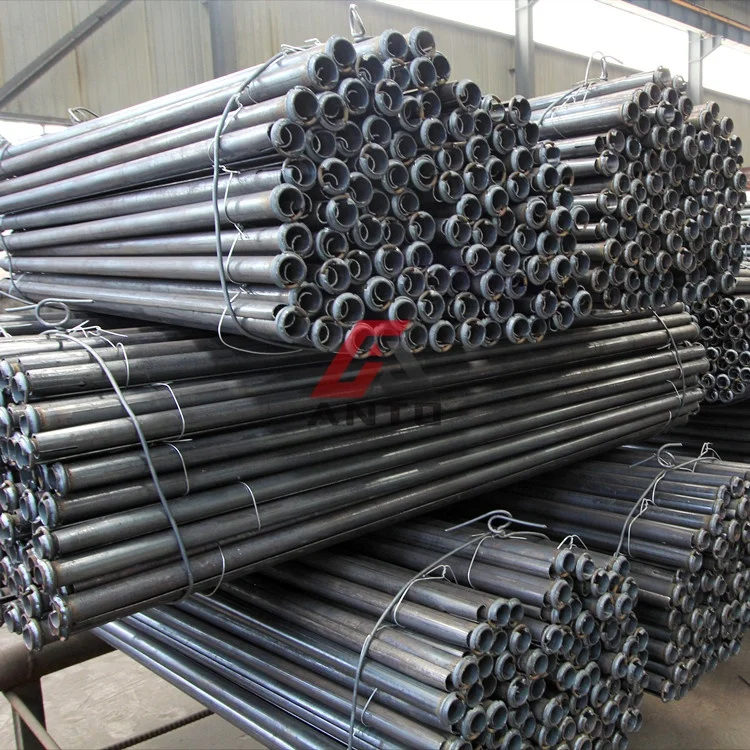

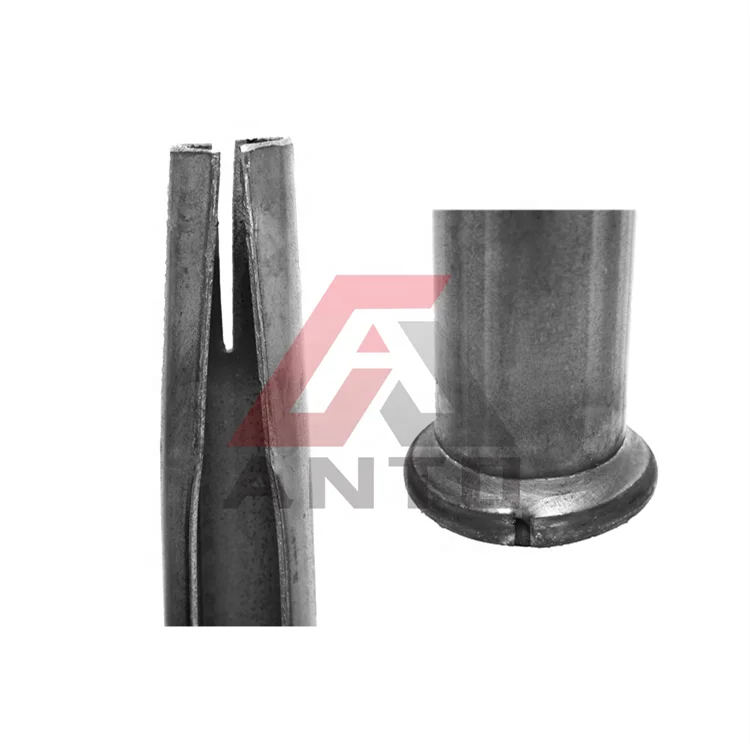

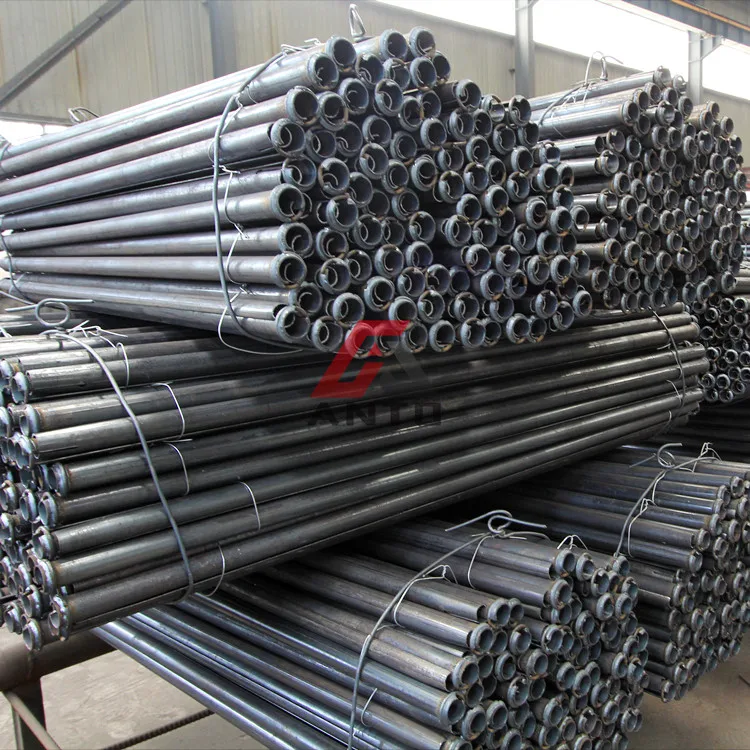

Split set bolt, also called split set stabilizer or friction bolt, is an indispensable advanced material for underground mining support. Split set bolt is a very specific support product, and it is an advanced material used for the support of the roof of the underground copper or gold mining and other projects.
■Working Principle
Split set bolt is a new type of anchor rod for full-length anchoring, which main part is a high-strength steel pipe with longitudinal slits. When installed in a borehole slightly smaller than the pipe diameter, The radial pressure is applied to the hole wall and the friction to prevent the sliding of the surrounding rock within the full length, plus the supporting force of the mining plate, So that the surrounding rock is subjected to forces in three directions to ensure the stability and safety of the surrounding rock. When the surrounding rock is significantly displaced, the anchor rod does not lose its supporting resistance, and it has better characteristics than the expansion shell rock bolt.
■Product Details
Product Paramenters
ITEM No. | Diameter | Steel thickness | Min Yield Strength | Min Breaking Strength | Elongation | Anchoring Load | Domed Plate Size |
ATFB33 | 33mm | 2.5mm | 78KN | 100KN | 18% | 4-7tons | 150*150*4.0mm |
ATFB39 | 39mm | 2.5mm | 88KN | 115KN | 18% | 5-8tons | 150*150*4.0mm |
ATFB42 | 42mm | 2.5mm | 95KN | 120KN | 18% | 5-8tons | 150*150*4.5mm |
ATFB47 | 47mm | 3.0mm | 125KN | 160KN | 18% | 6-12tons | 150*150*5.0mm |
Product Advantages
Product Features
1. The raw material is made of high-strength alloy steel strip.
2. The installation is the simple.3. No anchoring agent is required.
4. The friction strength between the bolt and the rock is large.
5. It has high shear and tensile strength.

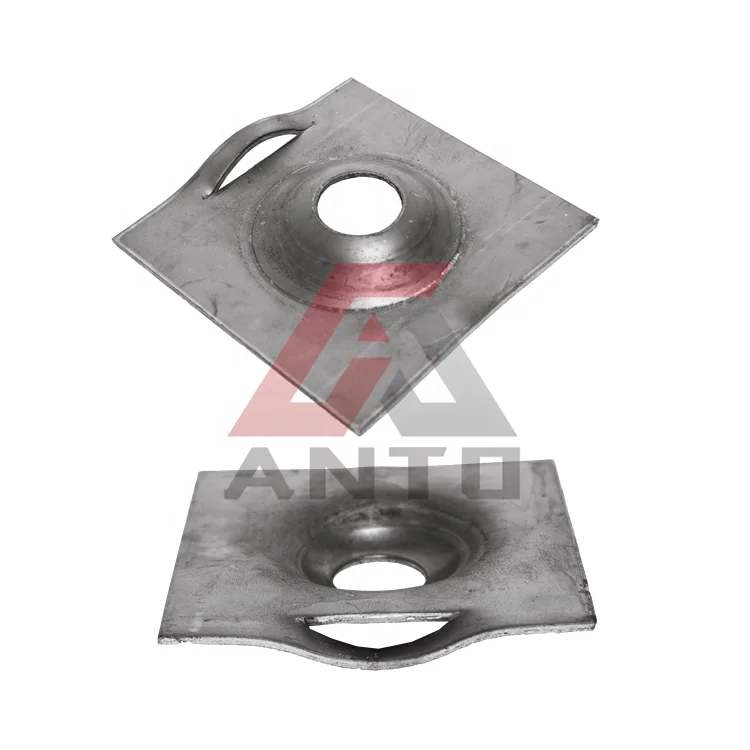

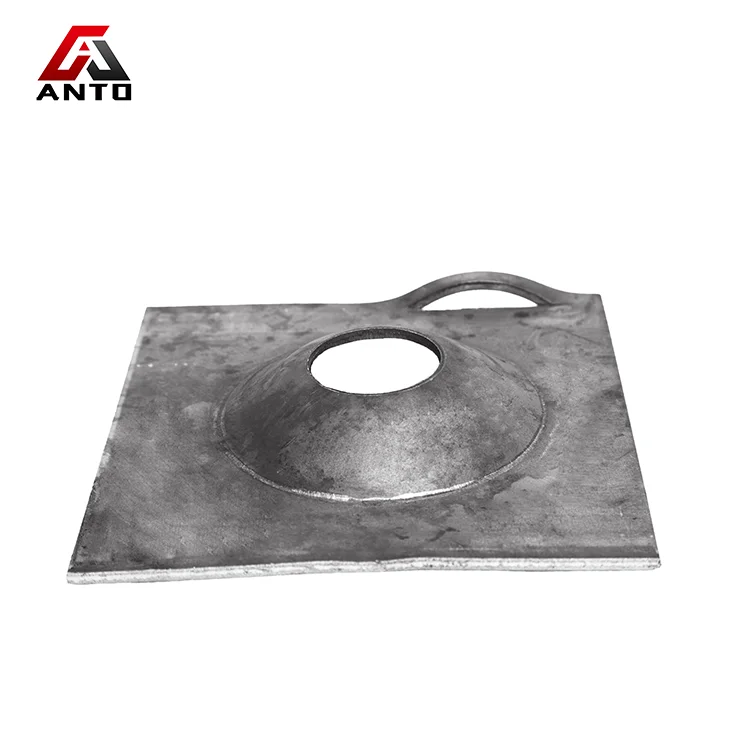

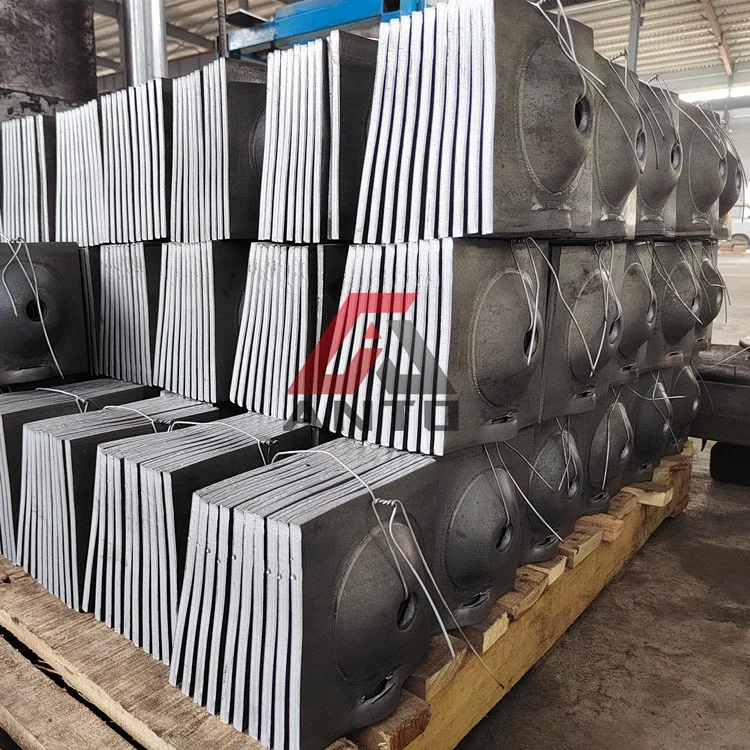

6. Equipped with a high-strength plate.
Advantages of Split set bolt
1.Split set bolt has simple operation and convenient use. It has anchorage in the underground anchor and shotcrete support.
2.It has strong strength, high tensile strength and strong expansion force, which makes the whole roof become one body.

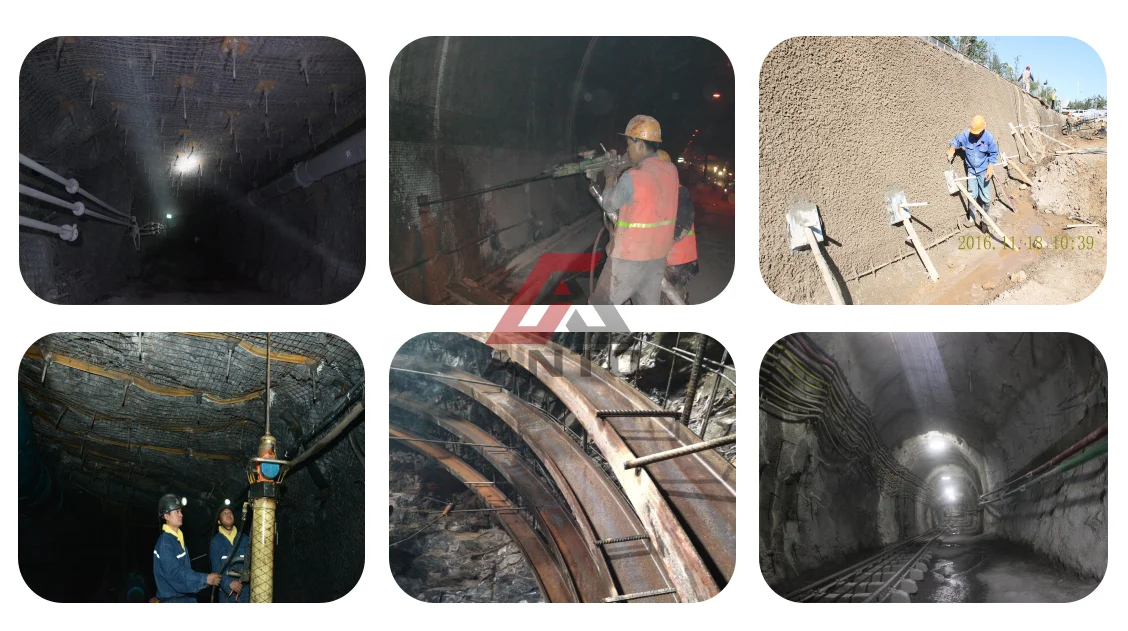

Product Application
Company Profile
ABOUT US

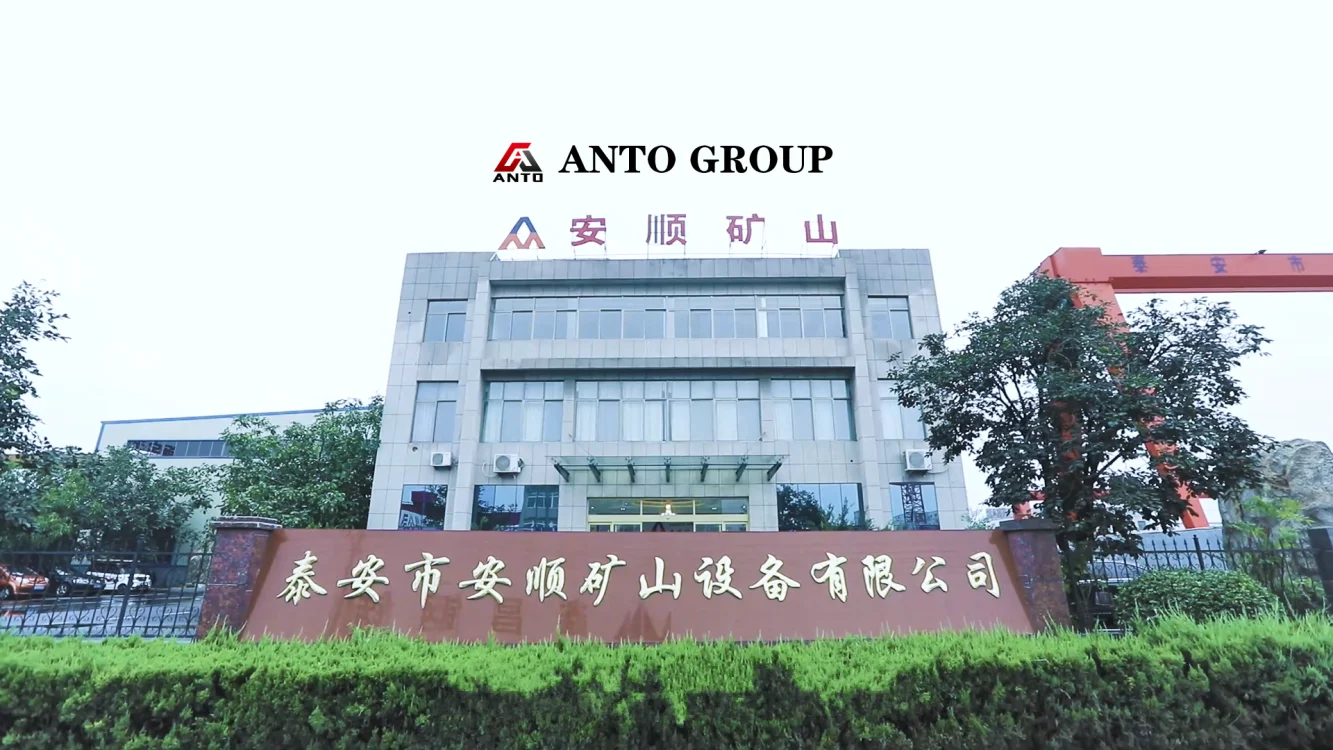

ANTO Group is located at the foot of Mount Tai,in the vast Qilu Plain, facing the sea in the east and Yellow River in the west.In the North China Heavy Industry Development Zone, there are many ports and expressways here. Sea and land transportation is very convenient.
ANTO Group has ANTO Mining Equipment Co.,Ltd. and ANSHUN Mining Equipment Co.,Ltd.
ANTO Group has ANTO Mining Equipment Co.,Ltd. and ANSHUN Mining Equipment Co.,Ltd.

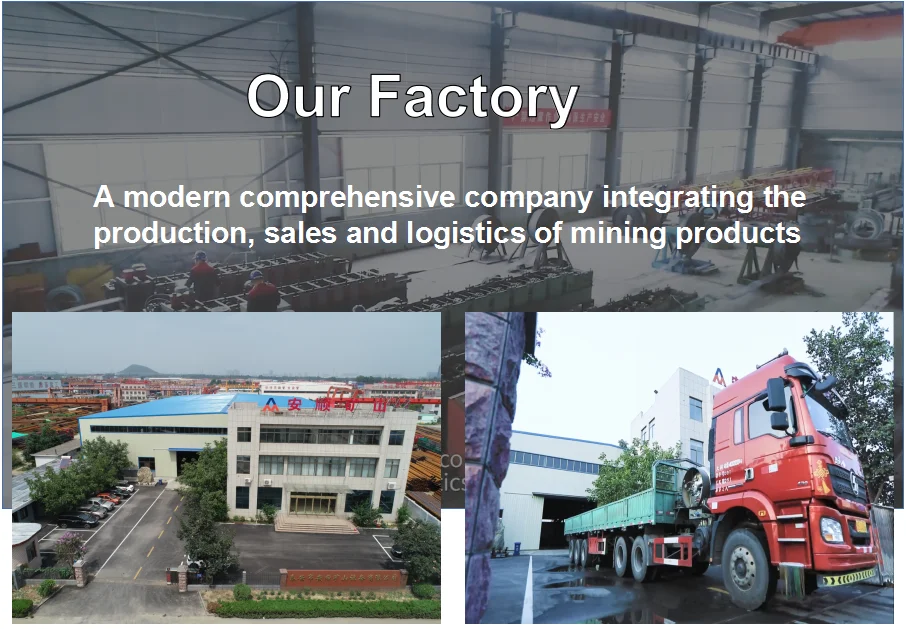

ANTO is a modern comprehensive company integrating the production, sales and logistics of friction bolts,welded mesh,threaded rebar rock bolt,cable bolt, mining plate, W steel band,damping nuts and other mining products.In recent years,ANTO has been grasping the opportunity closely with the firm belief of being based in China and going to the world,constantly innovating and developing.

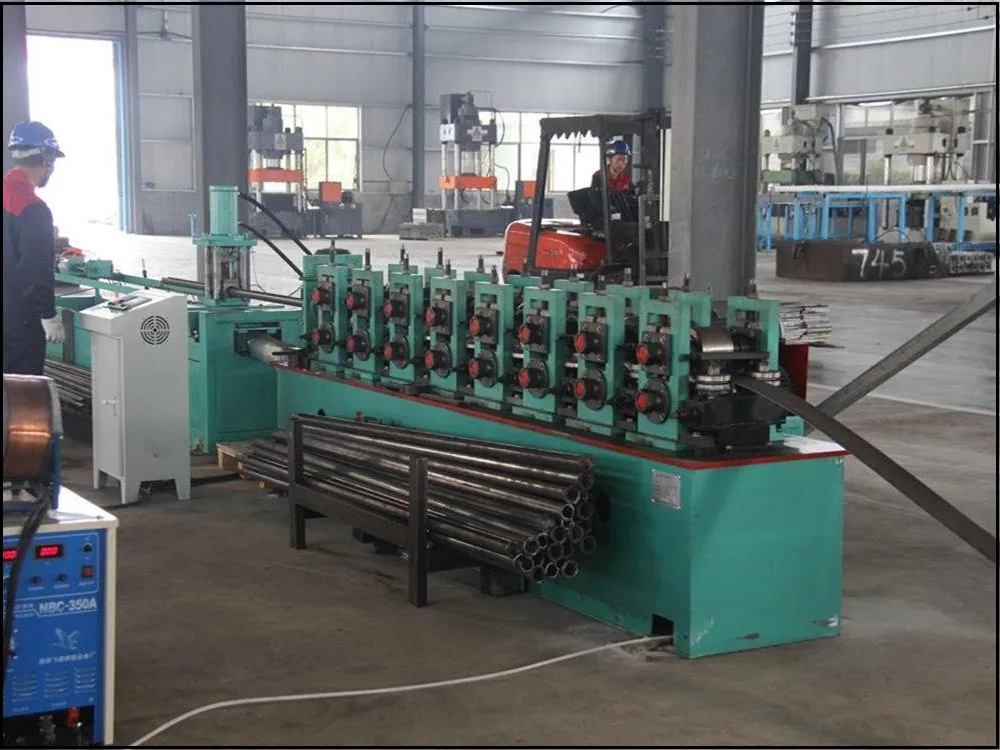

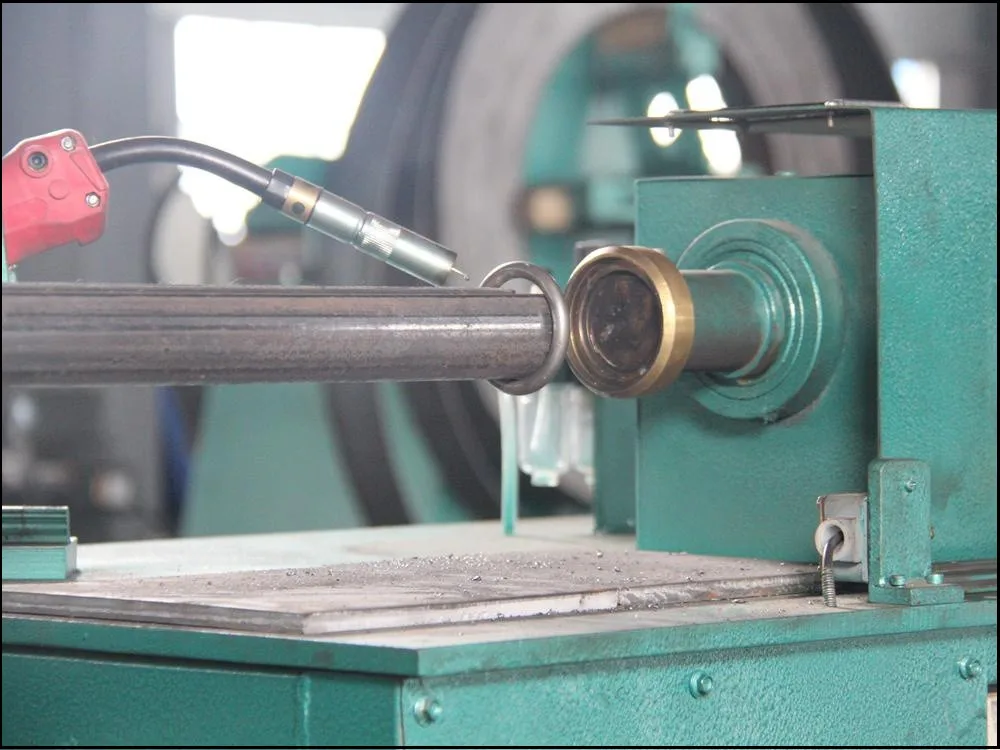

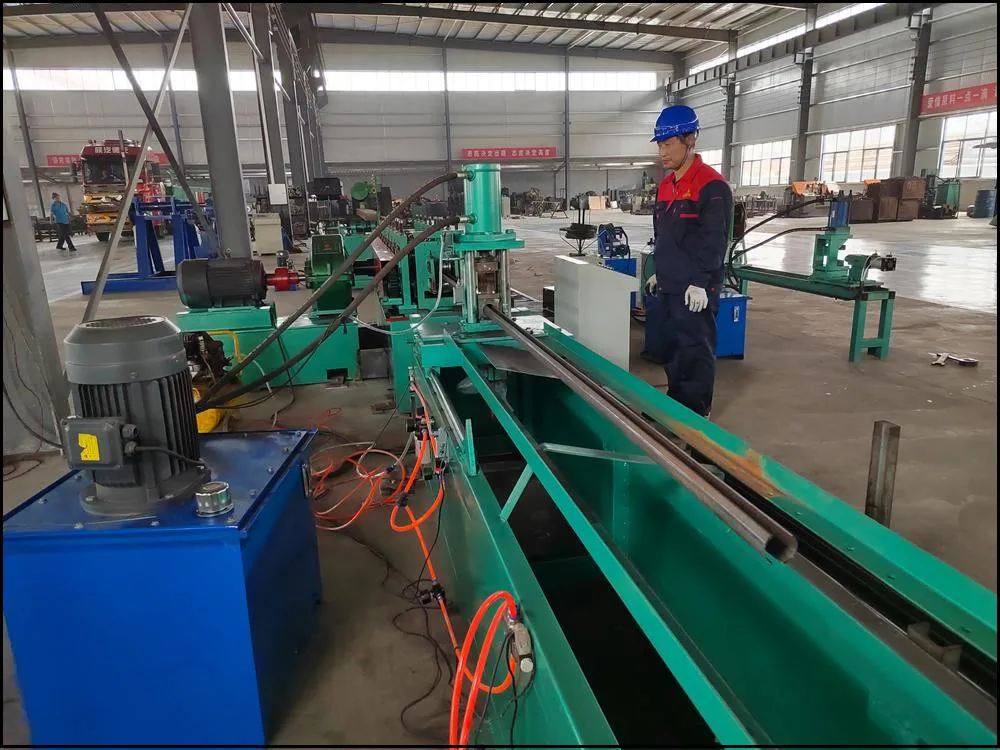

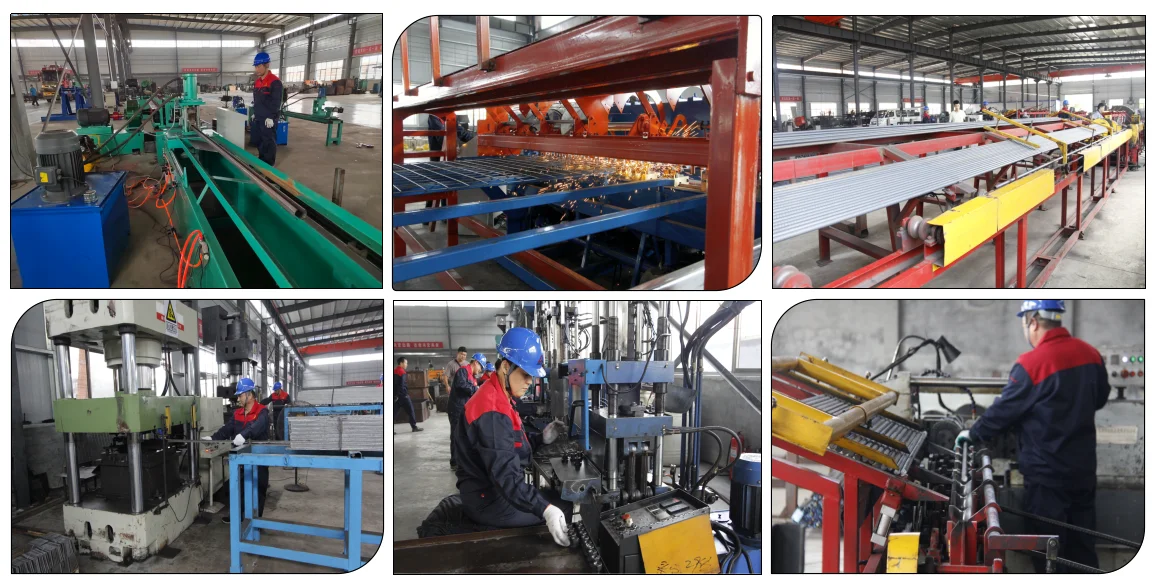

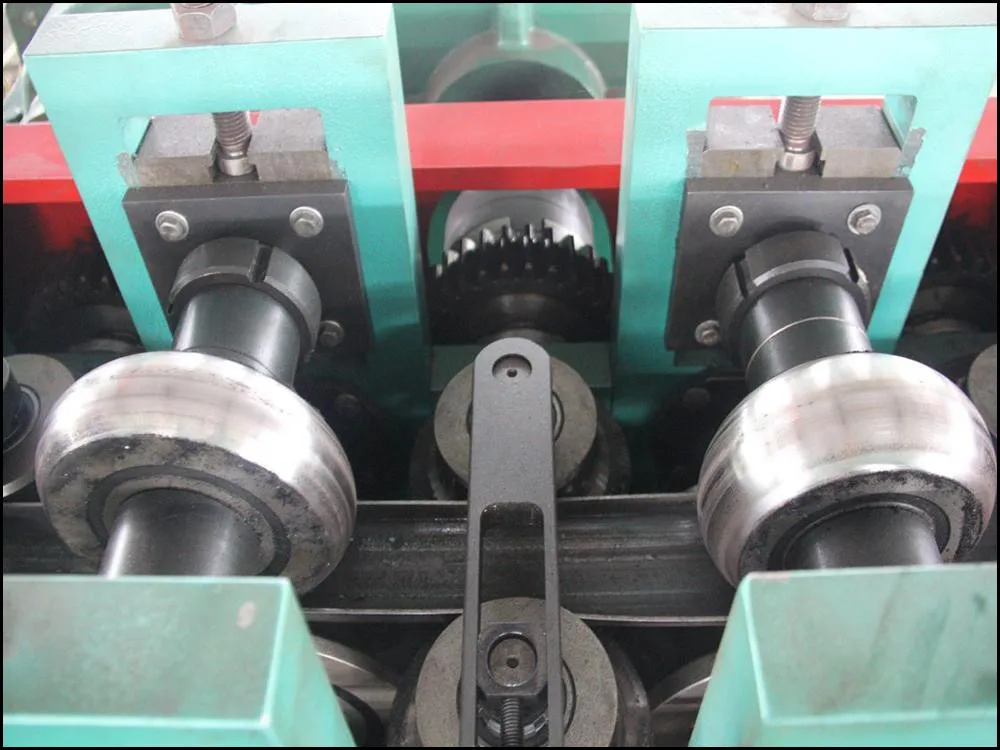

Advanced Equipments
Production line of mining products such as split set bolt,threaded rebar rock bolt,welded mesh,cable bolt, mining plate, W steel band,damping nuts and so on

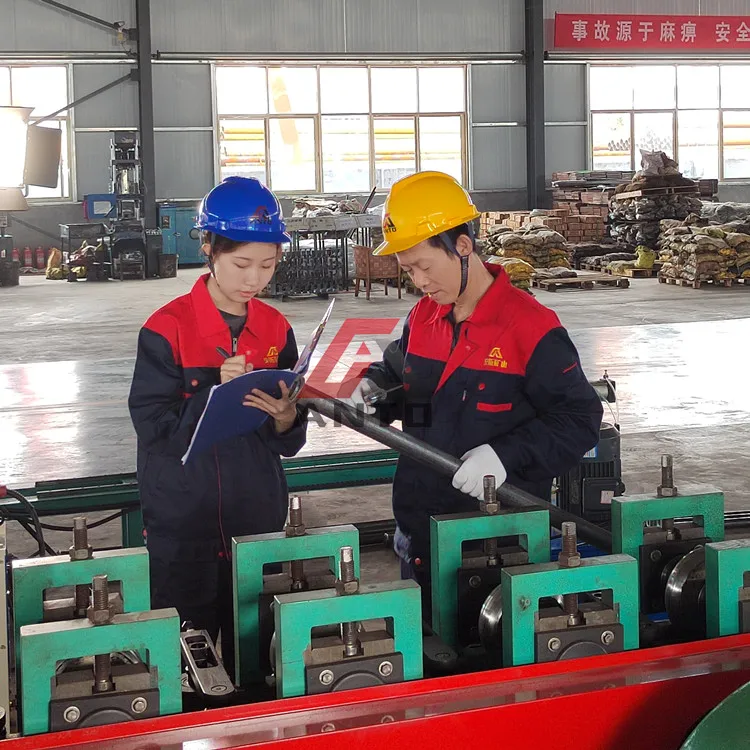

Our Team
Professional technical team and a complete after-sales service system will reassure our customers, we will be your trustworthy trading partner!!

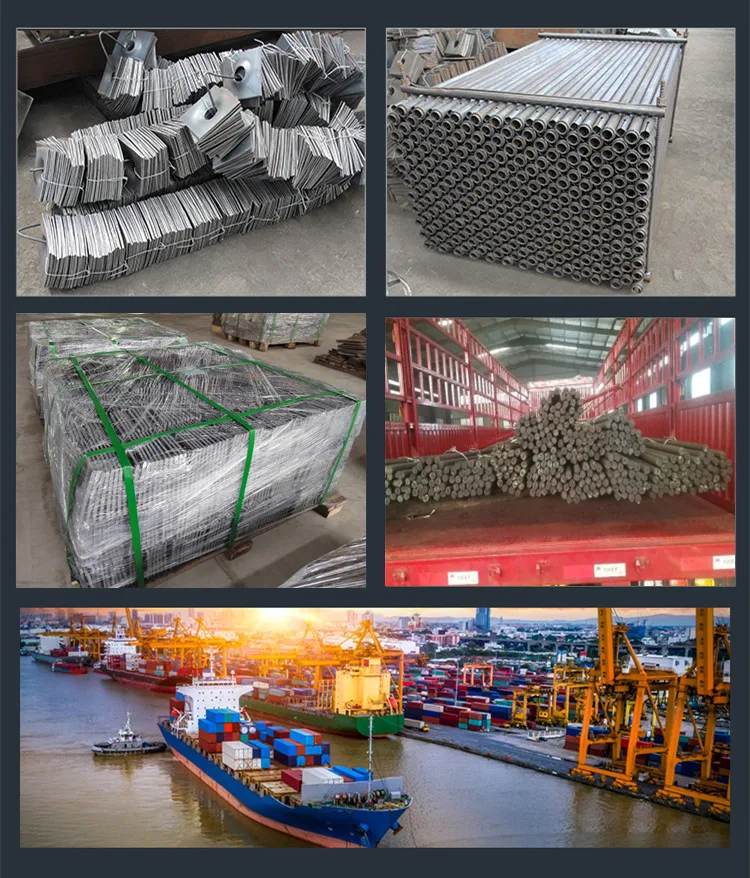

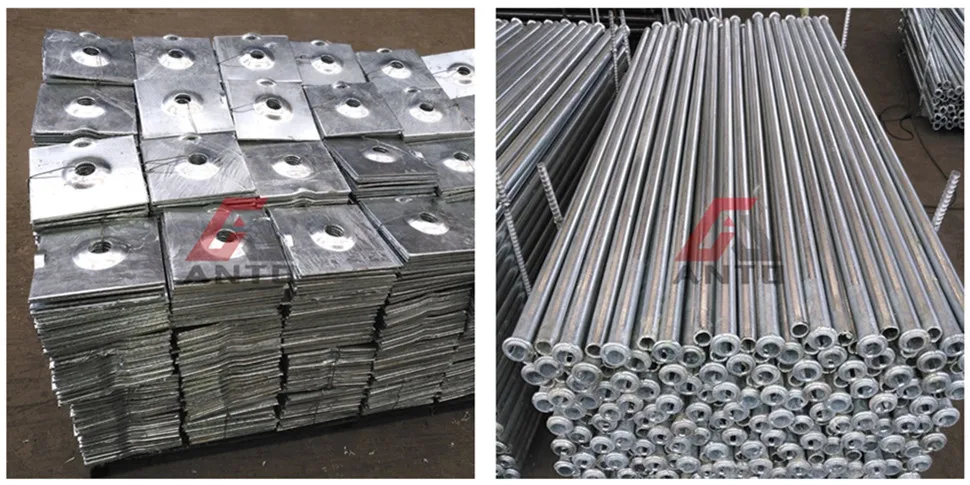

Packing & Delivery
