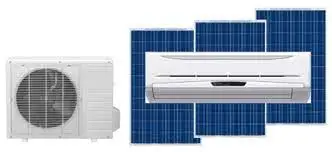

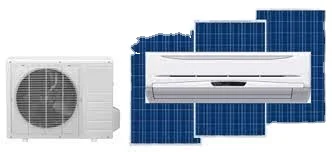

Настенный Сплит кондиционер на солнечных батареях
- Category: Other Air Conditioners >>>
- Supplier: Henan Shangfeng Hvac Engineering Co. Ltd.
Share on (1600784468459):
Product Overview
Description
Specification
DC AIR CONDITIONER | ||||||||
Power Supply： | 48VDC (44V to 58 V) | |||||||
Model No | TKFR-26GW/DC | TKFR-35GW/DC | TKFR-52GW/DC | TKF-72GW/DC | ||||
Max Solar Charging Current | MAX15A | |||||||
AC Power Connected | 180-240V (50/60HZ) | |||||||
Cooling: | ||||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000Btu/h | ||||
Dimension(mm) indoor unit | 775*270*195 | 775*270*195 | 985×300×220 | 985×300×220 | ||||
Power Input | 0.81Kw | 0.98Kw | 1.51Kw | 1.87Kw | ||||
EER | 15.79 Btu/h/W | 17.14Btu/h/W | 20.00Btu/h/W | 16.00Btu/h/W | ||||
Heating: | ||||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h | ||||
Dimension(mm) Outdoor Unit | 790*260*540 | 790*260*540 | 850* 290* 580 | 865*310*710 | ||||
Power Input | 500w | 700w | 900w | 1300w | ||||
HSPF/COP | 12/13.4 Btu/W | 11/12.38 Btu/W | 10/12.41 Btu/W | 11/12.31 Btu/W | ||||
Weight(kg) | ||||||||
Indoor Unit | 11 | 13 | 15 | 20 | ||||
Outdoor Unit | 38 | 45 | 48 | 48 | ||||
product description
Solar air conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including compressor, high-efficiency DC fan motors, DC valves & solenoids, etc. The Solar system uses a VRF (Variable Refrigerant Flow) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change. Hybrid Inverter Solar air conditioner are more powerful and use less energy than a fixed speed air conditioner.
Using Recreate* s Solar direct drive technology (SDDA) the Recreate Solar Hybrid unit can use Solar DC gener ated power or mains AC generated power, or a combina tion of both as required. This means that the Recreate Hybrid requires NO batteries, NO inverter, NO controller and need only a few PV panels to deliver a huge savings.Under optimum conditions, this can save up to 97% of your mains power usage.
Benefits of Recreate ACDC Hybrid
Connects Directly to the Solar Panel Runs on up to 100% solar power directly in daytime that would save you up to 97% of you power bill Easy Solar Connections Connection from the solar panels to the Recreate Solar Hybrid outdoor is very simple with a terminal block mounted in the outdoor unit for the positive and negative cables straight from the solar panels. Super applicability Wide operating temperature range: -10 °C to +52 °C, Meet T3 work environment Wide operating AC voltage range: AC 160V-250V,meet the remote network voltage instability area
Using Recreate* s Solar direct drive technology (SDDA) the Recreate Solar Hybrid unit can use Solar DC gener ated power or mains AC generated power, or a combina tion of both as required. This means that the Recreate Hybrid requires NO batteries, NO inverter, NO controller and need only a few PV panels to deliver a huge savings.Under optimum conditions, this can save up to 97% of your mains power usage.
Benefits of Recreate ACDC Hybrid
Connects Directly to the Solar Panel Runs on up to 100% solar power directly in daytime that would save you up to 97% of you power bill Easy Solar Connections Connection from the solar panels to the Recreate Solar Hybrid outdoor is very simple with a terminal block mounted in the outdoor unit for the positive and negative cables straight from the solar panels. Super applicability Wide operating temperature range: -10 °C to +52 °C, Meet T3 work environment Wide operating AC voltage range: AC 160V-250V,meet the remote network voltage instability area
