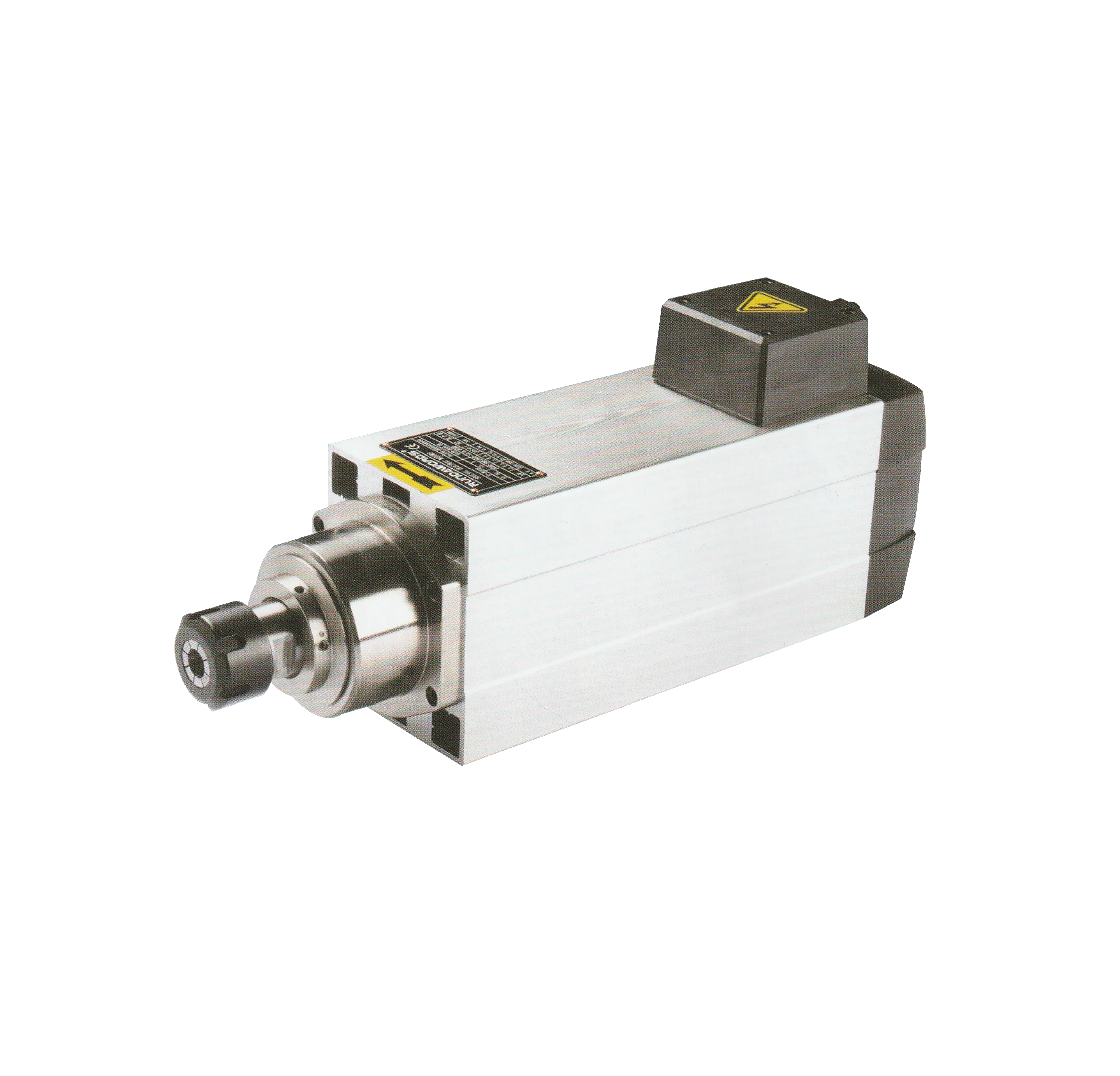

ctb A2-4 cnc turning spindle motor
US $1500-$3100
Бис по выгодной цене с доставкой, SM5360 4.5KW 18000 об/мин ER32 высокий крутящий момент быстроходного шпинделя фасонно фрезерного станка с ЧПУ двигателем постоянного тока однофазный электродвигатель постоянного тока
- Category: Machine Tool Spindle >>>

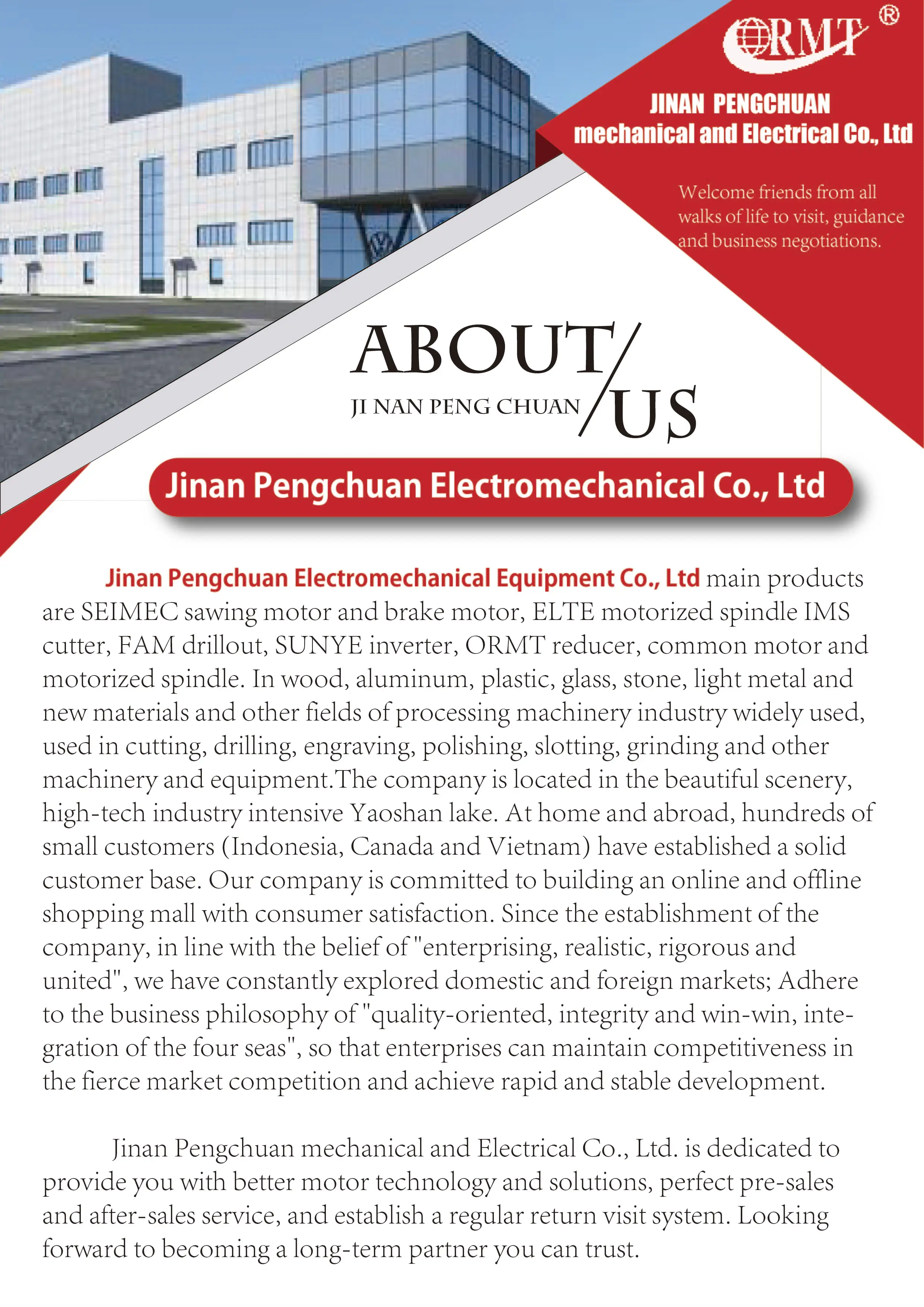

- Supplier: Shandong,Pengchuan,Electromechanical,Technology,Co.,Ltd.
Share on:
Product Overview
Description

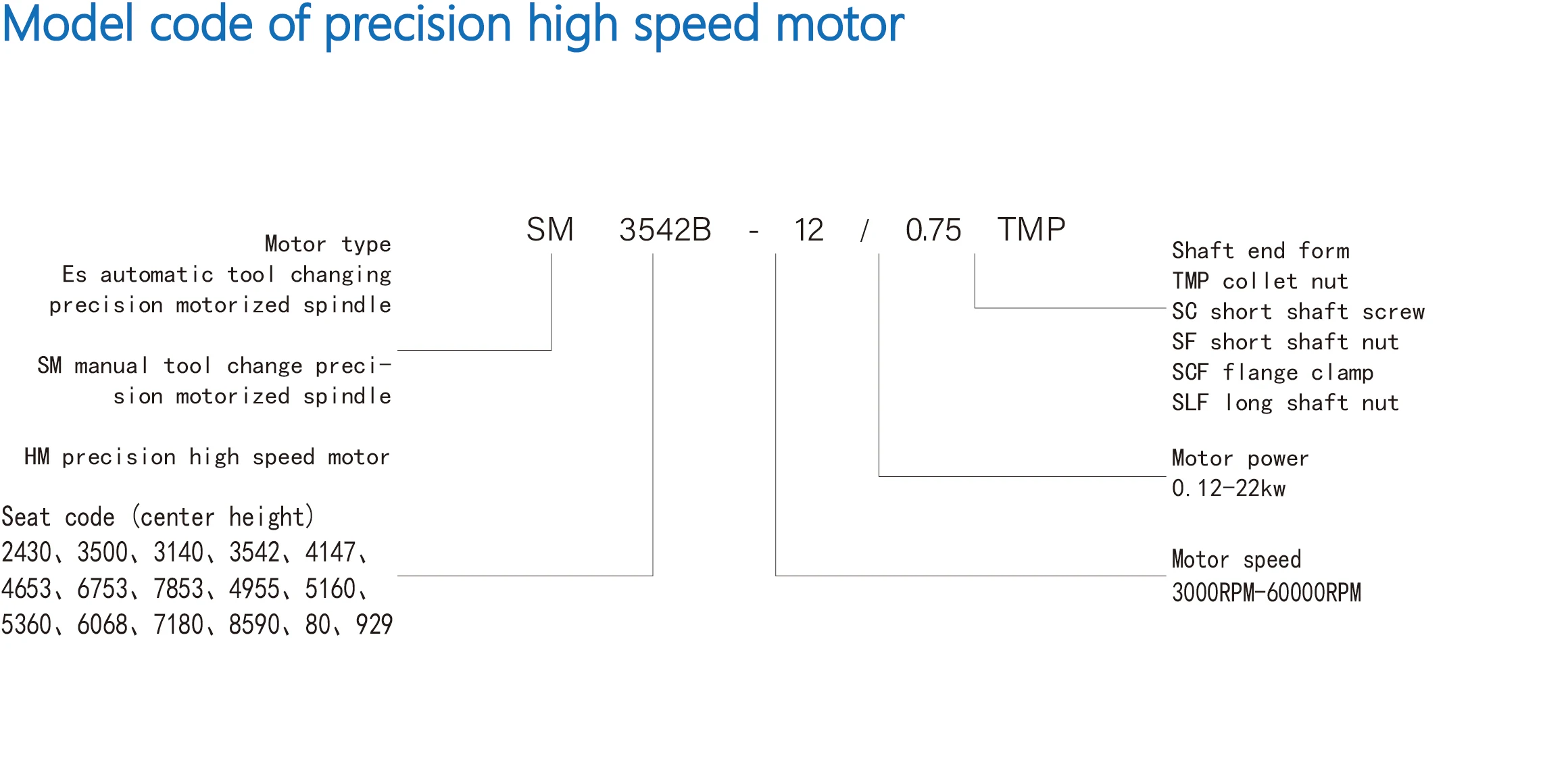

TYPE | KW | V | HZ | R.P.M | A | COSψ | A 【mm】 | B 【mm】 |
SM5360S-18/3.0TMP | 3.0 | 220/380 | 300 | 18000 | 11.8/6.80 | 0.80 | 308 | 160 |
SM5360A-09/2.2TMP | 2.2 | 220/380 | 150 | 9000 | 9.70/5.60 | 0.79 | 328 | 180 |
SM5360A-12/3.7TMP | 3.7 | 220/380 | 200 | 12000 | 15.8/9.2 | 0.80 | 328 | 180 |
SM5360A-18/4.5TMP | 4.5 | 220/380 | 300 | 18000 | 17.2/10.0 | 0.81 | 328 | 180 |
SM5360A-24/5.5TMP | 5.5 | 220/380 | 400 | 24000 | 21.1/12.2 | 0.82 | 328 | 180 |
SM5360B-09/3.0TMP | 3.0 | 220/380 | 150 | 9000 | 11.8/6.80 | 0.80 | 358 | 210 |
SM5360B-12/4.5TMP | 4.5 | 220/380 | 200 | 12000 | 17.2/10.0 | 0.81 | 358 | 210 |
SM5360B-18/5.5TMP | 5.5 | 220/380 | 300 | 18000 | 21.1/12.2 | 0.82 | 358 | 210 |
SM5360B-24/6.0TMP | 6.0 | 220/380 | 400 | 24000 | 21.8/12.6 | 0.82 | 358 | 210 |
SM5360C-09/3.7TMP | 3.7 | 220/380 | 150 | 9000 | 15.8/9.2 | 0.80 | 398 | 250 |
SM5360C-12/5.5TMP | 5.5 | 220/380 | 200 | 12000 | 21.1/12.2 | 0.82 | 398 | 250 |
SM5360C-18/7.5TMP | 7.5 | 220/380 | 300 | 18000 | 27.2/15.7 | 0.83 | 398 | 250 |
SM5360C-24/8.0TMP | 8.0 | 220/380 | 400 | 24000 | 31.3/18.1 | 0.83 | 398 | 250 |
Standard delivery：

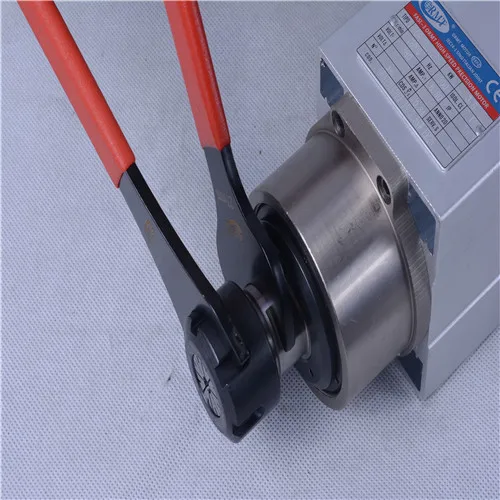

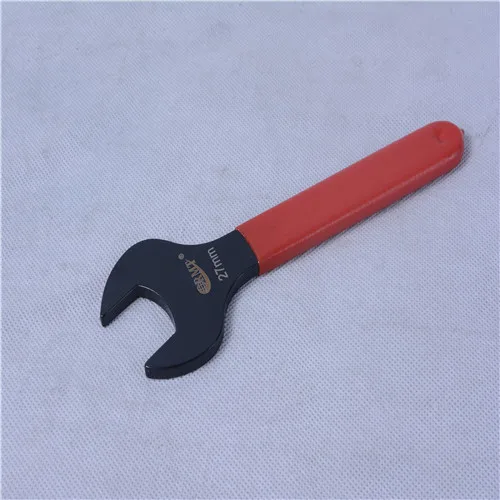

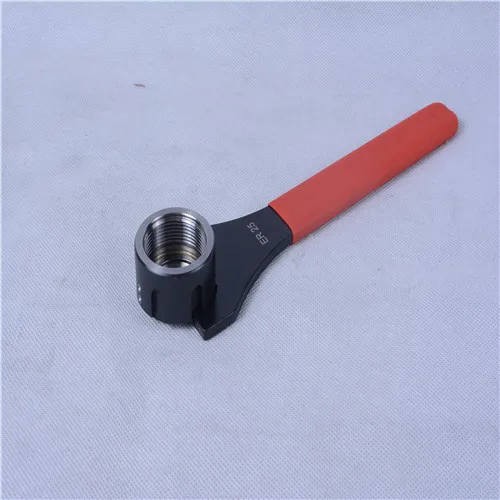

Distribution: two special spanners + dynamic balance nut + high precision chuck
