Product Overview
Description
Simple Description

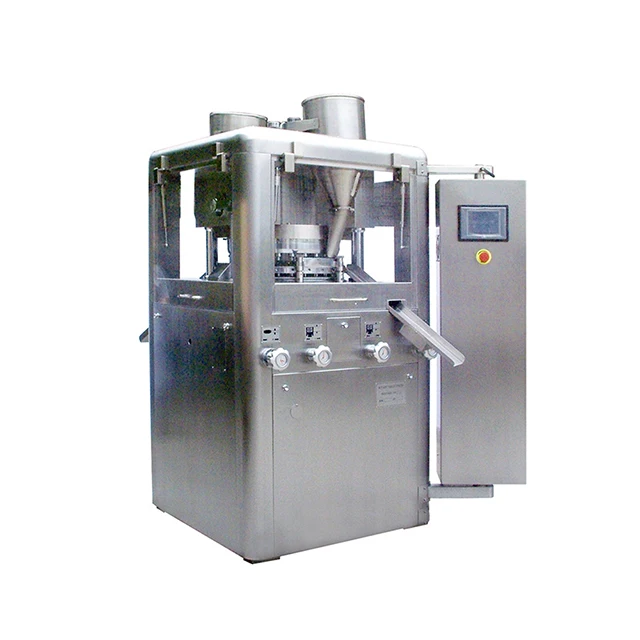

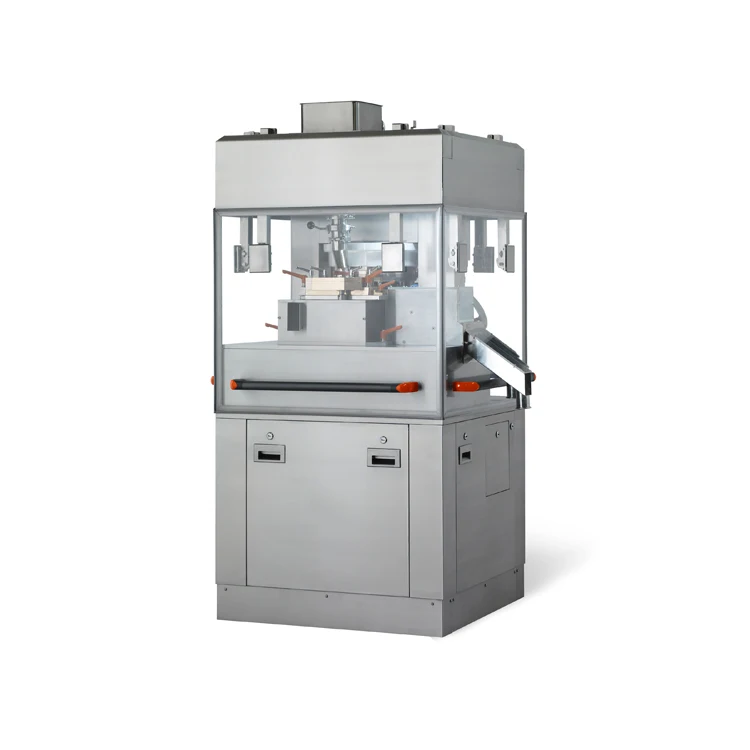

That machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Features
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

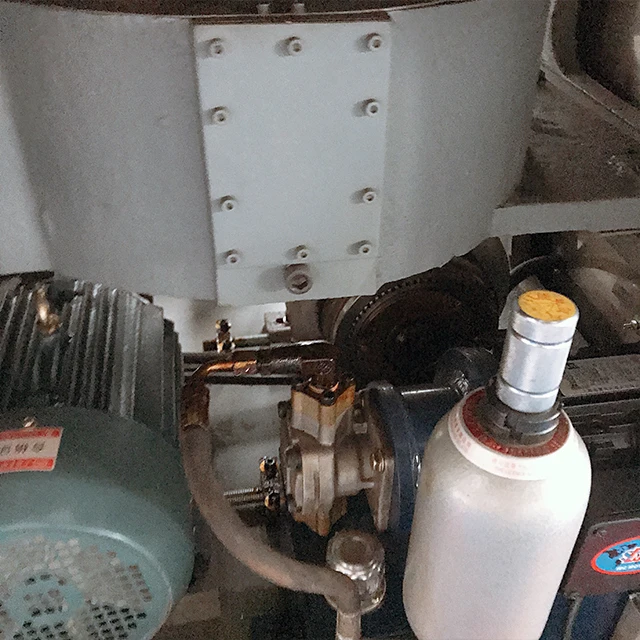

4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Main Technical Data
Model No. | ZP-17D | ZP-23D | ZP-31D |
Stations (unit) | 17 | 23 | 31 |
Maximum compression (KN) | 60 | 80 | 80 |
Max. Diameter of tablet to be produced (mm) | 20 | 28 | 25 |
Max. Filling depth (mm) | 15 | 20 | 20 |
Max. Thickness of tablet (mm) | 6 | 13 | 9 |
Rotary speed of the turret (rpm) | 10-37 | 14-30rpm | 14-35 |
Capacity(pcs/hour) | 37,700 | 60,000-85,000 | 60,000-100,000 |
Motor power (kw) | 3kw | 4kw | 5kw |
Net weight of the machine (kg) | 900 | 1000 | 1100 |
Model | ZP-45D | ZP-51D | ZP-59D |
Stations (unit) | 45 | 51 | 59 |
Maximum compression (KN) | 60 | 100 | 100 |
Max. Diameter of tablet to be produced (mm) | 13 | 20 | 11 |
Max. Filling depth (mm) | 15 | 18 | 18 |
Max. Thickness of tablet (mm) | 6 | 8 | 8 |
Rotary speed of the turret (rpm) | 3-35 | 25 | 40 |
Capacity of the tablets | 172200pcs/h | 15,3000pcs/h | 28,3200pcs/h |

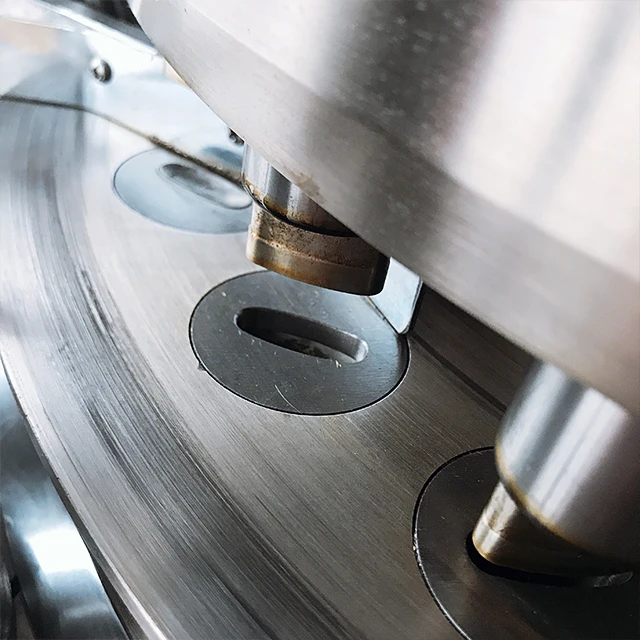

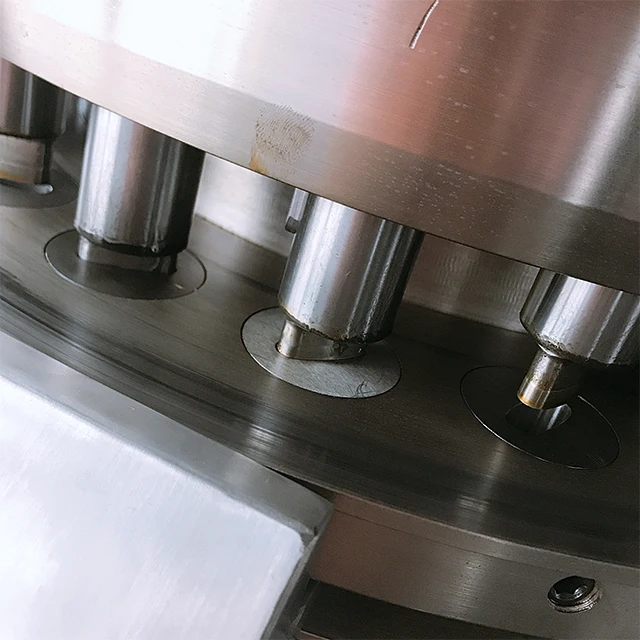

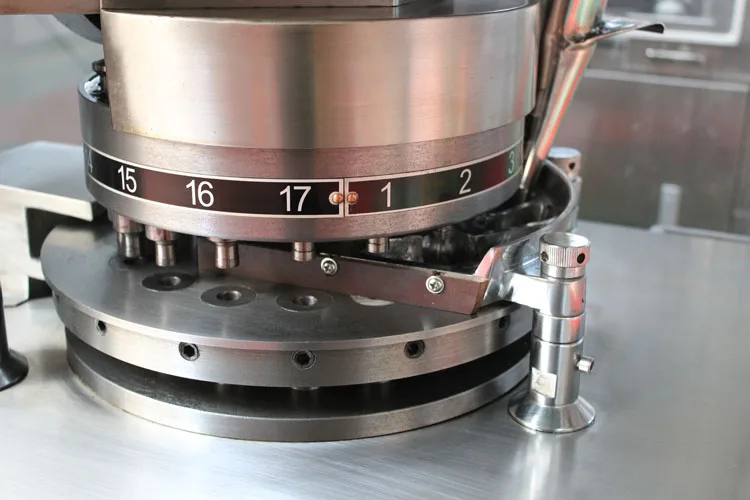

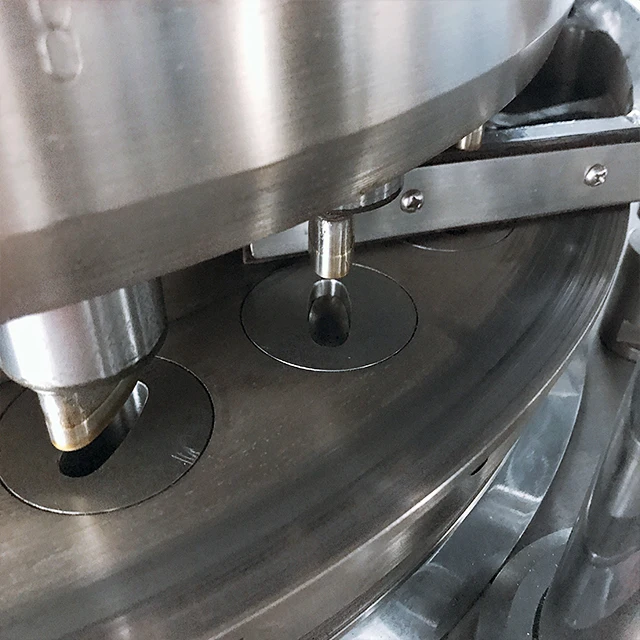

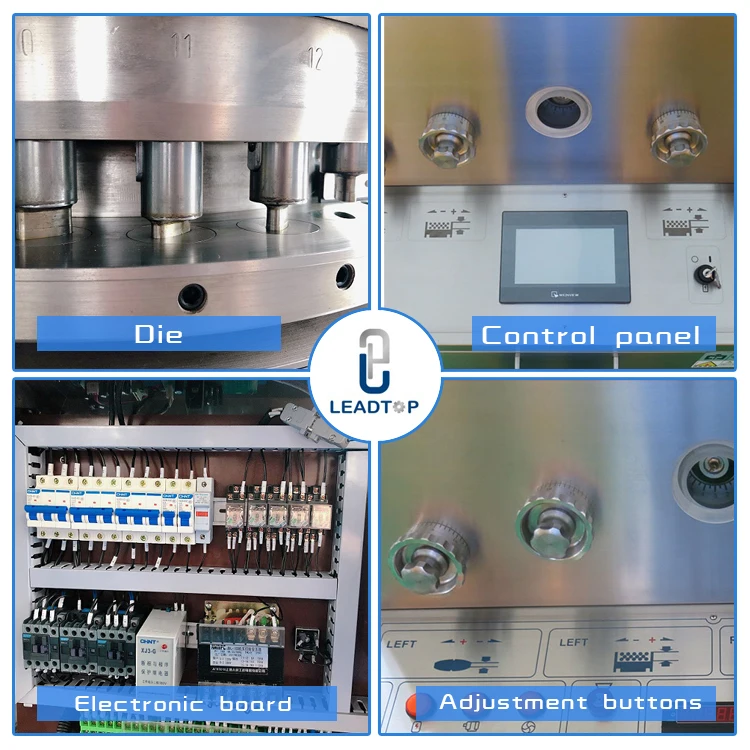

Details Images
