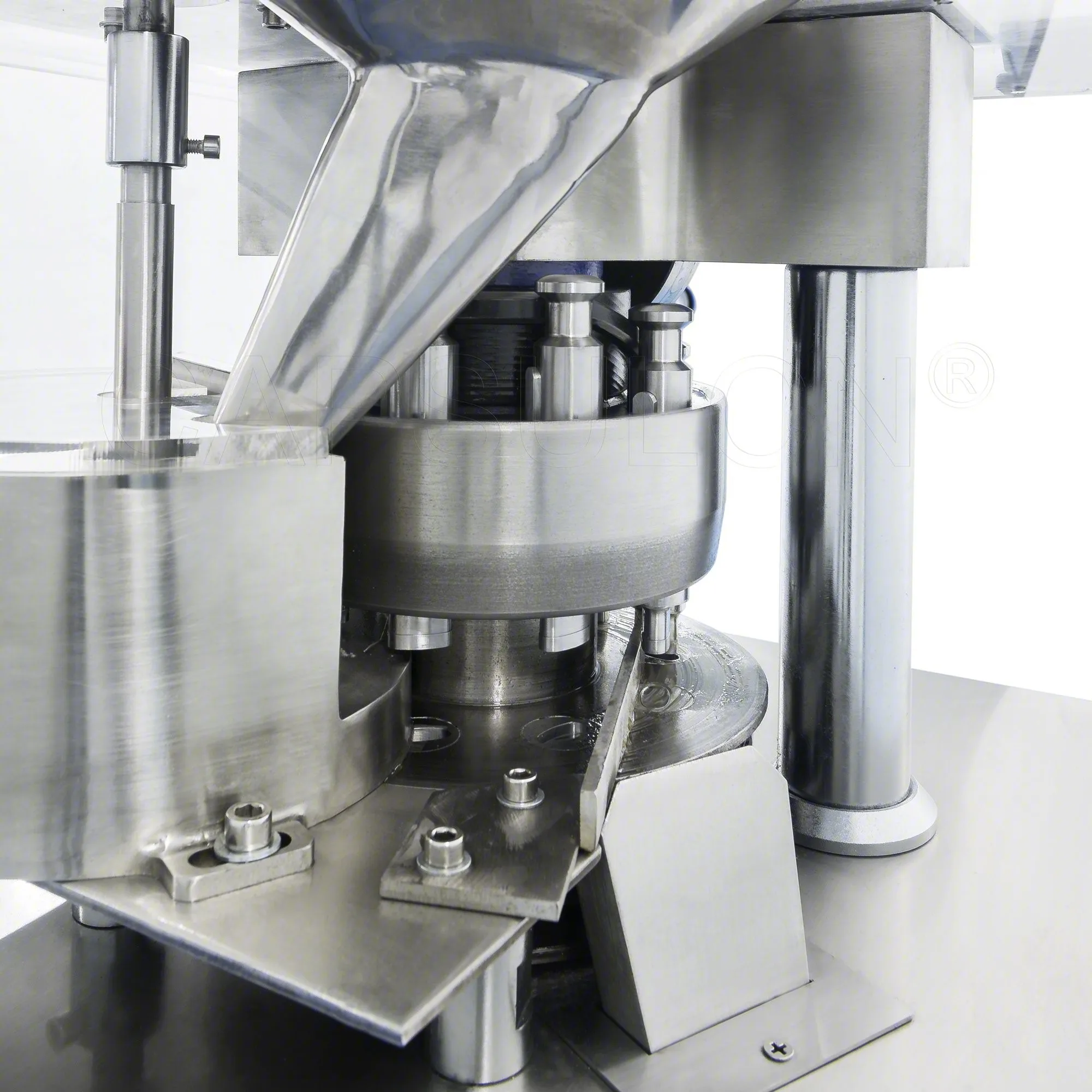

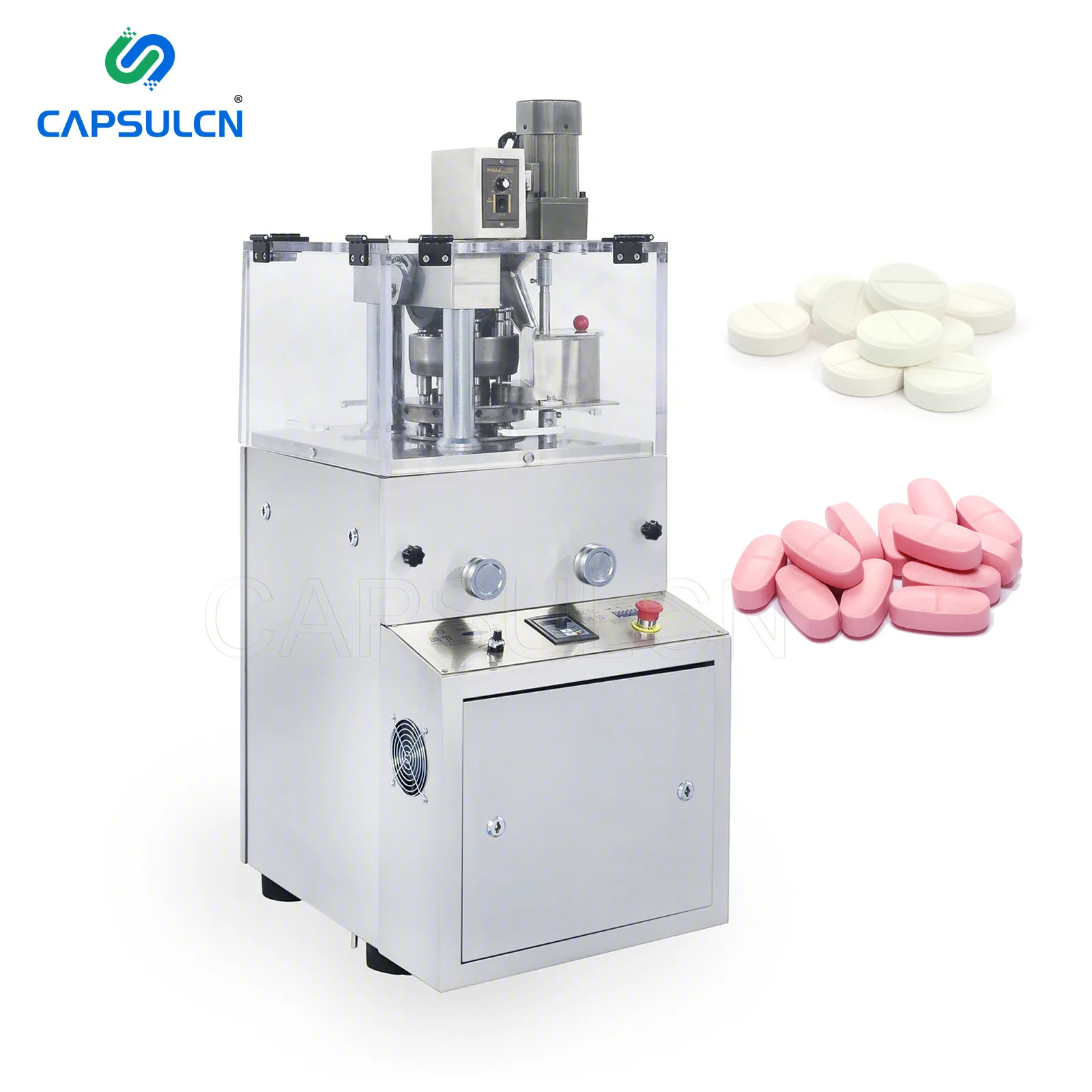

ZP9 Laboratory Desktop Automatic Rotary Pill Press Tablet Press Machine
- Category: Tablet Press >>>
- Supplier: ZHEJIANG CAPSULCN IMP&EXP CO. LTD
Share on (62551480913):
Product Overview
Description
Products Description
Main application：This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
2. This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.
3. This machine can produce round, special-shaped and character-engraved tablets ￠5—20mm.
ZP Rotary Tablet Press Machine
Feature：
1. This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet-pressing. It is mainly used for the manufacture of tablet in pharmaceutical continuous; it also applies to press the granular material into tablet in the industry of chemical, food, electronic etc.2. This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.
3. This machine can produce round, special-shaped and character-engraved tablets ￠5—20mm.

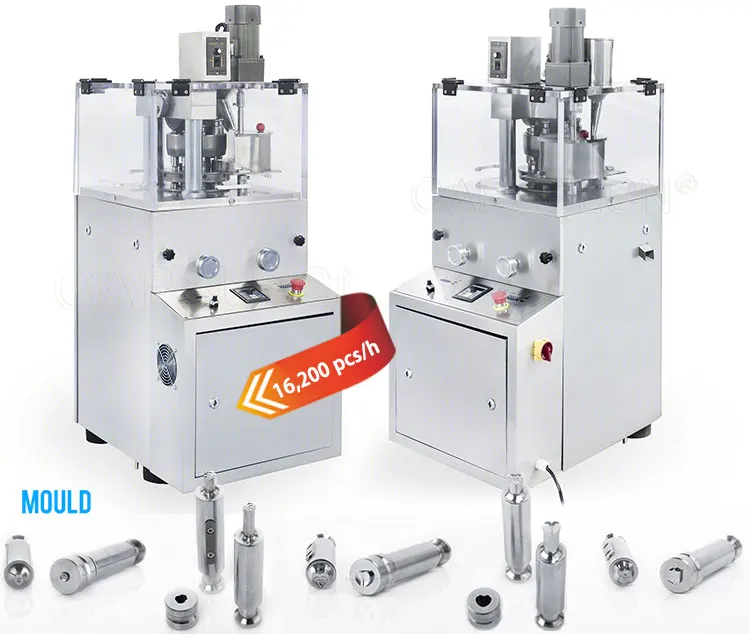

Change the mold to compress tablets of different shapes
rotary tablet press advantages：
1.Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.

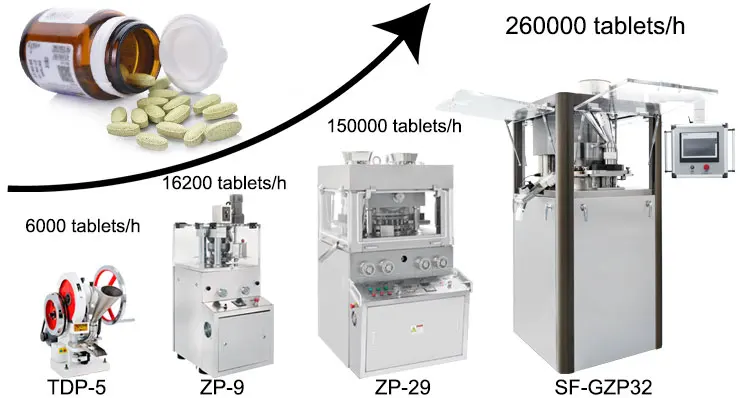

2.Higher outputs of 16200 tablets per hour save time and enable you to meet your large production demands.
3.It reduces wastage of material.
4.It allows independent control of both the weight and hardness of tablets.
1.Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.
2.Higher outputs of 16200 tablets per hour save time and enable you to meet your large production demands.
3.It reduces wastage of material.
4.It allows independent control of both the weight and hardness of tablets.

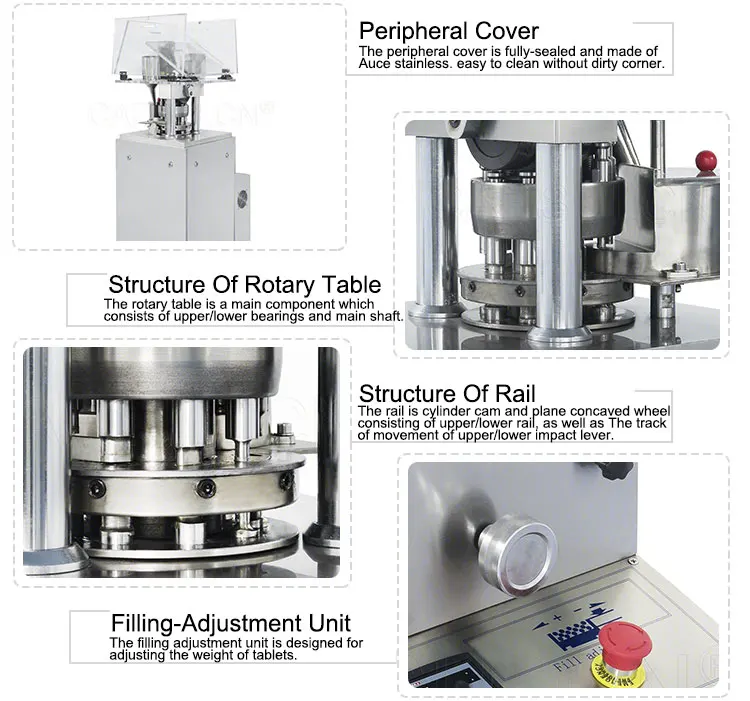

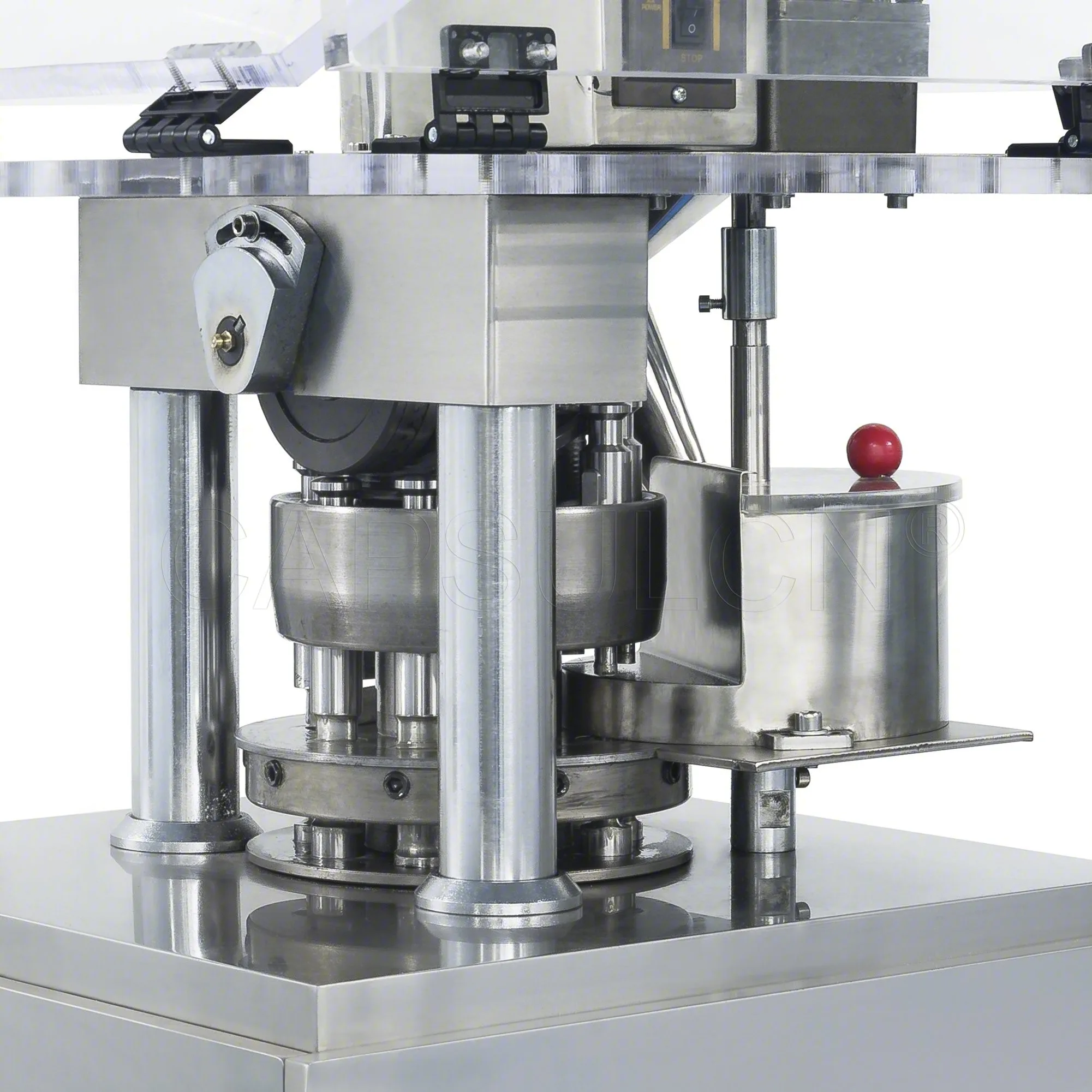

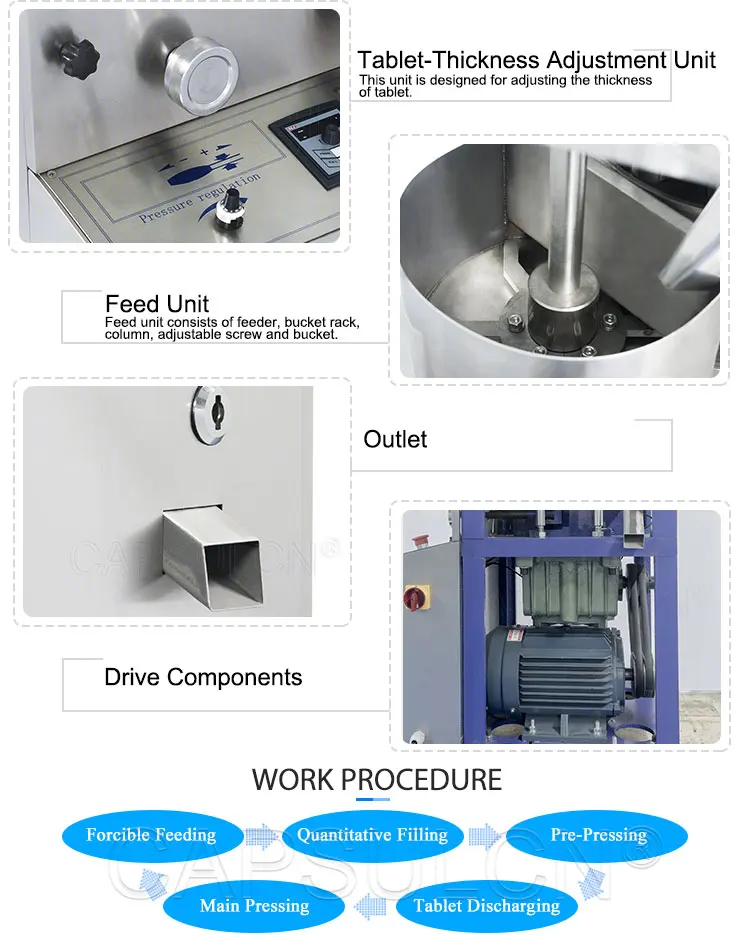

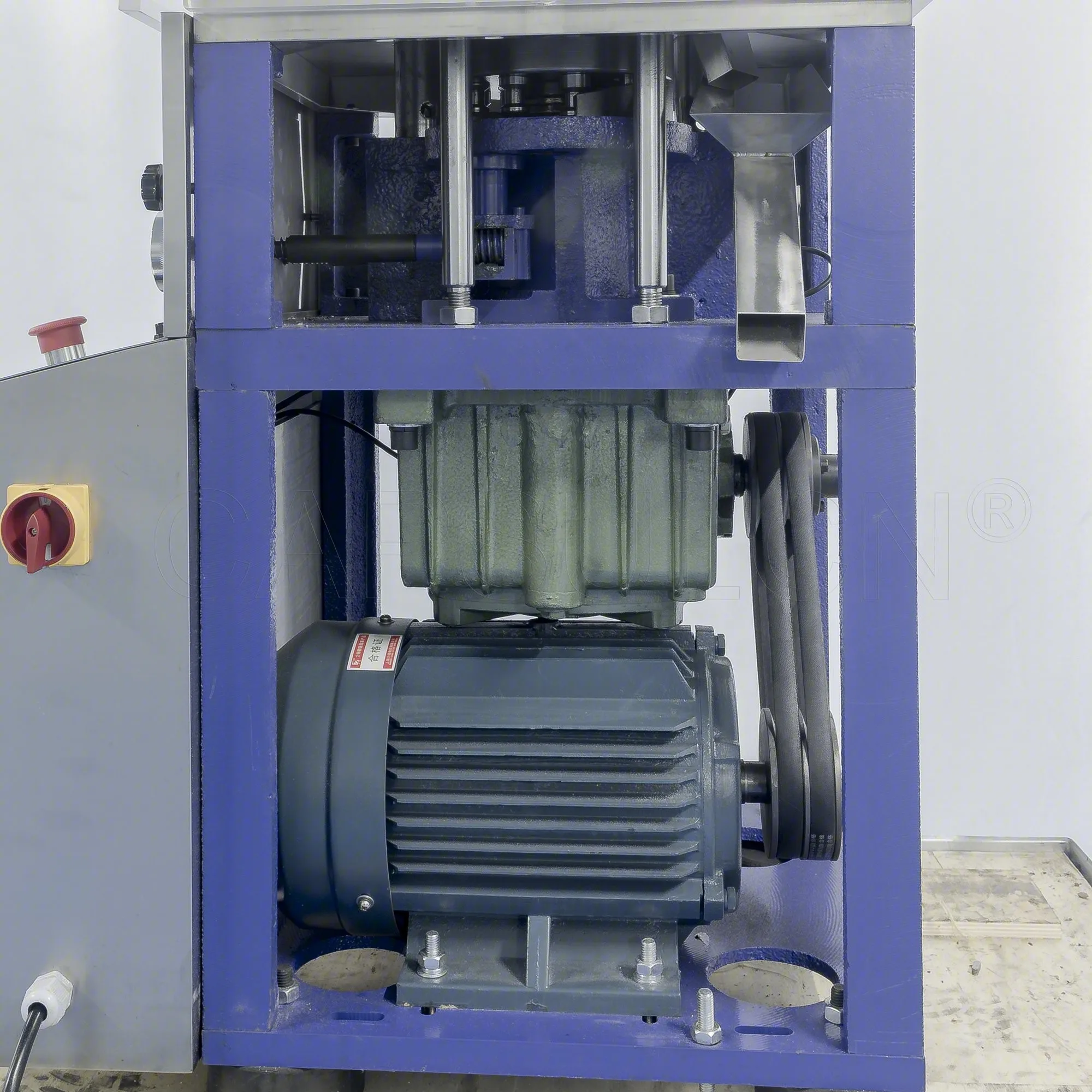

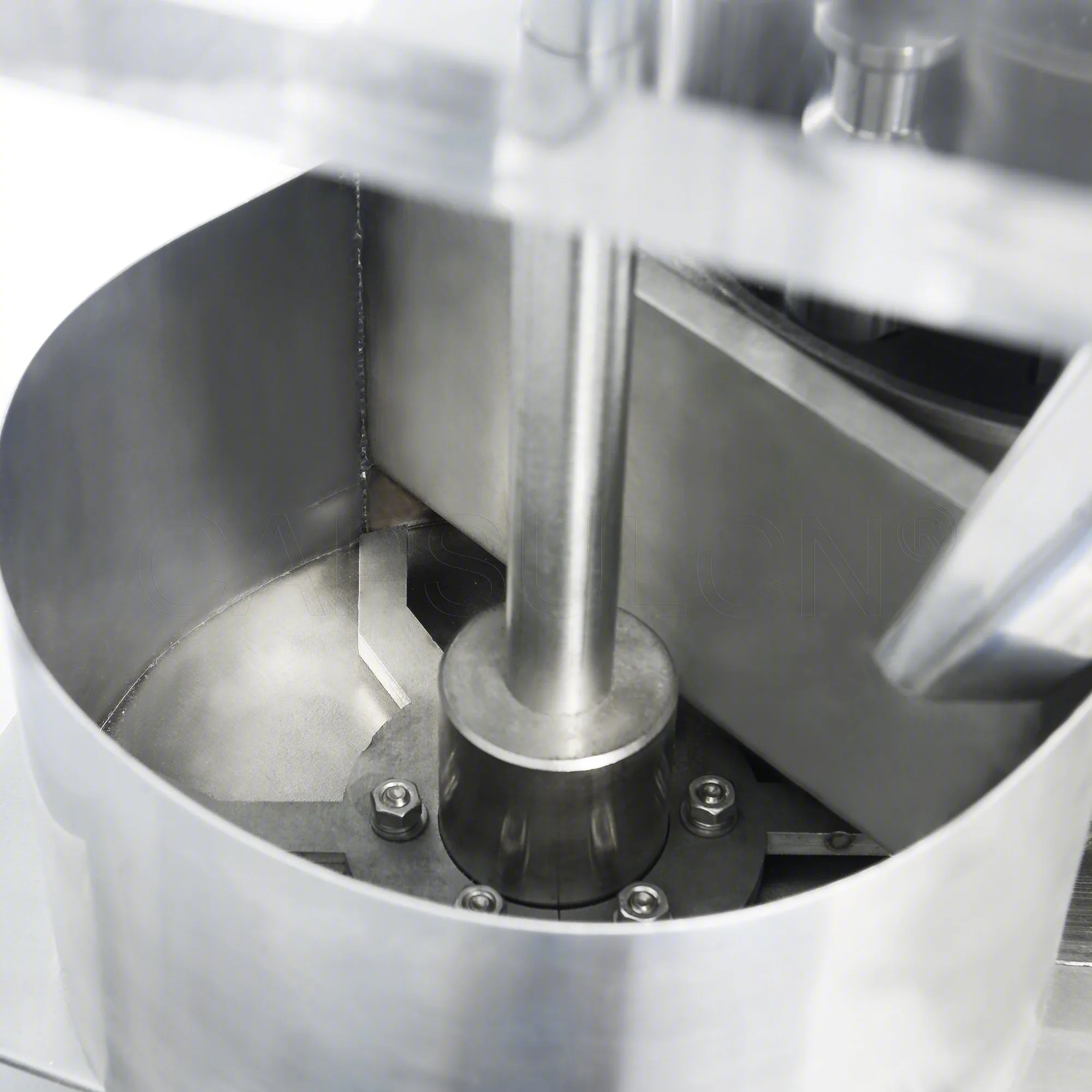

Details Images
Specifications
Model | ZP-5 | ZP-7 | ZP-9 | ||
Dies | 5 | 7 | 9 | ||
Max.pressure （Kn） | 60 | 60 | 60 | ||
Max.Dia.of Tablet （mm） | 20mm | ||||
Max.Depth of Fill （mm） | 15 | 15 | 15 | ||
Max.Thickness of Tablet （mm） | 6 | 6 | 6 | ||
Turret Speed （r/min） | 30 | 30 | 30 | ||
Production Capacity （pc/h） | 9000 | 12600 | 16200 | ||
Motor （Kw） | 2.2 | ||||
Overall Size （mm） | 480*630*1100 | ||||
Net Weight （Kg） | 260 | ||||
Model | ZP35D | ZP37D | ZP41D |
Dies | 35 | 37 | 41 |
Max.pressure （Kn） | 80 | 80 | 80 |
Max.Dia.of Tablet （mm） | 13 | 13 | 13 |
Max.Depth of Fill （mm） | 15 | 15 | 15 |
Max.Thickness of Tablet （mm） | 6 | 6 | 6 |
Turret Speed （r/min） | 14-37 | 14-37 | 14-37 |
Production Capacity （pc/h） | 150000 | 160000 | 170000 |
Motor （Kw） | 4 | 4 | 4 |
Overall Size （mm） | 980*1240*1690 | 1230*950*1670 | 1230*950*1670 |
Net Weight （Kg） | 1700 | 1700 | 1700 |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
