Automatic Rotary Sandblasting Machine Batch Sandblaster
- Category: Sandblaster >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600368680955):
Product Overview
Description
Product Description
Automatic Rotary Table Sandblasting Machine Batch Sandblaster

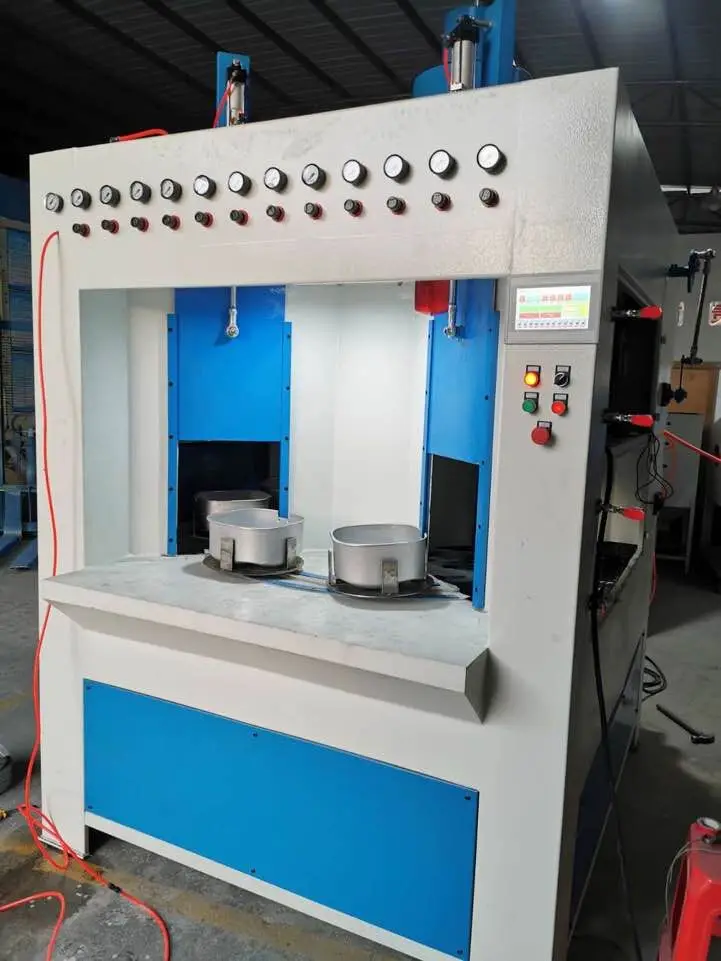

This automatic sand blasting machine is ideal for batch processing of cup-shaped or barrel-shaped objects, such as helmets, rice cooker, non-stick pan, landscaping, glass bottle This machine can effectively clean and finish surfaces with high efficiency and consistent quality.
Automatic Rotary Sandblasting Machine Working Principle
This automatic blaster activates through a large turntable taking a quantity of small turntables, both rotating in 360 degree. After operators clip the parts in the small turntables, the large turntable drives them to the blasting stations, and auto guns swing and blasting to make a high quality finish..
Detailed Images
Automatic Rotating Table Sandblasting Machine Features

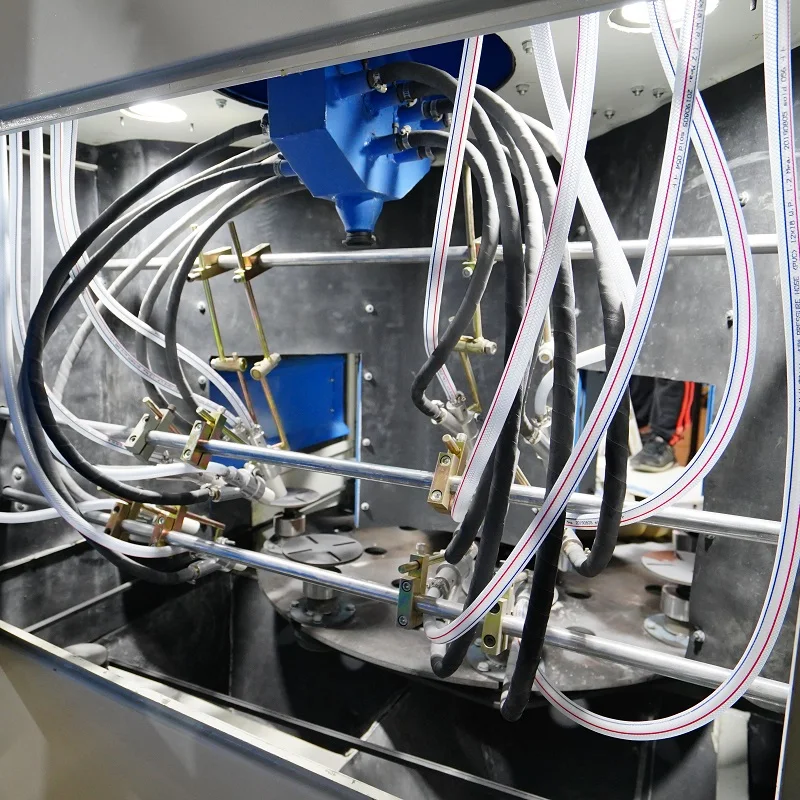

1 The blast gun group can be set for fixed blasting or swinging blasting with adjustable speed and angle.
2 Small turtables drives through an independent motor, stepless speed regulation by converter
3 Blasting time, blasting distance between parts and gun also can be adjusted to optimize processing.
4. High automation task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production
5. Specially custom fixtures based on workparts, provided for quick and solid clipping to improve efficiency.
2 Small turtables drives through an independent motor, stepless speed regulation by converter
3 Blasting time, blasting distance between parts and gun also can be adjusted to optimize processing.
4. High automation task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production
5. Specially custom fixtures based on workparts, provided for quick and solid clipping to improve efficiency.

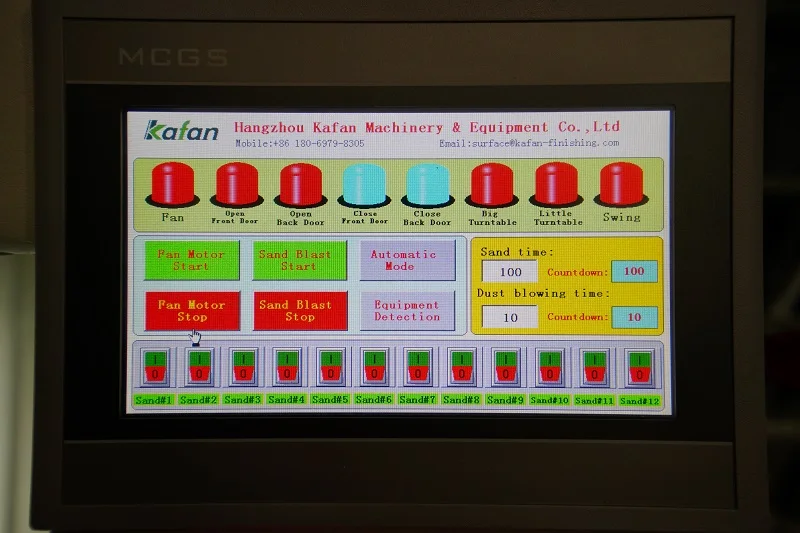

PLC control
Pressure Regulators

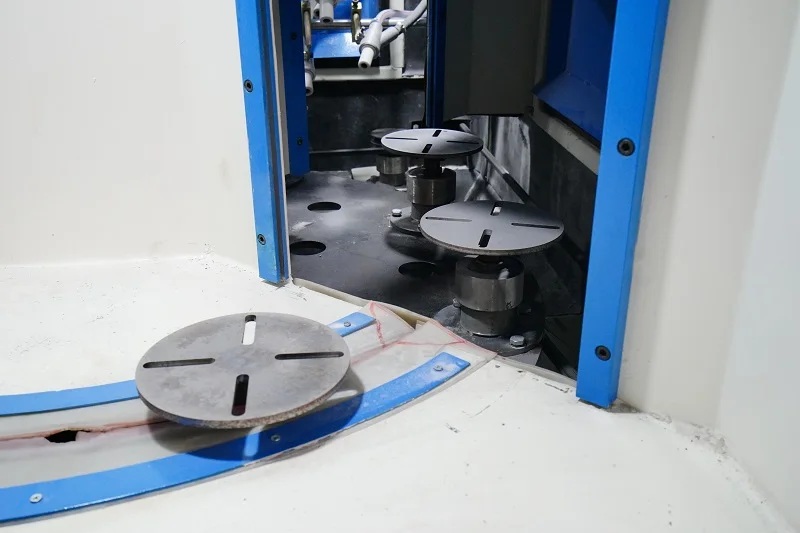

Small Tunrtables
Big Index Turntable

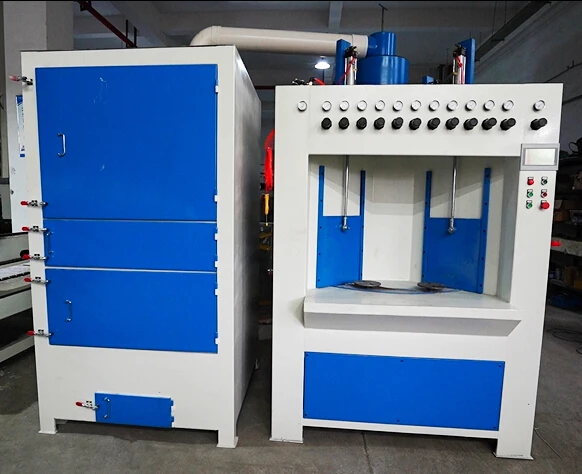

Size Information
Sand blasting machine size can be customized according to the work-piece request .
Model: | KF-1719-12A |
Main Dimension | 1700x1900x2350mm |
Dust Collector Size | 1400x1400x1700mm |
Large Turntable Size | Dia 1400mm x Thick 15mm |
Qty of Small Turntables | 12pcs |
Small Turntable Size | 150/180mm |
Loading Capacity of Small Turntable | 20kgs |
Max. Size of Parts Allowed | Dia 350mm x Height 450mm |
Qty of Blast Guns | 12pcs |
Blast Gun Nozzle | Durable Boron Carbide |
Power Supply | 380V/220V As required |
Total Power | 7kw |
Machine Weight | 4150kgs |
Packing&Shipping
All machine of sand blasting comply with international export standards and are available in wooden boxes and foam films
Company Introduction
We are a professional manufactuer of surface finishing machinery.we have worked on worldwide market for 10 years, because of the superior technology, quality, service.we exported into more than 100 countries, established long term business with distributer in
US, Mexico, Russia , Poland, Uk, Germany ect. We own a manufacruery base on 3600 square meter, around 100 employees and 24sets of production equipment, dividing into technical department, after-sale department.
US, Mexico, Russia , Poland, Uk, Germany ect. We own a manufacruery base on 3600 square meter, around 100 employees and 24sets of production equipment, dividing into technical department, after-sale department.
