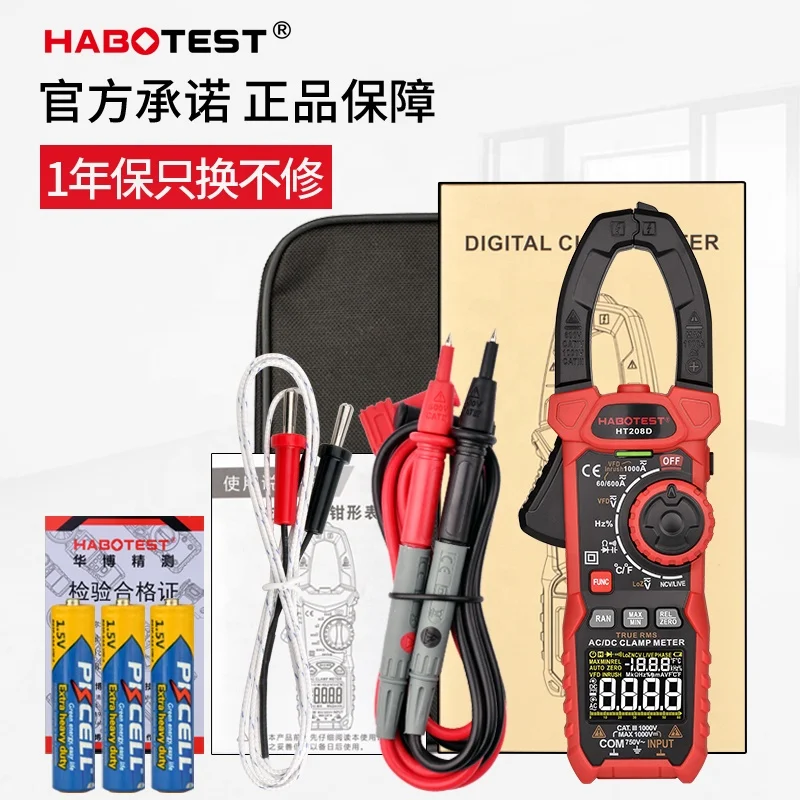

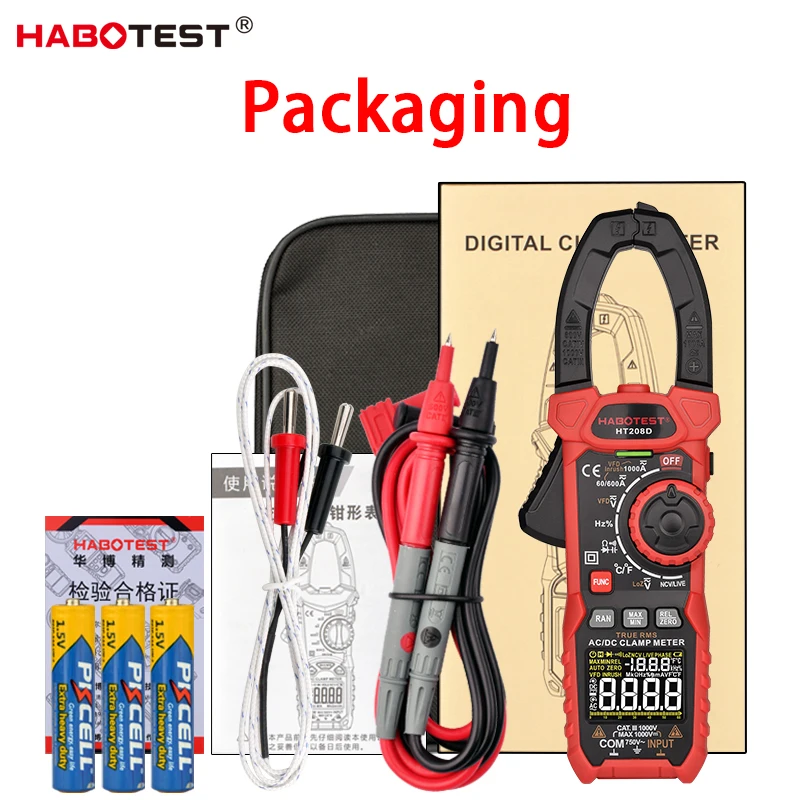

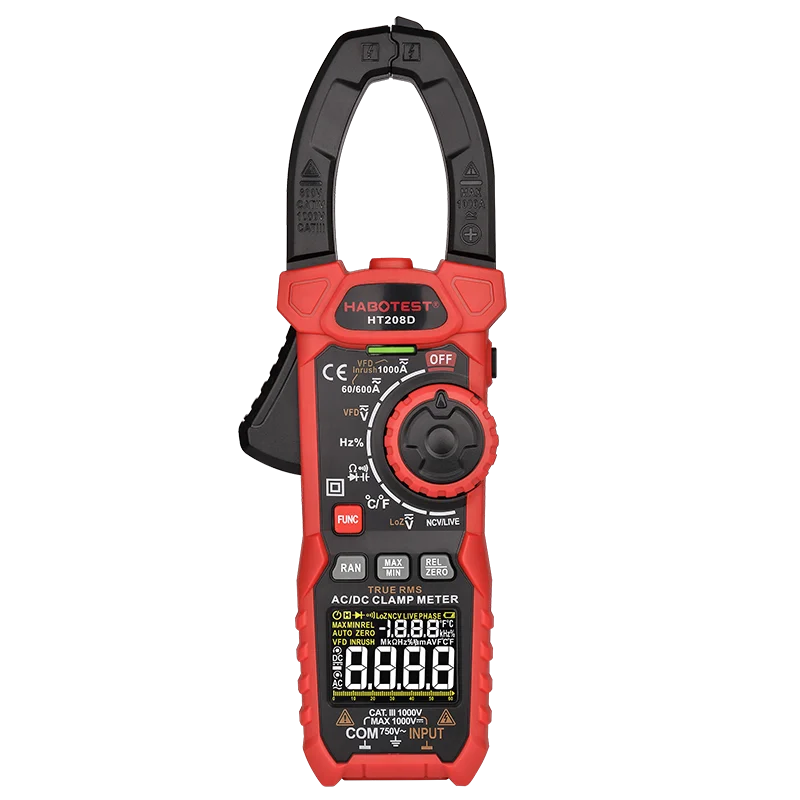

Clamp Multi Meter HABOTEST HT208D 1000A/1000V AC DC Amp Big Clamp Voltage Meter
6000Counts
DC Votlage:600mV/6V/60V/600V/1000V
AC Voltage:600mV/6V/60V/600V/750V
AC Current:60A/600A/1000A
DC Current:60A/600A/1000A
Resistance:600/6k /60k /600k /6M /60M OHMS
Capacintance:10nF/100nF/1K/10K/100K/1mF/10mF/100mF
Frequency:10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz
Duty:1%-99%
NCV
DCA Zero
VFD
Inrush
TRMS
REL
LowZ
| Specification | HT208A | HT208D | Accuracy |
| DC Voltage | 600mV/6V/60V/600V/1000V | 600mV/6V/60V/600V/1000V | (0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V/750V | 600mV/6V/60V/600V/750V | (0.8%+3) |
| AC Current | 60A/600A/1000A | 60A/600A/1000A | (2.5%+5) |
| DC Current | No | 60A/600A/1000A | (2.5%+3) |
| Resistance | 600/6k /60k /600k /6M /60M ohms | 600/6k /60k /600k /6M /60M ohms | (0.8%+3) |
| Capacitance | 10nF/100nF/1K/10K/100K/1mF/10mF/100mF | 10nF/100nF/1K/10K/100K/1mF/10mF/100mF | (3.0%+3) |
| Frequency | 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz | 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz | (0.5%+5) |
| Duty | 1%-99% | 1%-99% | (1.0%+2) |
| Temperature | 40C-1000C/ 0F-1832F | 40C-1000C/ 0F-1832F | (1.0%+2) |
| Counts | 6000 Counts | 6000 Counts | |
| Auto/Maual Range | Yes | Yes | |
| Continuity | Yes | Yes | |
| Diode | Yes | Yes | |
| Data hold | Yes | Yes | |
| NCV | Yes | Yes | |
| Back light | Yes | Yes | |
| Flashlight | Yes | Yes | |
| DCA ZERO | Yes | Yes | |
| Low battery indication | Yes | YES | |
| Auto Power off | Yes | YES | |
| True RMS | Yes | Yes | |
| INRUSH | Yes | Yes | |
| VFD | Yes | Yes | |
| MAX/MIN | Yes | Yes | |
| REL | Yes | Yes | |
| LowZ | Yes | Yes | |
| VA LCD | YES | YES | |
| Power | 3*AAA(1.5V)Batteries | 3*AAA(1.5V)Batteries | |
| Weight | Approx.380g | Approx.380g | |
| Size | 240mm*85mm*47mm | 240mm*85mm*47mm | |

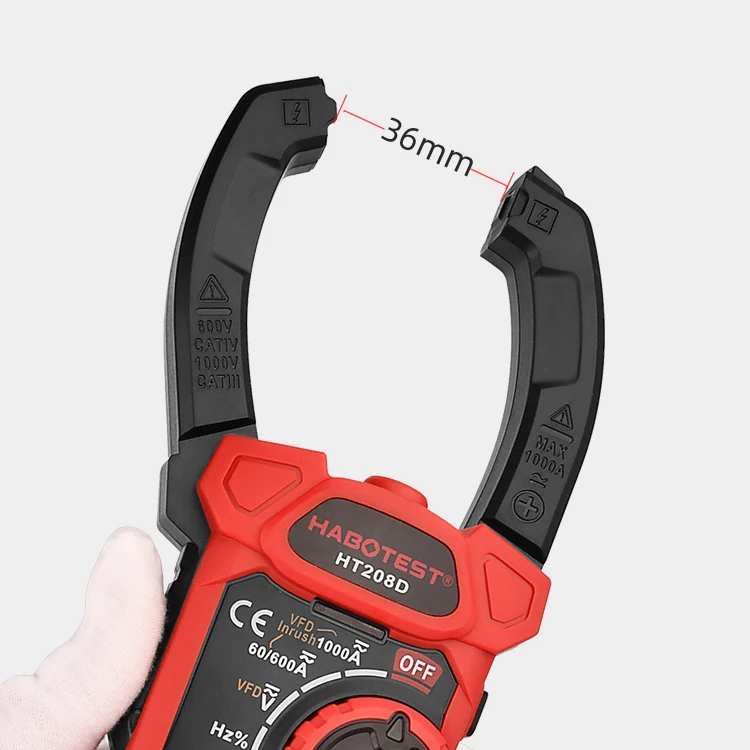

| Jaw Size | dia 35mm*60mm | dia 35mm*60mm | |
| Safety Rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V |









1. Who are we?
We are a professional manufacturer and innovation oriented technology enterprise with over 20 years R&D team. Headquartered in Dongguan city, Guangdong Province, China.
2. How can we ensure quality?
We have a strict engineering system. The R&D team makes the sample first and have professional debugging before mass production. Each product needs to be tested through multiple processes, and finally entry into the inventory system.
3. What can you buy from us?
Such as Clamp meter, Voltage tester, Digital Multimeter, Socket Detector, Current tester, Environment Tester and many other detectors.
4. Why do you buy from us instead of other suppliers?
We have more than 500 employees, covers an area of 7000 square meters. Our R&D team have more than 20 years of work experience. All of our products have ISO,CE & IEC certification.
5. What services can we provide?
ODM/OEM service The sample service 12-Months Warranty Company and factory visit
And more questions? Contact us! ♥
New products from manufacturers at wholesale prices
