Product Overview
Description
Products Description
Cutting display of various materials of AB-5 axis Waterjet Cutting Machine:
Tile Cutting, Marble Cutting, Glass Cutting, 75mm Stainless Steel Cutting, 20mm Iron Cutting.

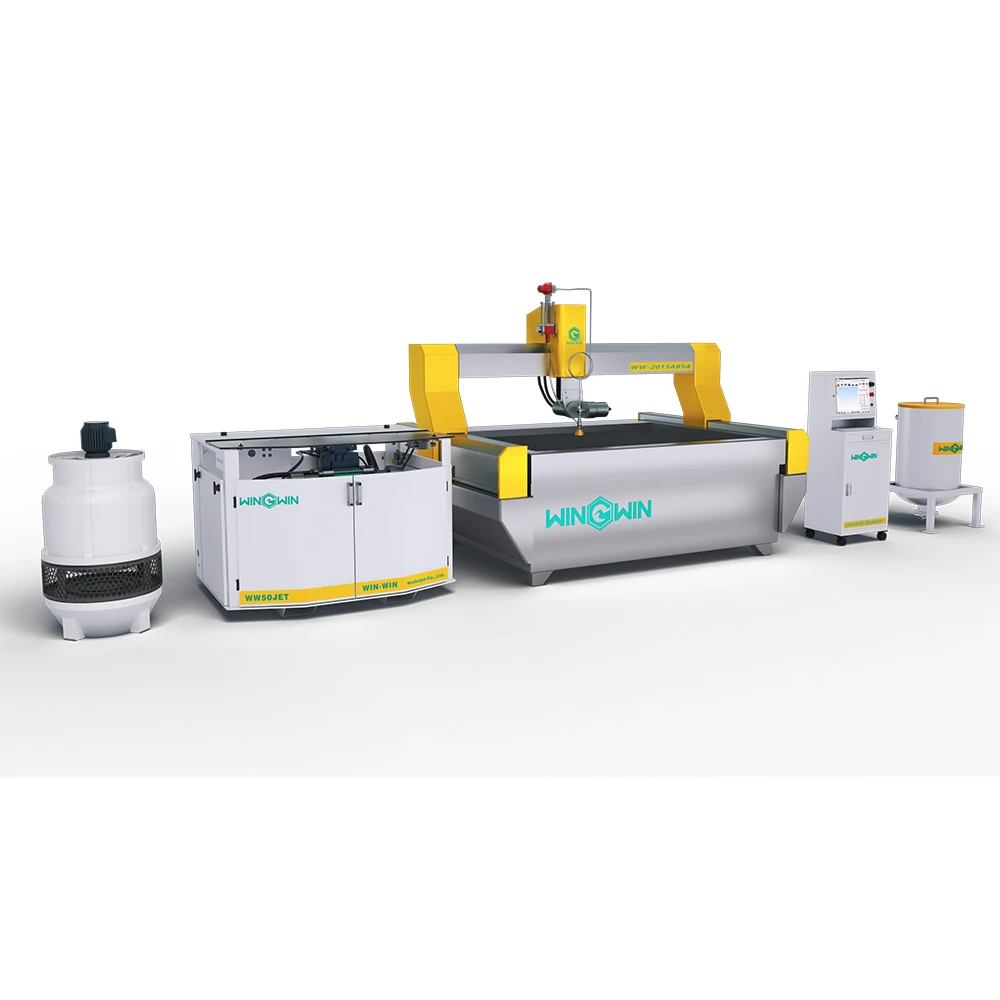

A set of Win-Win AB-5aixs waterjet cutting machine usually contains the above 5 components: water jet cutting table, waterjet intensifier pump, CNC control system, abrasive feeder tank, and cooling system.
We can customize the color, style, size, design and manufacturing according to your requirements.
Product details

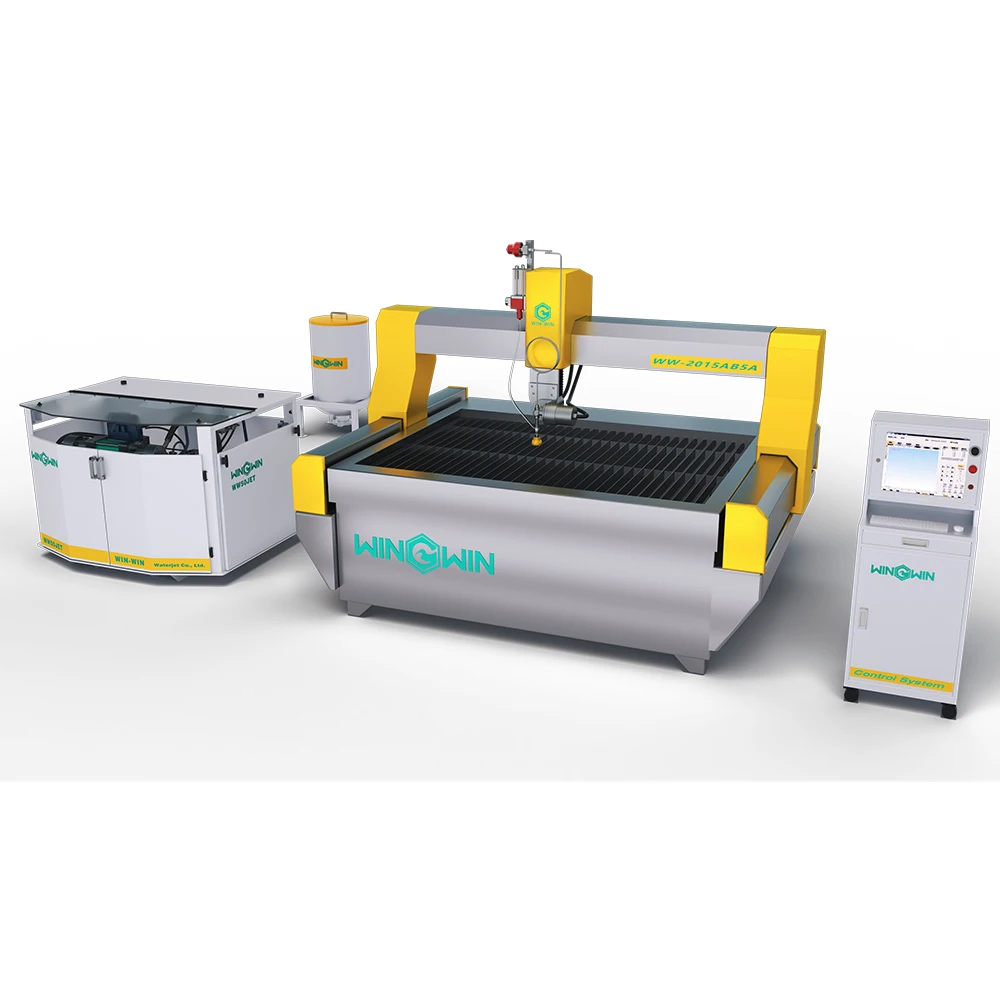

Waterjet Cutting Table
Series | AB-5Axis Waterjet Cutting Machine | Type | Gantry Table | ||||
Cutting Angle | 0-10 Degree | Cutting Speed | 11000mm/min | ||||
Table Size | 2000mmx1500mm | Travel Of Z Axis | 200mm | ||||
Cutting Precision | ±0.1mm | RE-Positioning Accuracy | ±0.025mm | ||||
Swing Angle Accuracy | ±0.1 Degree | Operating Software | WEIHONG | ||||
MAX.Cutting Range | 2000mmx1500mmx200mm | Certificate | CE ISO | ||||
Optional cutting table size： 2000x1000mm, 2000x1500mm, 2500x1500mm, 3000x1500mm, 3000x2000mm, 4000x2000mm, 4000x3000mm, 4000x4000mm, 2000x6000mm, etc.. | |||||||
A. The table is made of all 304 stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.
B. AB-5AXIS waterjet cutting machine can realize 0-10 degree angle cutting, can cut any material, especially the special waterjet cutting machine for tile mosaic.
C. The overall gantry structure, both ends of the cutting arm are supported, and it is not easy to tilt, even if it is used for a long time, it is not easy to cause cutting errors, and the cutting is more stable. Moreover, with this structure, multiple cutting heads can be added to realize simultaneous cutting and use of multiple cutting heads.
D. The cutting table cancels the traditional dustproof folding cloth, and adopts a new integrated steel structure, which greatly improves the dustproof and waterproof effect, and eliminates the trouble of replacing the dustproof.

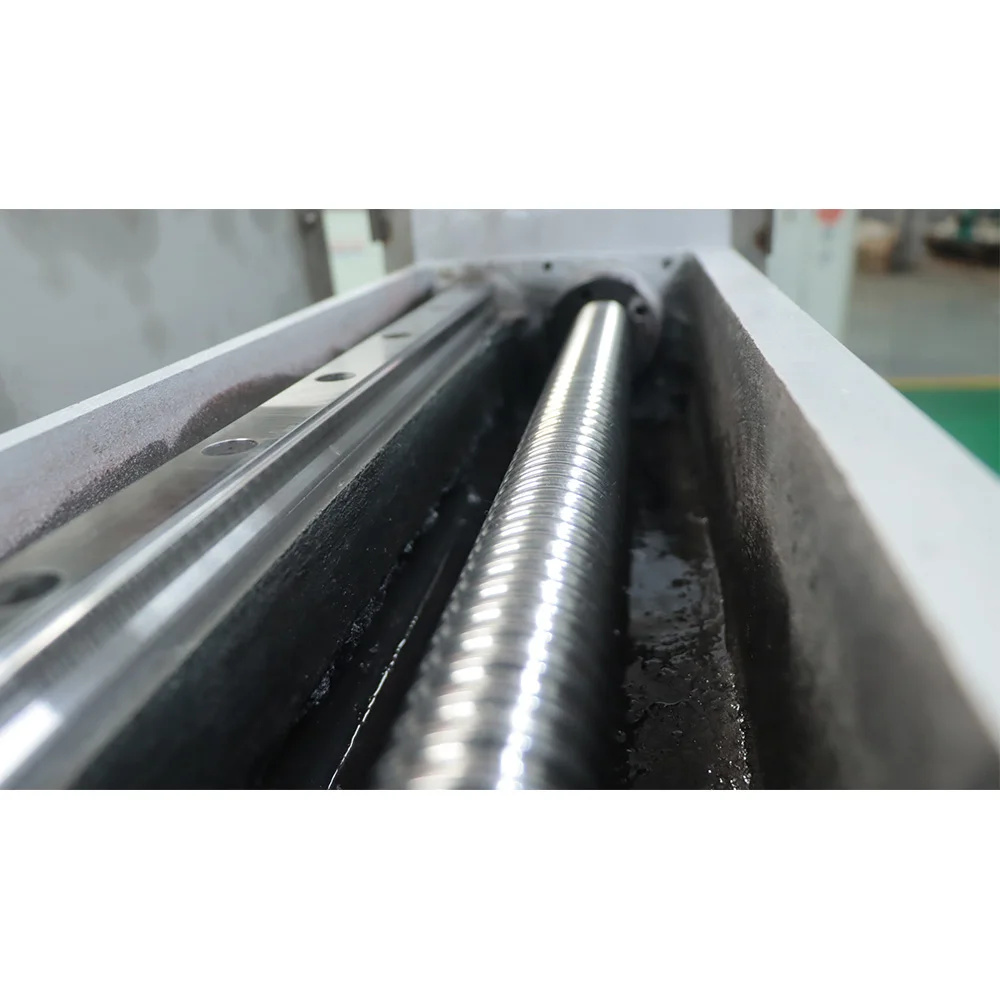

E.The thick screw and large slide block are all made of well-known Taiwanese brands, and the X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

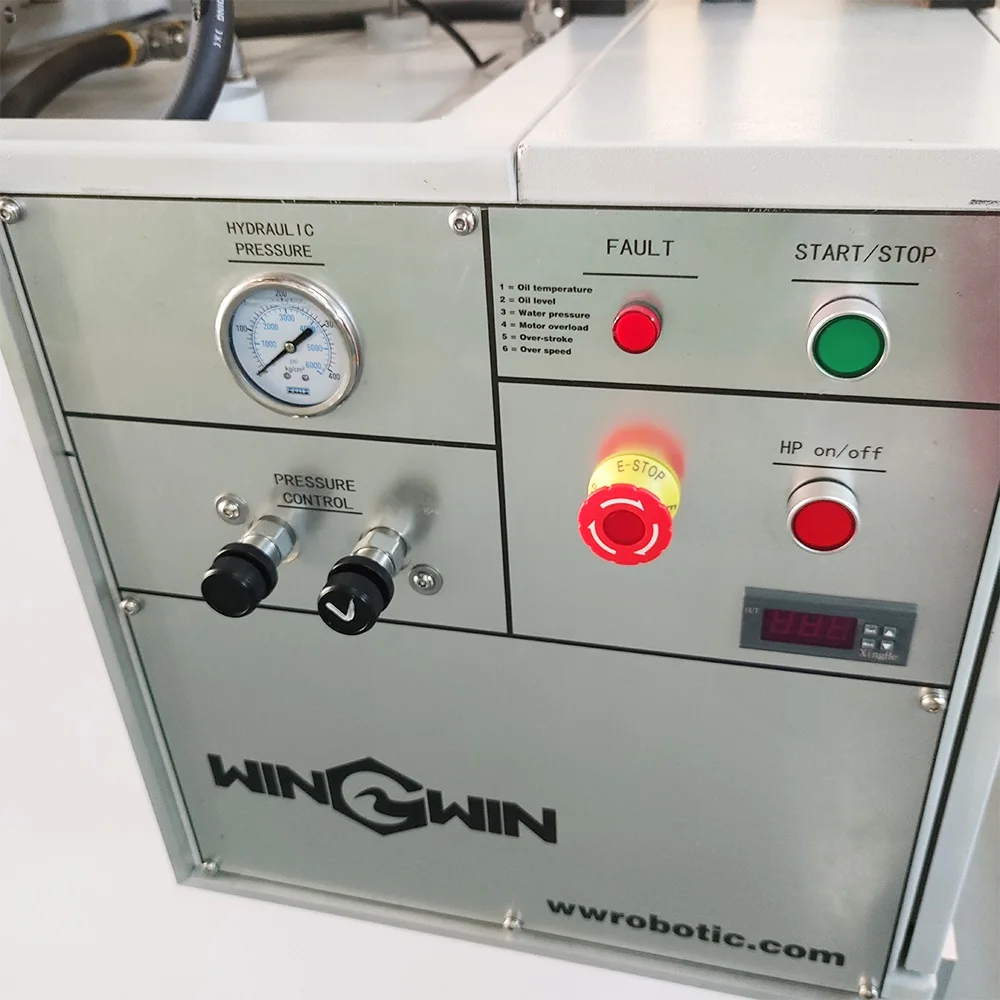

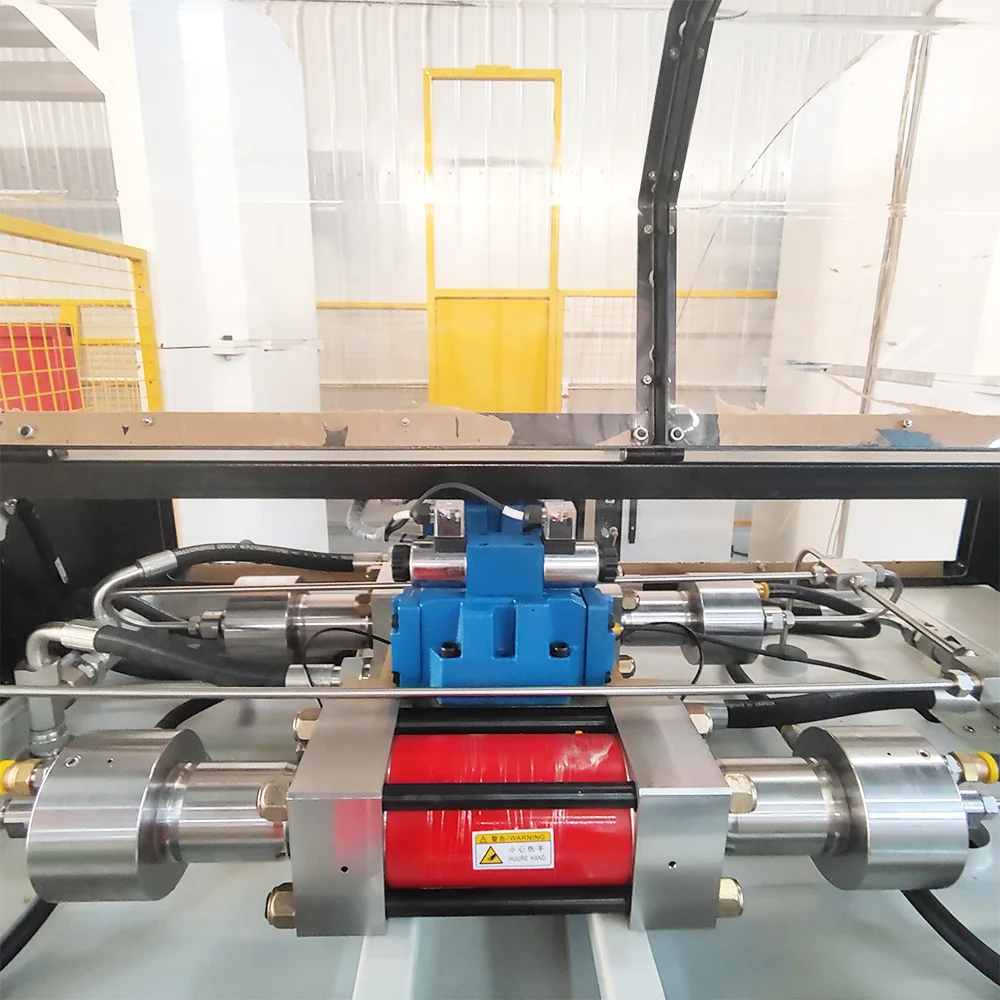

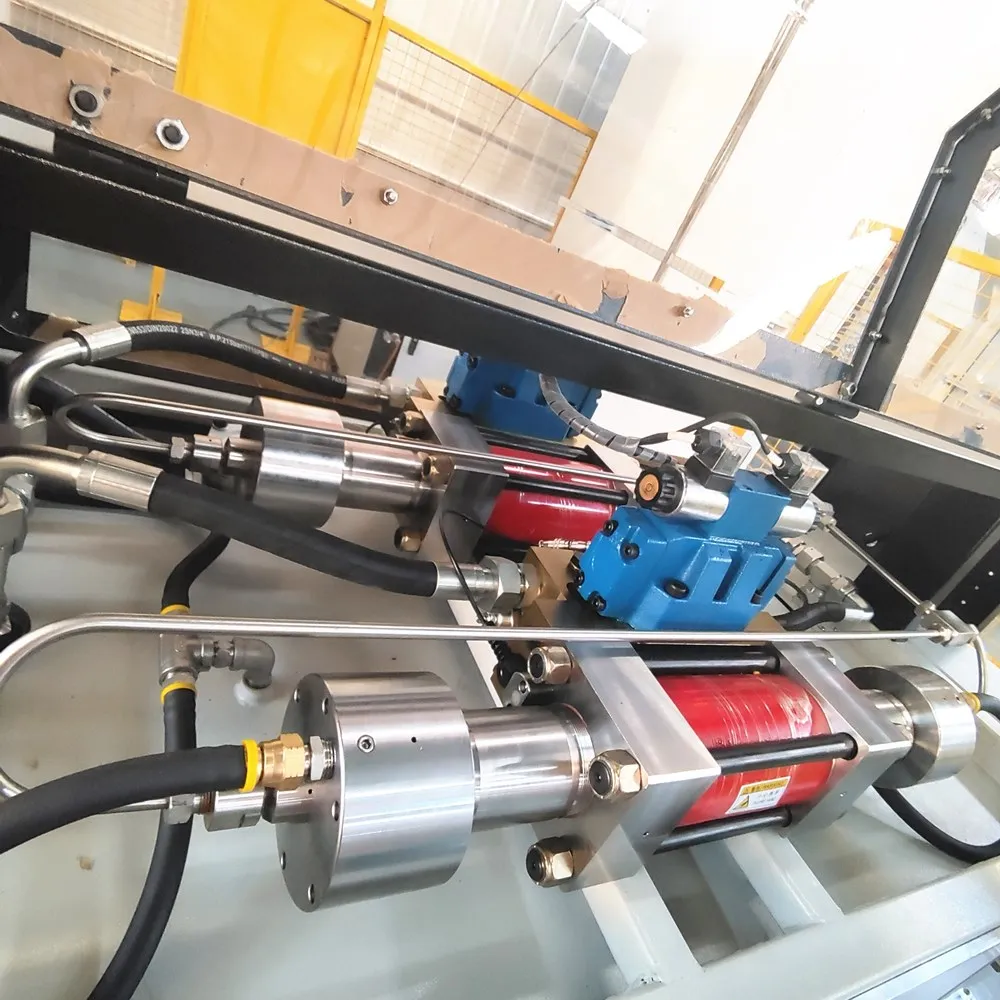

Waterjet Intensifier Pump
Transparent cover
Energy saving motor
2L large capacity accumulator(60JET)

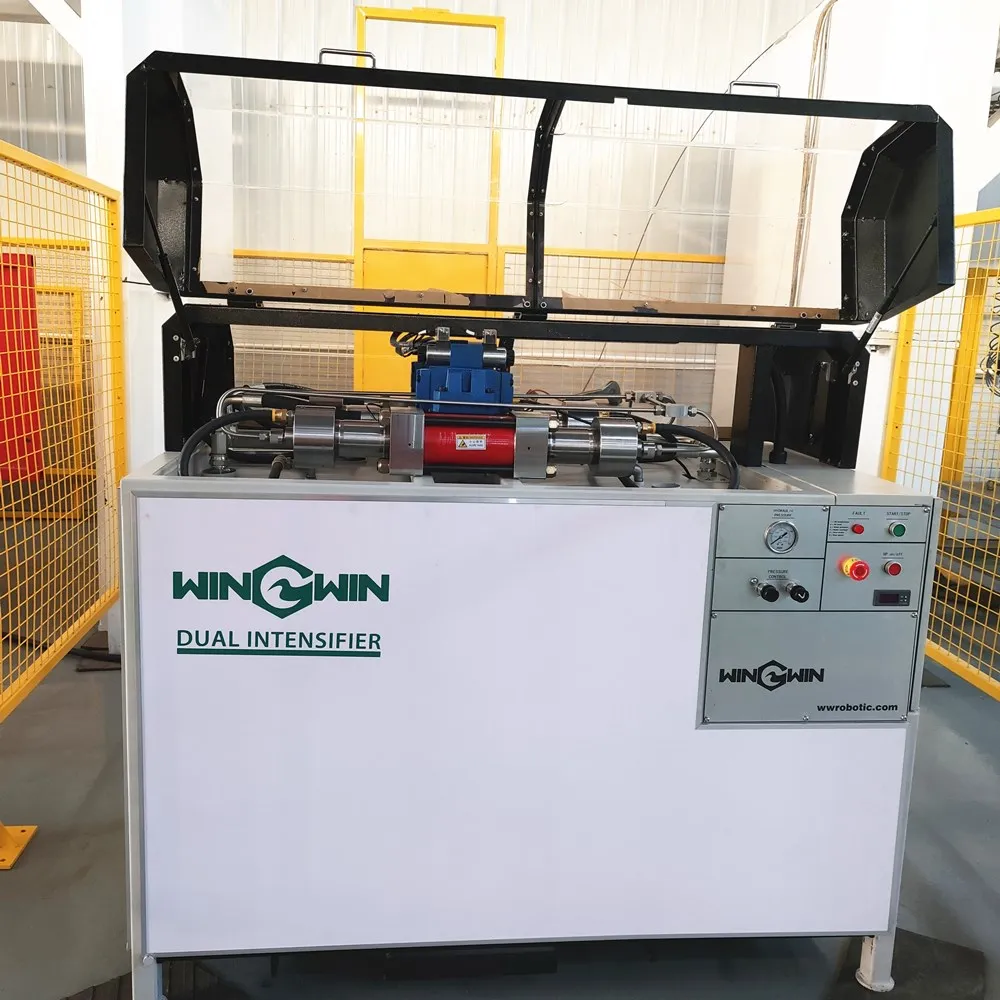

1. Front and rear transparent open cover design, easy to operate, beautiful appearance.
2. Internal situation of intensifier can be observed at any time.
3. Adopt automatic procedures, simple operation and strong applicability.
4. The intensifier pump adopts a fully enclosed type with high safety.
5. WW60JET Dual Intensifier Linkage Work, mathching 2L large capacity accumulator, which can realize 0-200mm material cutting(and the accumulator is an integral forged structure, no seal and maintenance-free.）
6. Omron PLC control, high stability.
7. Stainless steel HP adust pump, ensure inlet pressure.
8. Self-priming pump, realize zero pressure waiting-low pressure start-high pressure operation.
2. Internal situation of intensifier can be observed at any time.
3. Adopt automatic procedures, simple operation and strong applicability.
4. The intensifier pump adopts a fully enclosed type with high safety.
5. WW60JET Dual Intensifier Linkage Work, mathching 2L large capacity accumulator, which can realize 0-200mm material cutting(and the accumulator is an integral forged structure, no seal and maintenance-free.）
6. Omron PLC control, high stability.
7. Stainless steel HP adust pump, ensure inlet pressure.
8. Self-priming pump, realize zero pressure waiting-low pressure start-high pressure operation.
Product Model | WW40JET | WW60JET |
Qty of Intensifier(optional) | Single Intensifier | Dual Intensifier |
Motor Power Rate | 30KW/40HP | 45KW/60HP |
Max. Discharge | 3.8L/MIN | 6.5L/MIN |
Pressure Enhancement Factor | 20.21 | 20.21 |
Max. Reversing Rate | 60Times/min | 60Times/min |
Capacity of Accumulator | 1.2L | 2L |
Inlet Water Pressure | 35-100psi | 35-100psi |
Inlet Water Filter | 10μ m abs | 10μ m abs |
Voltage | 380V | 380V |
Oil Tank Volume | 150L | 150L |
Temp. Control Method | Sensor | Sensor |
Reversing Control Method | Sensor | Sensor |
Cooling Method | Cold-Heat Exchanger | Cold-Heat Exchanger |
Environment Temperature | 5-40°C | 5-40°C |
Motor Drive Mode | Sevro/Standard Oil | Sevro/Standard Oil |
Hydraulic Oil | Type 45 Hydraulic Oil | Type 45 Hydraulic Oil |
Max Cutting Thickness | 0-100mm | 0-200mm |
L*W*H | m | 1.8*1.1*1.3 |

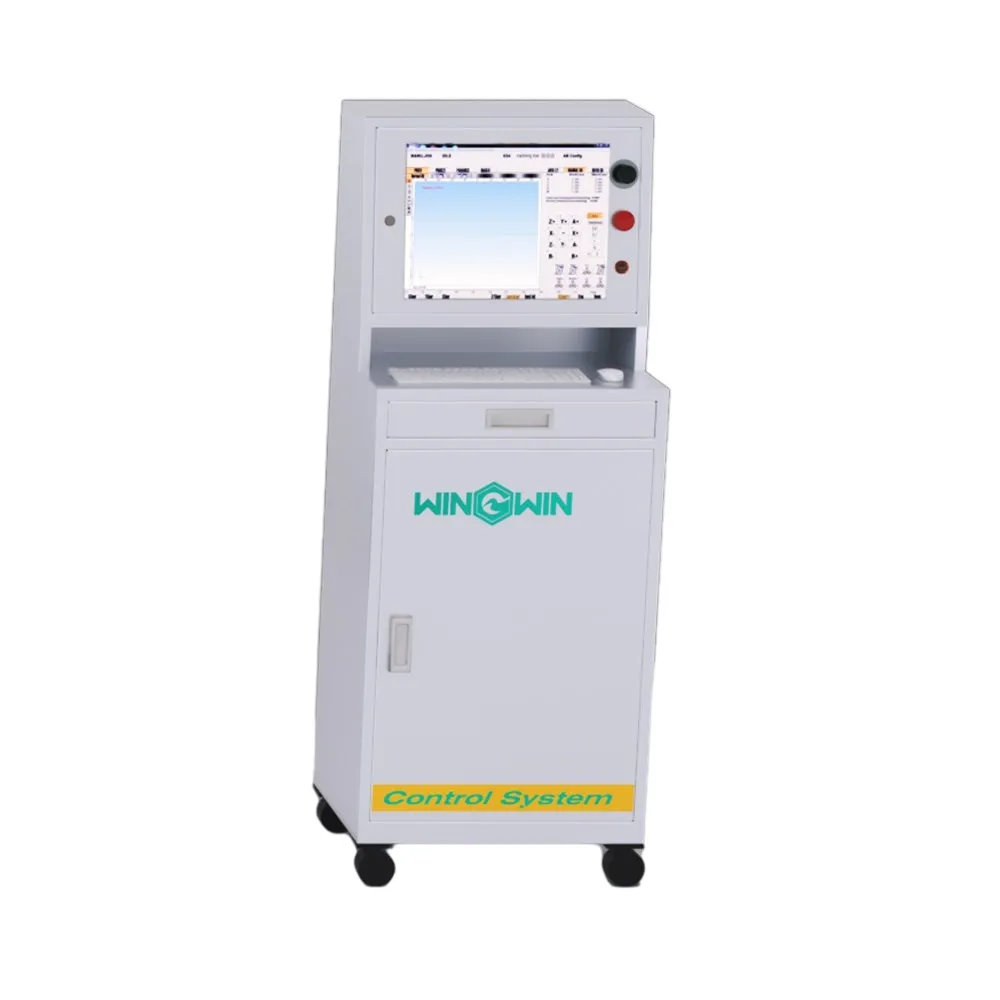

CNC Control System
Desription of
WEIHONG CNC Control System
A. Industrial-grade display, waterjet special software, easy to operate.
B. Absolute encoder system, memory function after power failure.
C. Simulation operation, pause and start at any time, continue to cut from any position and point.
D. A more user-friendly and intelligent function has been added, which is the setting and reminder function
of the replacement cycle of consumable parts, so that you can use it without any worries.(See the figure below for details)
of the replacement cycle of consumable parts, so that you can use it without any worries.(See the figure below for details)
Brand | WEIHONG |
Display | Industry-grade display |
Lauguage | English/ Chinese/ Others |
System version | Win 10 |
Format | CAD/ G/ DXF/PLT/ENG ,etc |
System function | AB 5 AXIS |
DIMENSION(L*W*H) | 600mm*550mm*1200mm |
WEIGHT | 200kG |
POWER SUPPLY | 220V 50/60Hz |
PROFESSIONAL WATER JET SOFTWARE | NC Studio |

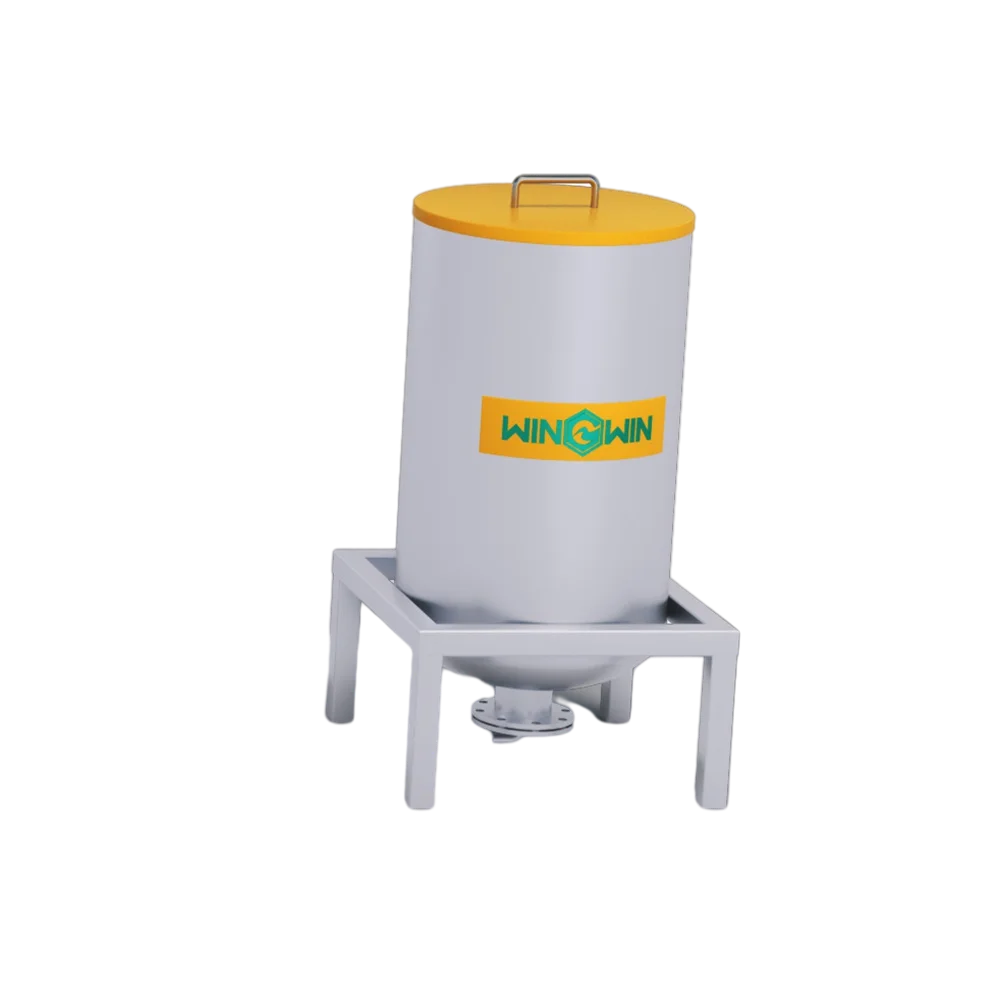

Abrasive Feeder Tank
large abrasive tank.
2, Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.
3, Without any electrical components, it is free of maintenance, zero defects.
4, Large diameter flange at the bottom, easy to remove debris.
3, Without any electrical components, it is free of maintenance, zero defects.
4, Large diameter flange at the bottom, easy to remove debris.
Wall thickness | 4.5mm |
Air pressure | (explosion-proof) 0.2mpa-1mpa |
Max capacity | 200kg |
Cooling System

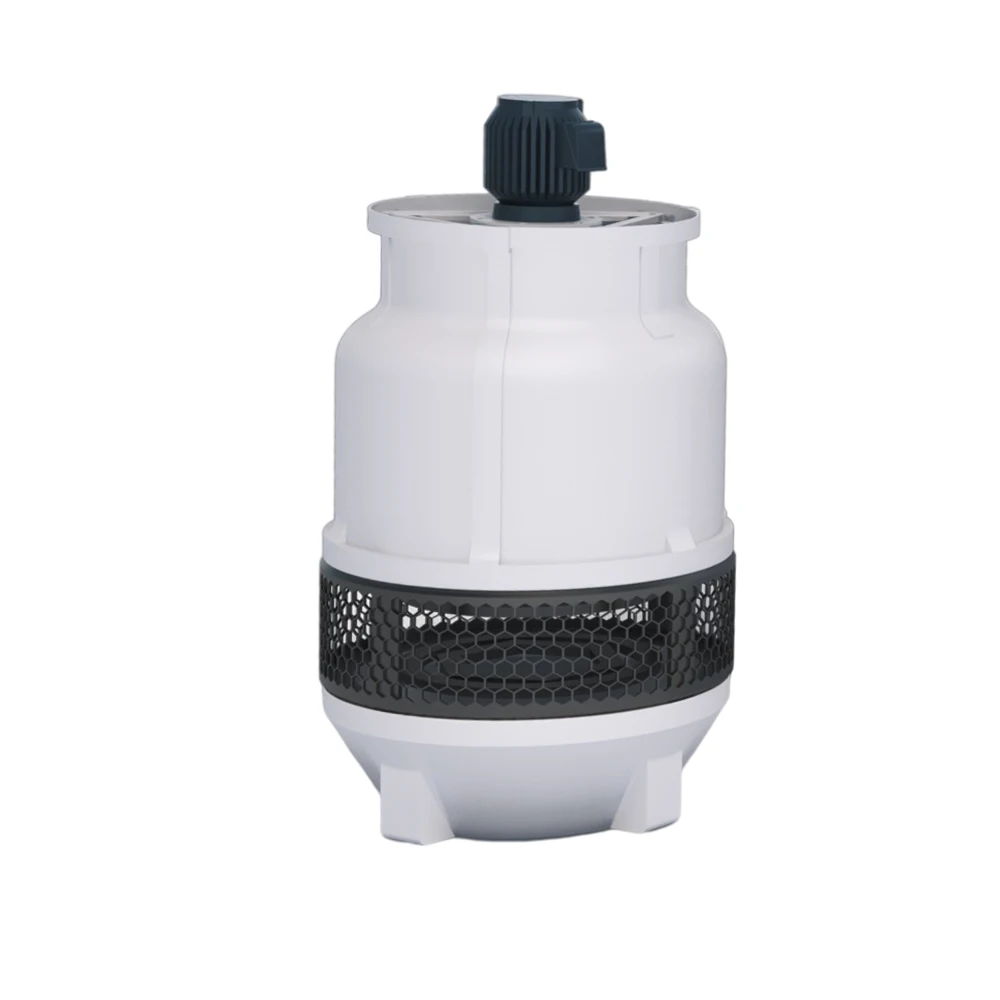

Water Cooling Tower
Water cooling tower can ensure the basic requiements of water cutting equipment cooling, simple and practical, inexpensive.
Fan Cooler
Air cooler can improve the surrounding environment while ensuring the basic requirements of water jet cutting.
Refeigerator Cooler/Chiller
Refrigerator with super cooling effect, internal closed circulation system, more reliable, and long time continuous work.
You May Need Such a Configuration and Machine?
3AIXS Waterjet Cutting Machine
Vertical cutting, economical price, simple and practical operation, and can also cut different materials.
AB-5AXIS Waterjet Cutting Machine
Cutting with an angle of ±10 degrees is especially suitable for tile mosaics, and the cutting operation of the large AB5 shaft head is more stable.
AC-5AXIS Waterjet Cutting Machine
It can cut at a large angle of 0-68 degrees, which is suitable for cutting various materials, especially the 45-degree diagonal splicing required by the marble industry.
Water Filtration System
Filter various impurities in the machine water, soften the water quality, remove calcium and magnesium ions in the water, and prolong the service life of the machine.
Rollover Table
If the material you need to cut is very large and heavy, you can use this reversible table to save time and effort for loading and unloading materials.
Infrared Positioning
Infrared positioning and height measurement function make cutting more accurate and more efficient.
