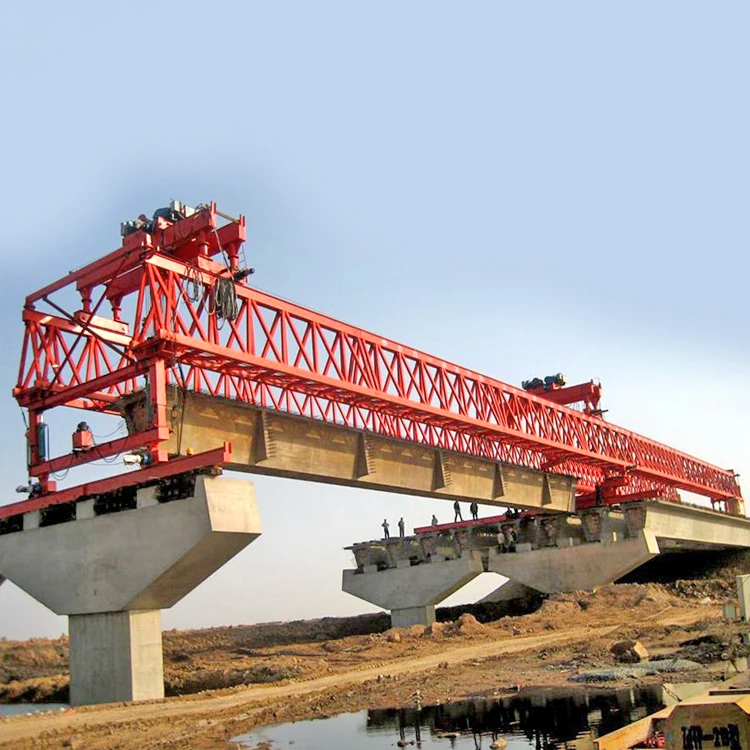

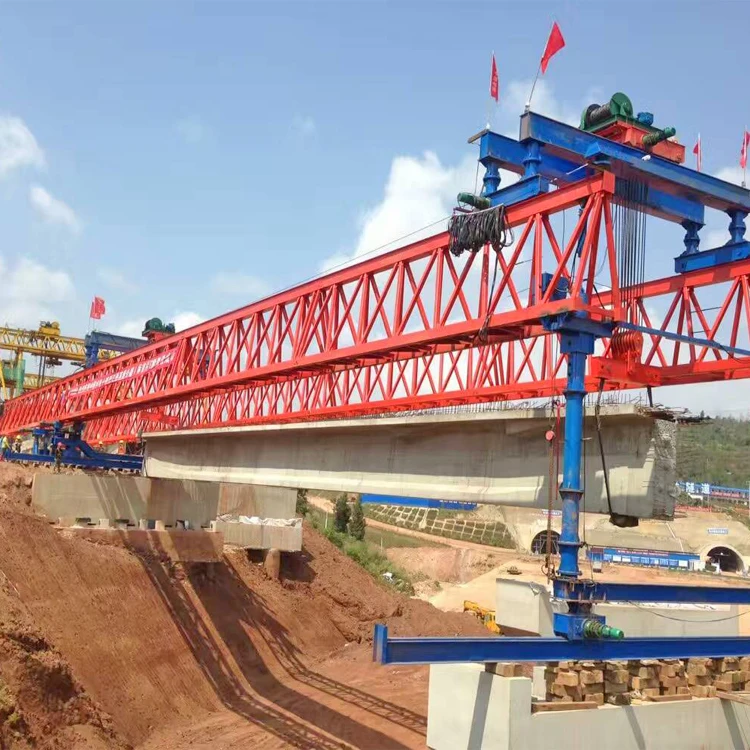

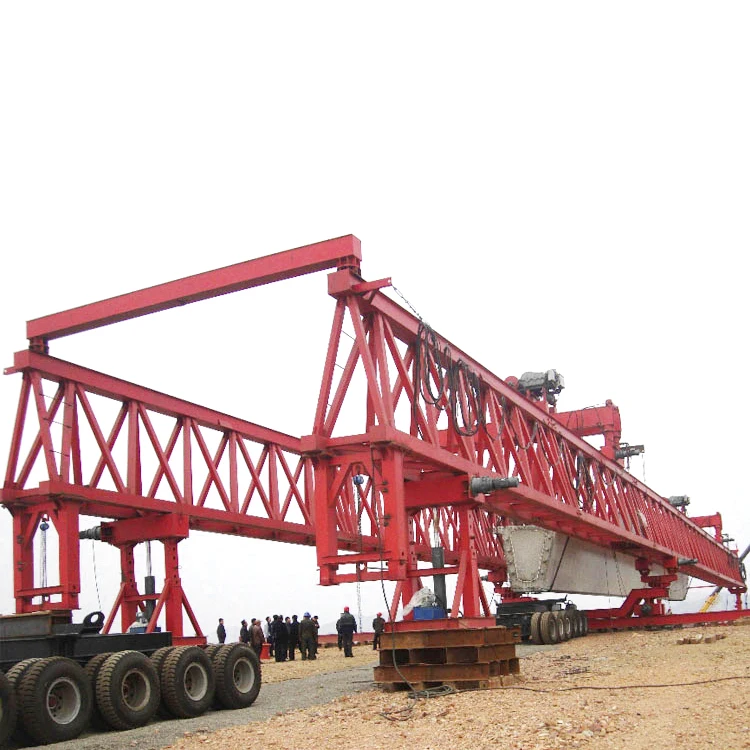

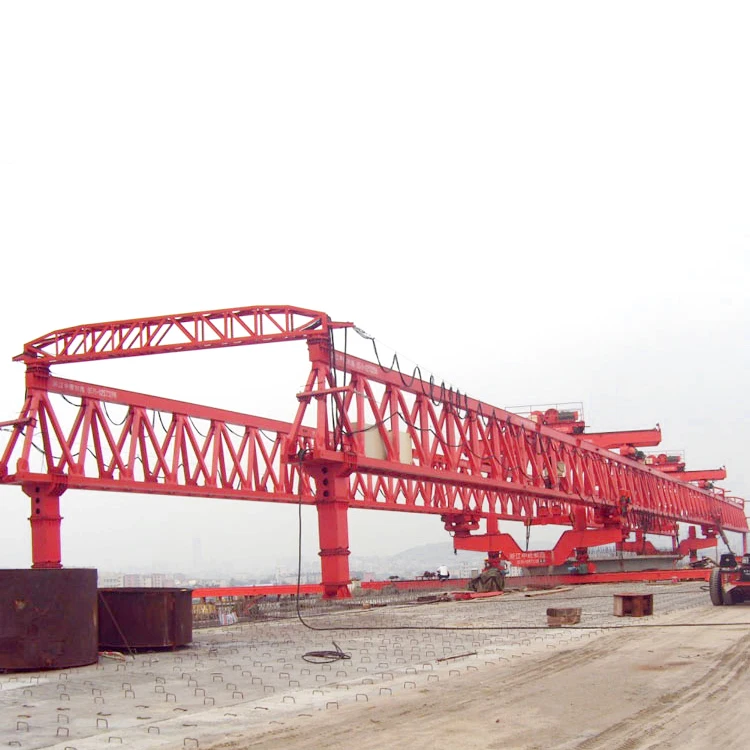

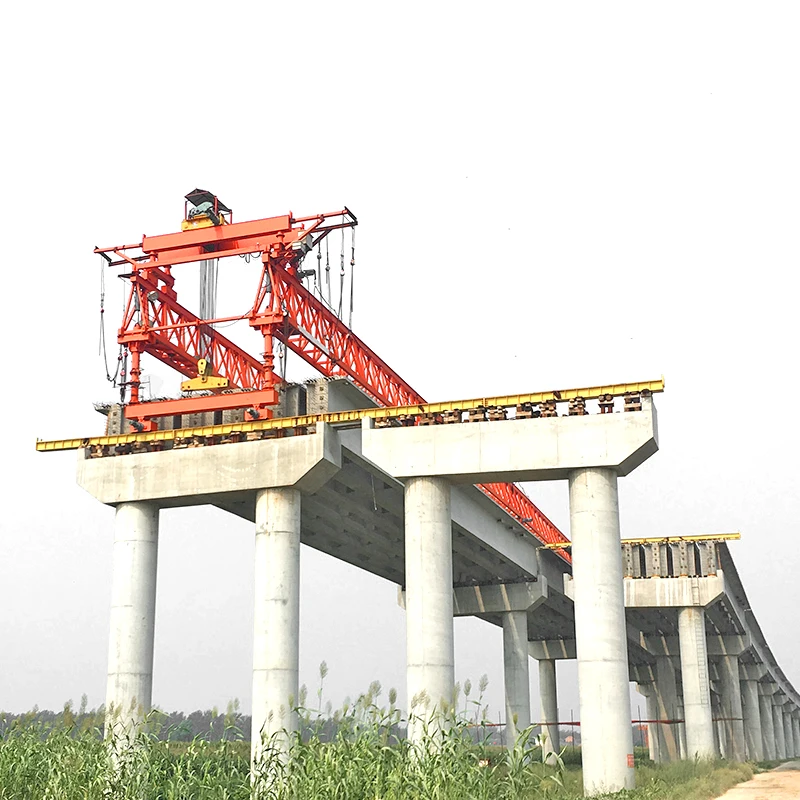

Segment assembly bridge erection launching gantry crane

Product Overview

Description

1.Description of Girder Launcher Crane

launcher crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.

The capacity:60-200ton

The span : 20-50m

Control Mode: Pendant, Remote Control and Cabin Control.



Technical parameters of girder Launcher crane:



	MCJH50/200	MCJH40/160	MCJH40/160	MCJH35/100	MCJH30/100
Lifting capacity (t)	200	160	120	100	100
applicable span (m)	≤55	≤50	≤40	≤35	≤30
applicable skew bridge angle	0-450	0-450	0-450	0-450	0-450
trolley lifting speed (m/min)	0.8	0.8	0.8	1.27	0.8
trolley longitudinal moving speed (m/min)	4.25	4.25	4.25	4.25	4.25
Crane longitudinal moving speed (m/min)	4.25	4.25	4.25	4.25	4.25
Crane transverse moving speed (m/min)	2.45	2.45	2.45	2.45	2.45
transportation capacity (t)	100X2	80 X2	60X2	50X2	50X2
speed of bridge transport vehicle (m/min)	8.5	8.5	8.5	8.5	8.5
return speed (m/min)	17	17	17	17	17



Q. What's the information should I provide when inquiry?
More details or drawings, better.
Lift capacity ?

span ?

lift height  ?

power sourceor other specials you give us will be more appreciated ?

Q.What makes you different from other manufacturers ?

We believe our service department has the experience and knowledge to safely service your overhead cranes,gantry cranes,port crane and hoists .We have trained service technicians who will be able to get your material handling equipment up and running ,and have been providing our customer’s an effective service solution .
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q:The space of my workshop is limited, can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
