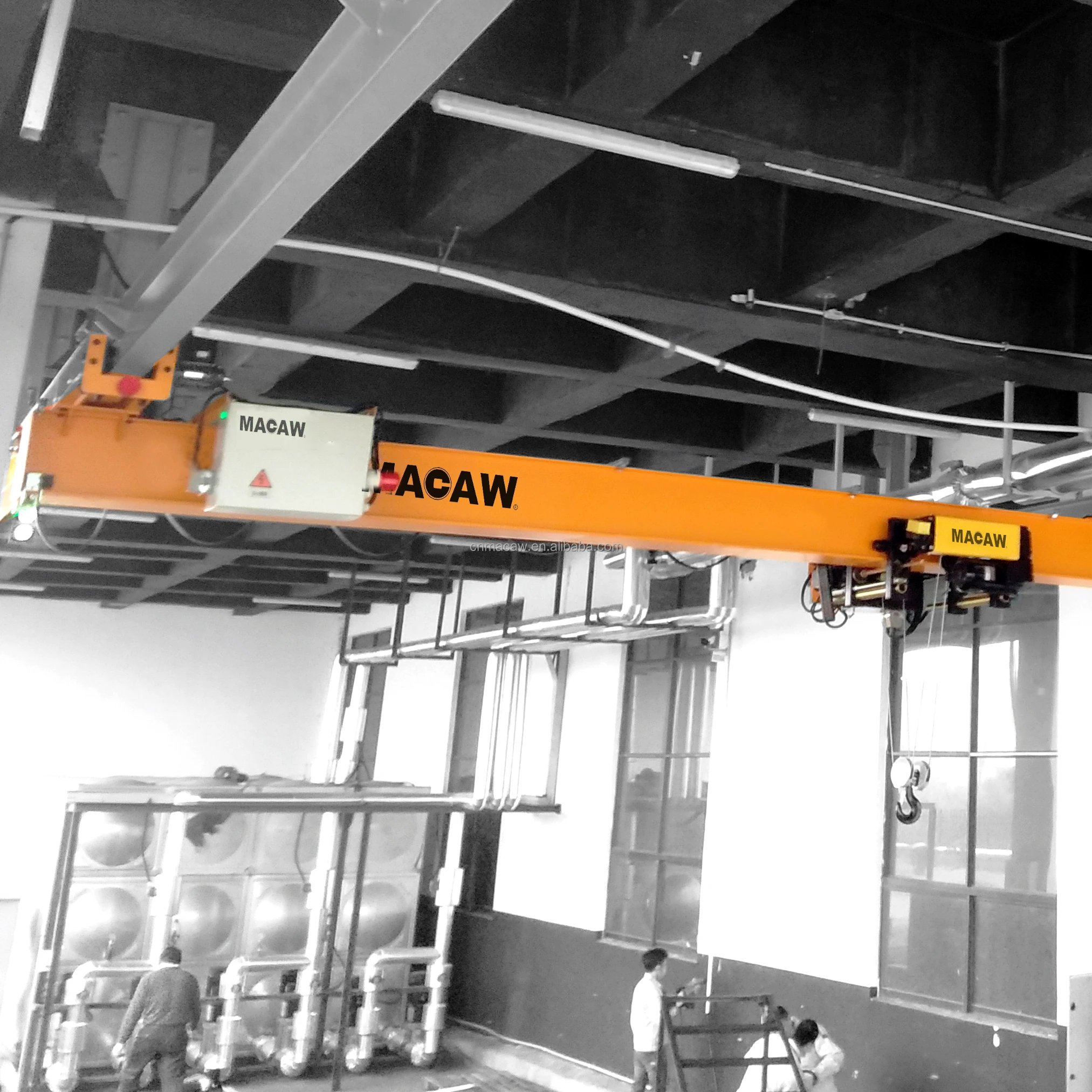

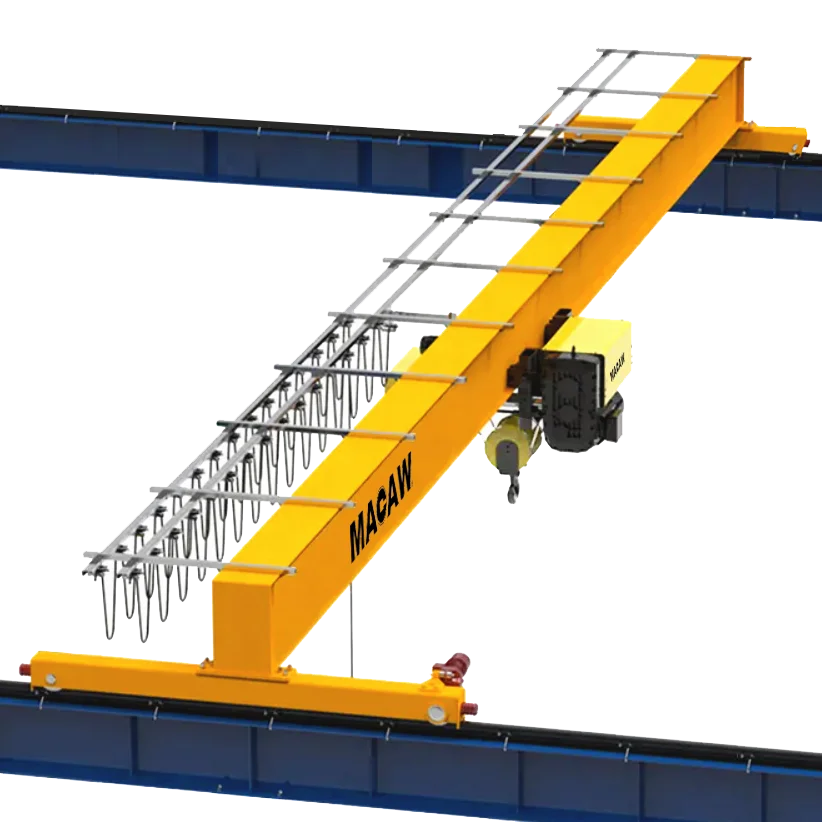

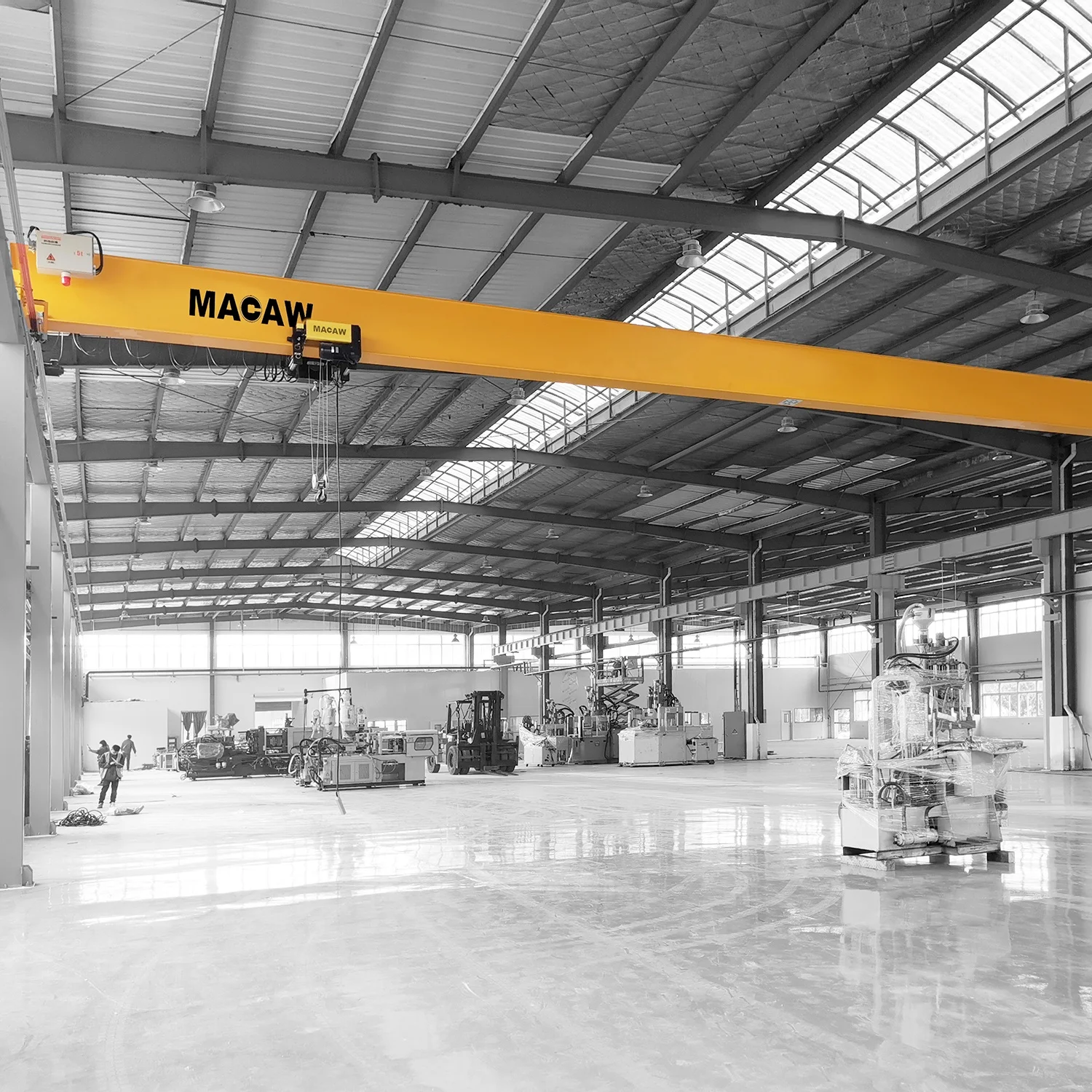

Top Selling Steel Structure Workshop Euro Design electric Crane 3 ton 5 ton 10T 15T Single Overhead Travelling Bridge Crane
- Category: Engineering & Construction Machinery >>>
- Supplier: Toptech Machinery Wuxi Co. Ltd.
Share on (1600927901751):
Product Overview
Description
Products Description
Recommend Products
Technical Paremeter
Basic Data | ||||||||||||||||
Crane Span (m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | ||||||||
Crane Weight (t) | 1.36 | 1.7 | 2.15 | 3.07 | 3.63 | 5.09 | 5.74 | 7.63 | ||||||||
Trolley Weight (t) | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | ||||||||
Max.Wheel Load (KN) | 19 | 20.6 | 22.1 | 24.4 | 25.9 | 29.5 | 31.2 | 35.9 | ||||||||
Min.Wheel Load (KN) | 3.8 | 4.1 | 4.9 | 7.1 | 8.3 | 11.8 | 13.3 | 17.8 | ||||||||
Crane Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||
Recommend Crane Rail | P22 | P22 | P22 | P22 | P22 | P22 | P22 | P22 | ||||||||
Operation Speed (m/min) | ||||||||||||||||
Lifting Speed | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | ||||||||
Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | ||||||||
Bridge Speed | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | ||||||||
Driven Motor Power (KW) | ||||||||||||||||
Lifting Motor | 3.2/0.45 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | ||||||||
Trolley Motor | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | ||||||||
Bridge Motor | 0.44*2 | 0.44*2 | 0.44*2 | 0.44*2 | 0.64*2 | 0.64*2 | 0.64*2 | 0.64*2 | ||||||||
Crane Power | 4.72 | 4.72 | 4.72 | 4.72 | 5.12 | 5.12 | 5.12 | 5.12 | ||||||||
Note:
Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
Please contact me for customized parameters
1.Light weight structure,excellent performance, advanced design concept, effectively improve space utilization.
2.Made of high quality steel, durable and corrosion resistant.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
Crane Control Panel

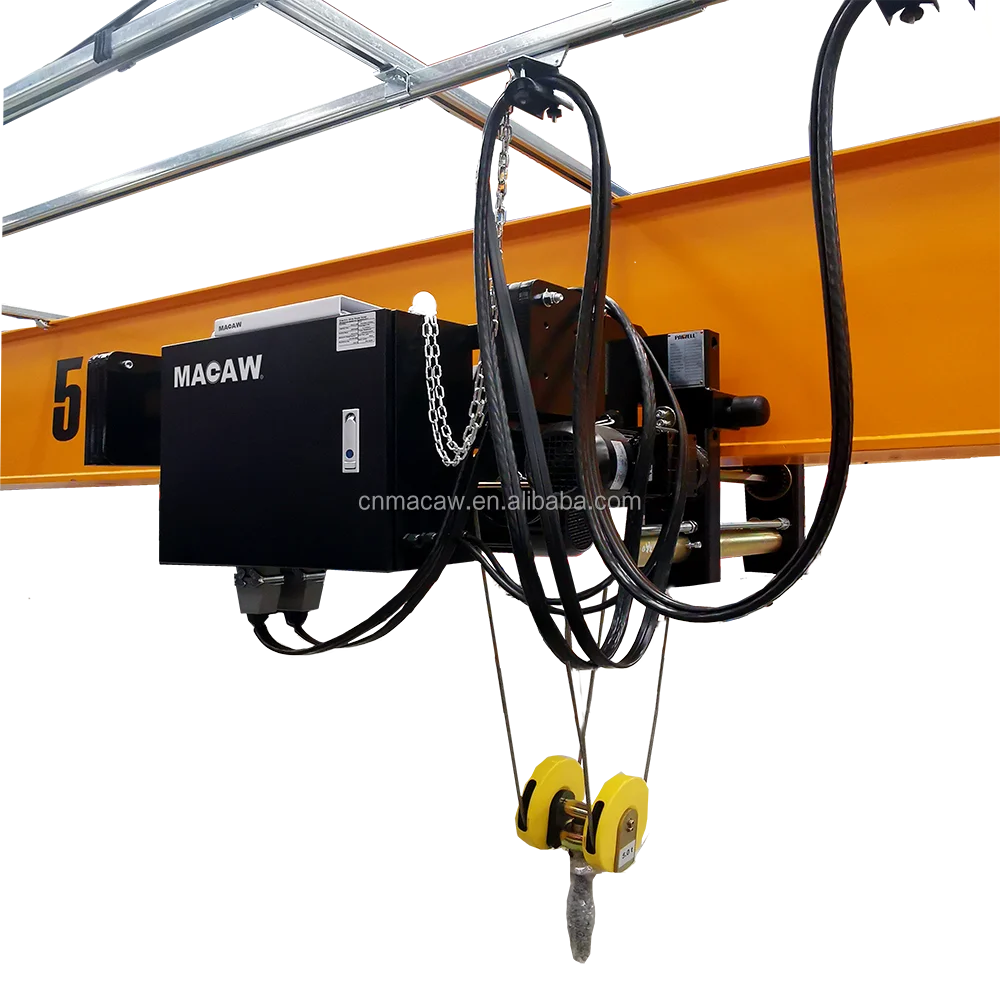

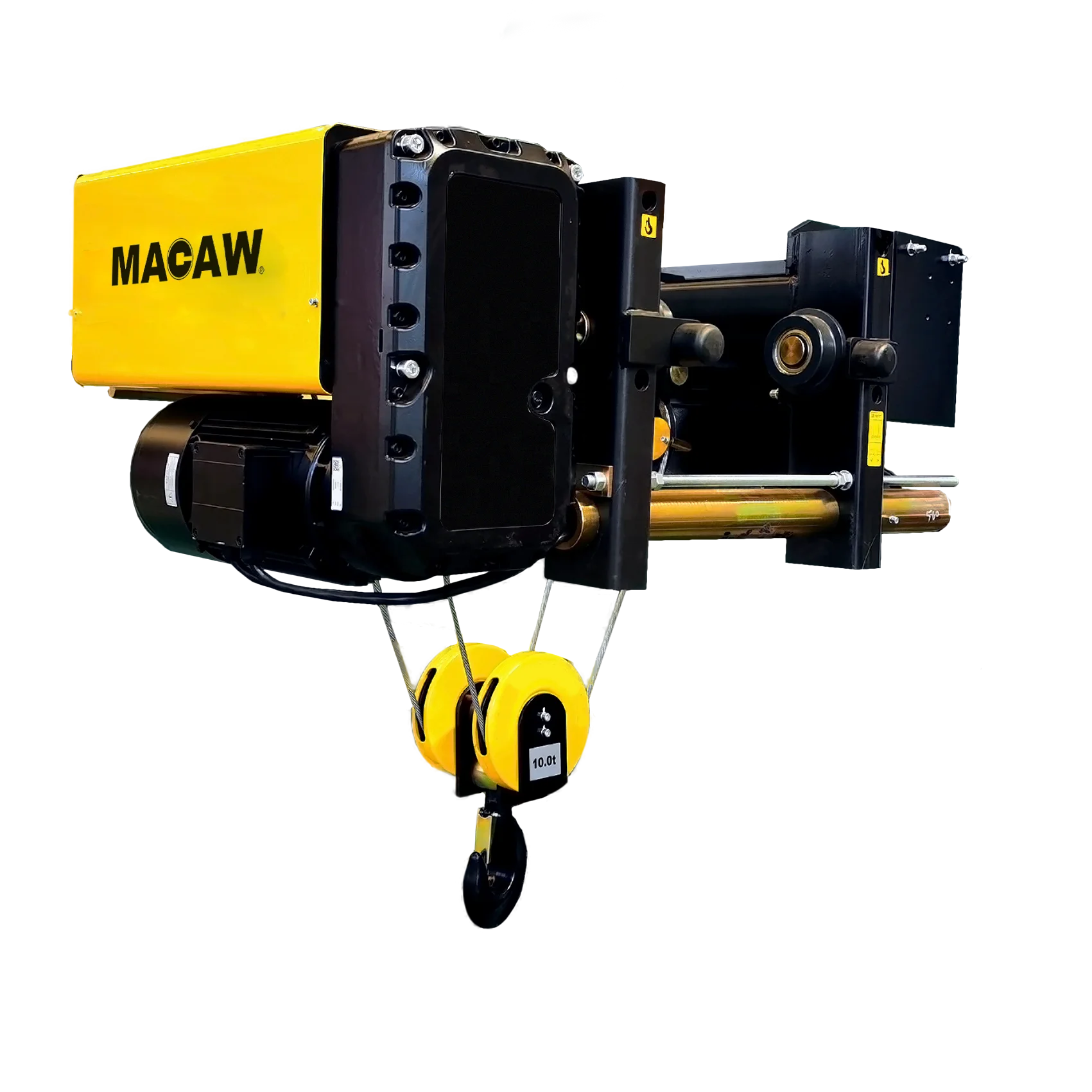

Electric Hoist
Power Supply
Remote Control
End Carriages with driven motor
Crane Limit Switch
Packaging & Delivery

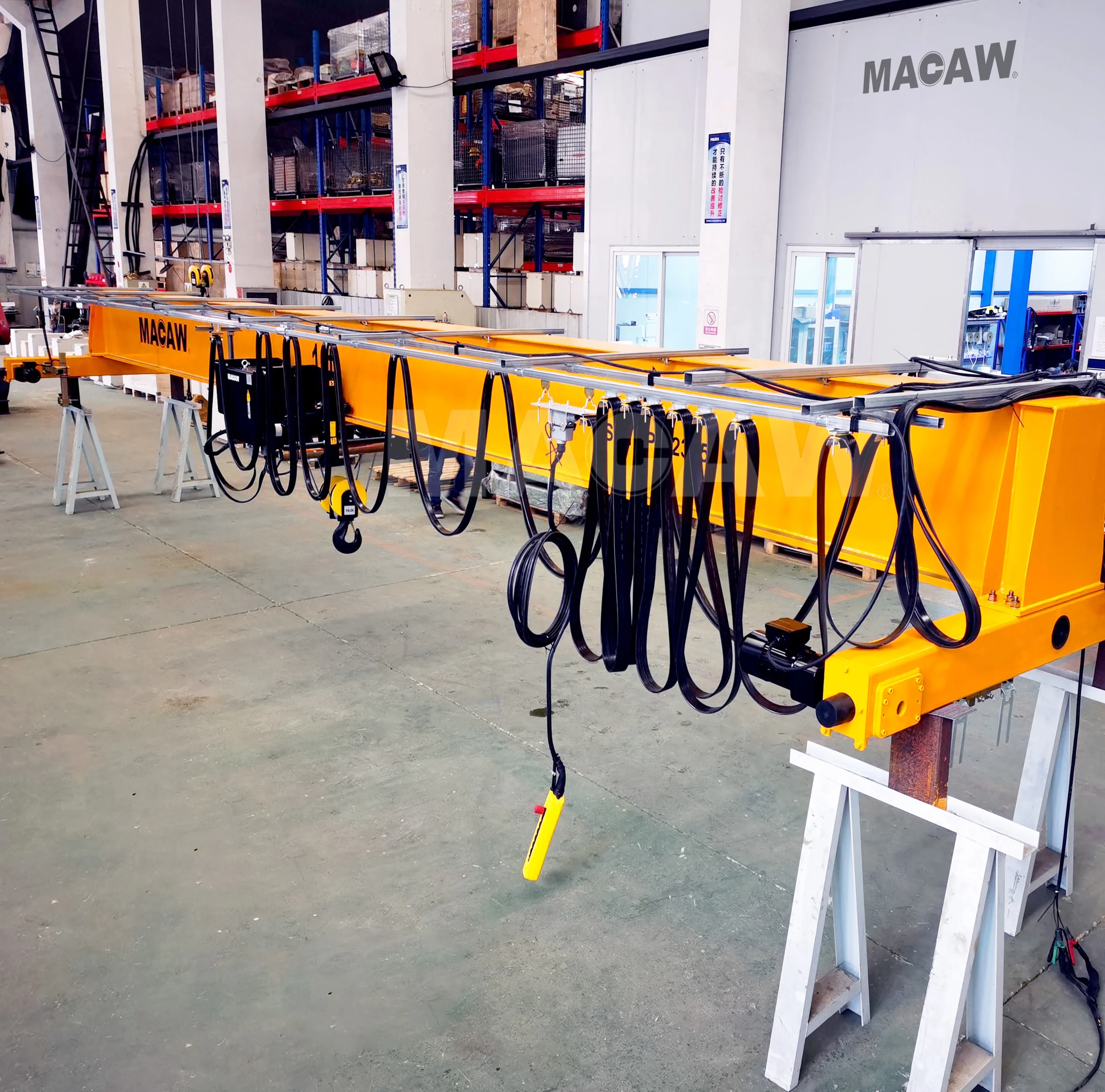

Electric overhead crane girder part
Electric hoist part

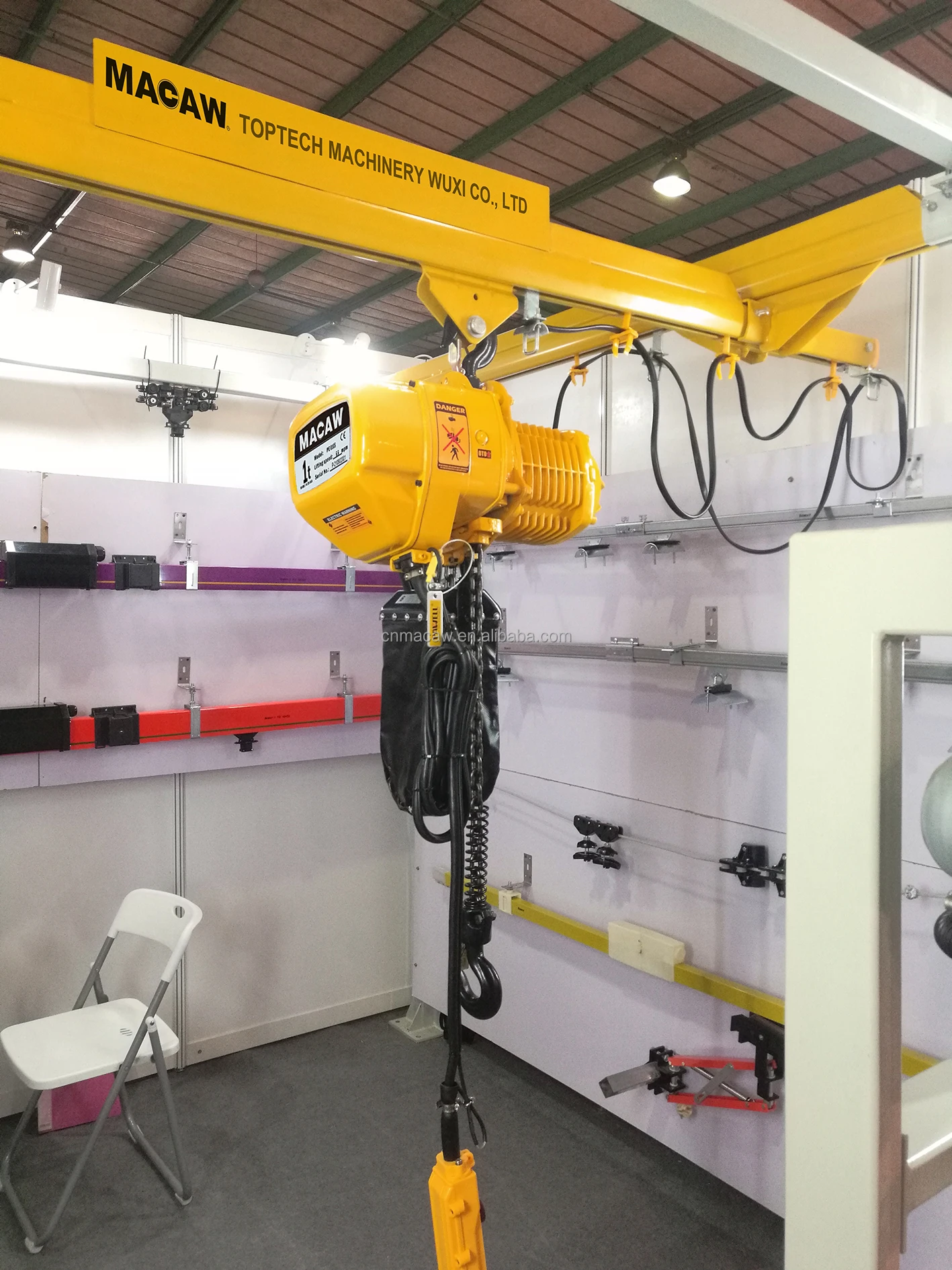

Trade Shows
