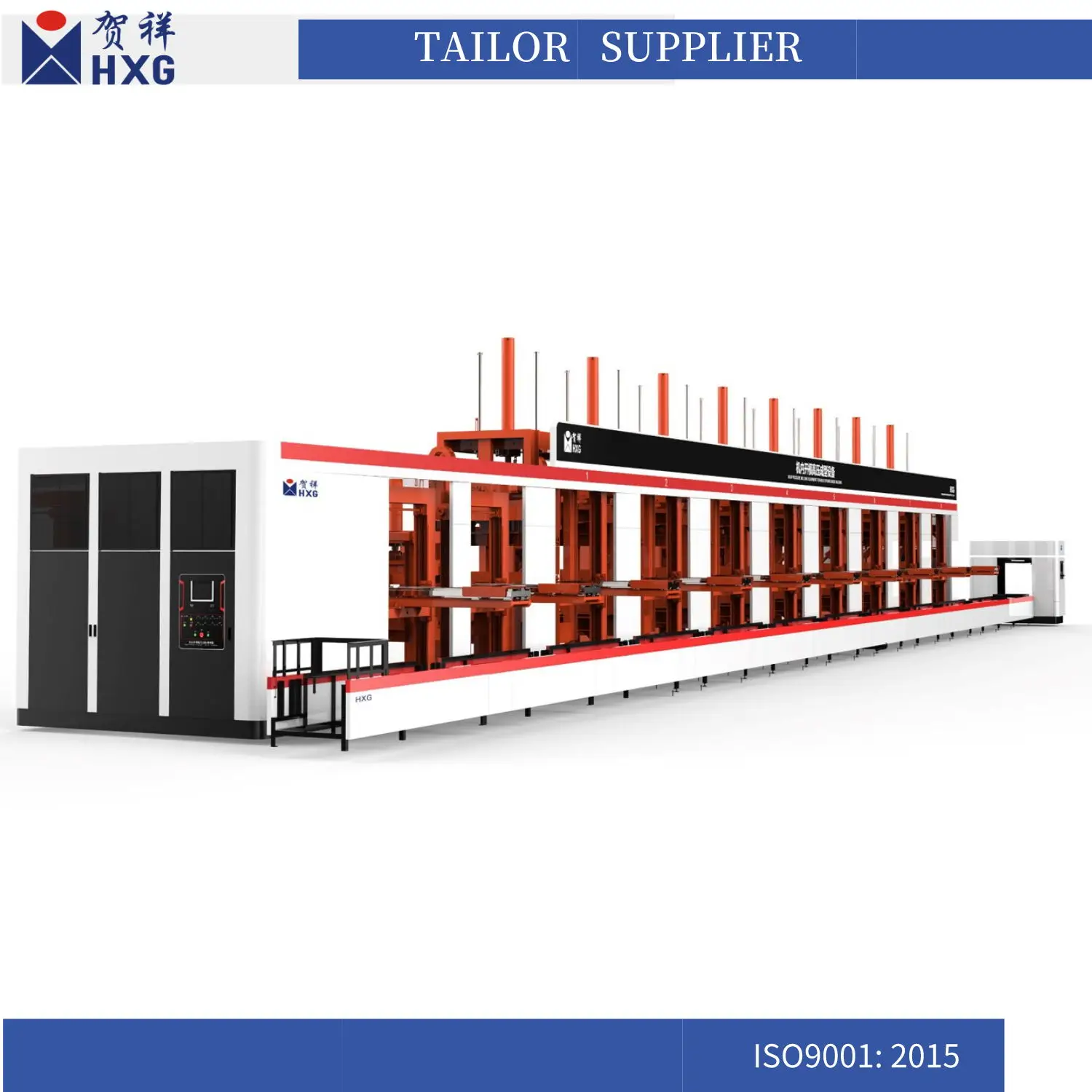

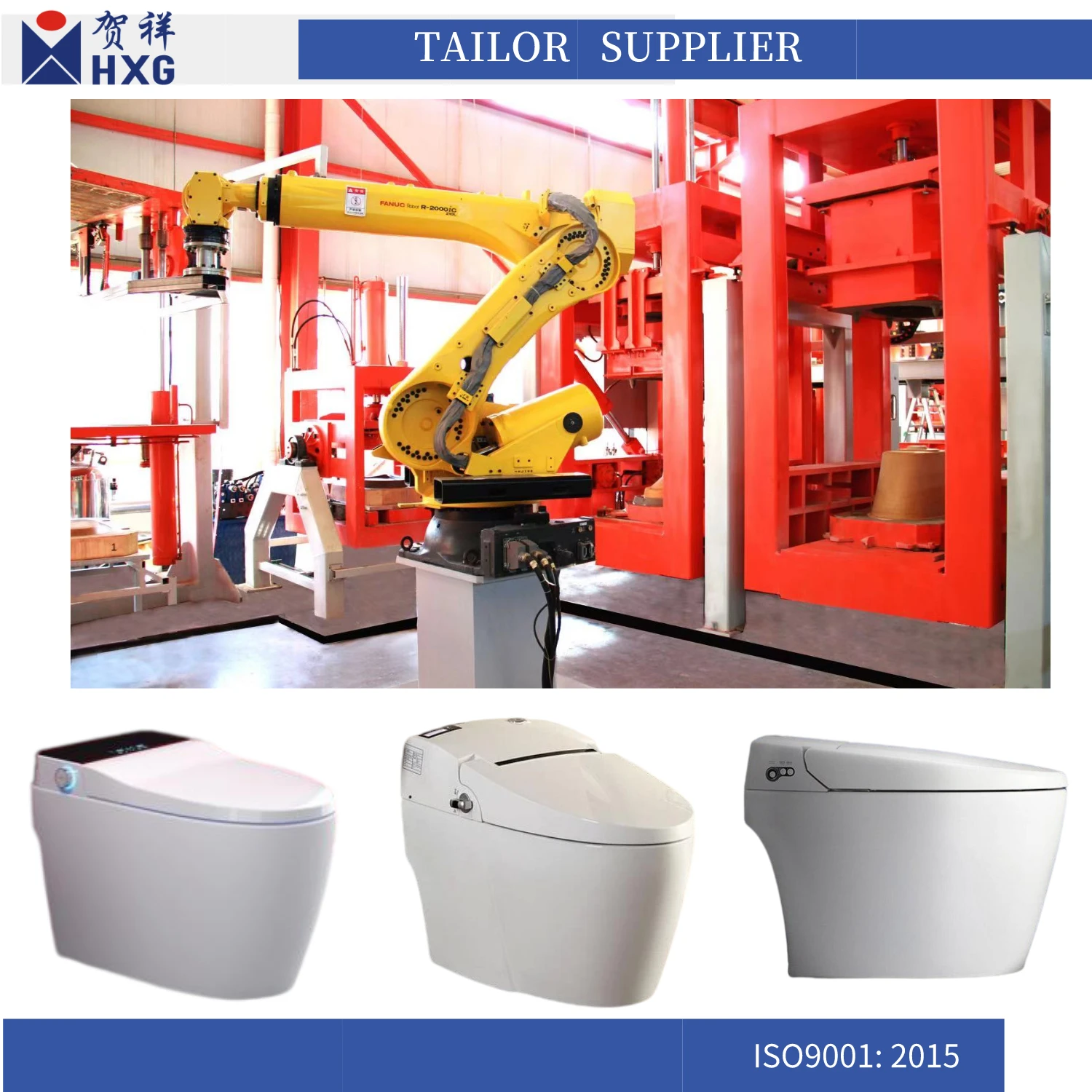

High Auto High Quality Low Labour Cost High Pressure Casting Machine for Intelligent Smart Toilet One Piece and Two Piece Water

Items

Contents

1

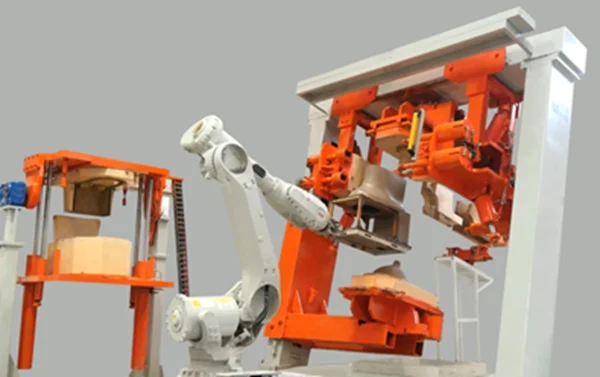

Demoulding method

Vertical lifting+ Transverse  horizontal +vacuum suction+ compressed air

2

Mould close method

auxiliary by pneumatic +mould close by hydraulic

3

Pressure of mould close

30~40T

4

Accurate of mould close

±0.25mm

5

Turnover angle of turnover-frame

0-34°

6

Pressure of low-pressure slip feeding

0.25±0.05MPa

7

Pressure of hi-pressure slip feeding

0.8~1.0MPa

8

Method to increase pressure for slip feeding

Pressure reinforcement by hydraulic

9

Pressure of compressed air

≥0.6MPa

10

Air consumption(/module)

0.3M³/h

11

water pressure

0.3MPa

12

Water consumption (/module)

0.2M³/h

13

Q’ty of mould

1 for rim+1 for engine+1 for skirt/time/module

14

General casting period

< 30 min/cycle (adjustable)

15

Floor space

60M×36M

Capacity calculation, sample by 8 module type

Daily working time

12

Hours/day

1200

Mins/day

Q’ty of module

16

1 pcs of mould/module =1 for rim+1 for skirt+1 for engine

Casting cycle

30

Mins

Daily output

384

pcs

Average manpower output

Q’ty of shift per day

1

Manpower per shift

10

Average manpower output

38

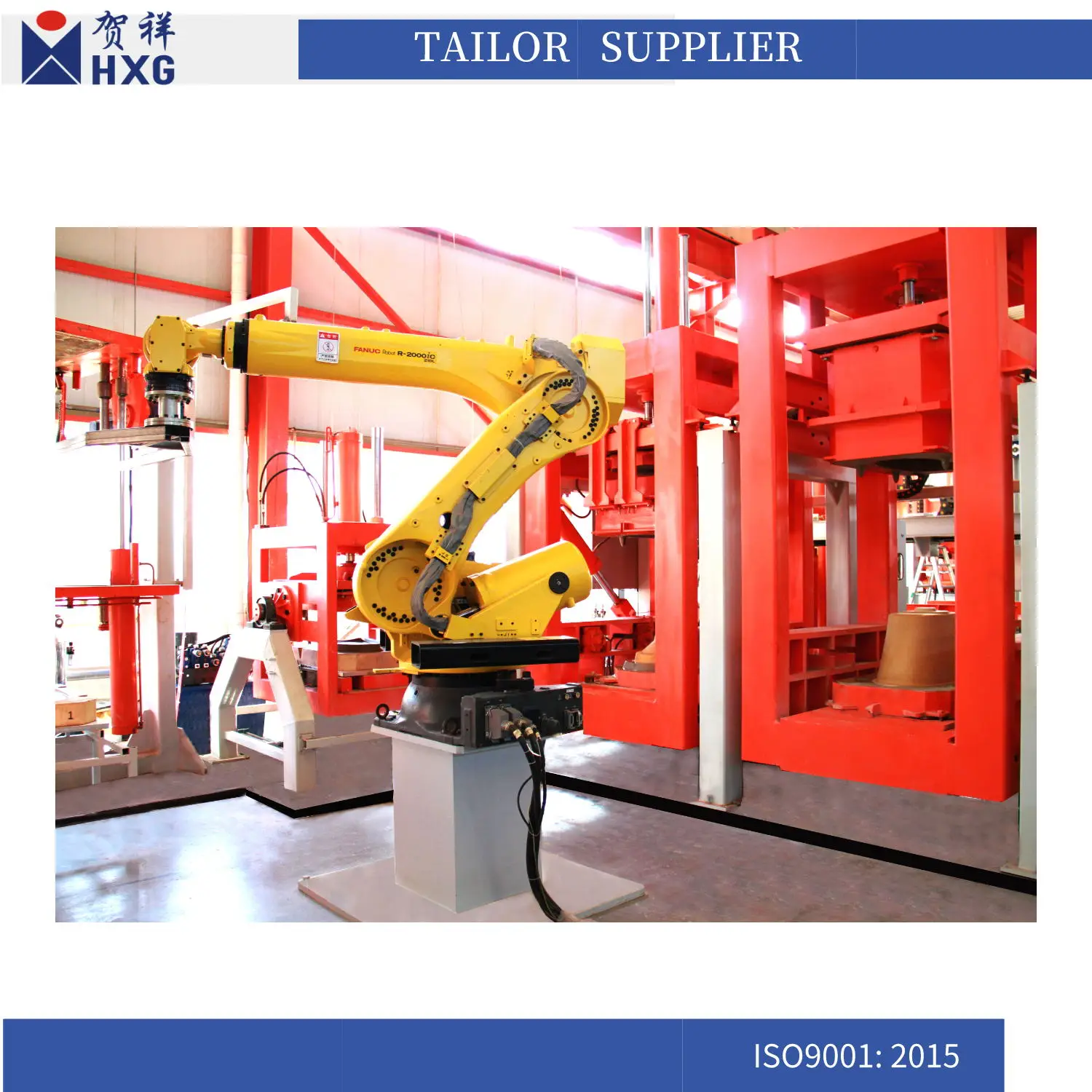

38pcs/man/shift; includes process of blowing-cleaning, polishing, hole punching finished by robot
