Jinan Wood CNC Router 1325 CAMEL CNC Wood Plate Cylinder Carving Machine With 4th Rotary Axis (1600373516635)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tHot Selling \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


Jinan Wood CNC Router 1325 CAMEL CNC Wood Plate Cylinder Carving Machine With 4th Rotary Axis




Application

Wooden door and furniture decoration industry: solid wood and wood composite door, cabinet door, large area plank plane engraving, board type furniture engraving, solid wood art mural engraving and used for board type furniture and all kinds of nonmetal products of engraving, cutting.



Performance Features

1.Structural stability:
We adopt heavy duty frame. The machine body is welded by very thick steel which could ensure the machine no any deformation after long term use.

2. Good parts:
All of parts we adopt the original one to ensure the machine good quality. such as Taiwan linear guide
AMT, double four ball slider, loading capacity of large, stable operation; German ball screw, the knife accurate; brand spindle motor.

3. Drive more robust:
The use of advanced well-known brand stepper motor, more powerful.

4. Rational design:
The use of advanced dual-Y axis drive gear shaft gear, fast, powerful.

5. Easy to operate:
The use of advanced DSP-type USB interface to handle the operating system (read U disk) completely offline, do not take up computer resources.

6. Software Compatibility:
Open software interface, compatible TYP3/ARTCAM/CASTMATE / Wentai and other CAD / CAM design software pro



Machine features

1.The distance between heads can be adjusted according to the working pieces being processed.

2.equipped with 2 or 3 heads; the machine one time can complete the works done by several machines, to save cost and improve the working efficiency.

3.it is possible to start any one of the heads only.

4.spindle power is selected according to customer's requirements.

5.rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg

6.especially firm structure and special design on details make the machine to achieve the best performance results.



Parameters




Description
Parameter
X,Y working area
1300×2500mm
Z working area
200mm
Max. speed
35m/min
Working Speed
25m/min
Resolution/ work delicacy
0.02mm
Repositioning Accuracy
0.05mm
Command
G code*.u00*.mmg* plt
Surroundings for software
windows98/2000/xp
Control system
DSP or NA-studio control system
Power(spindle power isn't included)
1 KW
Working voltage
AC380V 50Hz
Spindle power (domestic made)
3.5kw air cooling spindle (or 3.0KW water cooling spindle)
Spindle rotating speed
0-24000rpm/min
Motor
Stepper

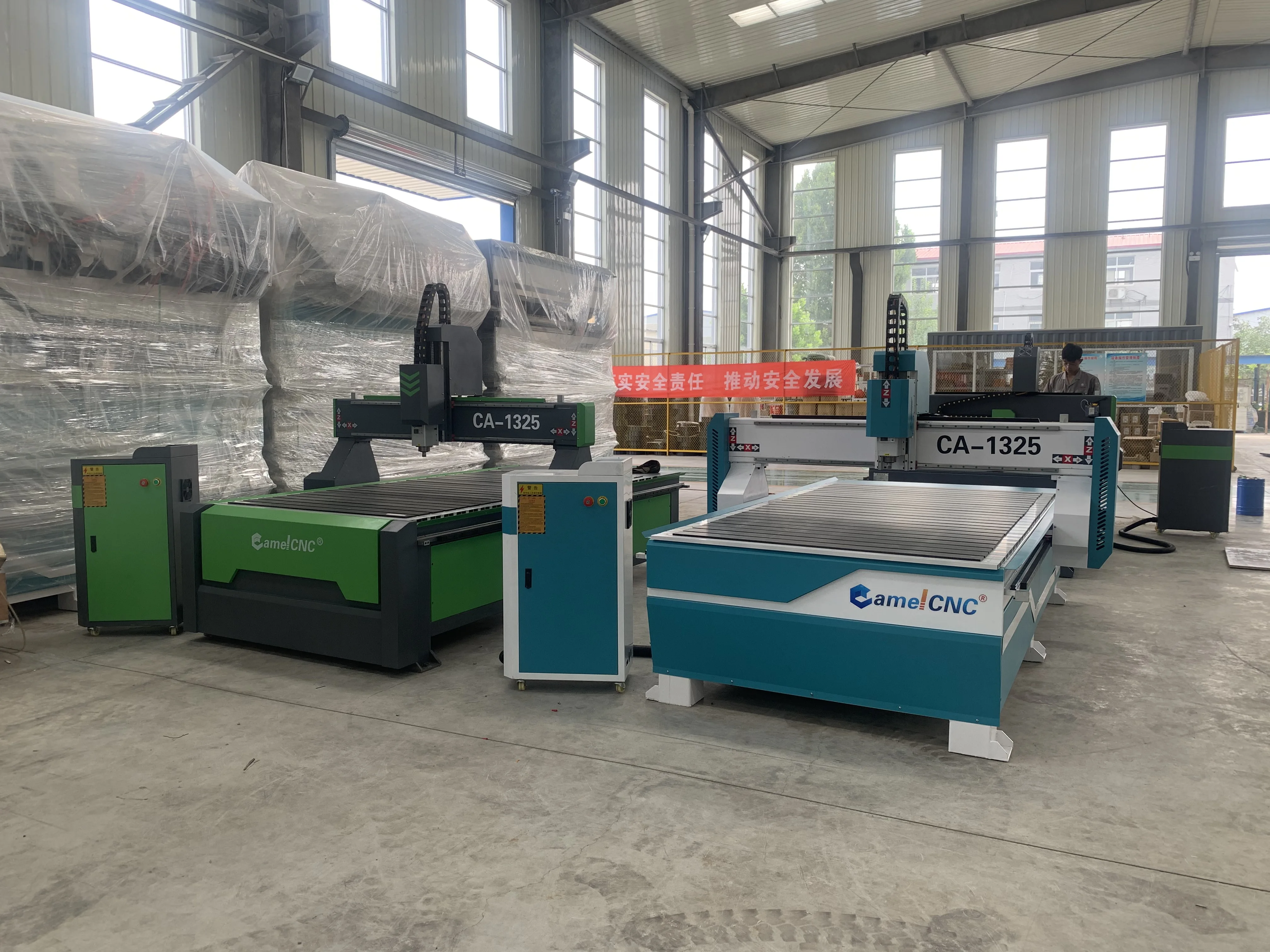

Machine Pictures:.






Detailed Imagines








Sample








\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t


If you are interested in our any products, please do not hesitate to contact us.

For offer the exactly quotation timely. Please tell us more questions with RFQ as below:

(1). Where's the working area? Such as Country or end-user place.

(2). What kind of work do you want to do? Such as cutting column or engraving panel.

(3). What's the workpiece material you want to process? Such as the wood species and the stock thickness you want to process.

(4). What's the sample do you want to engrave or cut? Such as sample name or pictures.



Olivia Chen sales manager
olivia(@)camelcnc.com
www.camelcnc.com
Inquiry now,get good offer!


\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t




Jinan CAMELCNC Brand

Jinan Camelcnc Machinery CO.,LTD is the leading enterprise specializing in manufacturing, marketing and R&D of cnc router, laser, plasma cutting machine, fiber laser cutting machine Panel furniture production line, CNC working center, CNC wood turning lathe, CNC spare parts and other CNC machines.

We are committed to providing customers with high quality products, competitive prices and excellent services.

For over 10 years development, our efforts bring us stable customers from home and abroad. Our products have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia,etc.

With superior performance to price ratio, high quality, and perfect post-sales service, our products expands largely and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.



Work Shop








Fair Show






\t\t\t\t\t\t\t\t\tPacking & Shipping \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


Q1: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q2: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team viewer”online, with telephone or Skype explain.

Q3: Can you customize the machine for me?

Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.

Q4: What is the guarantee? In case the machine break down?

The machine has 1 year guarantee, fail parts will be replaced for free if the machine under "normal operation".

Q5: How about the documents after shipment?

We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.

Q6: Delivery time?

For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.

Q7: How is the payment?

Normally we accept T/T or L/C, if you like other terms, tell us in advance.

Q8: Do you arrange the shipment for me?

For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.

Q9: How is the packing?

Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.



\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t




Service

- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- 24 hours on line or phone or by email technical support.
- Longlife time freely provide technical support .
- One year , freely guarantee
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.



Warranty

(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
(2). we also offer 24 hours heart to heart service on-line or mobile.
(3).Your technologists could attend the training in our factory and on-line which be free of chaege
(4).The warranty of CNC lathe is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
(5). We offer you best agent price and distributer price for our further cooperation .
(6). we can offer special custom-made according to your request.
