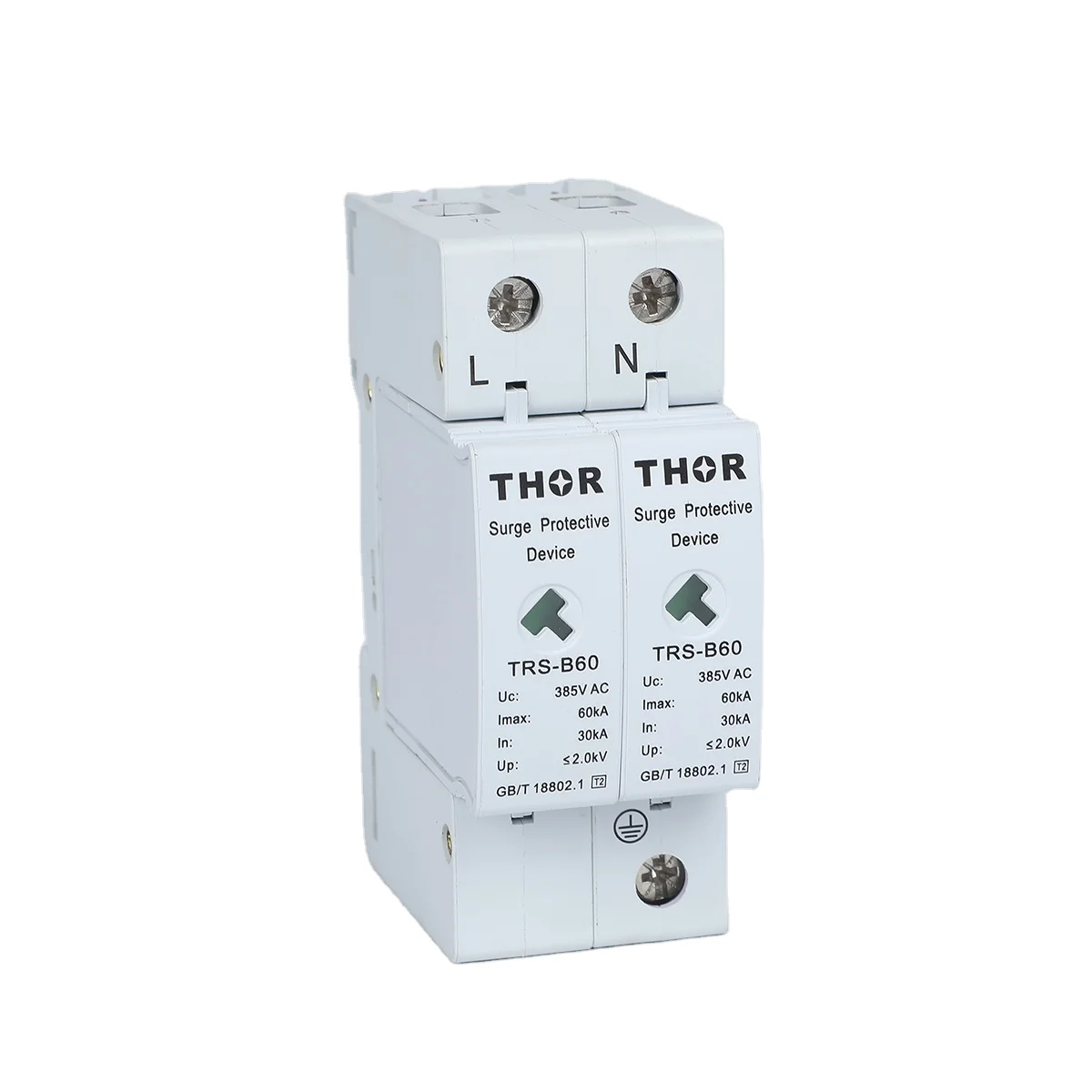

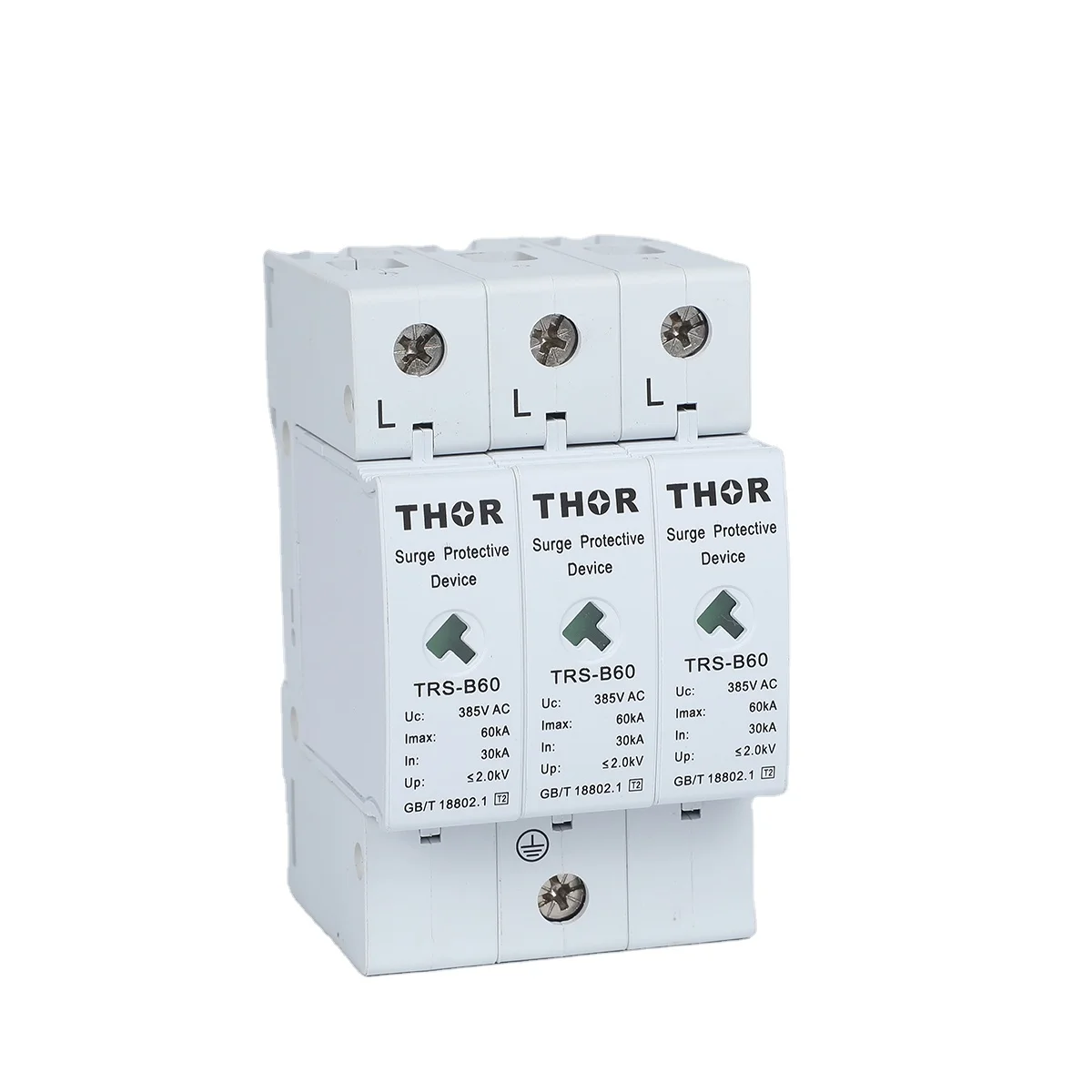

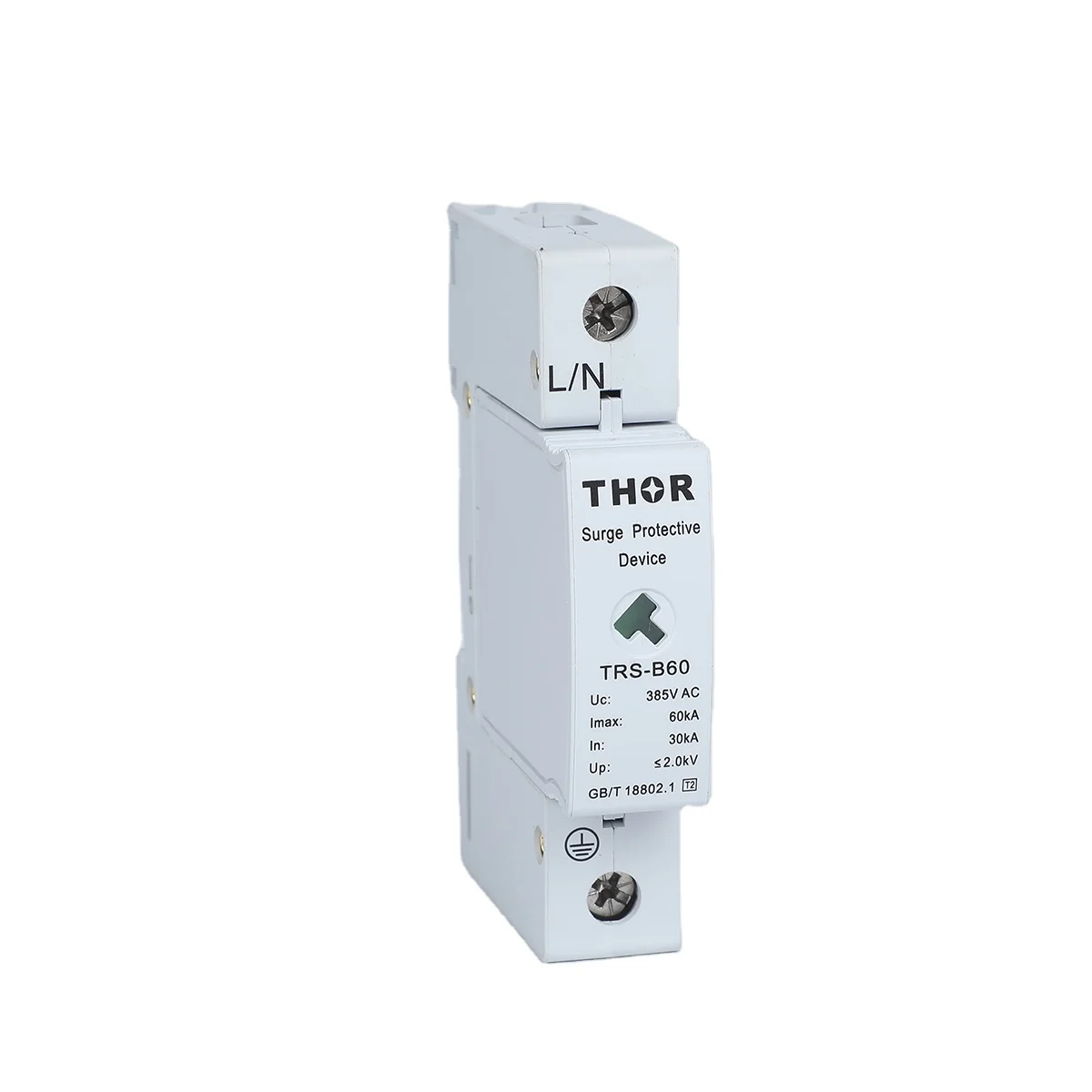

Lightning surge protector Surge arrestor 60KA power protection TVSS
- Category: Other Electrical Equipment >>>
- Supplier: Zhejiang THOR Electric Co. Ltd.
Share on (1600375112055):
Product Overview
Description
Product Effects
Product Overviews
TRS-B series of graphite gap surge protector belonging to (hereinafter referred to as SPD) are suitable for AC 50 / 60Hz,, rated voltage up to 380v IT,TT,TN-C, TN-S,TN-C-S and other power supply system, it protect to indirect and direct lightning effect or other transient over voltage
SPD design according with GB18802.1/IEC61643-1 standard.
Main technical parameters
Main technical parameters | TRS-B100 |
Max continuous operating voltage Uc(VAC) | 385 |
Voltage protection level Up(kV)≤ | 2.0 |
Max discharge current (8/20μS) lmax(kA) | 60 |
Nominal discharge current (8/20μS) ln(kA) | 30 |
Response time ns | <25 |
Degree of protection | IP20 |
Operating state/ fault indication | Green/ Red |
Remote signal function | Can be option |
Remarks | Other Uc can be customized |
SPD according to IEC61643-1/EN61643-1 | type2/ ClassⅡ |
