MC H070S 7inch ethernet RS485 1024x600 industrial panel express hmi monitor for plc

MC H070S 7inch ethernet RS485 1024x600 industrial panel express hmi monitor for plc

Category: Other Electrical Equipment >>>
Supplier: Wuxi,Mochuan,Drives,Technology,Co.,Ltd.

Price:$82.00 - $85.00

Price in USD:Details

Quantity:

Product Overview

Description

Pay Attention

Mochuan Warranty

Mochuan Keep words,
1. NO MOQ, 1pcs is ok.
2.We offer 36months warranty for all HMI.

3. Offering free software, Demo to help customer understand the technology problem.
4. Multi-touch Capacitive HMI with ethernet 7'', ethernet 9.7'', ethernet 17'', ethernet 22'', ethernet 32''.
5. Plastic shell 4wire economic HMI with 4.3'', 7'', ethernet 7'', 9.7'', ethernet 9.7'', 15.6inch hmi
6. Metal shell -20°C ~+70°C wide-temperature HMI with ethernet 4.3'', 7'', ehether 7'', ethernet 9.7'', ethernet 12'', ethernet
15'', ethernet 22'', ethernet 32''.
If you need, welcome contat us for price.

Certificate

Test Report No.	M.2021.206.C68701
Origanization	UDEM
Type	HMI-Human Machine Interface
Date & Time	02.11.2021
Test Standard	EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015
Certificate for	EMC

Our Advantage

HMI & Feature

	MC-H043S	MC-H070	MC-H070S	MC-H100	MC-H100E	MC-H156E
Programming software	Mochuanstudio									Mochuanstudio
Compatible Labtop OS	Win7/ Win10/ Win XP									Win7/10/XP
CPU	600MH ARM Cortex-A8									1G ARM Cortex-A8
Touch scree	4 wire resistive touch screen									4wire resistive touch screen
Screen Size	4.3'' tft lcd	7'' 16:9 tft lcd			10.1'' 16:9 tft lcd			15.6'' 16:9 tft lcd
Resolution	800x400	800x480	1024x600					1920x1080
Colors	24-bit colors									16-bits colors
Brightness	LED									LED
Backlight	50,000 hours									50,000 hours
Storage	128M Flash+128m DDR3									256M Flash+513M DDR3
SD card	N/A	N/A	support	N/A	support	TF card
USB	USB Host2.0x1; USB Device 2.0x1									USB host2.0x1; USB device 2.0x1
Ethernet	N/A	N/A	1x10/100M	N/A	1x10/100M	2x10/10M
Serial Port	COM1:RS232/485/422 COM3:RS232			COM1/COM3:RS232/485/422 COM2:RS485	COM1:RS232/485/422 COM3:RS232	COM1/COM3:RS232/485/422 COM2:RS485	COM1:RS232/RS485/RS422; COM2:RS485 COM3:RS232
Working Power	DC24V, supporting working range: DC9V~28V									DC24V, DC18V~28V
Power Consumption	<5W	<10W							<18W
Power Down Allowed	<5mS									<5mS
Working Temperate	0~50℃									0~50℃
Storage Temperate	-20~60℃									-20~60℃
Operating Humidity	10~90% RH( No condensation)									10~90% RH(No condensation)
Vibration Endurance	10~25Hz( X/Y/Z 2G/30Min)									10~25Hz(X/Y/Z 2G/30Min)
Portection Level	Front IP65( with NEMA panel), Back IP20									Front IP65, Back IP20
Cooling	Natural air cooling									Natural air cooling
Material	ABS									Aluminum alloy
Panel cutout(mm)	120x93	192x138			261x180			380x245mm or VESA install
Dimension(mm)	128x102x32	204x145x33.8			274x193x36.2			394x256x36mm
Weight(g)	500g	560g			890g	920g	2250g

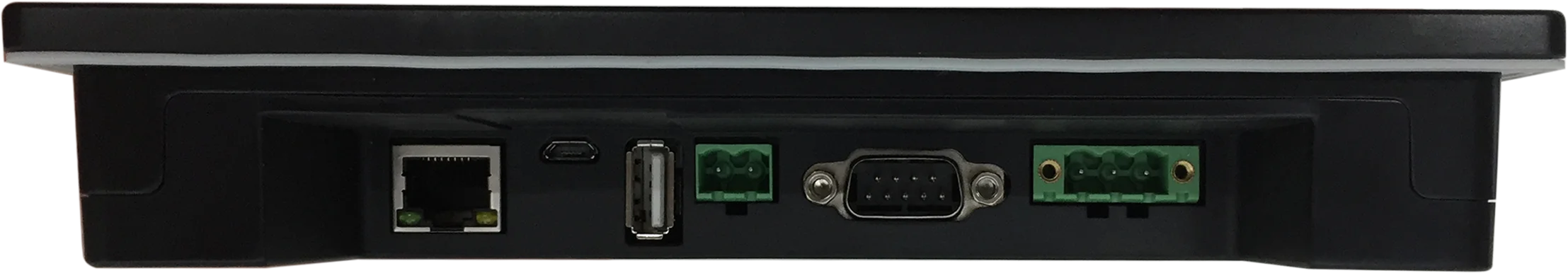

Terminal of MC-H070S: with COM1:RS232/RS485/RS422, COM2:RS485, COM3:RS232

Visual Angle: wide angle with 50'/70'/70'/70', up to 170°

PCB Coating Protection: ehance the strengh of damp proof, corrision resistance in harsh environment, including three anti-panit, and isolated power supply.

Multi-format picture: supporting to output BMP, GIP, PNG, JPG...etc multi format.

LCD lifetime: led backlight, high brightness, high resolution, LCD have more than 50,000hours lifetime.

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.

Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.

Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.

"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

Capacitive Multi-touch HMI Panel

Mochuan multi-touch capacitive hmi panel, with 7inch, 9.7inch, 17'', 22'' and 32'' available size.

1. Offering free software and available solution.

2. Supporting sample purchase and 7days refund.

3. Offering DEMO per your requirement.

Welcome contact us for more details.

Metal Shell resistive HMI Panel

Mochuan wide-temperature metal resistive HMI panel.

1. Available sizie 4.'', 7'', 9.7'', 12.1'' and 15''.

2. Working temperature supports from -20~70℃.

3. Supporting sample purchase and 7days refund.

4. Offering DEMO per your requirement.

Welcome contact us for its catagloue and price.

Mochuan PLC Controller:

1. There are MU2V, MU2H and MU1H series.

2. Built-in 8x200KHz, 4x200KHz, 3x100KHz and 2x100KHz.

3. Multi-I/O

08/06, 12/08, 14/10, 16/14, 24/16, 36/24, 16/16, 32/32...

4. Free software and communication cable.

Supporting sample purchase and 7days refund
Welcome contact us for catagloue, software and price.

Mochuan Position Sensor Switch

More than 30,000 designs of position sensor switch.
1. Inductive, capacitive and photoelectric sensor switch type.
2. Supporing OEM & ODM.
3. NO MOQ, and offer 7days refund in caes of bad quality.

Welcome contact us for catagloue and price.
