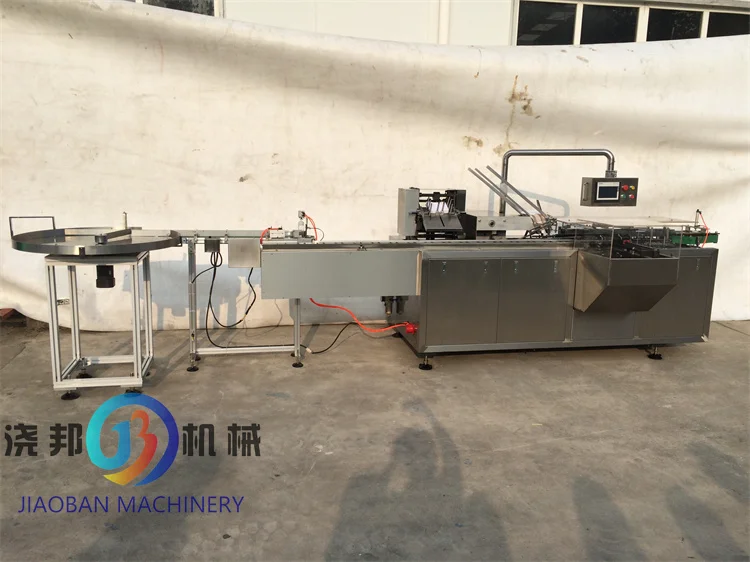

JB 120WZ Full automatic horizontal eye drop/chocolate cartoning machine

Product Overview

Description



JB-120WZ Full automatic horizontal eye drop/chocolate cartoning machine

Contact:Icey,+86 18516303931



This machine is suitbale for glass and plastic bottle:







Usage:

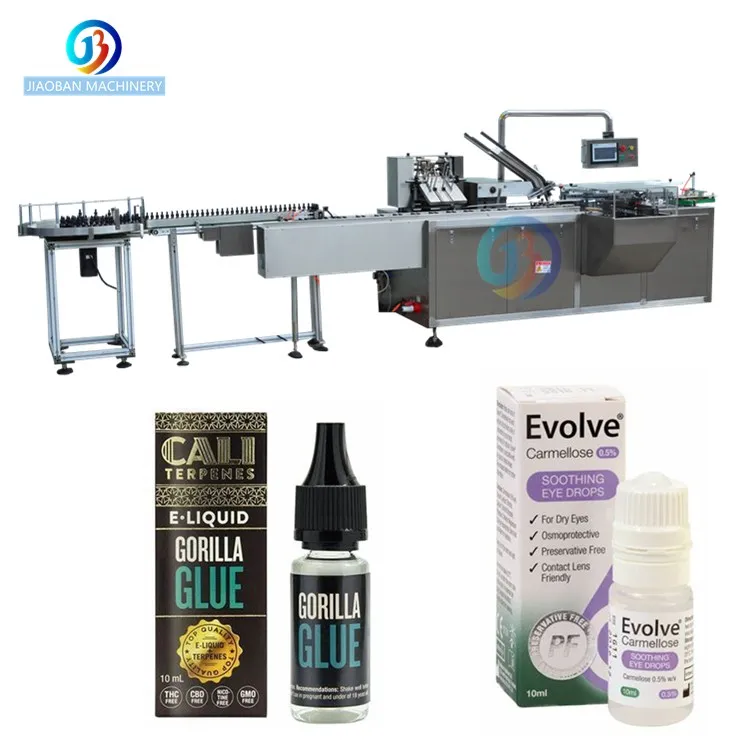

This machine is suitable for electronic cigarette oil bottles,eye drops bottles,medicine board

and other similar items of automatic cartoning.





* Performance feature:

1. Automatic horizontal cartoning machine is a high-tech product, which is a integration of light, electricity, gas and machine.



2. It's suitable for blister forming capsule and tablet, aluminum-plastic packed blister board and similar items into cartons automatically.



3. Working process: medicine plate or other items transmission ( adjustable if more than one plate)

-- drugs manual transmission (to automatically finish 1-4 folding) -- carton automatic distraction and delivery--plate joint folded manual into carton - automatic batch number printing, paper tongues sealing on both ends, etc.



4. Machine use high quality stainless steel casing shape, working faces are closed by organic glass door and windows. It's innovatively designed,

strictly in accordance with  requirements of pharmaceutical industry "GMP" standard.



5. Product height is not standard, auto rejecting when no instruction book.



6. Auto stopping machine when product does not enter carton completely.



7. Auto stopping machine when no carton, no continuous instruction book or no product.



8. Convenient to change products with different specification.



9. Main drive is equipped with overload protection device.

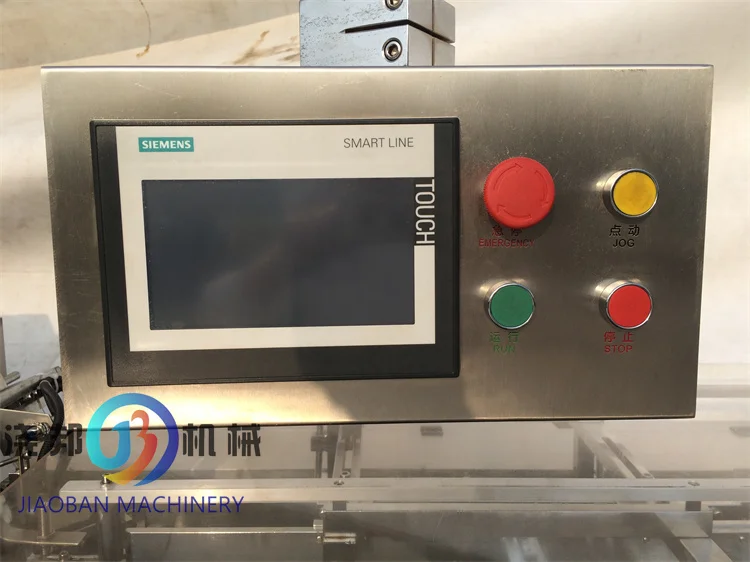

10. PLC automatic display failure, box packing speed and finished counting.



* Techinical parameter



Model	JB-120WZ
Capacity	100-150 cartons/min
Power supply	3ph.380V, 50/60Hz
Main motor power	2.5 KW
Gas consumption	5-20L/min (Pressure 0.6Mpa)
Packing material
	Carton Specification	L(45-85)mm x W(28-53)mm x H(28-53)mm
Instruction book
	Unfolding size	L(80-250)mm x W(90-170)mm
	Folding range	Customized
	The number of folding	1-4
Net weight	About 1000kg
Overall Dimension	L2600 x W1100 x H1500mm



 Details image:

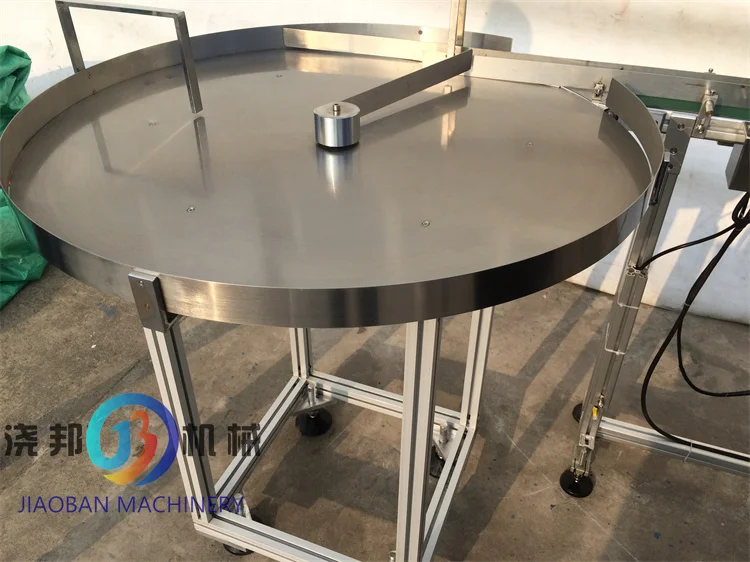

Bottle feeder





Sense bottle automatically,push bottle into the belt

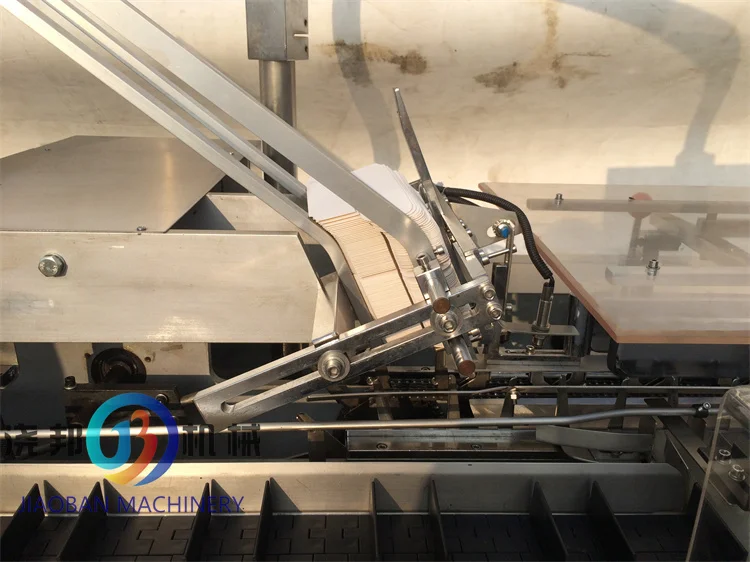

Open leaflet and carton part

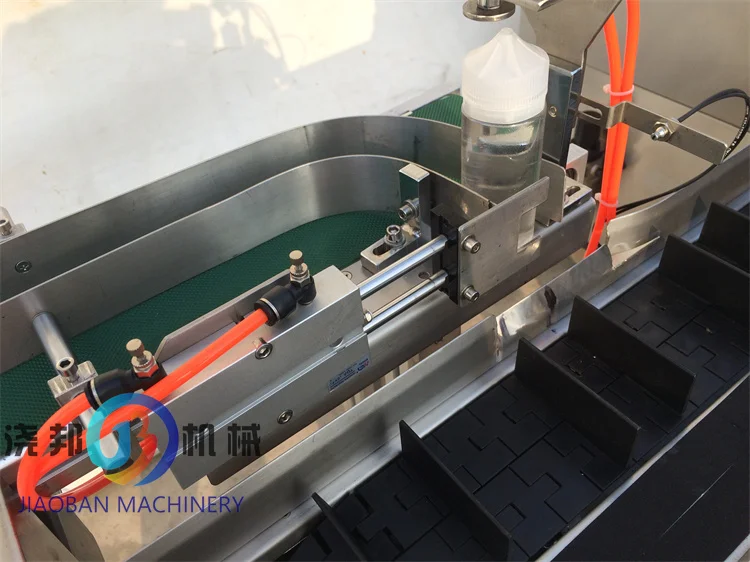

Push bottle into carton box
