Humidity And Temperature Sensor Probe
US $35.00-$48.00
Temperature sensor probe of Gree air conditioner refrigerator
- Category: Temperature Instruments >>>
- Supplier: Heyuan Jiesheng Technology Co. Ltd.
Share on (1600375604449):
Product Overview
Description
Product Description

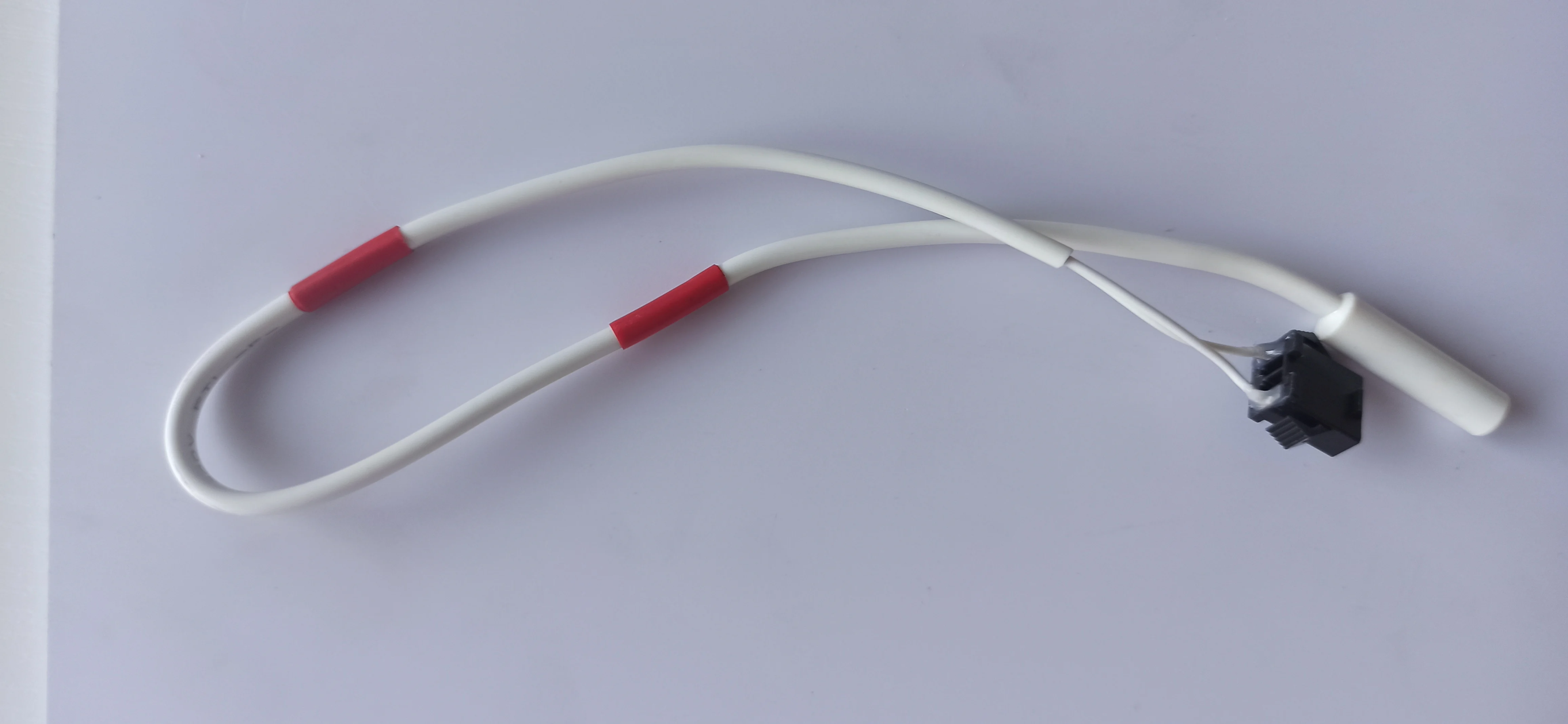

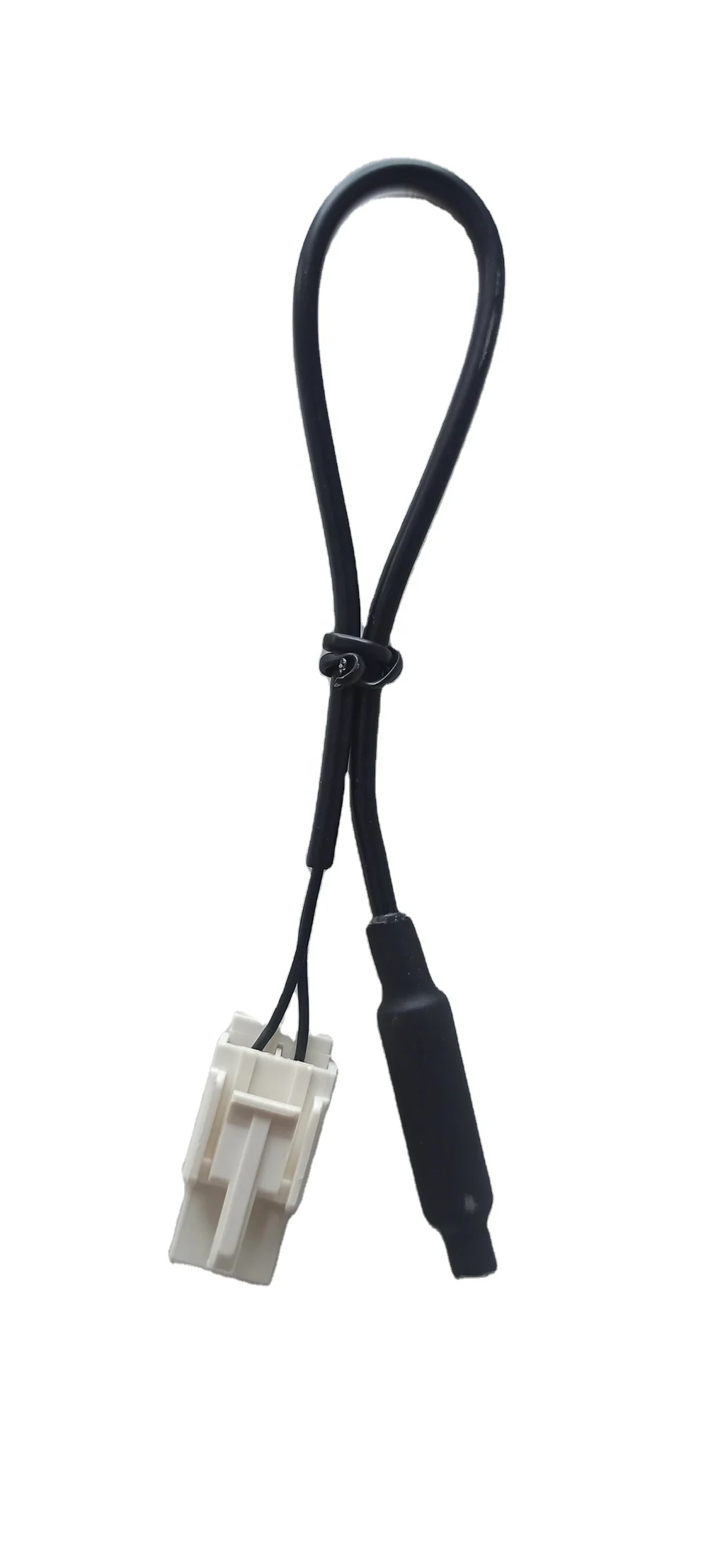

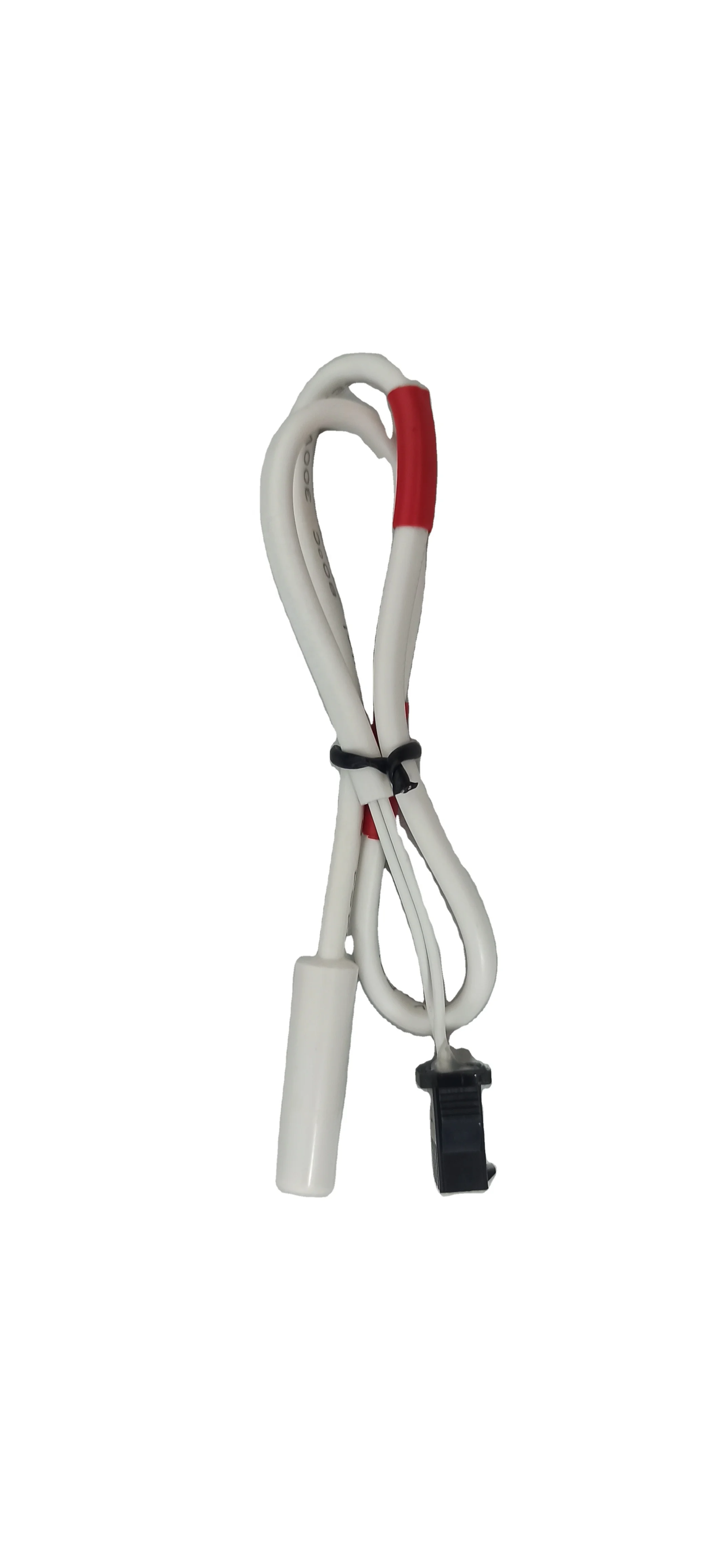

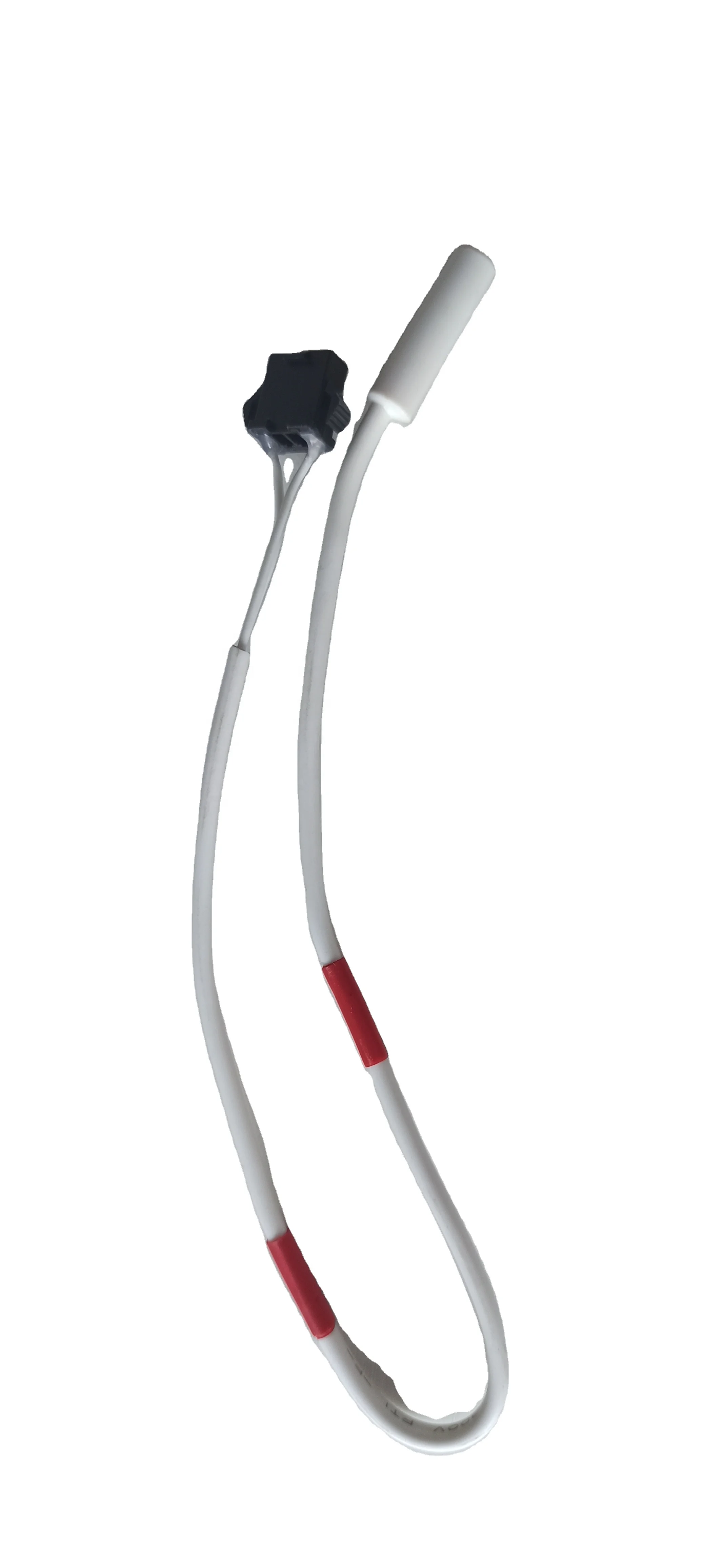

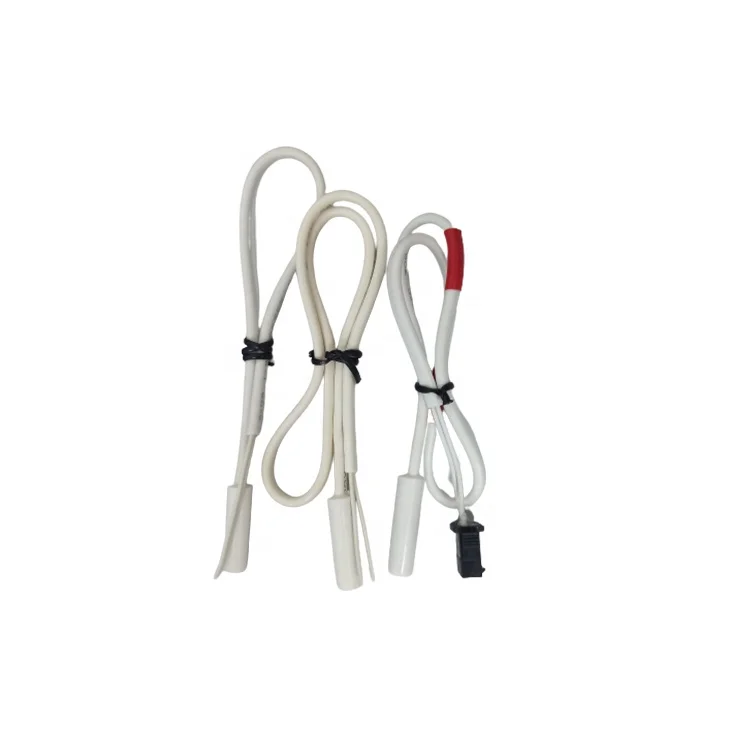

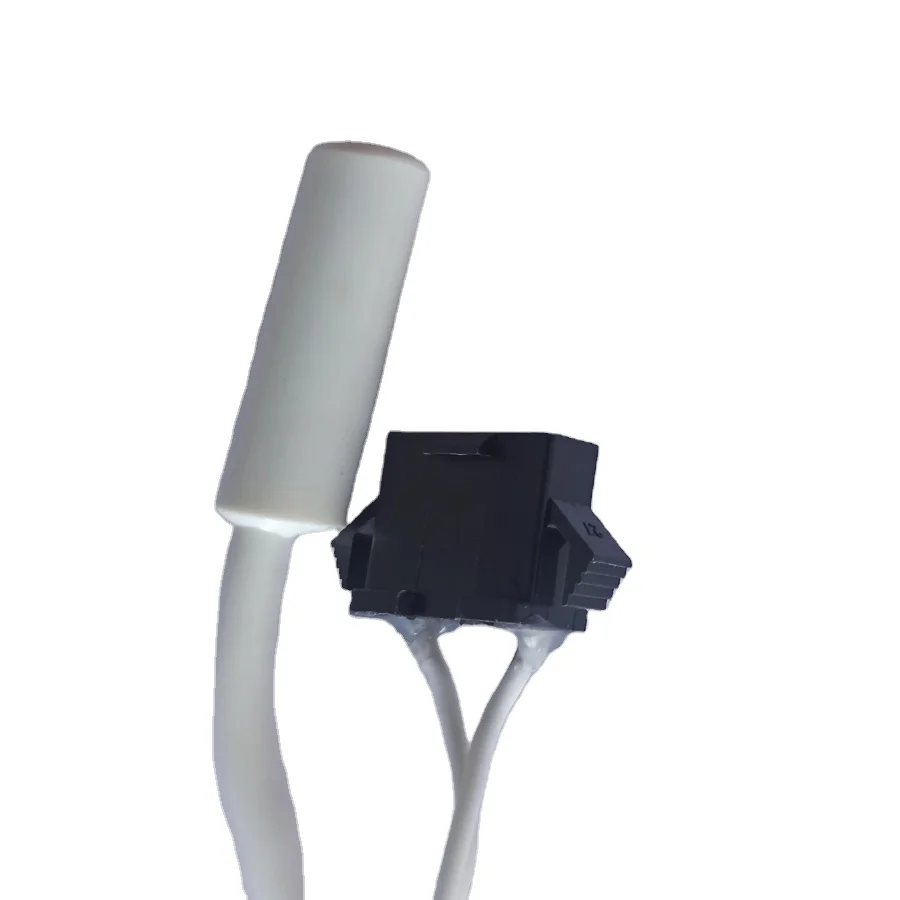

Temperature sensor probe of Gree air conditioner refrigerator
Application range
Suitable for temperature test and control of refrigerator, cold storage, etc
Features
Resistance chip adopts brands, reliable and steady performance.
After three times of waterproof and moisture-proof treatment, the sensor head can work normally in the equipment for a long time.
Thermal head can choose the following specification Ф 5.5, Ф6,Ф 7,Ф 8 ，Ф9 ，Special thermal head can be made as required.
Sensor wire can be selected parallel wire, flat sheath wire.
Product Performance Brief
Resistance：R25℃ = 5 KΩ/2.7 KΩ/5.06 KΩ /6 KΩ/16.9 KΩ
Constant B：25/50 = 3275 K/3470 K /3839 K / 3298 K / 3970 K / 3771 K
Working temperature range：-40℃～+80℃
Withstanding voltage：AC1500V/1Min ～ AC1800V/2Sec
Insulation：DC500V Min.100MΩ,3Sec
Thermal response time ：τ(63.2%)≦10Sec
Explanation
1,Line length specifications and length can be customized according to customer requirements，Length must be greater than or equal to 40 mm
2,According to customer requirements can be assembled on the wire insulation sleeve
3,The shell of temperature sensor size D＞4.5,L≥10
Suitable for temperature test and control of refrigerator, cold storage, etc
Features
Resistance chip adopts brands, reliable and steady performance.
After three times of waterproof and moisture-proof treatment, the sensor head can work normally in the equipment for a long time.
Thermal head can choose the following specification Ф 5.5, Ф6,Ф 7,Ф 8 ，Ф9 ，Special thermal head can be made as required.
Sensor wire can be selected parallel wire, flat sheath wire.
Product Performance Brief
Resistance：R25℃ = 5 KΩ/2.7 KΩ/5.06 KΩ /6 KΩ/16.9 KΩ
Constant B：25/50 = 3275 K/3470 K /3839 K / 3298 K / 3970 K / 3771 K
Working temperature range：-40℃～+80℃
Withstanding voltage：AC1500V/1Min ～ AC1800V/2Sec
Insulation：DC500V Min.100MΩ,3Sec
Thermal response time ：τ(63.2%)≦10Sec
Explanation
1,Line length specifications and length can be customized according to customer requirements，Length must be greater than or equal to 40 mm
2,According to customer requirements can be assembled on the wire insulation sleeve
3,The shell of temperature sensor size D＞4.5,L≥10

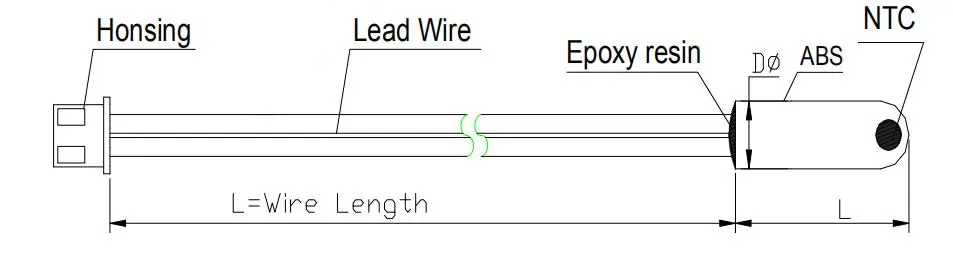

The product structure
Specification
About our products

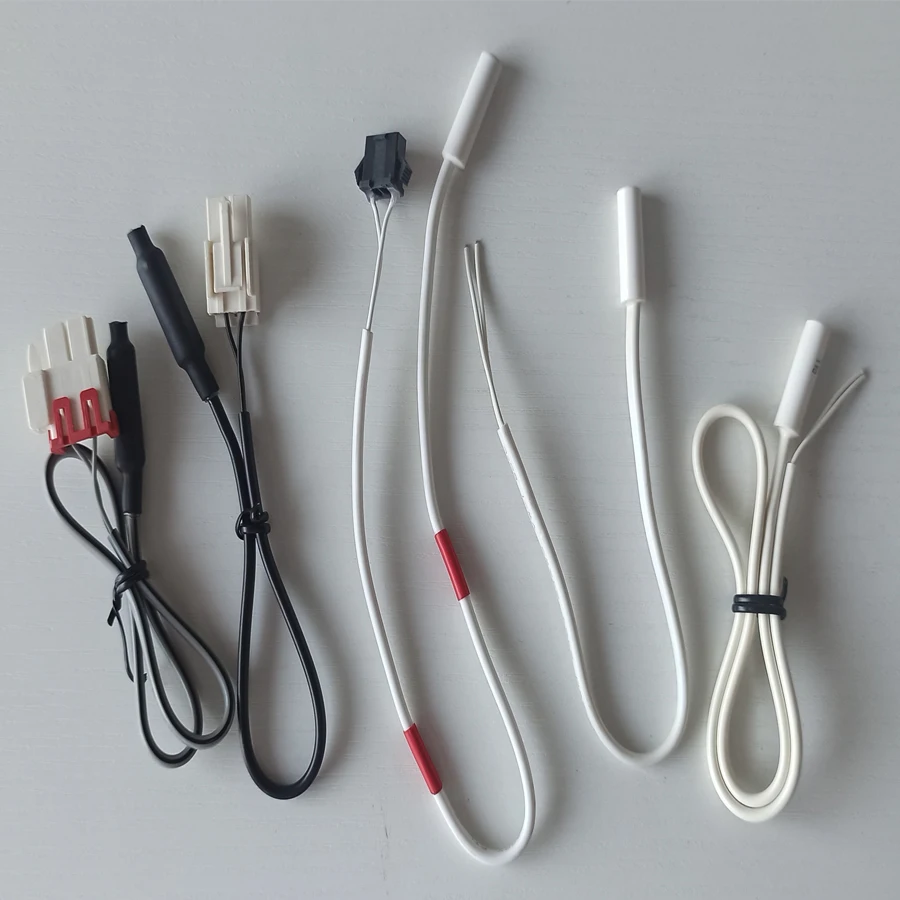

Sample Display
Company Profile
Our Team

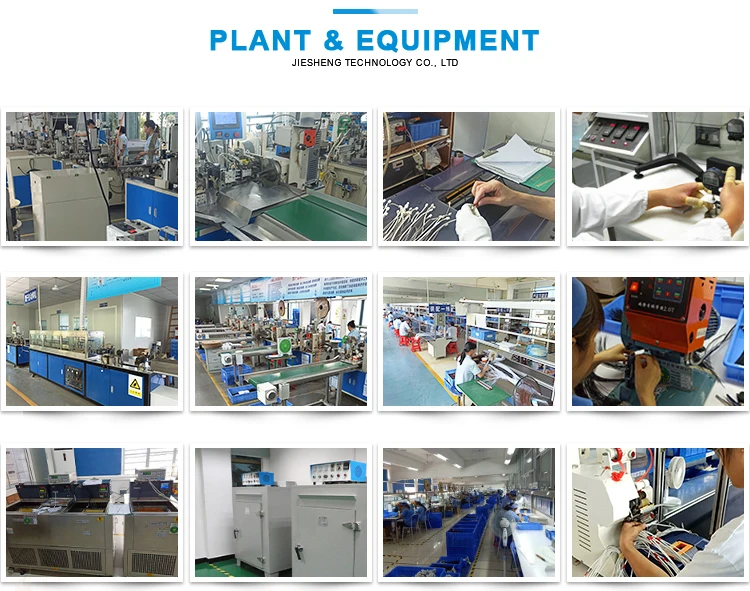

Plant & Equipment
Certifications
Cooperative Patner

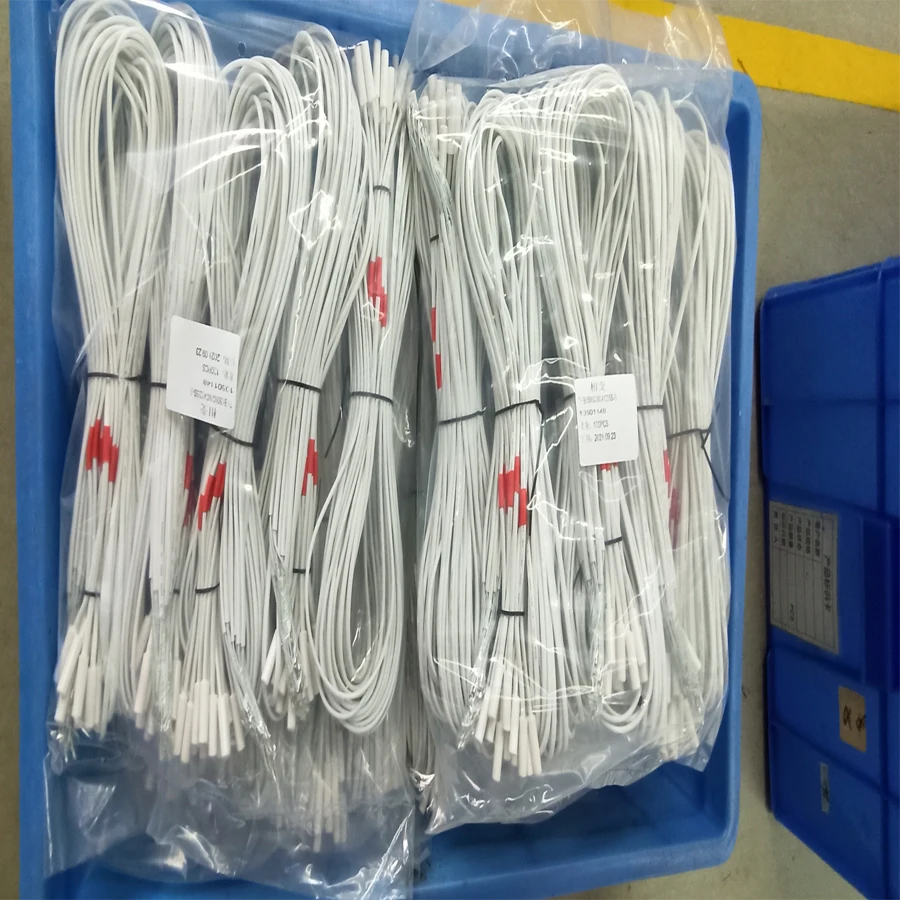

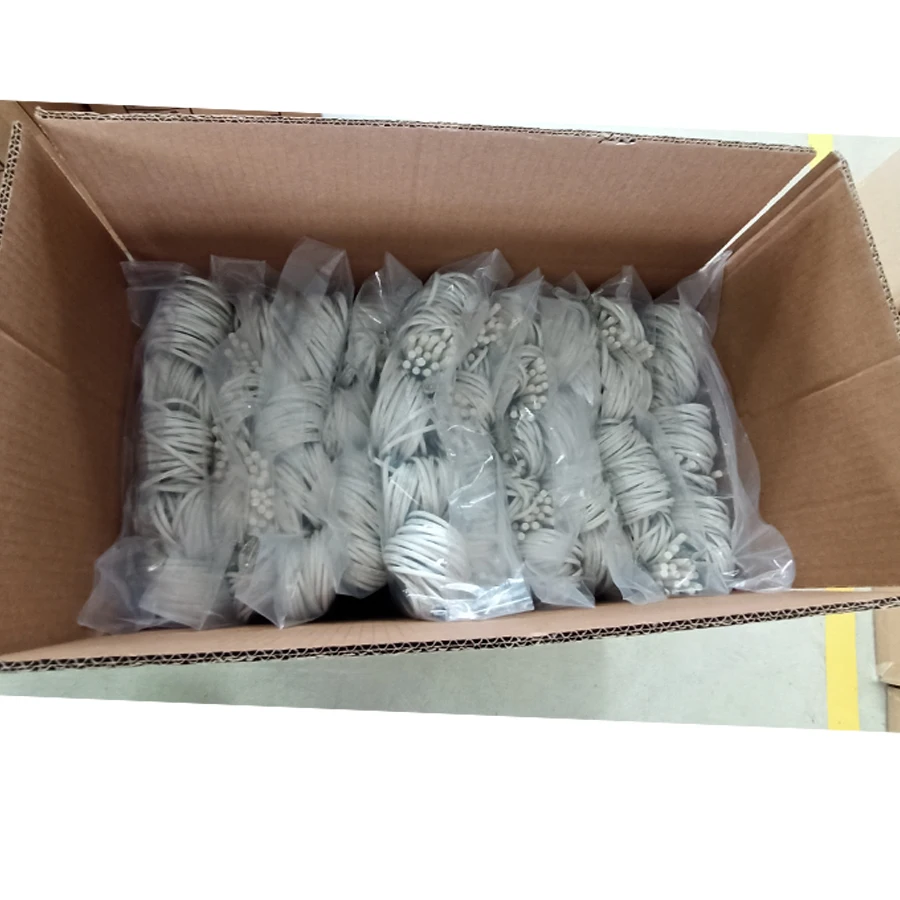

Packaging & Logistics
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to North America(50.00%),South Asia(10.00%),Central America(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NTC thermistor,Temperature and humidity sensor,Gas sensor,Dust sensor,electronic product
4. why should you buy from us not from other suppliers?
The company is a research, development, production, processing and sales of thermistor, temperature and humidity sensor products in one of the professional manufacturing enterprises, the company master the NTC core technology, has the world's cutting-edge
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2016,sell to North America(50.00%),South Asia(10.00%),Central America(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NTC thermistor,Temperature and humidity sensor,Gas sensor,Dust sensor,electronic product
4. why should you buy from us not from other suppliers?
The company is a research, development, production, processing and sales of thermistor, temperature and humidity sensor products in one of the professional manufacturing enterprises, the company master the NTC core technology, has the world's cutting-edge
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
