Customization High-altitude Ladder Loading Truck Operation Truck
US $26600-$36600
Изготовление на заказ высотных лестница с вертикальной загрузкой операция грузовик
- Category: Trucks >>>
- Supplier: Jining Jiubang Construction Machinery Equipment Co. Ltd.
Share on (1600377457529):
Product Overview
Description

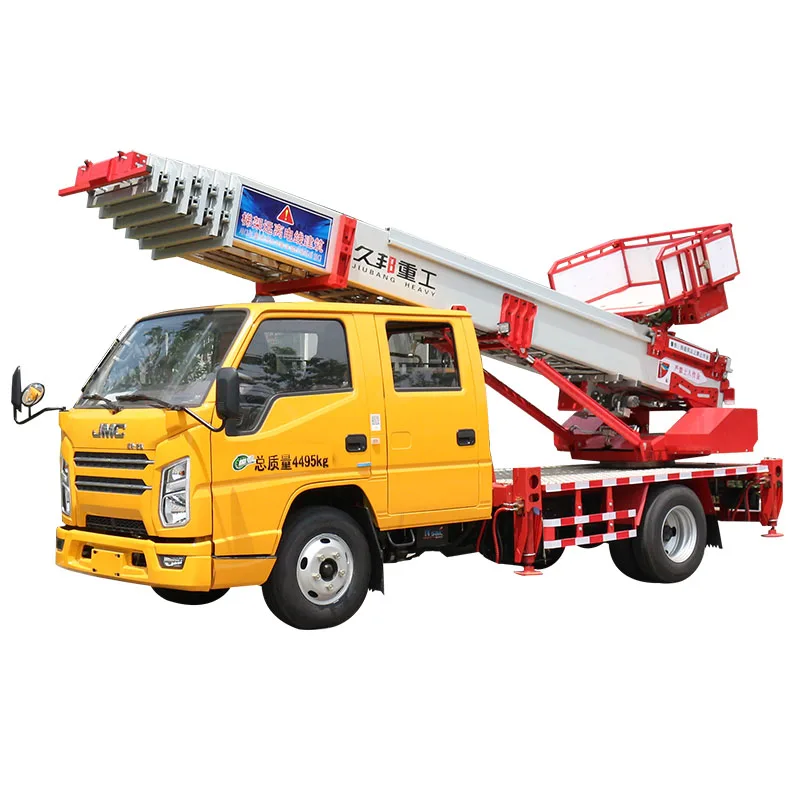

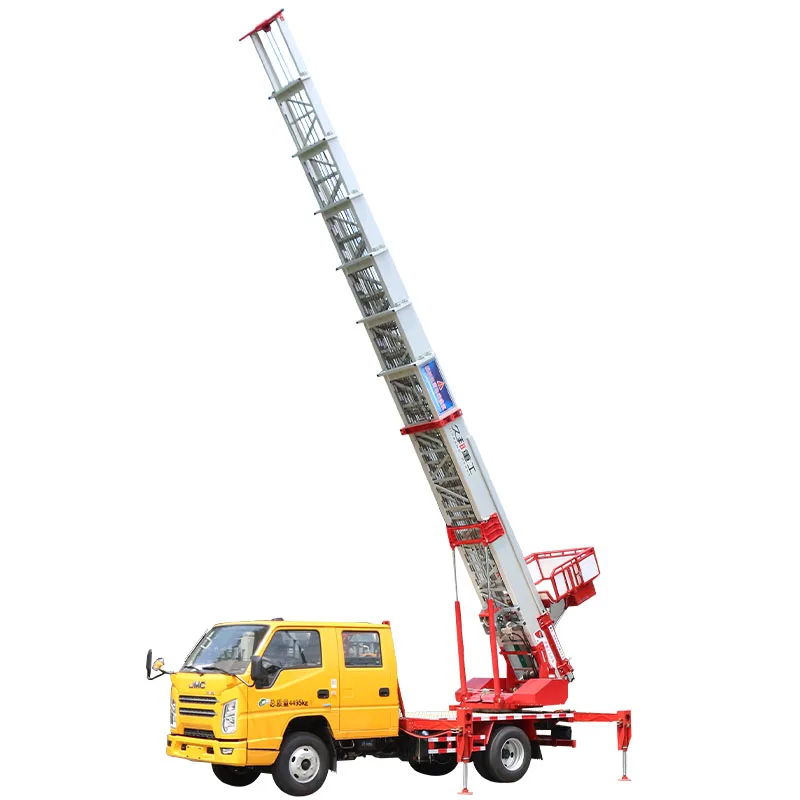

32m high altitude ladder truck high altitude ladder platform truck Aerial Tram ladder Truck
Product Information
The ladder truck is also called the ladder truck, the aerial transport truck, the aerial work truck, and the ladder moving truck. The vehicle is mainly used for engineering leasing, curtain wall construction, roof waterproofing, solar installation, advertising antiaircraft artillery, electrical maintenance, air-conditioning installation,moving companies, cement and sand handling, ship maintenance, road and bridge repairs, etc. Operating range up to 32 meters high equivalent to 11 floors, the maximum carrying cargo weight 400 kg
Wireless remote control of the whole vehicle makes it easier to observe the working space and is safe and reliable. Remote control, manual dual operation mode, high work efficiency.It can be operated remotely within a hundred meters, so you don’t have to worry about working under the sunny more. It is more convenient to work.The self-unloading function hopper can automatically unload goods when transporting goods or sand, which greatly saves working time.
Wireless remote control of the whole vehicle makes it easier to observe the working space and is safe and reliable. Remote control, manual dual operation mode, high work efficiency.It can be operated remotely within a hundred meters, so you don’t have to worry about working under the sunny more. It is more convenient to work.The self-unloading function hopper can automatically unload goods when transporting goods or sand, which greatly saves working time.
Technical Parameter | ||||
classification | Item | Specification | ||
Size data | Length | 5995mm | ||
Width | 1900mm | |||
Height | 2850mm | |||
Quality data | Number of passengers | 5 | ||
Total mass | 4495kgs | |||
Curb weight | 4170kgs | |||
Main performance parameters | Rated load of working platform | 400kgs | ||
Max working height | 30/32m | |||
Outrigger span | 1000mm | |||
Time of setting down and back of outriggers | 20s | |||
Driving parameters | Number of axles | 2pcs | ||
Axle load | 1835/2660 | |||
Wheelbase | 3360mm | |||
Front wheel tread | 1385mm | |||
Rear wheel tread | 1425mm | |||
Spring leaf | 7/4+5 | |||
Tire number | 6 | |||
Tire specification | 7.00R16LT | |||
Maximum driving speed | 100km/h | |||
Approach angle | 28° | |||
Departure angle | 18° | |||
wheelbase | 3360mm | 3360mm | ||
Maximum travel speed | 99Km/h | 99Km/h | ||
Approach angle | 27° | 27° | ||
Departure angle | 11° | 11° | ||
Rated load | 260kg | 200kg | ||
Maximum working height | 21m | 23m | ||
Maximum operating height | 3m | 3m | ||
Maximum operating range | 9m | 12m | ||
Jib | Four-section hexagonal working arm, synchronously telescopic | Four-section hexagonal working arm, synchronously telescopic | ||
Slewing device | 360 degree continuous rotation | 360 degree continuous rotation | ||
Control voltage | 12V | 12V | ||
Maximum working wind speed | Class 4 wind | Class 4 wind | ||
Configuration instructions
Item | Specification |
Chassis | JMC Shunda |
Engine | 85kw turbocharged diesel engine |
Cabin | Double row seats for 5 people |
Walking board | Non-slip walking board |
Power take-off system | Hydraulic operation |
Working platform | 1100*1000*450mm |
Boom form | Seven-section synchronous expansion |
Rotator | 90°for left and right |
Outrigger | H-type hydraulic legs and front hydraulic legs, two sections the horizontal leg |

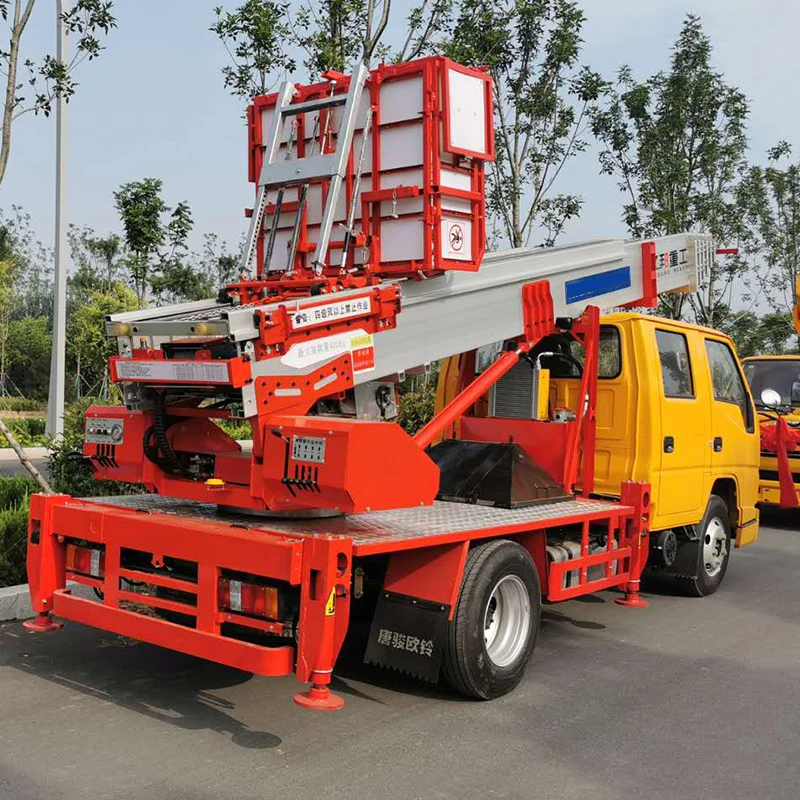

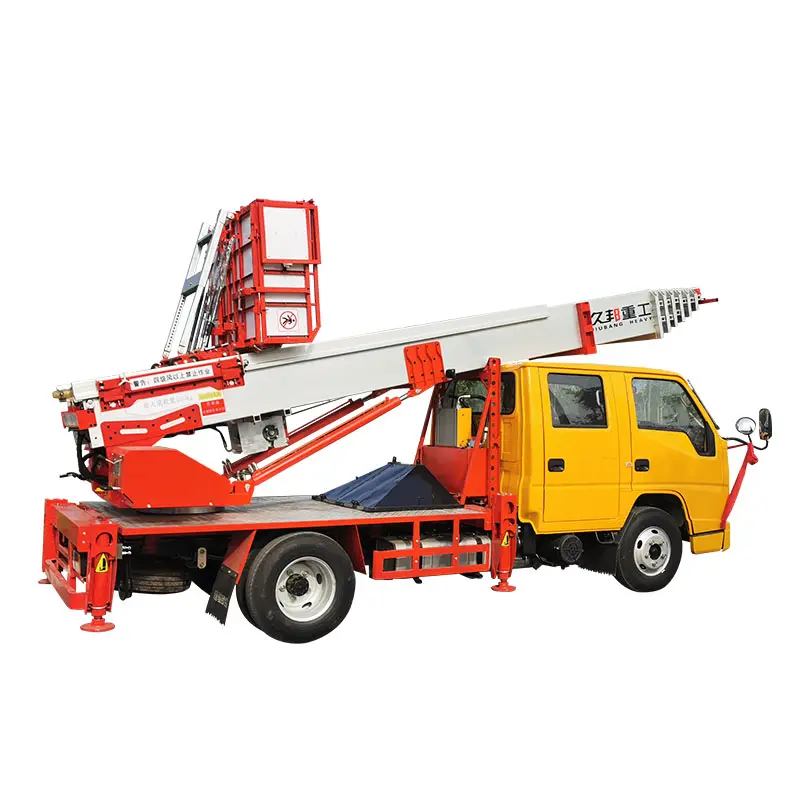

Product Show

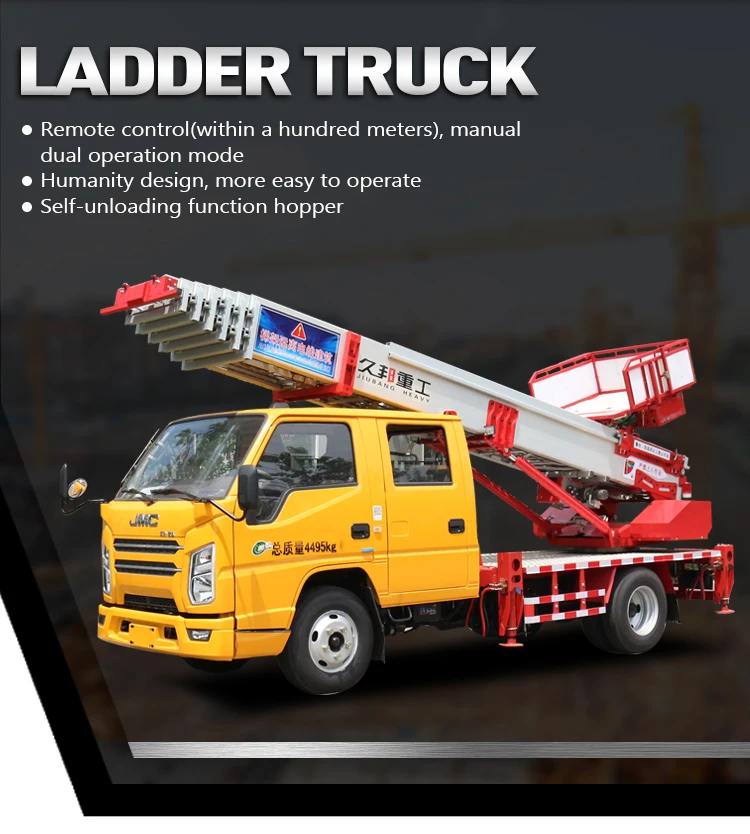

1, ladder truck: humanized design, more convenient, landing bucket 45 cm from the ground, work more effort

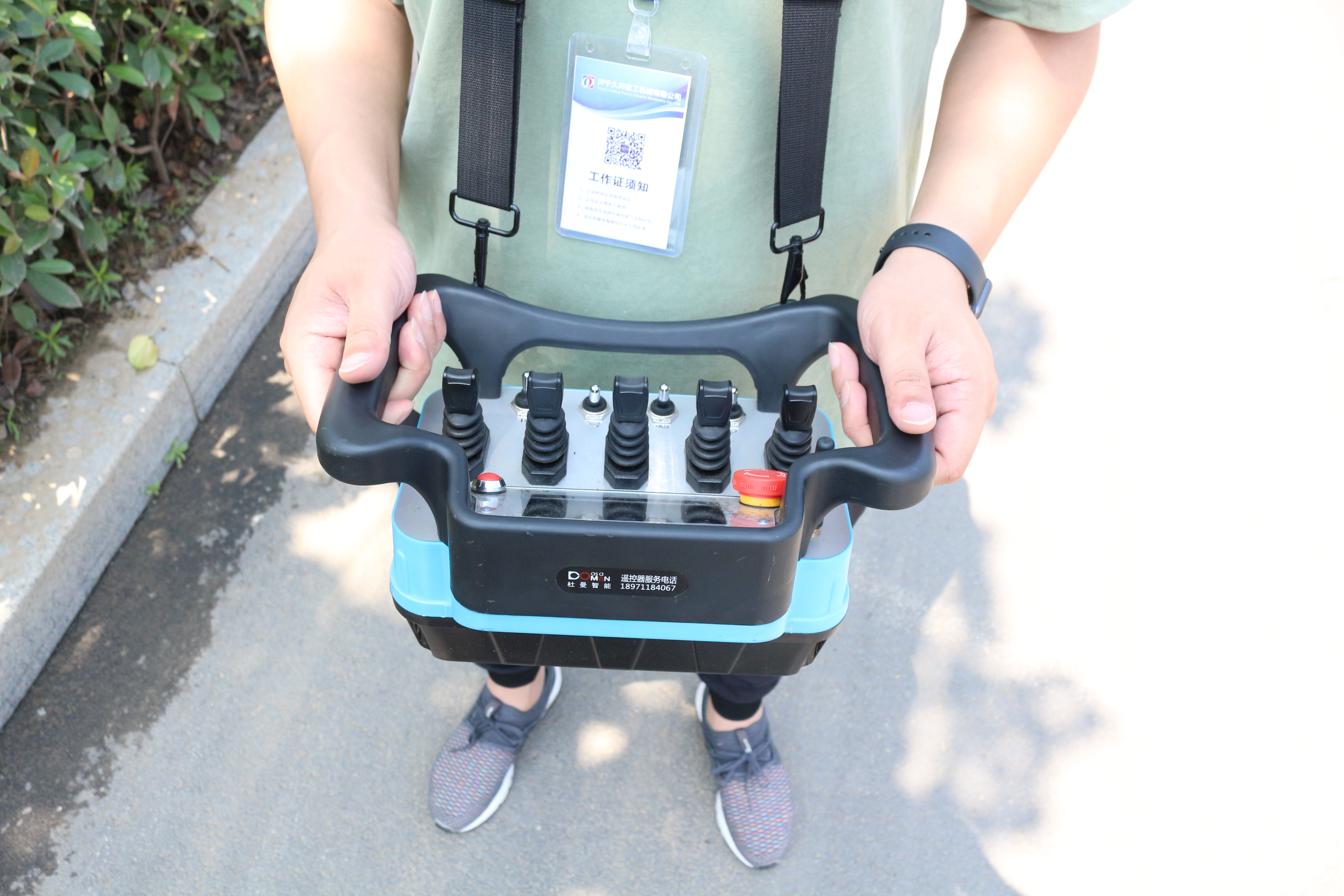

2, 100 meters remote control operation, within 100 meters can be remote control operation, no longer have to worry about It is more convenient to work under the sun and work.
3. The hopper of the self-unloading function can automatically unload the goods when transporting goods or sand, which greatly saves working time.
4. Hydraulic legs, H-type hydraulic legs and front hydraulic legs, two sections The horizontal leg has a large span and good stability. It can be operated at the same time or separately. The front leg strengthens the stability of the vehicle.
5. The navigation device is equipped with the navigation device. It integrates navigation, driving recorder, reversing image and audio and video playback functions. It is convenient for driving
6. Travel memory, through computer learning and memory the first operation mode, a key to reach the designated position, free lift speed regulation for multiple jobs at the same height and from
2, 100 meters remote control operation, within 100 meters can be remote control operation, no longer have to worry about It is more convenient to work under the sun and work.
3. The hopper of the self-unloading function can automatically unload the goods when transporting goods or sand, which greatly saves working time.
4. Hydraulic legs, H-type hydraulic legs and front hydraulic legs, two sections The horizontal leg has a large span and good stability. It can be operated at the same time or separately. The front leg strengthens the stability of the vehicle.
5. The navigation device is equipped with the navigation device. It integrates navigation, driving recorder, reversing image and audio and video playback functions. It is convenient for driving
6. Travel memory, through computer learning and memory the first operation mode, a key to reach the designated position, free lift speed regulation for multiple jobs at the same height and from
7. radiator automatic manual, automatic Temperature, when the temperature reached 55 degrees, automatic cooling, reduce the loss of the security configuration: a work vehicle can be achieved 400kg load platform, the maximum operating range 11m.

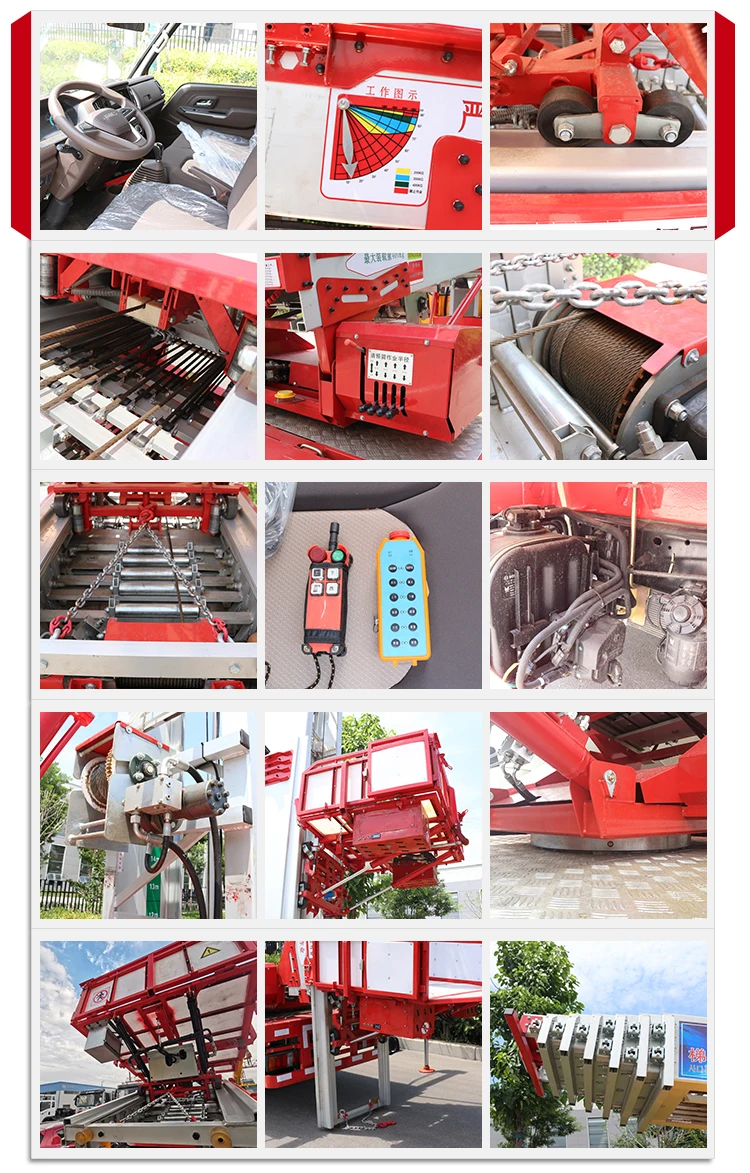

Product details

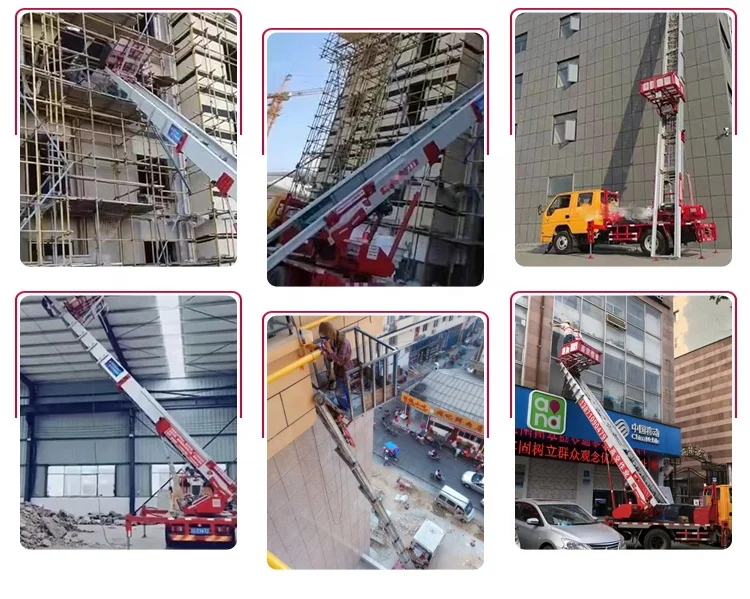

Product Application
Packing & Delivery
Packing: Container, nude or according to your request
Delivery:within 15-20days after confirming the payment
Delivery:within 15-20days after confirming the payment

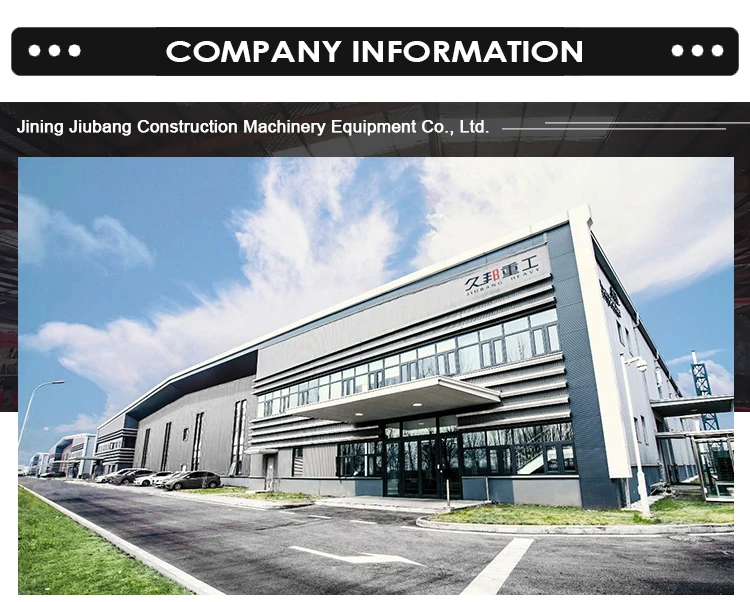

Company Profile

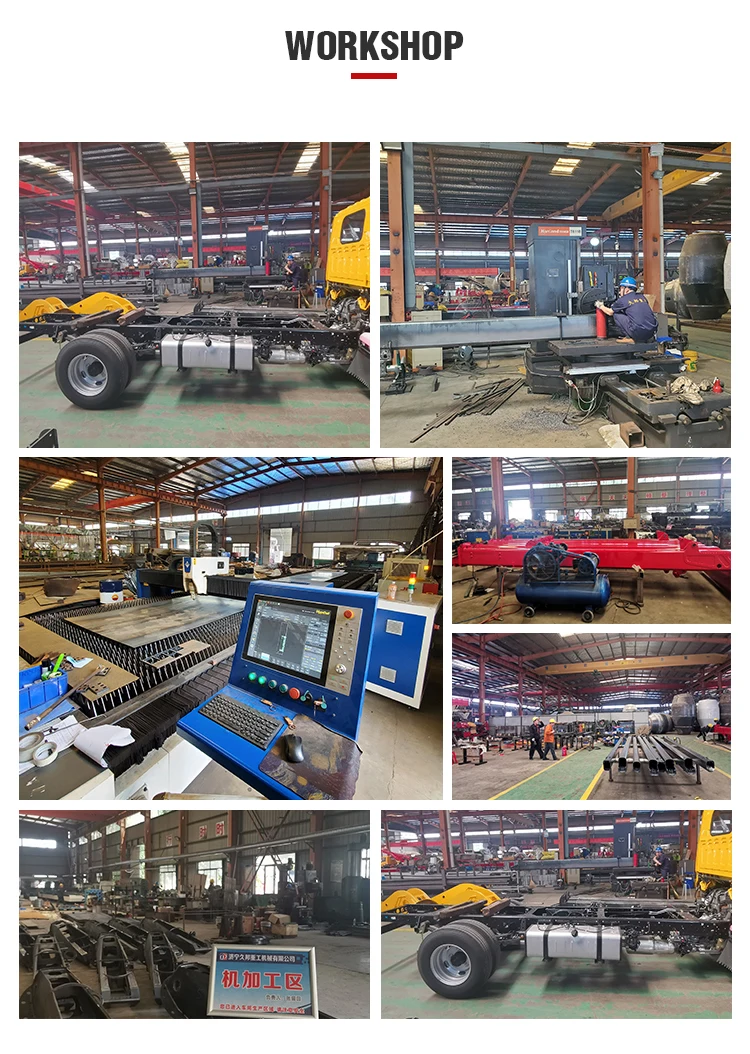

Jining Jiubang Construction Machinery Equipment Co., Ltd. is a professional company for aerial work trucks and ladders, and an enterprise of heavy machinery manufacturing in Shandong Province. The company is located inJining Economic and Technological Development Zone, with CNC cutting machines, bending machines, and digital processing centers.
Jiubang Heavy Industries is committed to developing high-tech products, introducing German Rexroth, German Hawe, German Siemens, and French Schneider The company, the technical product of Japan's Mitsubishi Electric Corporation, and cooperates to develop a series of products of 30-63-meter boom ladder truck and aerial work truck.
The company has always pursued the concept of "quality is about survival, and details determine success or failure". The company always adheres to the business policy of "honesty and trustworthiness, mutual benefit and win-win", based on the principle of survival by quality, development by science and technology, and reputation by service. With good technology, excellent product quality and perfect after-sales service, All kinds of products of the company sell well all over the country, get unanimous praise from users, and enjoy a high reputation in the market. Adhering to the principle of "constantly deny yesterday, organize today scientifically, and create tomorrow bravely", we have launched generations of products that are more suitable for today's engineering construction, and provide construction units with better quality and more reliable construction machinery!
Starting from customer needs, and finally customer satisfaction! Committed to the development of construction machinery, we have been working hard!
Jiubang sincerely welcomes friends from all walks of life to visit, inspect and negotiate business!
The company has always pursued the concept of "quality is about survival, and details determine success or failure". The company always adheres to the business policy of "honesty and trustworthiness, mutual benefit and win-win", based on the principle of survival by quality, development by science and technology, and reputation by service. With good technology, excellent product quality and perfect after-sales service, All kinds of products of the company sell well all over the country, get unanimous praise from users, and enjoy a high reputation in the market. Adhering to the principle of "constantly deny yesterday, organize today scientifically, and create tomorrow bravely", we have launched generations of products that are more suitable for today's engineering construction, and provide construction units with better quality and more reliable construction machinery!
Starting from customer needs, and finally customer satisfaction! Committed to the development of construction machinery, we have been working hard!
Jiubang sincerely welcomes friends from all walks of life to visit, inspect and negotiate business!
