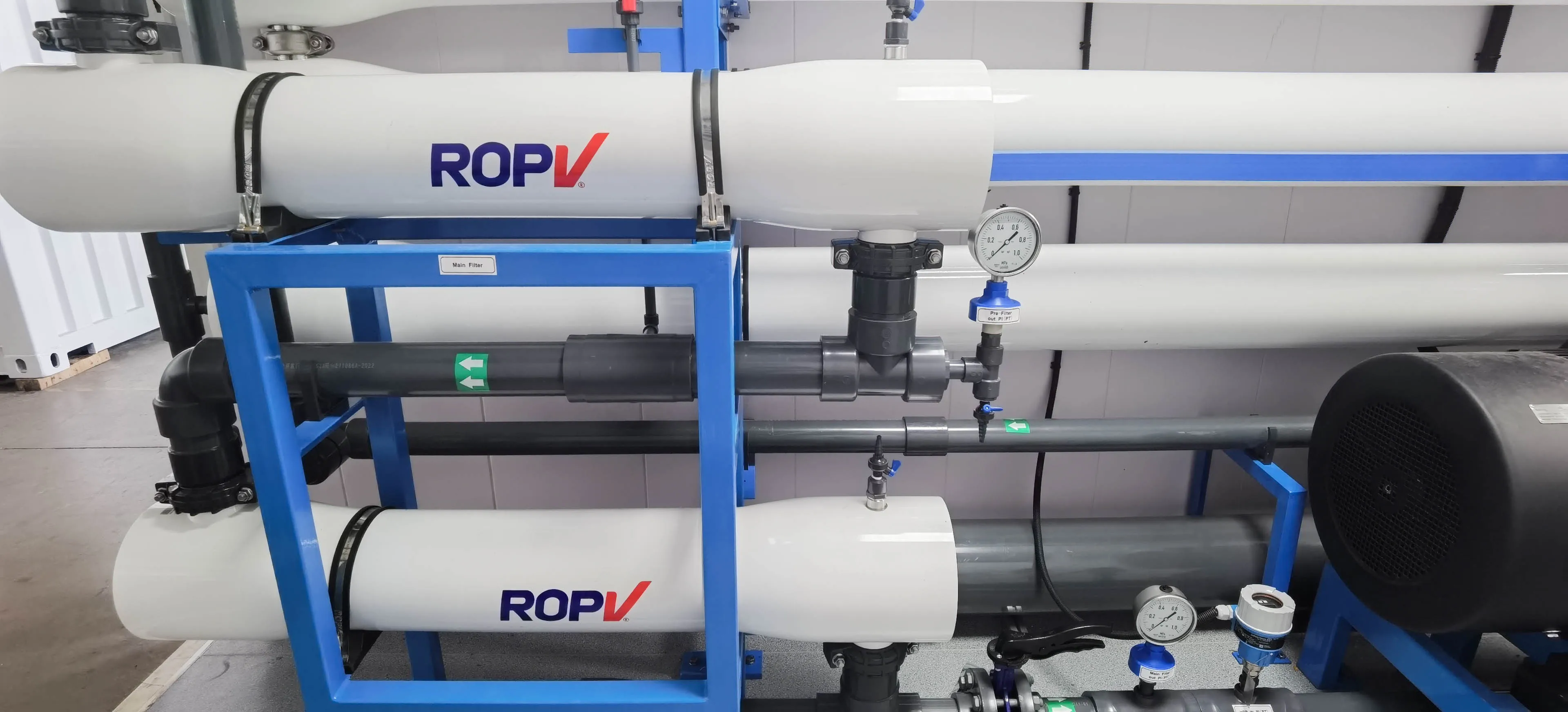

Seawater desalination plant desalination water to drinking water
- Category: Environmental Machinery >>>
- Supplier: QT Enviro-Tech (Suzhou) Ltd.
Share on (1600379302030):
Product Overview
Description
Products Description

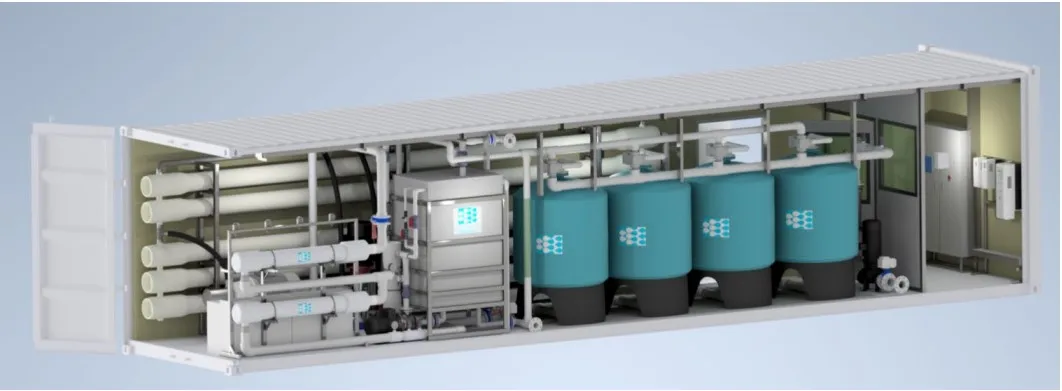

fastRO Container Series
fastRO Container Seawater Desalination system (hereinafter “fastRO C”) is designed to produce high quality portable waterfrom seawater or high salinity brackish water.
fastRO C produce fresh water from 50 to 2000 ton (13-528 thousand US gallons) per day.
fastRO C produce fresh water from 50 to 2000 ton (13-528 thousand US gallons) per day.

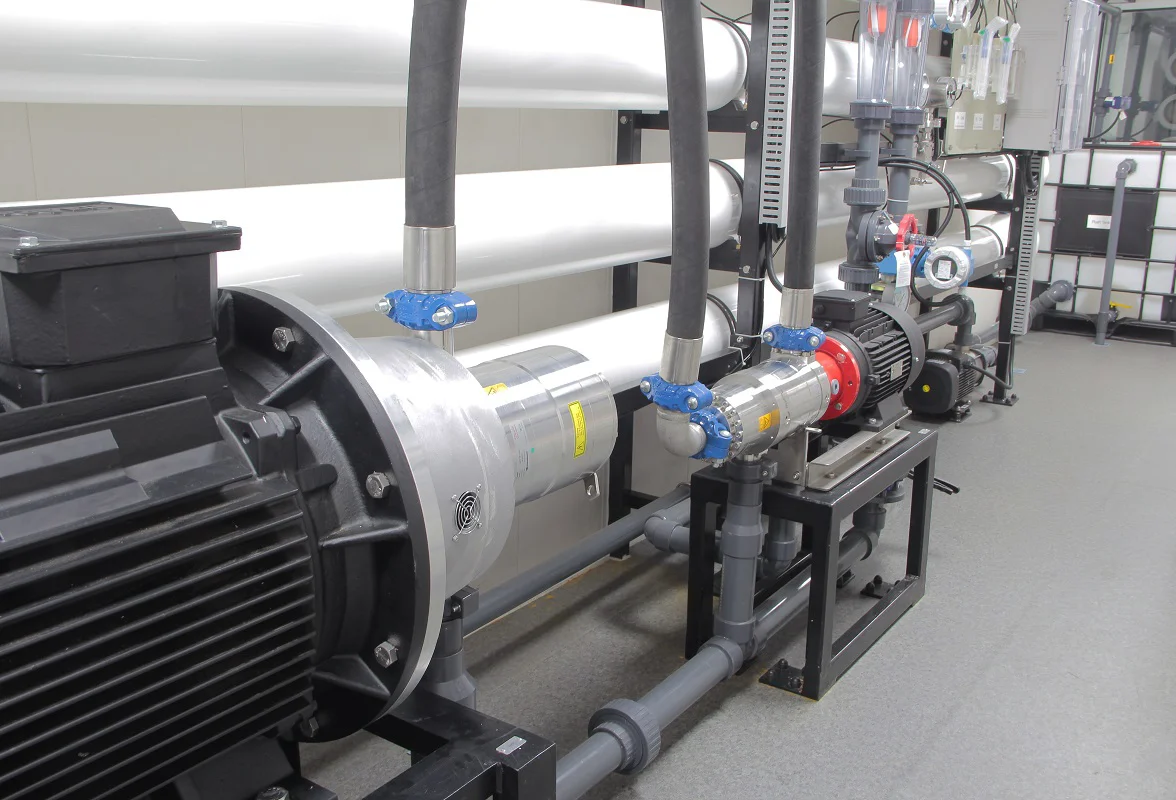

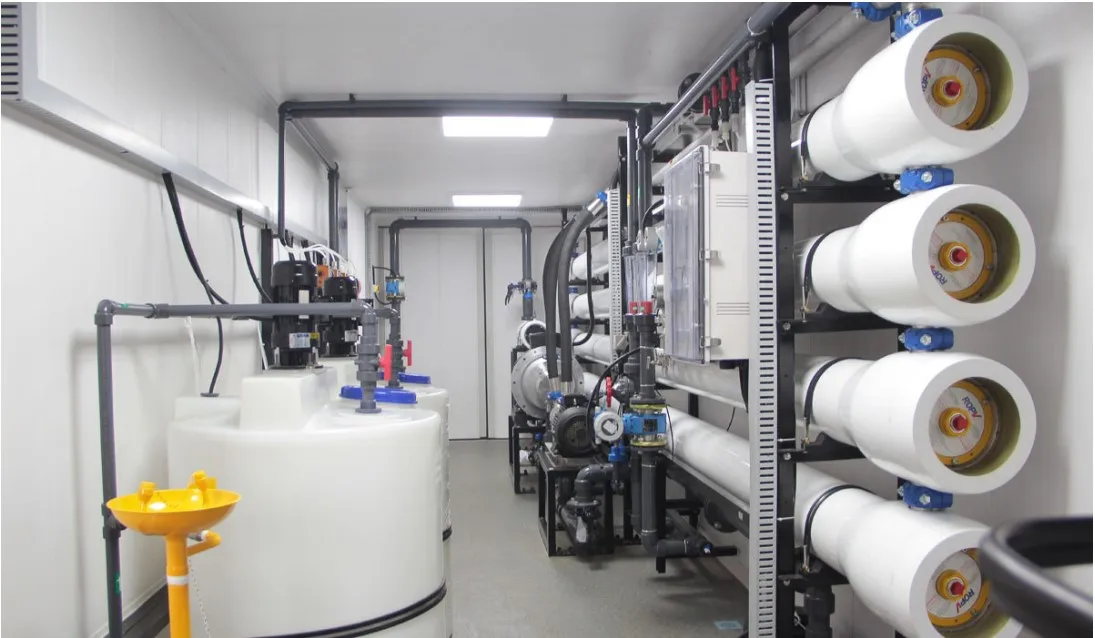

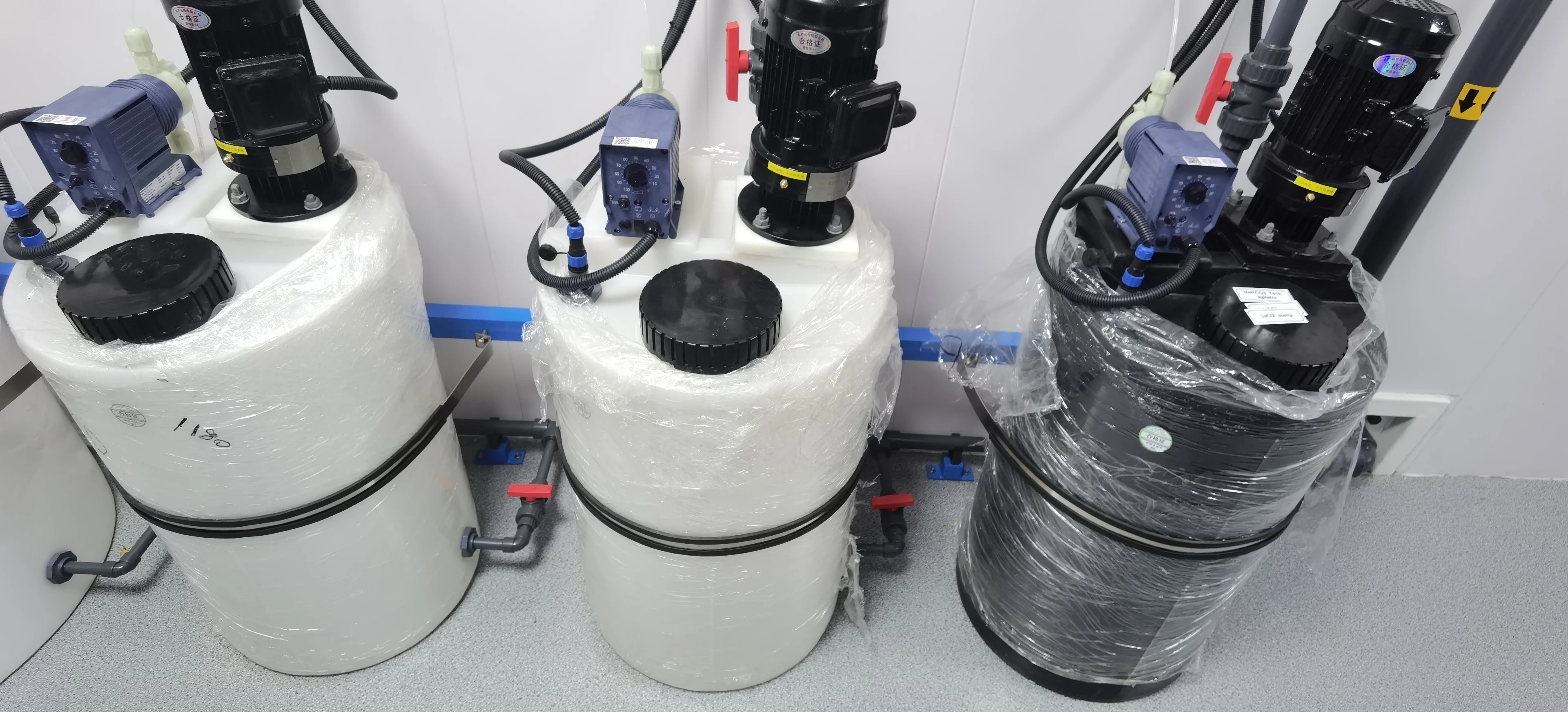

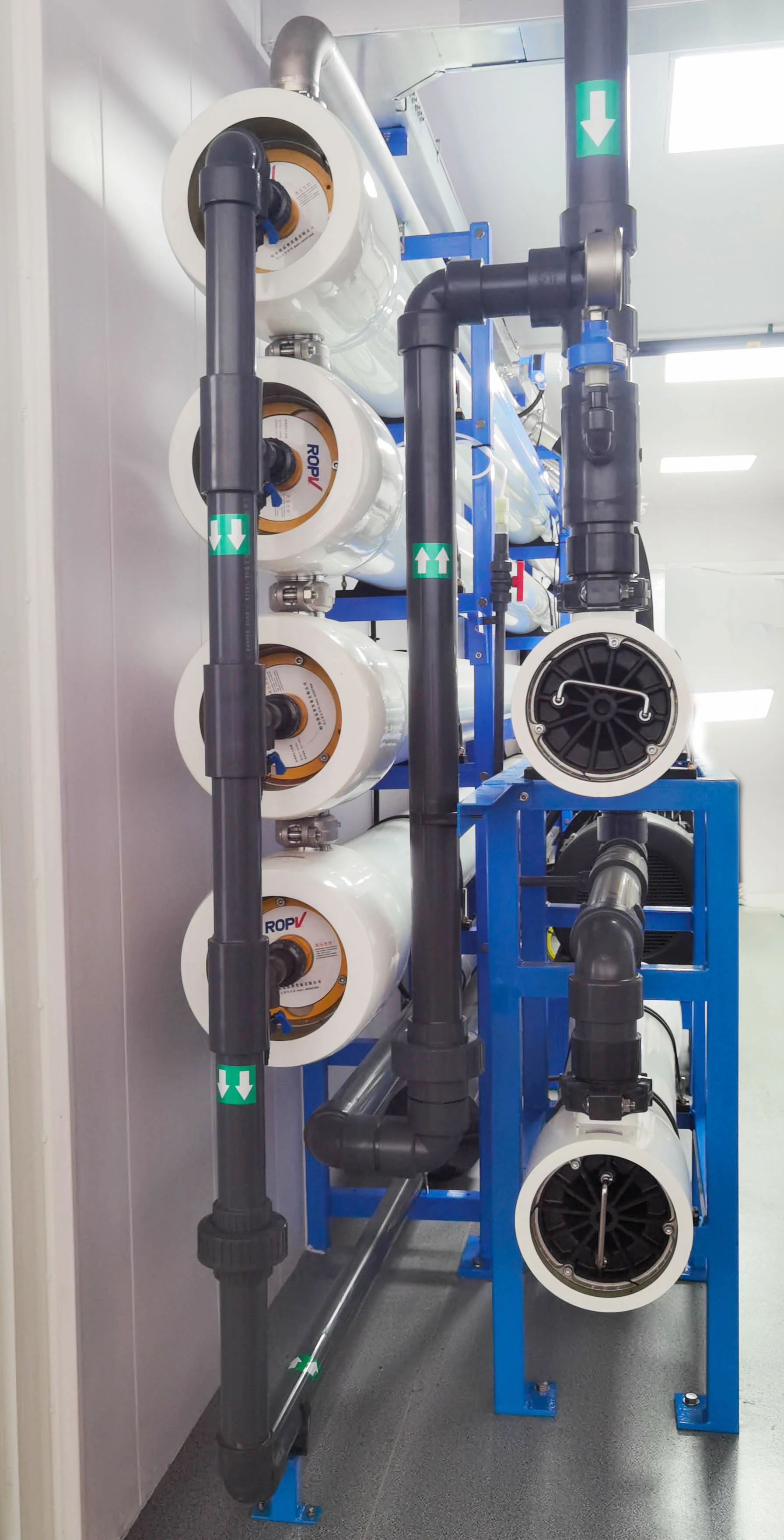

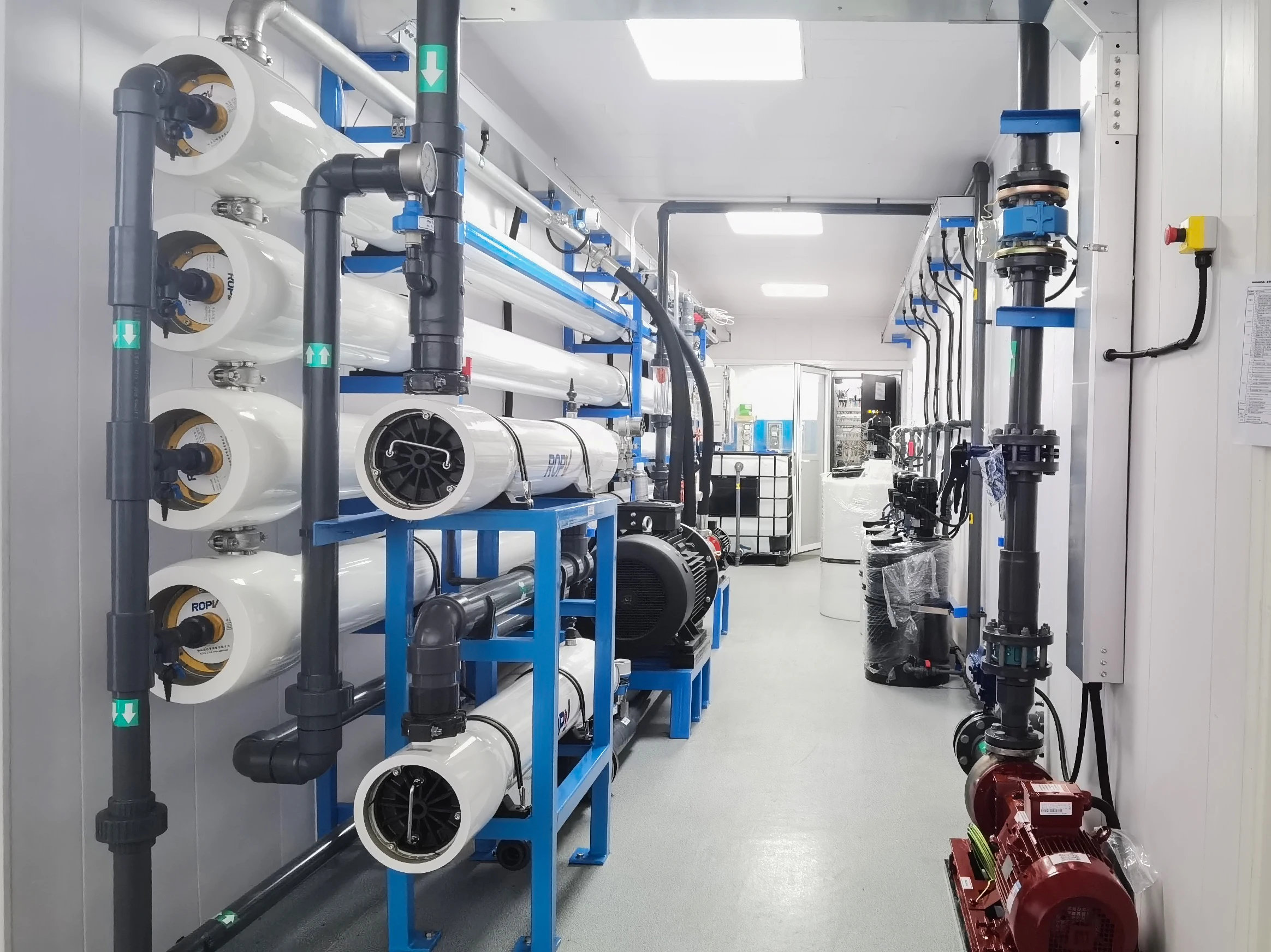

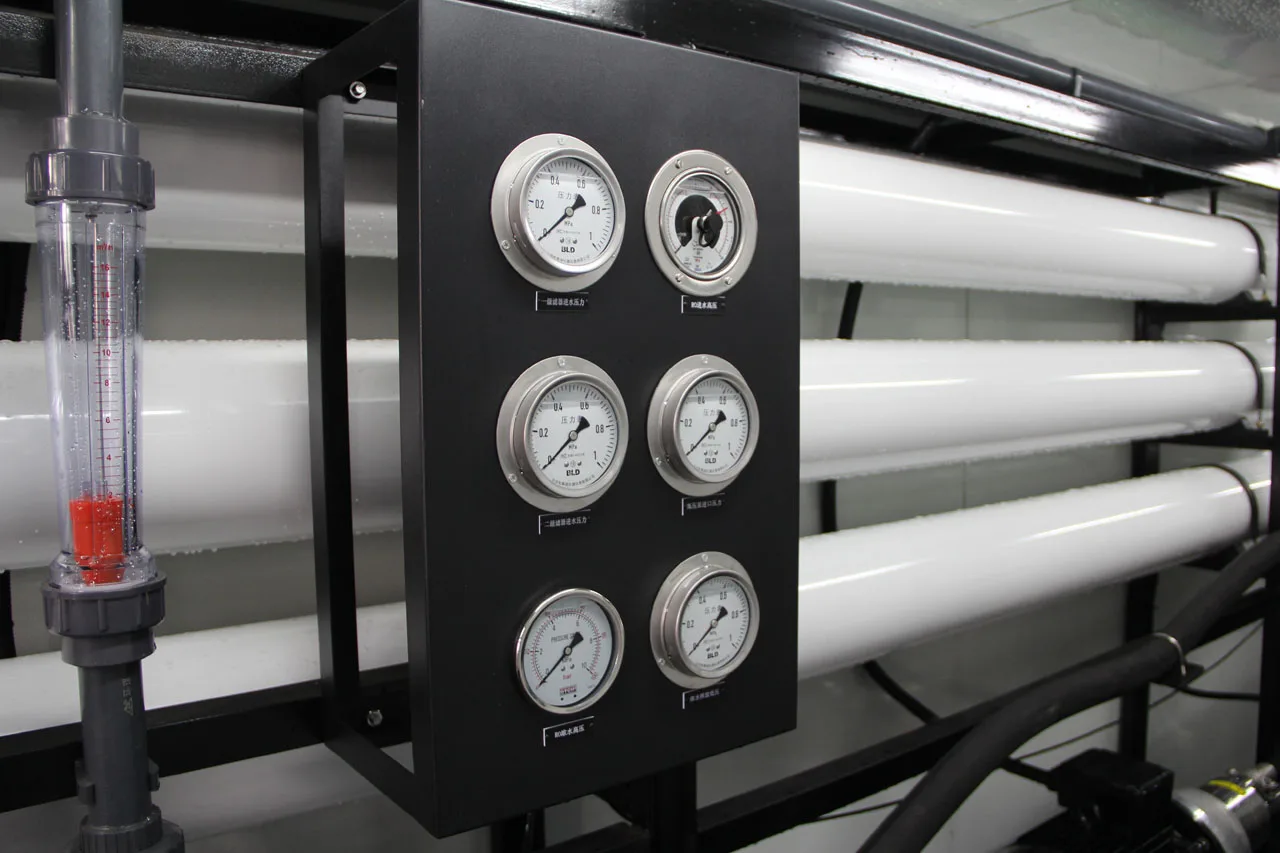

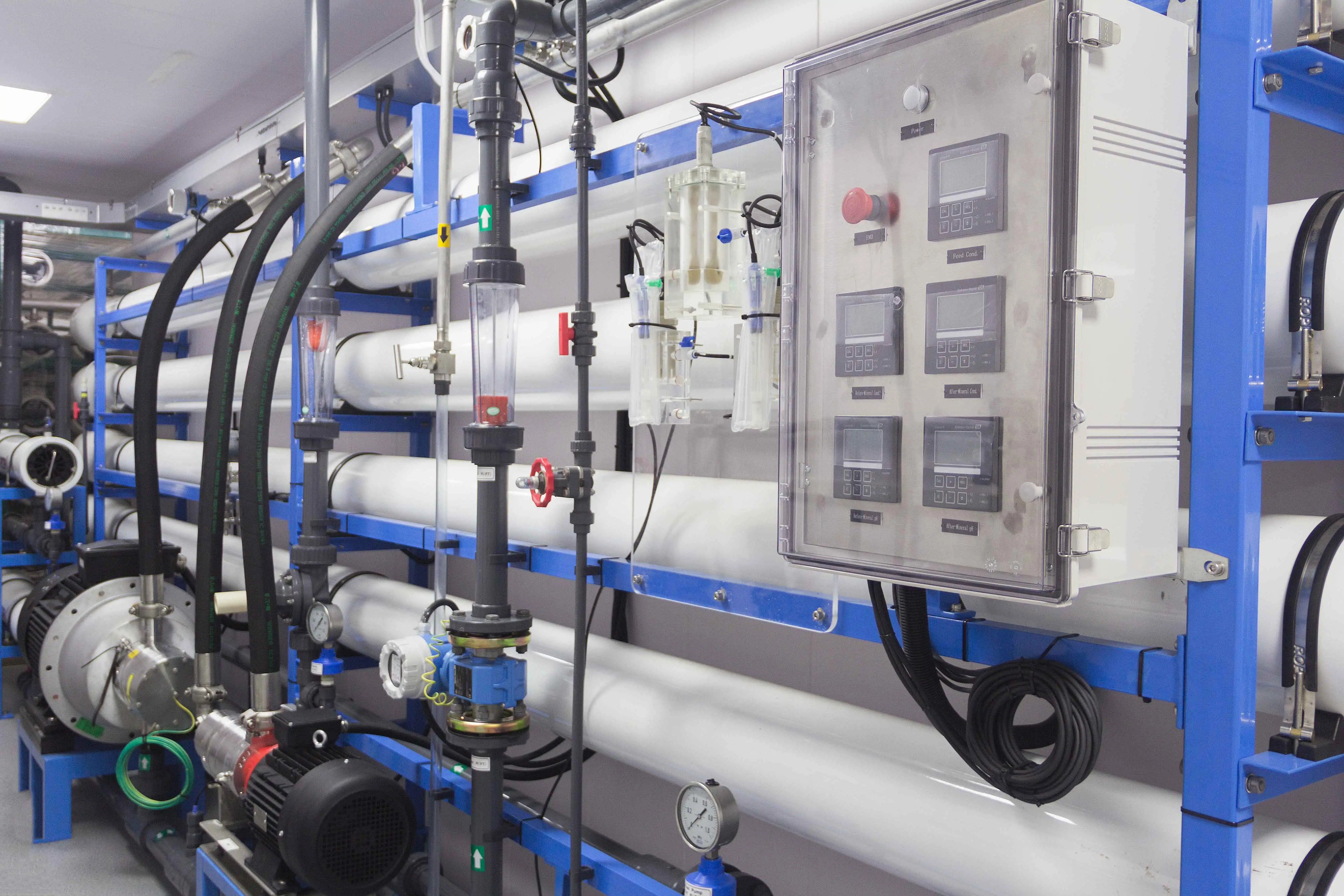

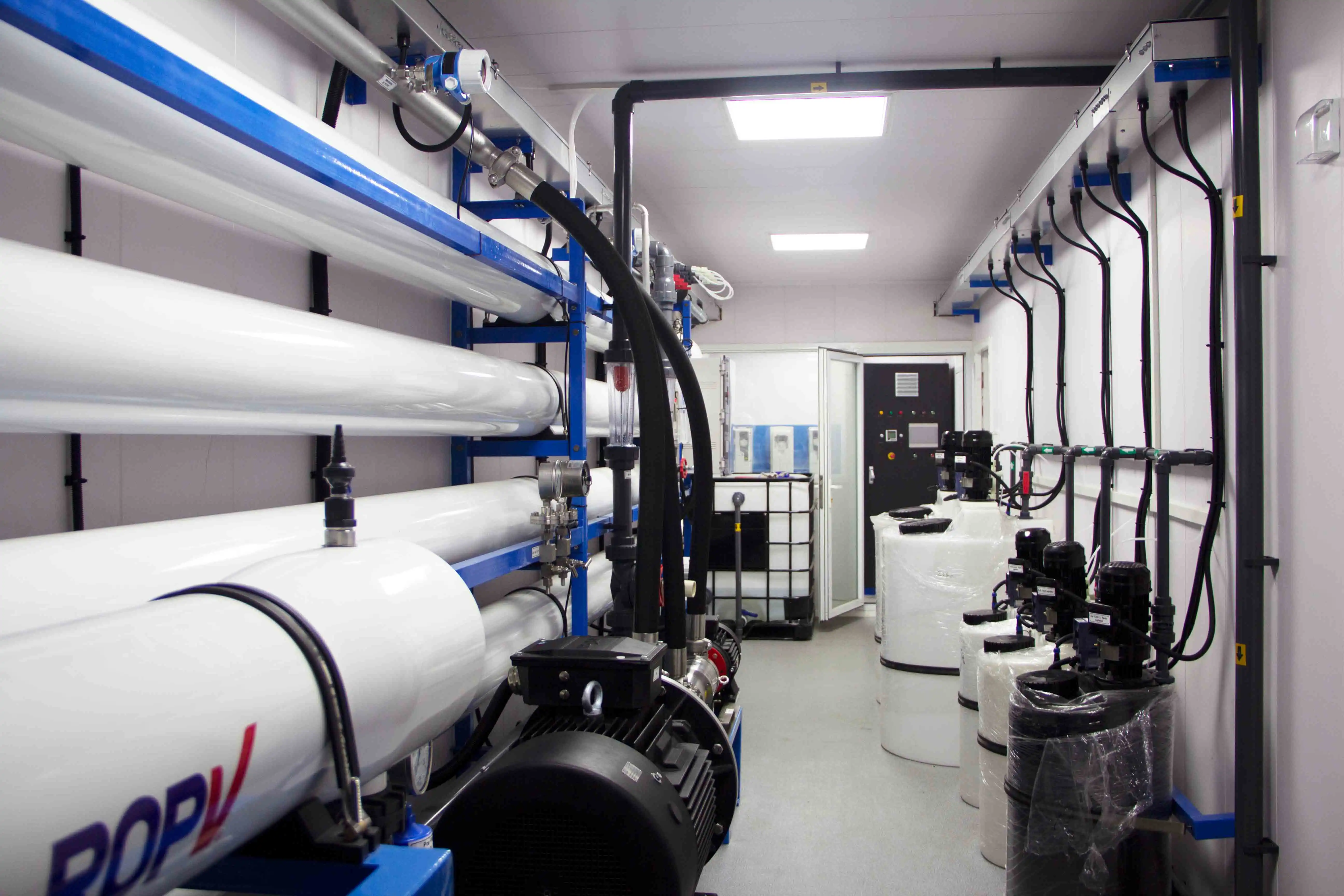

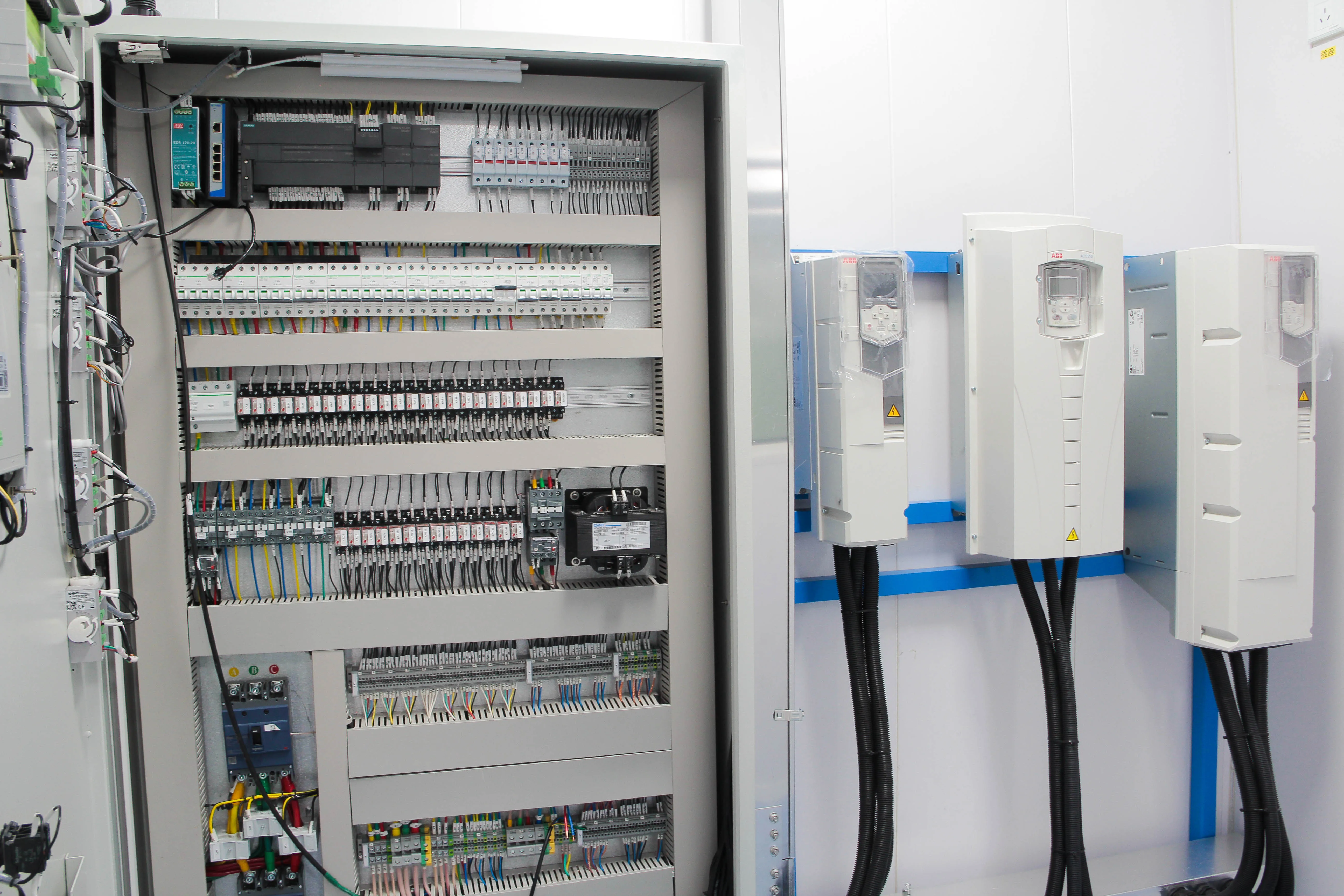

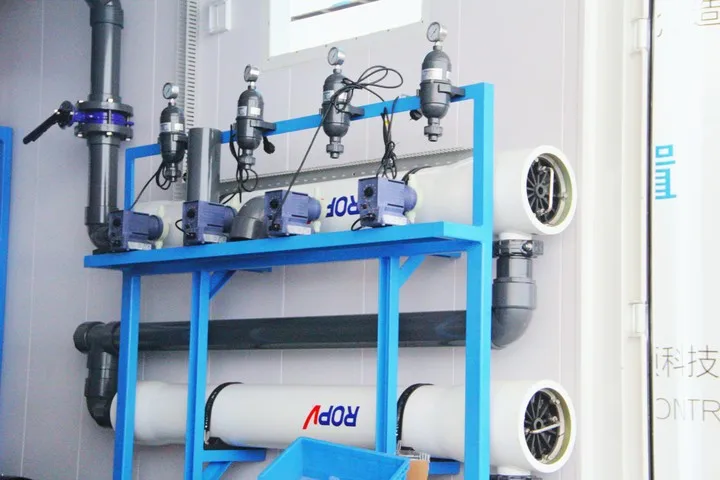

Details Images
Desalination Process
The desalination process is based on Reverse Osmosis (RO) technology. The process starts by fifiltering particles from feed water through multi-media fifilter (No need to use multi-media fifilter if the feed water turbidity is lower than 1 NTU), then entering

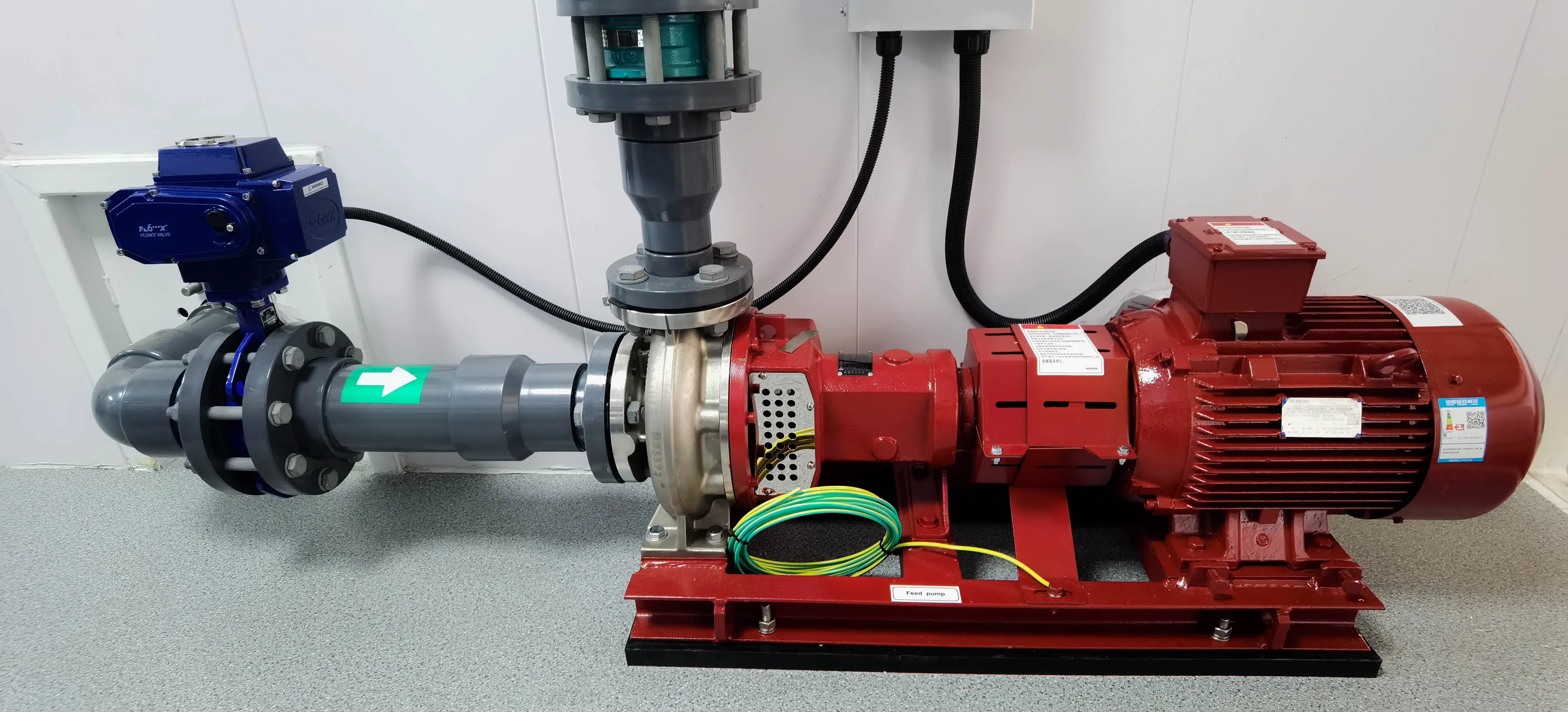

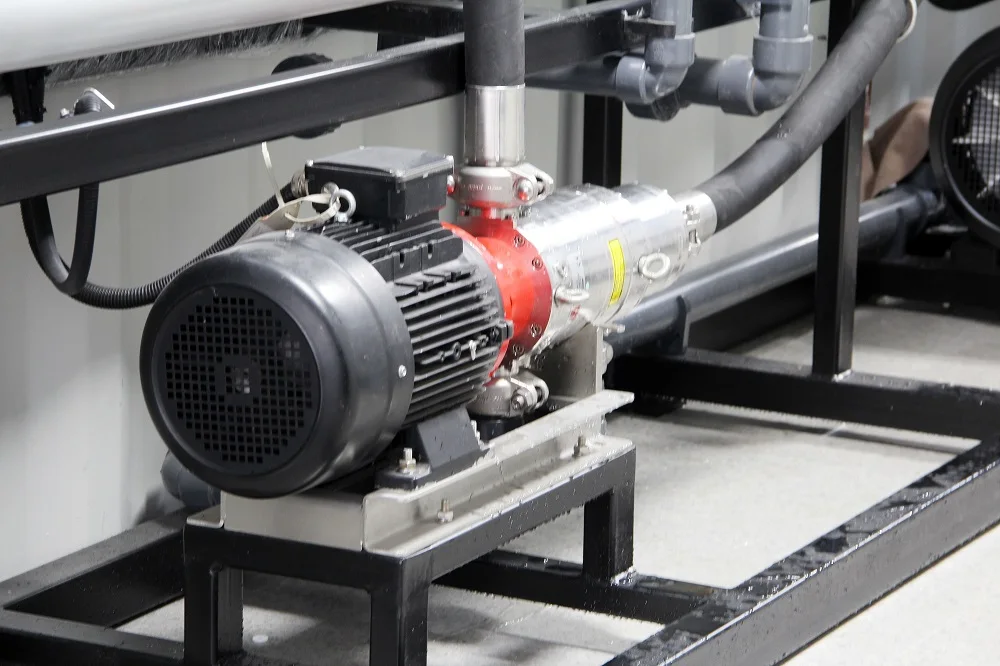

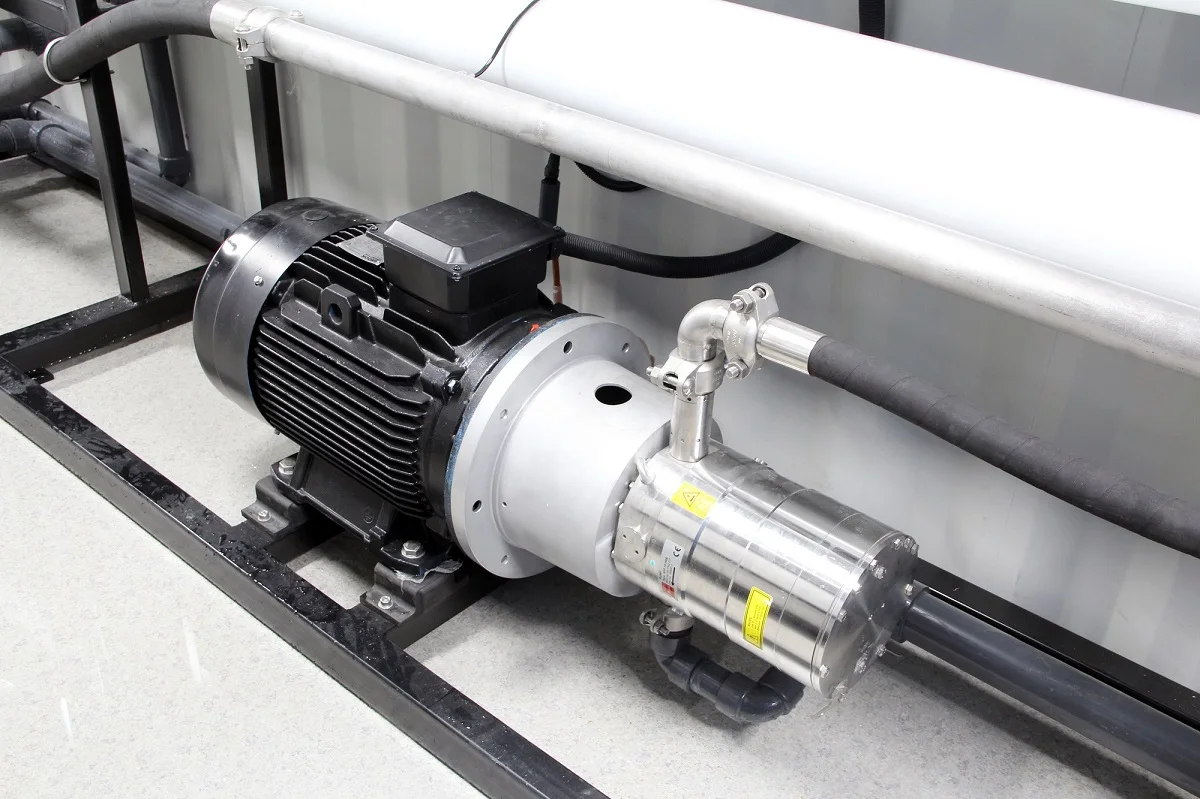

the high-pressure pump. Fresh water is pressurized out through the membrane, while concentrated water is discharged after pressure relief/energy recovering (by energy recovery device).
the high-pressure pump. Fresh water is pressurized out through the membrane, while concentrated water is discharged after pressure relief/energy recovering (by energy recovery device).
Why Choose Us
Specification
Technical data | Unit | C400E | C500E | C800E | C1000E | C1200E | C1500E | C2000E |
Rated product flow | m3/h | 16.7 | 21.3 | 33.5 | 42 | 52 | 65 | 84 |
Rated recovery rate | % | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Rated feed flow | m3/h | 37.1 | 47.8 | 71.1 | 93.3 | 115.6 | 144.4 | 186.7 |
Min system pressure | barg | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Max system pressure | barg | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
RO Membrane Spec. | 8040 | 8040 | 8040 | 8040 | 8040 | 8040 | 8040 | |
RO Membrane Qty. | pcs | 28 | 35 | 56 | 70 | 84 | 105 | 144 |
Weight(dry) | ton | 13 | 13 | 16+8 | 20+8 | 26+9 | 30+10 | 36+10 |
Container size | ft | 40 | 40 | 40+40 | 40+40 | 40+40 | 40+40 | 40+40 |
Type-S container size | ft | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Rated power | kW | 48.8 | 60.3 | 87.3 | 113.6 | 141.8 | 183.1 | 221.8 |
Energy consumption | kW/m3 | 2.88 | 2.80 | 2.74 | 2.71 | 2.73 | 2.82 | 2.64 |
Installed Power | kW | 61.3 | 86.8 | 134.9 | 161.9 | 213.9 | 265.9 | 320.9 |
Related Products
fastRO Robust SWRO Machine is designed to produce high quality portable water from sea water or high salinity brackish water.
iDesalt BWC brackish water reverse osmosis system is a containerized desalination solution, with most parts installed into 1 or 2
containers, and fresh water capacity of 100 to 2,000 m3 /day (4,080 - 83,270 liters/hour).
containers, and fresh water capacity of 100 to 2,000 m3 /day (4,080 - 83,270 liters/hour).
iDesalt AGRO series is a modular Brackish Water Reverse Osmosis (BWRO) machine designed to produce freshwater for irrigation
purposes.
purposes.
Company Profile
QT Group is a corporation dedicated on membrane separation, with the expertise of water treatment over 30 years.
"Processing seawater and wastewater into valuable resource", QT ENVIRO-TECH LTD was established in 2011 and aims to be the leading solution provider for seawater desalination and waste water recycling. We value trustworthiness, people-oriented and continuously improving.
"Processing seawater and wastewater into valuable resource", QT ENVIRO-TECH LTD was established in 2011 and aims to be the leading solution provider for seawater desalination and waste water recycling. We value trustworthiness, people-oriented and continuously improving.
Our Services
Services Available
● Online support
● Free spare parts
● Install supervision
● Commissioning
● Operating&Maintenance support
● Troubleshooting and repairing
● Free spare parts
● Install supervision
● Commissioning
● Operating&Maintenance support
● Troubleshooting and repairing
