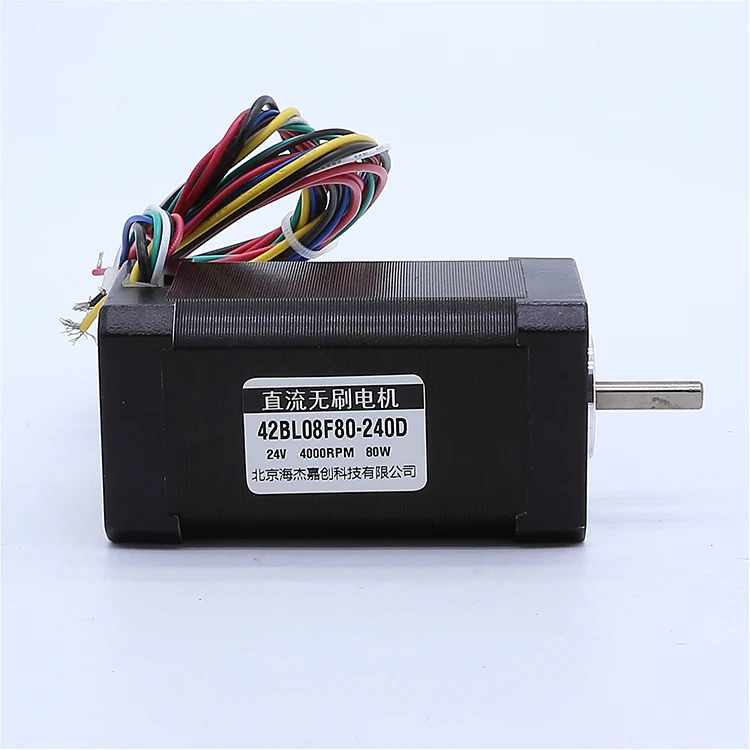

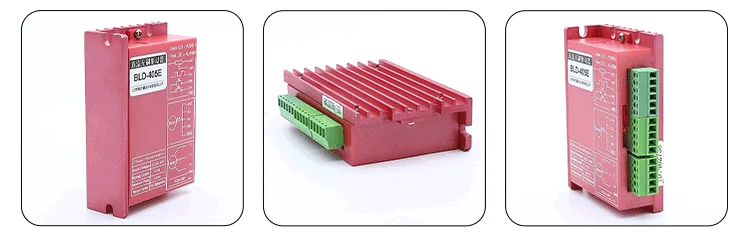

Brushless DC motor 42BL08F80 240D BLD 405E for Various types of machinery and equipment
- Category: Motor Driver >>>
- Supplier: Beijing Haijie Jiachuang Technology Co. Ltd.
Share on (1600379662773):
Product Overview
Description

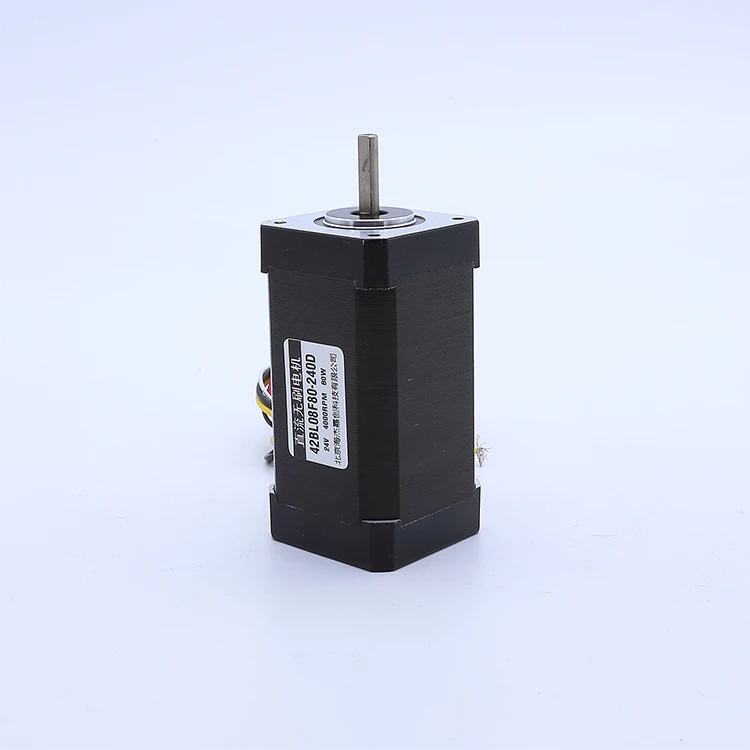

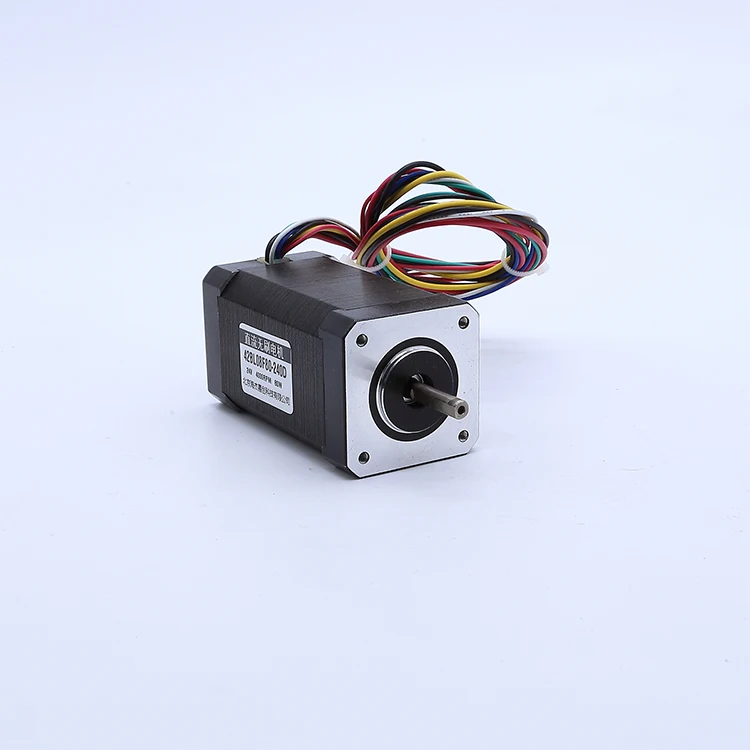

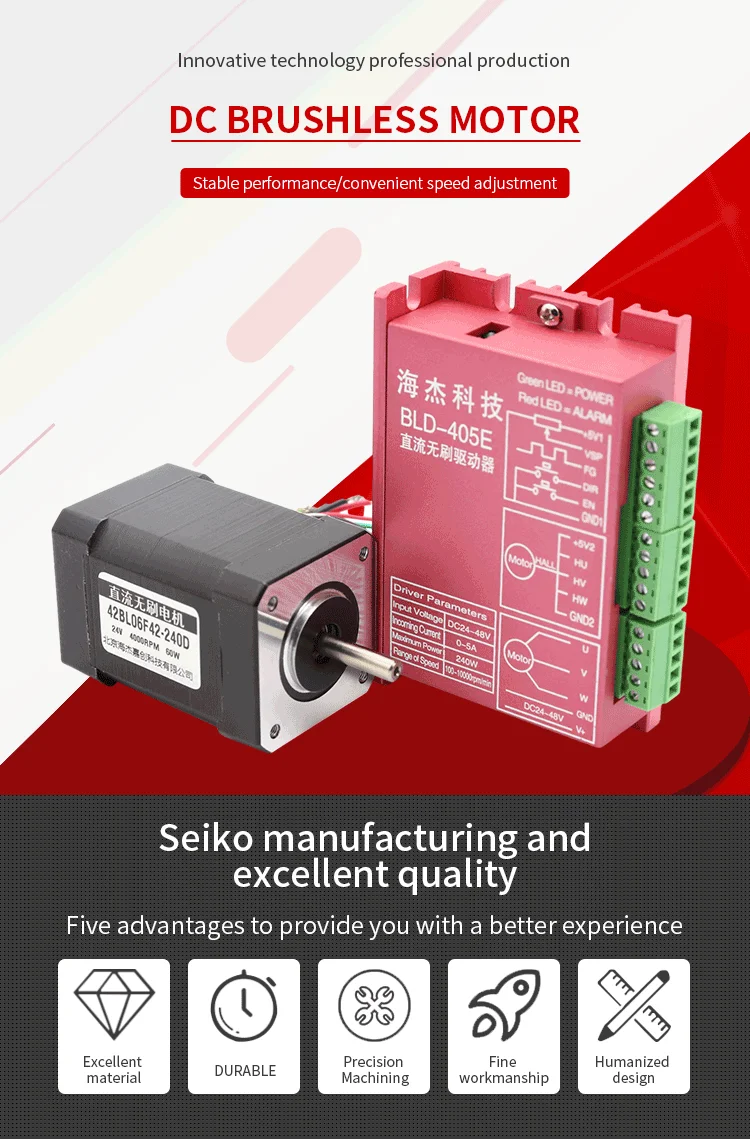

Brushless DC motor 42BL08F80-240D+BLD-405E for Various types of machinery and equipment
Product Paramenters
Products Description
Model | 42BL03F41-240D | 42BL06F62-240D | 42BL08F80-240D | 42BL10F100-240D |
Power W | 30 | 60 | 80 | 100 |
Voltage V | 24 | 24 | 24 | 24 |
Current A | 1.6 | 3.2 | 4.6 | 5.8 |
Rev. rpm | 4000 | 4000 | 4000 | 4000 |
Torque N.m | 0.07 | 0.14 | 0.2 | 0.24 |
Max Torque N.m | 0.21 | 0.42 | 0.6 | 0.72 |
Poles NO. | 8 | 8 | 8 | 8 |

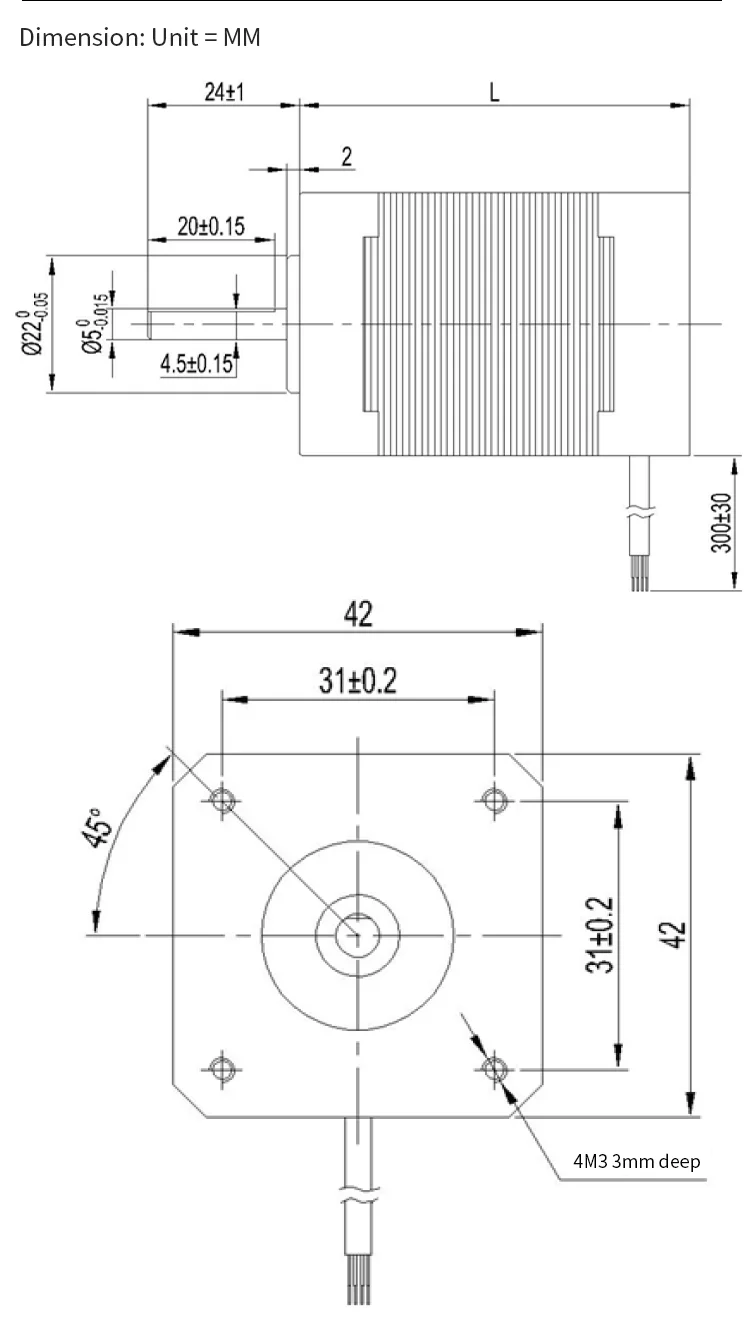

Length L mm | 41 | 62 | 80 | 100 |
Wdight kg | 0.32 | 0.5 | 0.66 | 0.83 |
Phase Line | Hall Pw. | Hall signal | ||||||||||
U | V | W | H+(Vcc) | H-(Gnd) | Hu | Hv | Hw | |||||
Red | Yellow | Black | Red | Blcak | Blue | Green | White | |||||
Recommend Products

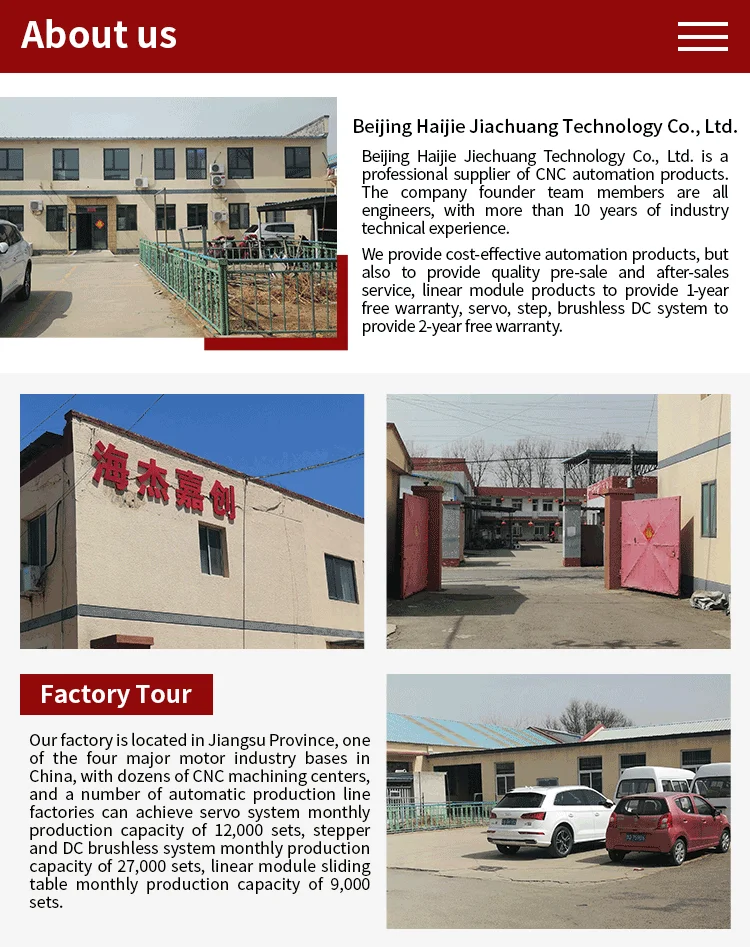

Company Profile

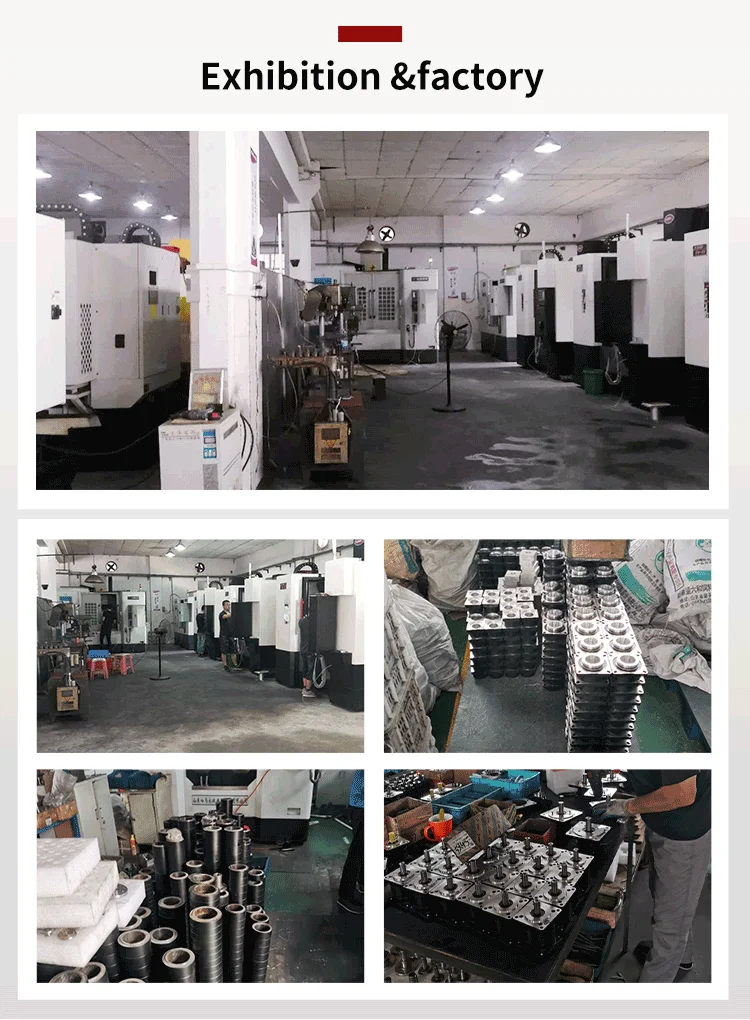

Exhibition
Certifications
Product packaging
FAQ
1.What's the order process?
1）Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial
quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and
the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1）Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial
quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and
the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
