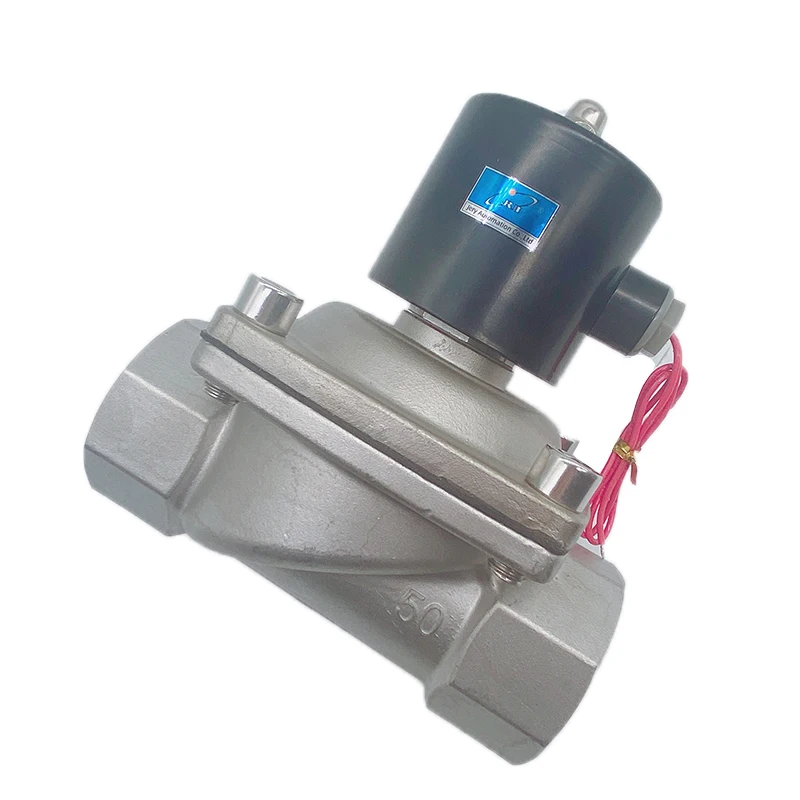

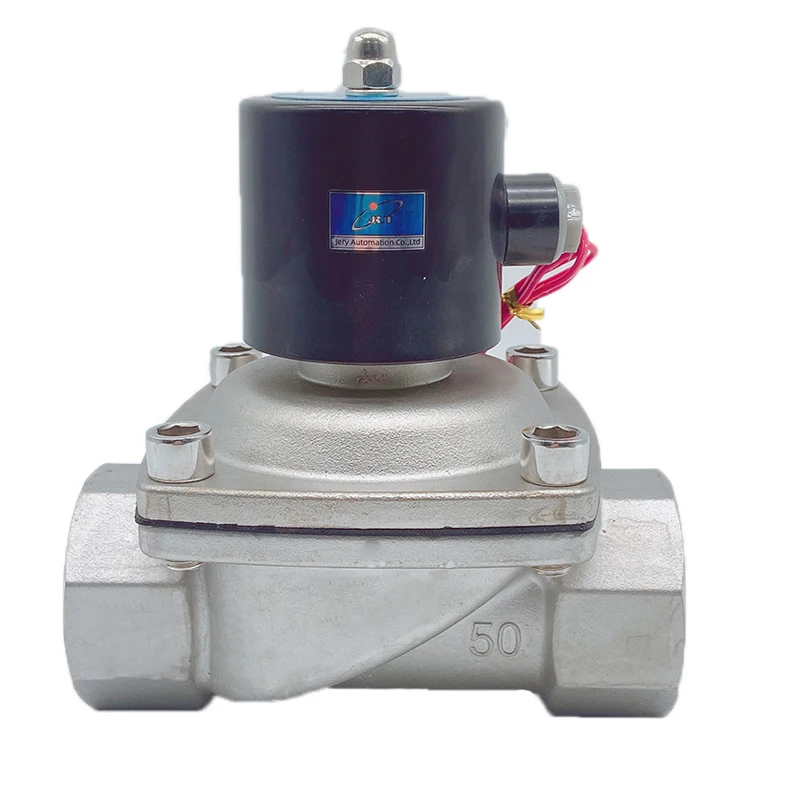

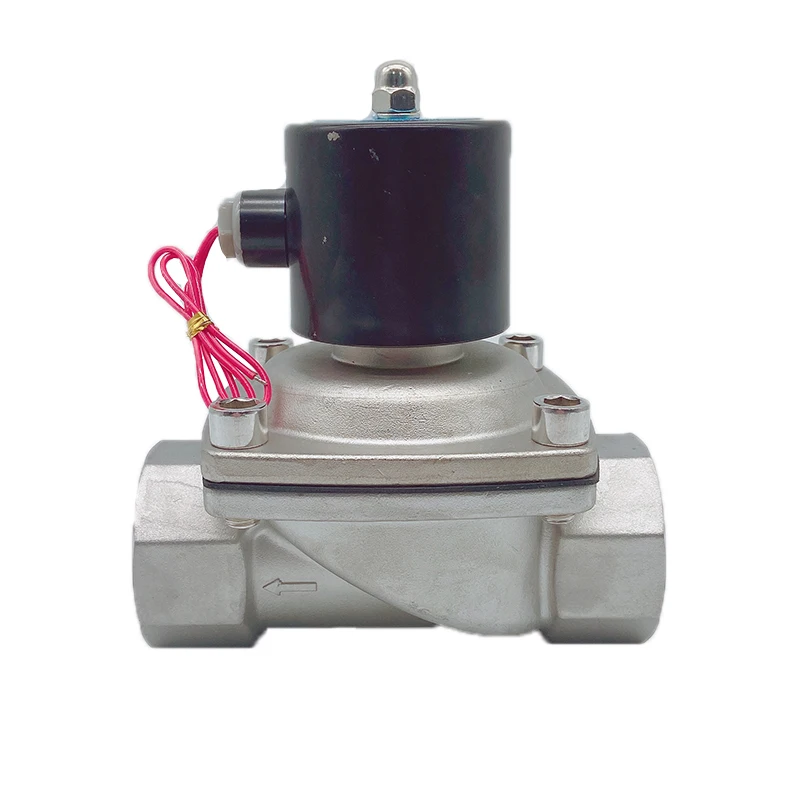

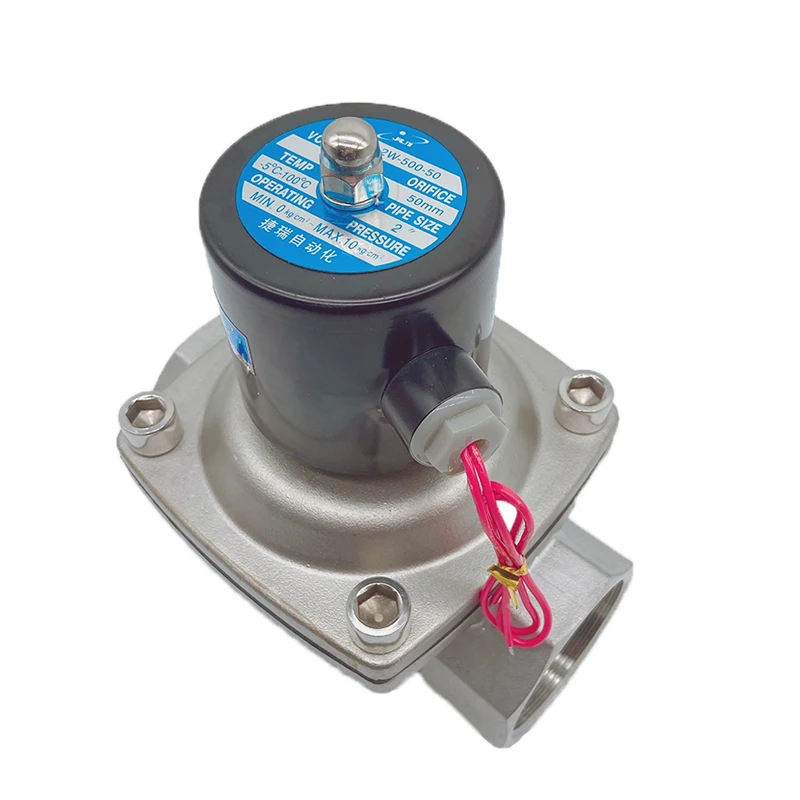

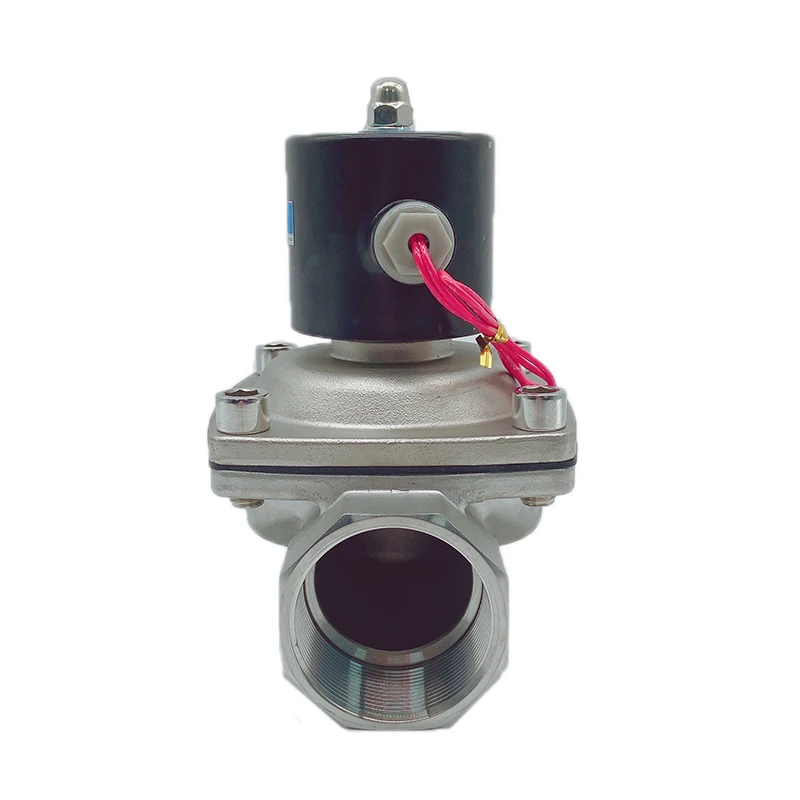

Best Price 2' Stainless Steel DN50 Water Air Solenoid Valve 12v Dc 220v Ac 2S500 50 Valve (1600384060366)

Share on:


Price:$62.20 - $83.00
Price in USD:Details

Quantity:


Product Overview

Description






Best Price 2'' Stainless Steel DN50 Water Air Solenoid Valve 12v Dc 220v Ac 2S500-50 Valve


1.Direct acting, diaphragm structure, can be work at zero pressure

2. expanding the using area

3.Plate diaphragm structure , high reliability, long life

4. valve boday can be made from brass, stainless steel

5. plastic encapsulatiing coil ,be able to use under numerous environment






Model
2S025-08
2S040-10
2S160-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Working medium
Air、Water、Oil、Gas
Operation
Direct Acting
Acting Type
Normal Close
Orifice Size(mm)
2.5mm
4mm
16mm
20mm
25mm
35mm
40mm
50mm
CV Value
0.23
0.60
4.8
7.6
12
24
29
48
Port Size(mm)
G1/4''
G3/8''
G3/8''
G1/2''
G3/4''
G1''
G1 1/4''
G1 1/2''
G2''
Operation Fluid Viscosity
20CTS Below
Operating Pressure
0~0.7MPa
Air,Gas:0~0.7MPa;Water,Oil:0~0.5MPa
Max. Pressure Resistance
1.05MPa
Operating Temperature
-5~80℃
Voltage Range
±10%
Material of Body
Stainless Steel
Material of Oil Seal
NBR,EPDM,VITON

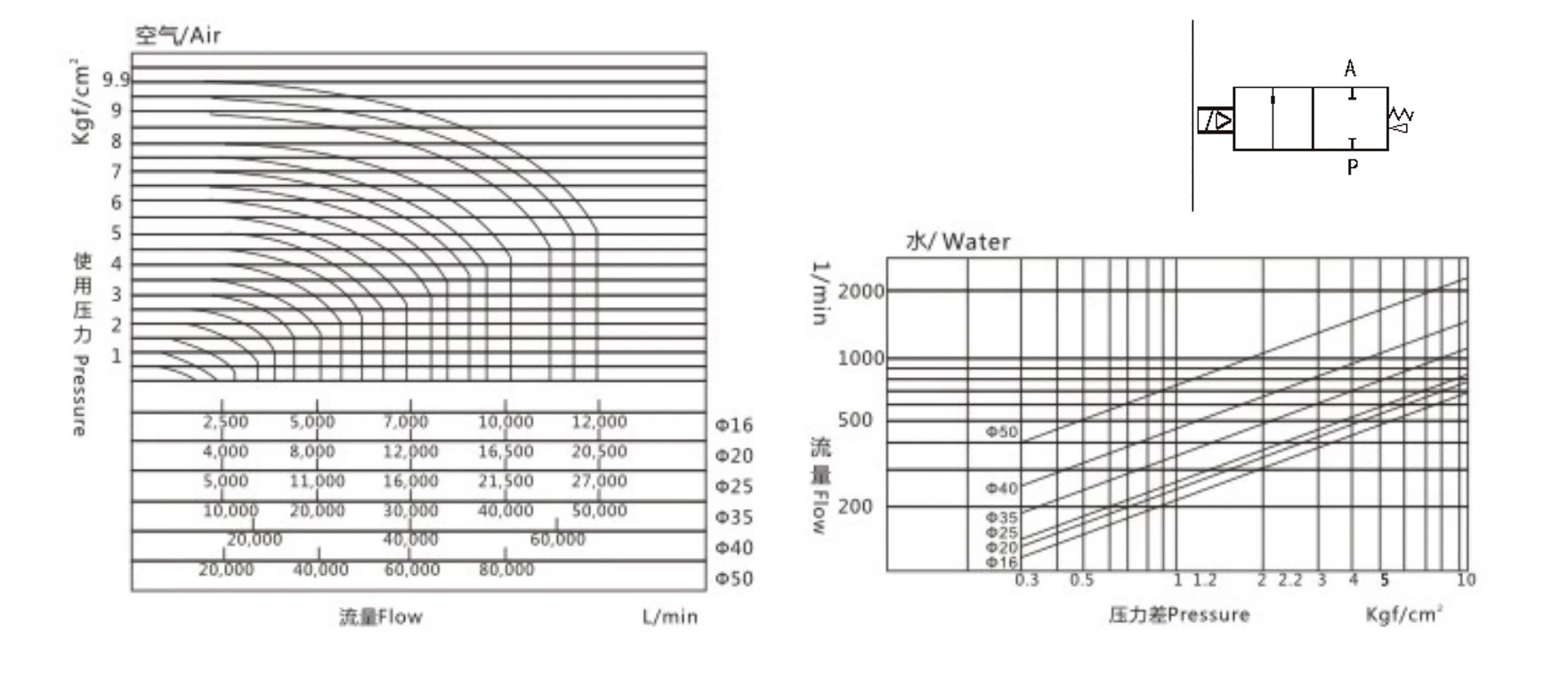

Flow Chart

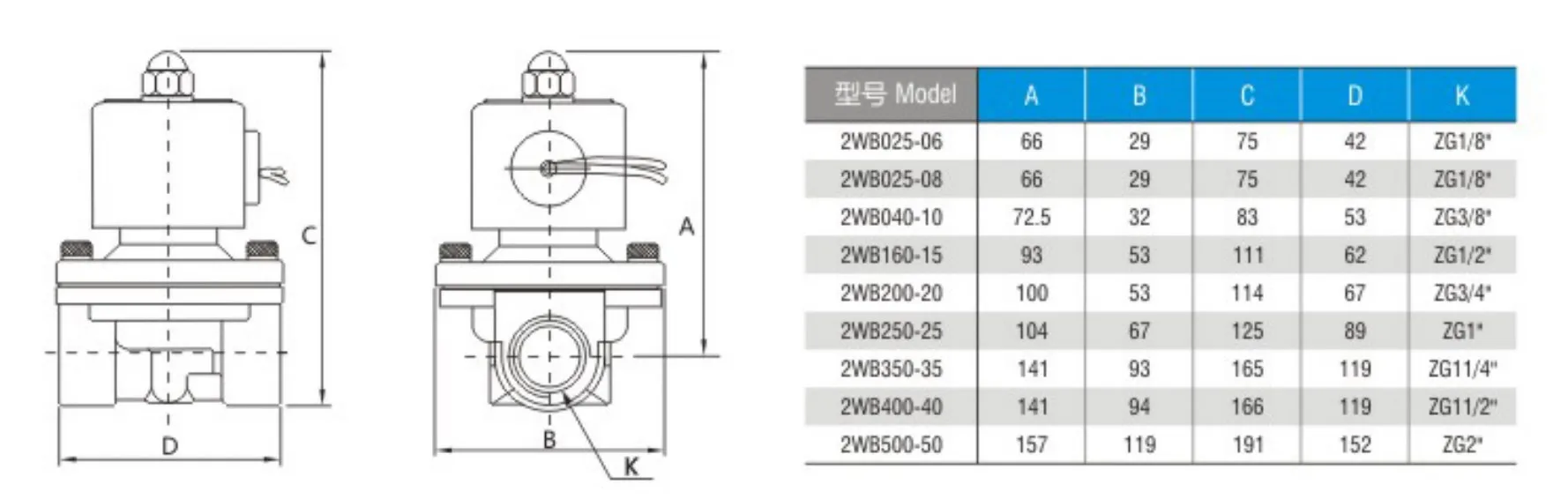

Overall Dimension








1.Q: Are you trading company or manufacturer ?
A: Our factory in Ningbo Fenghua and our export office in Ningbo.

2.Q: What type of diaphragm used in oil media?
A: Usually, NBR, VITON, PTFE, and EPDM diaphragms are applicable in oil media.

3.Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.

4.Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, brass valve,screw air compressor solenoid valve, automobile valve,air treatment units and air suspension.

5.Q: I have a drawing for customized valve, can you do it?
A:Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.

6.Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.

7.Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs onlineonce you contact.

8.Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.

9.Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot pressure. The coil in this case is used to control the pilot for the pilot piston.

10.Q: How many materials can be used apply to solenoid valve ?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.

11.Q:About samples
A:We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.

12.Q:For OEM products
A:We will finish the production within 20 days after payment has been confirmed.
