JAGUAR 8 Zones Lead-free Hot Air Reflow Oven R8
Introduction:
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 8 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

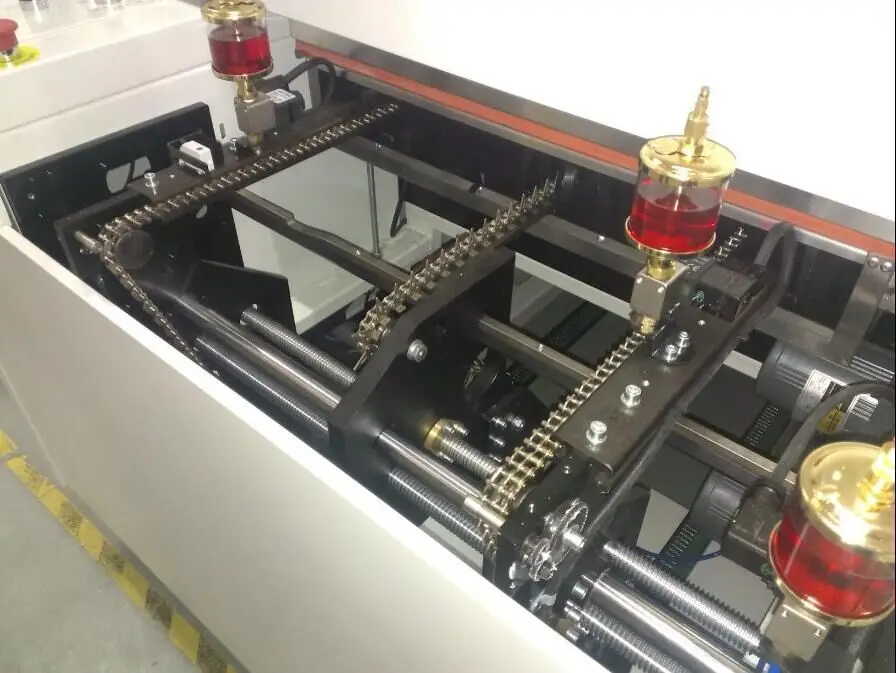

11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 8 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
Product Paramenters
Model | JAGUAR R8 | ||
Heating System | Number of Heating Zone | Top 8 Bottom 8 | |
Heating Passage | 3121mm | ||
Heating Style | Hot Air | ||
Number of Cooling Zone | Up 2 Bottom 2 | ||
Cooling Style | Air Oven: Forced Air (Optional:Nitrogen Oven: Water Chiller) | ||
Conveyor System | Max. Width of PCB | 420mm | |
Mesh belt width | 500mm | ||
Conveyor Direction | L→R(or R→L) | ||
Process Height | 900±20mm | ||
Conveyor Type | Mesh belt and Chain conveyor | ||
Conveyor Speed | 0-2000mm/min | ||
Manual Lubrication | Standard | ||
Hook Lift | Electrical Screw Pole | ||
Fixed Rails side | Front Track Fixed (Option: Rear Rail Fixed) | ||
Product Clearance | Top and Bottom 25mm | ||
Control System | Power Supply | 5line 3phase 380V 50/60Hz | |
Total Power Consumption | 38kw | ||
Startup Consumption | 30kw | ||
Steady Consumption | 6-9KW | ||
Ramp Up Time | About 25 mins | ||
Temp. Setting Range | Room Temperature-300℃ | ||
Temp. Control Method | PID Close Loop Control & SSR driving | ||
Temp. Control Precision | ±1℃ | ||
Data Storage | Process Data and Status Storage(80GB) | ||
Nozzle Plate | Aluminum Alloy Plate | ||
Abnormal Alarm | Abnormal Temperature. (Overtemp/Low temp.) | ||
Board Dropped Alarm | Tower Light: Amber-warming, Green-normal, Red-abnormal | ||
General | Dimension(L*W*H) | 5300×1400×1550mm | |
Weight | 1950KG | ||
Color | Computer Grey | ||
Details Images
