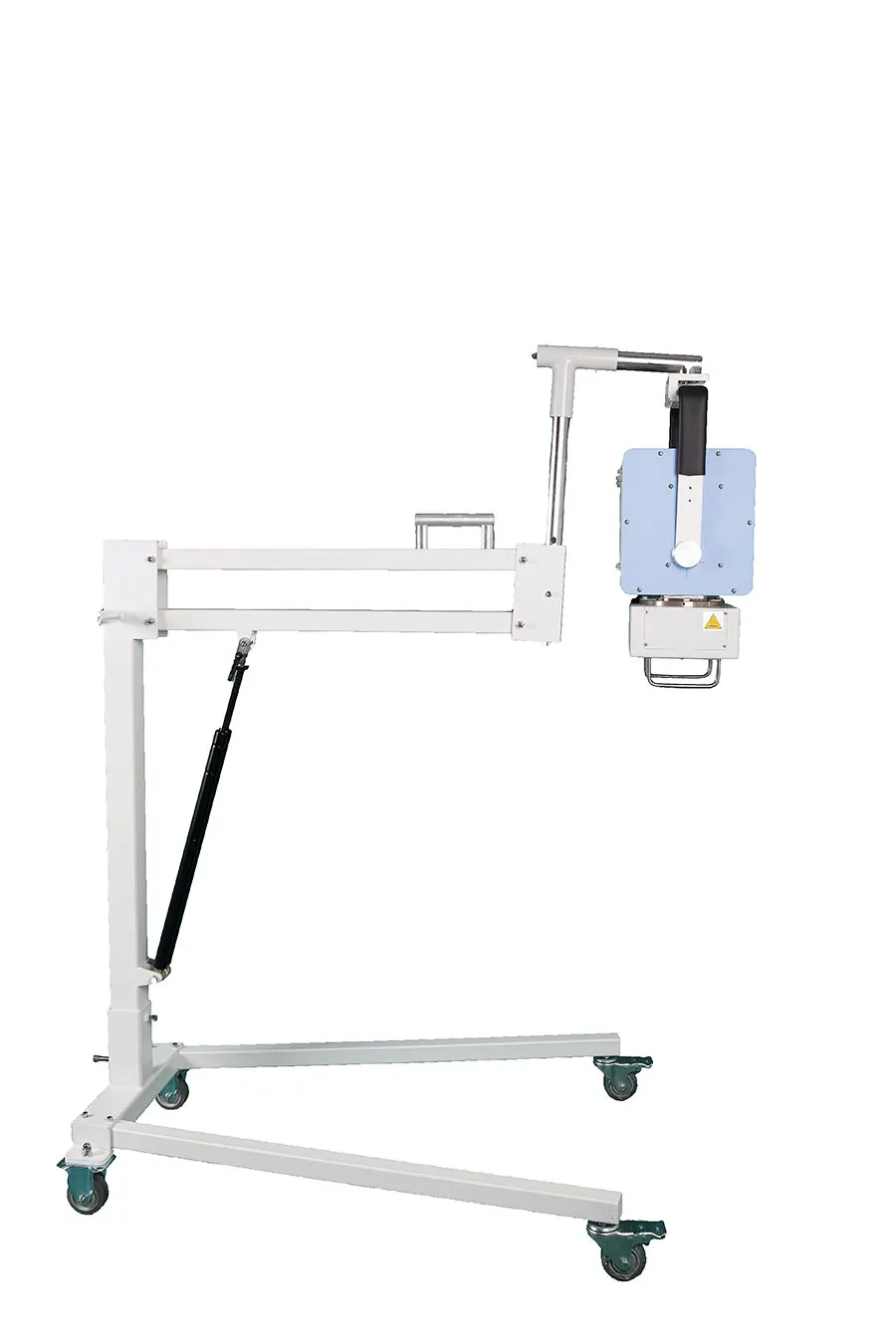

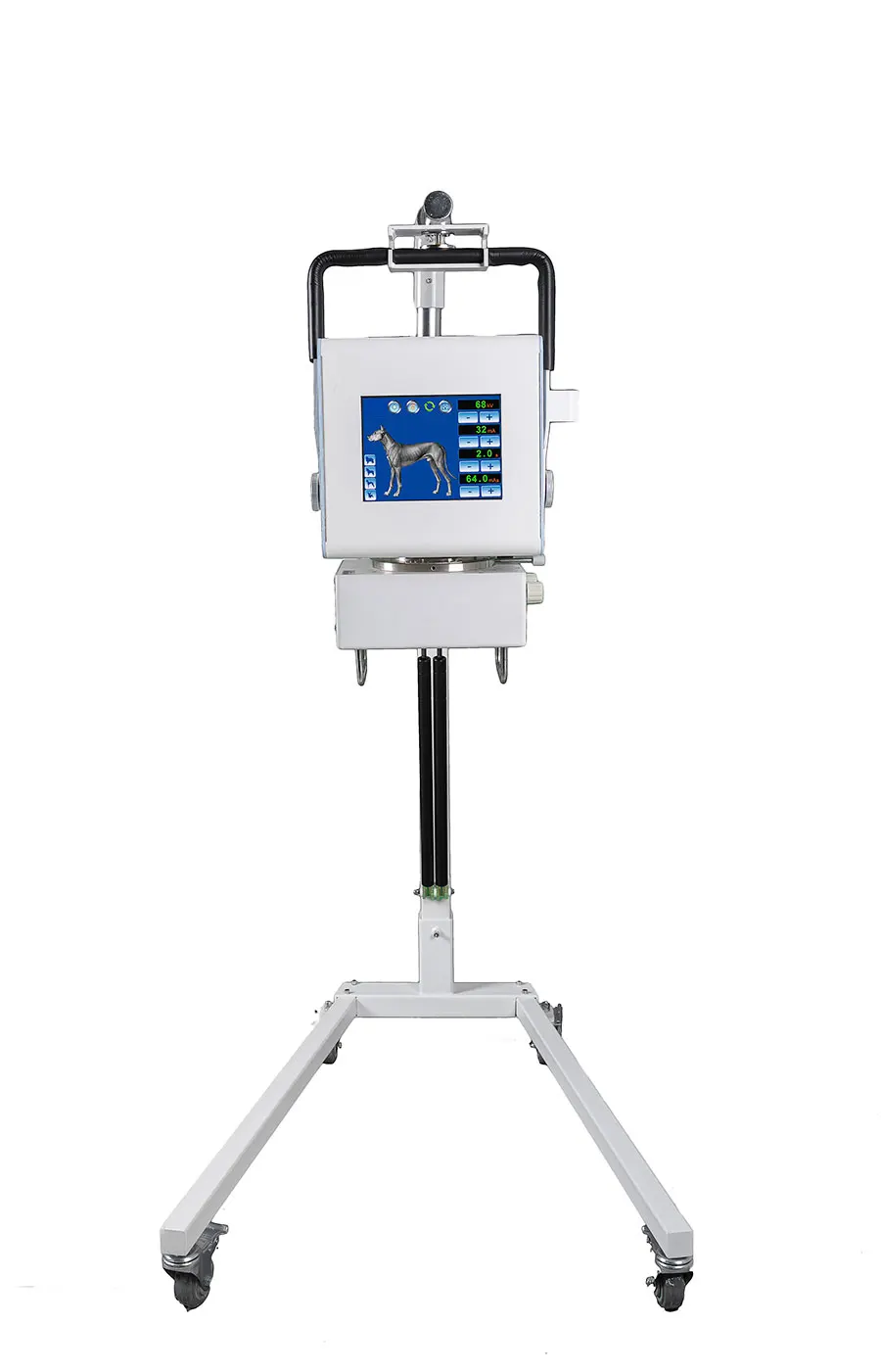

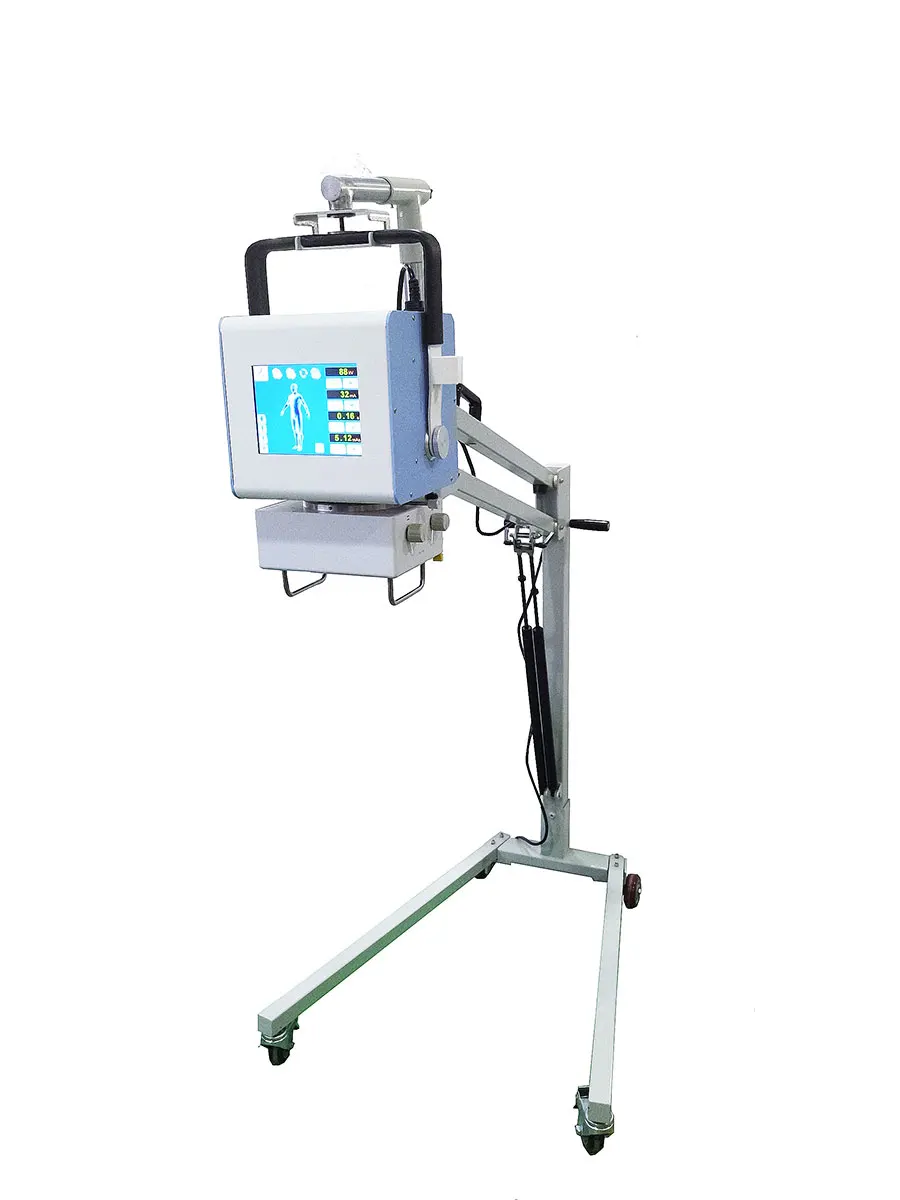

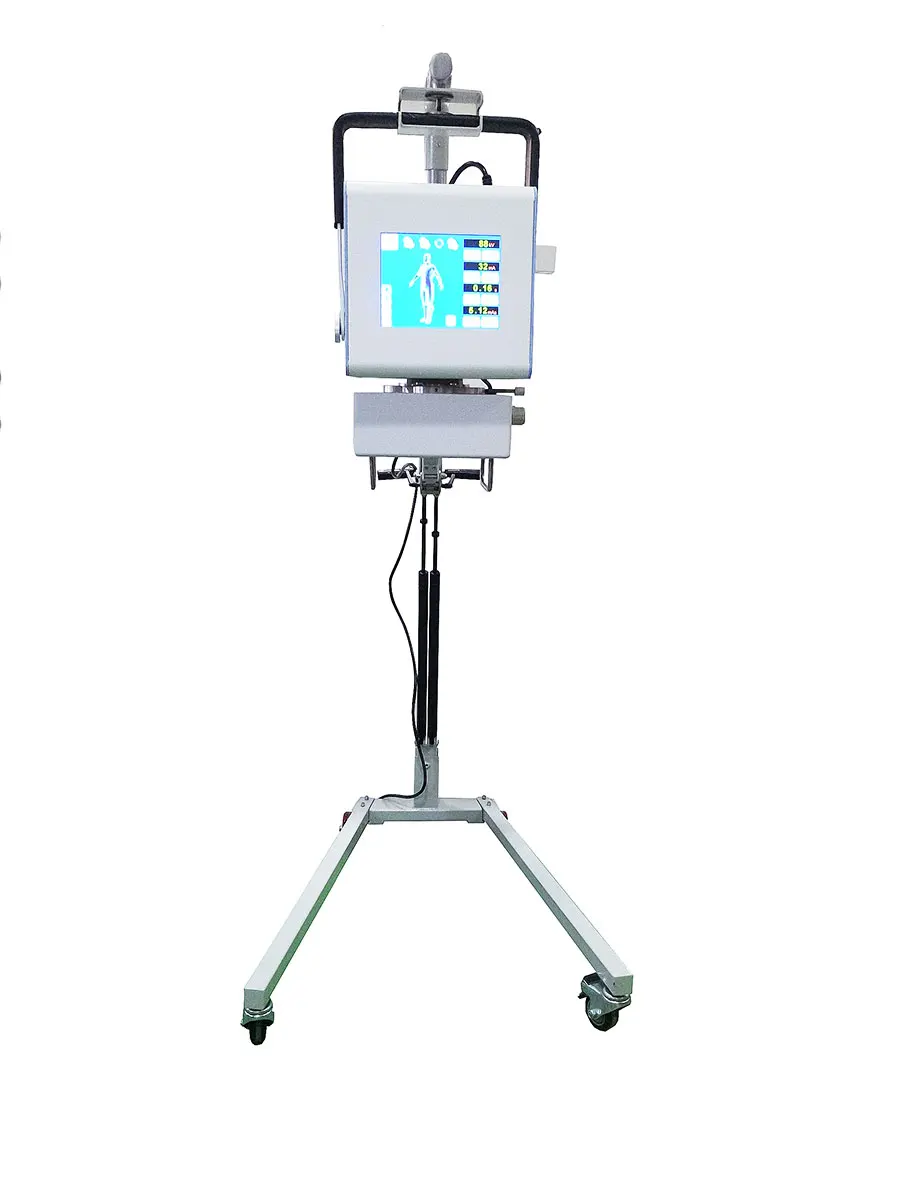

digital X ray machine 3.5kw/5kw/8kw for human or vet veterinary instrument mobile DR x ray equipment with flat panel detector
- Category: >>>
- Supplier: Medsinglong Co. Ltd.Medsinglong Ltd.
Share on (1600397101969):
Product Overview
Description
Product Description

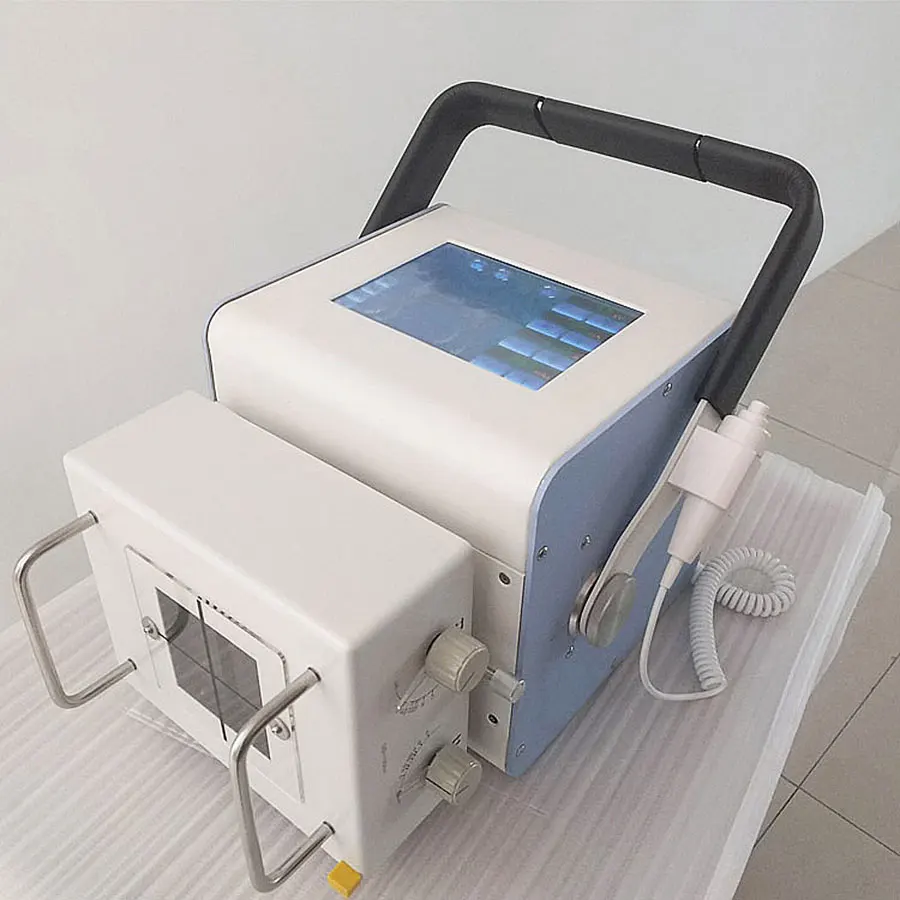

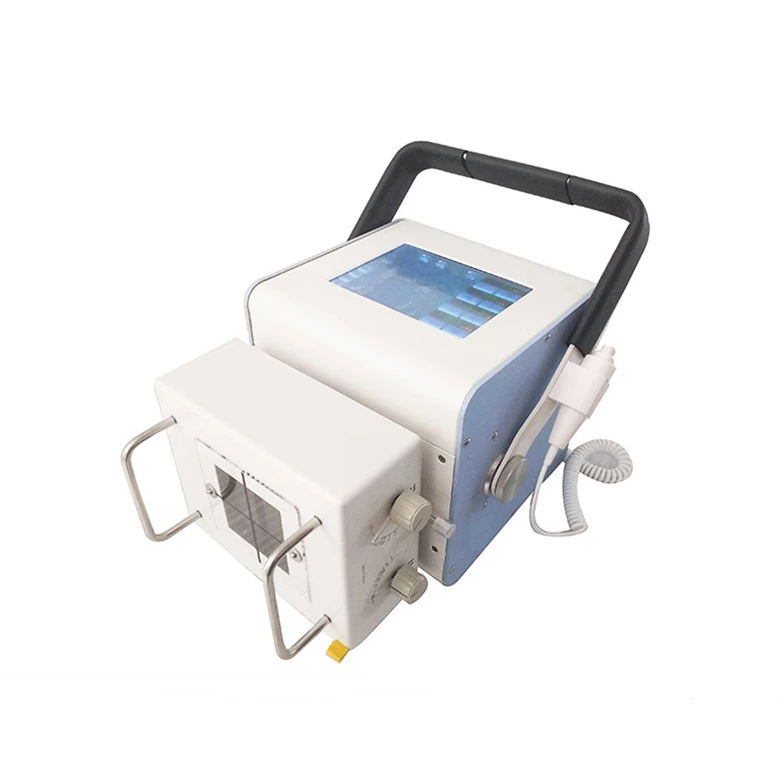

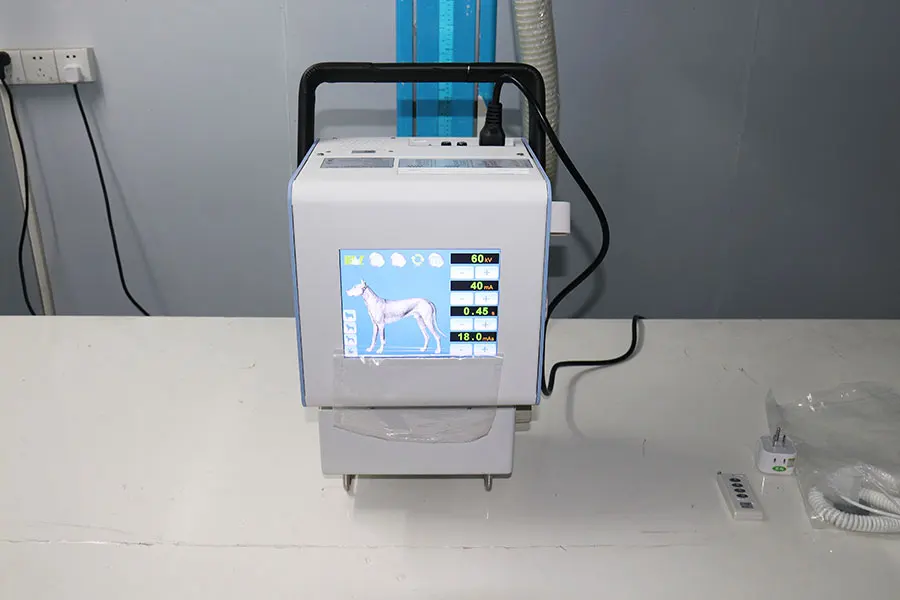

MSLGX01-01 Portable 3.5/5/8KW high frequency
X-ray machine medical high-frequency equipments
Maximum output power | 3.5/5/8KW | ||||||
Power capacity | 100kV@80mA/100kV@50mA/70kV@50mA | ||||||
mAs range | 0.32-400mAs/0.32-315mAs/0.32-200mAs | ||||||
Exposure time range | 0.01-6.3s/0.01-4s | ||||||
Input power type | 220V ±10%, 50Hz/60Hz Or 110V ±10%, 50Hz/60Hz | ||||||
External dimensions of mainframe cabinets | 297*239*516（mm） | ||||||

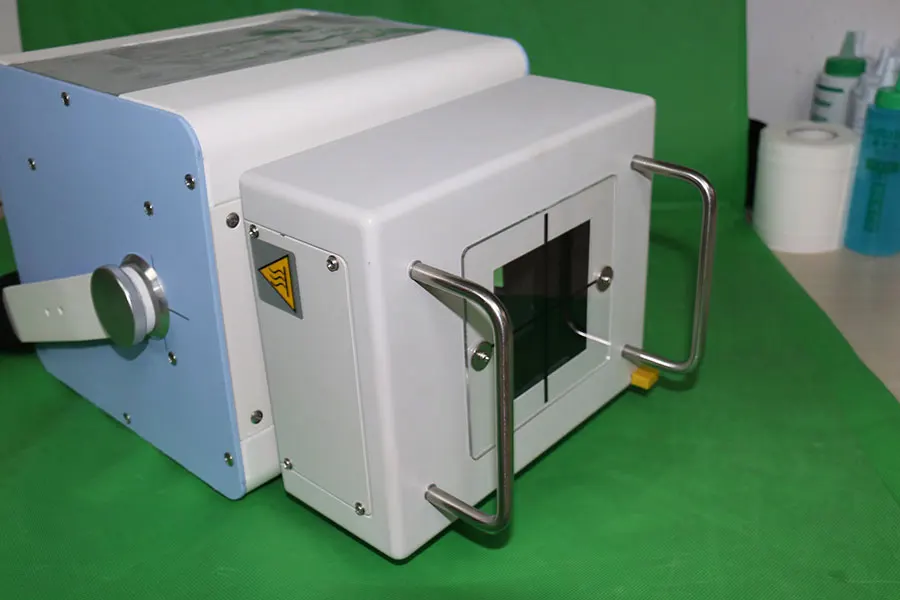

External dimensions of collimator | 171*171*150（mm） | ||||||
Input Power | 4.5kVA | ||||||
Over-current Releaser | 20A/220V/110V | ||||||
Fuse | 20A/220V/110V | ||||||
Ambient Temperature | 5℃～40℃ | ||||||
relative humidity | 30%～75% | ||||||
Atmospheric Pressure | 70.0kPa～106.0kPa | ||||||
Photographic Time Product | 0.32mAs ～ 200mAs | ||||||
Fearture:
1.High frequency inverter technology is adopted to produce ,output high pressure is stable,good image quality can be obtained;
2.The compact design makes it easy to carry out work in different areas and locations;
3.With three exposure control methods:Tekecontrol/hand brake/Interface button;
4.Fault self-diagnosis ,self-protection;
5.With flexible digital interface ,offer SDK protocol,users can control the core programming deeply and can be suitable for different DR detectors
1.High frequency inverter technology is adopted to produce ,output high pressure is stable,good image quality can be obtained;
2.The compact design makes it easy to carry out work in different areas and locations;
3.With three exposure control methods:Tekecontrol/hand brake/Interface button;
4.Fault self-diagnosis ,self-protection;
5.With flexible digital interface ,offer SDK protocol,users can control the core programming deeply and can be suitable for different DR detectors
Working Principle
X-ray machine is a portable equipment for X-ray examination and diagnostic
photographers in ward, radiology department, orthopedics department, physical examination department and emergency room of medical unit.
Routine medical X ray diagnosis
● Bedside diagnosis in the ward
● Trauma diagnosis
● X-ray department
● Animal clinic

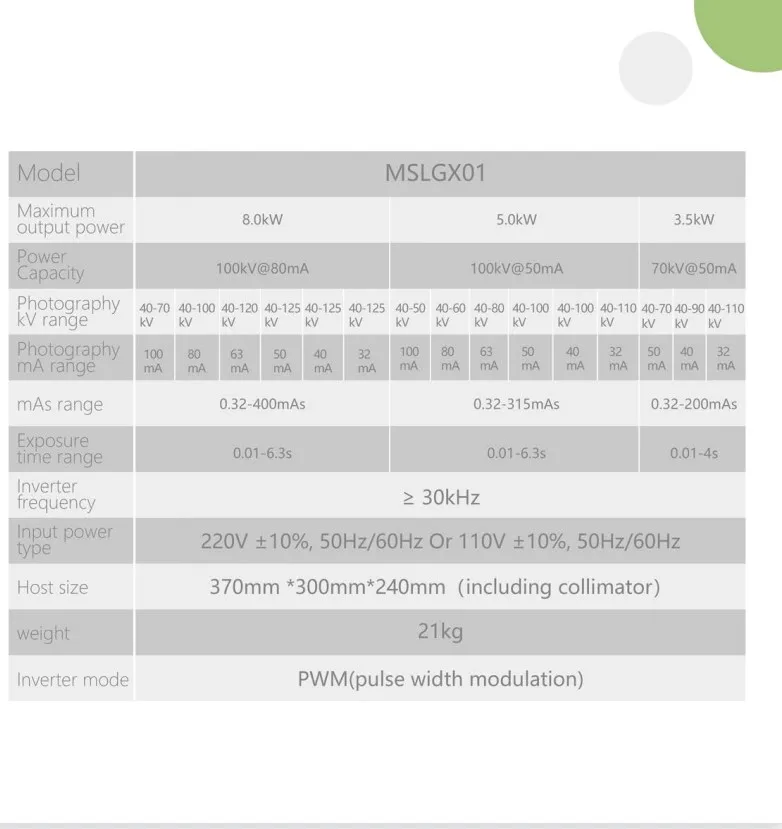

Specification
