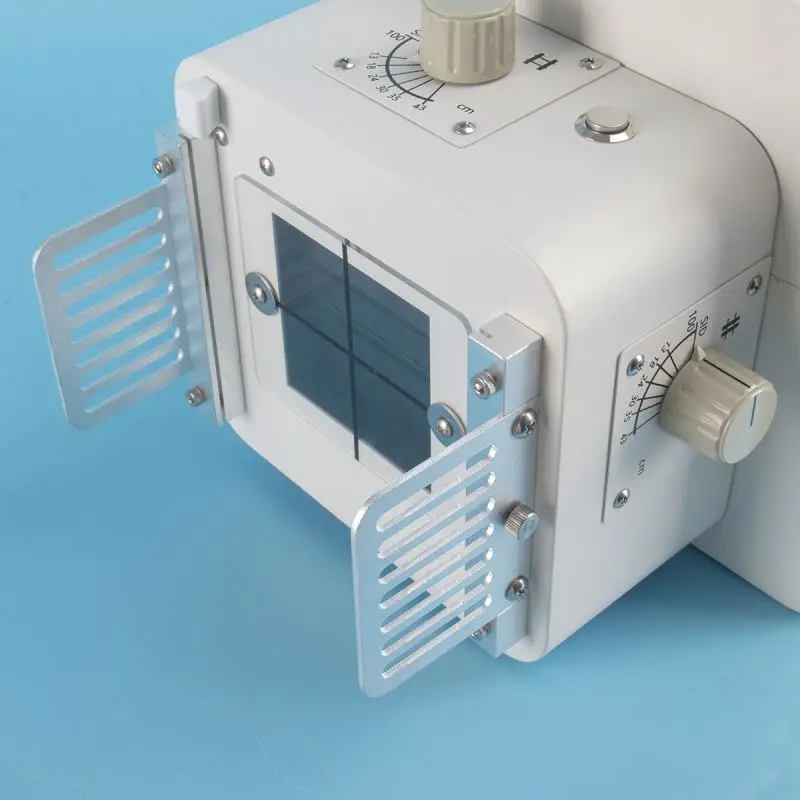

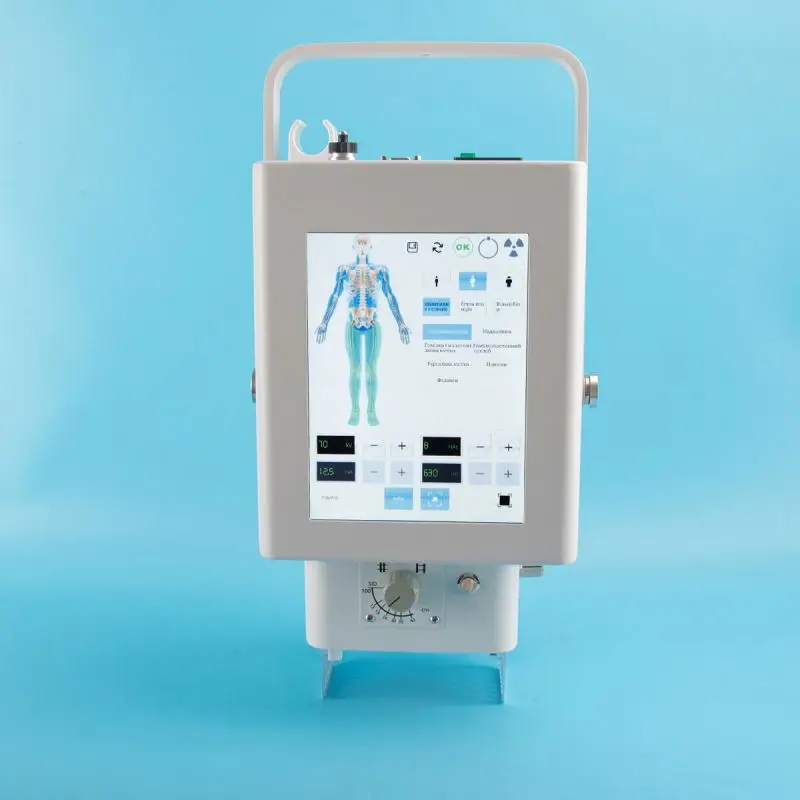

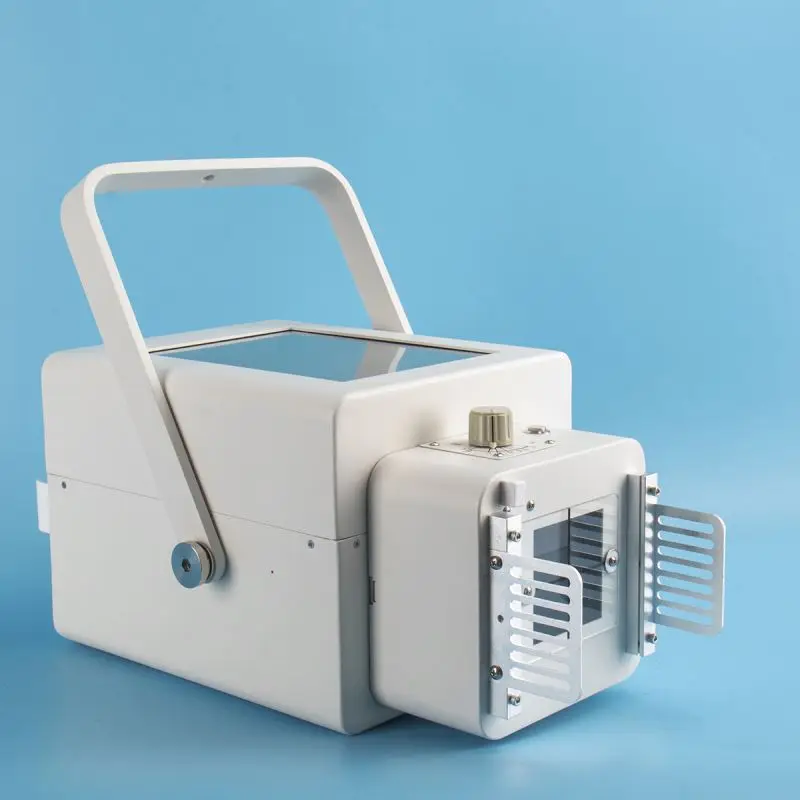

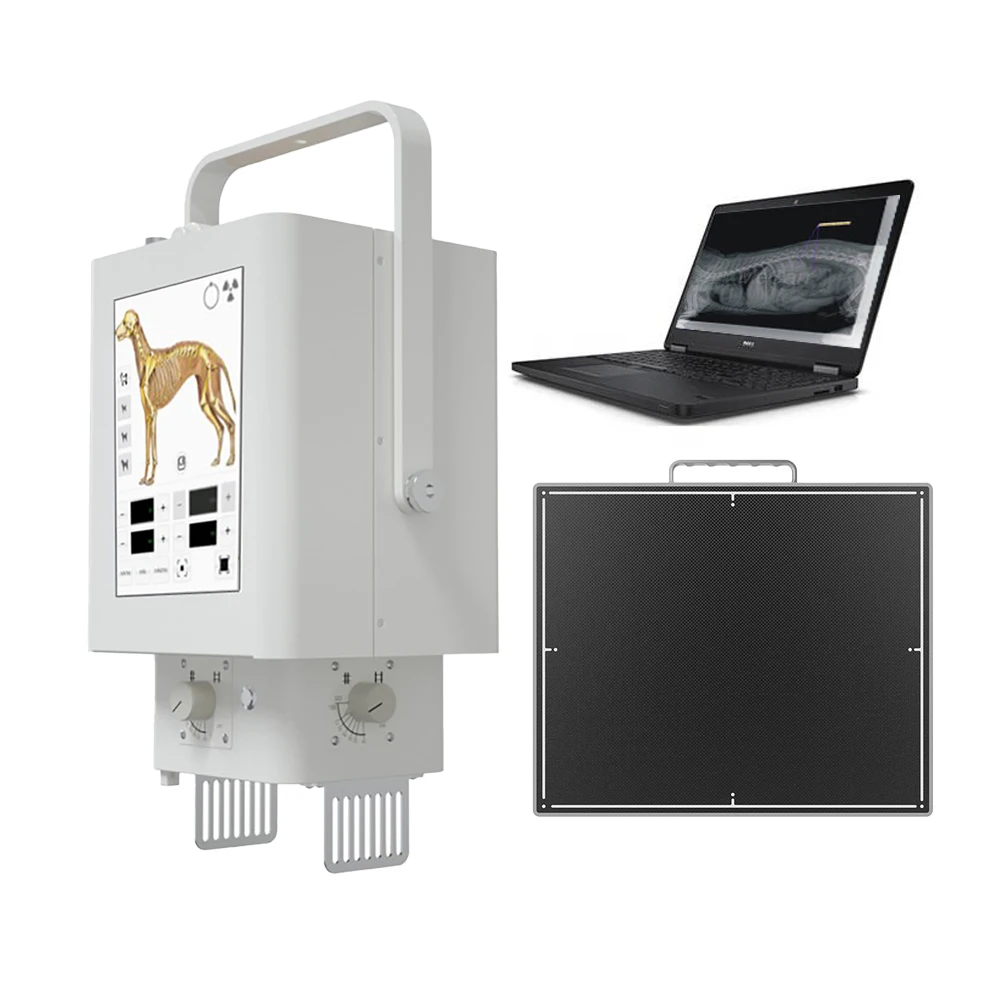

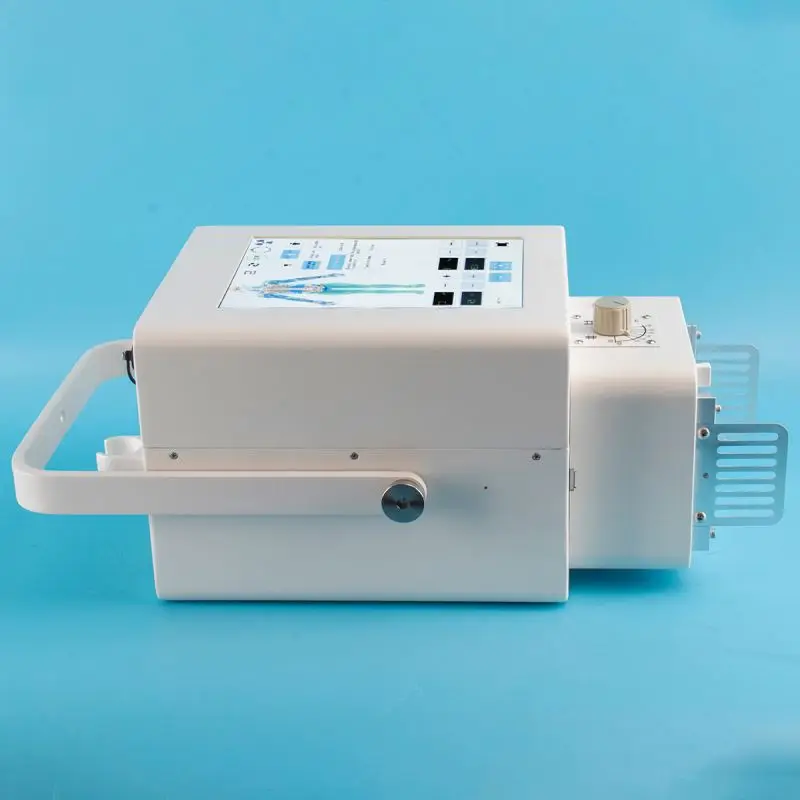

Medical Radiology Diagnostic Equipment maquina de rayos x periapical digital mobile x ray machine
- Category: >>>
- Supplier: Medsinglong Co. Ltd.Medsinglong Ltd.
Share on (1600893436626):
Product Overview
Description
Product Description
Specification
Features:
1. Wide-range AC input with APFC integrated.
2. Soft switching technology, switching frequency is up to 100KHz.
3. Support 5.3kW and 200mAd exposure.
4. Support remote monitor with wireless communication integrated.
5. High degree of software intelligence: filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
6. Operator panel seperated as human and veterinary according to different purpose.
General Parameter | ||
Output Power | 5.3KW | |
Rated Voltage | 220VAC, ±10%，50/60Hz | |
Inverter Frequency | 100kHz ±5% | |
kV accuracy | ≤±（5%)(mA＞25mA, ms＞5） ≤±（10%+1mA)(mA≤25mA,） | |
Rotor | Fixed Rotor | |
Exposure Parameter | ||
kV range | 40kV-125kV, 1kV step | |
mA range | 10-100mA(R'20) | |
ms range | 1-4000ms(R'20) | |
ms accuracy | ≤±(5%+0.2ms) | |
mAs range | 0.1-200mAs(R'20) | |
mAs accuracy | ≤±(5%+0.2mAs) | |
Optional Parameter | ||
Tech. mode | kV-mAs | |
kV-mA-ms | ||
APR num | 2000 | |
Communication Interface | RS-232 | |
Volume | 450*255*220(include collimator) | |
Weight | 15kg | |

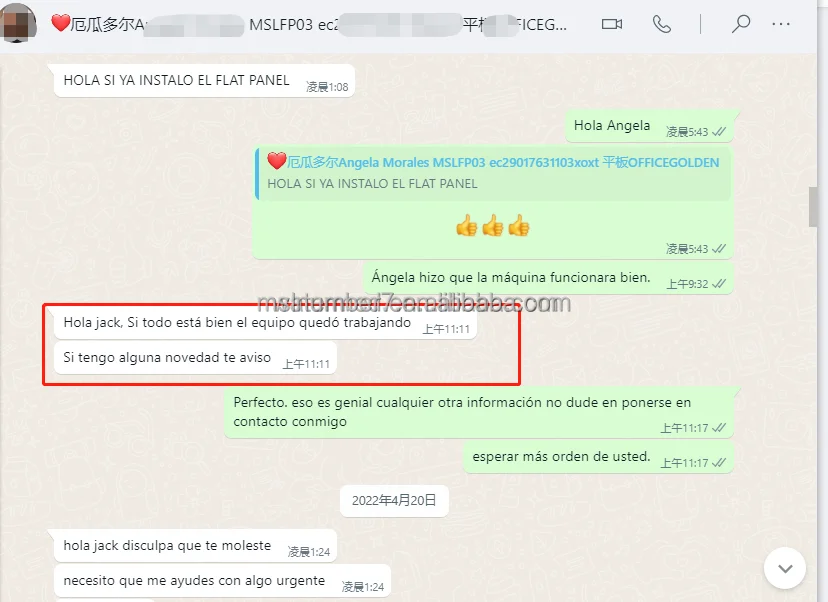

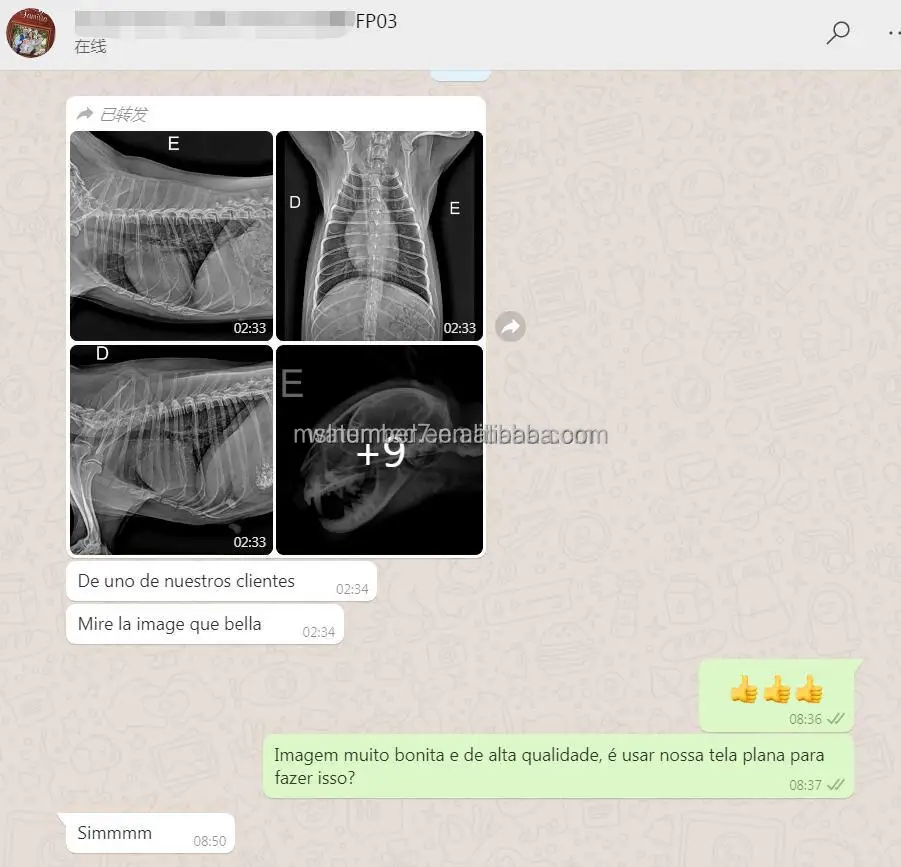

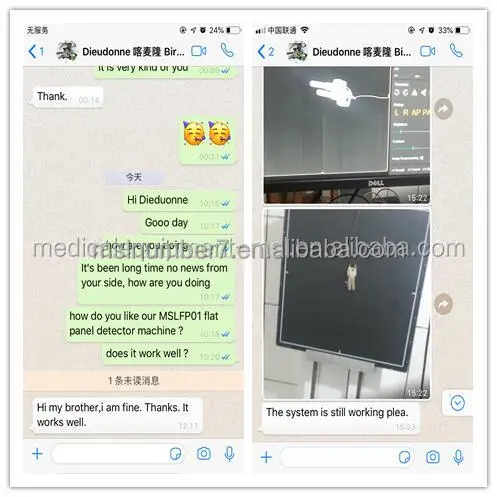

Customer Feedback
