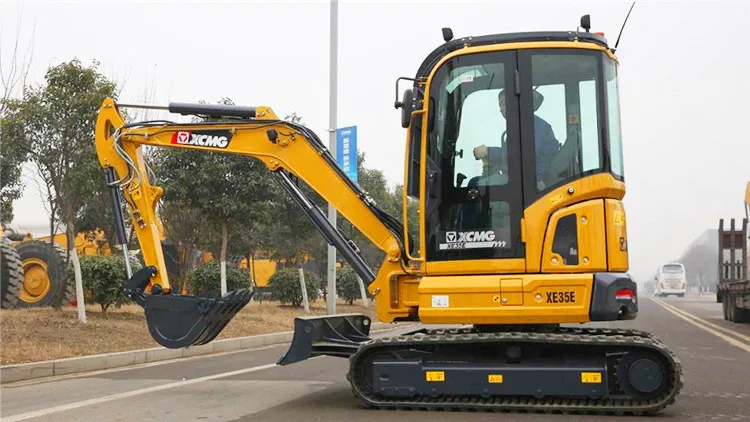

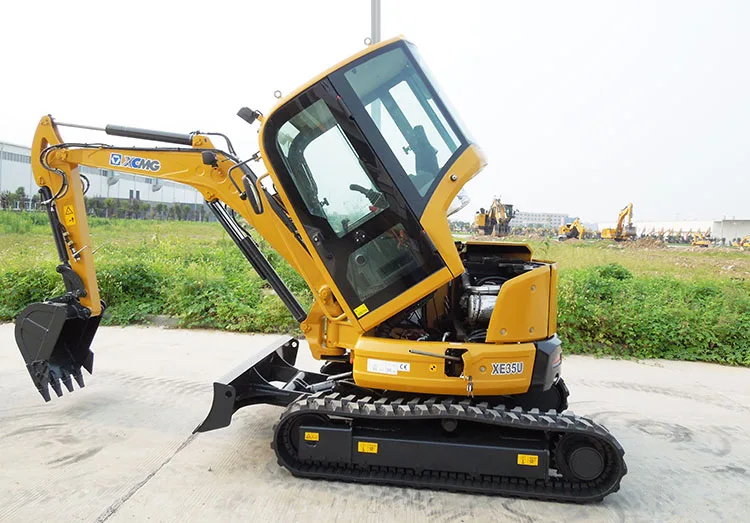

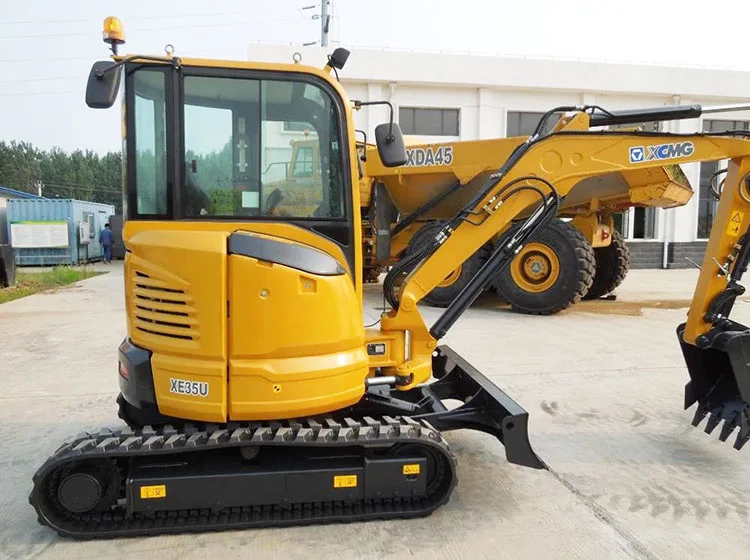

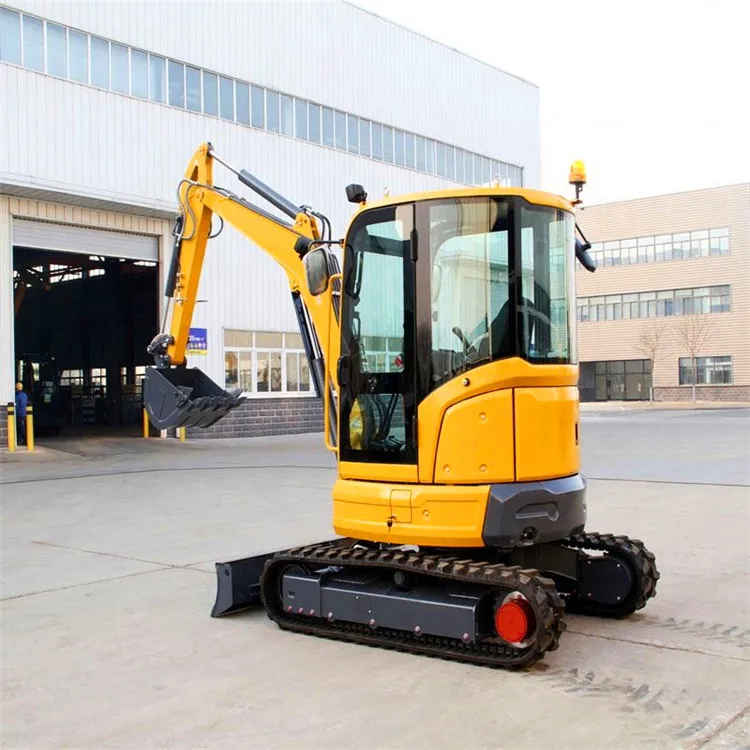

XCMG 3.5 ton hydraulic crawler escavator XE35U / XE35E mini escavator excavator machine for farm use
- Category: >>>
- Supplier: XCMG E-Commerce Inc.
Share on (1600399993072):
Product Overview
Description
Products Description
XCMG used 3.5 ton hydraulic crawler escavator XE35U / XE35E second hand mini escavator excavator machine.
XCMG 3.5 ton mini escavator XE35U XE35E cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. XCMG XE35U mini excavator is widely used in the construction and production of hydropower, transportation, municipal, garden, farm transformation, oil pipelines, etc.
The large-stressed parts such as the swingarm and bucket rod have been locally strengthened by adjusting the structure and dispersing the stress to extend the service life. The new-type bucket is reduced in depth, which expedites the unloading speed.
The chassis assembly is superior to the counterparts of the same size so that the excavator is more stable. The chassis is in an X frame. The rib plates inside the understructure are reinforced which results in a box with a large section, thus enjoying good bearing capacity. The weight of the superstructure can be exerted onto the track beam which successfully alleviates local stress concentration on the track beam.
The large-stressed parts such as the swingarm and bucket rod have been locally strengthened by adjusting the structure and dispersing the stress to extend the service life. The new-type bucket is reduced in depth, which expedites the unloading speed.
The chassis assembly is superior to the counterparts of the same size so that the excavator is more stable. The chassis is in an X frame. The rib plates inside the understructure are reinforced which results in a box with a large section, thus enjoying good bearing capacity. The weight of the superstructure can be exerted onto the track beam which successfully alleviates local stress concentration on the track beam.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Specification
Model | Metric unit | XE35U | XE35E | ||
Operating weight | / | kg | 4200 | 4200 | |
Bucket capacity | / | m3 | 0.11 | 0.12 | |
Engine | Model | / | Yanmar | Yanmar | |
Output power | kW/ r/min | 18.2/2200 | 18.2/2200 | ||
torque/speed | N.m | 107.2/1444 | 85.3-94.2/1320 | ||
Displacement | L | 1.642 | 1.642 | ||
Main performance | Travel speed(H/L) | km/h | 3.6/2.2 | 3.6/2.2 | |
Gradeability | % | 58 | 30 | ||
Rotating speed | r/min | 8.5 | 9 | ||
Ground pressure | kPa | 36.6 | 36.6 | ||
Bucket digging force | kN | 24.6 | 28.6 | ||
Arm crowd force | kN | 17.8 | 20.3 | ||
Appearance size | Overall length | mm | 4960 | 4960 | |
Overall width | mm | 1740 | 1740 | ||
Overall height | mm | 2535 | 2535 | ||
Width of platform | mm | 1585 | 587 | ||
Working scope | Max. digging height | mm | 5215 | 5000 | |
Max. dumping height | mm | 3760 | 3600 | ||
Max. digging depth | mm | 3060 | 3060 | ||
Max. vertical wall digging depth | mm | 2260 | 2260 | ||
Max. digging reach | mm | 5415 | 5300 | ||
Min. swing radius | mm | 2170 | 2170 | ||
Product Show
Company Profile
FAQ
Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
Q. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
Q. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
