2021 новый тип, лучшее качество, рекламные предохранители hv для защиты трансформатора

Product Overview

Description

overview:

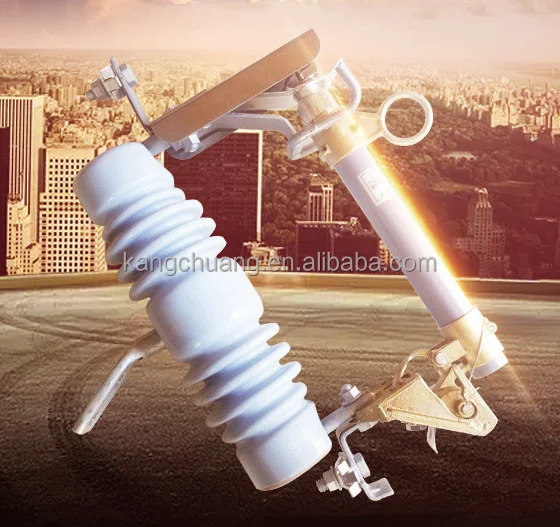

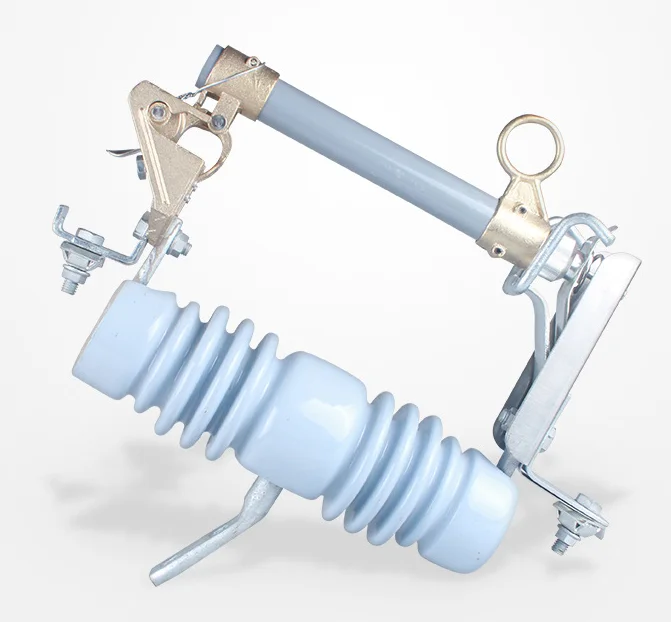

Drop out fuses and load-drop fuses are outdoor high voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. used as a short circuit of the transformer and the line, overload protection and split load current.

The drop fuse is composed of two parts:

An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.

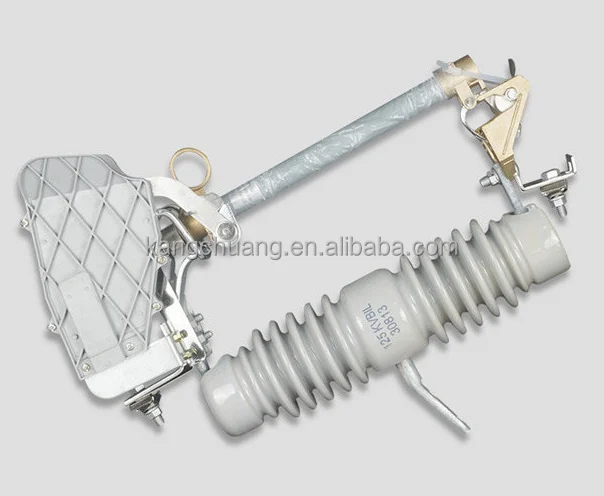

It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.

Product use environment:

1. The ambient temperature is not higher than +40 C, not lower than-40 C

2.The altitude does not exceed 3000m

3.The maximum wind speed does not exceed 35m/s

4.The earthquake intensity does not exceed 8 degrees

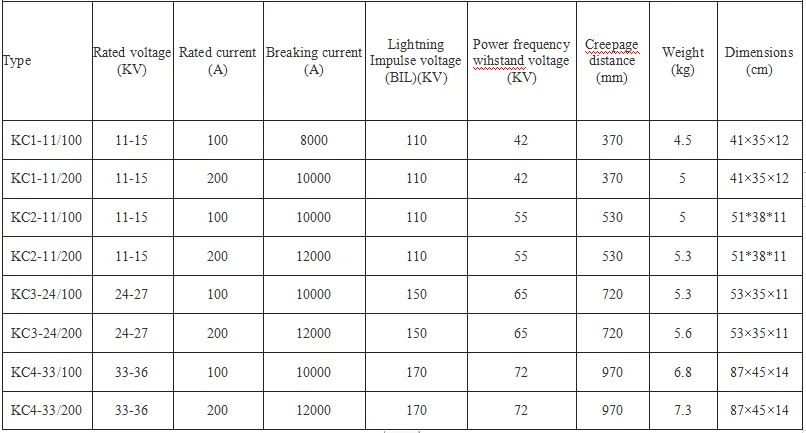

Technical parameters:

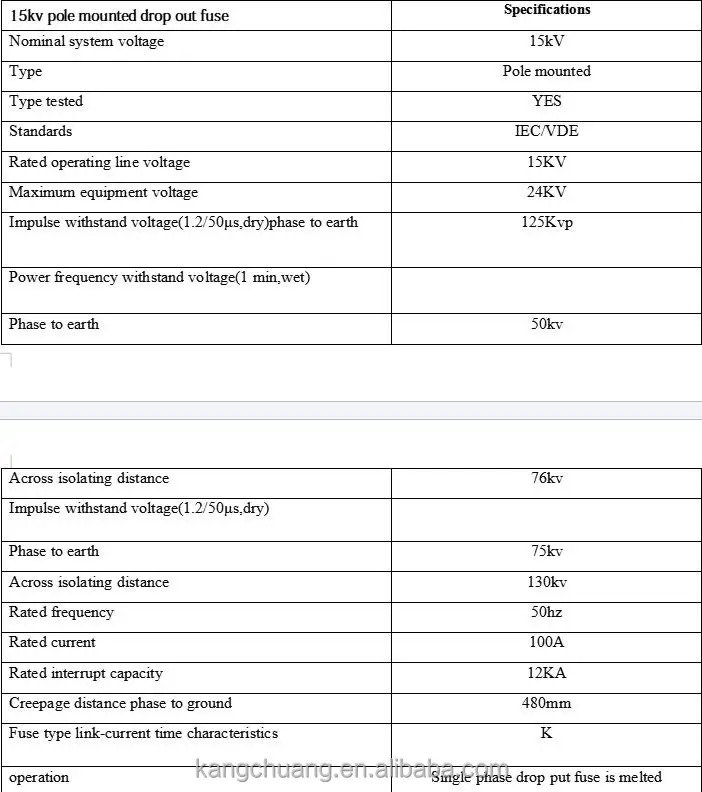

15kv pole mounted drop out fuse

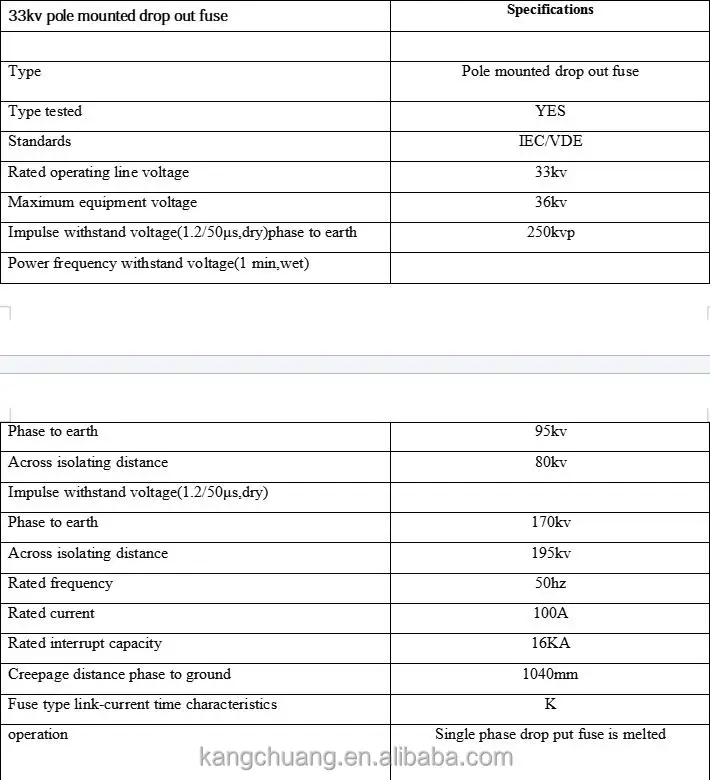

33kv pole mounted drop out fuse

Product details:

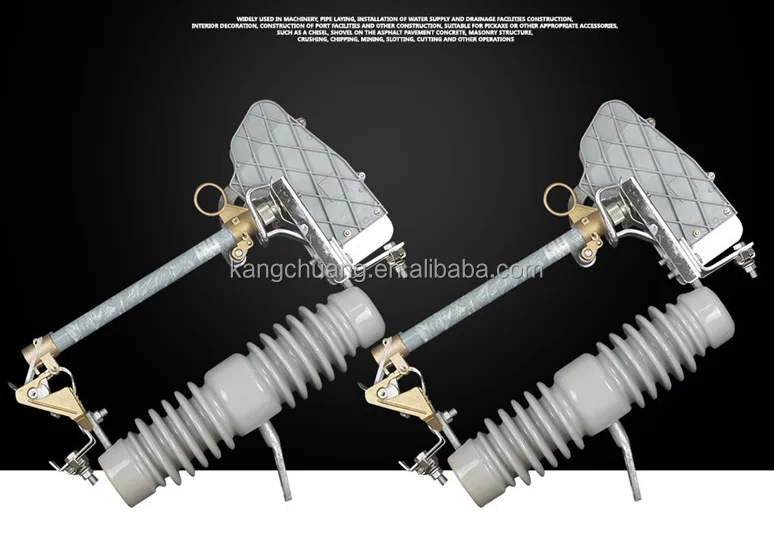

Types of drop fuses available:

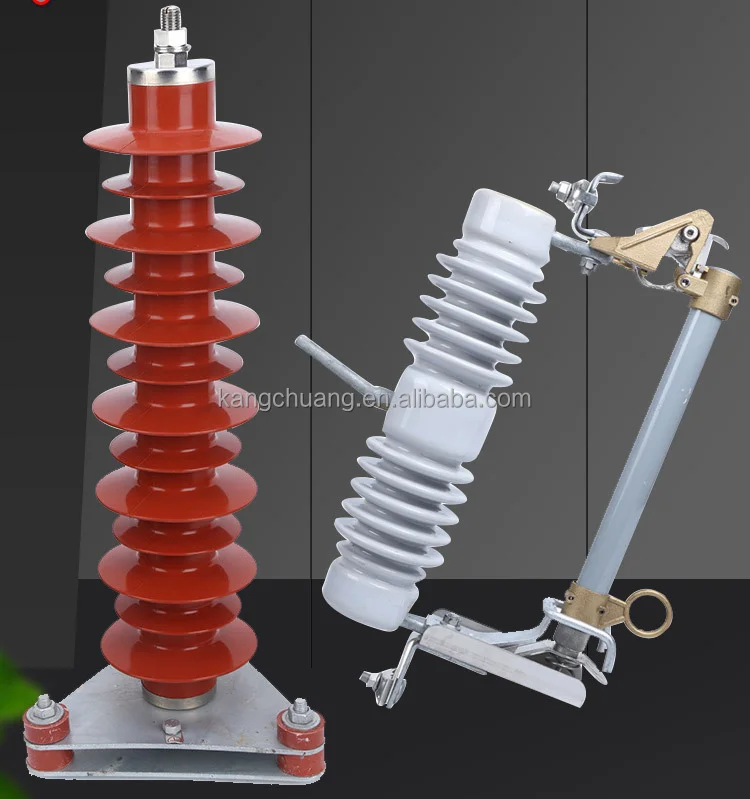

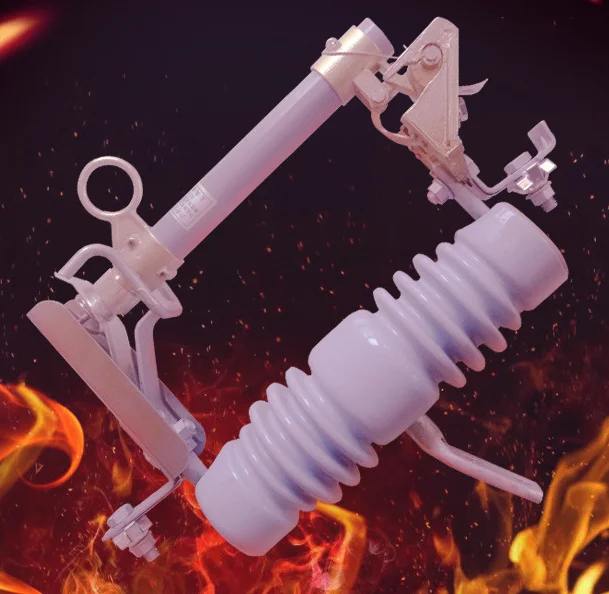

Ceramic type, silica gel type and anti - pollution type can be selected.

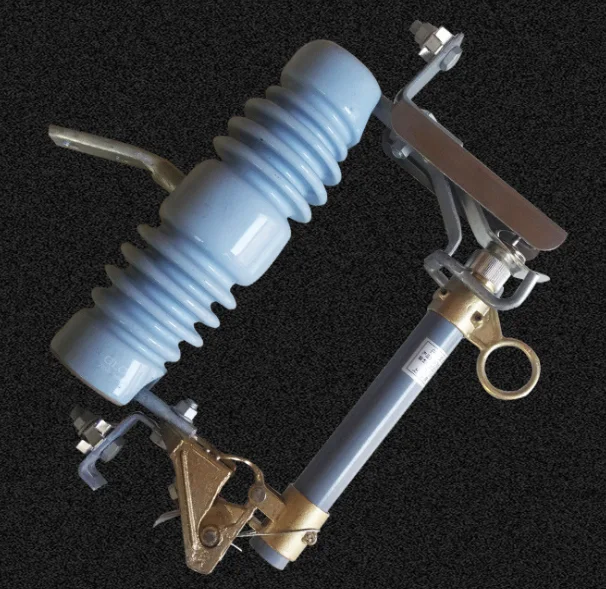

Ceramic type fuse  11/15/24/33KV  100/200A

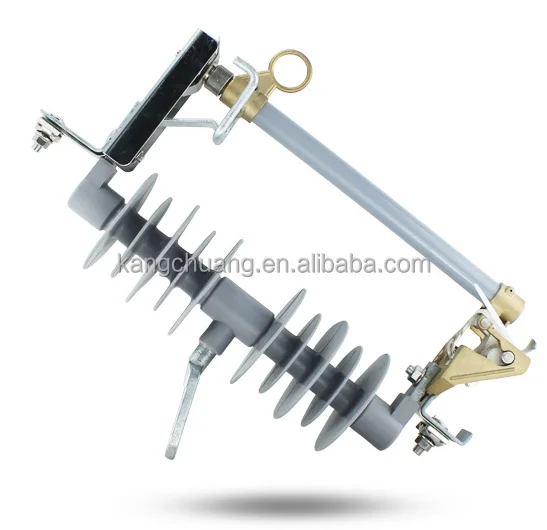

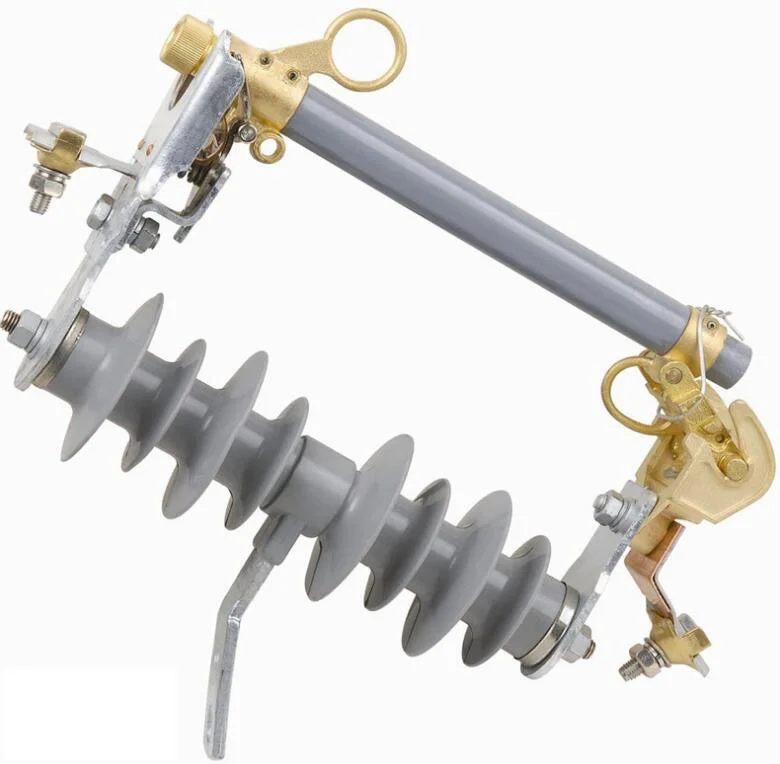

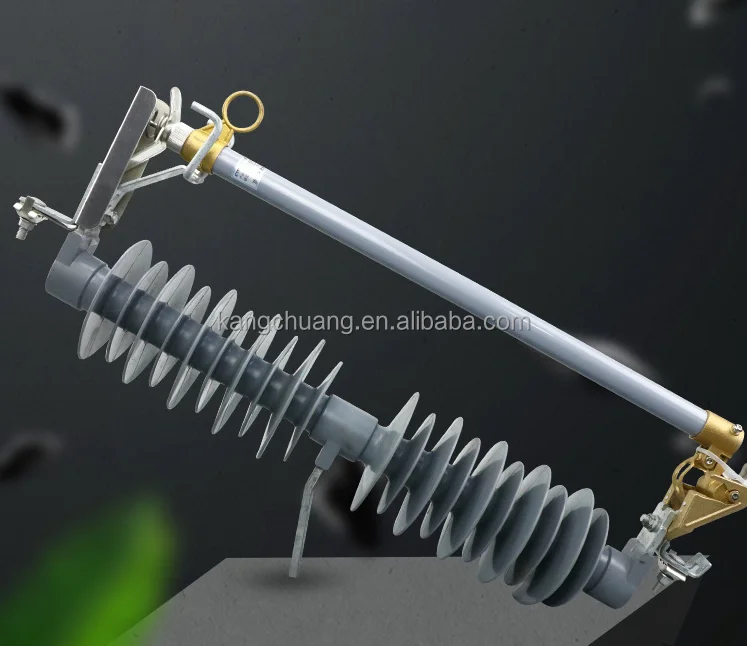

Silica gel type fuse 11/15/24/33KV  100/200A

Anti-fouling fuses 11/15/24/33KV  100/200A

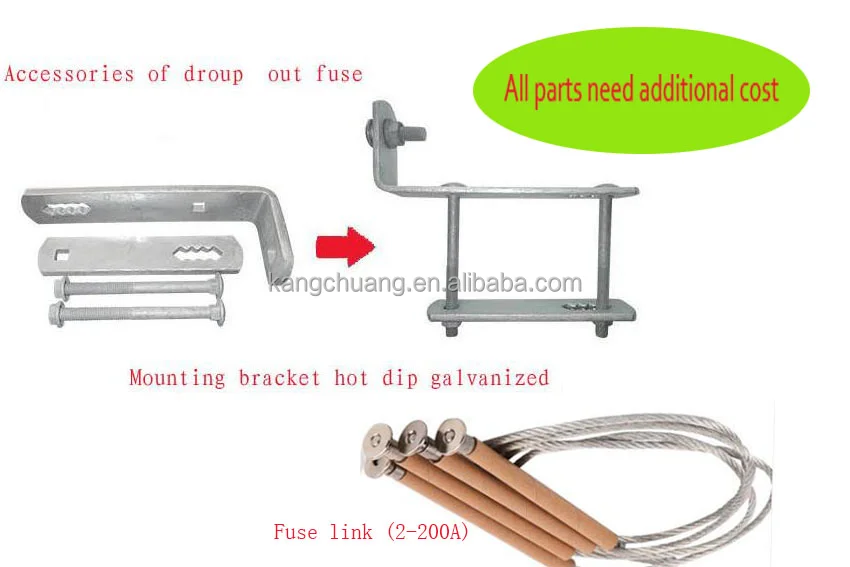

Configurable mounting bracket and fuse wire:

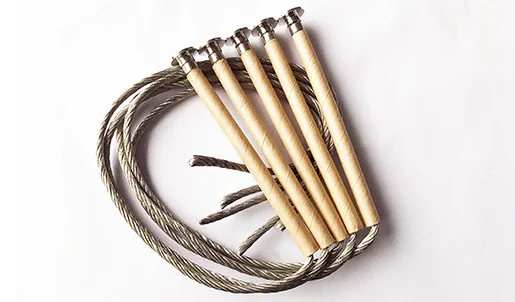

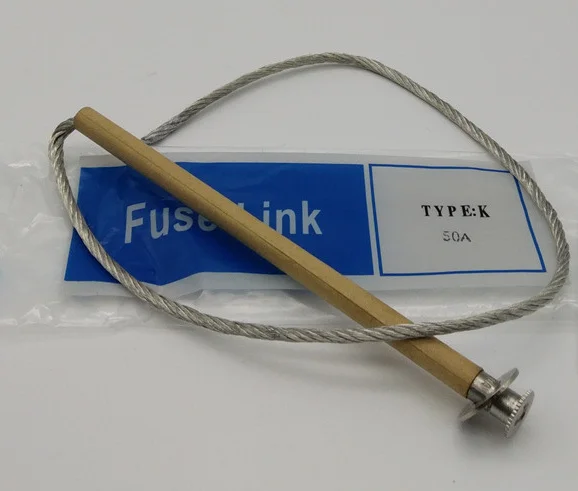

The fuse wire has 11-33kV and the current 1-300A can be selected

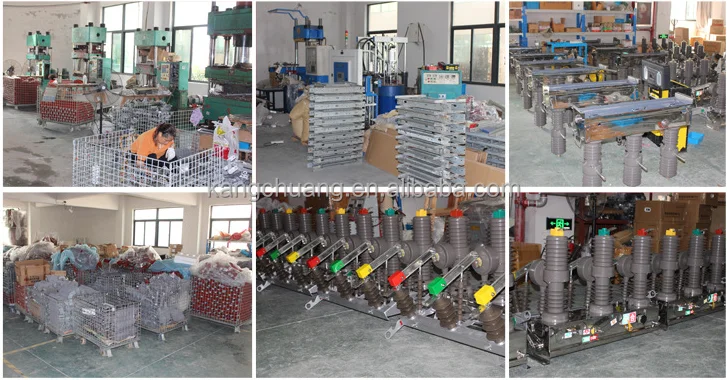

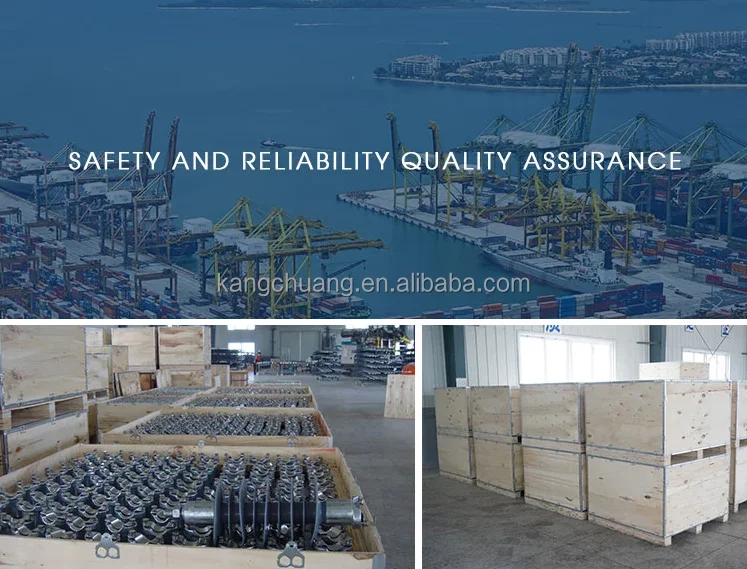

A corner of the production workshop:

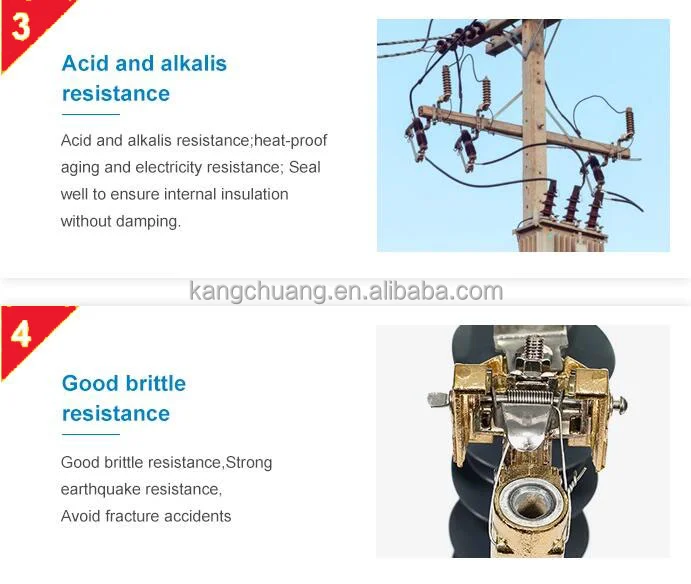

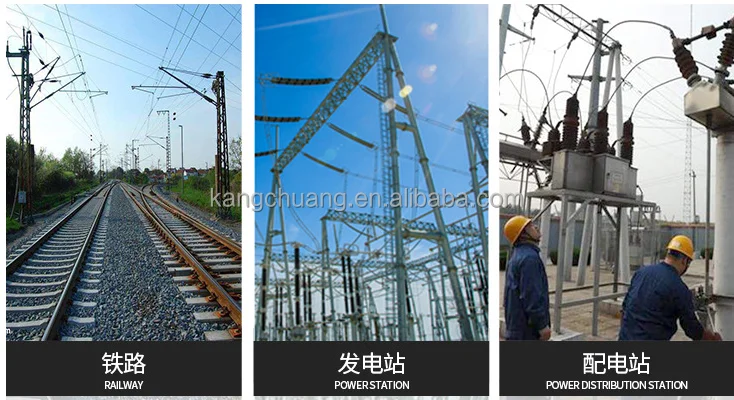

The product application:
