HNARL High Quality Deutsch 6 pin Connector DTM04 6P DTM06 6S
- Category: >>>
- Supplier: Hunan Aerial-Power Machinery Co. Ltd.Hunan Ltd.
Share on (1600400198747):
Product Overview
Description

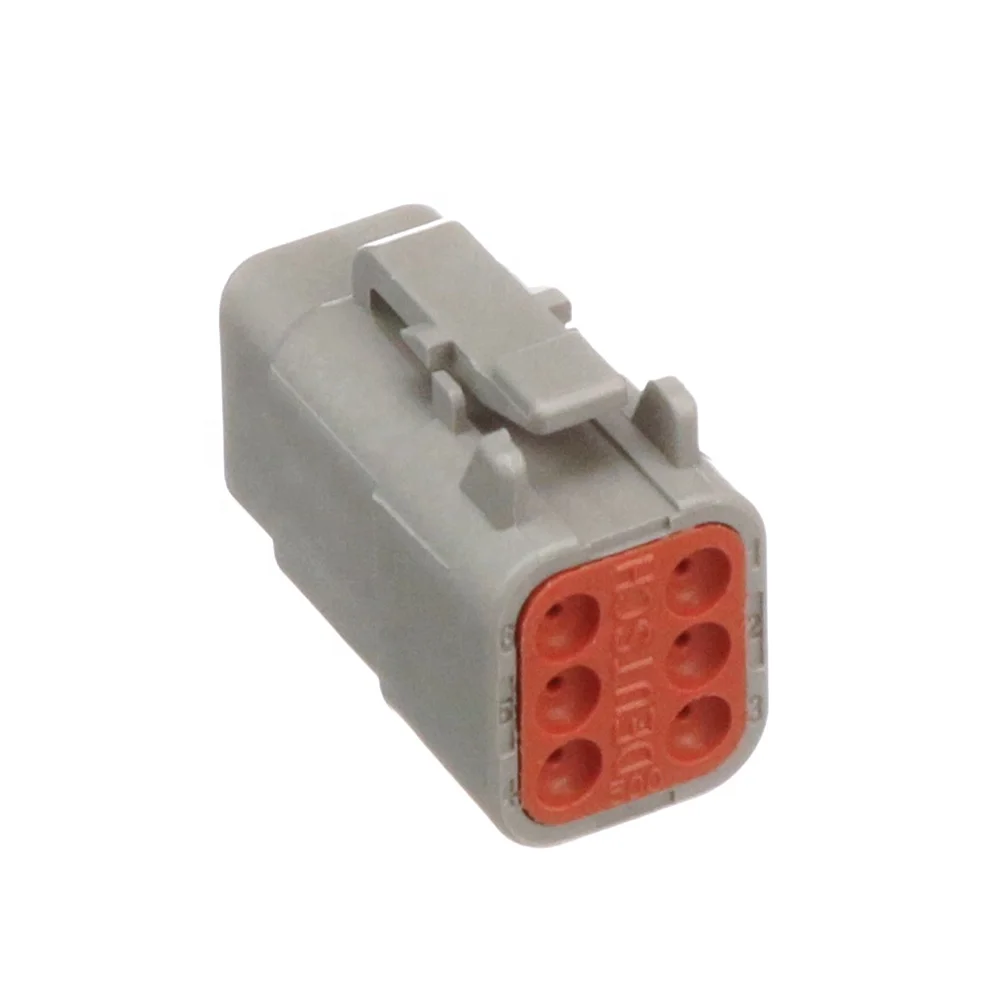

High Quality Deutsch 6 pin Connector DTM04-6P DTM06-6S
Products Description
Deutsch 6 pin Connector | ||
Parts No: | DTM04-6P,DTM06-6S | |
Used for | Genie 5 control box，Coil connector. Deutsch 6-Pin Connector Kit with Housing, Pins & Seals Crimp Style Terminals 14-16 Gauge, Recommended Insulation O.D. Range: 2.41- 3.81 (mm) | |

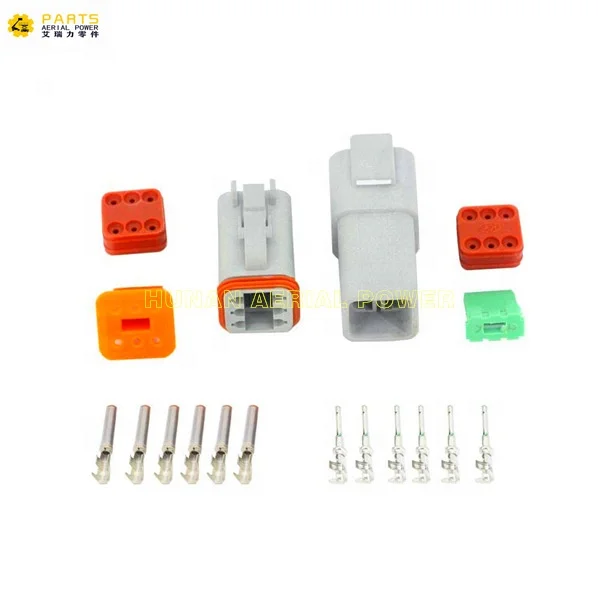

What's is included:

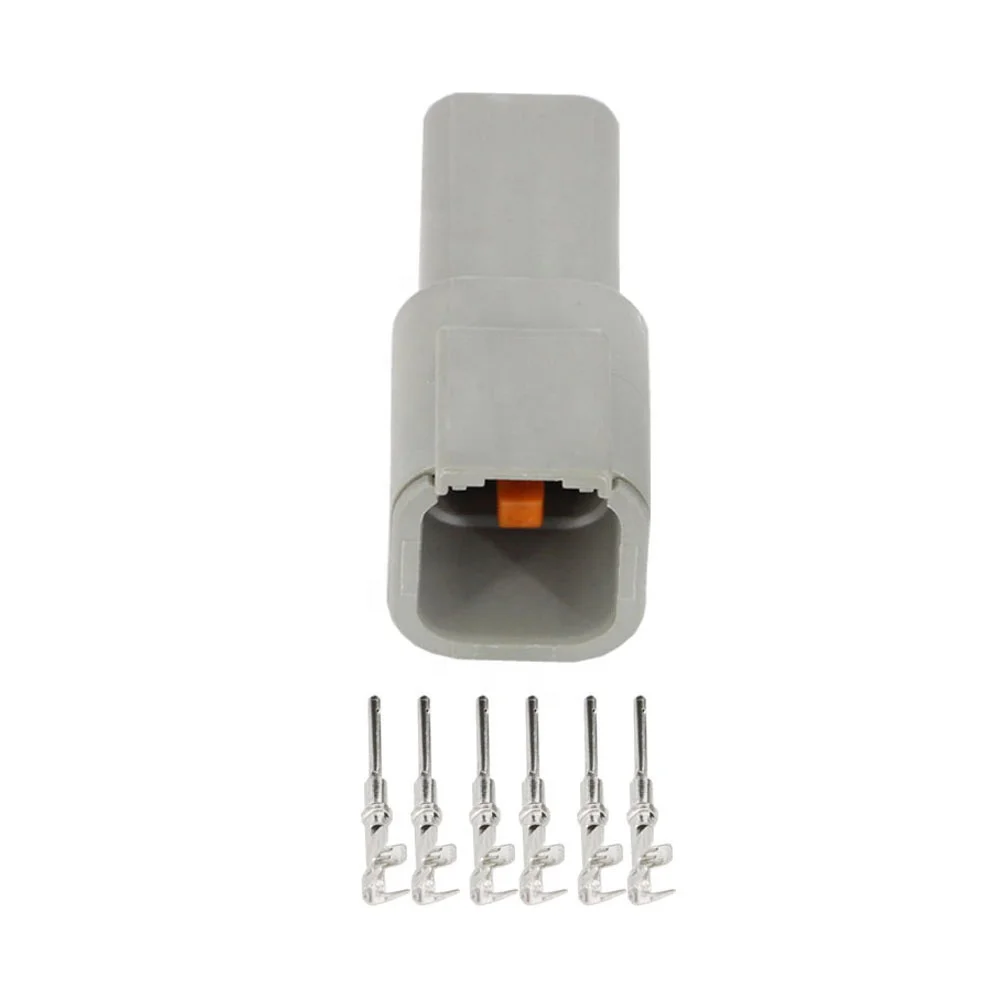

1x (6 pin) Deutsch Male Connector
1x (6 pin) Dectsch Female Connector

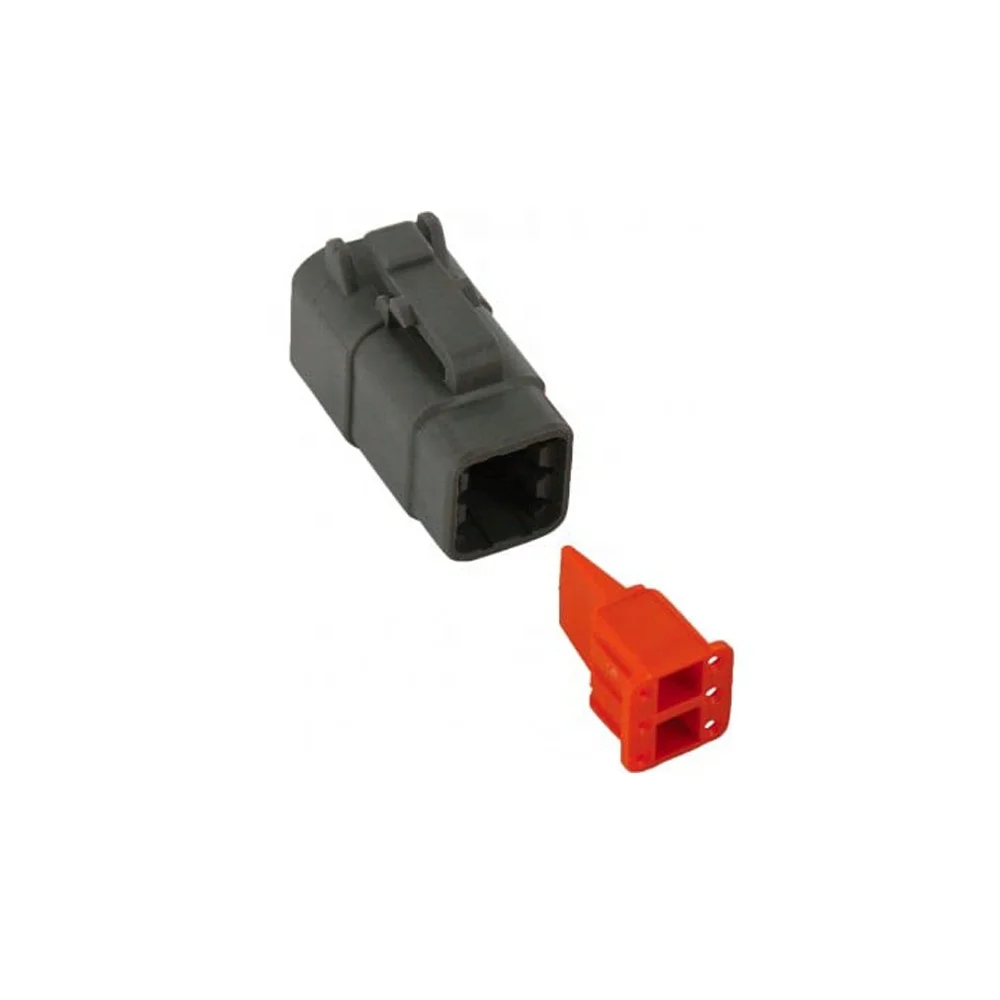

1x Wedge for Lock Female
1x Wedge for Lock Male
6x Male Crimp Type Terminals
6x Female Crimp Type Terminals
Overview
Deutsch DT Series of environmentally-sealed, connectors are designed speci cally for cable to cable applications on the engine or transmission, under the hood, on the chassis or in the cab. Where signal level circuits in harsh environmental conditions, where even a small degradation in connection may be critical, the Deutsch DT Series general purpose connectors will provide the reliability and performance at the lowest cost.
Key & Feature: | Item Specification: - Housing Made out of Polyamide (PA) - Accepts contact size 16 (13 amps) - 6 Pins arrangements, Inline mounting. - Contact Material Copper Alloy -Wire Insulation O.D Range: .095 - .150 (2.41 - 3.81) - Air Size 14-18 AWG (2.0 - .75) - RECOMMENDED STRIP LENGTH INCHES (mm) .150 - .200 (3.81 - 5.08) | ||
Item. | Deutsch 6-Pin (14-16 Gauge) ( 1 Set ) | ||
Temperature: | Operating at temperatures -55°C to +125°C | ||
Durability: | No electrical or mechanical defects after 100 cycles of engagement and disengagement. | ||
Insulation Resistance: | 1000 megohms minimum at 25°C. | ||
Immersion: | IP68 rating | ||
Vibration: | No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond. | ||
Moisture Resistance: | No cracking, chipping or leaking after 20 test cycles . Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC | ||
Thermal Cycle: | No cracking. | ||
Grommet: | Silicone rubber | ||
Insert Retainer: | Thermoplastic | ||
Receptacle Interfacial Seal: | Silicone rubber | ||
Shell: | Thermoplastic | ||
Wedgelocks: | Thermoplastic | ||
