Lithium Power wall 5Kwh 10Kwh Lifepo4 Battery 48V 100Ah 200Ah Home Solar System Battery Power Storage deep cycle supply station
- Category: Renewable Energy >>>
- Supplier: Shenzhen Delong Energy Technology Co. Ltd.
Share on (1600401470136):
Product Overview
Description
Product Description
Lithium Battery Power 48V 100Ah Lithium Ion Battery is one of our top-selling products.
Features of Delongtop Wall mounted LiFePO4 Lithium-Ion Battery :
This is a highly versatile deep cycle battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry.
The LFP-48100 features a built in battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life.
This is a highly versatile deep cycle battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry.
The LFP-48100 features a built in battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life.
Structure of 48V 100ah Lifepo4 Battery:
48V 100Ah lithium battery = premium Grade A 3.2V LifePo4 battery cells + high-quality Balance BMS + metal case+ LCD screen( display) + handle+Communication protocol RS485 CANBUS

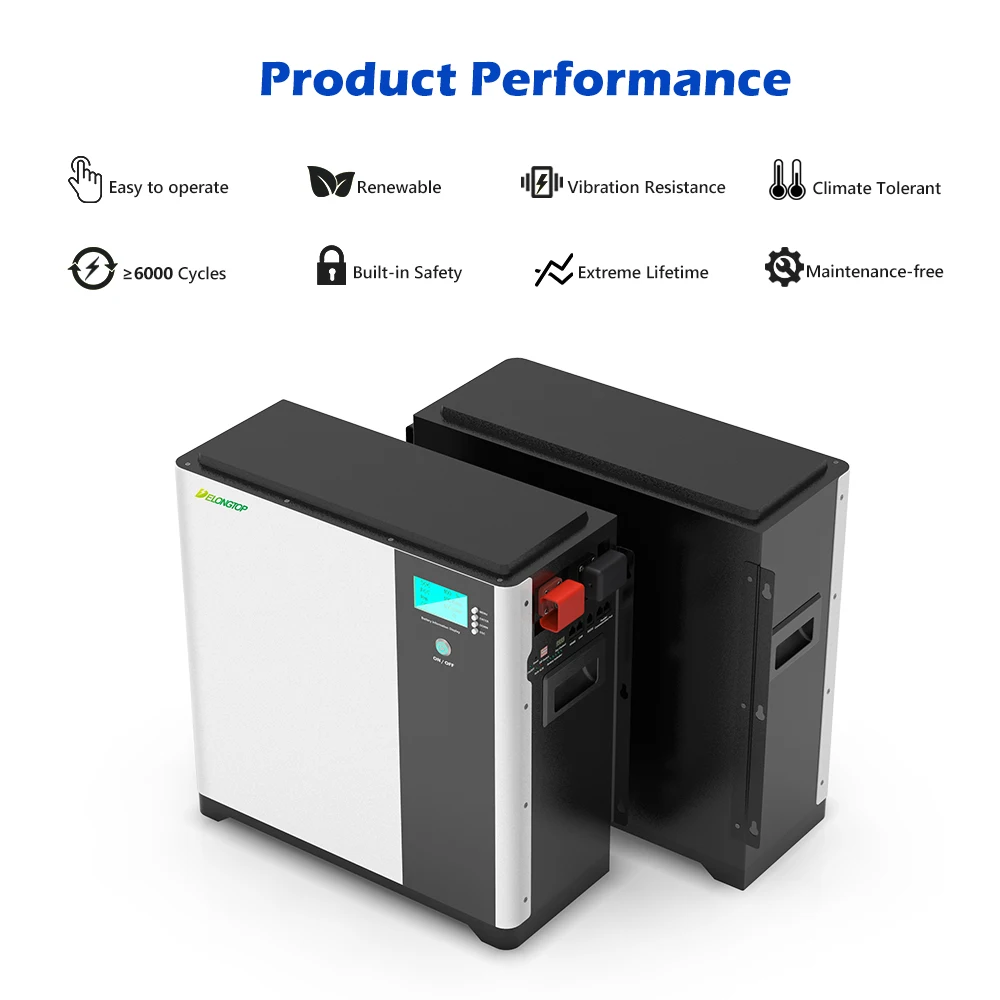

Features:
*>6000 Cycles at 85% depth of discharge-8000times 40% depth of discharge
*Create systems 48Volts-1000ah or more.
*Support Series and/or Parallel operation
*Automatic system cell balancing
*IP56 water and dust resistant Group 31 case
*Temperature monitoring
*Exceptional voltage stability
*Rugged mechanical design
*Maintenance free
*No hydrogen generation or gassing
*<70% the weight of similarly sized SLA
batteries
*Stock Cell available for quick delivery for worldwide
*Stock Cell available for quick delivery for worldwide

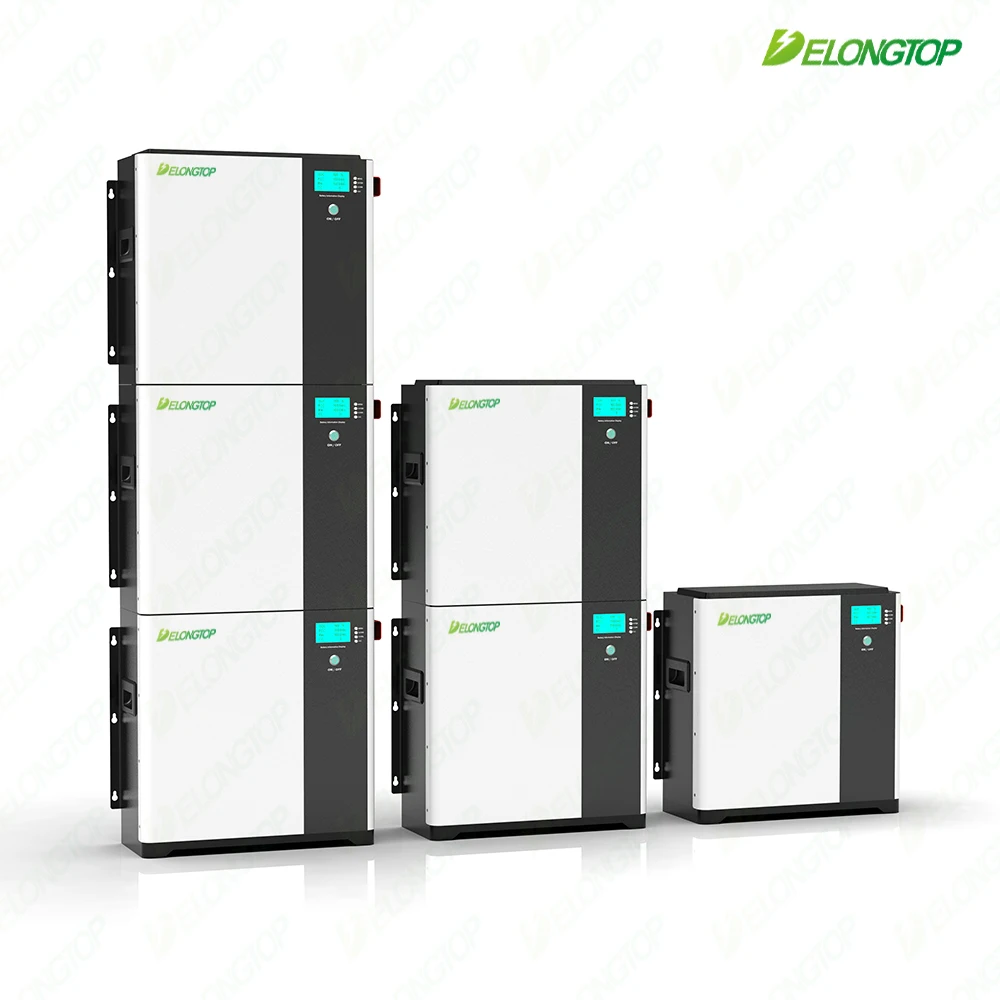

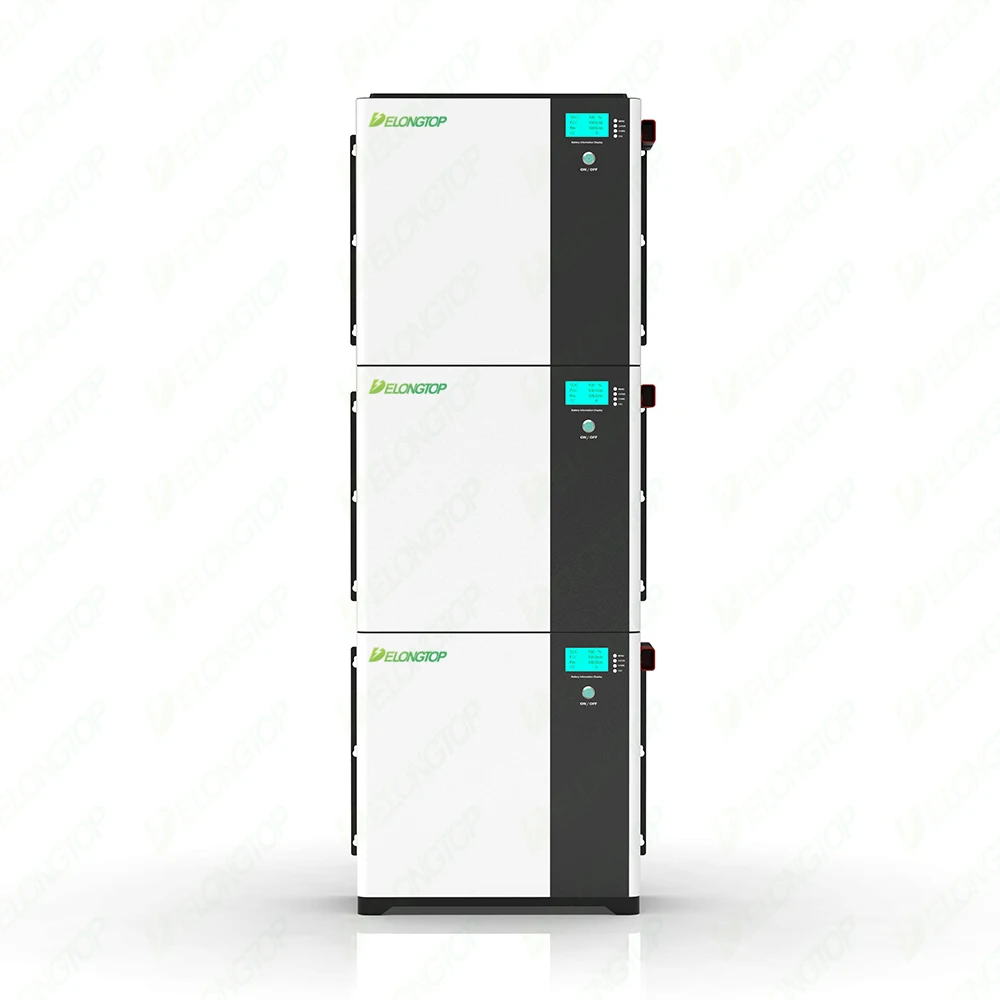

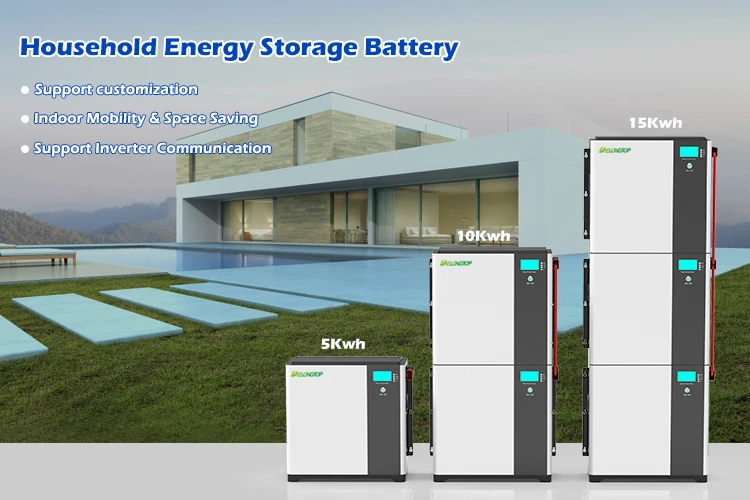

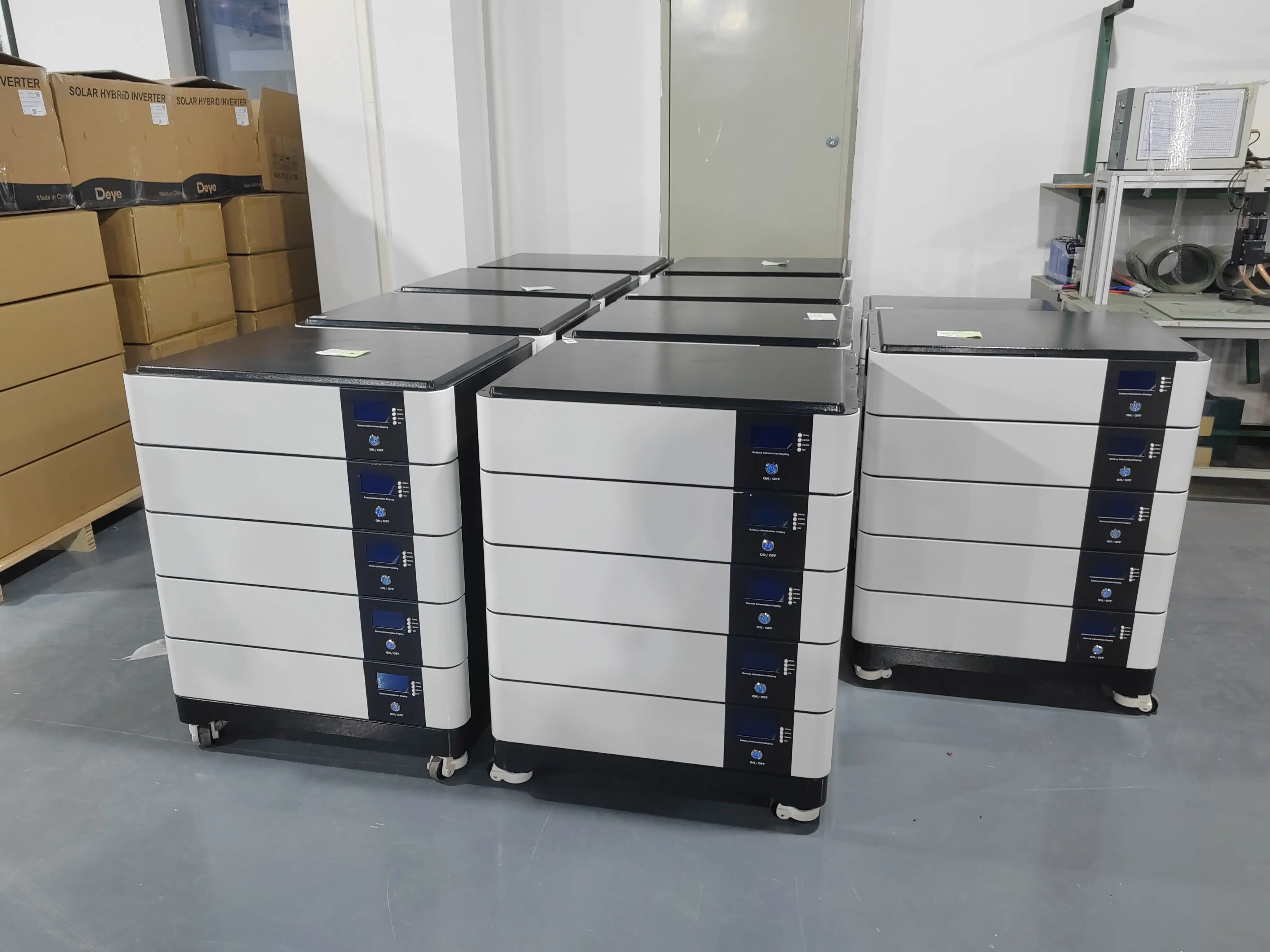

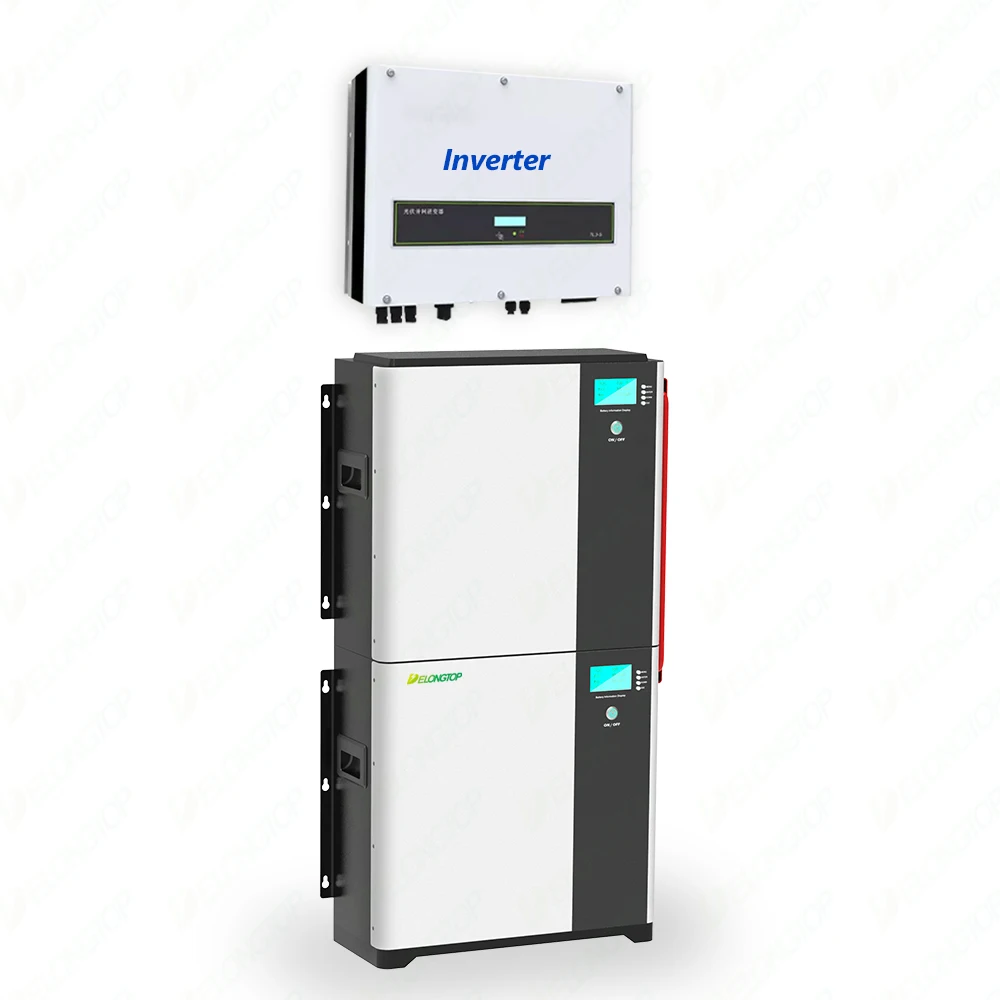

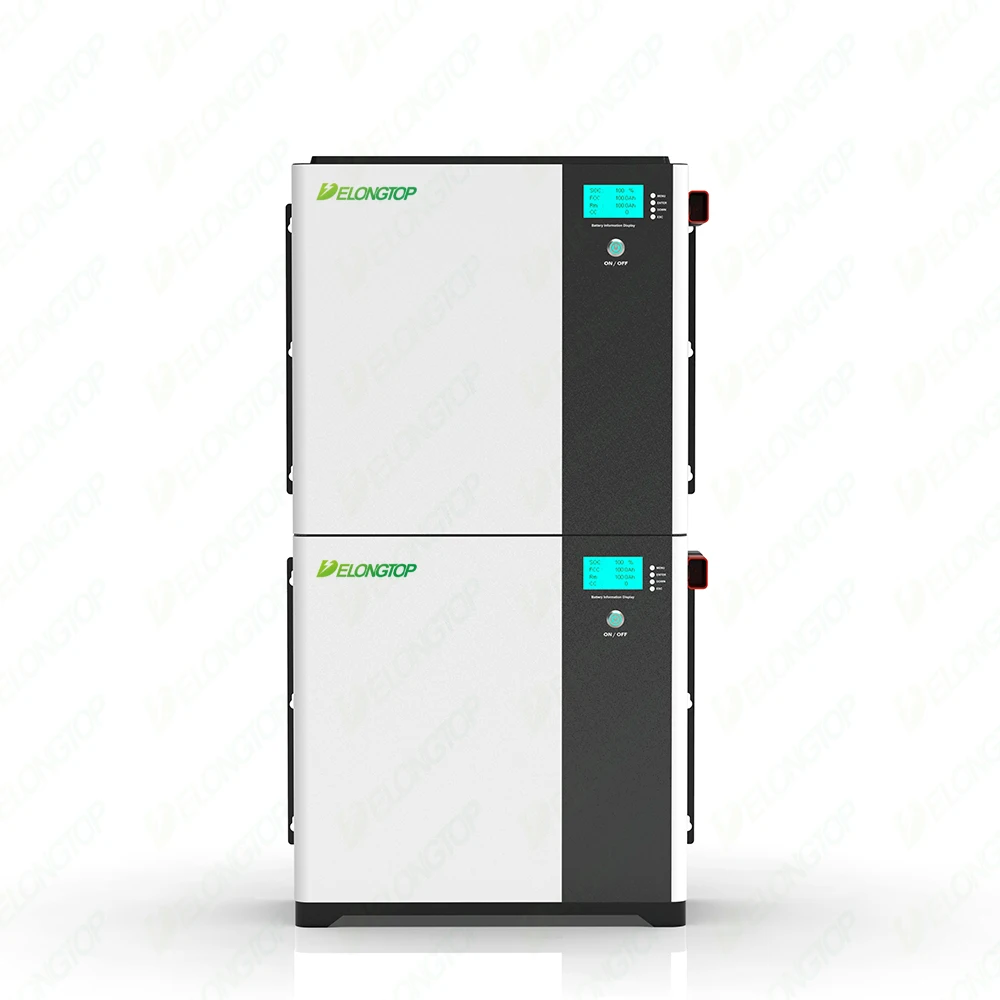

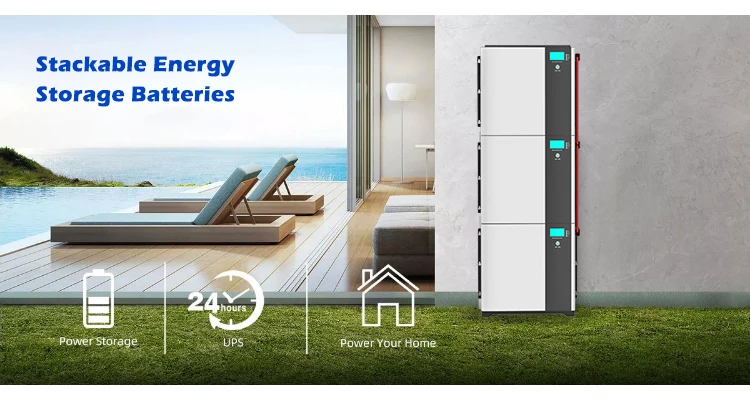

Wall and Ground Stackable Vertical Battery Type:
Each battery 51.2V 100ah=5kwh
Nominal Voltage: | 48V （16S1P） |
Nominal Capacity: | 100Ah |
Battery Type: | 16S1P Lifepo4 3.2v 100ah Grade A Battery cell |
Weight: | ≤45Kg each battery |
Internal Resistance: | ≤120mΩ |

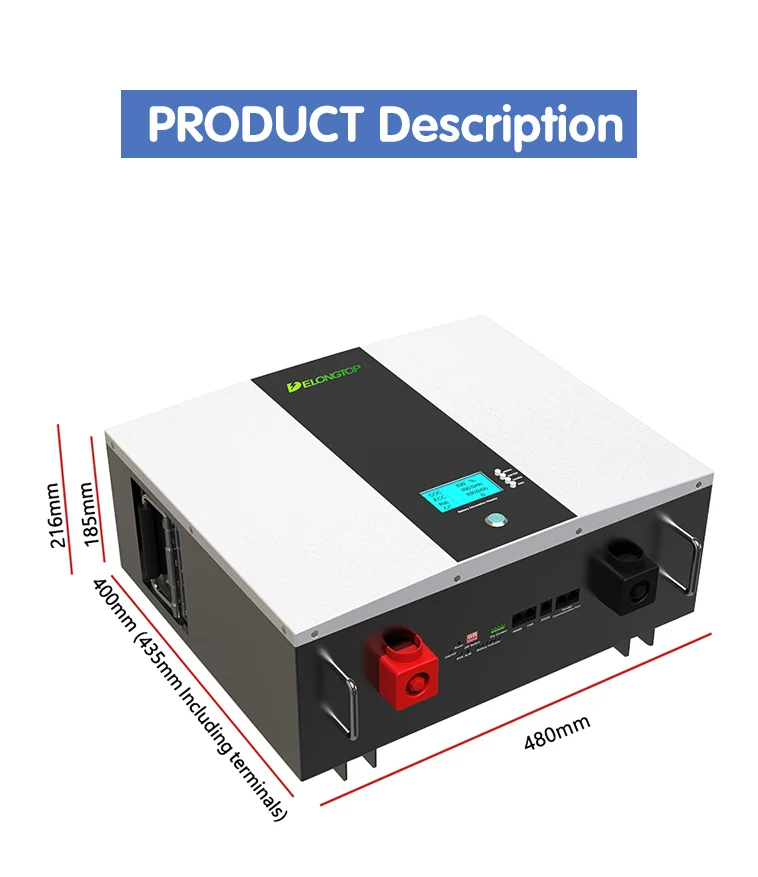

Size: (LxWxHmm) | battery dimension: 450*375*185mm or OEM dimension |
End of charge Voltage: | 58.4V |

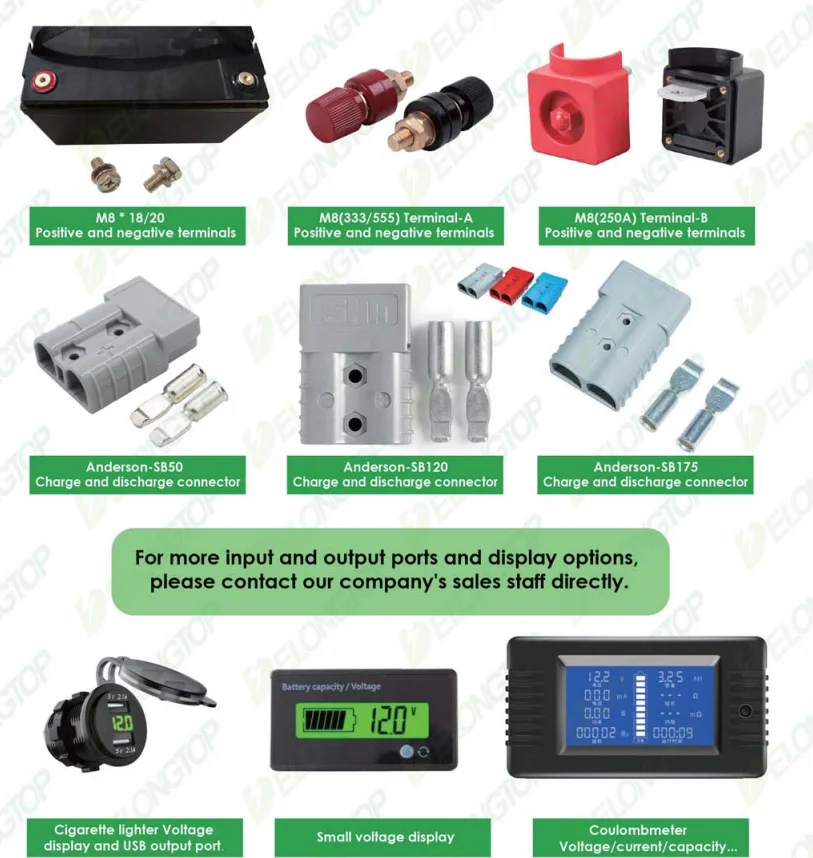

Connector | bolt screw or M8 or anderson |
End of charge Current: | 100mA |
Displacy | LCD display (voltage , capacity, and watts etc） |
End of discharge Voltage: | 36.8V |
Charge Method: | 0.2C(0.5A) CC/CV |
Max.Continuous charge current: | 100A |
Nominal Discharge Current: | 100A bms-200A bms ( depend on your inverter) |
Max. Pluse Discharge Current: | 150A/10S for 100A bms -300A/10S for 200A bms |
Operating Temp.: | Charge: 0~45℃ |
Discharge: -10~55℃ | |
Storage Temp.(60-80% SOC Storage): | -10~45℃ |
Cycle Life: | more than 6000 times at 90% dod |
BMS protection: | Over-charge,over-discharge,over-current,Short-circut |

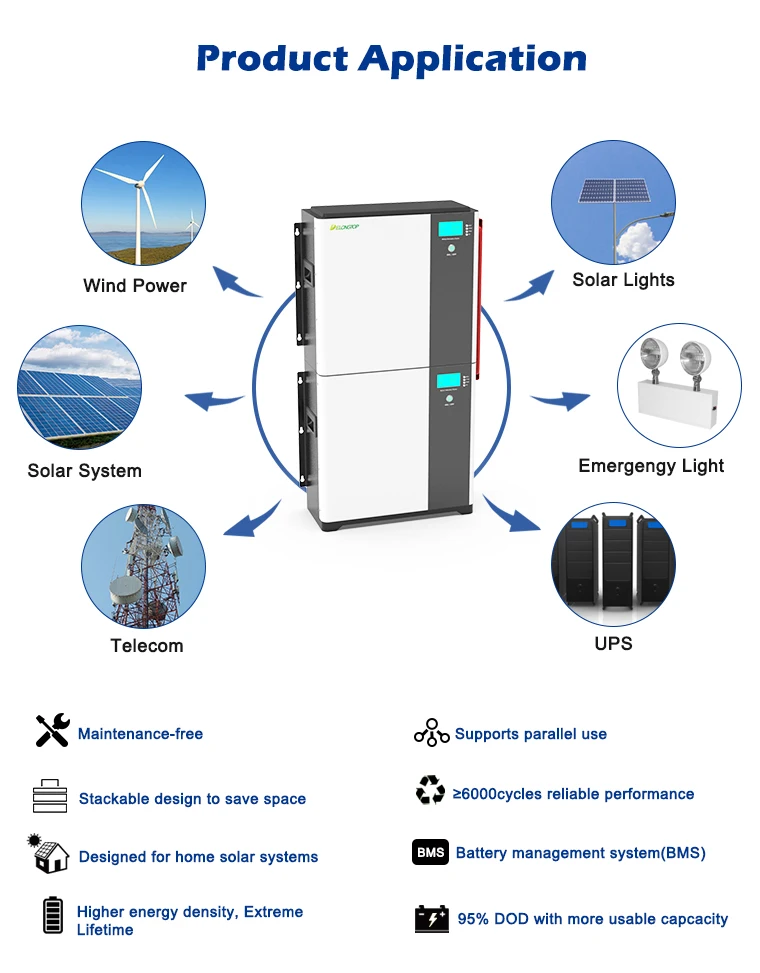

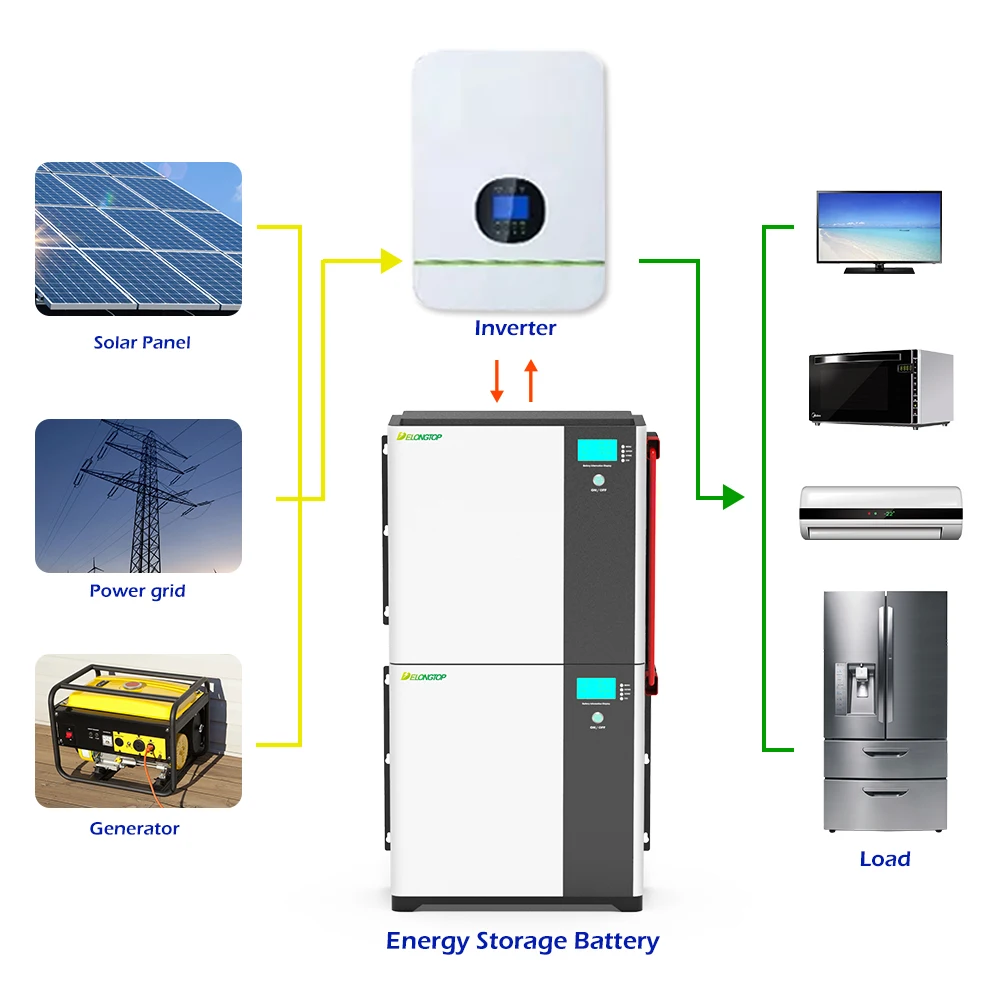

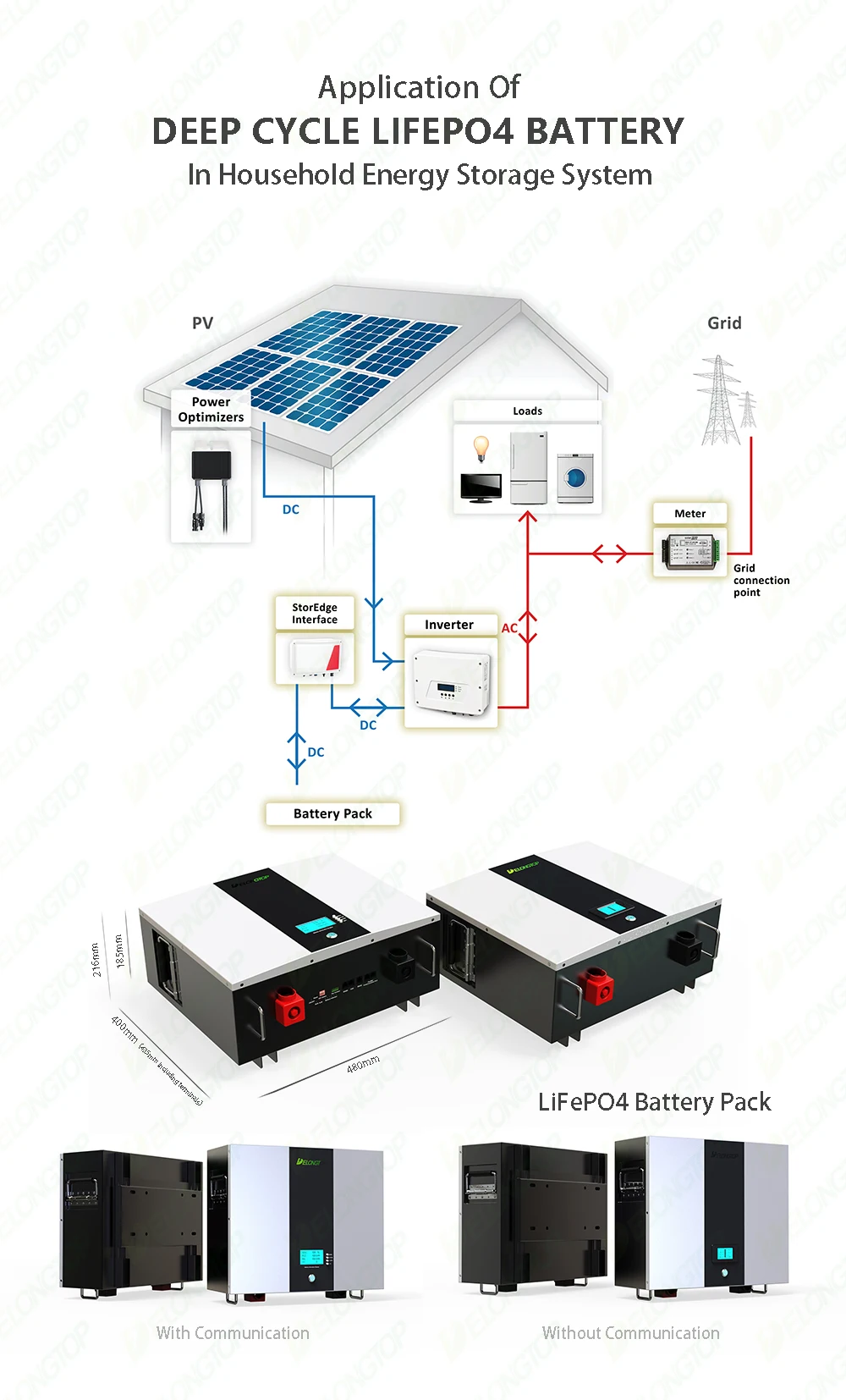

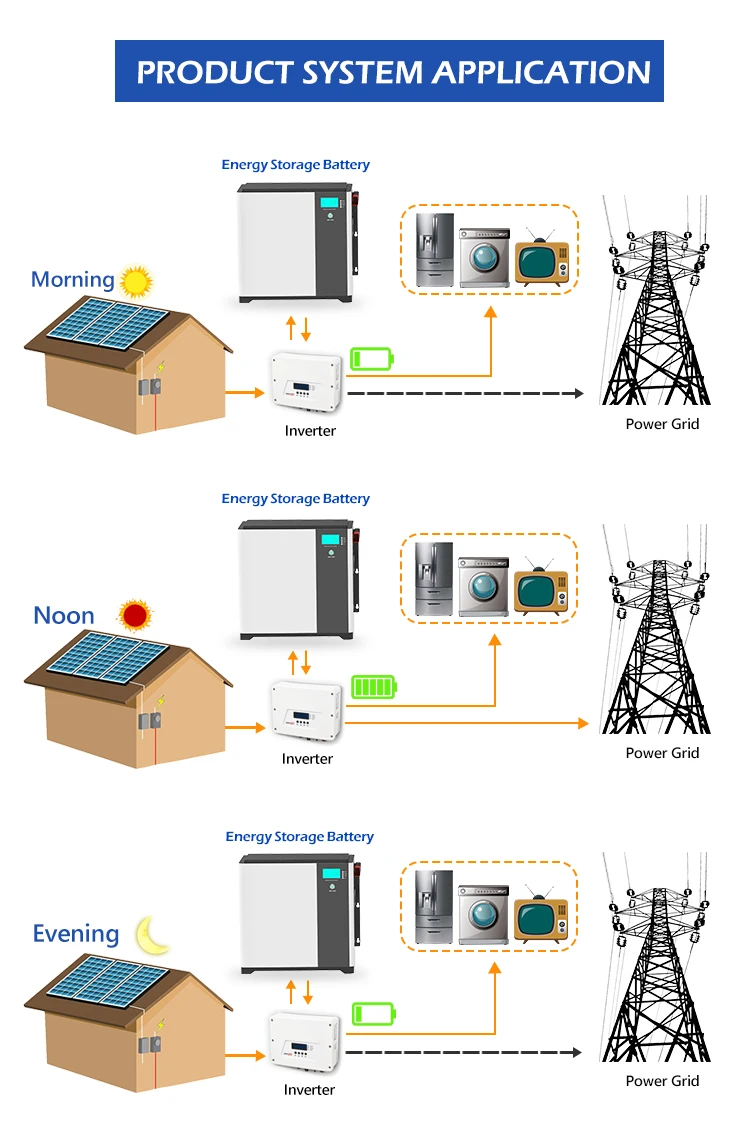

Product Usage
Related Products

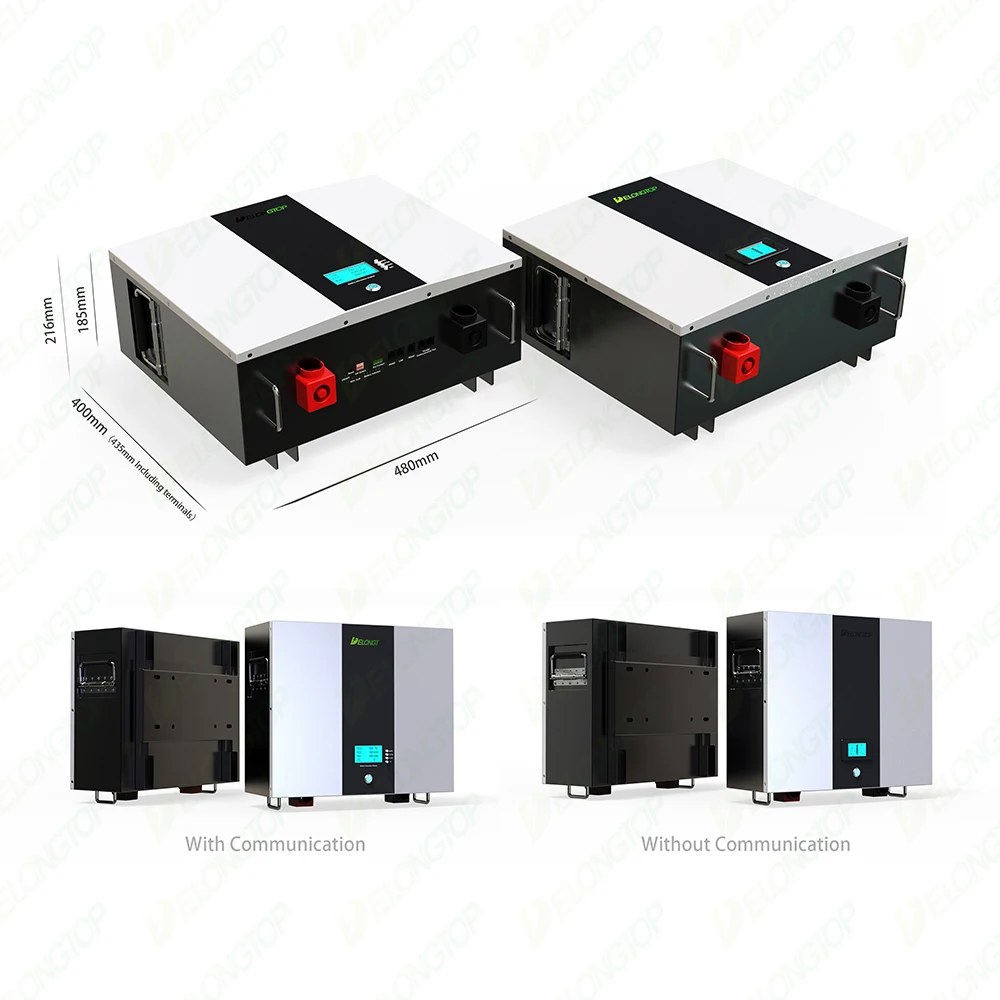

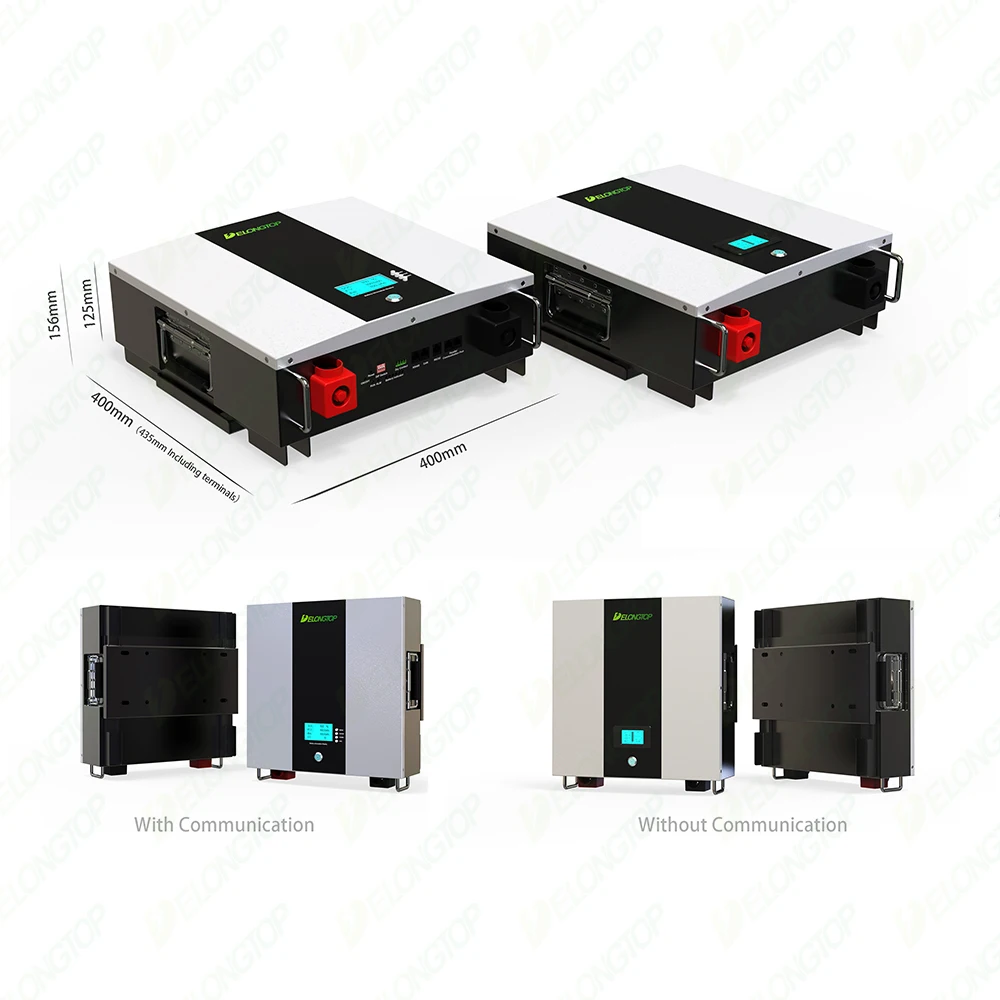

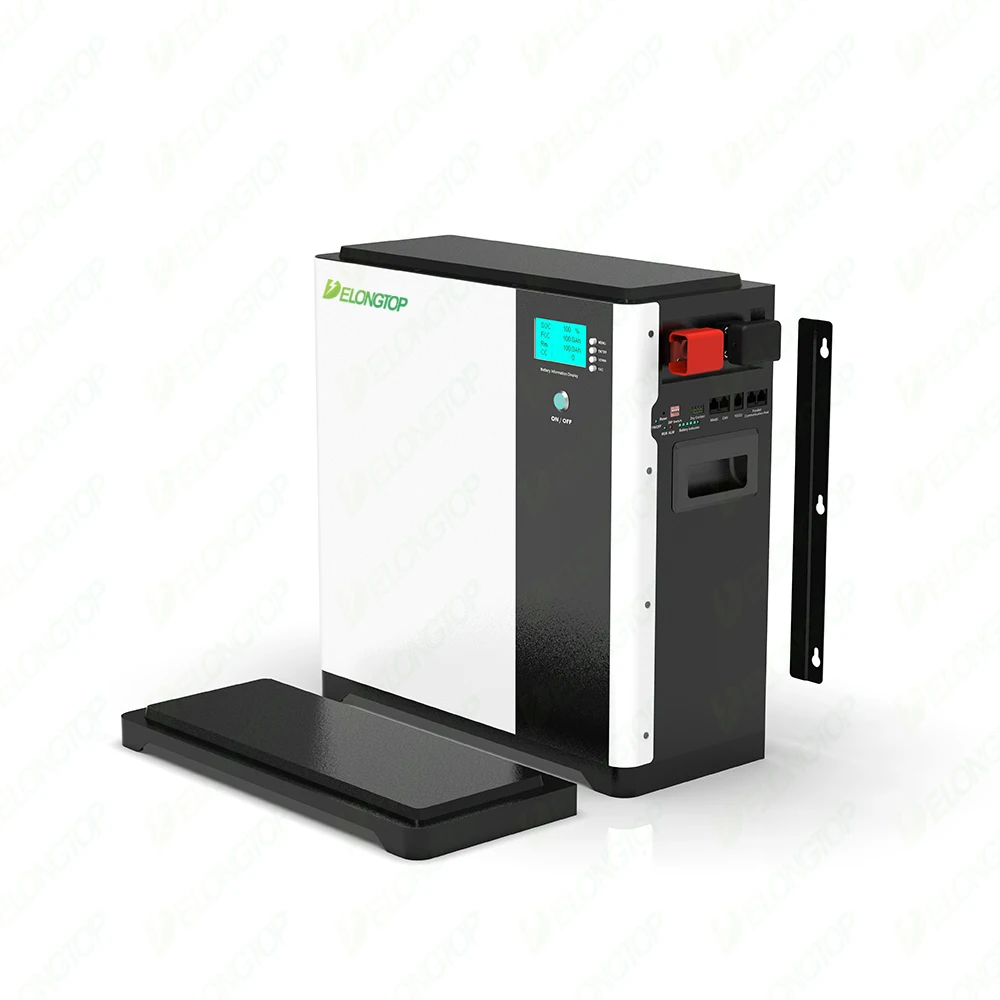

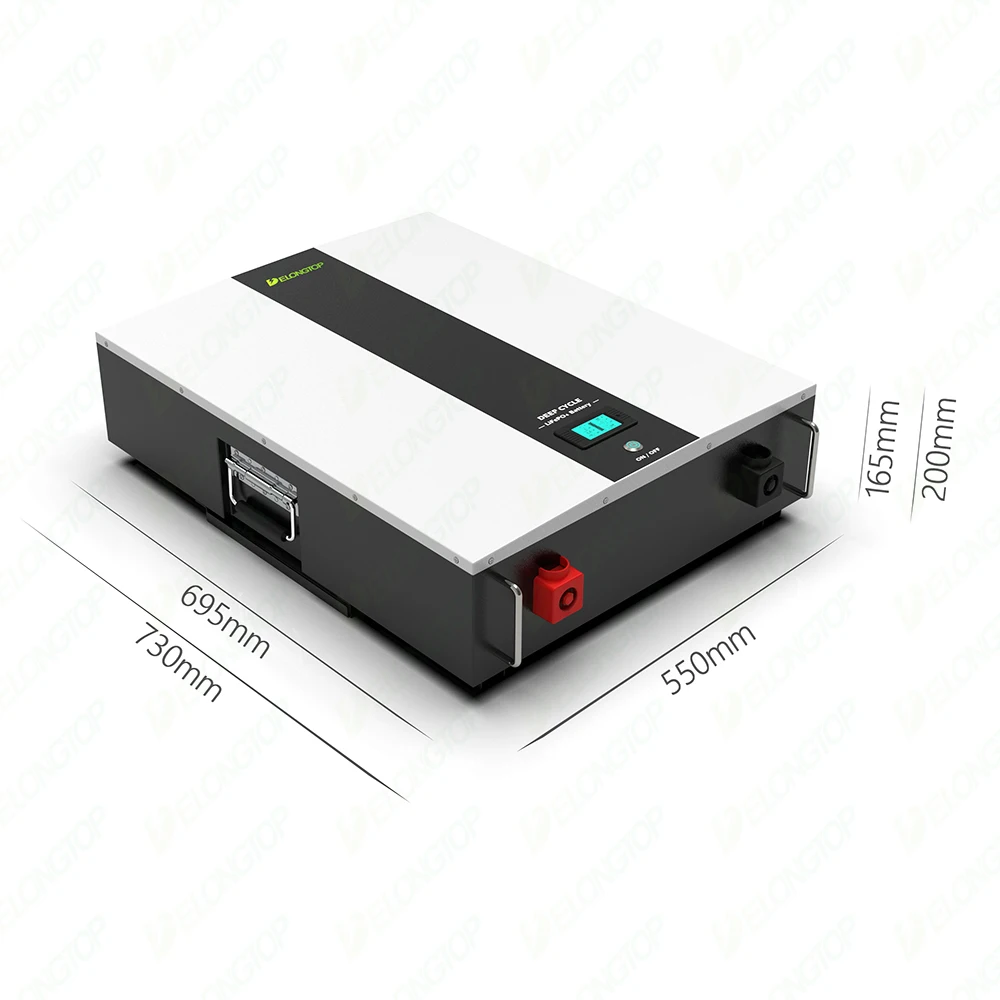

!!!We offer the following different case with different dimension for your any needed. You can choose what you need to sent inquiry. This is WALL MOUNTED battery case for solar system.
24V100ah or 48V 50ah 24V200ah or 48V100ah
48V 160ah wall mounted battery 48V 200ah wall mounted battery

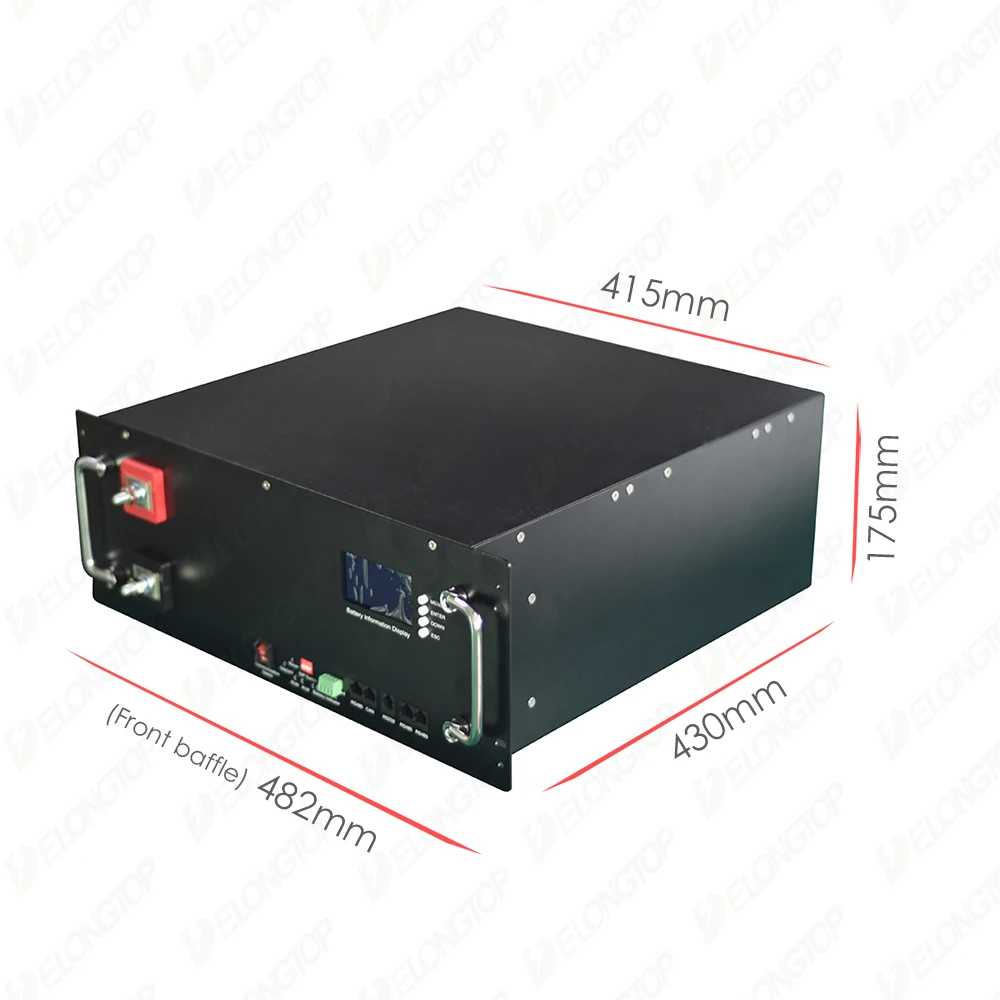

Rack solar storage battery with communication RS485 CAN :
Delong LFP lithium lifepo4 battery series battery ! | ||||||||
Voltage&Capacity | Maximum charge voltage | Discharge voltage | Cycle life | Dimension & weight | ||||
12V 7AH | 14.6V | 9.2V | ≥3000 -8000 | 151*65*95MM 720G | ||||
12v 10AH | 14.6V | 9.2V | ≥3000 -8000 | 151*65*95MM 1.2KG | ||||
12v 12AH | 14.6V | 9.2V | ≥3000-8000 | 151*99*95MM 1.5KG | ||||
12V 20AH | 14.6V | 9.2V | ≥3000-8000 | 181*76*170MM 2.2KG | ||||
12V 25AH | 14.6V | 9.2V | ≥3000-8000 | 174*165*125MM 3KG | ||||
12V 30AH | 14.6V | 9.2V | ≥3000-8000 | 182*130*195mm 3.8KG | ||||
12V 40AH | 14.6V | 9.2V | ≥3000-8000 | 195*132*170MM 4.2KG | ||||
12V 50AH | 14.6V | 9.2V | ≥3000-8000 | 260*168*211MM 5.5KG | ||||
12V 75AH | 14.6V | 9.2V | ≥3000-8000 | 260*168*211MM 7.5KG | ||||
12V 100AH | 14.6V | 9.2V | ≥3000-8000 | 329*172*217MM 11KG | ||||
12V 120AH | 14.6V | 9.2V | ≥3000-8000 | 329*172*217MM 13KG | ||||
12V 150AH | 14.6V | 9.2V | ≥3000-8000 | 490*170*240MM 15KG | ||||
12V 200AH | 14.6V | 9.2V | ≥3000-8000 | 521*238*218MM 24KG | ||||
12V 300AH | 14.6V | 9.2V | ≥3000-8000 | 520*320*175mm 40KG | ||||
12V 400AH | 14.6V | 9.2V | ≥3000-8000 | 450*360*1750mm 45KG | ||||
24V 40AH | 29.2V | 18.4V | ≥3000-8000 | 262*182*215MM 10KG | ||||
24V 50AH | 29.2V | 18.4V | ≥3000-8000 | 329*172*217MM 11KG | ||||
24V 60AH | 29.2V | 18.4V | ≥3000-8000 | 255*160*250mm 16KG | ||||
24V 80AH | 29.2V | 18.4V | ≥3000-8000 | 490*170*240MM 15KG | ||||
24V 100AH | 29.2V | 18.4V | ≥3000-8000 | 521*238*218MM 24KG | ||||
24V 200AH | 29.2V | 29.2V | ≥3000-8000 | 450*360*175mm 45KG | ||||
36V 40AH | 43.8V | 27.6V | ≥3000-8000 | 382*182*125mm 15KG | ||||
36V 100AH | 43.8V | 27.6V | ≥3000-8000 | 360*360*175mm 35KG | ||||
48V 50AH | 58.4V | 36.9V | ≥3000-8000 | 521*238*218MM 24KG | ||||
48V 60AH | 58.4V | 36.9V | ≥3000-8000 | 550*390*250MM 32KG | ||||
48V 80AH | 58.4V | 36.9V | ≥3000-8000 | 800*300*240MM 43KG | ||||
48V 100AH | 58.4V | 36.9V | ≥3000-8000 | 450*375*185mm 45KG | ||||
48V 200AH | 58.4V | 36.9V | ≥3000-8000 | 870*368*170MM 90KG | ||||
60V 100AH | 73V | 46V | ≥3000-8000 | 530 x 360 x 170 55KG | ||||
72V 100AH | 87.6V | 55.2V | ≥3000-8000 | 660*360*180mm 61KG | ||||
72V 200AH | 87.6V | 55.2V | ≥3000-8000 | 720*W360*230mm 125KG | ||||
96V 100AH | 109.5V | 69V | ≥3000-8000 | 870*368*170MM 90KG | ||||
Details Images
Packing&Shipping
Delivery time : Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to quanity or other reason.
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.
Shipping way:
DHL, UPS, Fedex, Special Line, Sea shipping, Customer own forwarder
Company Introduction
★ Delong company has focused on research,manufacture and sales of lithium battery industrial over 9 years
①Original factory+
①Original factory+
②Competitive price+
③Reliable after-sales services +
④Complete quality management system+Real certificate(CE,RoHs, UN38.3, MSDS ETC）+ ⑤Cooperated with many big distributors in many countries, such as USA, CA, UK, France, Italy and so on
Other on-line contact way:
EM：Battery003@delongbattery.com WA: +86 17325986629
EM：Battery003@delongbattery.com WA: +86 17325986629

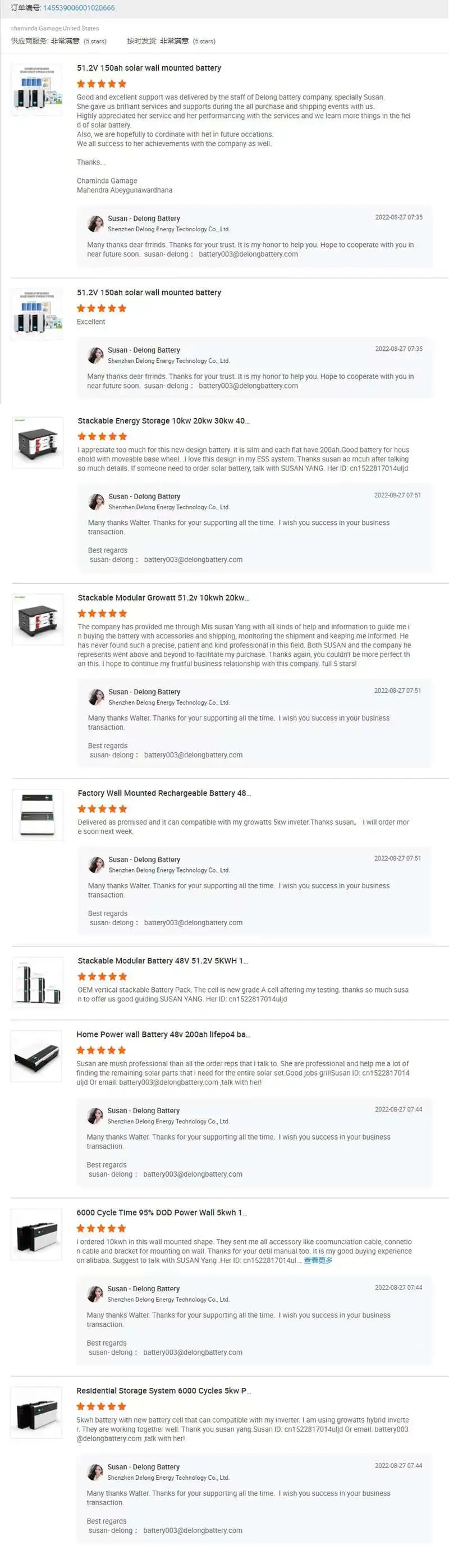

Customer Feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are DELONG original factory from shenzhen , China.
A: We are DELONG original factory from shenzhen , China.
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
