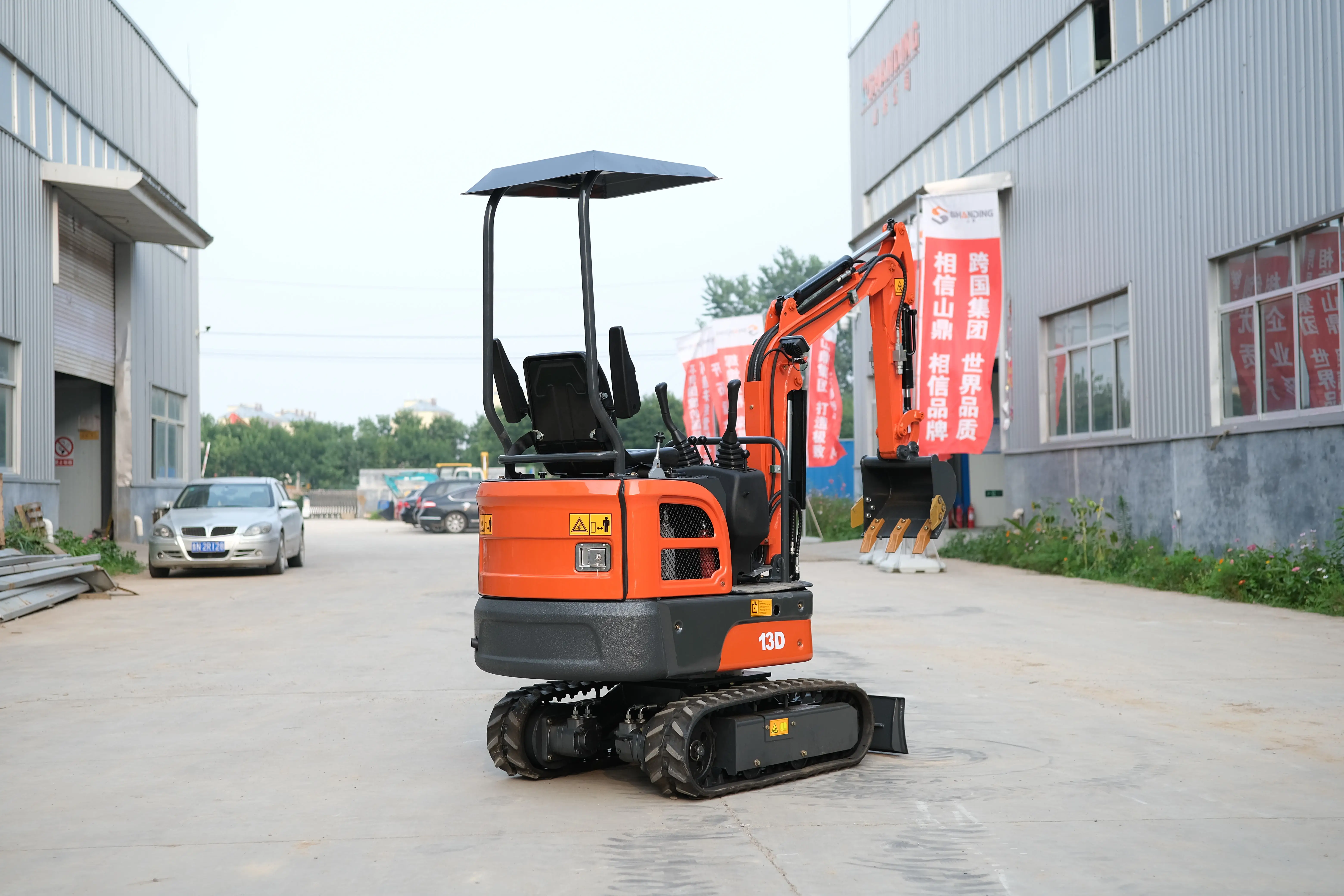

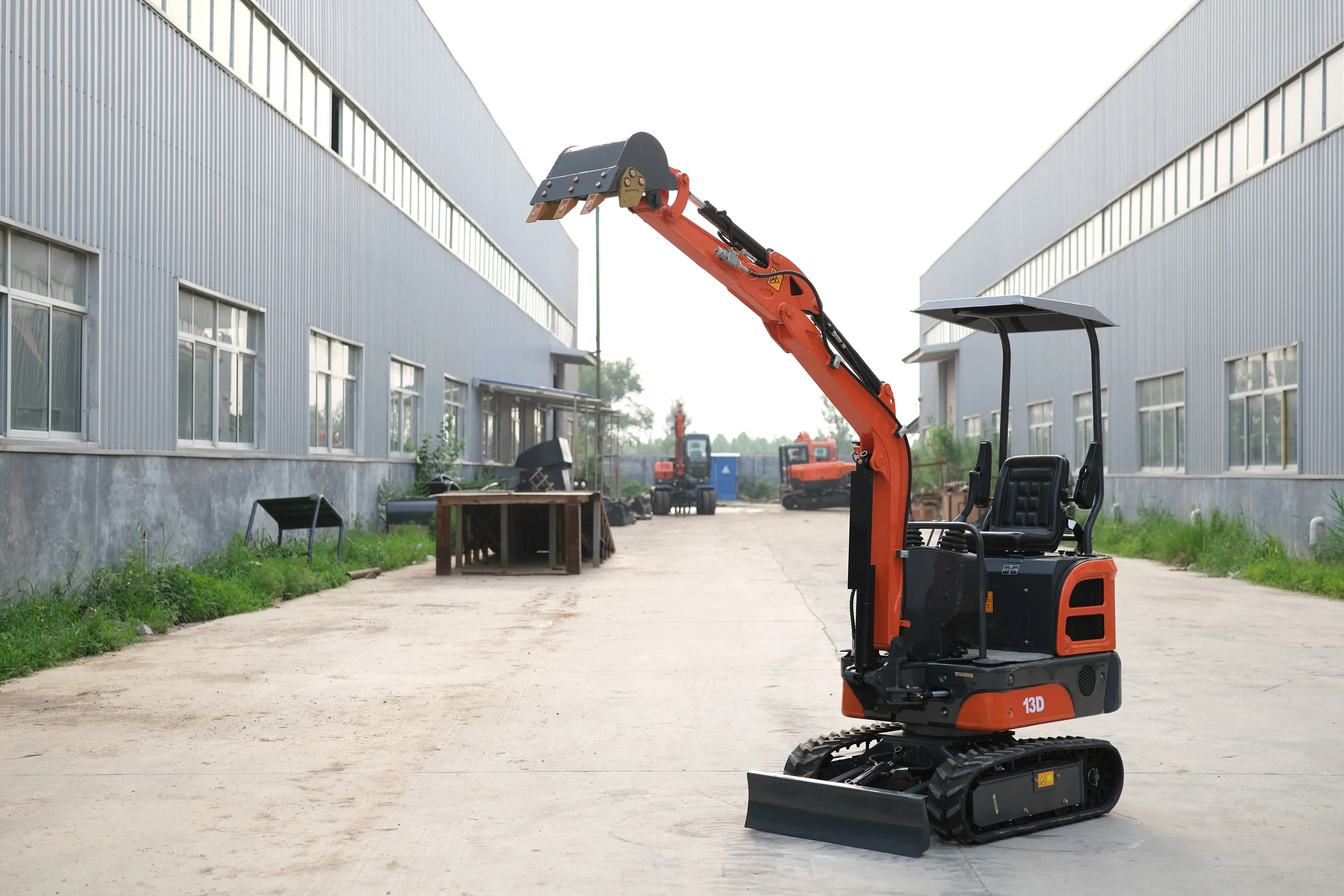

Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator
Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator

Shanding SD13D Mini Track Crawler Micro Digger Tractor Small Excavator

Share on (1600402004011):


Price:$7,100.00 - $7,250.00

Quantity:


Product Overview

Description

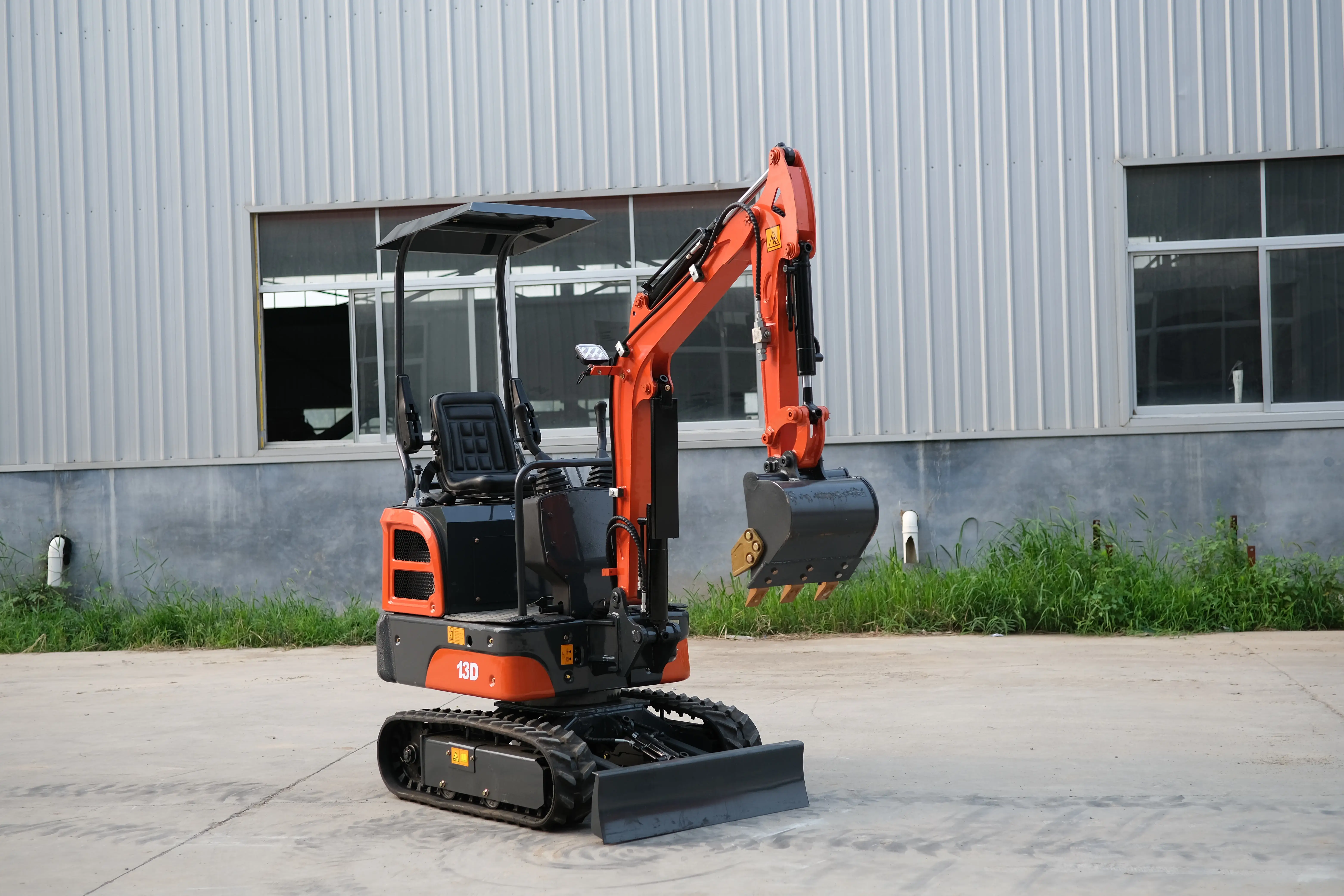

Shanding SD13D Mini Track Crawler Small Excavator Micro Digger Tractor for Sale


we are looking for agents and partners.Welcome to join us.

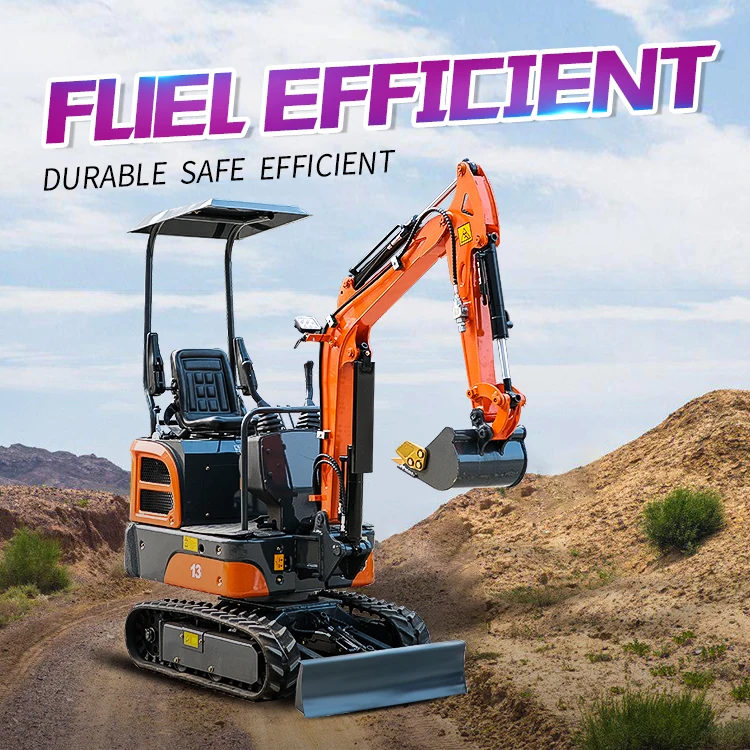

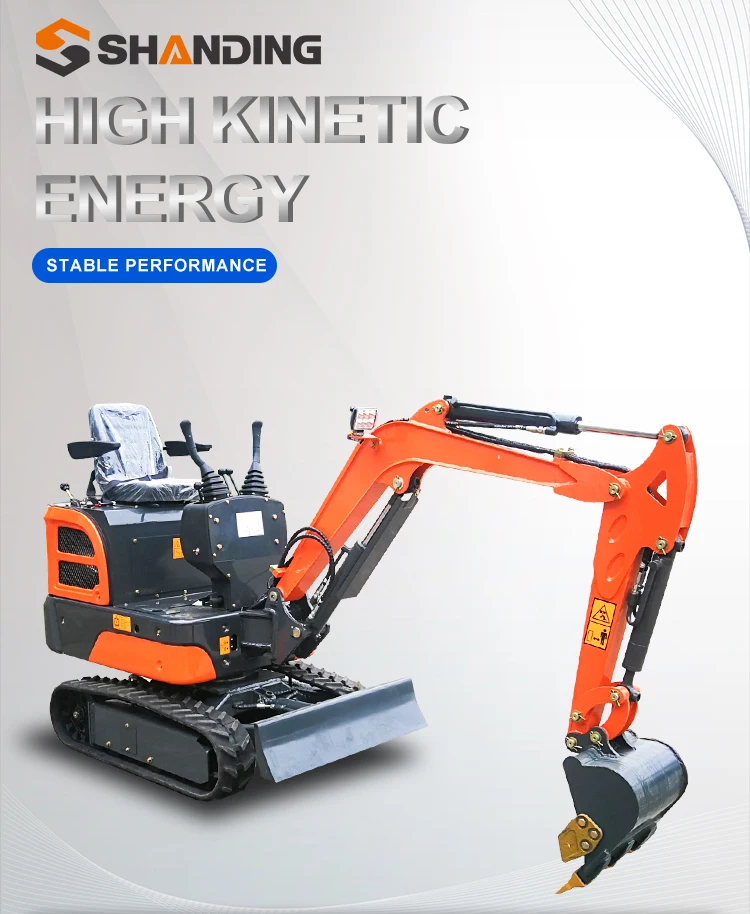

13D01SD12D_05

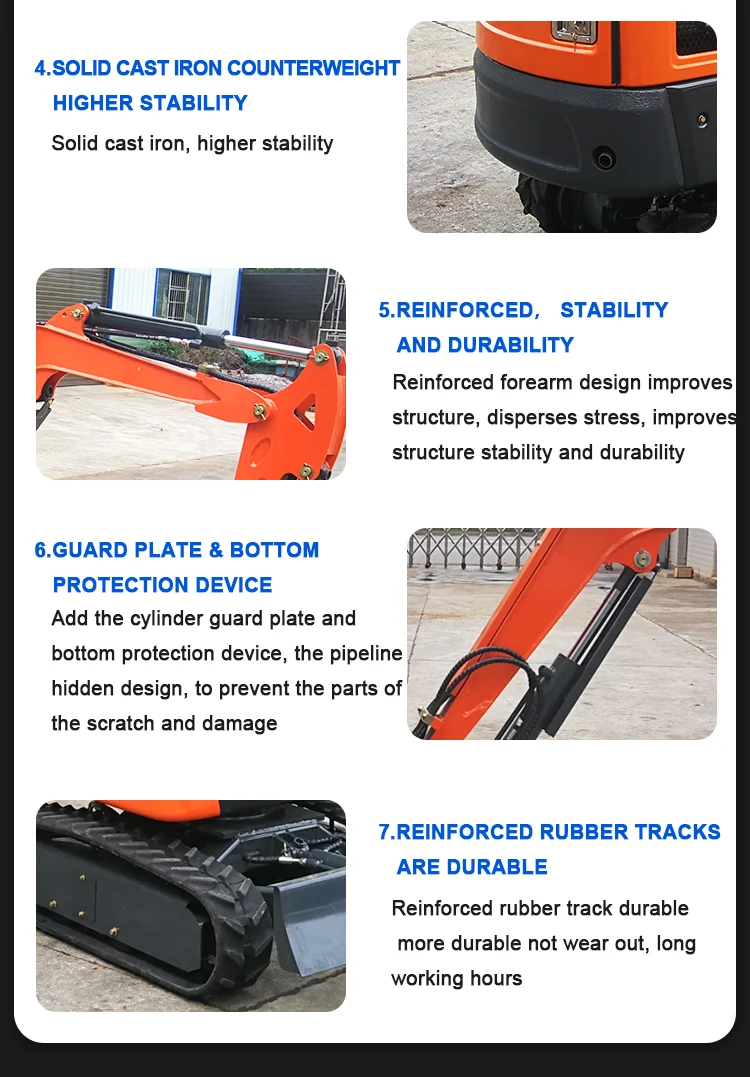

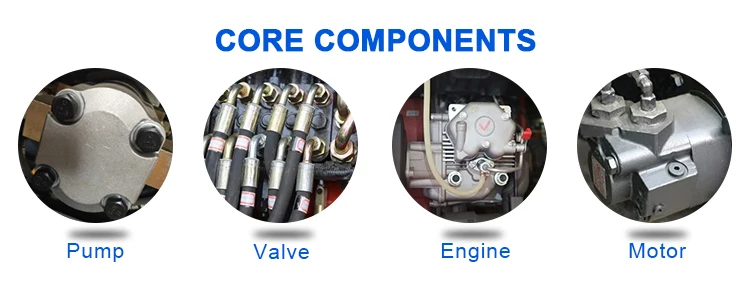

SD12D_07SD12D_04

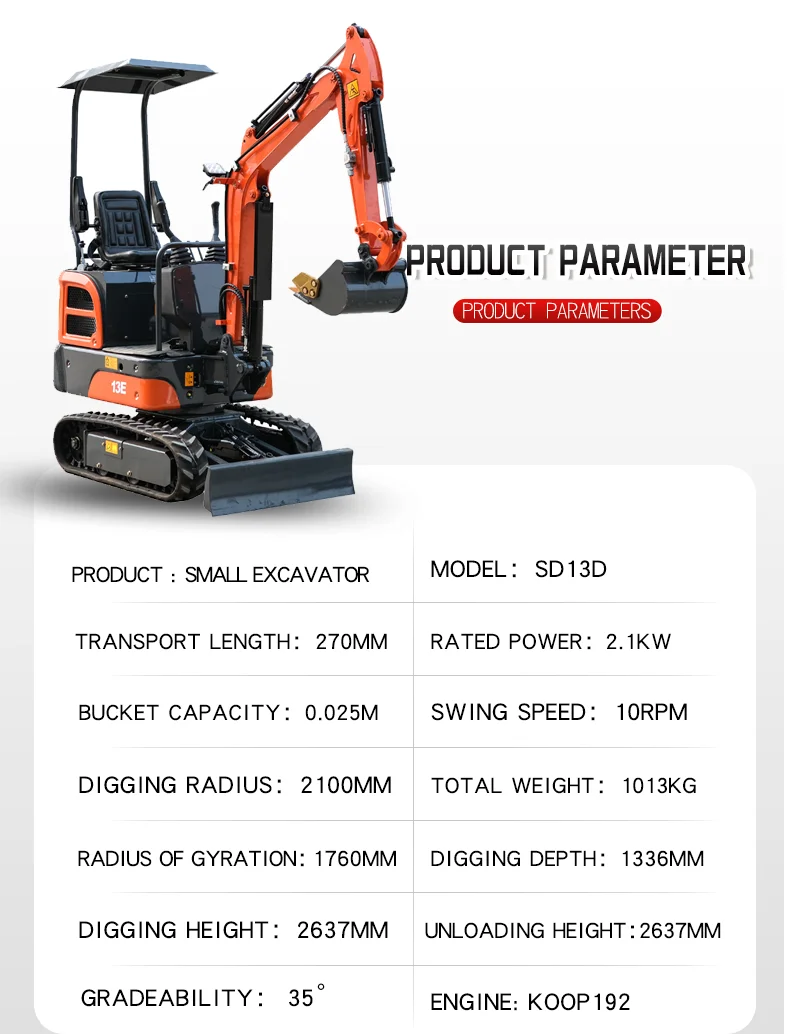

Machine parameters



Model



SD13D



Operating Weight



1180Kg



Bucket Capacity



0.028m³



Rated Power



10.2kw



Max.Hydraulic System Pressure



16mpa



Max. Grade ability



30°



Max. Ground Pressure



18.9N/m²



Max Walking Speed



2.1Km/h



Max. Traction



9.2KN



Platform Rotary Speed



9-11r/min



Boom swing function



yes



Dimensions



Overall Length



2770mm



Overall Width



925mm



Overall Height



1550mm/2100(Chair/Roof)



Arm  Length



800mm



Boom  Length



1490mm



Track Length



1210mm



Track Width



180mm



Ground Clearance



240mm



Platform Width



920mm



Platform Ground Clearance



420mm



Bucket Width



370mm



Working range



Max. Digging Height



2650mm



Max Digging Depth



1650mm



Max. Digging Radius



2950mm



Max Dumping Height



1750mm



Min. Radius of Gyration



1150mm



Radius of Tail Gyration



680mm



Max. Sinking Depth of Bulldozer



230mm



Max. Lifting Depth of Bulldozer



210mm



Machine configure



Engine  Model



kubota



Main valve



Beifang



Main Pump



Tianji



Rotation Motor



SANYO



Walking Motor



SANYO




RELATE PRODUCTS:click the photo to get more information


SD12D

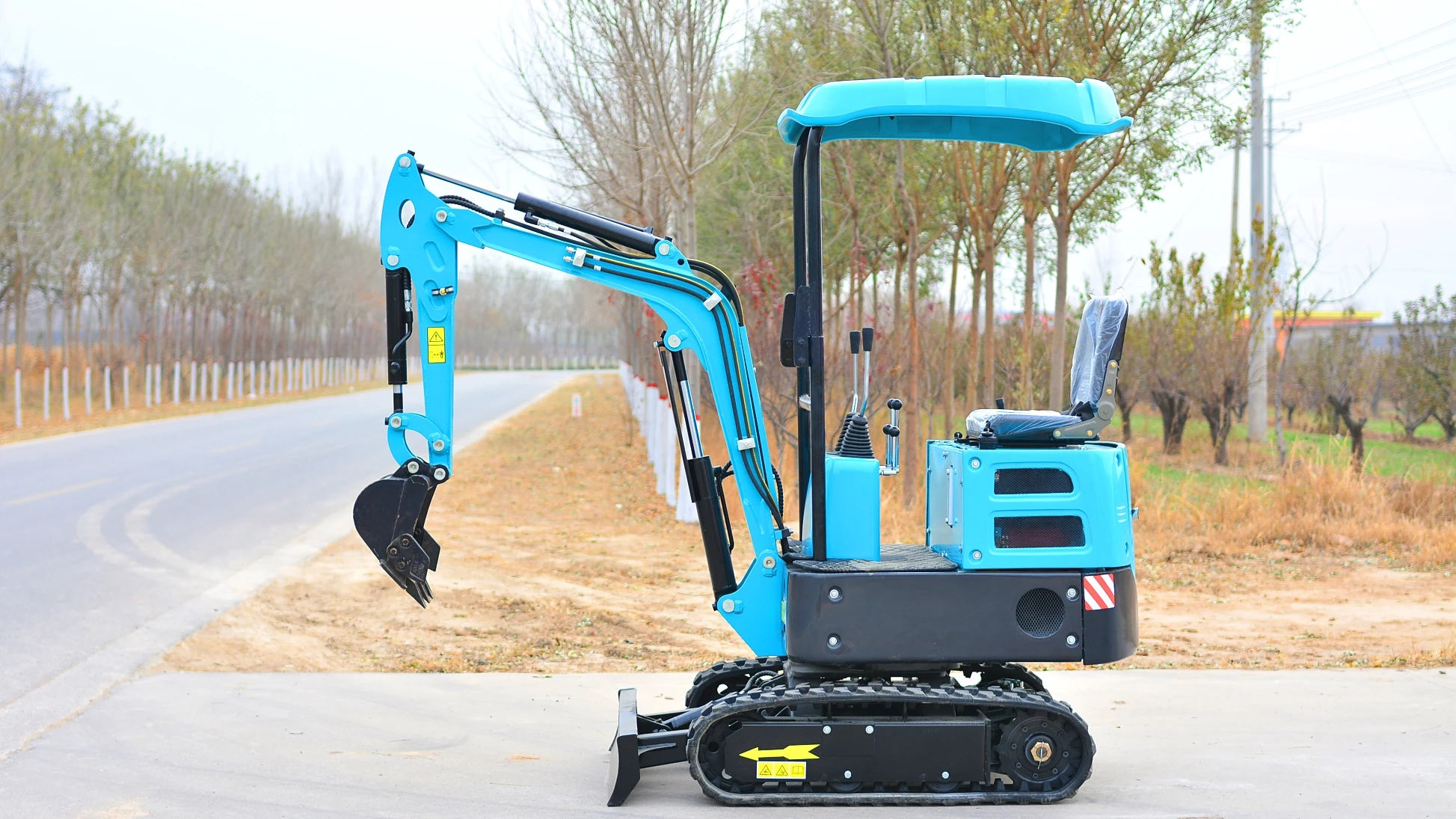

12D blue





SD17B

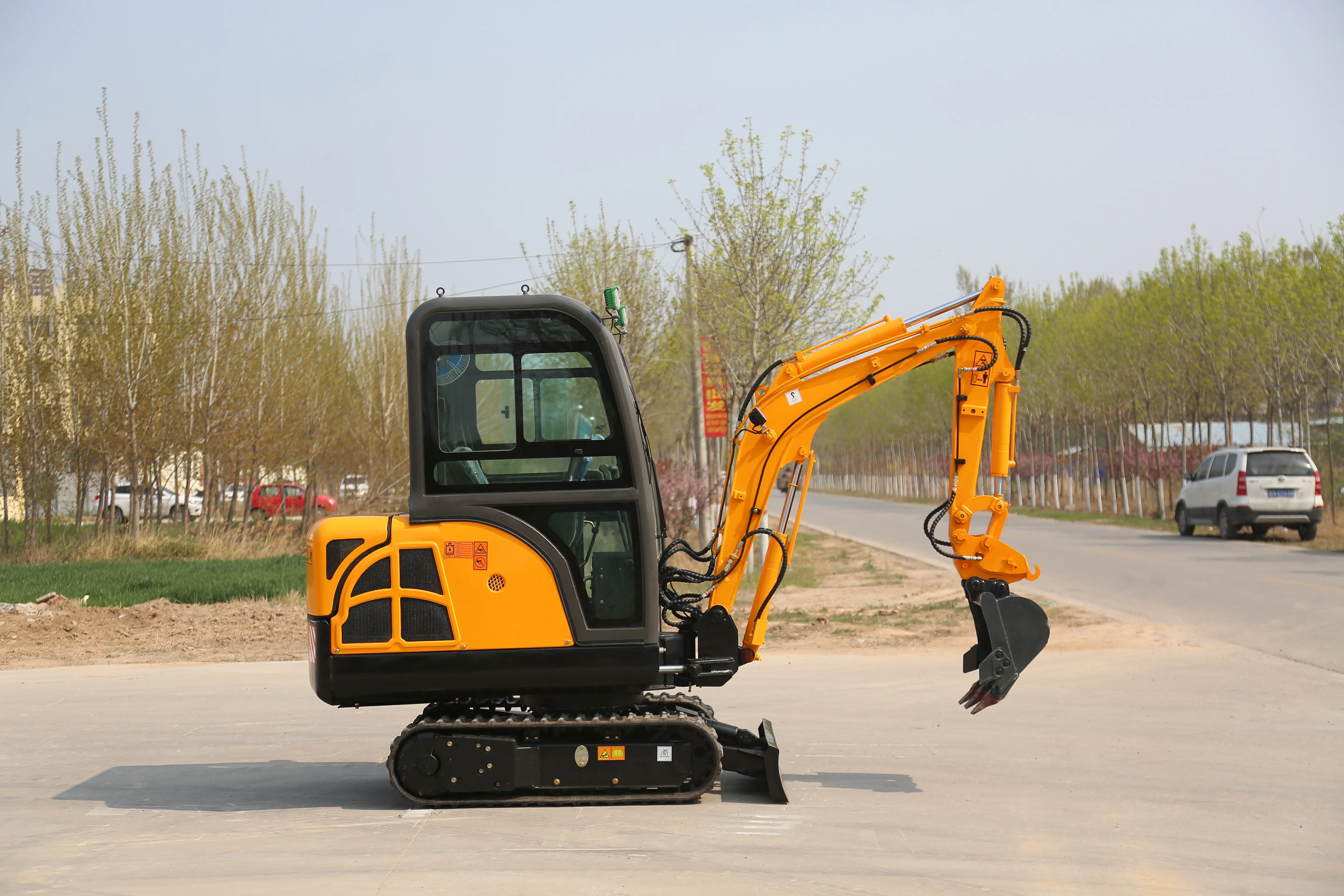

17B.2 -

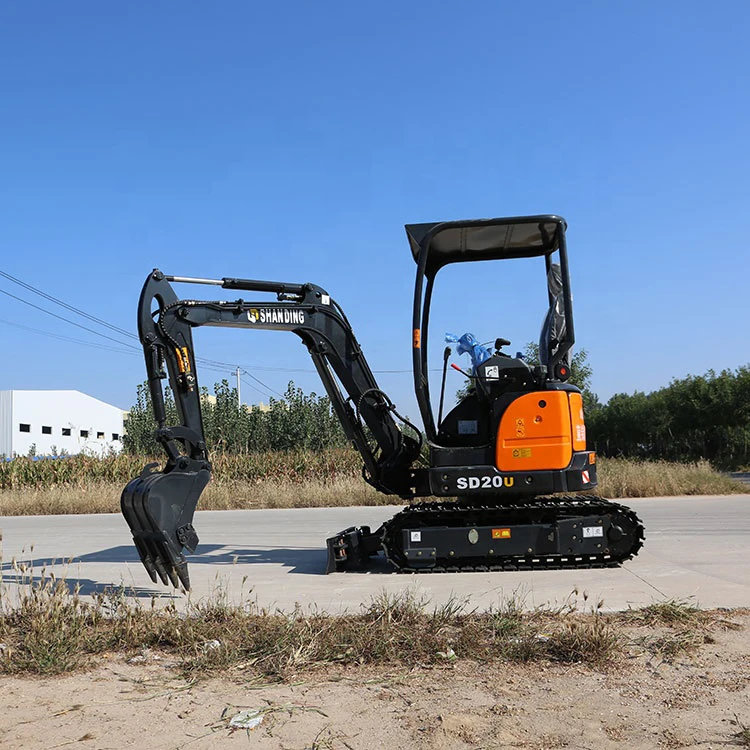

SD20U


photobank (16)


SD25U

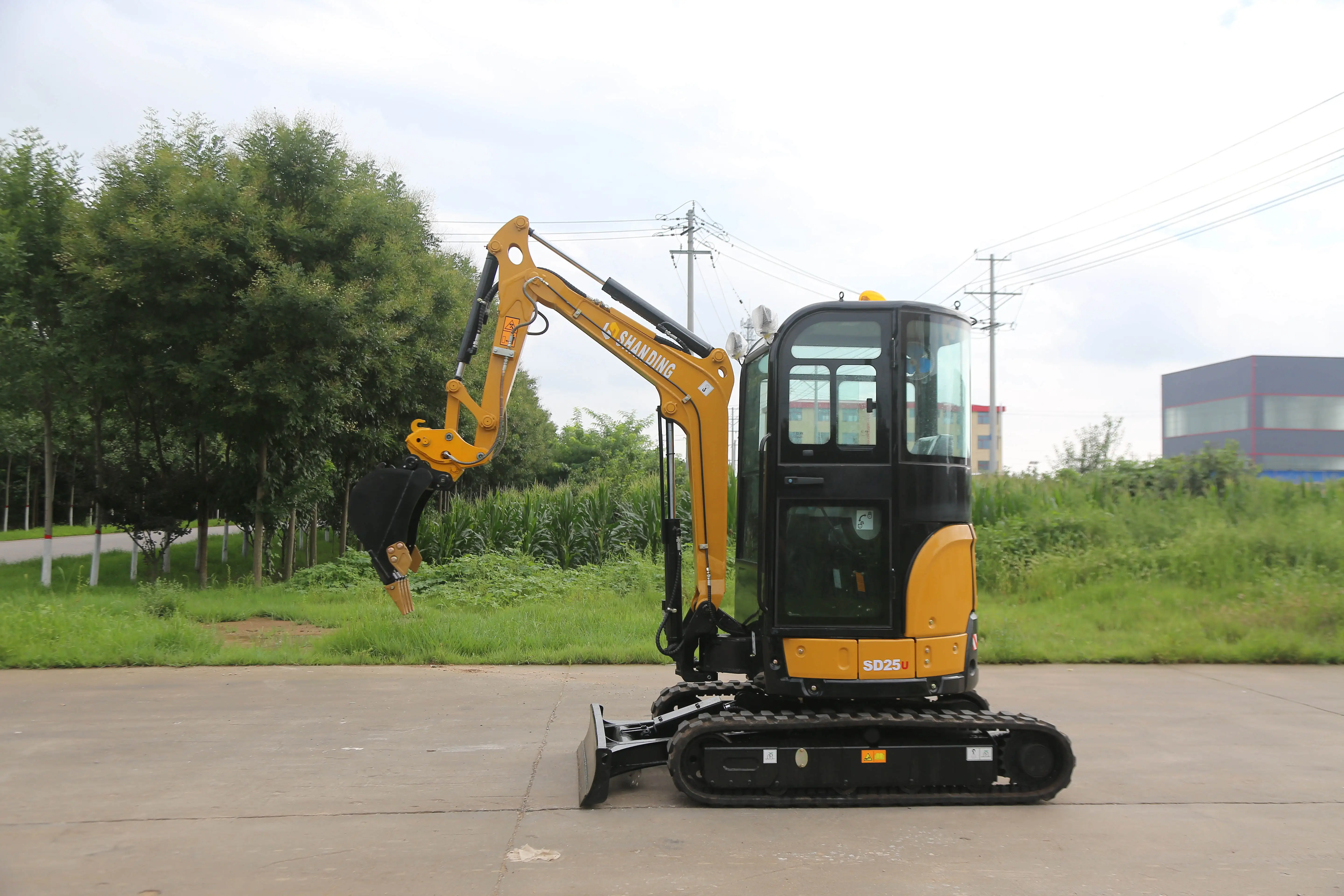

25U3
